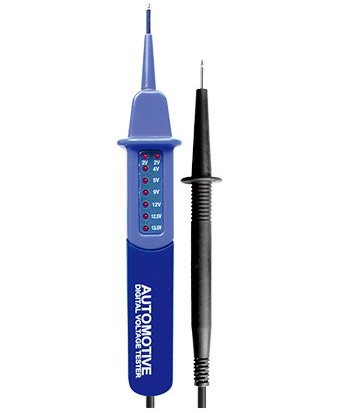

Automotive Voltage Tester

Automotive Voltage Tester

AMT100

Suitable for checking continuity/broken wires

finding line wires, D.C. voltage LED display

2, 3, 4, 5, 12 , 12.5, 13.5V,

vehicle battery testing

Spark plug ignition voltage test.

Sensor input and output signals test

Suitable for 12V/D.C. systems

For checking continuity/broken wires, finding live

wires, other D.C. voltage testing from 0-12V,vehicle

battery testing spark plug ignition voltage test.

Introduce

·Suitable for checking continuity/broken wires finding line wires, D.C.

·voltage LED display 2, 3, 4, 5, 12 , 12.5, 13.5V,

·vehicle battery testing

·Spark plug ignition voltage test

·Sensor input and output signals test

·Suitable for 12V/D.C. systems

·For checking continuity/broken wires, finding live wires, other D.C. voltage

·testing from 0-12V,vehicle battery testing spark plug ignition voltage test.

Specification

·Voltage Range:2V/3V/4V/5V/9V/12V/12.5V/13.5V

·Indication: LED lights up to the Voltage

·Frequency range:0Hz-60Hz

Functions/ Features

SRT15C

Voltage LED Steps (AC/D)

12V: between 0 to 12V LED will illuminate
24V: between 19V ± 2V LED will illuminate
50V: between 48V ± 6V LED will illuminate
120V: between 110V ± 20V LED will illuminate
230V: between 200V ± 20V LED will illuminate
400V: between 340V ± 30V LED will illuminate
690V: between 520V ± 30V LED will illuminate

Continuity Test

Range 0 to 100kΩ. The continuity LED will illuminate
and buzzer will sound.

Phase Rotation Test

50Hz to 60Hz

Range Selection

Automatic

Polarity Detection

Positive & Negative

Low Battery Display

Short circuit two leads, LED and beeper do not on that means
the battery is low

Torch

Yes

Single Lead (L2) Voltage
Detection

It is intended only as a quick check. 100V to 690V;
50Hz to 400Hz

Short Circuit Detection

Yes

LCD display (AC/DC)

24V to 690V: ±(3%+5)

( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )
