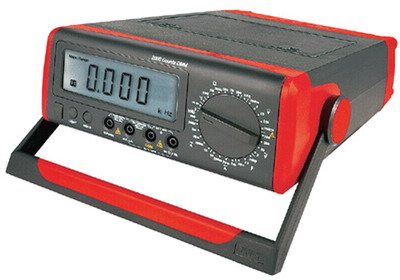

SRT801  Bench Type Digital Multimeters

SPECIFICATIONS

Basic Functions

Range

Best Accuracy

DC Voltage

200mV/2V/20V/200V/1000V

+/-(0.5%+2)

AC Voltage

2V/20V/200V/1000V

+/-(0.8%+3)

DC Current

200µA/2mA/20mA/200mA/10A

+/-(0.8%+2)

AC Current

2mA/20mA/200mA/10A

+/-(1.0%+3)

Resistance

200次/2k次/20k次/200k次/2M次/20M次

+/-(0.8%+3)

Capacitance

20nF/2µF/200µF

+/-(4%+3)

Frequency

2kHz/200kHz

+/-(1.5%+5)

Temperature (∼C)

-40∼C ~ 1000∼C

+/-(1.2%+3)

Special Functions



Transistor



Yes

Sleep Mode



Yes

Diode



Yes

Continuity Buzzer



Yes

Display Backlight



Yes

REL



Yes

Max/Min Mode



Yes

Low Battery Display



Yes

Input Impedance for DC Voltage Measurement

>10M次

Yes

Data Hold



Yes

Max. Display

1999



GENERAL CHARACTERISTICS

Power

AC220V/50Hz or 1.5V Battery x 6 (R14)

LCD Size

108 x 35mm

Product Colour

Red and Grey

Product Net Weight

1500g

Product Size

300 x 245 x 105mm

Standard Accessories

Test Lead, AC220V Power Cord,English Manual, Point Contact Temperature Probe, Multi-Purpose Socket

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

4 pcs

Standard Carton Measurement

685 x 370 x 325mm (0.082CBM Per Export Carton)

Standard Carton Gross Weight

14kg

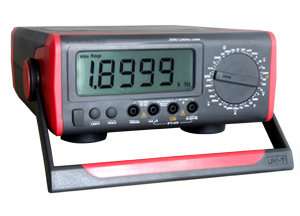

SRT802  Bench Type Digital Multimeters

SPECIFICATIONS

Basic Functions

Range

Best Accuracy

DC Voltage

200mV/2V/20V/200V/1000V

+/-(0.1%+3)

AC Voltage

2V/20V/200V/1000V

+/-(0.5%+20)

DC Current

200µA/2mA/20mA/200mA/10A

+/-(0.5%+20)

AC Current

2mA/20mA/200mA/10A

+/-(0.8%+40)

Resistance

200次/2k次/20k次/200k次/2M次/20M次

+/-(0.5%+10)

Capacitance

20nF/2µF/200µF

+/-(4%+10)

Frequency

2kHz/200kHz

+/-(1.2%+10)

Temperature (∼C)

-40∼C ~ 1000∼C

+/-(1.2%+25)

Special Functions



Transistor



Yes

Sleep Mode



Yes

Diode



Yes

Continuity Buzzer



Yes

Display Backlight



Yes

REL



Yes

Max/Min Mode



Yes

Low Battery Display



Yes

Input Impedance for DC Voltage Measurement

>10M次

Yes

Data Hold



Yes

Max. Display

1999



GENERAL CHARACTERISTICS

Power

AC220V/50Hz or 1.5V Battery x 6 (R14)

LCD Size

108 x 35mm

Product Colour

Red and Grey

Product Net Weight

1500g

Product Size

300 x 245 x 105mm

Standard Accessories

Test Lead, AC220V Power Cord,English Manual, Point Contact Temperature Probe, Multi-Purpose Socket

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

4 pcs

Standard Carton Measurement

685 x 370 x 325mm (0.082CBM Per Export Carton)

Standard Carton Gross Weight

14kg

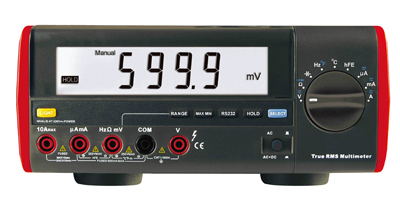

SRT803 Digital Bench-Type Autoranging True RMS Multimeters

SPECIFICATIONS

Basic Functions

Range

Best Accuracy

DC Voltage

600mV/6V/60V/600V/1000V

+/-(0.3%+2)

AC Voltage

600mV/6V/60V/600V/1000V

+/-(0.6%+5)

DC Current

600µA/6000µA/60mA/600mA/10A

+/-(0.5%+3)

AC Current

600µA/6000µA/60mA/600mA/10A

+/-(1%+5)

Resistance

600次/6k次/60k次/600k次/6M次/60M次

+/-(0.5%+2)

Capacitance

6nF/60nF/600nF/6µF/60µF/600µF/6mF

+/-(2%+5)

Temperature (oC)

-40∼C ~ 1000∼C

+/-(1%+3)

Temperature (oF)

-40∼F ~ 1832∼F

+/-(1.5%+5)

Frequency

6kHz/60kHz/600kHz/6MHz/60MHz

+/-(0.1%+3)

Special Functions





Fused 10A Range



Yes

Auto Ranging



Yes

Voltage & Current : AC+DC Measurement



Yes

AC Voltage Frequency

100kHz True RMS

Yes

Diode



Yes

Continuity Buzzer



Yes

Transistor



Yes

Max/Min Mode



Yes

Data Hold



Yes

RS232C



Yes

USB



Yes

Display Backlight



Yes

Full Icon Display



Yes

Sleep Mode



Yes

Low Battery Display



Yes

Input Impedance for DC Voltage Measurement

600mV Range Around 3G次
All Other Ranges: 10M次

Yes

Max. Display

5999

Yes

GENERAL CHARACTERISTICS

Power

AC220V/50Hz or 1.5V Battery(R14) x 6

LCD Size

128 x 28mm

Product Colour

Red and Grey

Product Net Weight

2.4kg

Product Size

310 x 240 x 105mm

Standard Accessories

Test Lead, AC220V Power Cord,English Manual, Point Contact Temperature Probe, Alligator Clip,Multi-Purpose Socket,
RS232C Interface Cable,USB Interface Cable, Software

Optional Accessories*

1.5V Battery(R14) x 6

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

4pcs

Standard Carton Measurement

685 x 370 x 325mm (0.083 CBM Per Standard Carton)

Standard Carton Gross Weight

15kg

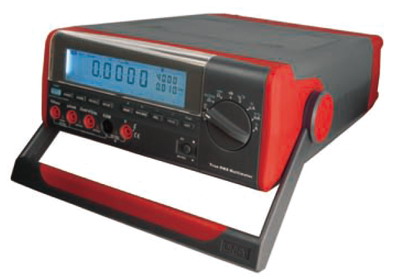

SRT804 Bench Type Digital Multimeters

SPECIFICATIONS

Basic Functions

Range

Best Accuracy

DC Voltage

400mV/4V/40V/400V/1000V

+/-(0.025%+5)

AC Voltage

4V/40V/400V/1000V

+/-(0.4%+30)

AC Bandwidth

100kHz

Yes

DC Current

400mA /4000mA/40mA/400mA/10A

+/-(0.1%+15)

AC Current

400mA/4000mA/40mA/400mA/10A

+/-(0.7%+15)

Resistance

400次/4k次/40k次/400k次/4M次/40M次

+/-(0.3%+40)

Capacitance

40nF/400nF/4mF/40mF/400mF/4mF/40mF

+/- (1%+20)

Temperature (oC)

-40∼C ~ 1000∼C

+/-(1%+30)

Temperature (oF)

-40∼F ~ 1832∼C

+/-(1.5%+50)

Frequency

4MHz/40MHz/400MHz

+/-(0.01%+8)

Duty Cycle

100%

+/-(1.0%+40)

4~20mA Loop

0-100%

+/-(1%+50)

Special Functions





Fused 10A Range



Yes

Auto / Manual Ranging



Yes

Function Set Up



Yes

Voltage & Current : AC+DC Measurement



Yes

AC Voltage Frequency

100kHz True RMS

Yes

Data Logging



Yes

Data Recall



Yes

Diode



Yes

Continuity Buzzer



Yes

True RMS



Yes

Peak Hold



Yes

Max/Min Mode



Yes

Relative Mode



Yes

Data Hold



Yes

RS232C



Yes

USB



Yes

Display Backlight



Double

Full Icon Display



Yes

Sleep Mode



Yes

Low Battery Dlsplay



Yes

Input Impedance for DC Voltage Measurement

400mV Range: Around 4G次
All other Ranges: 10M次

Yes

Max. Display

39999

Yes

Analogue Bar Graph



Yes

GENERAL CHARACTERISTICS

Power

AC220V/50Hz or 1.5V Battery (R14) x 6

LCD Size

128 x 28mm

Product Color

Red and Grey

Product Net Weight

2.2kg

Product Size

310 x 240 x 105mm

Standard Accessories

Test Lead, Batteries, AC220V Power Cord, English Manual,Point Contact Temperature Probe,Alligator Clip, Test Clip,

RS232C Interface Cable, USB Interface Cable, Software

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

4pcs

Standard Carton Measurement

685 x 370 x 325mm (0.083CBM Per Standard Carton)

Standard Carton Gross Weight

15kg

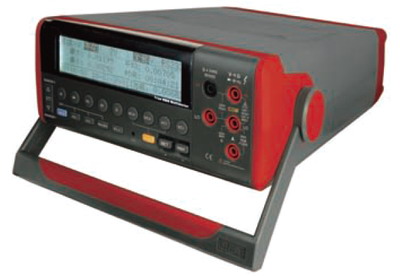

SRT805A  Bench Type Digital Multimeters

SPECIFICATIONS

Basic Functions

Range

Best Accuracy

DC Voltage

200mV/2V/20V/200V/1000V

+/-(0.015%+3)

AC Voltage

2V/20V/200V/750V

+/-(0.2%+100)

DC Current

20mA/200mA/10A

+/-(0.03%+10)

AC Current

20mA/200mA/10A

+/-(0.3%+100)

Resistance

200次/2k次/20k次/200k次/2M次/20M次

+/-(0.02%+6)

Capacitance

6nF/60nF/600nF/6µF/60µF/600µF/6mF

+/-(2%+5)

Frequency

10Hz~60MHz

+/-(0.1%+3)

Special Functions



Auto Range

 ﹛ ﹛

True RMS



Yes

Bandwidth

100KHz

Yes

Diode



Yes

Continuity Buzzer



Yes

Data Hold

 ﹛

Yes

Relative Mode



Yes

Max/Min Mode



Yes

Data Logging



100

Data Recall

 ﹛

Yes

RS-232

 ﹛

Yes

USB Interface

 ﹛

Yes

LCD Backlight

 ﹛

Yes

Dot-matrix Liqid Crystal Display

256x64 Pixels

Yes

Setup

 ﹛

Yes

Input Protection

 ﹛

Yes

Input Impedance for DCV

2V Range: Around 10G次  All other Ranges: Around 10M次

Yes

Voltage & Current: AC+DC



Yes

Max. Display

199999

Yes

GENERAL CHARACTERISTICS

Power

AC220V/50Hz

LCD Size

128 x 28mm

Product Colour

Red and Grey

Product Net Weight

1.5Kg

Product Size

300 x 245 x 105mm

Standard Accessories

Test Lead, AC220V Power Cord, Software, RS-232 Interface Cable, USB Interface Cable, PC Software CD, Alligator Clip, Multi-Purpose Socket, Test line

Standard Individual Packing

Gift Box, English Manual

Standard Quantity Per Carton

4 pcs

Standard Carton Measurement

685 x 370 x 325mm (0.082CBM Per Export Carton)

Standard Carton Gross Weight

15kg
﹛ ﹛

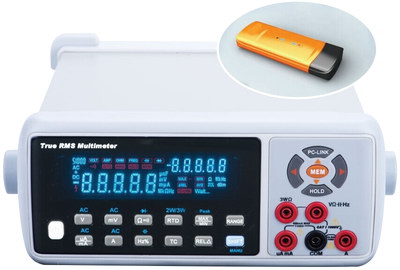

SRT801C  Bench Type Digital Multimeters

﹛

Features:

Auto range, True RMS.

Display: 2 line VFD

Normal Function: MAX/MIN, Peak, Hold, Relative, dBm

Extend Function: data logging, USB communication, RS232 commnunication, Bluetooth communication, SD card record, USB disk record, LAN communication.

Specifications

DC Voltage:

600.00mV/6.0000V/60.000V/600.00V/1000.0V +/-(0.02%)

AC Voltage:

600.00mV/6.0000V/60.000V/600.00V/1000.0V +/-(0.8%)

DC Current:

60.000µA/600.00µA/60.000mA/600.00mA/10.000A +/-(0.2%)

AC Current:

60.000µA/600.00µA/60.000mA/600.00mA/10.000A +/-(0.75%)

Frequency: 10.000Hz ~ 6.0000MHz +/-(0.01%)

Resistance:

600.00/6.0000K/60.000K/600.00K/6.0000M/60.000M次 +/-(0.3%)

Capacitance:

6.0000nF/60.000nF/600.00nF/6.0000µF/60.000µF/600.00µF/6.0000mF/60.000mF +/- (3.0%)

Thermocouple Temperature: -200.0 ~ 1200.0∼C K/J/T/E/R/S/B/N

RTD Temperature: -200.0 ~ 600.0∼C PT100/PT500/PT1000/Cu50/Ni120

Memory: 16000 points internal/USB disk or SD card external

Power: 110/220VAC



﹛ ﹛

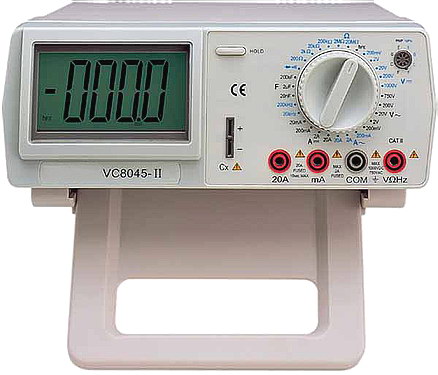

Model SRT8045-II  4 2/1 Bench-Type Digital Multimeter

﹞4 2/1 high performance Bench-type DMM, Liquid crystal display.
﹞It can be used to measure DC and AC Voltage, DC and AC current, Resistance, Capacitance,   Hz, hFE, Diodes and Continuity.
﹞The max. voltage measuring can up to 1000V DC or AC peak value. Resolution can be 10u V,   and current measuring can up to 20A, it also has the function of polarity auto-change,   backlight displaying and directly reading.
﹞For AC measuring, it is performed by high accuracy true RMS, has the feature of width   measuring and to get accurate rms for AC flow of any wave shape.

﹛

Basic Function

Range

Basic accuracy

DC Voltage

200mV/2V/20V/200V/1000V

+/-(0.05%+3)

AC Voltage

200mV/2V/20V/200V/750V

+/-(0.8%+80)

DC Current

20mA /200mA /2A/20A

+/-(0.35%+10)

AC Current

200mA/2A/20A

+/-(0.8%+80)

Resistance

200次/2k次/20k次/200k次/2M次/20M 次

+/-(0.1%+5)

Frequency

20kHz/200kHz

+/-(1.0%+20)

Capacitance

20nF/2uF/200uF

+/-(3.5%+20)



Special Function

Diode test

Yes

Triode test

Yes

Continuity buzz er

Yes

Overload protection

Yes

Input impedance

10 妙次

AC frequency response

3 times/s

Sampling rate

40~50kHz

Operation way

Manual range

Max. Display

19999

Dimension

245*220*82mm

Weight

Approx:1Kg

Power

AC220V/110V 50Hz/60Hz

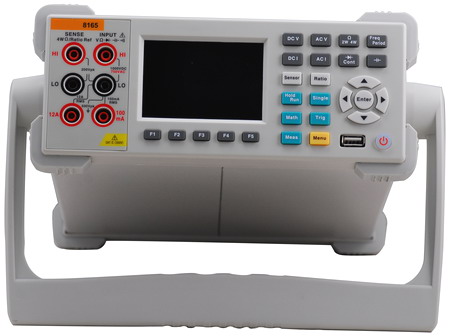

Model

SR8165A

SR8165

Display

3.5 inches color screen (with resolution of 320*480)

Displayed digit

6 1/2

Signal terminal

Front/Rear

Front

Maximum measuring speed

2300 readings/second

Function

Item

Uncertainty, ㊣ (% measurement value + % measurement range)

DCV

Uncertainty

0.0030+0.0005

Measurement range

0mV-1000V

Maximum resolution

100nV

ACV

Uncertainty

0.06+0.03

Measurement range

1mV-750V

Maximum resolution

100nV

Frequency range

3Hz-300kHz

DCI

Uncertainty

0.05+0.006

Measurement range

0uA-12A

Maximum resolution

100pA

ACI

Uncertainty

0.10+0.04

Measurement range

1uA-12A

Maximum resolution

100pA

Frequency range

3Hz-10kHz

Resistance

Uncertainty

0.01+0.001

Measurement range

0次-1G次

Maximum resolution

10u次

Frequency/period

Uncertainty

0.007

Measurement range

3Hz-300kHz

Maximum resolution

1uHz

Capacitance

Uncertainty

1+0.3

Measurement range

0nF-100mF

Maximum resolution

1pF

On-off/Diode

Yes

Proportion (DC: DC)

Reference terminal range

100mV-10V

Input terminal range

100mV-1000V

Temperature

Type

Platinum resistance, thermistor and user-defined sensor

Maximum resolution

0.001⊥

Math function

Relative (ax+b), maximum/minimum/average, standard deviation, dB, dBm, reading-keeping and limits test

Graph

Histogram and tendency chart

Interface

RS-232, IEEE 488, LAN, USB Device, USB Host, Trig IN/OUT

Programming language

SCPI compatible with Agilent 34401A and Fluke 45

﹛
