SRF800 series Function/ Arbitrary Waveform Generator
Key Features:

* Advanced DDS technology,125 MSa/s sampling rate, 14 bit vertical resolution
* Single channel output, 5 kinds of standard waveforms, built-in 46 kinds of arbitrary waveforms (including DC)
* Complete modulation functions: AM, DSB-AM, FM, PM, FSK, ASK, PWM, linear/logarithmic sweep and burst
* Innovative EasyPulse technology, can output pulse of low jitter, quick rising/falling edge
* Standard interfaces: USB Device, USB Host, support U-Disk storage and software update
* Provide 10 nonvolatile storage spaces for user¡¯s arbitrary waveforms
* Be capable of seamlessly connected to our Digital Storage Oscilloscope
* Configurable with powerful arbitrary waveform editing software EasyWave

Application:
* Simulate sensor
* Simulate environmental signal
* Circuit function test
* IC chip test
* Research and education

Standard Accessories:
Power Cord: Proper cord for country of operation

USB Cable: Standard USB cable.

Quick Start Guide-SRF800: Printed Quick Start Guide (English)
Optional Accessories:
ATT-20dB: 20 dB Attenuator
SPA1010: Generator Power Amplifier
SDG-RMK: Single instrument rack mount kit
BNC cable: BNC terminated coaxial cable (1m length)
USB-GPIB adapter: Converts GPIB signals to USB

Specifications:

Model

SRF805

SRF810

SRF830

Maximum output frequency

5MHz

10MHz

30MHz

Output channels

1

Sampling rate

125 MSa/s

Wave length

16 kpts

Frequency resolution

1 ¦ÌHz

Vertical resolution

14 bit

Waveform

Sine, Square, Ramp, Pulse, Gaussian white noise, Arbitrary waveform, 46 types of built-in arbitrary waveforms

Sine wave

1 ¦ÌHz ~ 5 MHz

1 ¦ÌHz ~ 10 MHz

1 ¦ÌHz ~30 MHz

Square wave

1 ¦ÌHz ~ 5 MHz

1 ¦ÌHz ~ 10 MHz

1 ¦ÌHz ~10 MHz

Pulse

500 ¦ÌHz ~ 5 MHz

500 ¦ÌHz ~ 5 MHz

500 ¦ÌHz ~5 MHz

Ramp/Triangular

1 ¦ÌHz ~ 300 KHz

1 ¦ÌHz ~ 300 KHz

1 ¦ÌHz ~ 300 KHz

Gaussian white noise

>5 MHz bandwidth (-3 dB)

>10 MHz bandwidth (-3 dB)

>30 MHz bandwidth (-3 dB)

Arbitrary waveform

1 ¦ÌHz ~ 5 MHz

Modulation function

AM, FM, PM, DSB-AM, FSK, ASK, PWM, Sweep, Burst

Standard configuration

USB Host & USB Device

Amplitude (high impedance)

4 mVpp~20 Vpp (¡Ü10 MHz); 4 mVpp~10 Vpp (>10 MHz)

¡¡

¡¡

SRF1000 series Function/ Arbitrary Waveform Generator

Key Features:
* Apply DDS technology, double channels output, phase adjustable
* Output frequency up to 50 MHz,125 MSa/s sampling rate, 14 bit vertical resolution, 16 Kpts wave length
* 5 types of standard waveforms, built-in 46 types of arbitrary waveforms
* Abundant modulation functions, sweep-frequency output, burst output
* Built-in high precision frequency counter, frequency up to 200 MHz
* Interfaces: USB Device, USB Host, USB-GPIB Adapter (optional)
* Seamlessly work with siglent Digital Storage Oscilloscope
* Support USB-TMC protocol and SCPI programming command control

Application:
* IC test
* Simulate sensor
* Simulate environment signals
* Electrical circuit function test
* Education and training

Standard Accessories:
Power Cord: Proper cord for country of operation
USB Cable: Standard USB cable.
Optional Accessories:
ATT-20dB: 20 dB Attenuator
SPA1010: Generator Power Amplifier
SDG-RMK: Single instrument rack mount kit
BNC cable: BNC terminated coaxial cable (1m length)
USB-GPIB adapter: Converts GPIB signals to USB

Specifications:

Model

SRF1050

SRF1025

SRF1010

Maximum output frequency

50MHz

25MHz

10MHz

Output channels

2

Sampling rate

125 MSa/s

Wave length

16 Kpts

Frequency resolution

1 ¦ÌHz

Vertical resolution

14 bit

Waveform

Sine, Square, Ramp, Pulse, Gaussian white noise, 48 types of built-in function waveforms, Arb

Modulation function

AM, DSB-AM, FM, PM, FSK, ASK, PWM, Sweep, Burst

Amplitude

CH1: 2 mVpp~10 Vpp (50 ¦¸), 4 mVpp~20 Vpp (high impedance) ¡Ü10 MHz

      2 mVpp~5 Vpp (50 ¦¸), 4 mVpp~10 Vpp (high impedance) >10 MHz

CH2: 2 mVpp~3 Vpp (50 ¦¸), 4 mVpp~6 Vpp (high impedance)

Frequency counter

Frequency range: 100 MHz ~ 200 MHz

Interface

USB Host, USB Device

Optional interface

USB-GPIB adapter

Dimension

229mm*105mm*281mm

¡¡

¡¡

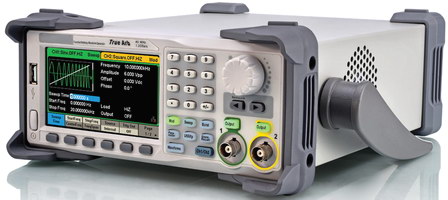

SRF2000X Series Function/ Arbitrary Waveform Generator

Key Features:
* Dual-channel, 120 MHz maximum bandwidth, 20 Vpp maximum output amplitude, high fidelity output with 80 dB dynamic range
* High-performance sampling system with 1.2 GSa/s sampling rate and 16-bit vertical resolution. No detail in the waveforms will be lost
* Innovative TrueArb technology, based on a point-by-point architecture, supports any 8pts~8Mpts Arb waveform with a sampling rate in range
of 1 ¦ÌSa/s~75 MSa/s
* Innovative EasyPulse technology, capable of generating lower jitter Square or Pulse waveforms, brings a wide range and extremely high
precision in pulse width and rise/fall times adjustment
* Plenty of analog and digital modulation types: AM, DSB-AM, FM, PM, PSK, FSK, ASK and PWM
* Practical functions: Channel Copy, Channel Coupling, Channel Track, harmonic generator, overvoltage protection function
* Sweep and Burst function, Harmonics mode supported
* High precision Frequency Counter
* Standard interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11)
* Optional interface: USB-GPIB
* 4.3¡± touch screen display for easier operation

Standard configurations:

A Quick Start, A Quality Certification, A Power Cord, A USB Cable, A CD¡¡(Including Quick Start, data sheet, and Application Software Package), A Calibration Certificate, A BNC Coaxial Cable
Optional configurations:

USB-GPIB adapter

Specifications:

Product Model

SRF2042X

SRF2082X

SRF2122X

Bandwidth

40 MHz

80 MHz

120 MHz

Sampling rate

1.2 GSa/s (4 X Interpolation)

Vertical resolution

16 bit

Num. of channels

2

Max. amplitude

¡À10 V

Display

4.3¡± touch screen display, 480 x 272 x RGB

Interface

Standard: USB Host, USB Device, LAN; Optional: GPIB (USB-GPIB adaptor)

Frequency Characteristics

Parameter

Min.

Max.

Unit

Condition

Resolution

/

1 ¦Ì

Hz

/

Initial accuracy

-1

+1

ppm

25¡ãC

-2

+2

ppm

0~40¡ãC

1st-year aging

-1

+1

ppm

25¡ãC

10-year aging

-3.5

+3.5

ppm

25¡ãC

Sine Characteristics

Parameter

Min.

Max.

Unit

Condition

Frequency

1 ¦Ì

120 M

Hz

/

Harmonic distortion

/

-65

dBc

0 dBm, 0~10 MHz (Included)

/

-60

dBc

0 dBm, 10~20 MHz (Included)

/

-55

dBc

0 dBm, 20~40 MHz (Included)

/

-50

dBc

0 dBm, 40~60 MHz (Included)

/

-45

dBc

0 dBm, 60~80 MHz (Included)

/

-40

dBc

0 dBm, 80~100 MHz (Included)

/

-38

dBc

0 dBm, 100~120 MHz (Included)

Total Harmonic Distortion

/

0.075

%

0 dBm, 10 Hz ~ 20 kHz

Non-harmonic spurious

/

-70

dBc

¡Ü50 MHz

/

-65

dBc

>50 MHz

Square Characteristics

Parameter

Min.

Max.

Unit

Condition

Frequency

1 ¦Ì

25 M

Hz

/

Rise/fall times

/

9

ns

10% ~ 90%, 1 Vpp, 50 ¦¸ Load

Overshoot

/

3

%

100 kHz, 1 Vpp, 50 ¦¸ Load

Duty cycle

0.001

99.999

%

Limited by frequency setting

Jitter (rms), Cycle to cycle

/

150

ps

1 Vpp, 50 ¦¸ Load

Pulse Characteristics

Parameter

Min.

Max.

Unit

Condition

Frequency

1 ¦Ì

25 M

Hz

/

Pulse width

16.3

/

ns

/

Pulse width accuracy

¡À(0.01%+0.3ns)

Rise/fall times

8.4n

22.4

s

10% ~ 90%, 1 Vpp, 50 ¦¸ Load, Subject to pulse width limits

Overshoot

/

3

%

100 kHz, 1 Vpp

Duty cycle

0.001

99.999

%

Limited by frequency setting

Duty cycle resolution

0.001

/

%

/

Jitter (rms) cycle to cycle

/

150

ps

1 Vpp, 50 ¦¸ Load

Arbitrary Wave characteristics

Parameter

Min.

Max.

Unit

Condition

Frequency

1 ¦Ì

20 M

Hz

/

Waveform length

8

8 M

pts

/

Sampling rate

1 ¦Ì

75M

Sa/s

TrueArb mode

300

/

MSa/s

DDS mode

Vertical solution

16

/

bit

/

Jitter (rms)

/

150

ps

1 Vpp, 50 ¦¸ Load, TrueArb mode

Output Characteristics

Parameter

Min.

Typ.

Max.

Unit

Condition

Range

(Note 1)

2 m

/

20

Vpp

¡Ü20 MHz, HiZ load

2 m

/

10

Vpp

>20 MHz, HiZ load

1 m

/

10

vpp

¡Ü20 MHz, 50 ¦¸ load

1 m

/

5

vpp

>20 MHz, 50 ¦¸ load

Accuracy

¡À (1%+1 mVpp)

/

/

/

10 kHz sine, 0 V offset

Amplitude flatness

-0.3

/

+0.3

dB

0~100 MHz (Included), 50 ¦¸ load, 2.5 Vpp, compare to 10 kHz Sine

-0.4

/

+0.4

dB

100~120 MHz (Included), 50 ¦¸ load, 2.5 Vpp, compare to 10 kHz Sine

Output impedance

49.5

50

50.5

¦¸

10 kHz sine

Output current

-200

/

200

mA

/

Crosstalk

/

/

-60

dBc

CH1 - CH2/CH2 - CH1

¡¡

¡¡

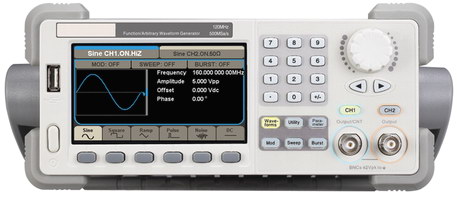

SRF5000 Series Function/ Arbitrary Waveform Generator

Key Features:
* DDS technology, double channels output, phase adjustable
* Output frequency up to 160 MHz, 500 MSa/s sampling rate, 14 bit vertical resolution, 512 Kpts max wave length
* 2 ppm high frequency stability, -116 dBc/Hz low phase noise
* Abundant modulation functions, sweep-frequency output, burst output
* Built-in high precision frequency counter, frequency range: 100 MHz - 200 MHz
* Unique EasyPulse technology, can output the pulse signal which have low jitter, fast rising and falling edge, very
small duty cycle. Edge and pulse width can be a wide range of adjustment.
* Seamless work with siglent Digital Storage Oscilloscope
* Supports USB-TMC protocol and SCPI programming command control

Application:
* IC test
* Simulate sensor
* Simulate environment signals
* Electrical circuit function test
* Education and training

Standard Accessories:
Power Cord: Proper cord for country of operation
USB Cable: Standard USB cable.

Quick Start Guide-SRF5000: Printed Quick Start Guide (English)
Optional Accessories:
ATT-20dB: 20 dB Attenuator
SPA1010: Generator Power Amplifier
SDG-RMK: Single instrument rack mount kit
BNC cable: BNC terminated coaxial cable (1m length)
USB-GPIB adapter: Converts GPIB signals to USB

Specifications:

Model

SRF5162

SRF5122

SRF5082

Maximum output frequency

160MHz

120MHz

80MHz

Output channels

2

Sampling rate

500 MSa/s

Wave length

CH1:16 Kpts,CH2:512 Kpts

Frequency resolution

1 ¦ÌHz

Vertical resolution

14 bit

Waveform

Sine, Square, Ramp, Pulse, Gaussian white noise, Arb

Modulation function

AM, DSB-AM, FM, PM, FSK, ASK, PWM, Sweep, Burst



Amplitude



CH1/CH2 ¡Ü40 MHz: 1 mVpp~10 Vpp (50 ¦¸), 2 mVpp~20 Vpp (high impedance)

40 MHz~100 MHz: 1 mVpp~5 Vpp (50 ¦¸), 2 mVpp~10 Vpp (high impedance)

100 MHz~160 MHz: 1 mVpp~1.5 Vpp (50 ¦¸), 2 mVpp~3 Vpp (high impedance)

Frequency counter

Frequency range: 100 MHz ~ 200 MHz

Interface

USB Host, USB Device

Optional interface

USB-GPIB Adapter

Dimension

261 mm*104.85 mm*343.8 mm

¡¡

¡¡

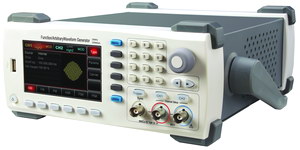

Model SRF2025A Function/Arbitrary Waveform Generators

Product Features:
1. Intuitive Interface Design;
2. Dual Channels with Standard Performance;
3. 250MS/s, 200MS/s Sample Rate, 14bits Vertical Resolution;
4. Integrated Analog and Digital Design;
5. 4.3¡¯¡¯ HD Display Panel.

Specification

SRF2025A

Channels

2

Max. Sample Rate

200MS/s

Max. Output Frequency

25MHz

Frequency Resolution

1 ¦ÌHz

Vertical Resolution

14 bits

Max. Arb Memory Depth

1Mpts

Waveform

Sine, Square, Ramp, Triangle,

Pulse, Noise, DC, Arb

Output Amplitude  Range

1mVpp - 10Vpp (50¦¸);

2mVpp - 20Vpp (High Z)

Modulation Types

AM, FM, PM, ASK, FSK, PWM, Sweep, Burst

Interface

USB Device, USB Host, LAN  (SRF2062A )

General Characteristic

Power

100-240VAC, 40-440Hz

Display

4.3 Inches 64K Color TFT  LCD,  480¡Á272

Product Color

White and Gray

Product Net Weight

3.2 Kg

Product Size

231mm ¡Á 94mm ¡Á 283mm

Standard Accessories

BNC Cable, Power Cord , USB Cable, PC Software CD

Standard Individual Packing

Gift Box, English Manual

Standard Quantity Per Carton

2 PCs

Standard Carton Measurement

330mm ¡Á 295mm ¡Á 255mm

Standard Carton Cross Weight

10.5 Kg

Optional Accessories

 LAN Communication Port
¡¡

¡¡

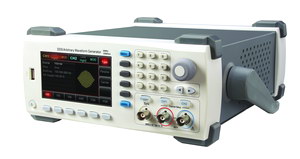

Model SRF2062A Function/Arbitrary Waveform Generators

Product Features:
1. Intuitive Interface Design;
2. Dual Channels with Standard Performance;
3. 250MS/s, 200MS/s Sample Rate, 14bits Vertical Resolution;
4. Integrated Analog and Digital Design;
5. 4.3¡¯¡¯ HD Display Panel.

Specification

SRF2062A

Channels

2

Max.Sample Rate

250MS/s

Max.Output Frequency

60MHz

Frequency Resolution

1 ¦ÌHz

Vertical Resolution

14 bits

Max. Arb Memory Depth

1Mpts

Waveform

Sine, Square, Ramp, Triangle,

Pulse, Noise, DC, Arb

Output Amplitude  Range

1mVpp - 10Vpp (50¦¸); 2mVpp - 20Vpp (High Z)

Modulation Types

AM, FM, PM, ASK, FSK, PWM, Sweep, Burst

Interface

USB Device, USB Host, LAN (SRF2062A )

General Characteristic

Power

100-240VAC, 40-440Hz

Display

4.3 Inches 64K Color TFT  LCD,  480¡Á272

Product Color

White and Gray

Product Net Weight

3.2 Kg

Product Size

231mm ¡Á 94mm ¡Á 283mm

Standard Accessories

BNC Cable, Power Cord , USB Cable, PC Software CD

Standard Individual Packing

Gift Box, English Manual

Standard Quantity Per Carton

2 PCs

Standard Carton Measurement

330mm ¡Á 295mm ¡Á 255mm

Standard Carton Cross Weight

10.5 Kg

Optional Accessories

 LAN Communication Port  (SRF2025A)
¡¡ ¡¡

¡¡

¡¡

¡¡

Features and Benefits:
 1. 80MHz sine waveform output, 1¦ÌHzfull-band resolution
 2. 30MHz pulse waveform, adjustable rise/ fall time
 3. 500MSa/s sample rate, 16 bits vertical resolution
 4. Standard dual channels, supporting stand-alone or channel-coupling output mode
 5. 32Mpts arbitrary waveform length, 7GBwaveforms for nonvolatile
 6. Versatile modulation choices: AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, PWM, SUM, QAM
 7. 8 inches TFT LCD, WVGA(800¡Á 480)
 8. Standard ports: USB Host, USB Device, LAN, 10MHz Input, 10MHzOutput

¡¡

General Characteristics

Power

100V~240 VAC, 50Hz/60Hz

Display

8 inches TFT LCD, WVGA(800 ¡Á 480)

Product Color

White and Grey

Product Net Weight

3.5 kg

Product Size (W¡ÁH¡ÁD)

336mm ¡Á 108mm ¡Á 164mm

Standard Accessories

BNC Cable, Power Cord, USB Cable, PC Software CD

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

2 PCs

Standard Carton

Measurement (L¡ÁW¡ÁH)

675mm ¡Á 240mm ¡Á 350mm

Standard Carton Gross

Weight

9.5 kg

¡¡

Optional Accessories

Digital Interface

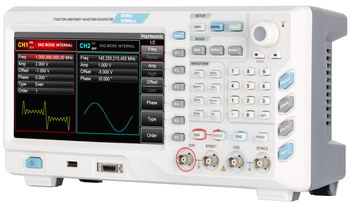

SRF4082A Function /Arbitrary Waveform Generators

Specification

SRF4082A

Channels

2

Bandwidth

80MHz

Sample Rate

500MSa/s

Waveforms

Sine, Square, Ramp, Harmonic, Pulse, Noise, DC, Arbitrary Waveforms

Working Mode

Output Gate, Continuous, Modulate, Frequency Sweep,    Burst

Modulation Types

AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, PWM, SUM, QAM

Protocol Decode

SPI, I2C, UART

Frequency Characteristics

Sine

1¦ÌHz~80MHz

Square

1¦ÌHz~30MHz

Pulse

1¦ÌHz~30MHz

Ramp

1¦ÌHz~2MHz

Harmonic

1¦ÌHz~40MHz

Noise(-3dB)

80MHz Bandwidth

Resolution

1¦ÌHz

Arbitrary Waveform

Waveform Length

(Max.)

8~32Mpts

Vertical Resolution

16bits

Sample Rate

500MS/s

Min Fall/Rise Time

<7ns

Jitter (RMS) (Typical)

6ns+30ppm

Nonvolatile Memory

7GB

Digital Arbitrary Wave (Optional)

Waveform Length

1~1K bytes

Sample Rate

1S/s ~ 40MS/s

Transmission Mode

Single Manual Trigger, Continuity Trigger (No Interval)

Waveform Analysis

16 Bits

Output Level

TTL Output Level

Output Characteristics

Amplitude Range (50¦¸)

¡Ü 20MHz : 1mVpp~10Vpp

¡Ü 80MHz : 1mVpp~5Vpp

¡Ü 120MHz : 1mVpp~2.5Vpp

¡Ü 160MHz : 1mVpp~1Vpp

Accuracy (1kHz Sine)

¡À(1% of setting value+1mVpp)

Amplitude Flatness

(with reference to 1kH    sine wave, 5Vpp)

¡Ü 10MHz : ¡À0.1dB

¡Ü 80MHz : ¡À0.2dB

¡Ü 120MHz : ¡À0.4dB

¡Ü 160MHz : ¡À0.8dB

DC Offset

Range (Peak AC+ DC)

¡À5V (50¦¸)

¡À10V (High Resistance)

Offset Accuracy

¡À(2% of setting value+ 0.5% of amplitude+2mV)

Waveform Output

Impedance

50¦¸ (Typical)

Isolation

42Vpk

Protection

Short-circuited protection, waveform output disabled    automatically when overloaded.

Connector on Back Panel
Modulation Input

External AM Modulation

<20kHz

¡À5Vpk Full-scale

5k¦¸ (Input Impedance)

Clock Input/Output

Input/Output Frequency Range

10MHz¡À500Hz

Input/Output Level Range

TTL Compatible

Input/Output Impedance

10k¦¸/50¦¸ (AC Coupled)

Lock Time

<1s

Trigger Input

Input Level

TTL Compatible

Slope

Rise or Fall, Selectable

Pulse Width

>100ns

Input Impedance

>10k¦¸ (DC-Coupled)

Response Time

Sweep: <500¦Ìs (Typical)

Burst: <500ns (Typical)

Trigger Output

Output Level

TTL Compatible, to 1k¦¸

Pulse Width

>400ns (Typical)

Output Impedance

50¦¸ (Typical)

Max Frequency

1MHz

Sync Output

 Input Level

TTL Compatible

Output Impedance

50¦¸

Frequency Counter

Level

TTL Compatible

Input Frequency

100mHz~800MHz

Accuracy

¡À51ppm

Frequency Resolution

7 bits

High Frequency Rejection

ON/OFF

Trigger Sensitivity Adjustable

0%~100%

Coupling

DC, AC

Interface

Standard Accessories

USB Host, USB Device, LAN, 10MHz Input/output

Output Impedance

50¦¸

¡¡

¡¡

¡¡

¡¡

Features and Benefits:
1. 120MHz sine waveform output, 1¦ÌHzfull-band resolution
2. 40MHz pulse waveform, adjustable rise/fall time
3. 500MSa/s sample rate, 16 bits vertical resolution
4. Standard dual channels, supporting stand-alone or channel-coupling output mode
5. 32Mpts arbitrary waveform length, 7GBwaveforms for nonvolatile
6. Versatile modulation choices: AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, PWM, SUM, QAM
7. 8 inches TFT LCD, WVGA(800¡Á 480)
8. Standard ports: USB Host, USB Device, LAN, 10MHz Input, 10MHz Output

¡¡

General Characteristics

Power

100V~240 VAC, 50Hz/60Hz

Display

8 inches TFT LCD, WVGA(800 ¡Á 480)

Product Color

White and Grey

Product Net Weight

3.5 kg

Product Size (W¡ÁH¡ÁD)

336mm ¡Á 108mm ¡Á 164mm

Standard Accessories

BNC Cable, Power Cord, USB Cable, PC Software CD

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

2 PCs

Standard Carton

Measurement (L¡ÁW¡ÁH)

675mm ¡Á 240mm ¡Á 350mm

Standard Carton Gross

Weight

9.5 kg

¡¡

Optional Accessories

Digital Interface

¡¡

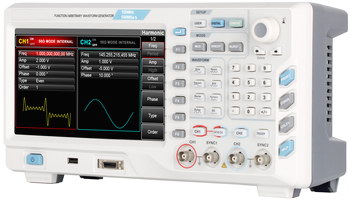

SRF4122A Function /Arbitrary Waveform Generators

Specification

SRF4122A

Channels

2

Bandwidth

120MHz

Sample Rate

500MSa/s

Waveforms

Sine, Square, Ramp, Harmonic, Pulse, Noise, DC, Arbitrary Waveforms

Working Mode

Output Gate, Continuous, Modulate, Frequency Sweep, Burst

Modulation Types

AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, PWM, SUM, QAM

Protocol Decode

SPI, I2C, UART

Frequency Characteristics

Sine

1¦ÌHz~120MHz

Square

1¦ÌHz~40MHz

Pulse

1¦ÌHz~40MHz

Ramp

1¦ÌHz~3MHz

Harmonic

1¦ÌHz~60MHz

Noise(-3dB)

120MHz Bandwidth

Resolution

1¦ÌHz

Arbitrary Waveform

Waveform Length

(Max.)

8~32Mpts

Vertical Resolution

16bits

Sample Rate

500MS/s

Min Fall/Rise Time

<7ns

Jitter (RMS) (Typical)

6ns + 30ppm

Nonvolatile Memory

7GB

Digital Arbitrary Wave (Optional)

Waveform Length

1~1K bytes

Sample Rate

1S/s ~ 40MS/s

Transmission Mode

Single Manual Trigger, Continuity Trigger (No Interval)

Waveform Analysis

16 Bits

Output Level

TTL Output Level

Output Characteristics

Amplitude Range (50¦¸)

¡Ü 20MHz : 1mVpp~10Vpp

¡Ü 80MHz : 1mVpp~5Vpp

¡Ü 120MHz : 1mVpp~2.5Vpp

¡Ü 160MHz : 1mVpp~1Vpp

Accuracy (1kHz Sine)

¡À(1% of setting value + 1mVpp)

Amplitude Flatness

(with reference to 1kH    sine wave, 5Vpp)

¡Ü 10MHz : ¡À0.1dB

¡Ü 80MHz : ¡À0.2dB

¡Ü 120MHz : ¡À0.4dB

¡Ü 160MHz : ¡À0.8dB

DC Offset

Range (Peak AC+ DC)

¡À5V (50¦¸)

¡À10V (High Resistance)

Offset Accuracy

¡À(2% of setting value+ 0.5% of amplitude+2mV)

Waveform Output

Impedance

50¦¸ (Typical)

Isolation

42Vpk

Protection

Short-circuited protection, waveform output disabled    automatically when overloaded.

Connector on Back Panel
Modulation Input

External AM Modulation

<20kHz

¡À5Vpk Full-scale

5k¦¸ (Input Impedance)

Clock Input/Output

Input/Output Frequency Range

10MHz¡À500Hz

Input/Output Level Range

TTL Compatible

Input/Output Impedance

10k¦¸/50¦¸ (AC Coupled)

Lock Time

<1s

Trigger Input

Input Level

TTL Compatible

Slope

Rise or Fall, Selectable

Pulse Width

>100ns

Input Impedance

>10k¦¸ (DC-Coupled)

Response Time

Sweep: <500¦Ìs (Typical)

Burst: <500ns (Typical)

Trigger Output

Output Level

TTL Compatible, to 1k¦¸

Pulse Width

>400ns (Typical)

Output Impedance

50¦¸ (Typical)

Max Frequency

1MHz

Sync Output

 Input Level

TTL Compatible

Output Impedance

50¦¸

Frequency Counter

Level

TTL Compatible

Input Frequency

100mHz~800MHz

Accuracy

¡À51ppm

Frequency Resolution

7 bits

High Frequency Rejection

ON/OFF

Trigger Sensitivity Adjustable

0%~100%

Coupling

DC, AC

Interface

Standard Accessories

USB Host, USB Device, LAN, 10MHz Input/output

Output Impedance

50¦¸

¡¡

¡¡

¡¡

¡¡

Features and Benefits:
1. 160MHz sine waveform output, 1¦ÌHzfull-band resolution
2. 50MHz pulse waveform, adjustable rise/fall time
3. 500MSa/s sample rate, 16 bits vertical resolution
4. Standard dual channels, supporting stand-alone or channel-coupling output mode
5. 32Mpts arbitrary waveform length, 7GBwaveforms for nonvolatile
6. Versatile modulation choices: AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, PWM, SUM, QAM
7. 8 inches TFT LCD, WVGA(800¡Á 480)
8. Standard ports: USB Host, USB Device, LAN, 10MHz Input, 10MHzOutput
¡¡

General Characteristics

Power

100V~240 VAC, 50Hz/60Hz

Display

8 inches TFT LCD, WVGA(800 ¡Á 480)

Product Color

White and Grey

Product Net Weight

3.5 kg

Product Size (W¡ÁH¡ÁD)

336mm ¡Á 108mm ¡Á 164mm

Standard Accessories

BNC Cable, Power Cord, USB Cable, PC Software CD

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

2 PCs

Standard Carton

Measurement (L¡ÁW¡ÁH)

675mm ¡Á 240mm ¡Á 350mm

Standard Carton Gross

Weight

9.5 kg

¡¡

Optional Accessories

Digital Interface

¡¡

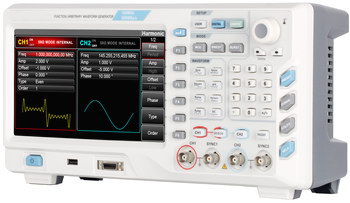

SRF4162A Function /Arbitrary Waveform Generators

Specification

SRF4162A

Channels

2

Bandwidth

160MHz

Sample Rate

500MSa/s

Waveforms

Sine, Square, Ramp, Harmonic, Pulse, Noise, DC, Arbitrary Waveforms

Working Mode

Output Gate, Continuous, Modulate, Frequency Sweep, Burst

Modulation Types

AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, PWM, SUM, QAM

Protocol Decode

SPI, I2C, UART

Frequency Characteristics

Sine

1¦ÌHz~160MHz

Square

1¦ÌHz~50MHz

Pulse

1¦ÌHz~50MHz

Ramp

1¦ÌHz~4MHz

Harmonic

1¦ÌHz~80MHz

Noise(-3dB)

160MHz Bandwidth

Resolution

1¦ÌHz

Arbitrary Waveform

Waveform Length

(Max.)

8~32Mpts

Vertical Resolution

16bits

Sample Rate

500MS/s

Min Fall/Rise Time

<7ns

Jitter (RMS) (Typical)

6ns + 30ppm

Nonvolatile Memory

7GB

Digital Arbitrary Wave (Optional)

Waveform Length

1~1K bytes

Sample Rate

1S/s ~ 40MS/s

Transmission Mode

Single Manual Trigger, Continuity Trigger (No Interval)

Waveform Analysis

16 Bits

Output Level

TTL Output Level

Output Characteristics

Amplitude Range (50¦¸)

¡Ü 20MHz : 1mVpp~10Vpp

¡Ü 80MHz : 1mVpp~5Vpp

¡Ü 120MHz : 1mVpp~2.5Vpp

¡Ü 160MHz : 1mVpp~1Vpp

Accuracy (1kHz Sine)

¡À(1% of setting value + 1mVpp)

Amplitude Flatness

(with reference to 1kH    sine wave, 5Vpp)

¡Ü 10MHz : ¡À0.1dB

¡Ü 80MHz : ¡À0.2dB

¡Ü 120MHz : ¡À0.4dB

¡Ü 160MHz : ¡À0.8dB

DC Offset

Range (Peak AC+ DC)

¡À5V (50¦¸)

¡À10V (High Resistance)

Offset Accuracy

¡À(2% of setting value+ 0.5% of amplitude+2mV)

Waveform Output

Impedance

50¦¸ (Typical)

Isolation

42Vpk

Protection

Short-circuited protection, waveform output disabled    automatically when overloaded.

Connector on Back Panel
Modulation Input

External AM Modulation

<20kHz

¡À5Vpk Full-scale

5k¦¸ (Input Impedance)

Clock Input/Output

Input/Output Frequency Range

10MHz¡À500Hz

Input/Output Level Range

TTL Compatible

Input/Output Impedance

10k¦¸/50¦¸ (AC Coupled)

Lock Time

<1s

Trigger Input

Input Level

TTL Compatible

Slope

Rise or Fall, Selectable

Pulse Width

>100ns

Input Impedance

>10k¦¸ (DC-Coupled)

Response Time

Sweep: <500¦Ìs (Typical)

Burst: <500ns (Typical)

Trigger Output

Output Level

TTL Compatible, to 1k¦¸

Pulse Width

>400ns (Typical)

Output Impedance

50¦¸ (Typical)

Max Frequency

1MHz

Sync Output

 Input Level

TTL Compatible

Output Impedance

50¦¸

Frequency Counter

Level

TTL Compatible

Input Frequency

100mHz~800MHz

Accuracy

¡À51ppm

Frequency Resolution

7 bits

High Frequency Rejection

ON/OFF

Trigger Sensitivity Adjustable

0%~100%

Coupling

DC, AC

Interface

Standard Accessories

USB Host, USB Device, LAN, 10MHz Input/output

Output Impedance

50¦¸
¡¡ ¡¡

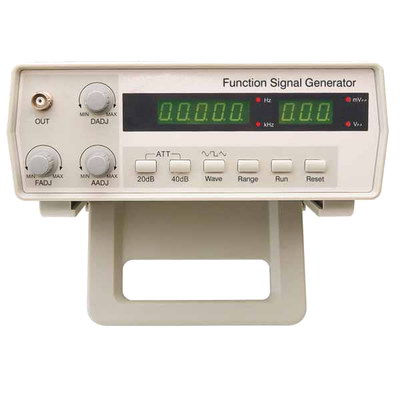

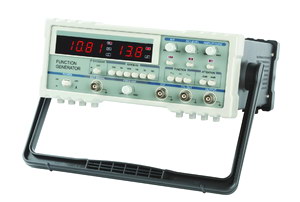

Model SRF2002 - Function Generator
 8 digit LED display (including 3 digits for voltage)
Frequency and width displayed simultaneously
Output waveforms: sine, square, triangle
Frequency of output signal: 0.2Hz - 2MHz
Duty cycle adjustable: 20% - 80%
Width of output signal adjustable continuously
Amplitude without attenuation: 0.9V - 10V
Amplitude with -20dB attenuation: 100mV - 1V
Amplitude with -40dB attenuation: 10mV - 100mV
Power: AC

Basic function

Frequency range

0.2Hz/2Hz/20Hz/200Hz/2kHz/20kHz/200kHz /2MHz

Amplitude

(2Vp-p~20Vp-p) ¡À20%

Output signal impedance

50¦¸

Attenuation

20dB/40dB

Duty cycle

20%~80% (¡À10%)

Displaying

5 digits LED frequency display and 3 digits LED amplitude display synchronously

Sine wave

Distortion<2%

Triangle wave

Linearity>99%

Square wave

Rise edge tines /fall edge times<100nS

Time base

Symmetry frequency: 12MHz, frequency stability: ¡À5¡Á10-5

Signal frequency stability

£¼0.1%/Minute

Measurement error

¡Ü0.5%

Dimension

270 mm¡Á215 mm¡Á100mm

Weight

Approx:1.6kg

Power

220V/110V¡À10%, 50Hz/60Hz¡À5%

¡¡

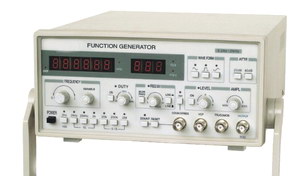

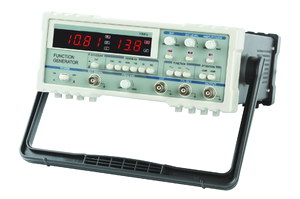

Model SRF1620 Digital Frequency counter

¡¤ Linear/Log Sweep Frequency Function

¡¤ External FM VCF Input

¡¤ TTL/CMOS Output

¡¤ Sine, Square, Triangle, Ramp, Pulse

¡¤ 2 LED display Volt. & Freq.

¡¤ Full metal box£¬well EM compliant

¡¡

Name

 Function Signal Generator

Specification

1, Ouput:  Freq: SRF1620 0.2Hz~20MHz
¡¤Output Wave: Sin,Triangle,Puls,Ramp
¡¤Signal Type: single,FM,AM,Sweep
¡¤Sweep Type: Linear,Log
¡¤Sweep Rate: 5s~10ms
¡¤Output Range: 20Vp-p£¨1M¦¸£© 10Vp-p£¨50¦¸£©
¡¤Ouput Protect: Short£¬Max Input:¡À35V£¨1min£©
¡¤Sin distort: ¡Ü100K 2% £¾100K 30dB
¡¤Frequency response:¡À0.5dB
¡¤Triangle linear: ¡Ü100kHz:98% £¾100kHz:95%
¡¤Duty adjust 20%~80%
¡¤DC offset: ¡À10V£¨1M¦¸£©¡À5V£¨50¦¸£©
¡¤Rectange rise time: ¡Ü100ns 5Vp-p 1MHz
¡¤Attenutor: ¡Ü¡À3%
¡¤ Duty vs. Freq: ¡À10%
¡¤50Hz sin output: approx. 2Vp-p
2, TTL/CMOS Output
¡¤Amplitude: "0":¡Ü0.6V
¡¤"1":¡Ý2.8V
¡¤Output impedance: 600¦¸
¡¤Output Short Protect: Short£¬Max. Input¡À35V£¨1min£©
3, Frequency Counter Accuary: 5digital ¡À1% ¡À1digital
¡¤Resolution: 0.1Hz
¡¤Gate Time: 10s, 1, 0.1s
¡¤Ext. Frequency Test: 1Hz~10MHz
¡¤Ext. Sensitivity: 100MV
¡¤Counter Range: 5 digital

¡¡
¡¡ ¡¡

Model SRF1052 / SRF1052A High-Frequency Signal Generator

¡¡

Feature:

AM, FM and carrier frequency signal;

Digital technology such as SCM, digital potentiometer and etc;

5 digits frequency display;

Small waveform distortion, high frequency stability;

Auto, manual shift; AM, FM, in/ext modulation;

Audio frequency output;

Store or fetch ten work frequency and signal mode;

¡¡

Specification

SRF1052 / SRF1052A

Frequency range

0.1MHz-150MHz

Output range

1.5Vp-p

Output impedance

50¦¸

Amplitude stability character

¡À2dB (As frequency is over 30 MHz, add ¡À0.5dB additionally)

Output amplitude adjust

>10dB

Attenuation output

-10dB, -20dB, -20dB, -20dB, assembled optionally (only for SRF1052A)

AM range

0-60%, series adjustable

Internal modulation signal

1kHz, 400Hz

External FM range

20Hz~30kHz

External FM input voltage

<5V

FM offset

0-100kHz, continuous to be adjustable

Audio frequency

1kHz

Audio output range

4Vrms

Audio distortion

<1%

Audio output impedance

600¦¸

Dimension

115H¡Á270W¡Á335D (mm)

Weight

5.5KGS

¡¡

¡¡

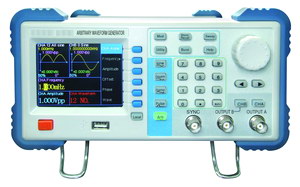

Model SRF32010 / SRF32020 Arbitrary Waveform Generator

Model  Item

SRF32010

SRF32020

A FREQ FEATURE

Waveform length

4-16000 dots

Waveform amplitude resolution

12bits

sampling rate

100MSa/s or 200Msa/s

Sine wave

1¦ÌH-10MHz

1¦ÌHz-20MHz

square wave

1¦ÌH-5MHz

1¦ÌHz-5MHz

pulse wave

1¦ÌH-3MHz

1¦ÌHz-3MHz

arbitrary wave

1mHz-1MHz

1mHz-1MHz

WAVEFORM FEATURE

Sine wave General Harmonic Wave

DC-100KHz : -60dBc; 100KHz- 1MHz: -50dBc;

Distortion (1Vpp)

1MHz- 20MHz: -35dBc

Square wave overshoot

<10%

Rise time of square wave

25 ns

¡Ü18ns

Duty Cycle

0%-100%

Linearity of toothwave

¡Ü0.1% of peak value;  (Typical value 1KHz, 1VPP, Symmetry 100%)

Symmetry of toothwave

0%-100%

AMPLITUTE FEATURE

50¦¸

2mVpp-10Vpp

open circuit

4mVpp-20Vpp

Accuracy

¡À1%+2mVrms; (High impedance, valid value, frequency 1kHz)

OFFSET FEATURE

deviation range

¡À10V (High impedance)

Offset accuracy

¡À (1%+20mV)

MODULATION FEATURE

carrier

Sine wave, square wave, sawtooth wave, pulse wave, arbitrary wave

modulating frequency

5Hz-50KHz

AM Modulation depth

0%-120%

FM frequency modulation deviation

DC-10MHz

DC-20 MHz

KEY CONTRON FEATURE

ASK

Set the carrier amplitude and the tabular amplitude arbitrarily

FSK

Set the carrier frequency and the tabular frequency arbitrarily

PSK

Jumping phase: 0-360¡ã; resolution: 11.25¡ã

SWEEP FEATURE

type

Linearity or logarithm

sweep range

Set the initial point and ending point arbitrarily

time interval

50ns - 60S

PULSE STRING FEATURE

carrier wave

Sine wave, square wave, sawtooth wave, pulse wave, arbitrary wave

cycle number

1 - 50000CYC

Initial phase synchronization

0 - 360¡ã

SYNC OUTPUT

output amplitude

5V

frequency

1¦ÌHz-2MHz

B FREQ FEATURE

Waveform length

4-16000 dots

Waveform amplitude resolution

12bits

sampling rate

100MSa/s or 200Msa/s

Sine wave

1¦ÌH-10MHz

1¦ÌHz-20MHz

square wave

1¦ÌH-5MHz

1¦ÌHz-5MHz

pulse wave

1¦ÌH-3MHz

1¦ÌHz-3MHz

arbitrary wave

1mHz-1MHz

1mHz-1MHz

WAVEFORM FEATURE

Sine wave general harmonic wave

DC-100KHz: -60dBc; 100KHz-1MHz: -50dBc;

Distortion (1Vpp)

1MHz- 20MHz: -35dBc

Square wave overshoot

<10%

Rise time of square wave

25ns

¡Ü18ns

Duty Cycle

0%-100%

Linearity of toothwave

¡Ü0.1% of peak value;

(Typical value 1KHz, 1VPP, Symmetry 100%)

Symmetry of toothwave

0%-100%

AMPLITUTE FEATURE

output amplitude

4mVpp-5Vpp

Accuracy

¡À1%+2mVrms; (High resistance, valid value, frequency 1kHz)

OFFSET FEATURE

deviation range

¡À2.5

Offset accuracy

¡À (1%+20mV)

PHYSICAL FEATURE

supply voltage

AC220V (1¡À10%)

Size

235mm¡Á123mm¡Á300mm

weight

About 3kg
¡¡ ¡¡

 ( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@163.com )
