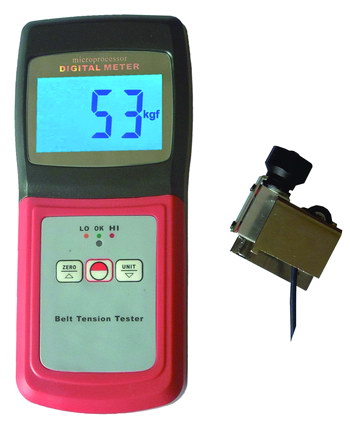

SRBT880 Belt Tension Tester

Application:
Main used in belt tension measurement, can also be applied to measure the tension of objects such as tapes, wires. Widely applied in industries of automobile, textile, cables, wires, plastic films, paper, printing.

Measuring range:
                 0-750N
                 0-120lb
                 0-77Kg
                 0-114Seems
Accuracy:        ≤±5%
Belt state indication: Low, OK, Hi
Resolution:      ±1N (or1 least significant digit of other units)
Belt width:      ≤36mm
Overload alarm:  750N
Max. load:       850N
Metric/Imperial
Auto power off
Pc interface:    RS-232C
Power supply:    4×1.5V AAA(UM-4)
Operating condition: 0 ~ 50ºC, < 85% RH
Dimension:       135×62×33mm (5.3×2.4×1.3inch)
Net weight:     335g(not including batteries)
Optional Accessories:  Cable and Software for RS-232 and USB
