SRCT30V CCTV Tester
 |
|
Features:
(1) Fourth generation 2.8-inch QVGA TFT screen, with video digital
zoom function. User can check the details of camera video during the
process of installation.
(2) Equipped with 3000mAh Li-polymer battery, which has RoHS & CE
certification. Device can work 15 hour after a single charge. 12V 1A
power supply function can be helpful when no external power supply
for the camera.
(3) Built -in Pelco-D / P, SAMSUNG, Panasonic, AD Manchester etc.
More than 30 PTZ control protocols.
(4) Practical LED flashlight.
Specifications:
|
Video test |
|
Video System |
NTSC/PAL Automatically recognize |
|
Video level |
1VPP |
|
Display screen |
2.8-inch LCD 320 * RGB * 240 (QVGA) resolution, 64K color
|
|
Screen adjustment |
Video display brightness, contrast, color saturation
adjustable, LCD backlight brightness adjustable |
|
Video input / output |
1 channel BNC Video IN , 1 channel BNC Video output
|
|
Analysis |
|
Signal level measurement |
Measure the video signal level, and displays exception
information. |
|
Digital zoom |
VSupport ˇ°fit screenˇ± ˇ°1Xˇ±ˇ°2Xˇ±ˇ°4Xˇ± options. |
|
12V power output |
|
Power output |
Temporary power output 12V 1A DC |
|
Audio test |
|
Audio test |
Input audio signal, and played on the internal speaker
|
|
PTZ control test |
|
Communication Interface |
RS485/RS422 bus support |
|
PTZ protocol |
Built-in Pelco-D/P, Samsung, Panasonic, Lilin, Yaan,
AD-Manchester,... Totally over 30 protocol |
|
Baud Rate |
150,
300,
600,
200,
2400,
800,
9600,
19200bps |
|
Video Signal |
|
Video signal generator |
Support PAL / NTSC formats, a variety of standards video
signal test |
|
Data monitor |
|
Data monitor |
RS485/RS422 bus support |
|
Power supply |
|
External power supply |
DC 5V (2A)
|
|
Battery-powered |
Built-in 3.7V li-polymer battery, Capacity 3000mAh
|
|
Charge |
Charge time 3-4 hours Battery power time 15 hours
|
|
Power saving features |
Low power consumption, automatic power off, Real-time
display of battery level |
|
System settings |
|
Language settings |
Chinese, English user selectable |
|
Auto power off |
Disable / 5-60 minutes |
|
Keyboard sound |
On / off |
|
Working environment and Specifications |
|
Temperature |
-20ˇăC~+70ˇăC |
|
Humidity |
30%-90% Rh |
|
Dimension |
165mm*80mm*27mm |
|
|
ˇˇ |
|
SRCT31V CCTV Tester + Digital Multimeter
 |
|
Features:
(1)Fourth generation 2.8-inch QVGA TFT screen, with video digital
zoom function. User can check the details of camera video during the
process of installation.
(2)Equipped with 3000mAh Li-polymer battery, which has RoHS & CE
certification. Device can work 15 hour after a single charge. 12V 1A
power supply function can be helpful when no external power supply
for the camera.
(3) Built -in Pelco-D / P, SAMSUNG, Panasonic, AD Manchester etc.
More than 30 PTZ control protocols.
(4) Practical LED flashlight.
(5)Multifunction digital multimeter can be used to measure DC
voltage, AC voltage, resistance, conductivity, diodes.
1) CCTV Tester
|
Video test
|
|
Video System |
NTSC/PAL Automatically recognize. |
|
Video level |
1Vpp |
|
Display screen |
2.8-inch LCD 320 * RGB * 240 (QVGA) resolution, 64K color
|
|
Screen adjustment |
Video display brightness, contrast, color saturation
adjustable, LCD backlight brightness is adjustable.
|
|
Video input / output |
1 channel BNC Video IN, 1 channel BNC Video output
|
|
Analysis
|
|
|
Signal level
measurement |
Measure the video signal level, and displays exception
information. |
|
Digital zoom |
Support ˇ°fit screenˇ± ˇ°1Xˇ±ˇ°2Xˇ±ˇ°4Xˇ± options. |
|
|
|
|
12V power output
|
|
Power output |
Temporary power output 12V 1A DC. |
|
Audio test |
|
Audio test |
Input audio signal, and played on the internal speaker.
|
|
PTZ control test
|
|
Communication Interface |
RS485/RS422 bus support |
|
PTZ Protocol |
Built-in Pelco-D/P, Samsung, Panasonic, Lilin, Yaan...
Totally over 30 protocols |
|
Baud Rate |
150, 300,
600,
1200, 2400,
4800,
9600,
19200bps |
|
Video Signal
|
|
Video signal generator |
Support PAL / NTSC formats, a variety of standards
video signal test |
|
Data monitor |
|
Data monitor |
RS485/RS422 bus support, capture and display data.
|
|
Power supply
|
|
External power supply |
DC 5V (2A)
|
|
Battery-powered |
Built-in 3.7V li-polymer battery. Capacity 3000mAh
|
|
Charge |
Charge time 3-4 hours
Battery power time 15 hours |
|
Power saving features |
Low power consumption, automatic power off. Realtime
display of battery level |
|
System settings |
|
Language settings |
Chinese, English user selectable. |
|
Auto power off |
Disable / 5-60 minutes. |
|
Keyboard sound |
On / off |
|
Working environment and Specifications
|
|
Temperature |
-20ˇăC~+70ˇăC |
|
Humidity |
30%-90% |
|
Dimension |
165mm*80mm*27mm
|
|
2) Digital Multimeter
Reading range: -2000~+2000; Zeroing: auto; Reading rate: 0.5pps~4pps
DMM Isolation: DMM probes are electrically isolated with all other
tester connector(1KV).
DC voltage
|
Range
|
Accuracy
|
Resolution
|
|
2V |
ˇŔ (0.3%+3)
|
1mV |
|
20V |
10mV |
|
200V |
100mV |
|
400V |
1V |
DC voltage input impendence: 10M¦¸
Reading rate: 2pps/4pps
AC voltage( TRUE RMS)
|
Range
|
Accuracy (50/60Hz)
|
Resolution
|
|
2V |
ˇŔ (0.6%+4)
|
1mV |
|
20V |
10mV |
|
200V |
100mV |
|
400V |
1V |
AC voltage input impendence: 10M¦¸
AC Voltage measure frequency: 10~400Hz(sine wave)
Reading rate: 2pps
Resistor measurement:
|
Range
|
Accuracy
|
Resolution
|
|
2K¦¸ |
ˇŔ (0.5%+3)
|
1¦¸ |
|
20K¦¸ |
10¦¸ |
|
200K¦¸ |
100¦¸ |
|
2M¦¸ |
1K¦¸ |
|
20M¦¸ |
ˇŔ (0.8%+3)
|
10K¦¸ |
Reading rate 4pps
Conductivity test
|
Range
|
Resolution
|
Test condition
|
|
2000¦¸ |
1¦¸ |
Buzzer sounds when resistance is blow 30¦¸ˇŔ3¦¸
|
Conductive test response time: <2ms
Reading rate: 4pps.
Conductive test current:1mA
Diode test
|
range
|
resolution
|
Reference forward drop voltage
|
|
2.000V |
1mV |
Schottky diodes:
0.15~0.25V
power diodes:
0.6~1.0V
PN junction of a transistor: 0.5~0.8V |
measure current: 1mA
Buzzer sounds when diode forward voltage is blow 30mVˇŔ3mV
Capacitor test
|
range
|
accuracy
|
resolution
|
Conversion time
|
|
2nF |
ˇŔ (2%+20)
|
1pF |
1s |
|
20nF |
10pF |
1s |
|
200nF |
ˇŔ (1%+8)
|
100pF |
1s |
|
2¦ĚF |
1nF |
1s |
|
20¦ĚF |
10nF |
1s |
|
200¦ĚF |
100nF |
1s |
|
2mF |
ˇŔ (3%+8)
|
1¦ĚF |
1-2s |
|
20mF |
10¦ĚF |
2s |
Measure method: charge slope measure
Charge voltage: 1~2V
|
|
ˇˇ |
ˇˇ |
|
SRCT91N CCTV Tester
 |
|
Features:
A new generation of CCTV tester, has a
3.5-inch LCD 480 * RGB * 320 (HVGA) resolution and 64K color LCD
screen. Directly support high number of lines of video camera input
image, can detects the input video image effects. And you can
display the contents of the video in the digital zoom (fit screen,
1X, 2X, 4X four kinds of magnification). It is common that cameras
having defects like corner focus blur, or having dust on lens. And
when installing a camera, user needs to adjust some finest detail.
To discover the camera defects and do the adjust, there are some
difficulty if using a small size screen. With the digital zoom
function, user can do the job easily and efficiently.
Specifications:
|
Video test |
|
Video System |
NTSC/PAL Automatically recognize |
|
Video level |
1VPP |
|
Display screen |
3.5-inch LCD 480 * RGB * 320 (HVGA) resolution, 64K color
|
|
Screen adjustment |
Video display brightness, contrast, color saturation
adjustable, LCD backlight brightness adjustable |
|
Video input / output |
1 channel BNC Video IN , 1 channel BNC Video output
|
|
Signal level measurement |
Measure the video signal level, and displays exception
information |
|
Digital zoom |
Supports ˇ°fit screenˇ± ˇ°1Xˇ±ˇ°2Xˇ±ˇ°4Xˇ± options |
|
12V power output |
|
Power output |
Temporary power output 12V 1A DC |
|
Audio test |
|
Audio test |
Input audio signal, and played on the internal speaker
|
|
PTZ control test |
|
Communication Interface |
RS232/RS485/RS422 bus support |
|
PTZ protocol |
Built-in Pelco-D/P, Samsung, Panasonic, Lilin, Yaan,
AD-Manchester,... Totally over 30 protocol |
|
Baud Rate |
150,
300,
600,
200, 2400,
800,
9600,
19200bps |
|
Color image generator |
|
Video signal generator |
Generates industry standard color bar signal . Supports PAL
/ NTSC, totally 7 different subbranch standard. |
|
Cable test |
|
cable test |
Test any two or more wire cable Display connect sequence and
remote number |
|
Data monitor |
|
Data monitor |
RS232/RS485/RS422 bus support |
|
Power supply |
|
External power supply |
DC 5V (2A) |
|
Battery-powered |
Built-in 3.7V li-polymer battery, Capacity 3000mAh
|
|
Charge |
Charge time 3-4 hours Battery power time 11 hours
|
|
Power saving features |
Low power consumption, automatic power off, Real-time
display of battery level |
|
System settings |
|
Language settings |
Chinese, English user selectable |
|
Auto power off |
Disable / 5-60 minutes |
|
Keyboard sound |
On / off |
|
Working environment and Specifications |
|
Temperature |
-20ˇăC~+70ˇăC |
|
Humidity |
30%-90% Rh |
|
Dimension |
175mm*94mm*35mm (without protection case); 190mm*105mm*45mm
(with protection case) |
|
Gross weight |
1.15KG |
|
|
ˇˇ |
|
SRCT93N CCTV Tester
 |
|
Features:
Based on the function of SRCT93N HD
camera image test and the digital zoom. New update of video capture,
video recording functions. The tester can set the video image
content, save as JPG images or video files, then playback or via
tester download to your computer for viewing.
Specifications:
|
Video test |
|
Video System |
NTSC/PAL Automatically recognize |
|
Video level |
1VPP |
|
Display screen |
3.5-inch LCD 480 * RGB * 320 (HVGA) resolution, 64K color
|
|
Screen adjustment |
Video display brightness, contrast, color saturation
adjustable, LCD backlight brightness is adjustable
|
|
Video input / output |
1 channel BNC Video IN , 1 channel BNC Video output
|
|
Signal level measurement |
Measure the video signal level, and displays exception
information |
|
Digital zoom |
Supports ˇ°fit screenˇ± ˇ°1Xˇ±ˇ°2Xˇ±ˇ°4Xˇ± options |
|
12V power output |
|
Power output |
Temporary power output 12V 1A DC |
|
Audio test |
|
Audio test |
Input audio signal, and played on the internal speaker
|
|
PTZ control test |
|
Communication Interface |
RS232/RS485/RS422 bus support |
|
PTZ protocol |
Built-in Pelco-D/P, Samsung, Panasonic, Lilin, Yaan,
AD-Manchester,... Totally more than 30 protocols.
|
|
Baud Rate |
150,
300,
600,
200,
2400,
800,
9600,
19200bps |
|
Color image generator |
|
Video signal generator |
Generates industry standard color bar signal . Supports PAL
/ NTSC, totally 7 different subbranch standards.
|
|
Video screen shot and video record |
|
Video screen shot |
Save current video frame as JPEG file. |
|
Video record |
Record video in AVI format. |
|
Cable test |
|
cable test |
Test any two or more wire cable. Display connect sequence
and remote number. |
|
Data monitor |
|
Data monitor |
RS232/RS485/RS422 bus support |
|
Power supply |
|
External power supply |
DC 5V (2A)
|
|
Battery-powered |
Built-in 3.7V li-polymer battery. Capacity 3000mAh
|
|
Charge |
Charge time 3-4 hours Battery power time 11 hours
|
|
Power saving features |
Low power consumption, automatic power off, Real-time
display of battery level |
|
System settings |
|
Language settings |
Chinese, English user selectable |
|
Auto power off |
Disable / 5-60 minutes |
|
Keyboard sound |
On / off |
|
Working environment and Specifications |
|
Temperature |
-20ˇăC~+70ˇăC |
|
Humidity |
30%-90% Rh |
|
Dimension |
175mm*94mm*35mm (without protection case); 190mm*105mm*45mm
(with protection case) |
|
Gross weight |
1.15KG
|
|
|
ˇˇ |
|
SRCT94N CCTV Tester + Digital Multimeter
 |
|
Features:
Based on SRCT93N. New update.
Have a full-featured high-precision digital multimeter, it can be
used to measure DC voltage, AC voltage, DC current, AC current,
resistance measurements, continuity test, diode measurement,
capacitance measurement, automatic / manual range conversion, the
difference measurement and lock function range, measurement
accuracy, easy to use.
1) CCTV Tester
|
Video System |
NTSC/PAL Automatically recognize |
|
Video level |
1VPP |
|
Display screen |
3.5-inch LCD 480 * RGB * 320 (HVGA) resolution, 64K
color |
|
Screen adjustment |
Video display brightness, contrast, color saturation
adjustable, LCD backlight brightness is adjustable.
|
|
Video input / output |
1 channel BNC Video IN , 1 channel BNC Video output
|
|
Signal level measurement |
Measure the video signal level, and displays exception
information |
|
Digital zoom |
Supports ˇ°fit screenˇ± ˇ°1Xˇ±ˇ°2Xˇ±ˇ°4Xˇ± options |
|
12V power output |
|
Power output |
Temporary power output 12V 1A DC |
|
Audio test |
|
Audio test |
Input audio signal, and played on the internal speaker
|
|
Video screen shot and video record* |
|
Video screen shot |
Save current video frame as JPEG file. |
|
Video record |
Record video in AVI format. |
|
PTZ control test |
|
Communication Interface |
RS232/ RS485/ RS422 bus support |
|
PTZ protocol |
Built-in Pelco-D/P, Samsung, Panasonic, Lilin, Yaan,
AD-Manchester,... Totally more than 30 protocols.
|
|
Baud Rate |
150,
300,
600,
1200,
2400,
4800,
9600, 19200bps |
|
Color image generator |
|
Video signal generator |
Generates industry standard color bar signal . Supports
PAL / NTSC, totally 7 different subbranch standards.
|
|
Audio test |
|
Audio test |
Input audio signal, and played on the internal speaker
|
|
Cable test |
|
cable test |
Test any two or more wire cable. Display connect
sequence and remote number. |
|
Data monitor |
|
Data monitor |
RS232/RS485/RS422 bus support. |
|
Power supply |
|
External power supply |
DC 5V (2A)
|
|
Battery-powered |
Built-in 3.7V li-polymer battery, Capacity 3000mAh
|
|
Charge |
Charge time 3-4 hours Battery power time 11 hours
|
|
Power saving features |
Low power consumption, automatic power off, Real-time
display of battery level |
|
System settings |
|
Language settings |
Chinese, English user selectable |
|
Auto power off |
Disable / 5-60 minutes |
|
Keyboard sound |
On / off |
|
Working environment and Specifications |
|
Temperature |
-20ˇăC~+70ˇăC |
|
Humidity |
30%-90% |
|
Dimension |
175mm*94mm*35mm
(without protection case)
190mm*105mm*45mm (with protection case)
|
|
Gross weight |
1.15KG
|
|
2) Digital Multimeter
|
Reading
range |
-6600~+6600 |
|
Zeroing |
auto |
|
Conversion rate |
3pps |
|
DMM Isolation |
DMM probes are electrically isolated with all other
tester connector(1KV) |
|
DC voltage |
|
Range |
Accuracy |
Resolution |
|
660mV (available in manual ranging) |
ˇŔ
(0.3%+4)
|
0.1mV |
|
6.6V |
1mV |
|
66V |
10mV |
|
660V |
100mV |
|
AC votage |
|
Range |
Accuracy |
Resolution |
|
660mV (available in manual ranging) |
ˇŔ
(1.5%+6)
|
0.1mV |
|
6.6V |
1mV |
|
66V |
ˇŔ
(0.8%+6)
|
10mV |
|
660V |
100mV |
|
DC Current |
|
Range |
Accuracy |
Resolution |
|
6.6mA |
ˇŔ
(0.5%+3)
|
1uA |
|
66mA |
10uA |
|
660mA |
ˇŔ
(1%+5Ł©
|
100uA |
|
10A |
10mA |
|
AC Current |
|
Range |
Accuracy |
Resolution |
|
6.6mA |
ˇŔ
(0.5%+3Ł©
|
1uA |
|
66mA |
10uA |
|
660mA |
ˇŔ
(1%+5)
|
100uA |
|
10A |
10mA |
|
Resistor measurement |
|
Range |
Accuracy |
Resolution |
|
660¦¸ |
ˇŔ
(0.8%+5)
|
0.1¦¸ |
|
6.6K¦¸ |
1¦¸ |
|
66K¦¸ |
ˇŔ
(0.8%+2)
|
10¦¸ |
|
660K¦¸ |
100¦¸ |
|
6.6M¦¸ |
ˇŔ
(1.2%+5)
|
1K¦¸ |
|
66M¦¸ |
10K¦¸ |
|
Conductivity test |
|
Range |
Accuracy |
Test condition |
|
660¦¸ |
0.1¦¸ |
Buzzer sounds when resistance <30¦¸ˇŔ3¦¸ |
|
Diode tet |
|
Range |
Accuracy |
Reference forward drop voltage |
|
2.0V |
1mV |
Schottky diodes:
0.15~0.25V
power diodes:
0.6~1.0V
PN junction of a transistor 0.5~0.8V
|
|
Capacitor test |
|
Range |
Accuracy |
Resolution |
|
6.6nF |
ˇŔ
(0.5%+20)
|
1pF |
|
66nF |
10pF |
|
660nF |
ˇŔ
(3.5%+8)
|
100pF |
|
6.6¦ĚF |
1nF |
|
66¦ĚF |
10nF |
|
660¦ĚF |
ˇŔ
(5%+8)
|
100nF |
|
6.6mF |
1¦ĚF |
|
66mF |
10¦ĚF |
|
|
ˇˇ |
|
SRCT95N CCTV Tester + Digital Multimeter +
Optical Power Meter
 |
|
Features:
In addition to basic functions, it has full-featured digital
multimeter with high precision, can be used to measure DC voltage,
AC voltage, DC current, AC current, resistance measurements,
continuity test, diode measurement, capacitance measurement,
automatic / manual range conversion etc.
Built-in optical power testing function, for measuring video optical
transceiver, optical communication equipment, optical power value.
It can test the fiber attenuation.
ItˇŻs easy to use, suitable for a variety of optical communications
engineering.
1) CCTV Tester
|
Video System |
NTSC/PAL Automatically recognize |
|
Video level |
1VPP |
|
Display screen |
3.5-inch LCD 480 * RGB * 320 (HVGA) resolution, 64K
color |
|
Screen adjustment |
Video display brightness, contrast, color saturation
adjustable, LCD backlight brightness is adjustable.
|
|
Video input / output |
1 channel BNC Video IN , 1 channel BNC Video output
|
|
Signal level measurement |
Measure the video signal level, and displays exception
information |
|
Digital zoom |
Supports ˇ°fit screenˇ± ˇ°1Xˇ±ˇ°2Xˇ±ˇ°4Xˇ± options |
|
Video screen shot and video record* |
|
Video screen shot |
Save current video frame as JPEG file. |
|
Video record |
Record video in AVI format. |
|
PTZ control test |
|
Communication Interface |
RS232/RS485/RS422 bus support |
|
PTZ protocol |
Built-in Pelco-D/P, Samsung, Panasonic, Lilin, Yaan,
AD-Manchester,... Totally more than 30 protocols.
|
|
Baud Rate |
150, 300,
600,
1200,
2400,
4800,
9600,
19200bps |
|
Color image generator |
|
Video signal generator |
Generates industry standard color bar signal . Supports
PAL / NTSC, totally 7 different subbranch standards.
|
|
Cable test |
|
cable test |
Test any two or more wire cable. Display connect
sequence and remote number. |
|
Data monitor |
|
Data monitor |
RS232/RS485/RS422 bus support. |
|
Power supply |
|
External power supply |
DC 5V (2A)
|
|
Battery-powered |
Built-in 3.7V li-polymer battery, Capacity 3000mAh
|
|
Charge |
Charge time 3-4 hours Battery power time 11 hours
|
|
Power saving features |
Low power consumption, automatic power off, Real-time
display of battery level |
|
System settings |
|
Language settings |
Chinese, English user selectable |
|
Auto power off |
Disable / 5-60 minutes |
|
Keyboard sound |
On / off |
|
Working environment and Specifications |
|
Temperature |
-20ˇăC~+70ˇăC |
|
Humidity |
30%-90% |
|
Dimension |
175mm*94mm*35mm
(without protection case)
190mm*105mm*45mm (with protection case)
|
|
Gross weight |
1.15KG
|
3)Optical power meter
|
Detector type |
InGaAs |
|
Calibrated wavelength |
1625nm, 1550nm,
1480nm,
1310nm,
1300nm,
850nm |
|
Measure range |
-70~+10 dBm |
|
Accuracy |
<ˇŔ0.03dB (-10dBm, 22ˇăC)
<ˇŔ0.1dB (full range, 22ˇăC) |
|
Display resolution |
linear: 0.1%, logarithm:0.01dBm |
|
Coupler |
FC/PC inter-changeable |
|
Operating temperature |
-10ˇăC~+50ˇăC |
|
Storage temperature |
-20ˇăC~+70ˇăC |
|
2) Digital Multimeter
|
Reading
range |
-6600~+6600 |
|
Zeroing |
auto |
|
Conversion rate |
3pps |
|
DMM Isolation |
DMM probes are electrically isolated with all other
tester connector(1KV) |
|
DC voltage |
|
Range |
Accuracy |
Resolution |
|
660mV (available in manual ranging) |
ˇŔ
(0.3%+4)
|
0.1mV |
|
6.6V |
1mV |
|
66V |
10mV |
|
660V |
100mV |
|
AC votage |
|
Range |
Accuracy |
Resolution |
|
660mV (available in manual ranging) |
ˇŔ
(1.5%+6)
|
0.1mV |
|
6.6V |
1mV |
|
66V |
ˇŔ
(0.8%+6)
|
10mV |
|
660V |
100mV |
|
DC Current |
|
Range |
Accuracy |
Resolution |
|
6.6mA |
ˇŔ
(0.5%+3)
|
1uA |
|
66mA |
10uA |
|
660mA |
ˇŔ
(1%+5Ł©
|
100uA |
|
10A |
10mA |
|
AC Current |
|
Range |
Accuracy |
Resolution |
|
6.6mA |
ˇŔ
(0.5%+3Ł©
|
1uA |
|
66mA |
10uA |
|
660mA |
ˇŔ
(1%+5)
|
100uA |
|
10A |
10mA |
|
Resistor measurement |
|
Range |
Accuracy |
Resolution |
|
660¦¸ |
ˇŔ
(0.8%+5)
|
0.1¦¸ |
|
6.6K¦¸ |
1¦¸ |
|
66K¦¸ |
ˇŔ
(0.8%+2)
|
10¦¸ |
|
660K¦¸ |
100¦¸ |
|
6.6M¦¸ |
ˇŔ
(1.2%+5)
|
1K¦¸ |
|
66M¦¸ |
10K¦¸ |
|
Conductivity test |
|
Range |
Accuracy |
Test condition |
|
660¦¸ |
0.1¦¸ |
Buzzer sounds when resistance <30¦¸ˇŔ3¦¸ |
|
Diode tet |
|
Range |
Accuracy |
Reference forward drop voltage |
|
2.0V |
1mV |
Schottky diodes:
0.15~0.25V
power diodes:
0.6~1.0V
PN junction of a transistor 0.5~0.8V
|
|
Capacitor test |
|
Range |
Accuracy |
Resolution |
|
6.6nF |
ˇŔ
(0.5%+20)
|
1pF |
|
66nF |
10pF |
|
660nF |
ˇŔ
(3.5%+8)
|
100pF |
|
6.6¦ĚF |
1nF |
|
66¦ĚF |
10nF |
|
660¦ĚF |
ˇŔ
(5%+8)
|
100nF |
|
6.6mF |
1¦ĚF |
|
66mF |
10¦ĚF |
|
|
ˇˇ |
|
SRCT96N CCTV Tester +
Optical Power Meter
 |
|
Features:
Built-in optical power testing function,
for measuring video optical transceiver, optical communication
equipment, optical power value. It can test the fiber attenuation.
Test Wavelength: 850nm/1300nm/1310nm/1490nm/1550nm/1625nm,
Test Range: -70 - +10 dBm or -50 - +26 dBm
ItˇŻs easy to use, suitable for a variety of optical communications
engineering.
1) CCTV Tester
|
Video test |
|
Video System |
NTSC/PAL Automatically recognize |
|
Video level |
1VPP |
|
Display screen |
3.5-inch LCD 480 * RGB * 320 (HVGA) resolution, 64K color
|
|
Screen adjustment |
Video display brightness, contrast, color saturation
adjustable, LCD backlight brightness is adjustable
|
|
Video input / output |
1 channel BNC Video IN , 1 channel BNC Video output
|
|
Signal level measurement |
Measure the video signal level, and displays exception
information |
|
Digital zoom |
Supports ˇ°fit screenˇ± ˇ°1Xˇ±ˇ°2Xˇ±ˇ°4Xˇ± options |
|
12V power output |
|
Power output |
Temporary power output 12V 1A DC |
|
Audio test |
|
Audio test |
Input audio signal, and played on the internal speaker
|
|
PTZ control test |
|
Communication Interface |
RS232/RS485/RS422 bus support |
|
PTZ protocol |
Built-in Pelco-D/P, Samsung, Panasonic, Lilin, Yaan,
AD-Manchester,... Totally more than 30 protocols.
|
|
Baud Rate |
150, 300,
600,
200,
2400,
800,
9600,
19200bps |
|
Color image generator |
|
Video signal generator |
Generates industry standard color bar signal . Supports PAL
/ NTSC, totally 7 different subbranch standards.
|
|
Video screen shot and video record |
|
Video screen shot |
Save current video frame as JPEG file. |
|
Video record |
Record video in AVI format. |
|
Cable test |
|
cable test |
Test any two or more wire cable. Display connect sequence
and remote number. |
|
Data monitor |
|
Data monitor |
RS232/RS485/RS422 bus support |
|
Power supply |
|
External power supply |
DC 5V (2A)
|
|
Battery-powered |
Built-in 3.7V li-polymer battery. Capacity 3000mAh
|
|
Charge |
Charge time 3-4 hours Battery power time 11 hours
|
|
Power saving features |
Low power consumption, automatic power off, Real-time
display of battery level |
|
System settings |
|
Language settings |
Chinese, English user selectable |
|
Auto power off |
Disable / 5-60 minutes |
|
Keyboard sound |
On / off |
|
Working environment and Specifications |
|
Temperature |
-20ˇăC~+70ˇăC |
|
Humidity |
30%-90% Rh |
|
Dimension |
175mm*94mm*35mm (without
protection case);
190mm*105mm*45mm (with protection case) |
|
Gross weight |
1.15KG |
2) Optical power meter
|
Detector Type |
InGaAs |
|
Calibrated Wavelength |
1625nm,
1550nm,
1480nm,
1310nm,
1300nm,
850nm |
|
Measure
Range |
-70 ~ +10 dBm |
|
Accuracy |
<ˇŔ0.03dB (-10dBm, 22ˇăC)
<ˇŔ0.1dB (full range, 22ˇăC)
|
|
Display Resolution |
linear: 0.1%,
logarithm:0.01dBm |
|
Coupler
|
FC/PC inter-changeable |
|
Operating Temperature |
-10ˇăC
~
+50ˇăC |
|
Storage Temperature |
-20ˇăC
~
+70ˇăC
|
|
|
ˇˇ |
|
SRCT61T High Definition Combine Tester
 |
|
Features:
The SRCT61T CCTV Tester, which is also
called High Definition Combine Tester (herein after referred to as T
series). SRCT61T is mainly applied in video surveillance system
installation and maintenance engineering, it combines the video
surveillance center device function and many basic engineering
tools, which can improve engineering convenience and improve the
work efficiency in the process of installation, maintenance and
other engineering work.
SRCT61T supports traditional analog SD video system, IP HD
system. the main functions are:
1. Analog camera test and 485 PTZ Control test .
2. IP camera test: Discover the camera and view camera video ,
configure the camera parameters, etc.
3. Ethernet test:10M/100M/1G Ethernet link test; Packet loss test;
Ethernet loop detection; etc
4. Analog video generator.
5. Ping, sniff, list, tracert and other IP layer test.
6. Video screen shot, video recording and playback.
7. Audio test.
8. 12V/2A power output
9. PSE power output
10. PD test
11. Dual LED flashlight
12. Online software upgrade
Specifications:
|
Physical
Port |
|
Network
Port |
2*10/100/1000M RJ45 port ,support switch mode |
|
Function
Port |
2*BNC port (Video IN and Video OUT),1*RS485,1*Audio
In,1*USB,1*Reset |
|
IPC Test |
|
Protocol |
ONVIF 2.4.1,RTSP,RTP |
|
Ethernet Test |
10/100/1000M Ethernet link test, loop detect, Ethernet
traffic flow monitor, link quality test |
|
IP Configuration |
Static IP/DHCP client/DHCP server |
|
IPC Test |
Discover camera, real time video, camera configuration, PTZ
control, audio test, full screen preview and 8x digital
zoom, snapshot, record video (recording original data
stream) |
|
HDCVI&Analog Test |
|
SD signal Format |
NTSC
Ł¬PAL
|
|
Resolution |
D1,720P,1080P |
|
Signal Level |
1Vpp |
|
Camera Test |
Real time video, PTZ control, audio test, full screen
preview and 8x digital zoom, snapshot, record videoŁ¨H.264Ł©
|
|
HDCVI OSD |
Camera configuration |
|
PTZ Control |
|
Protocol |
More than 30 protocols including Dahua,
Pelco-D/P,
Samsung,
Panasonic,
Lilin,
Yaan etc. |
|
Baud Rate |
150,
300,
600,
1200,
2400,
4800,
9600,
19200bps |
|
Detection |
|
POE test |
PD test /PSE test |
|
Network Analyze |
Sniff, list subnet, ping |
|
Analog Video Generator |
Generate PAL/NTSC video signal of various test pattern
|
|
Record Playback |
Support local playback |
|
System Specification |
|
Screen |
4.0 inch TFT 800*RGB*480(WVGA) resolution,16.7M color,
backlight brightness adjustable |
|
Operation Method |
Power key,12 control keys, QWERTY flip keyboard with 45 keys
|
|
Auto Power Off |
Disable/5~60 minutes |
|
Keyboard Tone |
Enable/Disable |
|
Upgrade |
Support online upgrade |
|
Power |
|
Power Input |
POE source or POE injector |
|
POE Injector |
Input AC100~230V 50~60Hz,
output 48V/15W |
|
Battery |
Dedicate battery, user replaceable,7.4V lithium-ion polymer
battery, capacity 22.2Wh |
|
Power Output |
POE (802.3af,802.3at); DC12V/2A
|
|
Time |
Charging time 3~4 hours, working time 10 hours |
|
Other |
|
Internal Storage |
8GB flash |
|
LED Light |
2*35lm LED light |
|
Working Temperature |
-10ˇăC
~
+55ˇăC
|
|
Working Humidity |
30%~90% |
|
Dimensions |
190*113*37mm |
|
Weight |
1.6kg |
|
|
ˇˇ |
|
 |
SRCT361 CCTV Tester with Wire Tracker
|
Signal Transmit Distance |
>1km |
|
Display |
2.0 Inches TFT LCD |
|
Tracing Function |
Yes |
|
Pal\ntsc Standard Indentifying |
Yes |
|
Low Battery Alert |
Yes |
|
Volume Regulation |
Yes |
|
Earphone Plug-in |
Yes |
|
Torch Function |
Yes |
|
Video Monitoring |
Yes |
|
Power Charging |
Yes |
|
Auto Power Off |
under Video Status,8 Minutes Without
Any Operation |
|
Operating Temperature |
-10 ~40ˇăC (14 ~ 104ˇăF) |
|
Relative Moisture |
10-95% |
|
Storage Temperature |
-20 ~ 60ˇăC (-4~140ˇăF) |
|
Weight |
Transmitter:132.2g, Receiver:59.2g |
|
Size |
Transmitter: 48.6*26*177mm;
Receiver: 48.6*26*177mm |
|
Power |
Transmitter:3*3.7V lithium batteries,
Receiver: 6F22 9V battery |
|
|
ˇˇ |
ˇˇ |
|
ˇˇ
ˇˇ
ˇˇ
ˇˇ
ˇˇ
ˇˇ
Features:
-3.5 inch full-view TFT-LCD, 480(RGB)x320
-low consumption, work for 11 hours
-OSD menu, English, Chinese and other languages optional
-LCD screen brightness/contrast/color Saturation adjustable
-Automatically identify and adapt the video mode of NTSC and PAL
-Enhanced colorbar generator, by receiving the video color bar to
test the video channel whether transmit normally
-Moveable Micro SD
-LED Lamp, easy to operate at night
-User-defined shortcut keys (F1 and F2)
-10x zoom, video image can be magnified to view the details, easy to
use
-Snapshot and save the current image as JPG file in the SD card
-PING testing, test IP camera or other network devicesˇŻ Ethernet
port whether work normally, and the IP address whether is right
-IP address scan, quickly search the IP address for the connected IP
camera and other network devices
-POE voltage measurement, test the PoE switchˇŻs voltage to IP
cameras, wireless AP device and other PD devices
-Device Port flicker, easy to find the connected PoE switch port by
sending special signals, the connected PoE port will flicker at
special frequency.
-Link monitor; check the setting IP address whether occupied.
-TDR break point and short ¨C circuit measurement( BNC cable, network
cable etc) (Only SRCT601T have this
function)
-PTZ address scan, search up the ID of PTZ camera.
-Network cable and Telephone cable testing, display the sequence of
connection and the No
of the LAN cable
-Multi-protocol. Supports more than thirty PTZ protocols. Such as
PELCO-P, PELCO-D,
SAMSUNG
-Support RS232/RS485/RS422,rate 600 ˇ« 115200bps adjustable
-Lithium Ion Polymer Battery. The device employs advanced power
control and protection circuit
-Display the data and image in on the screen at the same time.
-Easy for use that the train is almost unnecessary
Applications:
-Find out the other end of the cable in
security maintenance and network engineering
-CCTV system installation and maintenance
-Dome camera and All in one camera testing
-The CCTV transmitting channel testing
-PTZ controller
|
SRCT601 series CCTV tester
Overview:
The new CCTV tester is developed for the
On-Site installation and maintenance of IP camera, analog camera and
network device, with Video display, PTZ control, DC12v output power,
Audio test, Color bar generator, RS 485 Data searching and Cable
testing, which are the same to the previous models. The new
developed functions include POE power supply testing, PING testing,
IP address scan, Video snapshot, Video record, Image magnification,
Port flicker, LED lamp etc. The new tester also has built in TDR
cable testing, which is specialized designed for BNC cable testing
in the security monitoring system. This function can accurately
measure BNC cable and network cableˇŻs break point and short-circuit
location. The new tester designed with easy operation and
portability makes it simple for a cctv technician or installer to
install and maintain CCTV systems, improving work efficiency by
reducing time in the field.
Parameters:
|
Model |
SRCT601,
SRCT601T (with
TDR)
( 6th generation) |
|
Video Test |
|
Signal mode |
NTSC/PAL (Auto adapt) |
|
Display |
3.5 inch digital TFT-LCD ,480 (RGB) * 320 resolution |
|
LCD adjustment |
Brightness, Contrast, Saturation adjustable |
|
Video IN/OUT |
1 channel BNC Input & 1 channel Output |
|
Video Output Mode |
1.0 Vp-p |
|
Video Level test |
|
Level test |
Video signals measured in IRE or mV |
|
PTZ controller |
|
Communication |
Support RS232 and RS485 |
|
PTZ Protocol |
Compatible with more than 30 protocols such as PELCO-D/P,
Samsung, Panasonic, Lilin, Yaan, etc. |
|
Baud Rate |
600,
1200, 2400, 4800, 9600,
19200, 57600, 115200bps |
|
Video Signal Generation |
|
Color bar generator |
Output one channel PAL/NTSC color bar video signal for
testing monitor or video cable.(red, green ,blue, white and
black color ) |
|
UTP CABLE TEST |
|
UTP cable test |
Test UTP cable connection status and display in the screen.
Read the number of the test box. |
|
DC12V 1A power output |
|
DC12V power output |
Output DC12V1A power for camera |
|
Audio input test |
|
Audio input test |
test the pickup and other audio equipments on the front-end |
|
RS485 data analysis |
|
Data Monitor |
Captures and analyzes the command data from controlling
device |
|
10 x zoom of image |
|
Image 10x zoom |
10x zoom image display and video out |
|
Photograph,Video
record, Record playback |
|
Photograph |
snapshot and save the current image as JPG file |
|
Video record |
Video record and storage the file |
|
Record playback |
To view the storage file in the SD card |
|
Port flicker |
|
Port flicker |
Find the connected POE port quickly. |
|
IP scan, Link monitor, PING test |
|
IP scan |
Find out the connected IP camera or the other network
equipment IP address quickly. |
|
Link Monitor |
|
Link monitor |
Check the IP address whether is occupied |
|
PING
Testing |
|
PING testing |
Test IP camera or Ethernet port of the other network
equipment whether work normally, and check the IP address
|
|
POE tester |
|
POE tester |
Display the power supply voltage and cable connection states
|
|
TDR Tester |
(Only
SRCT601T have this function) |
|
TDR Tester |
breakpoint and short circuit measurement (BNC cable,
telephone cable) |
|
POWER |
|
Power Adapter |
DC 5V (1.5A) |
|
Battery |
Built-in 3.7V Lithium polymer battery,3000mAh |
|
Rechargeable |
After charging 3-4 hour, working time lasts 11 hours |
|
Low Consumption |
Energy saving technology, the battery icon real-time display |
|
Parameter |
|
Operation setting |
English/Chinese and other languages OSD menu |
|
Auto off |
5-60 (mins) |
|
Key tone |
On/Off |
|
General |
|
Working Temperature |
-10ºC~+50ºC |
|
Working Humidity |
30%-90% |
|
Dimension/ Weight |
194mm*112mm*48mm / 540g |
|
|
ˇˇ |
ˇˇ |
|
ˇˇ
ˇˇ
ˇˇ
ˇˇ
ˇˇ
Features:
-3.5 inch full-view TFT-LCD, 480(RGB)x320
-low consumption, work for 11 hours
-OSD menu, English, Chinese and other languages optional
-LCD screen brightness/contrast/color Saturation adjustable
-Cable scan, send the specific signal, easy to find the connected
cable.
-Automatically identify and adapt the video mode of NTSC and PAL
-Enhanced colorbar generator, by receiving the video color bar to
test the video channel whether transmit normally
-Moveable Micro SD
-LED Lamp, easy to operate at night
-User-defined shortcut keys (F1 and F2)
-10x zoom, video image can be magnified to view the details, easy to
use
-Snapshot and save the current image as JPG file in the SD card
-PING testingŁ¬test IP camera or other network devices' Ethernet port
whether work normally, and the IP address whether is right
-IP address scan, quickly search the IP address for the connected IP
camera and other network devices
-POE voltage measurement, test the POE switchˇŻs voltage to IP
cameras, wireless AP device and other PD devices
-Device Port flicker, easy to find the connected POE switch port by
sending special signals, the connected POE port will flicker at
special frequency
-Link monitor; check the setting IP address whether occupied
-TDR break point and short ¨C circuit measurement( BNC cable, network
cable etc) (Only SRCT602T have this
function)
-PTZ address scan, search up the ID of PTZ camera.
-Network cable and Telephone cable testing, display the sequence of
connection and the No of the LAN cable
-Multi-protocol. Supports more than thirty PTZ protocols. Such as
PELCO-P, PELCO-D, SAMSUNG
-Support RS232/RS485/RS422, rate 600 ˇ«115200bps adjustable
-Lithium Ion Polymer Battery. The device employs advanced power
control and protection circuit
-Display the data and image in on the screen at the same time
-Easy for use that the train is almost unnecessary
Applications:
-Find out the other end of the cable in
security maintenance and network engineering
-CCTV system installation and maintenance
-Dome camera and All in one camera testing
-The CCTV transmitting channel testing
-PTZ controller |
SRCT602 series CCTV tester with Wire
Tracker
Overview:
The new CCTV tester is developed for the
On-Site installation and maintenance of IP cameraŁ¬analog camera and
network device, with Video display, PTZ control, DC12v output power,
Audio test, Color bar generator, RS 485 Data searching and Cable
testing, which are the same to the previous models. The new
developed functions include POE power supply testing, PING testing,
IP address scan, Cable scan, Video snapshot, Video record, Image
magnification, Port flicker, LED lamp etc. The new tester also has
built in TDR cable testing, which is specialized designed for BNC
cable testing in the security monitoring system. This function can
accurately measure BNC cable and network cableˇŻs break point and
short-circuit location. The new tester designed with easy operation
and portability makes it simple for a cctv technician or installer
to install and maintain CCTV systems, improving work efficiency by
reducing time in the field.
Parameters:
|
Model |
SRCT602,
SRCT602T (with
TDR)
( 6th generation) |
|
Video Test |
|
Signal mode |
NTSC/PAL (Auto adapt) |
|
Display |
3.5 inch digital TFT-LCD, 480 (RGB) * 320 resolution |
|
LCD adjustment |
Brightness, Contrast, Saturation adjustable |
|
Video IN/OUT |
1 channel BNC Input & 1 channel Output |
|
Video Output Mode |
1.0 Vp-p |
|
Video Level test |
|
Level test |
Video signals measured in IRE or mV |
|
PTZ controller |
|
Communication |
Support RS232 and RS485 |
|
PTZ Protocol |
Compatible with more than 30 protocols such as PELCO-D/P,
Samsung, Panasonic, Lilin, Yaan, etc. |
|
Baud Rate |
600, 1200, 2400, 4800, 9600, 19200, 57600, 115200bps |
|
Video Signal Generation |
|
Color bar generator |
Output one channel PAL/NTSC color bar video signal for
testing monitor or video cable.(red, green ,blue, white and
black color ) |
|
UTP CABLE TEST |
|
UTP cable test |
Test UTP cable connection status and display in the screen.
Read the number of the test box. |
|
DC12V 1A power output |
|
DC12V power output |
Output DC12V1A power for camera |
|
Audio input test |
|
Audio input test |
test the pickup and other audio equipments on the front-end |
|
RS485 data analysis |
|
Data Monitor |
Captures and analyzes the command data from controlling
device |
|
10 x zoom of image |
|
Image 10x zoom |
10x zoom image display and video out |
|
Photograph,Video
record, Record playback |
|
Photograph |
snapshot and save the current image as JPG file |
|
Video record |
Video record and storage the file |
|
Record playback |
To view the storage file in the SD card |
|
Port flicker |
|
Port flicker |
Find the connected POE port quickly. |
|
IP scan, Link monitor, PING test |
|
IP scan |
Find out the connected IP camera or the other network
equipment IP address quickly. |
|
Link monitor |
Check the IP address whether is occupied |
|
PING testing |
Test IP camera or Ethernet port of the other network
equipment whether work normally, and check the IP address
|
|
Cable scan
|
|
Cable scan |
Search the cable by the audio signal |
|
POE tester |
|
POE tester |
Display the power supply voltage and cable connection states
|
|
TDR Tester |
(Only
SRCT602T have this function) |
|
TDR Tester |
breakpoint and short circuit measurement (BNC cable,
telephone cable) |
|
POWER |
|
Power Adapter |
DC 5V (1.5A) |
|
Battery |
Built-in 3.7V Lithium polymer battery, 3000mAh |
|
Rechargeable |
After charging 3-4 hour, working time lasts 11 hours |
|
Low Consumption |
Energy saving technology, the battery icon real-time display |
|
Parameter |
|
Operation setting |
English/Chinese and other languages OSD menu |
|
Auto off |
5-60 (mins) |
|
Keytone |
On/Off |
|
General |
|
Working Temperature |
-10ºC~+50ºC |
|
Working Humidity |
30%-90% |
|
Dimension /Weight |
194mm* 112mm * 48mm / 540g |
|
|
ˇˇ |
ˇˇ |
|
ˇˇ
ˇˇ
ˇˇ
ˇˇ
ˇˇ
Features:
-3.5 inch full-view TFT-LCD,
480(RGB)x320
-low consumption, work for 11 hours
-OSD menu, English, Chinese and other languages optional
-LCD screen brightness/contrast/color Saturation adjustable
-Cable scan, send the specific signal, easy to find the connected
cable
-Automatically identify and adapt the video mode of NTSC and PAL
-Enhanced colorbar generator, by receiving the video color bar to
test the video channel whether transmit normally
-Moveable Micro SD
-LED Lamp, easy to operate at night
-User-defined shortcut keys (F1 and F2)
-Digital multimeter, voltage, current, resistance and capacitance
can be tested, continuity testing, diode testing.
-10x zoom, video image can be magnified to view the details, easy to
use
-Snapshot and save the current image as JPG file in the SD card
-PING testing, test IP camera or other network devicesˇŻ Ethernet
port whether work normally, and the IP address whether is right
-IP address scan, quickly search the IP address for the connected IP
camera and other network devices
-POE voltage measurement, test the POE switchˇŻs voltage to IP
cameras, wireless AP device and other PD devices
-Device Port flicker, easy to find the connected POE switch port by
sending special signals, the connected POE port will flicker at
special frequency.
-Link monitor; check the setting IP address whether occupied
-TDR break point and short ¨C circuit measurement (BNC cable, network
cable etc) (Only SRCT603T have this
function)
-PTZ address scan, search up the ID of PTZ camera.
-Network cable and Telephone cable testing, display the sequence of
connection and the No of the LAN cable
-Multi-protocol. Supports more than thirty PTZ protocols. Such as
PELCO-P, PELCO-D, SAMSUNG
-Support RS232/RS485/RS422, rate 600 ˇ« 115200bps adjustable
-Lithium Ion Polymer Battery. The device employs advanced power
control and protection circuit
-Display the data and image in on the screen at the same time.
-Easy for use that the train is almost unnecessary
Applications:
-Find out the other end of the cable in
security maintenance and network engineering
-CCTV system installation and maintenance
-Dome camera and All in one camera testing
-The CCTV transmitting channel testing
-PTZ controller |
SRCT603 series CCTV tester with Wire
Tracker + Digital Multimeter
Overview:
The new CCTV tester is developed for the
On-Site installation and maintenance of IP camera, analog camera and
network device, with Video display, PTZ control, DC12v output power,
Audio test, Color bar generator, RS 485 Data searching and Cable
testing, which are the same to the previous models. The new
developed functions include POE power supply testing, PING testing,
Multimeter, IP address scan, Cable scan, Video snapshot, Video
record, Image magnification, Port flicker, LED lamp etc. The new
tester also has built in TDR cable testing, which is specialized
designed for BNC cable testing in the security monitoring system.
This function can accurately measure BNC cable and network cableˇŻs
break point and short-circuit location. The new tester designed with
easy operation and portability makes it simple for a cctv technician
or installer to install and maintain CCTV systems, improving work
efficiency by reducing time in the field.
Parameters:
|
Model |
SRCT603,
SRCT603T (with
TDR)
( 6th generation) |
|
Video Test |
|
Signal mode |
NTSC/PAL (Auto adapt) |
|
Display |
3.5 inch digital TFT-LCD ,480 (RGB) * 320 resolution |
|
LCD adjustment |
Brightness, Contrast, Saturation adjustable |
|
Video IN/OUT |
1 channel BNC Input & 1 channel Output |
|
Video Output Mode |
1.0 Vp-p |
|
Video Level test |
|
Level test |
Video signals measured in IRE or mV |
|
PTZ controller |
|
Communication |
Support RS232 and RS485 |
|
PTZ Protocol |
Compatible with more than 30 protocols such as PELCO-D/P,
Samsung, Panasonic, Lilin, Yaan, etc. |
|
Baud Rate |
600, 1200, 2400, 4800, 9600, 19200, 57600, 115200bps |
|
Video Signal Generation |
|
Color bar generator |
Output one channel PAL/NTSC color bar video signal for
testing monitor or video cable.(red, green ,blue, white and
black color ) |
|
UTP CABLE TEST |
|
UTP cable test |
Test UTP cable connection status and display in the screen.
Read the number of the test box. |
|
DC12V 1A power output |
|
DC12V power output |
Output DC12V1A power for camera |
|
Audio input test |
|
Audio input test |
test the pickup and other audio equipments on the front-end |
|
RS485 data analysis |
|
Data Monitor |
Captures and analyzes the command data from controlling
device |
|
10 x zoom of image |
|
Image 10x zoom |
10x zoom image display and video out |
|
Photograph,
Video record, Record playback |
|
Photograph |
snapshot and save the current image as JPG file |
|
Video record |
Video record and storage the file |
|
Record playback |
To view the storage file in the SD card |
|
Port flicker |
|
Port flicker |
Find the connected POE port quickly. |
|
IP scan, Link monitor, PING test |
|
IP scan |
Find out the connected IP camera or the other network
equipment IP address quickly. |
|
Link monitor |
Check the IP address whether is occupied |
|
PING testing |
Test IP camera or Ethernet port of the other network
equipment whether work normally, and check the IP address
|
|
Cable scan |
|
Cable scan |
Search the cable by the audio signal |
|
POE tester |
|
POE tester |
Display the power supply voltage and cable connection states
|
|
Digital Multimeter |
|
AC/DC Voltage |
0-660V auto/manual range, the min resolution is 0.1mV |
|
AC/DC current |
660.0uA, 6.600mA, 66.00mA, 660.0mA, 10.00A |
|
Resistance |
660.0¦¸, 6.600k¦¸, 66.00k¦¸, 660.0k¦¸, 6.600M¦¸, 66.00M¦¸ |
|
Capacitance |
6.6nf~66000uFŁ¬
the min resolution is 1pf |
|
Diode |
0~2V forward voltage, the min resolution is 1mV |
|
Data hold |
Hold the measurement optical power value |
|
Relative measurement |
display the difference value of the first testing result |
|
Continuity testing |
Built-in buzzer will sound, if resistance is lower than 50 ¦¸ |
|
Testing speed |
3 times/ seconds |
|
Data range |
-6600~+6600 |
|
TDR Tester |
(Only
SRCT603T have this function) |
|
TDR Tester |
breakpoint and short circuit measurement (BNC cable,
telephone cable) |
|
POWER |
|
Power Adapter |
DC 5V (1.5A) |
|
Battery |
Built-in 3.7V Lithium polymer battery, 3000mAh |
|
Rechargeable |
After charging 3-4 hour, working time lasts 11 hours |
|
Low Consumption |
Energy saving technology, the battery icon real-time display |
|
Parameter |
|
Operation setting |
English/Chinese and other languages OSD menu |
|
Auto off |
5-60 (mins) |
|
Keytone |
On/Off |
|
General |
|
Working Temperature |
-10ºC~+50ºC |
|
Working Humidity |
30%-90% |
|
Dimension/ Weight |
194mm * 112mm * 48mm / 540g |
|
|
ˇˇ |
ˇˇ |
|
ˇˇ
ˇˇ
ˇˇ
ˇˇ
ˇˇ
Features:
-3.5 inch full-view TFT-LCD,
480(RGB)x320
-low consumption, work for 11 hours
-OSD menu, English, Chinese and other languages optional
-LCD screen brightness/contrast/color Saturation adjustable
-Automatically identify and adapt the video mode of NTSC and PAL
-Enhanced colorbar generator, by receiving the video color bar to
test the video channel whether transmit normally
-Moveable Micro SD
-LED Lamp, easy to operate at night
-User-defined shortcut keys (F1 and F2)
-10x zoom, video image can be magnified to view the details, easy to
use
-Snapshot and save the current image as JPG file in the SD card
-Optical power meter, used for optic fiber CCTV monitor system, CATV
system, optic fiber communication networks deployment and test
-PING testing test IP camera or other network devicesˇŻ Ethernet port
whether work normally, and the IP address whether is right
-IP address scan, quickly search the IP address for the connected IP
camera and other network devices
-POE voltage measurement, test the PoE switchˇŻs voltage to IP
cameras, wireless AP device and other PD devices
-Device Port flicker, easy to find the connected PoE switch port by
sending special signals, the connected PoE port will flicker at
special frequency.
-Link monitor; check the setting IP address whether occupied
-TDR break point and short ¨C circuit measurement( BNC cable, network
cable etc) (Only SRCT611T have this
function)
-PTZ address scan, search up the ID of PTZ camera.
-Network cable and Telephone cable testing, display the sequence of
connection and the No of the LAN cable
-Multi-protocol. Supports more than thirty PTZ protocols. Such as
PELCO-P, PELCO-D, SAMSUNG
-Support RS232/RS485/RS422, rate 600 ˇ« 115200bps adjustable
-Lithium Ion Polymer Battery. The device employs advanced power
control and protection circuit
-Display the data and image in on the screen at the same time.
-Easy for use that the train is almost unnecessary
Applications:
-Find out the other end of the cable in
security maintenance and network engineering
-CCTV system installation and maintenance
-Dome camera and All in one camera testing
-The CCTV transmitting channel testing
-PTZ controller |
SRCT611 series CCTV tester + Optical
Power Meter
Overview:
The new CCTV tester is developed for the
On-Site installation and maintenance of IP camera analog camera and
network device, with Video display, PTZ control, DC12v output power,
Audio test, Color bar generator, RS 485 Data searching and Cable
testing, which are the same to the previous models. The new
developed functions include POE power supply testing, PING testing,
IP address scan, Video snapshot, Optical power meter, Video record,
Image magnification, Port flicker, LED lamp etc. The new tester also
has built in TDR cable testing, which is specialized designed for
BNC cable testing in the security monitoring system. This function
can accurately measure BNC cable and network cableˇŻs break point and
short-circuit location. The new tester designed with easy operation
and portability makes it simple for a cctv technician or installer
to install and maintain CCTV systems, improving work efficiency by
reducing time in the field.
Parameters:
|
Model |
SRCT611,
SRCT611T (with
TDR)
( 6th generation) |
|
Video Test |
|
Signal mode |
NTSC/PAL (Auto adapt) |
|
Display |
3.5 inch digital TFT-LCD, 480 (RGB) * 320 resolution |
|
LCD adjustment |
Brightness, Contrast, Saturation adjustable |
|
Video IN/OUT |
1 channel BNC Input & 1 channel Output |
|
Video Output Mode |
1.0 Vp-p |
|
Video Level test |
|
Level test |
Video signals measured in IRE or mV |
|
PTZ controller |
|
Communication |
Support RS232 and RS485 |
|
PTZ Protocol |
Compatible with more than 30 protocols such as PELCO-D/P,
Samsung, Panasonic, Lilin, Yaan, etc. |
|
Baud Rate |
600, 1200, 2400, 4800, 9600, 19200, 57600, 115200bps |
|
Video Signal Generation |
|
Color bar generator |
Output one channel PAL/NTSC color bar video signal for
testing monitor or video cable.(red, green ,blue, white and
black color) |
|
UTP CABLE TEST |
|
UTP cable test |
Test UTP cable connection status and display in the screen.
Read the number of the test box. |
|
DC12V 1A power output |
|
DC12V power output |
Output DC12V1A power for camera |
|
Audio input test |
|
Audio input test |
test the pickup and other audio equipments on the front-end |
|
RS485 data analysis |
|
Data Monitor |
Captures and analyzes the command data from controlling
device |
|
10 x zoom of image |
|
Image 10x zoom |
10x zoom image display and video out |
|
Photograph,
Video record, Record playback |
|
Photograph |
snapshot and save the current image as JPG file |
|
Video record |
Video record and storage the file |
|
Record playback |
To view the storage file in the SD card |
|
Port flicker |
|
Port flicker |
Find the connected POE port quickly. |
|
IP scan, Link monitor, PING test |
|
IP scan |
Find out the connected IP camera or the other network
equipment IP address quickly. |
|
Link monitor |
Check the IP address whether is occupied |
|
PING testing |
Test IP camera or Ethernet port of the other network
equipment whether work normally, and check the IP address
|
|
POE tester |
|
POE tester |
Display the power supply voltage and cable connection states
|
|
Optical power meter |
|
Calibrated Wavelength(nm) |
850/1300/1310/1490/1550/1625nm |
|
Power range(dBm) |
-70~+10dBm |
|
Sensitivity(nW) |
0.001nW |
|
Connector type |
FC/PC |
|
Data hold |
Display data hold |
|
Relative measurement |
Display the measurement value |
|
TDR Tester |
(Only
SRCT611T have this function) |
|
TDR Tester |
breakpoint and short circuit measurement (BNC cable,
telephone cable) |
|
POWER |
|
Power Adapter |
DC 5V
(1.5A) |
|
Battery |
Built-in 3.7V Lithium polymer battery, 3000mAh |
|
Rechargeable |
After charging 3-4 hour, working time lasts 11 hours |
|
Low Consumption |
Energy saving technology, the battery icon real-time display |
|
Parameter |
|
Operation setting |
English/Chinese and other languages OSD menu |
|
Auto off |
5-60 (mins) |
|
Keytone |
On/Off |
|
General |
|
Working Temperature |
-10ºC~+50ºC |
|
Working Humidity |
30%-90% |
|
Dimension/Weight |
194mm * 112mm * 48mm / 540g |
|
|
ˇˇ |
ˇˇ |
|
ˇˇ
ˇˇ
ˇˇ
ˇˇ
ˇˇ
Features:
-3.5 inch full-view TFT-LCD,
480(RGB)x320
-Low consumption, work for 11 hours
-OSD menu, English, Chinese and other languages optional
-LCD screen brightness/contrast/color Saturation adjustable
-Automatically identify and adapt the video mode of NTSC and PAL
-Enhanced colorbar generator, by receiving the video color bar to
test the video channel whether transmit normally
-Moveable Micro SD
-LED Lamp, easy to operate at night
-User-defined shortcut keys (F1 and F2)
-Cable scan, send the specific signal, easy to find the connected
cable
-10x zoom, video image can be magnified to view the details, easy to
use
-Snapshot and save the current image as JPG file in the SD card
-Optical power meter, used for optic fiber CCTV monitor system, CATV
system, optic fiber communication networks deployment and test
-PING testing test IP camera or other network devicesˇŻ Ethernet port
whether work normally, and the IP address whether is right
-IP address scan, quickly search the IP address for the connected IP
camera and other network devices
-POE voltage measurement, test the PoE switchˇŻs voltage to IP
cameras, wireless AP device and other PD devices
-Device Port flicker, easy to find the connected POE switch port by
sending special signals, the connected POE port will flicker at
special frequency.
-Link monitor; check the setting IP address whether occupied
-TDR break point and short ¨C circuit measurement (BNC cable, network
cable etc) (Only SRCT612T have this
function)
-PTZ address scan, search up the ID of PTZ camera.
-Network cable and Telephone cable testing, display the sequence of
connection and the No of the LAN cable
-Multi-protocol. Supports more than thirty PTZ protocols. Such as
PELCO-P, PELCO-D, SAMSUNG
-Support RS232/RS485/RS422, rate 600 ˇ« 115200bps adjustable
-Lithium Ion Polymer Battery. The device employs advanced power
control and protection circuit
-Display the data and image in on the screen at the same time.
-Easy for use that the train is almost unnecessary
Applications:
-Find out the other end of the cable in
security maintenance and network engineering
-CCTV system installation and maintenance
-Dome camera and All in one camera testing
-The CCTV transmitting channel testing
-PTZ controller |
SRCT612 series CCTV tester with Wire
Tracker + Optical Power Meter
Overview:
The new CCTV tester is developed for the
On-Site installation and maintenance of IP camera analog camera and
network device, with Video display, PTZ control, DC12v output power,
Audio test, Color bar generator, RS 485 Data searching and Cable
testing, which are the same to the previous models. The new
developed functions include POE power supply testing, PING testing,
IP address scan, Cable scan, Video snapshot, Optical power meter,
Video record, Image magnification, Port flicker, LED lamp etc. The
new tester also has built in TDR cable testing, which is specialized
designed for BNC cable testing in the security monitoring system.
This function can accurately measure BNC cable and network cableˇŻs
break point and short-circuit location. The new tester designed with
easy operation and portability makes it simple for a cctv technician
or installer to install and maintain CCTV systems, improving work
efficiency by reducing time in the field.
Parameters:
|
Model |
SRCT612,
SRCT612T (with
TDR)
( 6th generation) |
|
Video Test |
|
Signal mode |
NTSC/PAL (Auto adapt) |
|
Display |
3.5 inch digital TFT-LCD, 480 (RGB) * 320 resolution |
|
LCD adjustment |
Brightness, Contrast, Saturation adjustable |
|
Video IN/OUT |
1 channel BNC Input & 1 channel Output |
|
Video Output Mode |
1.0 Vp-p |
|
Video Level test |
|
Level test |
Video signals measured in IRE or Mv |
|
PTZ controller |
|
Communication |
Support RS232 and RS485 |
|
PTZ Protocol |
Compatible with more than 30 protocols such as PELCO-D/P,
Samsung, Panasonic, Lilin, Yaan, etc. |
|
Baud Rate |
600, 1200, 2400, 4800, 9600, 19200, 57600, 115200bps |
|
Video Signal Generation |
|
Color bar generator |
Output one channel PAL/NTSC color bar video signal for
testing monitor or video cable. (red, green ,blue, white and
black color) |
|
UTP Cable Test |
|
UTP cable test |
Test UTP cable connection status and display in the screen.
Read the number of the test box. |
|
DC12V 1A power output |
|
DC12V power output |
Output DC12V1A power for camera |
|
Cable Scan |
|
Cable Scan |
Search the cable by the audio signal |
|
Audio input test |
|
Audio input test |
test the pickup and other audio equipments on the front-end |
|
RS485 data analysis |
|
Data Monitor |
Captures and analyzes the command data from controlling
device |
|
10 x zoom of image |
|
Image 10x zoom |
10x zoom image display and video out |
|
Photograph,
Video record, Record playback |
|
Photograph |
snapshot and save the current image as JPG file |
|
Video record |
Video record and storage the file |
|
Record playback |
To view the storage file in the SD card |
|
Port flicker |
|
Port flicker |
Find the connected POE port quickly. |
|
IP scan, Link monitor, PING test |
|
IP scan |
Find out the connected IP camera or the other network
equipment IP address quickly. |
|
Link monitor |
Check the IP address whether is occupied |
|
PING testing |
Test IP camera or Ethernet port of the other network
equipment whether work normally, and check the IP address
|
|
POE tester |
|
POE tester |
Display the power supply voltage and cable connection states
|
|
Optical power meter |
|
Calibrated Wavelength(nm) |
850/1300/1310/1490/1550/1625nm |
|
Power range(dBm) |
-70~+10dBm |
|
Sensitivity(nW) |
0.001nW |
|
Connector type |
FC/PC |
|
Data hold |
Display data hold |
|
Relative measurement |
Display the measurement value |
|
TDR Tester |
(Only
SRCT612T have this function) |
|
TDR Tester |
breakpoint and short circuit measurement (BNC cable,
telephone cable) |
|
POWER |
|
Power Adapter |
DC 5V (1.5A) |
|
Battery |
Built-in 3.7V Lithium polymer battery, 3000mAh |
|
Rechargeable |
After charging 3-4 hour, working time lasts 11 hours |
|
Low Consumption |
Energy saving technology, the battery icon real-time display |
|
Parameter |
|
Operation setting |
English/Chinese and other languages OSD menu |
|
Auto off |
5-60 (mins) |
|
Keytone |
On/Off |
|
General |
|
Working Temperature |
-10ºC~+50ºC |
|
Working Humidity |
30%-90% |
|
Dimension/ Weight |
194mm * 112mm * 48mm / 540g |
|
|
ˇˇ |
ˇˇ |
|
ˇˇ
ˇˇ
ˇˇ
ˇˇ
ˇˇ
ˇˇ
Features:
-3.5 inch full-view TFT-LCD,
480(RGB)x320
-low consumption, work for 11 hours
-OSD menu, English, Chinese and other languages optional
-LCD screen brightness/contrast/color Saturation adjustable
-Automatically identify and adapt the video mode of NTSC and PAL
-Enhanced color bar generator, by receiving the video color bar to
test the video channel whether transmit normally
-Moveable Micro SD
-LED Lamp, easy to operate at night
-User-defined shortcut keys (F1 and F2)
-Cable scan, send the specific signal, easy to find the connected
cable NEW
-10x zoom, video image can be magnified to view the details, easy to
use
-Snapshot and save the current image as
JPG file in the SD card
-Optical power meter, used for optic fiber CCTV monitor system, CATV
system, optic fiber communication networks deployment and test
-Digital multimeter, voltage, current, resistance and capacitance
can be tested, continuity testing, diode testing.
-PING testing test IP camera or other
network devicesˇŻ Ethernet port whether work normally, and the IP
address whether is right
-IP address scan, quickly search the IP address for the connected IP
camera and other network devices
-POE voltage measurement, test the PoE switchˇŻs voltage to IP
cameras, wireless AP device and other PD devices
-Device Port flicker, easy to find the connected POE switch port by
sending special signals, the connected POE port will flicker at
special frequency.
-Link monitor; check the setting IP address whether occupied
-TDR break point and short ¨C circuit
measurement( BNC cable, network cable etc)
(Only SRCT613T have this function)
-PTZ address scan, search up the ID of PTZ camera.
-Network cable and Telephone cable
testing, display the sequence of connection and the No of the LAN
cable
-Multi-protocol. Supports more than thirty PTZ protocols. Such as
PELCO-P, PELCO-D, SAMSUNG
-Support RS232/RS485/RS422, rate 600 ˇ« 115200bps adjustable
-Lithium Ion Polymer Battery. The device employs advanced power
control and protection circuit
-Display the data and image in on the screen at the same time.
-Easy for use that the train is almost unnecessary
Applications:
-Find out the other end of the cable in
security maintenance and network engineering
-CCTV system installation and maintenance
-Dome camera and All in one camera testing
-The CCTV transmitting channel testing
-PTZ controller |
SRCT613 series CCTV tester with Wire
Tracker + Optical Power Meter + Multimeter
Overview:
The new CCTV tester is developed for the
On-Site installation and maintenance of IP camera analog camera and
network device, with Video display, PTZ control, DC12v output power,
Audio test, Color bar generator, RS 485 Data searching and Cable
testing, which are the same to the previous models. The new
developed functions include POE power supply testing, PING testing,
IP address scan, Cable scan, Video snapshot, Digital multimeter,
Optical power meter, Video record, Image magnification, Port
flicker, LED lamp etc. The new tester also has built in TDR cable
testing, which is specialized designed for BNC cable testing in the
security monitoring system. This function can accurately measure BNC
cable and network cableˇŻs break point and short-circuit location.
The new tester designed with easy operation and portability makes it
simple for a cctv technician or installer to install and maintain
CCTV systems, improving work efficiency by reducing time in the
field.
Parameters:
|
Model |
SRCT613,
SRCT613T (with
TDR)
( 6th generation) |
|
Video Test |
|
Signal mode |
NTSC/PAL (Auto adapt) |
|
Display |
3.5 inch digital TFT-LCD, 480 (RGB) * 320 resolution |
|
LCD adjustment |
Brightness, Contrast, Saturation adjustable |
|
Video IN/OUT |
1 channel BNC Input & 1 channel Output |
|
Video Output Mode |
1.0 Vp-p |
|
Video Level test |
|
Level test |
Video signals measured in IRE or mV |
|
PTZ controller |
|
Communication |
Support RS232 and RS485 |
|
PTZ Protocol |
Compatible with more than 30 protocols such as PELCO-D/P,
Samsung, Panasonic, Lilin, Yaan, etc. |
|
Baud Rate |
600, 1200, 2400, 4800, 9600, 19200, 57600, 115200bps |
|
Video Signal Generation |
|
Color bar generator |
Output one channel PAL/NTSC color bar video signal for
testing monitor or video cable. (red, green ,blue, white and
black color) |
|
UTP Cable Test |
|
UTP cable test |
Test UTP cable connection status and display in the screen.
Read the number of the test box. |
|
DC12V 1A power output |
|
DC12V power output |
Output DC12V1A power for camera |
|
Cable Scan |
|
Cable Scan |
Search the cable by the audio signal |
|
Audio input test |
|
Audio input test |
test the pickup and other audio equipments on the front-end |
|
RS485 data analysis |
|
Data Monitor |
Captures and analyzes the command data from controlling
device |
|
10 x zoom of image |
|
Image 10x zoom |
10x zoom image display and video out |
|
Photograph,
Video record, Record playback |
|
Photograph |
snapshot and save the current image as JPG file |
|
Video record |
Video record and storage the file |
|
Record playback |
To view the storage file in the SD card |
|
Port flicker |
|
Port flicker |
Find the connected POE port quickly. |
|
IP scan, Link monitor, PING test |
|
IP scan |
Find out the connected IP camera or the other network
equipment IP address quickly. |
|
Link monitor |
Check the IP address whether is occupied |
|
PING testing |
Test IP camera or Ethernet port of the other network
equipment whether work normally, and check the IP address
|
|
POE tester |
|
POE tester |
Display the power supply voltage and cable connection states
|
|
Optical power meter |
|
Calibrated Wavelength (nm) |
850/1300/1310/1490/1550/1625nm |
|
Power range (dBm) |
-70~+10dBm |
|
Sensitivity (nW) |
0.001nW |
|
Connector type |
FC/PC |
|
Data hold |
Display data hold |
|
Relative measurement |
Display the measurement value |
|
Digital Multimeter |
|
|
AC/DC Voltage |
0-660V auto/manual range, the min resolution is 0.1mV |
|
AC/DC current |
660.0uA, 6.600mA, 66.00mA, 660.0mA, 10.00A |
|
Resistance |
660.0¦¸, 6.600k¦¸, 66.00k¦¸, 660.0k¦¸, 6.600M¦¸, 66.00M¦¸ |
|
Capacitance |
6.6nfˇ«66000uFŁ¬
the min resolution is 1pf |
|
Diode |
0~2V forward voltage, the min resolution is 1mV |
|
Data hold |
Hold the measurement optical power value |
|
Relative measurement |
display the difference value of the first testing result |
|
Continuity testing |
Built-in buzzer will sound, if resistance is lower than 50 ¦¸ |
|
Testing speed |
3 times/ seconds |
|
Data range |
-6600~+6600 |
|
TDR Tester |
(Only
SRCT613T have this function) |
|
TDR Tester |
breakpoint and short circuit measurement (BNC cable,
telephone cable) |
|
POWER |
|
Power Adapter |
DC 5V (1.5A) |
|
Battery |
Built-in 3.7V Lithium polymer battery, 3000mAh |
|
Rechargeable |
After charging 3-4 hour, working time lasts 11 hours |
|
Low Consumption |
Energy saving technology, the battery icon real-time display |
|
Parameter |
|
Operation setting |
English/Chinese and other languages OSD menu |
|
Auto off |
5-60 (mins) |
|
Key tone |
On/Off |
|
General |
|
Working Temperature |
-10ºC~+50ºC |
|
Working Humidity |
30%-90% |
|
Dimension/ Weight |
194mm * 112mm * 48mm / 540g |
|
|
ˇˇ |
ˇˇ |
|
ˇˇ
ˇˇ
ˇˇ
ˇˇ
ˇˇ
Features:
-3.5 inch full-view TFT-LCD,
480(RGB)x320
-Low consumption, work for 11 hours
-OSD menu, English, Chinese and other languages optional
-LCD screen brightness/contrast/color Saturation adjustable
-Cable scan, send the specific signal, easy to find the connected
cable
-Automatically identify and adapt the
video mode of NTSC and PAL
-Enhanced colorbar generator, by receiving the video color bar to
test the video channel whether transmit normally
-Moveable Micro SD
-LED Lamp, easy to operate at night
-User-defined shortcut keys (F1 and F2)
-Visual fault locator, It is indispensable tool in fiber project
constructing, fiber net-work maintaining, optical component
manufacture and research.
-10x zoom, video image can be magnified to view the details, easy to
use
-Snapshot and save the current image as JPG file in the SD card
-PING testing test IP camera or other network devicesˇŻ Ethernet port
whether work normally, and the IP address whether is right
-IP address scan, quickly search the IP address for the connected IP
camera and other network devices
-POE voltage measurement, test the POE switchˇŻs voltage to IP
cameras, wireless AP device and other PD devices
-Port flicker, easy to find the connected POE switch port by sending
special signals, the connected POE port will flicker at special
frequency.
-Link monitor; check the setting IP address whether occupied
-TDR break point and short ¨C circuit measurement( BNC cable, network
cable etc)
(Only
SRCT621T have this function)
-PTZ address scan, search up the ID of PTZ camera.
-Network cable and Telephone cable testing, display the sequence of
connection and the No of the LAN cable
-Multi-protocol. Supports more than thirty PTZ protocols. Such as
PELCO-P, PELCO-D, SAMSUNG
-Support RS232/RS485/RS422, rate 600 ˇ« 115200bps adjustable
-Lithium Ion Polymer Battery. The device employs advanced power
control and protection circuit
-Display the data and image in on the screen at the same time.
-Easy for use that the train is almost unnecessary
Applications:
-Find out the other end of the cable in
security maintenance and network engineering
-CCTV system installation and maintenance
-Dome camera and All in one camera testing
-The CCTV transmitting channel testing
-PTZ controller |
SRCT621 series CCTV tester + Visual
Fault Detector
Overview:
The new CCTV tester is developed for the
On-Site installation and maintenance of IP camera analog camera and
network device, with Video display, PTZ control, DC12v output power,
Audio test, Color bar generator, RS 485 Data searching and Cable
testing, which are the same to the previous models. The new
developed functions include POE power supply testing, PING testing,
Visual fault locator, IP address scan, Video snapshot, Video record,
Image magnification, Port flicker, LED lamp etc. The new tester also
has built in TDR cable testing, which is specialized designed for
BNC cable testing in the security monitoring system. This function
can accurately measure BNC cable and network cableˇŻs break point and
short-circuit location. The new tester designed with easy operation
and portability makes it simple for a cctv technician or installer
to install and maintain CCTV systems, improving work efficiency by
reducing time in the field.
Parameters:
|
Model |
SRCT621,
SRCT621T (with
TDR)
( 6th generation) |
|
Video Test |
|
Signal mode |
NTSC/PAL (Auto adapt) |
|
Display |
3.5 inch digital TFT-LCD, 480 (RGB) * 320 resolution |
|
LCD adjustment |
Brightness, Contrast, Saturation adjustable |
|
Video IN/OUT |
1 channel BNC Input & 1 channel Output |
|
Video Output Mode |
1.0 Vp-p |
|
Video Level test |
|
Level test |
Video signals measured in IRE or Mv |
|
PTZ controller |
|
Communication |
Support RS232 and RS485 |
|
PTZ Protocol |
Compatible with more than 30 protocols such as PELCO-D/P,
Samsung, Panasonic, Lilin, Yaan, etc. |
|
Baud Rate |
600, 1200, 2400, 4800, 9600, 19200, 57600, 115200bps |
|
Video Signal Generation |
|
Color bar generator |
Output one channel PAL/NTSC color bar video signal for
testing monitor or video cable. (red, green, blue, white and
black color) |
|
UTP CABLE TEST |
|
UTP cable test |
Test UTP cable connection status and display in the screen.
Read the number of the test box. |
|
DC12V 1A power output |
|
DC12V power output |
Output DC12V1A power for camera |
|
Audio input test |
|
Audio input test |
test the pickup and other audio equipments on the front-end |
|
RS485 data analysis |
|
Data Monitor |
Captures and analyzes the command data from controlling
device |
|
10 x zoom of image |
|
Image 10x zoom |
10x zoom image display and video out |
|
Photograph,
Video record, Record playback |
|
Photograph |
snapshot and save the current image as JPG file |
|
Video record |
Video record and storage the file |
|
Record playback |
To view the storage file in the SD card |
|
Port flicker |
|
Port flicker |
Find the connected POE port quickly. |
|
IP scan, Link monitor, PING test |
|
IP scan |
Find out the connected IP camera or the other network
equipment IP address quickly. |
|
Link monitor |
Check the IP address whether is occupied |
|
PING testing |
Test IP camera or Ethernet port of the other network
equipment whether work normally, and check the IP address
|
|
POE tester |
|
POE tester |
Display the power supply voltage and cable connection states
|
|
Visual fault locator |
|
Visual
fault locator |
Test fiberˇŻs bending and breakage (SM and MM fiber) |
|
TDR Tester |
(Only
SRCT621T have this function) |
|
TDR Tester |
breakpoint and short circuit measurement (BNC cable,
telephone cable) |
|
POWER |
|
Power Adapter |
DC 5V (1.5A) |
|
Battery |
Built-in 3.7V Lithium polymer battery, 3000mAh |
|
Rechargeable |
After charging 3-4 hour, working time lasts 11 hours |
|
Low Consumption |
Energy saving technology, the battery icon real-time display |
|
Parameter |
|
Operation setting |
English/Chinese and other languages OSD menu |
|
Auto off |
5-60 (mins) |
|
Keytone |
On/Off |
|
General |
|
Working Temperature |
-10ºC~+50ºC |
|
Working Humidity |
30%-90% |
|
Dimension/Weight |
194mm * 112mm * 48mm / 540g |
|
|
ˇˇ |
ˇˇ |
|
ˇˇ
ˇˇ
ˇˇ
ˇˇ
ˇˇ
Features:
-3.5 inch full-view TFT-LCD,
480(RGB)x320
-Low consumption, work for 11 hours
-OSD menu, English, Chinese and other languages optional
-LCD screen brightness/contrast/color Saturation adjustable
-Cable scan, send the specific signal, easy to find the connected
cable
-Automatically identify and adapt the video mode of NTSC and PAL
-Enhanced colorbar generator, by receiving the video color bar to
test the video channel whether transmit normally
-Moveable Micro SD
-LED Lamp, easy to operate at night
-User-defined shortcut keys (F1 and F2)
-Visual fault locator, It is indispensable tool in fiber project
constructing, fiber net-work maintaining, optical component
manufacture and research.
-10x zoom, video image can be magnified to view the details, easy to
use
-Snapshot and save the current image as JPG file in the SD card
-PING testing test IP camera or other network devicesˇŻ Ethernet port
whether work normally, and the IP address whether is right
-IP address scan, quickly search the IP address for the connected IP
camera and other network devices
-POE voltage measurement, test the POE switchˇŻs voltage to IP
cameras, wireless AP device and other PD devices
-Port flicker, easy to find the connected POE switch port by sending
special signals, the connected POE port will flicker at special
frequency.
-Link monitor; check the setting IP address whether occupied
-TDR break point and short ¨C circuit measurement( BNC cable, network
cable etc)
(Only
SRCT621T have this function)
-PTZ address scan, search up the ID of PTZ camera.
-Network cable and Telephone cable testing, display the sequence of
connection and the No of the LAN cable
-Multi-protocol. Supports more than thirty PTZ protocols. Such as
PELCO-P, PELCO-D, SAMSUNG
-Support RS232/RS485/RS422, rate 600 ˇ« 115200bps adjustable
-Lithium Ion Polymer Battery. The device employs advanced power
control and protection circuit
-Display the data and image in on the screen at the same time.
-Easy for use that the train is almost unnecessary
Applications:
-Find out the other end of the cable in
security maintenance and network engineering
-CCTV system installation and maintenance
-Dome camera and All in one camera testing
-The CCTV transmitting channel testing
-PTZ controller |
SRCT622 series CCTV tester with Wire
Tracker + Visual Fault Detector
Overview:
The new CCTV tester is developed for the
On-Site installation and maintenance of IP camera analog camera and
network device, with Video display, PTZ control, DC12v output power,
Audio test, Color bar generator, RS 485 Data searching and Cable
testing, which are the same to the previous models. The new
developed functions include POE power supply testing, PING testing,
,IP address scan, Cable scan, Visual fault locator Video snapshot,
Video record, Image magnification, Port flicker, LED lamp etc. The
new tester also has built in TDR cable testing, which is specialized
designed for BNC cable testing in the security monitoring system.
This function can accurately measure BNC cable and network cableˇŻs
break point and short-circuit location. The new tester designed with
easy operation and portability makes it simple for a cctv technician
or installer to install and maintain CCTV systems, improving work
efficiency by reducing time in the field.
Parameters:
|
Model |
SRCT622,
SRCT622T (with
TDR)
( 6th generation) |
|
Video Test |
|
Signal mode |
NTSC/PAL (Auto adapt) |
|
Display |
3.5 inch digital TFT-LCD, 480 (RGB) * 320 resolution |
|
LCD adjustment |
Brightness, Contrast, Saturation adjustable |
|
Video IN/OUT |
1 channel BNC Input & 1 channel Output |
|
Video Output Mode |
1.0 Vp-p |
|
Video Level test |
|
Level test |
Video signals measured in IRE or mV |
|
PTZ controller |
|
Communication |
Support RS232 and RS485 |
|
PTZ Protocol |
Compatible with more than 30 protocols such as PELCO-D/P,
Samsung, Panasonic, Lilin, Yaan, etc. |
|
Baud Rate |
600, 1200, 2400, 4800, 9600, 19200, 57600, 115200bps |
|
Video Signal Generation |
|
Color bar generator |
Output one channel PAL/NTSC color bar video signal for
testing monitor or video cable. (red, green, blue, white and
black color) |
|
UTP Cable Test |
|
UTP cable test |
Test UTP cable connection status and display in the screen.
Read the number of the test box. |
|
DC12V 1A power output |
|
DC12V power output |
Output DC12V1A power for camera |
|
Cable Scan |
|
Cable Scan |
Search the cable by the audio signal |
|
Audio input test |
|
Audio input test |
test the pickup and other audio equipments on the front-end |
|
RS485 data analysis |
|
Data Monitor |
Captures and analyzes the command data from controlling
device |
|
10 x zoom of image |
|
Image 10x zoom |
10x zoom image display and video out |
|
Photograph,
Video record, Record playback |
|
Photograph |
snapshot and save the current image as JPG file |
|
Video record |
Video record and storage the file |
|
Record playback |
To view the storage file in the SD card |
|
Port flicker |
|
Port flicker |
Find the connected POE port quickly. |
|
IP scan, Link monitor, PING test |
|
IP scan |
Find out the connected IP camera or the other network
equipment IP address quickly. |
|
Link monitor |
Check the IP address whether is occupied |
|
PING testing |
Test IP camera or Ethernet port of the other network
equipment whether work normally, and check the IP address
|
|
POE tester |
|
POE tester |
Display the power supply voltage and cable connection states
|
|
Visual fault locator |
|
Visual
fault locator |
Test fiberˇŻs bending and breakage (SM and MM fiber) |
|
TDR Tester |
(Only
SRCT622T have this function) |
|
TDR Tester |
breakpoint and short circuit measurement (BNC cable,
telephone cable) |
|
POWER |
|
Power Adapter |
DC 5V (1.5A) |
|
Battery |
Built-in 3.7V Lithium polymer battery, 3000mAh |
|
Rechargeable |
After charging 3-4 hour, working time lasts 11 hours |
|
Low Consumption |
Energy saving technology, the battery icon real-time display |
|
Parameter |
|
Operation setting |
English/Chinese and other languages OSD menu |
|
Auto off |
5-60 (mins) |
|
Keytone |
On/Off |
|
General |
|
Working Temperature |
-10ºC~+50ºC |
|
Working Humidity |
30%-90% |
|
Dimension/ Weight |
194mm * 112mm * 48mm / 540g |
|
|
ˇˇ |
ˇˇ |
|
ˇˇ
ˇˇ
ˇˇ
ˇˇ
ˇˇ
Features:
-3.5 inch full-view TFT-LCD,
480(RGB)x320
-Low consumption, work for 11 hours
-OSD menu, English, Chinese and other languages optional
-LCD screen brightness/contrast/color Saturation adjustable
-Cable scan, send the specific signal, easy to find the connected
cable
-Automatically identify and adapt the video mode of NTSC and PAL
-Enhanced colorbar generator, by receiving the video color bar to
test the video channel whether transmit normally
-Moveable Micro SD
-LED Lamp, easy to operate at night
-User-defined shortcut keys (F1 and F2)
-Digital Multi-meter, voltage, current, resistance and capacitance
can be tested, continuity testing, diode testing.
-Visual fault locator, It is indispensable tool in fiber project
constructing, fiber net-work maintaining, optical component
manufacture and research.
-10x zoom, video image can be magnified to view the details, easy to
use
-Snapshot and save the current image as JPG file in the SD card
-PING testing test IP camera or other network devicesˇŻ Ethernet port
whether work normally, and the IP address whether is right
-IP address scan, quickly search the IP address for the connected IP
camera and other network devices
-POE voltage measurement, test the POE switchˇŻs voltage to IP
cameras, wireless AP device and other PD devices.
-Port flicker, easy to find the
connected POE switch port by sending special signals, the connected
POE port will flicker at special frequency.
-Link monitor; check the setting IP address whether occupied
-TDR break point and short ¨C circuit measurement( BNC cable, network
cable etc)
(Only
SRCT623T have this function)
-PTZ address scan, search up the ID of PTZ camera.
-Network cable and Telephone cable testing, display the sequence of
connection and the No of the LAN cable
-Multi-protocol. Supports more than thirty PTZ protocols. Such as
PELCO-P, PELCO-D, SAMSUNG
-Support RS232/RS485/RS422, rate 600 ˇ« 115200bps adjustable
-Lithium Ion Polymer Battery. The device employs advanced power
control and protection circuit
-Display the data and image in on the screen at the same time.
-Easy for use that the train is almost unnecessary
Applications:
-Find out the other end of the cable in
security maintenance and network engineering
-CCTV system installation and maintenance
-Dome camera and All in one camera testing
-The CCTV transmitting channel testing
-PTZ controller |
SRCT623 series CCTV tester with Wire
Tracker + Visual Fault Detector + Multimeter
Overview:
The new CCTV tester is developed for the
On-Site installation and maintenance of IP camera analog camera and
network device, with Video display, PTZ control, DC12v output power,
Audio test, Color bar generator, RS 485 Data searching and Cable
testing, which are the same to the previous models. The new
developed functions include POE power supply testing, PING testing,
Multimeter, Visual fault locator ,IP address scan, Cable scan, Video
snapshot, Video record, Image magnification, Port flicker, LED lamp
etc. The new tester also has built in TDR cable testing, which is
specialized designed for BNC cable testing in the security
monitoring system. This function can accurately measure BNC cable
and network cableˇŻs break point and short-circuit location. The new
tester designed with easy operation and portability makes it simple
for a cctv technician or installer to install and maintain CCTV
systems, improving work efficiency by reducing time in the field.
Parameters:
|
Model |
SRCT623,
SRCT623T (with
TDR)
( 6th generation) |
|
Video Test |
|
Signal mode |
NTSC/PAL (Auto adapt) |
|
Display |
3.5 inch digital TFT-LCD, 480 (RGB) * 320 resolution |
|
LCD adjustment |
Brightness, Contrast, Saturation adjustable |
|
Video IN/OUT |
1 channel BNC Input & 1 channel Output |
|
Video Output Mode |
1.0 Vp-p |
|
Video Level test |
|
Level test |
Video signals measured in IRE or mV |
|
PTZ controller |
|
Communication |
Support RS232 and RS485 |
|
PTZ Protocol |
Compatible with more than 30 protocols such as PELCO-D/P,
Samsung, Panasonic, Lilin, Yaan, etc. |
|
Baud Rate |
600, 1200, 2400, 4800, 9600, 19200, 57600, 115200bps |
|
Video Signal Generation |
|
Color bar generator |
Output one channel PAL/NTSC color bar video signal for
testing monitor or video cable. (red, green, blue, white and
black color) |
|
UTP Cable Test |
|
UTP cable test |
Test UTP cable connection status and display in the screen.
Read the number of the test box. |
|
DC12V 1A power output |
|
DC12V power output |
Output DC12V1A power for camera |
|
Cable Scan |
|
Cable Scan |
Search the cable by the audio signal |
|
Audio input test |
|
Audio input test |
test the pickup and other audio equipments on the front-end |
|
RS485 data analysis |
|
Data Monitor |
Captures and analyzes the command data from controlling
device |
|
10 x zoom of image |
|
Image 10x zoom |
10x zoom image display and video out |
|
Photograph,
Video record, Record playback |
|
Photograph |
snapshot and save the current image as JPG file |
|
Video record |
Video record and storage the file |
|
Record playback |
To view the storage file in the SD card |
|
Port flicker |
|
Port flicker |
Find the connected POE port quickly. |
|
IP scan, Link monitor, PING test |
|
IP scan |
Find out the connected IP camera or the other network
equipment IP address quickly. |
|
Link monitor |
Check the IP address whether is occupied |
|
PING testing |
Test IP camera or Ethernet port of the other network
equipment whether work normally, and check the IP address
|
|
POE tester |
|
POE tester |
Display the power supply voltage and cable connection states
|
|
Visual fault locator |
|
Visual
fault locator |
Test fiberˇŻs bending and breakage (SM and MM fiber) |
|
Digital Multimeter |
|
AC/DC Voltage |
0-660V auto/manual range, the min resolution is 0.1mV |
|
AC/DC current |
660.0uA, 6.600mA, 66.00mA , 660.0mA, 10.00A |
|
Resistance |
660.0¦¸, 6.600k¦¸, 66.00k¦¸, 660.0k¦¸, 6.600M¦¸, 66.00M¦¸ |
|
Capacitance |
6.6nf~66000uF, the min resolution is 1pf |
|
Diode |
0~2V forward voltage, the m, in resolution is 1mV |
|
Data hold |
Hold the measurement optical power value |
|
Relative measurement |
display the difference value of the first testing result |
|
Continuity testing |
Built-in buzzer will sound, if resistance is lower than 50 ¦¸ |
|
Testing speed |
3 times/ seconds |
|
Data range |
-6600~+6600 |
|
TDR Tester |
(Only
SRCT623T have this function) |
|
TDR Tester |
breakpoint and short circuit measurement (BNC cable,
telephone cable) |
|
POWER |
|
Power Adapter |
DC 5V (1.5A) |
|
Battery |
Built-in 3.7V Lithium polymer battery, 3000mAh |
|
Rechargeable |
After charging 3-4 hour, working time lasts 11 hours |
|
Low Consumption |
Energy saving technology, the battery icon real-time display |
|
Parameter |
|
Operation setting |
English/Chinese and other languages OSD menu |
|
Auto off |
5-60 (mins) |
|
Key tone |
On/Off |
|
General |
|
Working Temperature |
-10ºC~+50ºC |
|
Working Humidity |
30%-90% |
|
Dimension/ Weight |
194mm * 112mm * 48mm / 540g |
|
|
ˇˇ |
ˇˇ |
|
ˇˇ
ˇˇ
ˇˇ
ˇˇ
ˇˇ
Overview:
The SRCT890 is developed for the
installation and maintenance of video monitoring system. It can be
used for displaying video, controlling PTZ, Audio input test,
generating images, capturing data of RS485 and testing LAN cable
etc. Its functions, easy operation, and convenient portability
enable it simple for the contractor to install and maintain the
video camera, promote working efficiency and cost-down the
expenditure of the project.
Applications:
-CCTV system installation and
maintenance
-Dome camera and All in one camera testing
-The CCTV transmitting channel testing
-PTZ controller |
SRCT890
CCTV Security Tester
Features:
-2.8"TFT-LCD , 960Ł¨HŁ©ˇÁ240Ł¨VŁ©resolution.
-PTZ control. Pan/tilts the P/T unit, zooms in/out the lens, adjusts
the focus, aperture and sets and calls the preset position
-PTZ continuing rotate test
-Video displaying. Automatically adapts and displays the video
format of NTSC/PAL. LCD Brightness/Contrast/Color Saturation are
adjustable.
-Video Level testing, video signals measured in IRE or mV.
-Video Generating, The PAL/NTSC multi-system colorbar video
generator (seven-system switchable, transmit/receive seven-system
colorful imagines)
-Data analyst. Captures and analyzes RS485 controlling data to help
the technician to find out the problem.
-Cable testing. It is powerful in testing LAN cable, measuring the
connecting status Ł¬displaying the sequence of connection and the NO.
of the LAN cable.
-Multi-interface and Multi-baudrate. Support RS232 ,RS485 and RS422
interface; baud rate ranging from 150, 600 to 19200bps.
-Multi-protocol. Supports more than twenty PTZ protocols. For
example, PELCO-P, PELCO-D, SAMSUNG etc.
-Lithium Ion Polymer Battery (3.7V DC2000mAh). The device employs
advanced power control and protection circuit. The device is high
power-efficient, energy saving and environmental protection. It can
last 11 hours for normal use after charging for 4 hours.
Parameters:
|
MODEL |
SRCT890 |
|
Video Test |
|
Signal mode |
NTSC/PAL (Auto adapt) |
|
Display |
2.8 inch digital TFT-LCD ,960*240 resolution |
|
LCD adjustment |
Brightness, Contrast, Saturation
adjustable |
|
Video IN/OUT |
1 channel BNC Input & 1 channel Output |
|
Video Output Mode |
1.0 Vp-p |
|
Video Level test |
Video signals measured in IRE or mV |
|
PTZ controller |
|
Communication |
RS232, RS422 simplex and RS485 |
|
PTZ Protocol |
Compatible with more than 20 protocols such as PELCO-D/P,
Samsung, Panasonic, Lilin, Yaan, etc. |
|
Baud Rate |
150,300,600,1200,2400,4800,9600,19200bps |
|
Video Signal Generation |
|
Color bar generation |
Output channel colorbar video signal for testing monitor or
video cable |
|
UTP CABLE TEST |
|
UTP cable test |
Test UTP cable connection status and display in the screen.
Read the number of the test box. |
|
RS485 data analyst |
|
Data Monitor |
Captures and analyzes the command data from controlling
device |
|
POWER |
|
Power Adapter |
DC5V, 2A |
|
Battery |
Built-in 3.7V Lithium polymer battery ,2000mAh |
|
Rechargeable |
After charging 3-4 hour, working time lasts 11 hours |
|
Low Consumption |
Energy saving technology |
|
General |
|
Working Temperature |
-10ºC~+50ºC |
|
Working Humidity |
30%-90% |
|
Dimension/Weight |
170mm*99mm*48mm/293g |
|
|
ˇˇ |
ˇˇ |
|
ˇˇ
ˇˇ
ˇˇ
ˇˇ
ˇˇ
Overview:
The SRCT891 is developed for the
installation and maintenance of video monitoring system. It can be
used for displaying video, controlling PTZ, DC12V1A power output for
camera, Audio input test, generating images, capturing data of RS485
and testing LAN cable etc. Its functions, easy operation, and
convenient portability enable it simple for the contractor to
install and maintain the video camera, promote working efficiency
and cost-down the expenditure of the project.
Applications:
-CCTV system installation and
maintenance
-Dome camera and All in one camera testing
-The CCTV transmitting channel testing
-PTZ controller |
SRCT891 CCTV tester
Features:
-2.8"TFT-LCD , 960Ł¨HŁ©ˇÁ240Ł¨VŁ©resolution.
-Video Level testing, video signals
measured in IRE or mV
-DC12V 1A power output for camera
-Audio input test, testing the audio signal from pickup devices.
-PTZ control. Pan/tilts the P/T unit, zooms in/out the lens, adjusts
the focus, aperture and sets and calls the preset position
-PTZ continuing rotate test
-Video displaying. Automatically adapts and displays the video
format of NTSC/PAL. LCD Brightness/Contrast/Color Saturation are
adjustable.
-Video Generating, The PAL/NTSC multi-system colorbar video
generator (seven-system switchable, transmit/receive seven-system
colorful imagines)
-Data analyst. Captures and analyzes RS485 controlling data to help
the technician to find out the problem.
-Cable testing. It is powerful in testing LAN cable, measuring the
connecting status Ł¬displaying the sequence of connection and the NO.
of the LAN cable.
-Multi-interface and Multi-baudrate. Support RS232 ,RS485 and RS422
interface; baud rate ranging from 150, 600 to 19200bps.
-Multi-protocol. Supports more than twenty PTZ protocols. For
example, PELCO-P, PELCO-D, SAMSUNG etc.
-PTZ address scanning, search up the ID of PTZ camera.
-Lithium Ion Polymer Battery (3.7V DC2800mAh). The device employs
advanced power control and protection circuit. The device is high
power-efficient, energy saving and environmental protection. It can
last 15 hours for normal use after charging for 4 hours.
Parameters:
|
MODEL |
SRCT891 |
|
Video Test |
|
Signal mode |
NTSC/PAL (Auto adapt) |
|
Display |
2.8 inch digital TFT-LCD, 960*240 resolution |
|
LCD adjustment |
Brightness, Contrast, Saturation
adjustable |
|
Video IN/OUT |
1 channel BNC Input & 1 channel Output |
|
Video Output Mode |
1.0 Vp-p |
|
Video Level test |
Video signals measured in IRE or mV |
|
PTZ controller |
|
Communication |
RS232, RS422 simplex and RS485 |
|
PTZ Protocol |
Compatible with more than 20 protocols such as PELCO-D/P,
Samsung, Panasonic, Lilin, Yaan, etc. |
|
Baud Rate |
150,300,600,1200,2400,4800,9600,19200bps |
|
Video Signal Generation |
|
Color bar generation |
Output channel colorbar video signal for testing monitor or
video cable |
|
UTP CABLE TEST |
|
UTP cable test |
Test UTP cable connection status and display in the screen.
Read the number of the test box. |
|
DC12V 1A power output |
|
DC12V power output |
Output DC12V1A power for camera |
|
Audio input test |
|
Audio input test |
test the pickup and other audio equipments on the front-end |
|
RS485 data analyst |
|
Data Monitor |
Captures and analyzes the command data from controlling
device |
|
POWER |
|
Power Adapter |
DC5V, 2A |
|
Battery |
Built-in 3.7V Lithium polymer battery, 2800mAh |
|
Rechargeable |
After charging 3-4 hour, working time lasts 15 hours |
|
Low Consumption |
Energy saving technology |
|
General |
|
Working Temperature |
-10ºC~+50ºC |
|
Working Humidity |
30%-90% |
|
Dimension/Weight |
170mm*99mm*48mm/293g |
|
|
ˇˇ |
ˇˇ |
|
ˇˇ
ˇˇ
ˇˇ
ˇˇ
ˇˇ
Overview:
The STest-893 is developed for the
On-Site installation and maintenance of video monitoring system. It
can be used for displaying video, controlling PTZ, DC12V1A power for
camera, Audio input test, generating images, capturing data of RS485
and testing LAN cable etc. Its functions, easy operation, and
portability makes it simple for the CCTV technician to install and
maintain CCTV system, improving work efficiency and get the labor
cost down.
Applications:
-CCTV system installation and
maintenance
-Dome camera and All in one camera testing
-The CCTV transmitting channel testing
-PTZ controller
ˇˇ |

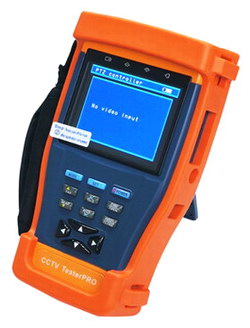

SRCT893 CCTV tester
Features:
-3.5"TFT-LCD , 960Ł¨HŁ©ˇÁ240Ł¨VŁ©resolution.
-Video Level testing, video signals measured in IRE or mV
-DC12V 1A power output for camera
-Audio input test, testing the audio signal from pickup devices.
-PTZ control. Pan/tilts the P/T unit, zooms in/out the lens, adjusts
the focus, aperture and sets and calls the preset position
-PTZ continuing rotate test
-Video displaying. Automatically adapts and displays the video
format of NTSC/PAL. LCD Brightness/Contrast/Color Saturation are
adjustable.
-Video Generating, The PAL/NTSC multi-system colorbar video
generator (seven-system switchable, transmit/receive seven-system
colorful imagines)
-Data analyst. Captures and analyzes RS485 controlling data to help
the technician to find out the problem.
-Cable testing. It is powerful in testing LAN cable, measuring the
connecting status Ł¬displaying the sequence of connection and the NO.
of the LAN cable.
-Multi-interface and Multi-baud rate. Support RS232 ,RS485 and RS422
interface; baud rate ranging from 150, 600 to 19200bps.
-Multi-protocol. Supports more than twenty PTZ protocols. For
example, PELCO-P, PELCO-D, SAMSUNG etc.
-Lithium Ion Polymer Battery (3.7V DC3000mAh). The device employs
advanced power control and protection circuit. The device is high
power-efficient, energy saving and environmental protection. It can
last 12 hours for normal use after charging for 4 hours.
Parameters:
|
MODEL |
SRCT893 |
|
Video Test |
|
Signal mode |
NTSC/PAL (Auto adapt) |
|
Display |
3.5 inch digital TFT-LCD ,960*240 resolution |
|
LCD adjustment |
Brightness, Contrast, Saturation
adjustable |
|
Video IN/OUT |
1 channel BNC Input & 1 channel Output |
|
Video Output Mode |
1.0 Vp-p |
|
Video Level test |
Video signals measured in IRE or mV |
|
PTZ controller |
|
Communication |
RS232, RS422 simplex and RS485 |
|
PTZ Protocol |
Compatible with more than 20 protocols such as PELCO-D/P,
Samsung, Panasonic, Lilin, Yaan, etc. |
|
Baud Rate |
150,300,600,1200,2400,4800,9600,19200bps |
|
Video Signal Generation |
|
Color bar generation |
Output channel colorbar video signal for testing monitor or
video cable |
|
UTP CABLE TEST |
|
UTP cable test |
Test UTP cable connection status and display in the screen.
Read the number of the test box. |
|
DC12V 1A power output |
|
DC12V power output |
Output DC12V1A power for camera |
|
Audio input test |
|
Audio input test |
test the pickup and other audio equipments on the front-end |
|
RS485 data analyst |
|
Data Monitor |
Captures and analyzes the command data from controlling
device |
|
POWER |
|
Power Adapter |
DC5V, 2A |
|
Battery |
Built-in 3.7V Lithium polymer battery, 3000mAh |
|
Rechargeable |
After charging 3-4 hour, working time lasts 12 hours |
|
Low Consumption |
Energy saving technology |
|
General |
|
Working Temperature |
-10ºC~+50ºC |
|
Working Humidity |
30%-90% |
|
Dimension/Weight |
176mm*94mm*36mm/340g |
|
|
ˇˇ |
ˇˇ |
|
ˇˇ
Features:
-3.5"TFT-LCD , 960Ł¨HŁ©ˇÁ240Ł¨VŁ©resolution
-Digital Multimeter, performs AD/DC Voltage, AC/DC Current,
Resistor, Conductivity, Capacitor and Diode test.
-DC12V power output
-Audio input
-Adjustable brightness, contrast, color of LCD
-Video Level testing, video signals measured in IRE or mV
-Automatically identify and adapt the video mode of NTSC and PAL
-Colorbar Video signal generator, transmit/receive colorful images
-Support more than twenty kinds of PTZ controller protocols. For
example, PELCO-P, PELCO-D, SAMSUNG etc.
-PPTZ address scanning, search up the ID of PTZ camera.
-Capture the PTZ protocol to assist the setting personnel to find
out the control protocol and therefore easily target the problematic
equipment.
-Support RS232 and RS485 interface, the rate 150-19200bps
-Powerful in testing LAN cable, measuring the connecting status and
displaying the sequence of connection
-PTZ(P/L & Zoom) Control: Control the status of P/L, zoom in/out the
camera, adjust the aperture, foci and setting parameters, run and
call the preset.
-Lithium Ion Polymer Batteries(3.7V DC3000mAh), more reliable, and
work 15 hours
-Easy for use that the train is almost unnecessary
Applications:
-CCTV system installation and
maintenance
-Dome camera and All in one camera testing
-The CCTV transmitting channel testing
-PTZ controller |
SRCT894 CCTV tester with Digital
Multimeter
Overview:
The CCTV tester SRCT894 is developed for
the On-Site installation and maintenance of video monitoring system.
It can be used for displaying video, testing video level,
controlling PTZ, scanning PTZ address, generating images, capturing
data of RS485 and testing LAN cable etc. Its functions, easy
operation, and portability makes it simple for the CCTV technician
to install and maintain CCTV system, improving work efficiency and
get the labor cost down.
Parameters:
|
MODEL |
SRCT894 |
|
Video Test |
|
Signal mode |
NTSC/PAL (Auto Adjust) |
|
Display |
3.5 inch TFT-LCD, 960*240 resolution |
|
LCD adjust |
Adjustable brightness, contrast, color of LCD |
|
Video IN/OUT |
1 channel BNC Input & 1 channel Output |
|
Video Output Mode |
1.0 Vp-p |
|
Video Level test |
|
Level test |
Video signals measured in IRE or mV |
|
Power Output |
|
Power output |
DC12V, 1A |
|
Audio Test |
|
Audio input |
1 channel Audio input |
|
PTZ controller |
|
Communication |
RS232, RS422 simplex and RS485 |
|
PTZ Protocol |
Compatible with more than 20 protocols such as PELCO-D/P,
Samsung, Panasonic, Lilin, Yaan, etc.customized |
|
Baud Rate |
150,300,600,1200,2400,4800,9600,19200bps |
|
Video Signal Generation |
|
Color bar generation |
Output 1 channel color bar video signal for testing
monitor |
|
UTP CABLE TEST |
|
UTP cable test |
Test UTP cable connection state and display in the
screen. Read the number of the test box. |
|
PTZ data Capture and display |
|
PTZ Data Test |
Capture and Analyze the PTZ data sent from controlling
device |
|
PTZ address scanning |
|
PTZ address scan |
Search up the ID of PTZ camera |
|
Digital Multimeter |
|
Multi-Meter |
Voltage, current, resistance and capacitance measuring,
continuity testing, diode testing. |
|
POWER |
|
Power Adapter |
DC5V, 2A |
|
Battery |
1 pcs Lithium Ion Polymer Batteries, 3.7V DC3000mAh |
|
Rechargeable |
4.5 hours recharging time, work for 12 hours |
|
Low Consumption |
Sleeping mode, display battery power state |
|
Other Parameters |
|
Work Temperature |
-10ºC~+50ºC |
|
Work Humidity |
30%-90% |
|
Dimension/Weight |
112mm*189mm*47mm / 500g |
|
|
ˇˇ |
ˇˇ |
|
ˇˇ
ˇˇ
ˇˇ
ˇˇ
ˇˇ
Features:
-3.5"TFT-LCD , 960Ł¨HŁ©ˇÁ240Ł¨VŁ©resolution
-Optical power meter, testing the laser power of Video Fiber Optic
Transmission equipment, and testing the Fiber Optic Patch Cord ,
etc.
-Digital Multimeter, performs AD/DC Voltage, AC/DC Current,
Resistor, Conductivity, Capacitor and Diode test.
-DC12V power output
-Audio input
-Adjustable brightness, contrast, color of LCD
-Video Level testing, video signals measured in IRE or mV
-Automatically identify and adapt the video mode of NTSC and PAL
-Colorbar Video signal generator, transmit/receive colorful images
-Support more than twenty kinds of PTZ controller protocols. For
example, PELCO-P, PELCO-D, SAMSUNG etc.
-PPTZ address scanning, search up the ID of PTZ camera.
-Capture the PTZ protocol to assist the setting personnel to find
out the control protocol and therefore easily target the problematic
equipment.
-Support RS232 and RS485 interface, the rate 150-19200bps
Powerful in testing LAN cable, measuring the connecting status and
displaying the sequence of connection
-PTZ(P/L & Zoom) Control: Control the status of P/L, zoom in/out the
camera, adjust the aperture, foci and setting parameters, run and
call the preset.
-Lithium Ion Polymer Batteries(3.7V DC3000mAh), more reliable, and
work 15 hours
-Easy for use that the train is almost unnecessary
Applications:
-CCTV system installation and
maintenance
-Dome camera and All in one camera testing
-The CCTV transmitting channel testing
-PTZ controller |
SRCT895 CCTV tester with Digital
Multimeter + Optical Power Meter
Overview:
The CCTV testerPRO SRCT895 is developed
for the On-Site installation and maintenance of video monitoring
system. It can be used for displaying video, testing video level,
controlling PTZ, scanning PTZ address, generating images, capturing
data of RS485 and testing LAN cable etc. Its functions, easy
operation, and portability makes it simple for the CCTV technician
to install and maintain CCTV system, improving work efficiency and
get the labor cost down.
SRCT895 equipped with the Optical Power Meter. Use in testing the
laser power of Video Fiber Optic Transmission equipment, and testing
the Fiber Optic Patch Cord , etc.
SRCT895 is an ideal multifunction Instrument for CCTV security
system, Fiber Optical communication, CATV and other Fiber Optic
works.
Parameters:
|
MODEL |
SRCT895 |
|
Video Test |
|
Signal mode |
NTSC/PAL (Auto Adjust) |
|
Display |
3.5 inch TFT-LCD ,960*240 resolution |
|
LCD adjust |
Adjustable brightness, contrast, color of LCD |
|
Video IN/OUT |
1 channel BNC Input & 1 channel Output |
|
Video Output Mode |
1.0 Vp-p |
|
Video Level test |
|
Level test |
Video signals measured in IRE or mV |
|
Power Output |
|
Power output |
DC12V, 1A |
|
Audio Test |
|
Audio input |
1 channel Audio input |
|
PTZ controller |
|
Communication |
RS232, RS422 simplex and RS485 |
|
PTZ Protocol |
Compatible with more than 20 protocols such as PELCO-D/P,
Samsung, Panasonic, Lilin, Yaan, etc.customized |
|
Baud Rate |
150,300,600,1200,2400,4800,9600,19200bps |
|
Video Signal Generation |
|
Color bar generation |
Output 1 channel color bar video signal for testing monitor |
|
UTP CABLE TEST |
|
UTP cable test |
Test UTP cable connection state and display in the screen.
Read the number of the test box. |
|
PTZ data Capture and display |
|
PTZ Data Test |
Capture and Analyze the PTZ data sent from controlling
device |
|
PTZ address scanning |
|
PTZ address scan |
Search up the ID of PTZ camera |
|
Optical Power Meter |
|
Optical Power Meter |
testing the laser power of Video Fiber Optic Transmission
equipment, and testing the Fiber Optic Patch Cord , etc. |
|
Digital Multimeter |
|
Multi-Meter |
Voltage, current, resistance and capacitance measuring,
continuity testing, diode testing. |
|
POWER |
|
Power Adapter |
DC5V, 2A |
|
Battery |
1 pcs Lithium Ion Polymer Batteries, 3.7V DC3000mAh |
|
Rechargeable |
4.5 hours recharging time, work for 12 hours |
|
Low Consumption |
Sleeping mode, display battery power state |
|
Other Parameters |
|
Work Temperature |
-10ºC~+50ºC |
|
Work Humidity |
30%-90% |
|
Dimension/Weight |
112mm*189mm*47mm / 500g |
|
|
ˇˇ |
ˇˇ |
|
ˇˇ
ˇˇ
ˇˇ
ˇˇ
ˇˇ
Features:
-3.5"TFT-LCD , 960Ł¨HŁ©ˇÁ240Ł¨VŁ©resolution
-Optical power meter, testing the laser power of Video Fiber Optic
Transmission equipment, and testing the Fiber Optic Patch Cord,
etc.t.
-DC12V power output
-Audio input
-Adjustable brightness, contrast, color of LCD
-Video Level testing, video signals measured in IRE or mV
-Automatically identify and adapt the video mode of NTSC and PAL
-Colorbar Video signal generator, transmit/receive colorful images
-Support more than twenty kinds of PTZ controller protocols. For
example, PELCO-P, PELCO-D, SAMSUNG etc.
-PPTZ address scanning, search up the ID of PTZ camera.
-Capture the PTZ protocol to assist the setting personnel to find
out the control protocol and therefore easily target the problematic
equipment.
-Support RS232 and RS485 interface, the rate 150-19200bps
-Powerful in testing LAN cable, measuring the connecting status and
displaying the sequence of connection
-PTZ(P/L & Zoom) Control: Control the status of P/L, zoom in/out the
camera, adjust the aperture, foci and setting parameters, run and
call the preset.
-Lithium Ion Polymer Batteries(3.7V DC3000mAh), more reliable, and
work 15 hours
-Easy for use that the train is almost unnecessary
Applications:
-CCTV system installation and
maintenance
-Dome camera and All in one camera testing
-The CCTV transmitting channel testing
-PTZ controller |
SRCT896 CCTV tester with Optical
Power Meter
Overview:
The CCTV testerPRO SSRCT896 is developed
for the On-Site installation and maintenance of video monitoring
system. It can be used for displaying video, testing video level,
controlling PTZ, scanning PTZ address, generating images, capturing
data of RS485 and testing LAN cable etc. Its functions, easy
operation, and portability makes it simple for the CCTV technician
to install and maintain CCTV system, improving work efficiency and
get the labor cost down.
SRCT896 equipped with the Optical Power Meter. Use in testing the
laser power of Video Fiber Optic Transmission equipment, and testing
the Fiber Optic Patch Cord , etc.
SRCT896 is an ideal multifunction Instrument for CCTV security
system, Fiber Optical communication, CATV and other Fiber Optic
works.
Parameters:
|
MODEL |
SRCT896 |
|
Video Test |
|
Signal mode |
NTSC/PAL (Auto Adjust) |
|
Display |
3.5 inch TFT-LCD, 960*240 resolution |
|
LCD adjust |
Adjustable brightness, contrast, color of LCD |
|
Video IN/OUT |
1 channel BNC Input & 1 channel Output |
|
Video Output Mode |
1.0 Vp-p |
|
Video Level test |
|
Level test |
Video signals measured in IRE or mV |
|
Power Output |
|
Power output |
DC12V, 1A |
|
Audio Test |
|
Audio input |
1 channel Audio input |
|
PTZ controller |
|
Communication |
RS232, RS422 simplex and RS485 |
|
PTZ Protocol |
Compatible with more than 20 protocols such as PELCO-D/P,
Samsung, Panasonic, Lilin, Yaan, etc.customized |
|
Baud Rate |
150,300,600,1200,2400,4800,9600,19200bps |
|
Video Signal Generation |
|
Color bar generation |
Output 1 channel color bar video signal for testing monitor |
|
UTP CABLE TEST |
|
UTP cable test |
Test UTP cable connection state and display in the screen.
Read the number of the test box. |
|
PTZ data Capture and display |
|
PTZ Data Test |
Capture and Analyze the PTZ data sent from controlling
device |
|
PTZ address scanning |
|
PTZ address scan |
Search up the ID of PTZ camera |
|
Optical Power Meter |
|
Optical Power Meter |
testing the laser power of Video Fiber Optic Transmission
equipment, and testing the Fiber Optic Patch Cord , etc. |
|
POWER |
|
Power Adapter |
DC5V, 2A |
|
Battery |
1 pcs Lithium Ion Polymer Batteries, 3.7V DC3000mAh |
|
Rechargeable |
4.5 hours recharging time, work for 12 hours |
|
Low Consumption |
Sleeping mode, display battery power state |
|
Other Parameters |
|
Work Temperature |
-10ºC~+50ºC |
|
Work Humidity |
30%-90% |
|
Dimension/Weight |
112mm*189mm*47mm / 500g |
|
