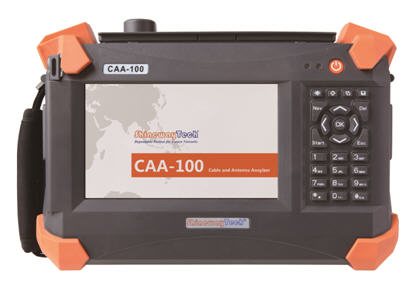

CAA-100 Cable & Antenna Analyzer
CAA-100 cable & antenna analyzer can test Return Loss and VSWR of
load’ frequency. Also can get Return Loss, VSWR of DTF
(distance-to-fault) and Cable Loss. Users can be easy to know the
connection of cable & antenna system is reliable whether or not.
CAA-100 series with frequency range 25MHz-4GHz and 60dB dynamic
range can suitable for 2G/3G/4G/WiMAX system etc. CAA-100 series is
the necessary measuring instrument for the new generation of
wireless network development, upgrade and maintenance.
Features
● Frequency range:1MHz to 6GHz; suitable for 2G/3G/4G/WiMAX system
etc.
● Dynamic Rang up to 60dB
● Intelligent limit /marker /curve calculations
● More than 8 hours long battery life
● 7 inch color LCD touch screen
● Optimized batch file management: edit/delete/filter
● Excellent Man-Machine interface for easy operation
Functions
1.Five Standard measurement mode
Distance-to-fault (DTF) Return Loss, DTF Voltage Standing Wave Ratio
(VSWR), Frequency Return Loss, Frequency VSWR and Cable Loss
testing. Main interface designs beautiful, user operation is
convenient.
2.Optional
USB high-precision power meter probe not only can connect the
instrument to test and display the power, but also can connect the
PC to analysis the result, which is greatly satisfy user.
Terminating power meter and In-Line digital frequency spectrum power
meter can test a variety of signal, which can meet the demand of
different level users.
3.Intelligent analysis and judgment the trace
CAA-100 series can analyze single or multi-segment limit line,
marker and the curve calculation accurately.
4. Convenient and precise calibrator: 1-port , and “T-type”
Calibration Kit
It can calibrate precisely and conveniently. When the calibrated
data points decrease, it is no need to recalibrate, which will
increase the service efficiency. Electronic calibrator ECAL provides
consistent calibration results, and removal the possible error of
manual calibration.
5.Instant switching the Return Loss and VSWR
CAA-100 series can test the return loss and VSWR simultaneously, and
switch the result instantly.
6.Optimized batch file management function
CAA-100 series file filter function is easy to implement batch
editing and analysis the results.
7 Field calibration cable and obtaining the parameters
CAA-100 series can supply user input the cable parameters
(propagation velocity, cable loss) or choose a known cable type. If
user knows nothing about the cable parameters, he can make a field
calibration by the equipment cable Calibration tool to get the
accurate cable parameters.
8.Manually set frequency or select the preset frequency
According to the demand, it is convenient for user to manually set
or select the preset frequency.
9. Energy saving, environmental protection and human interface
design
CAA-100 series is low-power designing, has high-capacity
rechargeable lithium battery and AC adapter dual power supply, and
more than 8 hours of continuous battery operation. The shortcut keys
can set up four display modes: normal, black and white, highlight
and night vision for different ambient.
10.CAA Workbench PC software
(1) Data Management Function
● Uploading and downloading files between the CAA-100 host and PC
● Interact files with PC, including open the local file and save the
file to the local
● Support report print preview and print. Fully display the
information such as company name, test parameters and measuring time
etc.
(2) Application Tools Function
● Distance-To-Fault
● Transform into Smith Chart
● Calculator
● Edit Signal Standard
● Edit Cable Parameter
(3) Data Analysis
● Marker
● Limit line
● Scale
● Switching the Return Loss and VSWR
Specifications
|
Model |
CAA-100 |
|
Frequency Range |
25MHz - 4000MHz |
|
Frequency Resolution |
100kHz |
|
Frequency Accuracy |
±25ppm |
|
Output Power |
0dBm(typ.) |
|
Measurement Speed |
3.5ms/point |
|
Data Points |
137, 251, 551, 1103 |
|
Anti-jamming Capability |
|
Frequency |
-5dBm |
|
Channel |
+17dBm |
|
Directivity |
42dB (after calibration) |
|
Return Loss |
|
Return Loss Range |
0 - 60 dB |
|
Return Loss Resolution |
0.01dB |
|
VSWR |
|
VSWR Range |
1 - 65 |
|
VSWR Resolution |
0.01 |
|
Cable Loss |
|
Cable Loss Range |
0 - 30dB |
|
Cable Loss Resolution |
0.01dB |
|
Distance-to-Fault |
|
Distance-to-Fault Return loss Range |
0 - 60 dB |
|
Distance-to-Fault SWR Range |
1 - 65 |
|
Measuring Length |
1500m |
|
Resolution Ratio |
( 1.5×108 ) × (Vp) / (F2-F1) |
|
Where Vp is the cable's relative propagation velocity. |
|
where F2 is the stop frequency and F1 is start frequency |
|
Data Points |
137, 251, 551, 1103 |
|
General Information |
|
Connector Type |
N-Type female |
|
Input Impedance |
50 Ohm |
|
Display |
7 inch resistor touch screen, resolution 800×480 |
|
Data Interface |
One USB Host Port |
|
One USB Device Port |
|
One 10M/100M Adaptive LAN Port |
|
Memory Space |
>2000 traces |
|
Internal Battery |
11.1V 7800mAh Rechargeable Lithium Battery |
|
External Adapter |
110 - 240V, 50 - 60Hz, AC input; 16V, 3.75A, DC output |
|
Operating Temp. Range |
10℃ - +50 °C |
|
Storage Temp. Range |
40℃ - +70℃ |
|
Humidity |
0 - 85% (Non-Condensing) |
|
Weight |
2.5kg (Suttle) |
|
Dimensions (L x W x H) |
290×175×75mm |
|
TPM Module (Optional)--RF Terminal Power Meter |
|
Frequency Range |
50 - 4000MHz |
|
Power Range |
-40 - 20 dBm |
|
Maximum Power |
<23 dBm |
|
Measure Uncertainty |
≤ +/-0.3dB (15℃ -
35℃) |
|
≤ +/-0.5dB( 0℃ -
50℃) |
|
Input VSWR |
<1.2 |
|
Burst Width |
1µs - 60ms |
|
Min Repetition Period |
15Hz |
|
Video Band |
5MHz |
|
Minimum Pulse Width |
200ns |
|
Time Resolution |
0.1µs,1µs,15µs,150µs |
|
Peak Average Ratio |
<12dB |
|
CCDF Range |
0.1% - 100% |
|
CCDF Uncertainty |
±3% |
|
Duty cycle |
0.1% - 100% |
|
Power Supply |
USB |
|
Operating Temp. Range |
0℃ - 50℃ |
|
Storage Temp. Range |
-20℃ - 70℃ |
|
Humidity |
0 - 85% (Non-Condensing) |
|
Weight |
0.3kg |
|
Dimensions (L x W x H) |
105(125)×45×35mm |
|
Anti-vibration properties |
Conform to MIL-PRF-28800F class 3 |
|
Elect. Compatibility Characteristics |
Conform to EMC GB/T 18268-2000 |
|
DPM Module(Optional)—RF In Line Digital Power Meter |
|
Average Power Measurement |
|
Frequency Range |
300-4200MHz |
|
Power Range |
100mW-200W |
|
Dynamic Range |
≥33 dB |
|
Insertion Loss |
≤0.1 dB |
|
VSWR |
1.05 to 99.9 |
|
Directivity |
≥30 (<3GHz); ≥28 (>3GHz) |
|
Accuracy |
±4% |
|
Impedance |
50Ω |
|
Connector |
N (Female) |
|
Data Interface |
USB |
|
Peak Power Measurement |
|
Peak Power Range |
100mW to 500W |
|
Peak Power Accuracy |
Burst width >200us: ±7%;
1us<Burst width< 200us: ±10%;
0.5us<Burst width< 1us: ±15%;
Burst width< 0.5us: ±20%; |
|
Peak Average Ratio |
0 to12dB |
|
CCDF |
|
Measurement Range |
0.1 to 100% |
|
Measurement Accuracy |
±3% |
|
Threshold Measurement Range |
0.05W to 500W |
|
Burst Power |
|
Burst Power Range |
100mW to 200W |
|
Burst Width |
1us to 60ms |
|
Min. Measurement Frequency |
15Hz |
|
Measurement Accuracy |
±6% |
|
Duty Cycle |
0.0001 to 1 |
|
Others |
|
Power Supply |
USB |
|
Operating Temperature |
-10℃ to50℃ |
|
Storage Temperature |
-20℃ to70℃ |
|
Relative Humidity |
0 to 85% (Non-condensing) |
|
Weight |
0.48kg |
|
Dimensions (H×W×T) |
130××124×34mm |
Order Information:
Standard Package:
CAA-100 Host, Lithium Battery, AC Adapter, CD(PC Software, User
Manual), Carrying Case, T-type Calibration Kits, Quick Reference
Optional:
¨ TPM Module (Optional)--RF Terminal Power Meter
¨ SPM Module(Optional)--In Line Digital Frequency Spectrum Power
Meter
Test Cables
o 1.5m, N(m)-N(f), DC to 6GHz, 50 Ohm
o 1.5m, N(m)-N(m), DC to 6GHz, 50 Ohm
o 1.5m, N(m)-7/16 DIN(f), DC to 6GHz, 50 Ohm
o 1.5m, N(m)-7/16 DIN(m), DC to 6GHz, 50 Ohm
o 3m, N(m)-N(f), DC to 6GHz, 50 Ohm
o 3m, N(m)-N(m), DC to 6GHz, 50 Ohm
Adapters
o SMA(m)-N(m), DC to 6GHz, 50 Ohm
o SMA(f)-N(m), DC to 6GHz, 50 Ohm
o SMA(m)-N(f), DC to 6GHz, 50 Ohm
o SMA(f)-N(f), DC to 6GHz, 50 Ohm
o BNC(f)-N(m), DC to 6GHz, 50 Ohm
o 7/16 DIN(f)-N(m), DC to 6GHz, 50 Ohm
o 7/16 DIN(f)-N(f), DC to 6GHz, 50 Ohm
o 7/16 DIN(m)-N(m), DC to 6GHz, 50 Ohm
o 7/16 DIN(m)-N(f), DC to 6GHz, 50 Ohm
o 7/16 DIN(m)-7/16DIN(m), DC to 6GHz, 50 Ohm
o 7/16 DIN(f)-7/16DIN(f), DC to 6GHz, 50 Ohm
o N(m)-N(m), DC to 6GHz, 50 Ohm
o N(f)-N(f), DC to 6GHz, 50 Ohm
o N(m) 50Ohm – N(f) 75Ohm，DC
to 3GHz
o N(f) 50Ohm – N(m) 75Ohm，DC
to 3GHz
Calibrators
o T-type calibrator(OPEN-SHORT-50 Ohm), N(m), DC to 6GHz, 50 Ohm
o Calibrator Kit(OPEN×1, SHORT×1, 50 Ohm×1), N(m), DC to 6GHz, 50
Ohm
o OPEN Calibrator×1, N(m), DC to 6GHz
o SHORT Calibrator×1, N(m), DC to 6GHz
o 50 Ohm Calibrator×1N(m), DC to 6GHz, 50 Ohm |
