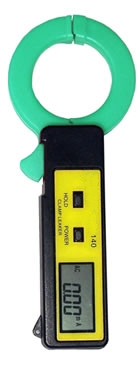

Digital clamp leaker SRT140

SRT140 high accuracy clamp leaker is specially designed for measurement of AC leakage current; by adopting up-to-date CT technology and digital integration technology, it is a product with relatively small size, high accuracy and perfect function compared with similar leaker in the world. The leaker can be widely applied in electricity, telecommunications, meteorology, railroad, oilfield, construction, measurement, scientific and research teaching institute, industrial and mining installishments.

Clamp core of SRT140 high accuracy clamp leaker adopts special alloy, in addition, with utilization of magnetic shielding technology, it is basically free from influence from external magnetic field so as to ensure precision, stability and reliability of perennial continuous measurement.

SRT140 high accuracy clamp leaker can be used for AC line current measurement and on-line current measurement with voltage lower than AC 600V; It has functions as peak holding, data holding and data storage. For convenience purpose, it is an essential tool for electrician safety testing.

Main Features:
-measurement of AC 300A/300mA;
-feature rich.

Specifications:

Function

Measurement of AC leakage current and AC

Power

DC3V LR-44*2 or SR-44*2

Mode of measuring

CT clamp, integral measurement

Display

LCD of 4 digits

Dimension

64mm*160mm*23mm

LCD size

35mm*21.5mm; display area: 32mm*15mm

Jaw size

40mm

Rates of sample

approxi. 2 times / second

Measure range

0mA ~ 300A(50/60Hz)

Resolution

0.01mA

Range

30mA/300mA, 30A/300A, auto switch in range

Accuracy

0.00mA ~ 9.99mA: ±1.2%rdg±5dgt

10.0mA ~ 300.0mA: ±1.5%rdg±5dgt

0.00A ~ 9.99A: ±2%rdg±5dgt

10.0A ~ 99.9A: ±3%rdg±5dgt

100.0A ~ 199.9A: ±4%rdg±5dgt

200.0A ~ 300.0A: ±5%rdg±5dgt

Line voltage

AC 600V

Data storage

60 sets, show "FU" when full

Peak hold

auto pick up the peak value, show peak value when pressing HOLD.

Data Hold

Show "DH"

Overload indication

Show "OL"

auto power off

after 5 minutes

Low battery warning

yes

Weight

approximate. 120g (battery included)

Power

approximate. 5mW

Working temperature and humidity

0°C ~ 40°C, within 80% RH

Store temperature and humidity

-10°C ~ 60°C, within 70% RH

Insulation

AC 2kV/rms

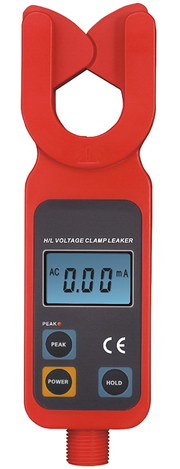

High Voltage Clamp Ammeters/ High Voltage Clamp Leaker SRT255A

Click for packing

Product Description:

SRT255 series connected with insulating rod can measure leakage current of high voltage circuit, on-line circuit, and judge if ZnO arresters get damp or do not work well. It also has functions as peak hold, data hold, data storage, wireless transmission. Its clamp can be easily removed from the tested wire by pressing or pulling back the insulating rod.

Specifications:

General Functions

Range

Accuracy

Type



SRT255A

Leakage (A)

Range

0.01mA~100.0A

± (1%+5)

100.0A~600.0A

± (2%+5)

Voltage (Frequency)

0V~69KV (50Hz/60Hz)

YES

Special Functions

Display Mode

4-bit LCD display

YES

Clamp Size



33mm

Auto-range



YES

Data Read-back



YES

Data Storage



99 groups

Peak Value



YES

LCD Backlight



YES

Data Hold



YES

Auto Power-off

About 15 mins

YES

Low Battery Indication



YES

Overload Indication

OL

YES

Test Type

Clamp CT, integration method

YES

Sampling Rate

2 seconds per time

YES

General Characteristics

Power Supply

1.5V Alkaline battery (7#) X 4

LCD Size

47mm X 28.5mm

Product Color

Red+ Grey

Product Weight

335g

Product Size

68mm X 245mm X 40mm

Standard Accessories

Batteries, insulting rod, toolbox

Standard Package

Gift box, user manual, warranty card

Standard Package Quantity

6pcs

Standard Package Size

1030mm X 520mm X 450mm

Standard Package Gross Weight

40kg

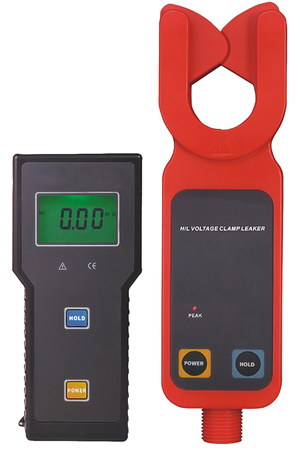

High Voltage Clamp Ammeters/ High Voltage Clamp Leaker SRT255B

Product Description:

SRT255 series connected with insulating rod can measure leakage current of high voltage circuit, on-line circuit, and judge if ZnO arresters get damp or do not work well. It also has functions as peak hold, data hold, data storage, wireless transmission. Its clamp can be easily removed from the tested wire by pressing or pulling back the insulating rod.

Specifications:

General Functions

Range

Accuracy

Type



SRT255B

Leakage (A)

Range

0.01mA~100.0A

± (1%+5)

100.0A~600.0A

± (2%+5)

Voltage (Frequency)

0V~69KV (50Hz/60Hz)

YES

Special Functions

Display Mode

4-bit LCD display

YES

Clamp Size



33mm

Auto-range



YES

Wireless Transmission ≤30m

Data Read-back



YES

Data Storage



99 groups

Peak Value



YES

LCD Backlight



YES

Data Hold



YES

Auto Power-off

About 15 mins

YES

Low Battery Indication



YES

Overload Indication

OL

YES

Test Type

Clamp CT, integration method

YES

Sampling Rate

2 seconds per time

YES

General Characteristics

Power Supply

1.5V Alkaline battery (7#) X 4

LCD Size

47mm X 28.5mm

Product Color

Red+ Grey

Product Weight

335g

Product Size

68mm X 245mm X 40mm

Standard Accessories

Batteries, insulting rod, receiver, toolbox

Standard Package

Gift box, user manual, warranty card

Standard Package Quantity

6pcs

Standard Package Size

1030mm X 520mm X 450mm

Standard Package Gross Weight

40kg



( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@163.com )
