Cross Cut Tester/ Cross Cut Adhesion Tester

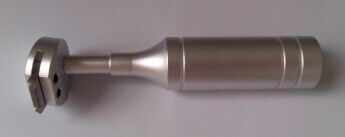

Handle with blade

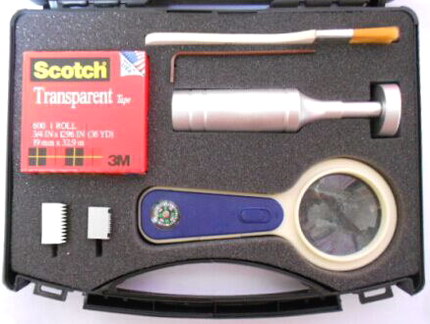

Standard Packing

SRCC600 Cross Cut Tester

Blade of the instrument at a certain specification, to do the coating matrix graph cut and penetration, cross case complete graphics according to the six levels of classification, evaluation of the separation of the coating from the substrate adhesion effect.
Technical Specifications:

Blade space: 1+0.01mm, 2+0.01mm,  3+0.01mm

Tooth crest straightness accuracy: 0.003mm, 0.006mm

Tooth space for the blade: 0.05mm

Taken the blade spacing: 1 mm, 2 mm, 3 mm, according to the different test conditions are available:
1 mm spacing: coating thickness 0-60µm, for hard substrate (metal);
2 mm spacing: coating thickness 60-120µm, for hard or soft substrates;
3 mm spacing: coating thickness 121-250µm, for hard or soft substrates;

Application:

The instrument is mainly used for the measurement of the grid scratching adhesion of the organic paints. It is not only applicable to the laboratories, but also good to the construction sites under various conditions.

Standard delivery:

1 Handle

2 Blade (11 Teeth, spacing 1mm 1pcs, 11 Teeth, spacing 2mm blade 1pcs). You can choose other blade instead of the standard one according to your test conditions.

1 Magnifier with light

1 hexagon wrench

1 Cleaning brush

1 Plastic carrying case

1 Operating instructions

1 roll of 3M Scotch Transparent Tape (19mm*32.9m)
Optional Accessory:
11 Teeth, spacing 3mm

6 Teeth, spacing 1mm

6 Teeth, spacing 2mm

6 Teeth, spacing 3mm

 (If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@163.com)
