Eddy Current Conductivity Tester/ Metal Conductivity Tester

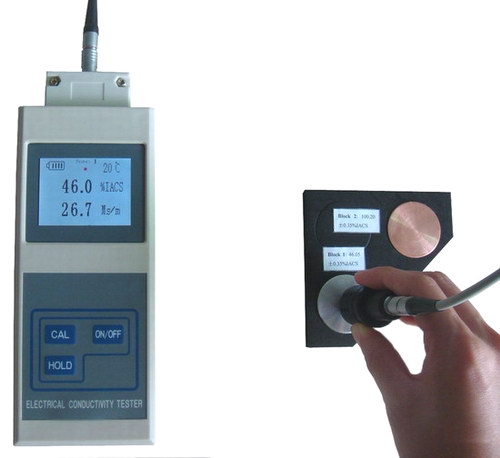

SREC101 Portable Eddy Current Conductivity Tester

SREC101 is a kind of eddy current electrical conductivity meter, which is designed for quick & convenient measurement of material property, such as material separate, quality control, material state check and so on. It uses the electromagnetism testing principle. Testing objects focus on non-ferromagnetic material.

Features:
* The meter uses 60 KHz (aviation industry standard) to inspirit.
* The testing data can be read in two kinds of unit: %IACS and MS/m.
* Its big typeface, the back light illumination designs are advantageous for users to take the testing data even in low light condition.
* It uses the high property battery to make sure it keeps more running time, and because of its mini-size, it is easy to carry and to grasp hold.
* The design of the meter is more advantages: user can replace the probe in the outdoor, don't need to return to the company to adjust the probe into matching the meter.
* It can hold measurement data.

Applications:
* Test the conductivity of aluminum, copper and other non-ferrous magnetic metal in the processing industry.
* In the aerospace and automotive industries, monitor the process of heat treatment, the strength and hardness of aluminum alloy.
* Test the conductivity aluminum when it has not been oxidized.
* Test the purity grade of materials.
* Test materials resistivity.
* Material Thermal Performance analysis.
Technical parameters:

NAME

CONTENT

Measurement technology

Eddy current

Operating frequency

60KHz, 120 KHz

Display screen

Monochrome

L*B*H

180*75*30 mm

Instrument case

Anti-intense impact, water-proofing polyester.

Weight

290g

Power supply

High capacity, high performance lithium polymer battery

Measuring range

6.9%IACS-110%IACS (4.0MS/m-64MS/m)

Distinguishing rate

0.1% IACS

Measuring accuracy

0C to 50C

0~23%IACS: 0.1%IACS

23%IACS~110%IACS: 0.3%IACS

Temperature compensation

Automatic compensation to the value of 20C.

Normal work environment

Relative humidity: 0~95%

Operating temperature: 0C~50C

Language

English

Standard Accessories

1 probe (12.7mm), 2 Calibration standard block, 1 probe in cable; 1 probe cover, adapter, carrying case, operating manual.

Probe

Diameter:12.7mm

(Applicable to minimum measuring area diameter at 60KHz is10mm.)

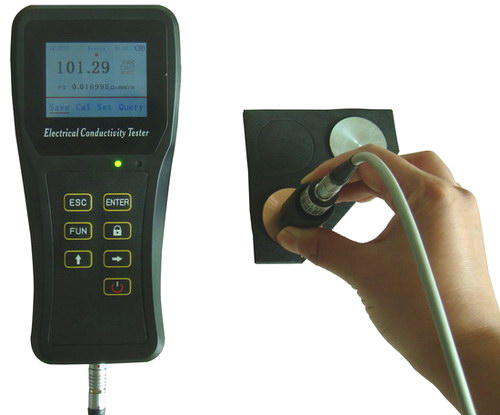

SREC102 Digital Eddy Current Conductivity Tester

SREC102 is a kind of eddy current electrical conductivity meter, which is designed for quick & convenient measurement of material property, such as material separate, quality control, material state check and so on. It uses the electromagnetism testing principle. Testing objects focus on non-ferromagnetic material.
Features:
* The meter uses 60 KHz (aviation industry standard) to inspirit, and the testing data can be read in two kinds of unit: %IACS or MS/m.
* Its big typeface, the back light illumination designs are advantageous for users to take the testing data even in low light condition.
* Two kinds of operate languages satisfy different national demand.
* It uses the high property battery to make sure it keeps more running time, and because of its mini-size, it is easy to carry and to grasp hold.
* The design of the meter is more advantages: user can replace the probe in the outdoor, dont need to return to the company to adjust the probe into matching the meter.
* It can store 1000 measurement data.
Applications:
* Test the conductivity of aluminum, copper and other non-ferrous magnetic metal in the processing industry.
* In the aerospace and automotive industries, monitor the process of heat treatment, the strength and hardness of aluminum alloy.
* Test the conductivity aluminum when it has not been oxidized.
* Test the purity grade of materials.
* Test materials resistivity.
* Material Thermal Performance analysis.
Technical parameters:

NAME

CONTENT

Measurement technology

Eddy current

Operating frequency

60KHz, 240 KHz

Display screen

240*320 pixels TFT-LCD; 4 kinds of background color

L*B*H

180*80*30 mm

Instrument case

Anti-intense impact, water-proofing polyester.

Weight

260g

Power supply

High capacity, high performance lithium polymer battery

Measuring range

Conductivity: 6.9%IACS-110%IACS (4.0MS/m-64MS/m)

Resistivity: Correspond the Conductivity

Distinguishing rate

0.01% IACS
0.000001•(mm)2/m

Measuring accuracy

0C to 50C

0~23%IACS: 0.1%IACS

23%IACS~110%IACS: 0.3%IACS

Temperature compensation

Automatic compensation to the value of 20C.

Normal work environment

Relative humidity: 0~95%

Operating temperature: 0C~50C

Language

English, Chinese

Standard Accessories

1 probe (12.7mm), 2 Calibration standard block, 1 probe in cable; 1 probe cover, RS232 cable and software, adapter, carrying case, operating manual.

Probe

Diameter:12.7mm

(Applicable to minimum measuring area diameter at 60KHz is10mm.)

Diameter: 8mm (Optional)
(Applicable to minimum measuring area diameter at 240KHz is 7mm.)

 ( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )
