Electronic Balance

( digital precision balance, Electronic Precision Balance, Electronic Analytical Balance, Precision Balance, weighing scale )

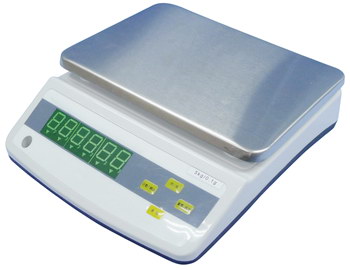

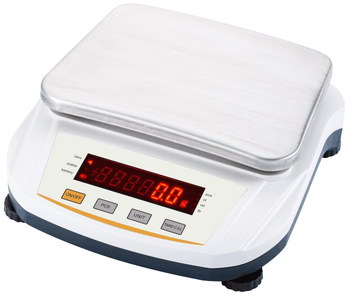

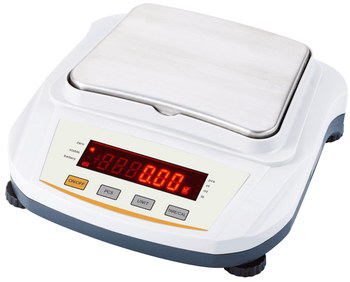

SYP2001, SYP1002 series LED Electronic Balance

SYP2001 series

SYP1002 series

Specifications:
1. High precision load cell.
2. Rugged Plastic Housing.
3. Big size Stainless Steel Platter.
4. High contrast easy to read LED display.
5. Built-in rechargeable battery.
6. Height adjustable feet.
7. Full capacity subtraction.
8. Stabilization time 1.5 seconds.
9. Overload Protection.
10. Below Balance Weighing Facility.
11. Checking Weighing, piece counting function.
12. Can be contain bubble level.
13. CE approval.

Model

Capacity (g)

Readability (g)

Repeatability(g)

Linearity (g)

Net Weight (kg)

Pan Size (mm)

Dimension (mm)

Power Supply

SYP2001

200

0.1

0.2

0.2

1.5

143*192

280*180*80

110V-240VAC

SYP6001

600

0.1

0.2

0.2

SYP10001

1000

0.1

0.2

0.2

SYP15001

1500

0.1

0.2

0.2

SYP20001

2000

0.1

0.2

0.2

SYP30001

3000

0.1

0.2

0.2

SYP50001

5000

0.1

0.2

0.2

SYP1002

100

0.01

0.02

0.02

125*163

SYP2002

200

0.01

0.02

0.02

SYP3002

300

0.01

0.02

0.02

SYP5002

500

0.01

0.02

0.02

SYP1002

600

0.01

0.02

0.02

SYP10002

1000

0.01

0.02

0.02

SYP20002

2000

0.01

0.02

0.02

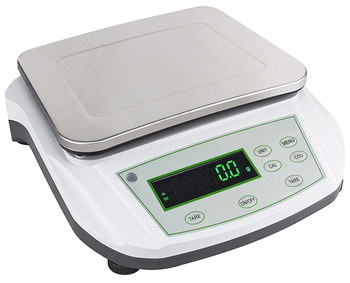

SYP60001D series Large Capacity LED Electronic Balance

Specifications:

1. High precision load cell.
2. Rugged Plastic Housing.
3. Big size Stainless Steel Platter.
4. High contrast easy to read LED display.
5. Built-in rechargeable battery last up to 7 days.
6. Height adjustable feet.
7. Full capacity subtraction.
8. Stabilization time 1.5 seconds.
9. Panel simple for easy operation.
10. Overload Protection.
11. Below Balance Weighing Facility.
12. Checking Weighing, piece counting function.
13. RS232 Interface. (Optional)
14. CE approval.

Model

Capacity (g)

Readability (g)

Repeatability(g)

Linearity (g)

Net Weight (kg)

Pan Size (mm)

Dimension (mm)

Power Supply

SYP60001D

6000

0.1

0.2

0.2

5.0

340*240

370*370*125

110V-240VAC

SYP100001D

10000

0.1

0.2

0.2

SYP150001D

15000

0.1

0.2

0.2

SYP200001D

20000

0.1

0.2

0.2

SYP300001D

30000

0.1

0.2

0.2

SYP15000D

15000

1

2

2

SYP30000D

30000

1

2

2

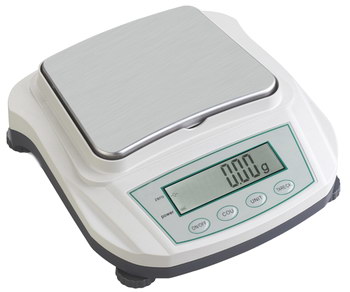

SYP2001D, SYP1002D series LCD Electronic Balance

Specifications:

1. High precision load cell, compact design.
2. Aluminum alloy die cast base and mains.
3. Big size stainless steel pan.

4. Bright LCD display with backlight.
5. Built-in rechargeable battery.
6. Height adjustable feet.

7. Overload Protection, Bubble level adjustment.
8. Stabilization time 1.5 seconds.
9. Checking weighting, piece counting function.
10. Certificated calibration weight supplied as standard.

11. RS232 Interface. (Optional)



Model

Capacity (g)

Readability (g)

Repeatability(g)

Linearity (g)

Net Weight (kg)

Pan Size (mm)

Dimension (mm)

Power Supply

SYP2001D

200

0.1

0.2

0.2

1.5

143*192

225*220*80

110V-240VAC

SYP6001D

600

0.1

0.2

0.2

SYP10001D

1000

0.1

0.2

0.2

SYP15001D

1500

0.1

0.2

0.2

SYP20001D

2000

0.1

0.2

0.2

SYP30001D

3000

0.1

0.2

0.2

SYP50001D

5000

0.1

0.2

0.2

SYP1002D

100

0.01

0.02

0.02

125*163

SYP2002D

200

0.01

0.02

0.02

SYP3002D

300

0.01

0.02

0.02

SYP5002D

500

0.01

0.02

0.02

SYP1002D

600

0.01

0.02

0.02

SYP10002D

1000

0.01

0.02

0.02

SYP20002D

2000

0.01

0.02

0.02

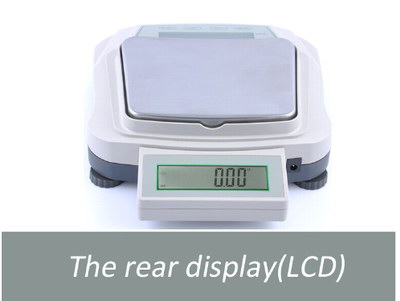

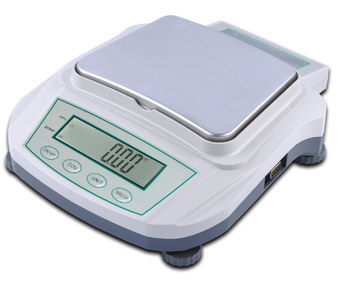

SYP1002S series Dual LCD Electronic Balance

Specifications:

1. High precision load cell.
2. Rugged Plastic Housing.
3. Big size Stainless Steel Platter.
4. High contrast easy to read LED display.
5. Built-in rechargeable battery.
6. Height adjustable feet.
7. Full capacity subtraction.
8. Stabilization time 1.5 seconds.
9. Overload Protection.
10. Below Balance Weighing Facility.
11. Checking Weighing, piece counting function.
12. Can be contain bubble level.
13. CE approval.

14. RS232 Interface. (Optional)

Model

Capacity (g)

Readability (g)

Repeatability(g)

Linearity (g)

Net Weight (kg)

Pan Size (mm)

Dimension (mm)

Power Supply

SYP1002S

100

0.01

0.02

0.02

1.5

125*163

225*220*80

110V-240VAC

SYP2002S

200

0.01

0.02

0.02

SYP3002S

300

0.01

0.02

0.02

SYP5002S

500

0.01

0.02

0.02

SYP6002S

600

0.01

0.02

0.02

SYP10002S

1000

0.01

0.02

0.02

SYP20002S

2000

0.01

0.02

0.02

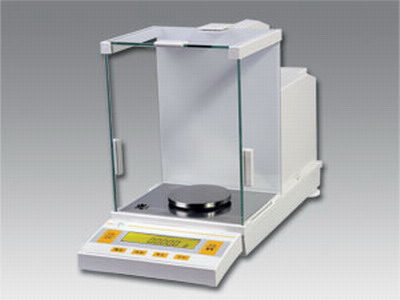

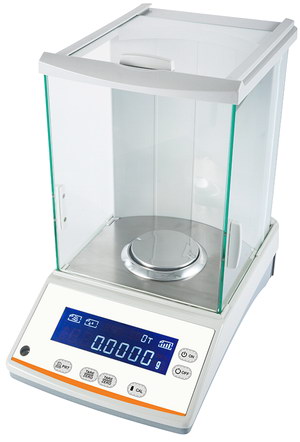

SFA3204/ SFA3204N series Magnetic Analytical Balance

Specifications:

1. Electromagnetic Force Compensation Technology.
2. Aluminum Alloy die cast base and ss platter.
3. Super Bright LCD display with backlight.
4. RS232C Interface
5. Clear Glass Windshield as standard.
6. Over load protection, Bubble Level Adjustment, Under hook
7. Full capacity Subtraction
8. Multi Weighing unit conversation g/mg/ct/oz.
9. Check Weighing, Parts counting, percentage weighing
10. Universal power adaptor supplied as standard
11. Certificated calibration weight supplied as standard.
12. CE approval.
13. Internal calibration or external calibration for your choice.

(SFA3204 series with External calibration; SFA3204N series with Internal calibration.)


Model

Capacity (g)

Readability (mg)

Repeatability(mg)

Linearity (mg)

Net Weight (kg)

Pan Size (mm)

Dimension (mm)

Power Supply

SFA3204/ SFA3204N

320

0.1

0.2

0.2

6.8

80mm

340*215*350

110V-240VAC

SFA3104/ SFA3104N

310

0.1

0.2

0.2

SFA2204/ SFA2204N

220

0.1

0.2

0.2

SFA2104/ SFA2104N

210

0.1

0.2

0.2

SFA2004/ SFA2004N

200

0.1

0.2

0.2

SFA1804/ SFA1804N

180

0.1

0.2

0.2

SFA1604/ SFA1604N

160

0.1

0.2

0.2

SFA1204/ SFA1204N

120

0.1

0.2

0.2

SFA1004/ SFA1004N

100

0.1

0.2

0.2

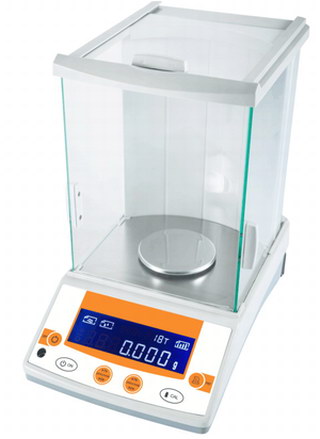

SJA10003A/ SJA10003N series Magnetic Analytical Balance

Specifications:

1. Electromagnetic Force Compensation Technology.
2. Aluminum Alloy die cast base and ss platter.
3. Super Bright LCD display with backlight.
4. RS232C Interface
5. Clear Glass Windshield as standard.
6. Over load protection, Bubble Level Adjustment, Under hook
7. Full capacity Subtraction
8. Multi Weighing unit conversation g/mg/ct/oz.
9. Check Weighing, Parts counting, percentage weighing
10. Universal power adaptor supplied as standard
11. Certificated calibration weight supplied as standard.
12. CE approval.
13. Internal calibration or external calibration for your choice.

(SFA10003A series with External calibration; SFA10003N series with Internal calibration.)


Model

Capacity (g)

Readability (mg)

Repeatability(mg)

Linearity (mg)

Net Weight (kg)

Pan Size (mm)

Dimension (mm)

Power Supply

SJA10003A/ SJA10003N

1000

1

2

2

6.8

90mm

340*215*350

110V-240VAC

SJA6003A/ SJA6003N

600

1

2

2

SJA5003A/ SJA5003N

500

1

2

2

SJA4003A/ SJA4003N

400

1

2

2

SJA3003A/ SJA3003N

300

1

2

2

SJA2003A/ SJA2003N

200

1

2

2

SJA1003A/ SJA1003N

100

1

2

2

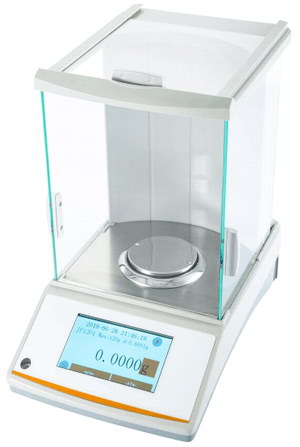

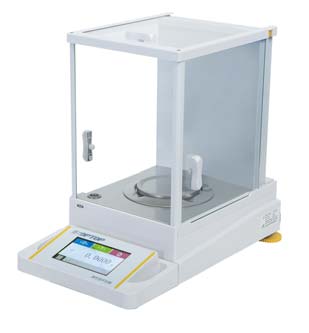

SFA3204C/ SFA3204CN, SJA10003C/ SJA10003CN series Touch Screen Electronic Analytical Balance

Specifications:

1. Electromagnetic Force Compensation Technology.
2. Aluminum Alloy die cast base and ss platter.
3. Super Bright LCD display with backlight. (5.0 inch Touch screen)
4. RS232C Interface
5. Clear Glass Windshield as standard.
6. Over load protection, Bubble Level Adjustment, Under hook
7. Full capacity Subtraction
8. Multi Weighing unit conversation g/mg/ct/oz.
9. Check Weighing, Parts counting, percentage weighing
10. Universal power adaptor supplied as standard
11. Certificated calibration weight supplied as standard.
12. Internal calibration or external calibration for your choice.

(SFA3204C, SJA10003C series with External calibration; SFA3204CN, SJA10003CN series with Internal calibration.)


Model

Capacity (g)

Readability (mg)

Repeatability(mg)

Linearity (mg)

Net Weight (kg)

Pan Size (mm)

Dimension (mm)

Power Supply

SFA3204C/ SFA3204CN

320

0.1

0.2

0.2

6.8

80mm

340*215*350

110V-240VAC

SFA3104C/ SFA3104CN

310

0.1

0.2

0.2

SFA2204C/ SFA2204CN

220

0.1

0.2

0.2

SFA2104C/ SFA2104CN

210

0.1

0.2

0.2

SFA2004C/ SFA2004CN

200

0.1

0.2

0.2

SFA1804C/ SFA1804CN

180

0.1

0.2

0.2

SFA1604C/ SFA1604CN

160

0.1

0.2

0.2

SFA1204C/ SFA1204CN

120

0.1

0.2

0.2

SFA1004C/ SFA1004CN

100

0.1

0.2

0.2

SJA10003C/ SJA10003CN

1000

1

2

2

90mm

SJA6003C/ SJA6003CN

600

1

2

2

SJA5003C/ SJA5003CN

500

1

2

2

SJA4003C/ SJA4003CN

400

1

2

2

SJA3003C/ SJA3003CN

300

1

2

2

SJA2003C/ SJA2003CN

200

1

2

2

SJA1003C/ SJA1003CN

100

1

2

2

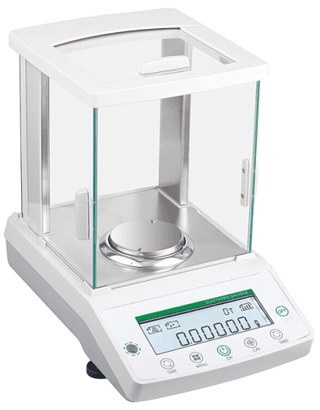

SFA3204M/ SFA3204IM, SJA10003M/ SJA10003IM series Magnetic Analytical Balance

Specifications:

1. Electronic force compensation technology

2. Aluminum alloy die cast and stainless pan
3. Supper bright LCD display with backlight
4. RS232C interface
5. Clear glass windshield as standard
6. Overload protection, bubble level adjustment, under hook
7. Full capacity subtraction
8. Multi weighing unit conversation g/mg/ct/oz
9. Stabilization time 3-5 seconds
10. Check weighing, parts counting, percentage weighing
11. Universal power adaptor supplied as standard
12. Certificated calibration weight supplied as standard for electronic balance
13. Internal calibration or external calibration for your choice.

(SFA3204M, SJA10003M series with External calibration; SFA3204IM, SJA10003IM series with Internal calibration.)


Model

Capacity (g)

Readability (mg)

Repeatability(mg)

Linearity (mg)

Net Weight (kg)

Pan Size (mm)

Dimension (mm)

Power Supply

SFA3204M/ SFA3204IM

320

0.1

0.2

0.2

5.0

80mm

340*215*330

110V-240VAC

SFA3104M/ SFA3104IM

310

0.1

0.2

0.2

SFA2204M/ SFA2204IM

220

0.1

0.2

0.2

SFA2104M/ SFA2104IM

210

0.1

0.2

0.2

SFA2004M/ SFA2004IM

200

0.1

0.2

0.2

SFA1804M/ SFA1804IM

180

0.1

0.2

0.2

SFA1604M/ SFA1604IM

160

0.1

0.2

0.2

SFA1204M/ SFA1204IM

120

0.1

0.2

0.2

90mm

SFA1004M/ SFA1004IM

100

0.1

0.2

0.2

SJA10003M/ SJA10003IM

1000

1

2

2

SJA6003M/ SJA6003IM

600

1

2

2

SJA5003M/ SJA5003IM

500

1

2

2

SJA4003M/ SJA4003IM

400

1

2

2

SJA3003M/ SJA3003IM

300

1

2

2

SJA2003M/ SJA2003IM

200

1

2

2

SJA1003M/ SJA1003IM

100

1

2

2

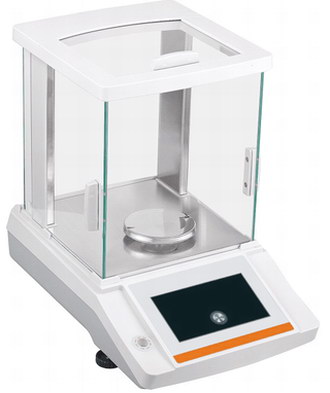

SFA3204CM/ SFA3204CI, SJA10003CM/ SJA10003CI series Touch Screen Analytical Balance

Specifications:

1. Electronic force compensation technology

2. Aluminum alloy die cast and stainless pan
3. Supper bright LCD display with backlight (5 inch Touch Screen)
4. RS232C interface
5. Clear glass windshield as standard
6. Overload protection, bubble level adjustment, under hook
7. Full capacity subtraction
8. Multi weighing unit conversation g/mg/ct/oz
9. Stabilization time 3-5 seconds
10. Check weighing, parts counting, percentage weighing
11. Universal power adaptor supplied as standard
12. Certificated calibration weight supplied as standard for electronic balance

 13. Internal calibration or external calibration for your choice.

(SFA3204CM, SJA10003CM series with External calibration; SFA3204CI, SJA10003CI series with Internal calibration.)


Model

Capacity (g)

Readability (mg)

Repeatability(mg)

Linearity (mg)

Net Weight (kg)

Pan Size (mm)

Dimension (mm)

Power Supply

SFA3204CM/ SFA3204CI

320

0.1

0.2

0.2

6.8

80mm

340*215*330

110V-240VAC

SFA3104CM/ SFA3104CI

310

0.1

0.2

0.2

SFA2204CM/ SFA2204CI

220

0.1

0.2

0.2

SFA2104CM/ SFA2104CI

210

0.1

0.2

0.2

SFA2004CM/ SFA2004CI

200

0.1

0.2

0.2

SFA1804CM/ SFA1804CI

180

0.1

0.2

0.2

SFA1604CM/ SFA1604CI

160

0.1

0.2

0.2

SFA1204CM/ SFA1204CI

120

0.1

0.2

0.2

SFA1004CM/ SFA1004CI

100

0.1

0.2

0.2

SJA10003CM/ SJA10003CI

1000

1

2

2

90mm

SJA6003CM/ SJA6003CI

600

1

2

2

SJA5003CM/ SJA5003CI

500

1

2

2

SJA4003CM/ SJA4003CI

400

1

2

2

SJA3003M/ SJA3003CI

300

1

2

2

SJA2003M/ SJA2003CI

200

1

2

2

SJA1003CM/ SJA1003CI

100

1

2

2

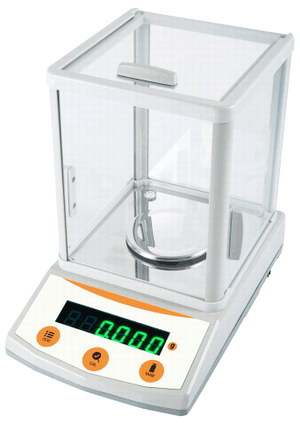

SJA1003B series Digital Precision Scale

FEATURES:
♦ High precision load cell, compact design.
♦ Aluminum alloy die cast base and mains.
♦ Electronic force compensation technology.
♦ Clear glass windshield supplied as standard.
♦ Supper bright LED display with backlight.
♦ Clear glass windshield as standard
♦ Overload protection, Bubble level adjustment.
♦ Stabilization time 1.5 seconds.
♦ Universal power adaptor supplied as standard
♦ Certificated calibration weight supplied as standard.

Specifications:

Model SJA1003B SJA2003B SJA3003B
Capacity 0-100g

0-200g

0-300g
Readability 1mg
Repeatability 2mg
Linearity 2mg
Pan size

90mm

Dimensions (L*W*H)

29mm*18.5mm*27mm

Packing Size (L*W*H) 35.5mm*26.5mm*35mm
Net Weight 3000g
Glass Weight 3800g
Power Supply 110V/220-240V AC

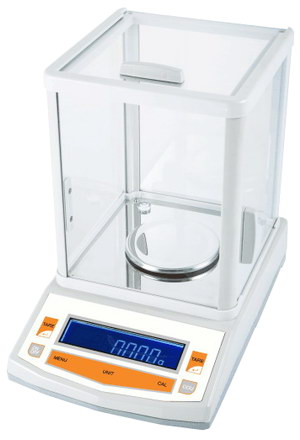

SJA1003D series Electronic Balance

FEATURES:
1.High precision load cell, compact design.
2.Aluminum Alloy die cast base and mains.
3.Stainless steel Platter.
4.LCD display.
5.Clear Glass Windshield
6.Height adjustable feet.
7.Full capacity subtraction.
8.Stabilization time 1.5 seconds.
9.Overload protection.
10.Below balance Weighing Facility.
11.Checking Weighing, piece counting function.
12.Certificated calibration weight supplied as standard.

Specifications:

Model SJA1003D SJA2003D SJA3003D
Capacity 0-100g

0-200g

0-300g
Readability 1mg
Repeatability 2mg
Linearity 2mg
Output Interface RS232C
Pan size

90mm

Dimensions (L*W*H)

29mm*18.5mm*27mm

Packing Size (L*W*H) 35.5mm*26.5mm*35mm
Net Weight 3000g
Glass Weight 3800g
Power Supply 110V/220-240V AC

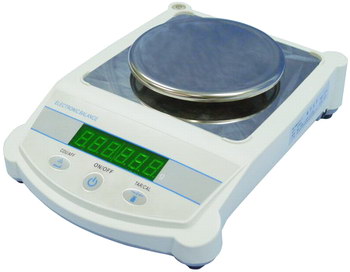

YP601N, JY1002 series Electronic Balance

Specifications:

* RS232 communication (optional)
* Double sided display (optional)
* Pan size: 128mm
* LCD display
* Weighting setting time 3s
* DC/AC
* Count function
* Gram, carat, pound and ounce to convert

Model

Weighing Capacity (g)

Readability (g)

Repeatability(g)

Linearity (g)

Gross Weight (kg)

Net Weight (kg)

Dimension (mm)

YP601N

600

0.1

0.1

0.2

1.5

1.1

200*265*90

YP1201N

1200

0.1

0.1

0.2

1.5

1.1

YP2001N

2000

0.1

0.1

0.2

1.5

1.1

YP3001N

3000

0.1

0.1

0.2

1.5

1.1

JY1002

100

0.01

0.01

0.02

1.5

1.1

JY2002

200

0.01

0.01

0.02

1.5

1.1

JY3002

300

0.01

0.01

0.02

1.5

1.1

JY5002

500

0.01

0.01

0.02

1.5

1.1

JY6002

600

0.01

0.01

0.02

1.5

1.1

JY10002

1000

0.01

0.01

0.02

1.5

1.1

JY20002

2000

0.01

0.01

0.02

1.5

1.1

YP5001N, YP6001N Electronic Balance

Specifications:

* RS232 communication (optional)
* Double sided display (optional)
* Pan size: 250*180mm
* LCD display
* Weighting setting time3s
* DC/AC
* Count function
* Gram, carat, pound and ounce to convert

Model

Weighing Capacity (g)

Readability (g)

Repeatability (g)

Linearity (g)

Gross Weight (kg)

Net Weight (kg)

YP5001N

5000

0.1

0.1

0.2

1.5

1.1

YP6001N

6000

0.1

0.1

0.2

1.5

1.1

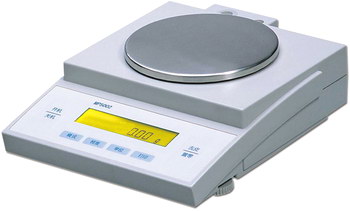

MP1002 series Electronic Balance

Specifications:

* LCD display
* Zero in range ability
* Auto zero-tracking
* Auto-calibration
* Automatic trouble diagnosis
* Built-in under hook (optional)
* Over-loading protection
* RS232 communication (optional)
* Weighing / piece counting / percentage weighing
* Pan Size: 125

Model

Weighing Capacity (g)

Readability (g)

Repeatability (g)

Linearity (g)

Gross Weight (kg)

Net Weight (kg)

Dimension (mm)

MP1002

100

0.01

0.01

0.02

2.9

1.5

190*250*75

MP2002

200

0.01

0.01

0.02

2.9

1.5

MP3002

300

0.01

0.01

0.02

2.9

1.5

MP4002

400

0.01

0.01

0.02

2.9

1.5

MP5002

500

0.01

0.01

0.02

2.9

1.5

MP2001

200

0.1

0.1

0.2

2.4

1.6

MP6001

600

0.1

0.1

0.2

2.4

1.6

MP10001

1000

0.1

0.1

0.2

2.4

1.6

MP12001

1200

0.1

0.1

0.2

2.4

1.6

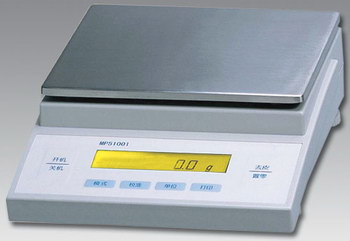

MP2000D series Electronic Balance

Specifications:

* LCD display
* Zero in range ability
* Auto zero-tracking
* Auto-calibration
* Automatic trouble diagnosis
* Built-in under hook (optional)
* Over-loading protection
* RS232 communication (optional)
* Weighing / piece counting / percentage weighing
* Pan Size: 174*143

Model

Weighing Capacity (g)

Readability (g)

Repeatability (g)

Linearity (g)

Gross Weight (kg)

Net Weight (kg)

Dimension (mm)

MP2000D

2000

0.05

0.05

0.1

2.8

1.9

190*250*75

MP21001

2100

0.1

0.1

0.2

2.8

1.9

MP31001

3100

0.1

0.1

0.2

2.8

1.9

MP51001

5100

0.1

0.1

0.2

2.8

1.9

MP61001

6100

0.1

0.1

0.2

2.8

1.9

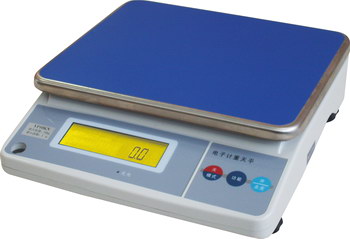

YP10K-1 series & YP10KN series Electronic Balance

Specifications:

* AC/DC
* LCD Display
* RS232 communication (optional)
* Calibration Weights (optional)
* Tally Function
* Self-Calibration
* Unit Convert

Model

YP10K-1

YP15K-1

YP20K-1

YP10KN

YP15KN

YP20KN

YP30KN

Weighing Capacity (g)

10000

15000

20000

10000

15000

20000

30000

Readability (g)

0.1

0.1

0.1

1

1

1

1

Repeatability (g)

0.1

0.1

0.1

1

1

1

1

Linearity (g)

0.2

0.2

0.2

2

2

2

2

Pan Size (mm)

238*286

238*286

238*286

238*286

238*286

238*286

238*286

Gross Weight (kg)

3.9

Net Weight (kg)

3.3

Dimension (mm)

320*315*130

Packing Measurement (mm)

360*330*160

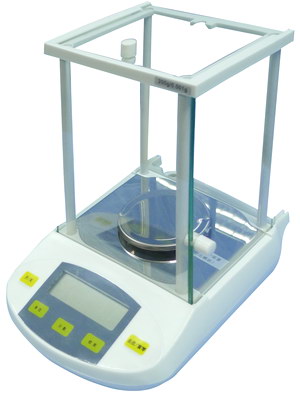

YP102N series & JY1003 series Electronic Balance

Specifications:

* DC/AC
* LCD display
* Pan size 94mm
* RS232 communication
* Calibration weight (optional)
* Count function
* Auto calibration
* Unit conversion

Model

Weighing Capacity (g)

Readability (g)

Repeatability (g)

Linearity (g)

Gross Weight (kg)

Net Weight (kg)

Dimension (mm)

YP102N

100

0.01

0.01

0.02

4.5

2.5

195*260*55

YP202N

200

0.01

0.01

0.02

4.5

2.5

YP502N

500

0.01

0.01

0.02

4.5

2.5

YP602N

600

0.01

0.01

0.02

4.5

2.5

YP1002N

1000

0.01

0.01

0.02

4.5

2.5

JY1003

100

0.001

0.001

0.002

4.5

2.5

JY2003

200

0.001

0.001

0.002

4.5

2.5

JY3003

300

0.001

0.001

0.002

4.5

2.5

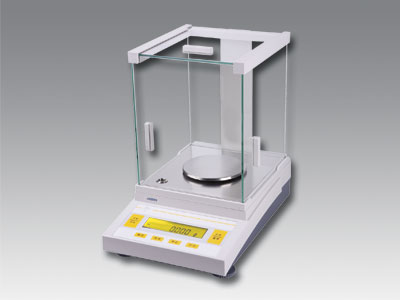

JA Electronic Precision Balance

Specifications:
1.Electric magnetic force balanced principle;
2.Dynamic temperature compensation;
3.Zero in range ability;
4.LCD display;
5.Built-in under hook;
6.RS232 communication;
7.Unit conversion (g oz ct kg lb).

Model

JA1003

JA1203

JA2003

JA3003

JA4103

JA5003

Weighing Capacity (g)

100

120

200

300

410

500

Readability (g)

0.001

0.001

0.001

0.001

0.001

0.001

Repeatability (g)

0.001

0.001

0.001

0.001

0.001

0.001

Linearity (g)

0.002

0.002

0.002

0.002

0.002

0.002

Pan Size (mm)

110

110

110

110

110

110

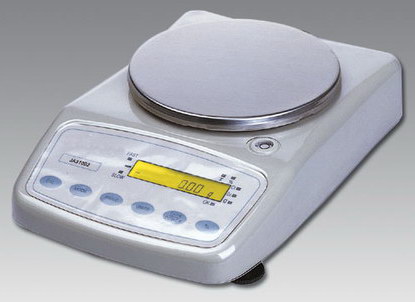

JA Electronic Precision Balance

Specifications:
1.Patented sensing technology - ceramic variable capacitance;
2.Temperature compensation;
3.Remote control via RS232 interface;
4.Over-loading / impact protection.

Model

MP1100B

JA12002

JA21002

JA31002

JA41002

JA50002

Weighing Capacity (g)

1100

1200

2100

3100

4100

5000

Readability (g)

0.01

0.01

0.01

0.01

0.01

0.01

Repeatability (g)

0.01

0.01

0.01

0.01

0.01

0.01

Linearity (g)

0.02

0.02

0.02

0.02

0.02

0.02

Pan Size (mm)

158

158

158

158

158

158

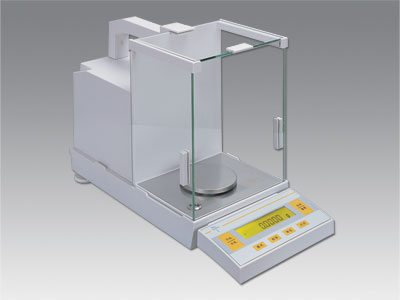

FA Electronic Analytical Balance



Specifications:
1.Electric magnetic force balanced principle
2.Auto zero-tracking
3.Dynamic temperature compensation
4.Zero in range ability
5.LCD display
6.Function of piece counting
7.Over-loading warning
8.RS232 communication
9.Unit conversion (g  oz  ct  kg  lb)

 Model

FA1004

FA1104

FA1604

FA2004

FA2104

FA2104S

Weighing Capacity (g)

100

110

160

200

210

60 / 210

Readability (mg)

0.1

0.1

0.1

0.1

0.1

0.1/1

Repeatability (mg)

0.1

0.1

0.1

0.1

0.1

0.1/1

Linearity (mg)

0.2

0.2

0.2

0.2

0.2

0.2/2

Pan Size (mm)

90

90

90

90

90

90

FB Auto Internal Calibration Electronic Analytical Balance

Specifications:

1.High-sensitivity electric magnetic force balanced principle for ultra resolution
2.Built-in dual-weight balanced calibration technology for ultra accuracy
3.Digital multi-point linear calibration, which is convenient for balance calibration
4.Internal weight calibration technology, which is convenient for periodical calibration and adjustment without dismantling the balance
5.Pillar-free transparent glass draft shields for comfortable operation with enlarge weighting space
6.Advanced design with SMT and switch power supply technology, which reduces the dimensions op the rear sensor, and leads to a compact appearance of the balance
7.Six-key integrated display panel for easy operation
8.Big handles for easy movement

 Model

FB124

FB224

FB223

FB323

FB423

Weighing Capacity (g)

120

220

220

320

420

Readability (mg)

0.1

0.1

1

1

1

Repeatability (mg)

0.1

0.1

1

1

1

Linearity (mg)

0.2

0.2

2

2

2

Pan Size (mm )

90

90

90

90

90

Gross Weight (kg)

10.1

Net Weight (kg)

8.3

Volume (m3)

0.0848

Dimension (mm)

200*440*290

Packing Measurement (mm)

590*350*430

AE Touch Color Screen Electronic Analytic Balance

Specifications:

1. Big color screen: Large screen, TFT LCD monitor, provide abundant weighing display information, convenient to read.
2. Full screen touch: in line with the laboratory touch solutions for work habits, even wear gloves more pieces, it can be operated.
3. User interface: application of Metro color scheme, using the green color, the eye wont tired long for long time work.
4. User operation: abundant operation information tips, help users to finish the work more efficient.
5. The built-in programs: the standard for easy to use the built-in applications, for all kinds of weighing task.
6. Screen protective cover: provide additional dustproof and stroke prevention; prolong the service life of balance
7. The glass door transportation protection lock: effective provide balance protection of transportation.
8. The overload protection scale: the unique structure design can effectively protect the sensor.
9. Level regulating system and level indicator: fit ergonomic level regulating system and leading level indicator, convenient user level adjustment.
10. Unit conversion: fast unit conversion makes the operation more convenient, clear and intuitive.

Model

AE124

AE224

AE223

AE323

AE523

Actual Scale Interval (g)

0.0001

0.0001

0.001

0.001

0.001

Weighing Capacity (g)

120

220

220

320

520

Repeatability (g)

0.0001

0.0001

0.001

0.001

0.001

Calibration weights (g)

100

200

200

200

500

Type

External Calibration

Dimension (mm)

365*223*338

Packing Measurement (mm)

500*310*450

Pan Size

90

Wind Shield Effective Volume (mm)

160*165*200

Net Weight (Kg)

5.5

Gross Weight (Kg)

7.5

Model

AE124C

AE224C

AE223C

AE323C

AE523C

Actual Scale Interval (g)

0.0001

0.0001

0.001

0.001

0.001

Weighing Capacity (g)

120

220

220

320

520

Repeatability (g)

0.0001

0.0001

0.001

0.001

0.001

Calibration weights (g)

100

200

200

200

500

Type

Internal Calibration

Dimension (mm)

365*223*338

Packing Measurement (mm)

500*310*450

Pan Size

90

Wind Shield Effective Volume (mm)

160*165*200

Net Weight (Kg)

5.5

Gross Weight (Kg)

8.0

Electronic Counting Balance

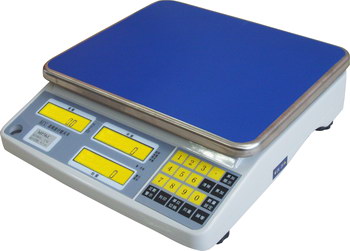

MP3KC series Electronic Counting Balance

Specifications:
* Three display windows: Quantity, Piece Weight, Weight;
* LCD backlight display;

* Built-in rechargeable battery;

* RS232 communication;

* Unit conversion

Model

MP3KC

MP6KC

MP15KC

MP30KC

Weighing Capacity (kg)

3

6

15

30

Readability (g)

0.1

0.2

0.5

1

Repeatability (g)

0.1

0.2

0.5

1

Linearity (g)

0.2

0.4

1

2

Pan size

238*286

Dimension (mm)

285*310*100

Electronic Density Balance

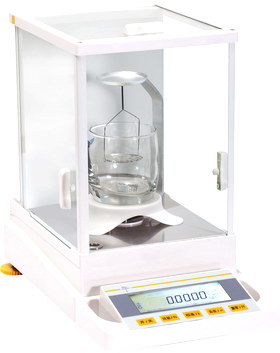

FA1104J/FA2104J Electronic Density Balance

Electronic balance with density measuring device measure density (g/cm3).

Directly Read density, less cumbersome calculation.
Measure: density of solid, liquid.

Specifications:

Model

FA1104J

FA2104J

Weighing Capacity (g)

110

210

Readability (mg)

0.1

0.1

Density accuracy (g/cm3)

0.001

0.001

Repeatability(</=mg)

+/-0.1

+/-0.1

Linearity(</=g)

+/-0.2

+/-0.2

Quality of sample in air

>/=0.25

>/=0.25

Buoyancy of sample in water

<-0.125

<-0.125

Output Interface

RS232C

RS232C

Gross Weight( kg)

7.5

7.5

Net Weight (kg)

5.5

5.5

Dimension (mm )

365*223*338

Packing Measurement (mm)

500*310*450

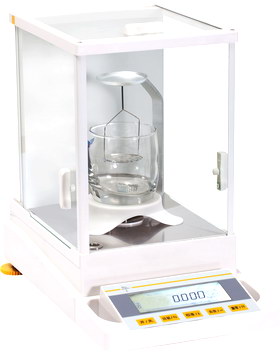

JA3003J/JA5003J Electronic Density Balance

Electronic balance with density measuring device measure density (g/cm3).

Directly Read density, less cumbersome calculation.
Measure: density of solid, liquid.

Specifications:

Model

JA3003J

JA5003J

Weighing Capacity (g)

300

500

Readability (mg)

1

1

Density accuracy (g/cm3)

0.001

0.001

Repeatability(mg)

1

1

Linearity(g)

2

2

Quality of sample in air

0.25

0.25

Buoyancy of sample in water

<-0.125

<-0.125

Output Interface

RS232C

RS232C

Gross Weight( kg)

7.5

7.5

Net Weight (kg)

5.5

5.5

Dimension (mm)

365*223*338

Packing Measurement (mm)

500*310*450

MP3002J/MP4002J/MP5002J Electronic Density Balance

Electronic balance with density measuring device measure density (g/cm3).

Directly Read density, less cumbersome calculation.

Measure density of solid and liquid.

Specifications:

Model

MP3002J

MP4002J

MP5002J

Weighing Capacity (g)

300

400

500

Readability (g)

0.01

0.01

0.01

Density accuracy (g/cm3)

0.01

0.01

0.01

Repeatability(g)

0.01

0.01

0.01

Linearity(g)

0.02

0.02

0.02

Quality of sample in air

0.25

0.25

0.25

Buoyancy of sample in water

<-0.125

<-0.125

<-0.125

Output Interface

RS232C

RS232C

RS232C

Gross Weight( kg)

3.7

3.7

3.7

Net Weight (kg)

2.0

2.0

2.0

Dimension (mm)

190*250*250

Packing Measurement (mm)

560*300*210

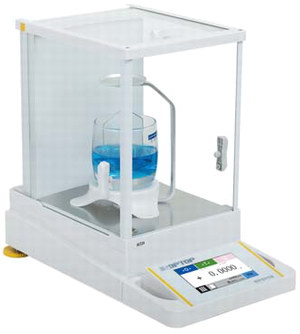

AE Touch Color Screen Electronic Density Balance

Specifications:

1. Electronic balance with density measuring device measure density (g/cm3)
2. With the characteristics of AE Electronic Analytical Balance
3. Cooperate with density measurement devices, can be easily measured the density of solid and liquid.
4. Process measurement can show the buoyancy in air quality, in the medium and density values.
5. Built-in 8 different density of liquid and solid, you can customize the density of solid and liquid.

Model

AE124J

AE224J

AE323J

AE523J

Actual Scale Interval (g)

0.0001

0.0001

0.001

0.001

Weighing Capacity (g)

120

220

320

520

Repeatability (g)

0.0001

0.0001

0.001

0.001

Calibration weights (g)

100

200

200

500

Type

Density

Dimension (mm)

365*223*338

Packing Measurement (mm)

500*310*450

Pan Size

90

Wind Shield Effective Volume (mm)

160*165*200

Net Weight (Kg)

6.0

Gross Weight (Kg)

7.5

( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@163.com )
