Lux Meter, Light Meter, UV Light Meter, Screen Brightness Meter, Chroma Meter





APPLICATION: widely used in electro-optical sources, research teaching, metallurgy building, industry inspection as well as agriculture researching and illumination control.

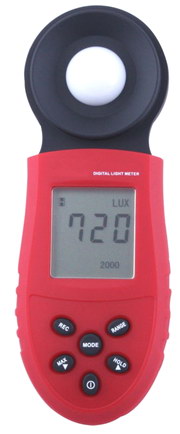

SR2720  DIGITAL Lux Meter

Specifications:

Model

SR2720

LCD Display

1999

Measuring Range

2000/20000/200000 Lux

200/2000/20000Fc

Resolution

1 Lux/0.1Fc

Accuracy

±4% rdg ± 10dgts (<10,000 lux)
±5% rdg ± 10dgts (>
10,000 lux)

Total accuracy: for C.I.E standard illuminate A (2856K)

Repeatability

±2%

Sampling Rate

2 times/second

Range Selection

Automatic measurement / manual measurement

Data Hold

Display "HOLD"

MAX/MIN Record

Yes

LUX/FC Selection

Yes

Data Logging

Yes (50 data)

Low Battery Display

Yes

Working Temperature

0°C to 40°C (32°F to 104°F) <70% R.H.

Deposited Temperature

-10°C to 55°C (14°F to 122°F) <70% R.H.

Power

Two AAA batteries

LCD size

 35*32mm

Dimensions

160mm(L)*60mm(W)*32mm(H)

Weight

Approx.130g





SR2730 Digital Light Meter

Specifications:

Model

SR2730

LCD Display

1999

Measuring Range

20/200/2000/20000 Lux
2/20/200/2000Fc

Resolution

0.1 Lux/0.01Fc

Accuracy

±3% rdg ± 10dgts (<10,000 lux)
±4% rdg ± 10dgts (>
10,000 lux)

Total accuracy: for C.I.E standard illuminate A (2856K)

Repeatability

±2%

Sampling Rate

2 times/second

Range Selection

Automatic measurement / manual measurement

Data Hold

Display "HOLD"

MAX/MIN Record

Yes

LUX/FC Selection

Yes

Data Logging

Yes (50 data)

Low Battery Display

Yes

Working Temperature

0°C to 40°C (32°F to 104°F) <70% R.H.

Deposited Temperature

-10°C to 55°C (14°F to 122°F) <70% R.H.

Power

Two AAA batteries

LCD size

 35*32mm

Dimensions

160mm(L)*60mm(W)*32mm(H)

Weight

Approx.130g



SR2721  DIGITAL Lux Meter

Specifications:

Model

SR2721

LCD Display

1999

Measuring Range

2000/20000/200000 Lux

200/2000/20000Fc

Resolution

1 Lux/0.1Fc

Accuracy

±4% rdg ± 10dgts (<10,000 lux)
±5% rdg ± 10dgts (>10,000 lux)
Total accuracy: for C.I.E standard illuminate A (2856K)

Repeatability

±2%

Sampling Rate

2 times/second

Range Selection

Automatic measurement / manual measurement

Data Hold

Display "HOLD"

MAX/MIN Record

Yes

LUX/FC Selection

Yes

Data Logging

Yes (50 data)

Low Battery Display

Yes

Working Temperature

0°C to 40°C (32°F to 104°F) <70% R.H.

Deposited Temperature

-10°C to 55°C (14°F to 122°F) <70% R.H.

Power

Two AAA batteries

LCD size

35*32mm

Dimensions

108mm(L)*60mm(W)*32mm(H)
sensor: 92*56*32mm

Weight

Approx.150g





SR2731  DIGITAL Lux Meter

Specifications:

Model

SR2731

LCD Display

1999

Measuring Range

20/200/2000/20000 Lux
2/20/200/2000Fc

Resolution

0.1 Lux/0.01Fc

Accuracy

±3% rdg ± 10dgts (<10,000 lux)
±4% rdg ± 10dgts (>10,000 lux)
Total accuracy: for C.I.E standard illuminate A (2856K)

Repeatability

±2%

Sampling Rate

2 times/second

Range Selection

Automatic measurement / manual measurement

Data Hold

Display "HOLD"

MAX/MIN Record

Yes

LUX/FC Selection

Yes

Data Logging

Yes (50 data)

Low Battery Display

Yes

Working Temperature

0°C to 40°C (32°F to 104°F) <70% R.H.

Deposited Temperature

-10°C to 55°C (14°F to 122°F) <70% R.H.

Power

Two AAA batteries

LCD size

35*32mm

Dimensions

108mm(L)*60mm(W)*32mm(H)
sensor: 92*56*32mm

Weight

Approx.150g





SR1120 Light Meter

Features:
3-1/2 digit LCD display, Max reading 1999.
Hand or Auto measuring range: 0~100,000Lux
LUX/FC Unit selection
MAX and MIN Reading Hold Function
Storage 50 datas and delay logging function (1 to 60 seconds selection)

Specifications:

Model

SR1120

LCD Display

1999

Measuring Range

2000/20000/100000 Lux

200/2000/10000 Fc

Resolution

1 Lux

Accuracy

±4% rdg ± 10dgts (<10,000 lux)
±5% rdg ± 10dgts (>10,000 lux)
Total accuracy: for C.I.E standard illuminate A (2856K)

Repeatability

±2%

Sampling Rate

2 times/second

Range Selection

Automatic measurement / manual measurement

Data Hold

Display "H"

MAX/MIN Record

Yes

LUX/FC Selection

Yes

Data Logging

Yes (50 data)

Low Battery Display

Yes

Working Temperature

0°C to 40°C (32°F to 104°F) <70% R.H.

Deposited Temperature

-10°C to 55°C (14°F to 122°F) <70% R.H.

Power

Two AAA batteries

LCD size

 35*32mm

Dimensions

185mm(L)*55mm(W)*30mm(H)

Weight

Approx.130g





SR1121 Light Meter

Features:
3-1/2 digit LCD display, Max reading 1999.
Hand or Auto measuring range: 0~100,000Lux
LUX/FC Unit selection
MAX and MIN Reading Hold Function
Storage 50 datas and delay logging function (1 to 60 seconds selection)

Specifications:

Model

SR1121

LCD Display

1999

Measuring Range

200/2000/20000/100000 Lux
20/200/2000/10000 Fc

Resolution

200Lux: 0.1Lux; another range: 1Lux

Accuracy

±3% rdg ± 10dgts (<10,000 lux)
±4% rdg ± 10dgts (>10,000 lux)
Total accuracy: for C.I.E standard illuminate A (2856K)

Repeatability

±2%

Sampling Rate

2 times/second

Range Selection

Automatic measurement / manual measurement

Data Hold

Display "H"

MAX/MIN Record

Yes

LUX/FC Selection

Yes

Data Logging

Yes (50 data)

Low Battery Display

Yes

Working Temperature

0°C to 40°C (32°F to 104°F) <70% R.H.

Deposited Temperature

-10°C to 55°C (14°F to 122°F) <70% R.H.

Power

Two AAA batteries

LCD size

 35*32mm

Dimensions

185mm(L)*55mm(W)*30mm(H)

Weight

Approx.130g





SR1122 Light Meter

Features:
3-1/2 digit LCD display, Max reading 1999.
Hand or Auto measuring range: 0~200,000Lux
LUX/FC Unit selection
MAX and MIN Reading Hold Function
Storage 50 datas and delay logging function (1 to 60 seconds selection)

Specifications:

Model

SR1122

LCD Display

1999

Measuring Range

2000/20000/200000 Lux
200/2000/20000 Fc

Resolution

1Lux

Accuracy

±4% rdg ± 10dgts (<10,000 lux)
±5% rdg ± 10dgts (>10,000 lux)
Total accuracy: for C.I.E standard illuminate A (2856K)

Repeatability

±2%

Sampling Rate

2 times/second

Range Selection

Automatic measurement / manual measurement

Data Hold

Display "H"

MAX/MIN Record

Yes

LUX/FC Selection

Yes

Data Logging

Yes (50 data)

Low Battery Display

Yes

Working Temperature

0°C to 40°C (32°F to 104°F) <70% R.H.

Deposited Temperature

-10°C to 55°C (14°F to 122°F) <70% R.H.

Power

Two AAA batteries

LCD size

 35*32mm

Dimensions

185mm(L)*55mm(W)*30mm(H)

Weight

Approx.130g



SR1123 Light Meter

Features:
3-1/2 digit LCD display, Max reading 1999.
Hand or Auto measuring range: 0~200,000Lux
LUX/FC Unit selection
MAX and MIN Reading Hold Function
Storage 50 datas and delay logging function (1 to 60 seconds selection)

Specifications:

Model

SR1123

LCD Display

1999

Measuring Range

200/2000/20000/200000 Lux
20/200/2000/20000 Fc

Resolution

200Lux: 0.1Lux; another range: 1Lux

Accuracy

±3% rdg ± 10dgts (<10,000 lux)
±4% rdg ± 10dgts (>10,000 lux)
Total accuracy: for C.I.E standard illuminate A (2856K)

Repeatability

±2%

Sampling Rate

2 times/second

Range Selection

Automatic measurement / manual measurement

Data Hold

Display "H"

MAX/MIN Record

Yes

LUX/FC Selection

Yes

Data Logging

Yes (50 data)

Low Battery Display

Yes

Working Temperature

0°C to 40°C (32°F to 104°F) <70% R.H.

Deposited Temperature

-10°C to 55°C (14°F to 122°F) <70% R.H.

Power

Two AAA batteries

LCD size

 35*32mm

Dimensions

185mm(L)*55mm(W)*30mm(H)

Weight

Approx.130g



SR1130 Lux Meter

Features:
3-1/2 digit LCD display, Max reading 1999.
Hand or Auto measuring range: 0~100,000Lux
LUX/FC Unit selection
MAX and MIN Reading Hold Function
Storage 50 datas and delay logging function (1 to 60 seconds selection)

Specifications:

Model

SR1130

LCD Display

1999

Measuring Range

2000/20000/100000 Lux
200/2000/10000 Fc

Resolution

1Lux

Accuracy

±4% rdg ± 10dgts (<10,000 lux)
±5% rdg ± 10dgts (>10,000 lux)
Total accuracy: for C.I.E standard illuminate A (2856K)

Repeatability

±2%

Sampling Rate

2 times/second

Range Selection

Automatic measurement / manual measurement

Data Hold

Display "H"

MAX/MIN Record

Yes

LUX/FC Selection

Yes

Data Logging

Yes (50 data)

Low Battery Display

Yes

Working Temperature

0°C to 40°C (32°F to 104°F) <70% R.H.

Deposited Temperature

-10°C to 55°C (14°F to 122°F) <70% R.H.

Power

Two AAA batteries

LCD size

35*32mm

Dimensions

128mm(L)*55mm(W)*30mm(H)
 SENNOR: 87mm(L)*55mm(W)*20mm(H)

Weight

Approx.130g



SR1131 Lux Meter

Features:
3-1/2 digit LCD display, Max reading 1999.
Hand or Auto measuring range: 0~100,000Lux
LUX/FC Unit selection
MAX and MIN Reading Hold Function
Storage 50 datas and delay logging function (1 to 60 seconds selection)

Specifications:

Model

SR1131

LCD Display

1999

Measuring Range

200/2000/20000/100000 Lux
20/200/2000/10000 Fc

Resolution

200Lux: 0.1Lux; another range: 1Lux

Accuracy

±3% rdg ± 10dgts (<10,000 lux)
±4% rdg ± 10dgts (>10,000 lux)
Total accuracy: for C.I.E standard illuminate A (2856K)

Repeatability

±2%

Sampling Rate

2 times/second

Range Selection

Automatic measurement / manual measurement

Data Hold

Display "H"

MAX/MIN Record

Yes

LUX/FC Selection

Yes

Data Logging

Yes (50 data)

Low Battery Display

Yes

Working Temperature

0°C to 40°C (32°F to 104°F) <70% R.H.

Deposited Temperature

-10°C to 55°C (14°F to 122°F) <70% R.H.

Power

Two AAA batteries

LCD size

35*32mm

Dimensions

128mm(L)*55mm(W)*30mm(H)
 SENNOR: 87mm(L)*55mm(W)*20mm(H)

Weight

Approx.130g



SR1132 Lux Meter

Features:
3-1/2 digit LCD display, Max reading 1999.
Hand or Auto measuring range: 0~200,000Lux
LUX/FC Unit selection
MAX and MIN Reading Hold Function
Storage 50 datas and delay logging function (1 to 60 seconds selection)

Specifications:

Model

SR1132

LCD Display

1999

Measuring Range

2000/20000/200000 Lux
200/2000/20000 Fc

Resolution

1Lux

Accuracy

±4% rdg ± 10dgts (<10,000 lux)
±5% rdg ± 10dgts (>10,000 lux)
Total accuracy: for C.I.E standard illuminate A (2856K)

Repeatability

±2%

Sampling Rate

2 times/second

Range Selection

Automatic measurement / manual measurement

Data Hold

Display "H"

MAX/MIN Record

Yes

LUX/FC Selection

Yes

Data Logging

Yes (50 data)

Low Battery Display

Yes

Working Temperature

0°C to 40°C (32°F to 104°F) <70% R.H.

Deposited Temperature

-10°C to 55°C (14°F to 122°F) <70% R.H.

Power

Two AAA batteries

LCD size

35*32mm

Dimensions

128mm(L)*55mm(W)*30mm(H)
 SENNOR: 87mm(L)*55mm(W)*20mm(H)

Weight

Approx.130g





SR1133 Lux Meter

Features:
3-1/2 digit LCD display, Max reading 1999.
Hand or Auto measuring range: 0~200,000Lux
LUX/FC Unit selection
MAX and MIN Reading Hold Function
Storage 50 datas and delay logging function (1 to 60 seconds selection)

Specifications:

Model

SR1133

LCD Display

1999

Measuring Range

200/2000/20000/200000 Lux
20/200/2000/20000 Fc

Resolution

200Lux: 0.1Lux; another range: 1Lux

Accuracy

±3% rdg ± 10dgts (<10,000 lux)
±4% rdg ± 10dgts (>10,000 lux)
Total accuracy: for C.I.E standard illuminate A (2856K)

Repeatability

±2%

Sampling Rate

2 times/second

Range Selection

Automatic measurement / manual measurement

Data Hold

Display "H"

MAX/MIN Record

Yes

LUX/FC Selection

Yes

Data Logging

Yes (50 data)

Low Battery Display

Yes

Working Temperature

0°C to 40°C (32°F to 104°F) <70% R.H.

Deposited Temperature

-10°C to 55°C (14°F to 122°F) <70% R.H.

Power

Two AAA batteries

LCD size

35*32mm

Dimensions

128mm(L)*55mm(W)*30mm(H)
SENNOR: 87mm(L)*55mm(W)*20mm(H)

Weight

Approx.130g





SR1010  DIGITAL Lux Meter

Specifications:

1.Measuring range:0Lux~200,000Lux/0Fc~185,806Fc
2.Accuracy:±3% rdg±0.5%f.s.(<10,000Lux);±4% rdg±10dgts.(>10,000Lux)
3.Digital Updates:2 times / s
4.Photometric sensor:Silicon diode

5.Operating temperature and humidity:0°C~ 40°C, 10%RH ~ 90%RH
6.Storage temperature and humidity:-20°C~ 50°C, 10%RH ~ 90%RH
7.Power:9Vbattery

8.Unit size:52.5*35.5*166mm

9.Net weight: 110.4g

10LUX (Lux) / FC (footcandles) Unit
selection function:
1.After 5 minute auto power off
2.Backlight function
3.Maximum and minimum measurements
4.Automatic measurement function(AUTO)
5.Data rise and fall time is short
6.Low battery indication



SR1020 Digital Lux Meter

Features:

1. widely used in electro-optical sources, research teaching, metallurgy building, industry inspection as well as agriculture researching and illumination control.

2. Powerful measurement functions: It can measure not only current values, maximums,
and minimums of illuminance and temperature,but also illuminance difference, integrating
illuminance, and average integrating illuminance.
3. Support for automatic storage of illuminance data (up to 1900 groups) and manual storage of illuminance data (up to 60 groups)
4. Wide measuring range (0 to 200,000 lux) and support of automatic range shift
5. Delivered with computer-based analysis software, allowing users to operate the meter with ease
6. Quick response, high portability, and operable by a single hand
7. The sensor can be rotated
8. Backlight

Specifications:

Measurable objects

Illuminance and temperature, illuminance difference, maximumand minimum illuminance and temperature, integratingilluminance and integrating time, and average integrating illuminance.

Photoelectric element

Silicon diode

Thermal  probe

NTC thermistor

Illuminance

measuring

range

Total measuring range:0200, 000 Lux, Lux, into four ranges

×1   0~199. 9 Lux

×10  200~1999. 9Lux

×100  2000~19999. 9Lux

×1000  20000~200000Lux

Temperature measuring range

0~40°C

Illuminance

±3%rdg (below 10000 Lux);

accuracy

±4%rdg (above 10000 Lux)

Temperature accuracy

±1.0 °C

Units of ill-uminance and temp-erature

Four combinations of units are available.

Lux/°C

Lux/°F

FC/°C

FC/°F

Illumination data storage

Automatic:Up to 1900 groups of data can be stored. LuxLAB is used to set the storage cycle and whether to start or stop storage.Manual:Up to 60 groups of data can be stored. Whether to store is determined manually.

LCD display upd-ate frequency

Twice per second

Operating temper-ature/humidity

0~40°C, 10~90%RH

Storage temper-ature/humidity

-2050°C, 1090%RH

Power supply

Two AAA batteries

Battery life

10 hours (continuous operation with a USB connection)

Auto shutdown

You can set an auto shutdown timer through LuxLAB.











SR1601 Lux Meter with Temp.& Humidity

Specifications:



1.Light measure range: 0.1 to 200,000 LUX (FC switchable)

2.Temperature range:-10~60C

3.Humidity range:20%~90%RH

4.LCD Extra Large Display with Backlight

5.Data Hold Function

6.Peak Hold Function

7.Min/Max/Avg Function

8.Detachable Sensor

9.Low Power Consumption







SR1600 Lux Meter (USB,Software)

Specifications:

1.Measure Range: 0.1 to 200,000 LUX (FC switchable)
2.LCD Extra Large Display with Backlight

3.Data Hold Function
4. Peak Hold Function
5. Min/Max/Avg Function
6.Detachable Sensor
7. Low Power Consumption
8. Hi/Low Alarm setting
9.Barograph
10. Data logging with USB                                                                                  11. Sampling Time: 0.5 Second
12.Repeatability: ±2%
13.Temperature Characteristic: ±0.1%°C
14. Powered via 9V Battery







SR8050

SR8051 (Sensor: 270° adjustable)

SR8050/SR8051 Digital luxmeter

The SR8050 is one of our Environmental Instruments Series, one measuring instrument designed for measuring the intensity of your lighting systems and measure illuminances in areas like workplace, field of cinematography and scenic design, general field of lighting, etc.



SR8051: light sensor can be rotated in 270 angle to make measure more easy and fast.



SR8050/SR8051 featured advantages are double parameter measurement - Lux (lm/m2) & foot candle (lm/ft2), over range indicator, low battery indicator, big 6-digit LCD screen, measuring range of 0~90000 Lux & 0~8300.0 ftc, accuracy of ±(3% +30 digits), 1sec sample rate, auto power-off with disable feature, data hold, Maximum and Minimum reading functions, and backlight.



PECIFICATIONS:

Double Parameter Measurement: Lux(lm/m^2); foot candle (lm/ft^2)

Range: 0 - 30000 Lux; 0 - 2788.0 ftc

Resolution: 1 Lux(0 - 30000 Lux); 0.1 ftc(0 - 2788.0 ftc)

Accuracy: ±(4% +50 digits) to reference

Sample rate; 1 time/sec

Auto power off: about 20 minutes idle

Operating environment: 0~+50(32~+122°F), 0~80%RH

Storage environment: -20~+60(-4~+140°F), 0~80%RH

Special function: Auto power off with disable feature; Data hold; MAX MIN; Back light

Power Supply: DC1.5V (AAA) x 3pcs(included)

Dimension:121(L) x 60(W) x 30(H)mm

Weight: about 180g



Accessories included:

Free 1.5V( AAA battery) x 3

Free Sturdy Carrying Case with hardened & contoured foam inside

Free Wrist Strap

User's Manual

Cover





SR6612 Lux Meter  (same as MASTECH MS6612)

Specifications:

SPECIFICATIONS

RANGE

Measurement range

0~200000Lux/ 0~20000FC

Accuracy

+3%

Resolution

   0.01Lux/0.01FC

Display

   2000 counts

Analog Bar Indication

    √

Auto Range

    √

Manual Range



Auto Power Off



MAX/MIN Function

     √

Relative Measurement

     √

Peak Measurement

     √

FC/Lux Unit Selection

     √

Data Hold

     √

Display Backlight

     √

Low Battery indication

     √

GENERAL

Power Supply

 l x 9V 6F22 Battery

Product Size

170mm x89mm x43mm(6.7" x3.5" x1.7")

Product Weight

177g(0.39b)

Category

CE RoHS



SR55M5 Mini Lux Meter

Features:
1. Auto revise parameters for nonstandard illumination
2. Silicon photo-diode with spectral response filter
3. User selectable Lux/Fc
4. MAX/MIN record
5. Low battery indication
6. Auto power off

Specification:

Resolution

0.1

Reading Display Update

2times/second

Operation conditions:

-20 °C ~ 60 °C, 10RH ~ 90RH

Storage conditions:

-20 °C ~ 60 °C, 10RH ~ 75RH

Measurement Range

0 Lux ~ 100K Lux, 0Fc ~ 10KFc

Accuracy

±3% rdg±0.5%f.s.(<10,000Lux);

±4% rdg±10dgts.(>10,000Lux)

Discrete Cosine Respond

f2’ ≤ 2%

Spectrum Accuracy

Vλ function f1’≤ 6%

Spectrum Response

CIE (Coherent Infrared Energy)

Size (L*W*H)

172* 55*38mm

Weight

162g

Accessories:

User's Manual, Tripod(optional), Battery, Carrying case, Gift box





SR55M6 MINI Light Meter

Features:

1. Auto revise parameters for illumination
2. Automatic measurement
3. Silicon photo-diode with spectral response filter
4. User selectable Lux/Fc
5. MAX/MIN measuring

Specification:

Display

 4 digits LCD display

Measuring range

 0 Lux ~ 200K Lux, 0Fc ~ 20KFc

Spectral response

 CIE photopicCIE human eye response curve

Over range indication

 LCD displays "-OL-" or "-LO-"

Spectral accuracy

 CIE Vλ function (f1’≤6%, f2’≤2%)

Accuracy

 ±3% rdg±0.5%f.s.(<10,000Lux);±4% rdg±10dgts.(>10,000Lux)

Sampling rate

 2 times per second

Photo detector

 Silicon photo-diode with spectral response filter

Battery life

 at least 60 hours

Operating conditions

 -20°C ~ 60°C;10%RH ~ 90%RH

Storage conditions

 -20°C ~ 60°C;10%RH ~ 75%RH

Dimension(L*W*H)

 172 * 55 * 38mm

Weight

 88g

Power supply

 one 9V battery

Accessories

 instruction manual, battery, photo detector, tripodoptional), carrying box, gift box



SR5050 Digital lux meter                    HOT SALES !

Feature:

Double Parameter Measurement: Lux(lm/m^2); Foot candle (lm/ft^2)
Range: 0~30000 Lux; 0~2788fc
Resolution: 0.1 Lux(0^9999.9 Lux); 1Lux (>10000Lux) 0.1 ftc
Accuracy: +/- (4% +50 digits) to reference
Sample rate: 0.5 time/sec
Auto power off: About 10 minutes idle
Battery life: Continuous work 360 Hours (without backlit )
Special function: Auto power off with disable feature; Data hold; MAX MIN; Backlit.
Operating temperature: -10~50°C, 14~122
ºF
Dimension: 145 x 52 x 25mm
Accessories included:
Free 1.5V( LR03 battery) x 3
Color Box
User's Manua



LX1010BN Digital Lux Meter
-Display: 3 1/2 digits LCD display, maximum reading value display 1999
-Accuracy: ≤10,000Lux: ±4%rdg±0.5f.s; ≥10,000Lux: ±5%rdg+10digits, calibrated to standard incandescent lamp at color temperature 2856K
-Ranges: 1~100,000Lux (3 Ranges)
              20,000Lux range: reading*10
              100,000Lux range: reading*100
-Resolution: 1Lux
-Repeatability:±2%
-Temperature Characteristic: ±0.1%/°C
-Sampling time: 0.5 second
-Reading locked function
-Photo detector: one silicon photo diode with filter.
-Dimension: 106*57*26mm(photo detector), 130*72*30mm(meter body)




LX1010BS Digital Lux Meter



Display:  3 1/2 digits LCD display, maximum reading & # 118alue display 1999

Ranges:         1-100,000Lux. (3 Ranges)

                     20,000Lux range: reading×10

                     100,000Lux range: reading×100

Resolution:            1Lux
Accuracy:            ≤10,000Lux: ±4%rdg±0.5f.s

                           ≥10,000Lux: ±5+10digits
Repeatability:         ±2%
Temperature Characteristic: ±0.1%/ºC
Test rate:             0.2times/sec.
Weight:                   190g

Photo detector: one silicon photo
         diode with fliter
Dimensions: 130Lx72Wx30H(mm)
Over-input: Indication of  "1"

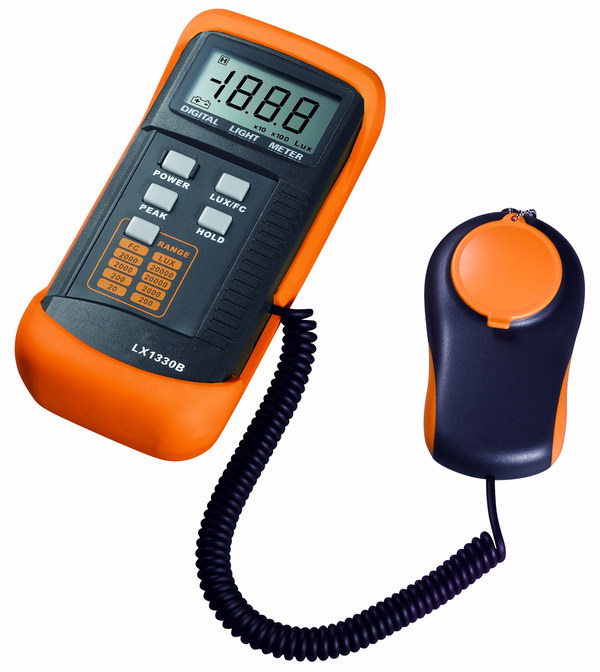

LX1330B Digital Lux Meter    Professional    HOT SALES !

FEATURES:

l  Light-measuring levers ranging from 0.1Lux to 200,000Lux, 0.01FC to 20,000FC repeatedly.

l  High accuracy and rapid response.

l  Data-Hold function for holding measuring values.

l  Unit and sign display for easy reading.

l  Automatic zeroing.

l  Meter corrected for Luminous Efficiency function.

l  Correction factor need not be manually calculated for nonstandard light sources.

l  Short rise and fall times.

SPECIFICATIONS:

Display: 3 1/2 digits 15mm LCD
Measuring Range:

0 - 200 LUX, 2,000 LUX, 20,000 LUX, 200,000 LUX /0.01FC~20,000FC
Over-input: indication of "1"

Resolution: 0.1Lux
Accuracy: ±3% ±10digits
±5% ±10digits (as over 20,000Lux/1,000FC)
Temperature Characteristic: ±0.1%ºC
Sampling Time: 0.4second
Repeatability: ±2%
Features: Data hold, able to display in LUX or FC

Photo detector: one silicon photo diode with fliter
Dimensions: 160Lx79Wx43H(mm)
Date hold, peak hold



LX1332B Digital Lux Meter

-Display: 3 1/2 digits LCD display, maximum reading value display 1999

-Range gear: 200Lux, 2,000Lux, 20,000Lux, 200,000Lux

                   20FC, 200FC, 2,000FC, 20,000FC

                   20,000Lux range: reading*10

                   200,00Lux range: reading*100

                   20,000FC range: reading*10

-Resolution: 0.1Lux

-Accuracy: ±4%rdg±0.5%f.s; >20,000Lux/2,000FC: ±5%rdg+10digits, calibrated to standard incandescent lamp at color temperature 2856K.

-Repeatability:±2%

-Temperature Characteristic: ±0.1%/°C

-Sampling time: 0.5 second

-Photo detector: one silicon photo diode with filter.

-Dimension: 180L*65W*35H(mm)

-Reading locked function/Data hold function.

-Measuring probe can 270° whirl





LX1020BS  DIGITAL LUX METER

3 3/4 digits 18mm LCD
Range: 0.1~40,000Lux
Accuracy: ≤10,000Lux, ±(4%rdg+10digit)
      >10,000Lux, ±(5%rdg+10digit)
Resolution: 0.1Lux
Repeatability: ± 2%
Temperature Characteristic: ± 0.1%/ºC
Sampling Time: 0.5 second
Photo detector: one silicon photo diode with filter
Dimensions: 130Lx72Wx30H(mm)
Over-input: Indication of "OL".
Peak hold.



LX7101B Intelligent Digital Lux Meter    Economic,  HOT SALES !

Features:

  • Measuring range: 0.1Lux - 100*500Lux

  • Resolution: up to 0.1Lux

  • High accuracy and quick response

  • Automatic switching of measurement range

  • Automatic compensation for cosine angle of incident light

  • Hold function

  • Measures relative value

  • Auto reset when no light is detected

  • Auto shut-off after 10 minutes of non-use

  • Ultra-large LCD screen

  • Specifications:

  • Display: 3 1/2 digit LCD, 19mm digits

  • Sampling rate: 2.5 times/sec.

  • Min resolution: 0.1Lux

  • Photosensitive component: Si-light cell attached with light filter

  • Working temperature: 0-40ºC, 0-80%Rh

  • Storage temperature: -10-50ºC, 0-85%Rh

  • Power: 9VDC (150hrs of use)

  • Dimensions: Unit; 5.4 x 2.96 x 1.12" & Detector; 4.24 x 2.16 x 1.12"

  • Packing: 40PCS/CTN, CTN SIZE: 32.5*34.5*58CM, G.W: 14KGS

  • Its range

    Resolution

    Accuracy

    0.1~200.0Lux

    0.1Lux

    ±3rdg+3Lux

    200~2000Lux

    1Lux

    ±3rdg+2Lux

    2000~20000Lux( Readings by 10)

    10Lux

    ±3rdg+8Lux

    20000~50000Lux( Readings by 10)

    100Lux

    ±4rdg+10Lux

    above 50000Lux( Readings by 10)

    Reading is for reference only


    LX9621 Lux Meter
    Measuring range:0-50000LUX
    3 RANGE: x1,x10,x100
    Resolution: 1
    Accuracy: ±5%n
    HOLD
    Band pass filter
    Overload indication: 1
    Power supply: 4x1.5V AAA (UM-4) battery
    Battery indicator: low battery indicator
    Dimensions: 97x53x17mm
    Weight (not including probe): 174g

    LX9626 Lux Meter
    Measuring range:0-50000LUX 0-5000FC
    3 RANGE: x1,x10,x100
    resolution: 1
    Accuracy: ±5%n
    HOLD
    Band pass filter
    Overload indication: 1
    Power supply: 4x1.5V AAA (UM-4) battery
    Battery indicator: low battery indicator
    Dimensions: 97x53x17mm
    Weight (not including probe): 183g


    SR1010B



    Digital Lux Meter    Economic



    Display: 3 1/2 digits 18mm LCD
    Measuring Range: 1Lux~50000Lux
    Over-input: indication of "1"
    Accuracy: ±4% ±10digits(±5% ±10digits as over 10,000Lux)
    Temperature Characteristic: ±0.1%ºC
    Sampling Time: 0.5second
    Repeatability: ±2%

    Dimensions: 118×70×29mm



    SR1010BS   Economic



    Digital Lux Meter



    Display:  3 1/2 digits LCD display, maximum reading & # 118alue display 1999

    Ranges:         1-100,000Lux. (3 Ranges)

                         20,000Lux range: reading×10

                         100,000Lux range: reading×100

    Resolution:            1Lux
    Accuracy:            ≤10,000Lux: ±4%rdg±0.5f.s

                               ≥10,000Lux: ±5+10digits
    Repeatability:         ±2%
    Temperature Characteristic: ±0.1%/ºC
    Test rate:             0.2times/sec.
    Weight:                   190g

    Dimensions: 118×70×29mm



    SR1330B Digital Lux Meter    Professional

    Specifications:
    Measuring Range:
    0 - 200 LUX, 2,000 LUX, 20,000 LUX, 200,000 LUX
    /0.01FC~20,000FC
    Accuracy:
    0 ~ 200 LUX: ±3%
    201 ~ 2,000 LUX: ±3%
    2,001 ~ 20,000 LUX: ±4%
    20,001~ 200,000 LUX: ±4%
    Sampling time: 0.2 times / second
    Case color: Dark gray
    Dimension: 147 x 71 x 41mm (meter body)
    Photo Detector Dimensions: 4 X 2.5 X 1 (inch)
    Photo detector type: Silicon Photo Diode with Filter
    Unit Lux or Footcandle selectable
    Repeatability: +/- 2%
    Temperature Characteristic: +/- 0.1%C
    Operating temperature: 32-104 degrees F (0-40 degrees C)
    3 1/2 Digit LCD
    Auto Zero
    Data Hold
    Over-range indication
    Low power consumption
    Power: 9V (6F22) x 1
    Battery life: 200 hours (estimate)
    Unit Weight: 250g



    SR881A New type Separable Lux meter
    Basic function

    Measure Range: 1lux~50, 000lux
    Accuracy: ±(4%+10 digits) ±(5%+10 digits) as over10, 000lux
    Repeatability: ±2%
    Temperature Characteristic: ±0.1%ºC
    Sampling Time: 0.4second

    Express function

    Display: 3 1/2 digits 18mm LCD
    Over-input: Indication of "1"
    General Features
    Standard Accessory: User' Manual×1pcs, Giftbox
    Battery Type: 9V DC R6p (SUM-3)
    Dimension: 118×70×29mm
    Weight: 190g
    MOQ: 100PCS
    Ctn Size: 530x310x400mm
    Q' TY / Ctn: 50PCS
    GW/NW: 15/14Kg



    SR821L Digital Lux Meter

    • Max/min values

    • Hold button to freeze readings

    • Auto/Manual range switch

    • Auto Off function

    Technical data
    Sensor: one silicon photo diode with fliter

    Measuring Range:0.1~200,000Lux/0.01~20,000FC

    Accuracies: +/-(3% reading+10 digit)

                    +/-(4% reading +10 digit)at<10000LUX

                    +/-(5% reading +10 digit)at>10000LUX

    Resolution: 0.1Lux/Fc

    Repeatability: +/-2%

    Temperature Characteristic: +/-0.1%/°C

    Sampling Time: 0.5second

    Ambient conditions : 0 ~ 50°C/32 ~ 122ºF

    Storage/transport condition: -10 ~ 60°C,14 ~ 140ºF

    Power supply: 1x 9.0V, 6F22 batteries

    Size: 160*74*35 mm

    Weight: 340g (batteries included)
    Packing: Gift box + PP Box

    17PCS/CTN, CTN SIZE: 53*33*62CM, G.W: 11KGS, VOLUME WEIGHT:22KGS



    SR9032 Lux Meter

    Features:
    1, Analog bar-graph indication
    2, MAX/MIN record
    3, Data Hold
    4, Lux/Fc selection
    5, Auto measurement
    6, Timing power-off
    7, Backlight

    Specification:

    Display: 4 digits LCD display
    Measuring range: 0 Lux~400K Lux, 0Fc~40KFc
    Accuracy: ±3% rdg±10dgts. (<10,000Lux)
    ±4% rdg±10dgts. (>10,000Lux)
    Resolution: 0.1Lux/0.1Fc
    Sampling time: 2 times/second
    Measurement Units: Lux and Fc
    Auto measurement: AUTO
    Battery indication: Low battery indication
    Analog measurement: analog bar-graph indication
    MAX hold: MAX
    MIN hold: MIN
    DATA hold: HOLD
    Over-range indication: “OVER” or “UNDER”
    Operating conditions: -20°C~+60°C: 10%RH~90%RH
    Storage conditions: -20°C~+60°C: 10%RH~75%RH
    Auto power off: the meter will be automatically shut off in activity of 15 minutes





    SR9052 Light Meter

    Features:

    1. Analog Segment Indication
    2. PEAK capture
    3. User selectable Lux/Fc
    4. Backlit LCD display
    5. Overload indication
    6. Low battery indication
    7. Auto power off
    8. MAX/MIN/DATA Hold

    Specification:

    Display

    4 digits LCD display

    Measuring range

    0Lux~400k Lux, 0Fc~40k Fc

    Operating conditions

    -20°C~60°C; 10RH~90RH

    Storage conditions

    -20°C~60°C; 10RH~75RH

    Accuracy

    ±3% rdg±0.5%f.s.(<10,000Lux);±4% rdg±10dgts.(>10,000Lux)

    Sampling rate

    2 times per second

    Spectral response

    CIE photopicCIE human eye response curve

    Over range indication

    LCD displays "-OL-" or "-LO-"

    Spectral accuracy

    CIE Vλ function (f1’≤6%,f2’≤2%)

    Photo detector

    Silicon photo-diode with spectral response filter

    Photo detector Lead Length

    approx. 2.5m

    Dimension (L*W*H)

    185*66*33(mm)

    Weight

    308g

    Power supply

    one 9V battery

    Accessories

    instruction manual, battery, photo detector, tripod(optional), carrying box, large gift box



    SR5381 Digital Lux Meter

    SPECIFICATIONS

    Basic Functions

    Range

    Best Accuracy

    Illuminance Measurement

    LUX

    20 Lux
    200 Lux
    2000 Lux
    20000 Lux

    +/-(3%+20)
    +/-(3%+8)
    +/-(3%+8)
    +/-(3%+8)

    Illuminance Measurement

    CD

    2CD
    20CD
    200CD
    2000CD



    Special Functions





    Data Hold

    Display"HOLD"

    YES

    Illuminance Measurement

    Display "Lux/CD"

    YES

    Max / Min Mode

    Display "Max" or " Min"

    YES

    Sleep Mode

    Around 10 Minutes

    YES

    Low Battery Display

    Around < 7.1V

    YES

    Data Logging



    YES

    Auto Ranging



    YES

    Real Time Clock



    YES

    Working Temperature

    0oC~40oC(32oF~104oF)

    YES

    Deposited Temperature

    -10oC~55oC(14oF~122oF)

    YES

    Relative Humidity

    ≤7.5%

    YES

    GENERAL CHARACTERISTICS

    Power

    9V Alkaline Battery x 1

    LCD Size

    22.5 x 32.5mm

    Product Colour

    Red and Grey

    Product Net Weight

    185g

    Product Size

    195 x 45 x 26mm

    Standard Accessories

    English Manual, Carrying Bag, Battery

    Standard Individual Packing

    Blister

    Standard Quantity Per Carton

    40 pcs

    Standard Carton Measurement

    650 x 560 x 300mm (0.11 CBM Per Standard Carton)

    Standard Carton Gross Weight

    15kg



    computer interface function

    The most functional one!!!

    SR5382 Digital Lux Meter                     HOT SALES !

    SPECIFICATIONS

    Basic Functions

    Range

    Best Accuracy

    Illuminance Measurement

    LUX

    20 Lux
    200 Lux
    2000 Lux
    20000 Lux

    +/-(3%+20)
    +/-(3%+8)
    +/-(3%+8)
    +/-(3%+8)

    Illuminance Measurement

    CD

    2CD
    20CD
    200CD
    2000CD



    Special Functions





    Data Hold

    Display"HOLD"

    YES

    Illuminance Measurement

    Display "Lux/CD"

    YES

    Max / Min Mode

    Display "Max" or " Min"

    YES

    Sleep Mode

    Around 10 Minutes

    YES

    Low Battery Display

    Around < 7.1V

    YES

    Data Logging



    YES

    Auto Ranging



    YES

    Real Time Clock



    YES

    Working Temperature

    0oC~40oC(32oF~104oF)

    YES

    Deposited Temperature

    -10oC~55oC(14oF~122oF)

    YES

    Relative Humidity

    ≤7.5%

    YES

    USB



    YES

    GENERAL CHARACTERISTICS

    Power

    9V Alkaline Battery x 1

    LCD Size

    22.5 x 32.5mm

    Product Colour

    Red and Grey

    Product Net Weight

    185g

    Product Size

    195 x 45 x 26mm

    Standard Accessories

    USB Interface Cable,CD, English Manual, Carrying Bag, Battery

    Standard Individual Packing

    Blister

    Standard Quantity Per Carton

    40 pcs

    Standard Carton Measurement

    650 x 560 x 300mm (0.11 CBM Per Standard Carton)

    Standard Carton Gross Weight

    15kg





    SR2101 Luc / Light Meter

    Nice design makes this meter a special one in its peers. Better design, good accuracy and easy to use.

    * Measurement range of :1lux~2000/20000/50,000(200,000) lux
    * High accuracy and fast response.
    * The function of data hold can hold measurement value.
    * Symbol and unit display, reading easy.
    * Self-return" zero"
    Specifications:
    * Display:31/2digit with a Max. display reading of 1999.
    * Measuring Range:

    SR2101: 1~2,000, 20,000, 50,000 Lux. (without auto power shut off function)
    * Accuracy: (23
    ºC±5ºC;70%RH)
    ±4%rdg ± 0.5%f.s
    ± 4% rdg ± 5 d ( 10,000 < lux < 50000 OR 9929 <FC <4645)
    ± 5% rdg ± 10 d ( > 50,000 lux OR>4645FC )
    * Repeatability: ±2%
    * Temperature characteristic:
    ±0.1%/ºC
    * Measuring Rate: 2.0time /sec.
    * Photo detector: One silicon photo diode
    * Operating Temperature and Humidity: 0
    ºC ~ 40ºC(32ºF~104ºF); 0 ~ 70%Rh
    * Storage Temperature and Humidity: -10
    ºC ~ 50ºC(14ºF~140ºF); 0 ~ 80%Rh
    * Over range Display: the highest display digit "1"
    * Battery: single 9Vbattery.
    * Battery life: approx. 200hours.
    * Photo detector dimension: 95×25×23
    * Ammeter dimension: 128×60×23
    * Weight: 300g
    * Accessories: Instruction manual, carry case



    UV Light Meter

    UV340B UV Light Meter


    Measurable of UVA & UVB
    LSI-circuit use provides high reliability and durability
    3 3/4 LCD display, maximum indication 3,999
    Range: 0~40mW/c㎡
    3 range: 400μW/c㎡,
    4,000μW/c㎡, 40mW/c㎡
    UV sensor spectrum: 290~390nm
    Accuracy: ±(4%FS+2 digit)
    Sensor structure: The exclusive UV photo
    diode & UV color correction filter.
    Sampling Time: 0.5 second
    Operating Temperature: -10~40ºC(14~104ºF)
    Operating Humidity: 0~70%Rh
    Over-input: Indication of "OL".
    Peak hold.




    UVA365 UV Light Meter

    1.Measurable of UVA                                                                                                   2.UV detector spectrum: 320 nm to 390 nm.

    3.Four range selection switchable.

     4.Display: 3 3/4 LCD display, maximum reading 39990.

    5.Measurement Range: 0-400 mW/cm2

     6.Four range selectable: 400 μW, 4000 μW, 40 mW, and 400mW

    (1000 μW/cm2 = 1 mW/cm2)

    7.UV sensor spectrum: bandpass 320 nm – 390 nm

    8.Accuracy: ±(4%FS + 2dgt) Calibration under the standard UVA light & and compare; Special tested under the environment RF Field Strength less than 3V/M & frequency less than the 30 MHz only

    9.Sensor structure: exclusive UV photo diode & UV color correction filter.

    10.Sample Time: 2.5 times/s.

    11.Over Range indication: ‘OL’

    12.Weight: 325g(include battery)

    13.Operating Temperature & Humidity:(-10℃ to 40℃(32℉-104℉) 0~70%Rh)

    14.Power Supply: DC 9V battery, 006P, MN 1604 (PP3) or equivalent.

    15.Power Consumption: Approx. DC 2.7 mA

    16.Dimension: 165x50x32mm (photo detector)

                                160x78x43mm (meter body)



    SR3723 UV Power Meter



    Description:

    The SR3723 meter is a wide range spectral wavelength power meter. It can be used for measuring the optical power density of UV light (UVA light and UVB light).

    Application:

    Evaluating UV-insulating property of the tint of windows, solar films, glass and other transparent materials;
    Measuring the power of ultraviolet radiation (260nm~380nm), gives visual and reliable result;
    UV sterilization and curing;
    General laboratory use.

    Parameter:
    1. Accuracy : ±4 %
    2. Peak response wavelength is 365nm, range (260nm-380nm)
    3. Scale: 0-19999μW/cm2
    4. Size: 125mm*68mm*22mm (L*W*H)
    5. Weigh: about 110g
    6. 9V alkaline battery, 6F22



    SR3726C UVC Light Meter



    Description:

    Suitable for short wave sterilization ultraviolet intensity measurement.

    The UVC sensor with corrected filter to eliminate the effects of UVA and UVB rays. Data record of Maximum value and real value.


    Parameter:
    1. Accuracy: ±10 %FS
    2. Resolution: 0.01 uW/cm2
    3. Spectrum response: 230nm-280nm, Center wavelength 254nm
    4. Measure band: 0-200000umW/cm2
    5. Size: L130mm × W70mm × H28mm
    6. Detector size: OD 38mm × H16mm
    7. Weight: 250G
    8.Power supply: 4AAA alkaline batteries



    SR3100 series Portable UV Analyzer

    SR3100 series Portable UV analyzer for DNA / RNA gel observation and tapping, is commonly used in molecular biology experiments instruments.
    Features:
    1. Compact design, saves space of laboratory bench;
    2. In the electrophoresis process, user can observe experimental result at any time;
    3. Two built-in UV lamp, UV wavelength: 254nm / 302nm / 365nm, can be combined any two wavelengths.
    Specifications:
    UV wavelength:

    SR3100A: 254/ 254nm
    SR3100B
    : 302/ 302nm
    SR3100C
    : 365/ 365nm
    SR3100D
    : 254/ 302nm
    SR3100E
    : 254/ 365nm
    SR3100
    F: 302/ 365nm

    UV glass size: 5*15cm

    6W UV tube: 2pcs

    Input voltage: 220VAC

    Product size: 22*7*11cm, weight: 0.5kg.

    (Please indicate which model you need when you place an order.)





    SR3725 UV Integrator

    SR3725 is an UV meter with high quality and high precision.

    Function
    Please turn the switch to ON when you use it and it display 0 mj/cm², not for special, please clear the digital to zero before measuring.
    Specification
    Wavelength: 365nm
    Spectral range: UV 250-410nm
    Intensity range: 0-5,000 mW/cm2
    Span range: 0-999,999 mJ/cm2
    Tech accuracy:
    +/- 5%
    Battery: 3.6V Li
    Battery life: 30000H
    Dimension:128*14mm dial type
    Weight: approach 500g
    Endure temp:110
    °C
    Calibration: one year
    Auto power-off: 1 hour



    SR3720 UV Energy Meter



    Description:

    SR3720 UV Energy Meter measure and display total UV energy (mJ/cm2) , UV irradiance (mW/cm 2) and temperature(°C ) in a UV curing system.

    Parameter:
    1. UV irradiance Dynamic Range: 0 --- 2000 mW/cm2
    2. Energy Dynamic Range: 0 --- 999999mJ/cm2
    3. Energy Accuracy: +/- 10%; +/- 5% typical
    4. Spectral Range: 320 --- 390nm (UVA)
    5. Temperature Range: -55°C --- + 125°C
    6. Dimension : 120 mm x 13 mm (D x H)
    7. Weight : 327 grams
    8. Sample rates: 2048times/s
    9. Recording cycle: 240s
    10. Display: 240*160 dots LCD


    Screen Brightness Meter

    Screen Brightness Meter

    Model: SM208

    Features:

    -Adopting a detector powered by a silicone photocell with high stability, photo stability, and shock resistance, strict vision correction and accurate photometric measurement can be realized.

    -Measure the brightness of various fluorescent screens and transmission screens, it has wide applications in the measurement of TV sets, medical X-rays, CRTs and FED and fluorescent substances.

    Specifications:

    -Measuring range: 0.01-39990cd/m²

    -Measuring distance: 1m

    -Object size ≥Ф20mm, The Target's area is smaller, the distance measured could be shortened and can make sure the accurate results.

    -Accuracy: ±(0.5%+1digit)

    -Operating environment:

         Temperature: 0~40°C (32~104°F)

         Relative humidity: 85%RH

    -Dimension: 149L x 71W x 41H(mm)

    -Power: one 9V battery (model 6F22)



    Color Screen Brightness Meter

    Model:SM218

    Features:

    1. Adopting a detector powered by a silicone photocell with high stability, photo stability, and shock resistance, strict vision correction and accurate photometric measurement can be realized.

    2. With a wide measuring range, it can measure between 0.01-39990cd/m2 without a dimmer.

    3. It is a digital display with good indication repeatability, data hold and peak hold functions;

    4. With very low power consumption, it can operate continuously for 100 hours on a 9V layer-built battery;

    5. Mini light probe, measuring angle <10O;

    6.Compact, portable, easy to use.

     Technical specifications

    1.Measuring range:0.01-39990cd/m2

    Measuring distance :≤1m;Object size: ≥Ф20mm, increasing with the increase of measuring distance

     2.Precision:≤+5% of the measured value +1 digit

    3. Indication error:≤+5% of the measured value +1 digit (relative to NIM standard)

    4. Spectrum response characteristics:

    In accordance with the standard of national grade II illuminometer

    5. Linearity error:≤+0.5% of the measured value +1 figure

    6. Temperature characteristics:≤+0.1% of the measured value +1 figure

    7.Operating environment:Temperature: (0-400C)

    Relative humidity: ≤85%

    8.Dimensions and weight:150X70X40mm3

    9.Power supply:9V battery (model 6F22)



    Chroma Meter, color lux meter, color illumincance meter, color photometer, lux colorimeter, Illuminance colorimeter, Illuminance Spectrophotometer, lux Spectrophotometer



    ST520 Chroma Light Meter

    Features
    Precision instrument for light luminance and color coordinate
    Meet CIE (International Commission on Illumination) photopic spectral response
    Color temperature or Correlated color temperature
    Custom reference value of color difference mode
    Lux or foot-candle unit selection
    Magnetic mount
    Tripod socket

    Applications
    Color LED Lighting, Commerical Displays, Film and Television, Projection Halls, Warehouses, Art Galleries, Museums, Schools & Libraries, Theatres
    Arenas, Stadiums, Office

    Specification

    Specifications



    Receptor

    Silicon photocell

    Measuring Function

    Illuminance: Ev (lx or fcd)

    Color Coordinate: (x,y), (u',v') (CIE 1960)

    Correlated Color Temperature: CT, Δuv

    Color Difference:(ΔEv,Δx,Δy), (ΔEv,Δu',Δv'), (ΔEv,Δu'v'), (One set of reference color)

    Measuring Range


    Ev=0~80,000 lx (0~7,432 fcd); CT 99,990K Max.

    Accuracy

    (at 25°C/77°F, 60%RH)

    Ev: ±(3%+2 digital) (3,000 lx, standard illuminant A measured)

    x, y: ±0.02 (100 lx, RGB LED light)

    Resolution

    Ev: 0~9999 lx: 1 lx, Over 10000 lx: 10 lx;

    0.0~999.9 fcd: 0.1 fcd, Over 1000 fcd: 1 fcd;

    CT: 0~9999 K: 1 K, Over 10000 K: 10 K;

    x, y: 0.001; u'v': 0.001

    Response Time

    Approx. 1 sec.

    Temperature Drift

    Ev: ±(5%+2 digital) (3,000 lx, standard illuminant A measured)

    x, y: ±0.008 (100 lx, RGB LED light)

    Humidity Drift

    Ev: ±(3%+2 digital) (3,000 lx, standard illuminant A measured)

    x, y: ±0.005 (100 lx, RGB LED light)

    Operation Temperature

    0~50°C (32~122°F, <80%RH)

    Store Temp.

    -10~60°C (14~140°F, <80%RH)

    Dimensions

    Main Instrument: 140 X 49 X 29mm ( 5.51" x1.93"x1.14")

    Sensor Probe: 165 X 50 X 36mm ( 6.50" x1.97"x1.42")

    Weight

    179g (6.31 oz.) without battery

    Accessory

    9V Battery, Instruction manual, Carrying Case





     ( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@163.com )
