Simple Rotator

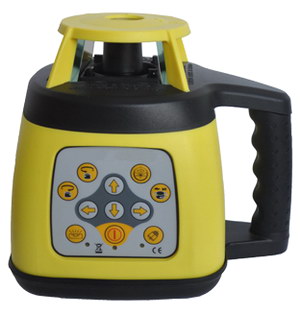

SRLL301 Automatic Self-leveling Rotary Laser

Introduction:
Adopt self-leveling (sensor leveling), wide leveling range, high accuracy, high stability

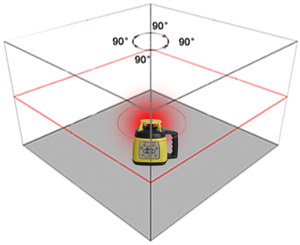

Upright setting: Emit one Horizontal fan and a plumb line, with down dot.
Both indoor and outdoor.
Horizontal-setting: Emit a plumb fan and one horizontal line.
Direction Scanning.
Left &right spinning.
Slope setting, inclined plane scanning.

Specification:
Self-leveling range: ±5°

Leveling Accuracy ±1mm/10m
Down dot accuracy: ±1mm/1.5m

Measuring Range Diameter:500m (With laser detector)
Spinning speed: 0; 300; 600; 1000 r.p.m.
Direction scanning: 0; 10°; 45°; 90°; 180°
Slope setting: ±5° (Dual)

wavelength: 635nm
Emit power: Less than 1m.w.(Class II)
Working temperature: -20°C~+50°C (-4°F ~ +122°F)
Continuous working: 15 H
Water proof: IP64

Laser Standard Class II

Power supply4 *AA NI-MH batteries

Standard accessories:
Detector, R.C., protective glass, target, charger

Horizontal Only

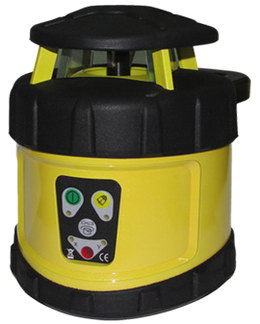

SRLL302 Automatic Self-leveling Rotary Laser

Adopt self-leveling(sensor leveling),wide leveling range ,high accuracy,high stability
Upright setting:Emit one Horizontal fan and a plumb line,with down dot.
Both indoor and outdoor.
Slope setting, inclined plane scanning.

Specification:
Leveling Accuracy: Horizontal ±20″
Leveling Range: ±5º
Measuring Range Diameter: 500m (With laser detector)
Spinning Speed 0, 60, 120, 300, 600 r.p.m
Directional-scanning Angle: 0º, 10º, 45º, 90º, 180º
Slope-adjusting Range: ±5º(X&Y axis)
Light Source Laser Diode wavelength: 635nm
Laser Standard: Class II
Remote Distance: Approximately 20m
Working Temperature: -20°C~+50°C (-4°F~+122°F)
Power supply: DC 4.8-6V (4*AA NI-MH batteries or Alkaline batteries)
Hours in continuous use Approximately 18 hours
Water-proof: IP64
Dimension 170(H) * 190(L) * 145(D)mm
Weight 1.2kg
　

All Functions

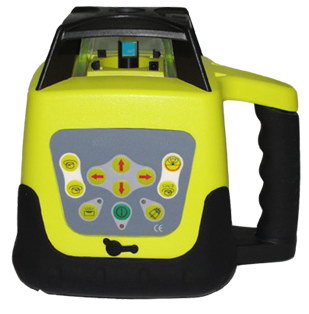

SRLL303 Automatic Self-leveling Rotary Laser

Adopt self-leveling(sensor leveling),wide leveling range ,high accuracy,high stability

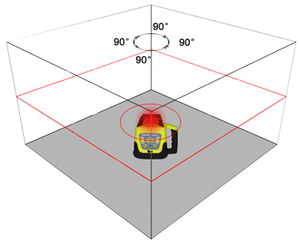

Upright setting:Emit one Horizontal fan and a plumb line,with down dot.
Both indoor and outdoor.
Horizontal-setting:Emit a plumb fan and one horizontal line.
Direction Scanning.
Left &right spinning.
Slope setting, inclined plane scanning.

Specification:
Level system: Electronic sensor fast leveling.
Accuracy: 20 arc seconds(+/-1mm/10m)
Self leveling range: ±5°
Operation rang: 500m with detector (Diameter)
Five head speeds: 0; 60; 120; 300; 600 R.P.M
Four scan widths: 10°; 45°; 90°; 180°
SRLL303(Red beam): Wavelength:635nm Class II

Wavelength:535nm Class 3R Green beam is X5 times brighter than red one.
Remote control; Available working distance:20 m
Operation temperature: -20°C ~ +50°C (-4°F ~ +122°F)
Power supply: DC 4. 8-6V (4*sub-C NI-MH battery)
Continuance working time: Approx. 20hr.
Waterproof and dustproof: IP 55
Dimension: 160(L) * 160(W) * 185(H)mm
Weight: 2.5kg

General Construction

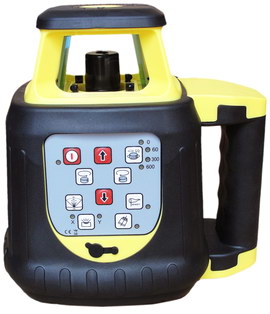

SRLL304 Laser Level
Horizontal or vertical 360° rotating
Sensor leveling,out of leveling range auto alarm
Direction scanning,adjustable angle
Adjustable rotating speed

Specification:

Leveling Range ±5º
Leveling Accuracy ±10″
Power supply4 *AA NI-MH batteries
Measuring Range Diameter:500m (With laser detector)
Laser Standard Class II
wavelength: 635nm
H.I/TILT: H.I. (elevation) alert with separate switch.
Slope: Manual with dual slopes adjustment.
Operating temperature: -4°F~122°F (-20°C~+50°C)
Waterproof/Dust-resistant: IP 55
Laser will in continuous rotating/self-leveling during vibrations or shocks
　

Dual Grade & Wireless

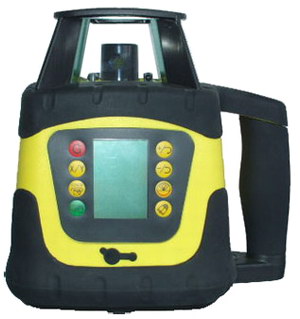

SRLL305 Laser Level
Adopt self-leveling(sensor leveling),wide leveling range ,high accuracy,high stability
Upright setting:Emit one Horizontal fan and a plumb line,with down dot.
Both indoor and outdoor.
Horizontal-setting:Emit a plumb fan and one horizontal line.
Direction Scanning.
Left &right spinning.
Slope setting, inclined plane scanning.

Specification:
Leveling Accuracy Horizontal ±20″,V ±20″
Leveling Range ±5º
Measuring Range Diameter: 500m (With laser detector)
Spinning Speed 60,120, 300, 600 r.p.m.
Direction scanning: 10°; 45°; 90°; 180°°
Light Source Laser Diode wavelength: 635nm
Laser Standard Class II
Remote Distance Approximately 40m indoor,15m outdoor
Working Temperature -20°C ~ +50°C(-4ºF ~ +122ºF)
Power supply DC 4.8-6V (4 *AA NI-MH batteries)
Hours in continuous use Approximately 20 hours
Water-proof IP 64
Dimension 60(L)* 160(W)* 185(h)mm
Weight 3.5kg

　

High Accuracy

SRLL306A Laser Level
Adopt self-leveling(sensor leveling),wide leveling range ,high accuracy,high stability
Upright setting:Emit one Horizontal fan and a plumb line,with down dot.
Both indoor and outdoor.
Horizontal-setting:Emit a plumb fan and one horizontal line.
Direction Scanning.
Left &right spinning.

Specification:
Leveling range: Horiztontal: ±10″
Self-leveling range: ±5°
Working range: Diameter 500m(with receiver)
Spinning speed: 0; 300; 600; 1000 r.p.m.
Direction scanning: 0; 10°; 45°; 90°; 180°
Slope setting: ±5°(Dual)
Wavelength:635nm
Remote Distance Approximately 20m
Working temperature: -20°C ~ +50°C(-4ºF~ +122ºF)
Continious working :20 H
Power: DC 4.8 ~ 6V(NI-MH rechargeable battery pack)
Dimension: 222(L)*  171(W)* 226(h)mm
Water-proof: IP 54
Weight: 3.8kg

High Accuracy

SRLL306B Laser Level
　

Product Description:
* Electronic self-leveling, wide leveling range, high precision and stability.
* Horizontal only applications
* With Direction scanning,adjustable angle function.
* With clockwise and counterclockwise rotating function.
* Manual with dual axis slope adjustment. +/-5degree for adjusting. Adjustable rotating speed.
* High impact composite housing with protective rubber over molding, Top cover made with heavy metal, supply better protection for laser unit.
* Full function IR remote control.
* H.I. (elevation) alert with separate switch.

Specification:
*Level system: Electronic sensor fast leveling.
*Accuracy: ±1mm/10m
*Self leveling range: ±5°
*Working range: Diameter 600m(with receiver)
*Three head speeds: 100,300,600 R. P. M.
*Four scan widths:10°, 45°, 90°, 180°
*Bright, visible beam; Wavelength 635nm
*IR Remote control; Available distance:20 m
*Working temperature: -20ºC ~ +50ºC (-4°F~+122°F)
*Power supply: Ni-MH battery or 4*C battery
*Continuance working time: Approx. 40hr.

Laser class: Class II
*Waterproof and dustproof: IP 55
*Dimension: 170(L) *  220(W) *  230(H)mm
*Weight: 3.8kg(Laser only)
