Melting-point Apparatus

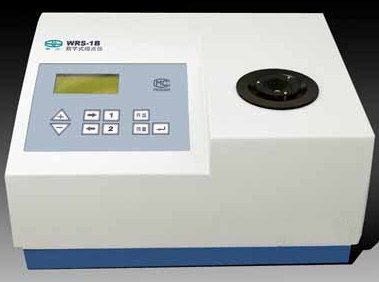

WRS-1B

Characteristics

l        Measurement of melting point is one of the important methods of measurement of purity.

l        To be used in production of medicines, dye-stuffs, perfumes and other organic crystal substances.

l        Photoelectric test

l        LCD display

l        RS-232 interface and real time melting curve.

Specifications

l        Melting-point measurement range: room temperature -300 C

l        Minimum digital display: 0.1 C

l        Linear heating-up rate: 0.2, 0.5, 1.0,1.5, 2.0 3.0, 4.0, 5.0 C/min

l        Accuracy: < 200 C : 0.5C;  200-300 C: 0.8C

l        Overall dimensions: 510mm ´ 330mm ´ 200mm

WRS-2&WRS-2A

Characteristics:

l        Measurement of melting point is one of the important methods of measurement of purity.

l        To be used in production of medicines, dye-stuffs, perfumes and other organic crystal substances.

l        Photoelectric test

l        LCD display, entry by digital keyboard and direct display of melting curve.

l        WRS can measure three samples at the same time and calculate average value of initial and final melting points automatically.

Specifications

l        Melting-point measurement range: room temperature -300 C

l        Minimum digital display: 0.1 C

l        Linear heating-up rate: 0.2 - 5.0 C/min

l        Accuracy: < 200 C : 0.5C;  200-300 C: 0.8C
