Multifunctional Environment Meter

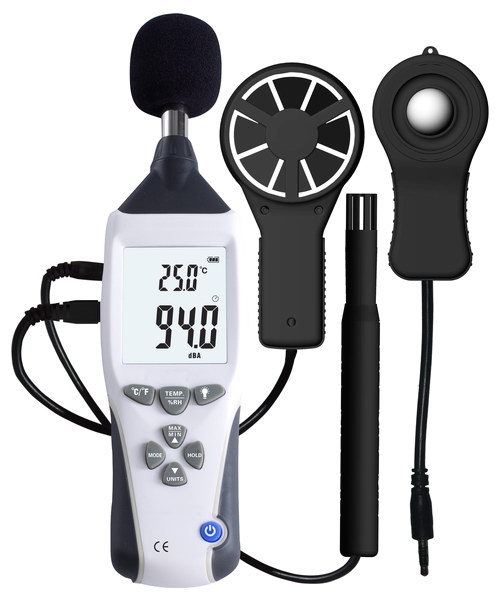

SRE100 5-in-1 Multifunctional Environment Meter

This multifunctional environment meter is designed to combine the function of Sound Level Meter, Light Meter, Anemometer, Temperature and Humidity Meters. It is widely used in quality control and health prevention in various occasions, like constructions, factories, schools, etc.

Specifications:
5-in-1 for light meter, sound level meter, humidity/temperature meter, anemometer
Large backlit LCD display
Data hold and maximum hold
Over-range indication
Low battery indication
Total accuracy: for CIE standard illuminate A (2856K)

Conform to IEC61672-1 CLASS2 for Sound Level Meter
MAX/MIN record
HOLD function
Overrange indication
Auto Power OFF

Power Supply: 9V battery

Technical data:

Light:

0 to 200k lux (0 to 20kFc) with accuracy of 3%rdg 0.5%fs
Sound level:

30 to 130dB A time weighting 31.5Hz to 8KHz with accuracy of 1.5dB,

Dynamic range: 50dB

Sampling rate: 2 times/sec

Microphonef: 1/2 inch electret condenser
Humidity:

0 to 100% RH with accuracy of 5% RH
Temperature:

-40 to 70C (-40 to 158F) with accuracy of 1.5C (2.4F) (3% +0.3d)
Air Velocity:

0.5 to 30.0m/s, 1.8 to 108.0kph, 98 to 5905ft/min, 0.9 to 58.3 knots, 1.1 to 97.0mph with accuracy of (3%r+0.3d)
Resolution: 0.1

Dimension: Meter-260.5*66*32.8mm

Weight: Approx.575g

Packing:

Individual Box Dimension: 357*90*290mm
Individual Box G.W.: 1550g
PCS/CTN 5pcs/inner carton;10pcs/outer carton

Carton Dimension: 76*49*34cm (outer carton), 47*37*31.5cm(inner carton)
Carton Gross Weight 17.5KG

Accessories:

User's Manual, Light Meter Probe, Anemometer Probe, Humidity and Temp Meter Probe, USB Cable, Screw-driver, Battery,

Adaptor( Optional), Tripod (Optional), Carrying Case with gift box.

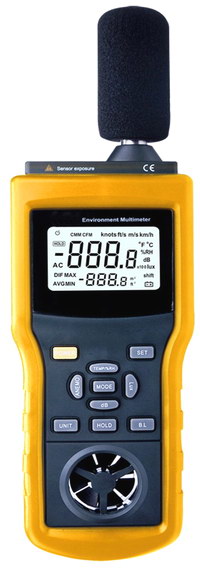

SRE101 6-in-1 Multifunction Environment Meter

This meter is a digital Multifunction Environment Meters meter which combined the function of Sound Level, illuminometer, Relative Humidity Meter, Temperature Meter and anemometer.


Description:

- Multifunction Environment Meter SRE101 is a digital Multifunction Environment Meters meter which combined the function of Sound Level, illuminometer, Relative Humidity Meter, Temperature Meter and anemometer.

- Multifunction Environment Meter SRE101 is a portable professional measuring instrument with large LCD and back light for easily reading.

- Multifunction Environment Meter SRE101 has function of data hold.

- Multifunction Environment Meter SRE101 has function of auto change range.

- Multifunction Environment Meter SRE101 has function for measurement of MAX, MIN, AVG and DIF (MIN-MAX) value.

Multifunction Environment Meter SRE101 has function of auto/manual power off.

- Low battery indication is provide

Specifications:

1, Numerical Display: 4 digital Liquid Crystal Display.

2, Response Time: about 2 times/second.

3, Operating Environment: -10C~60C(14F~140F)

4, Storage Environment: -10C~50C(14F~122F)

5, Power Requirements: 1pcs 9V battery 006p or IEC 6F22 or NEDA1604

6, Low Battery Indication: displayed

7, Dimension: Meter- 280(L)x 89(W)x 50(H)mm

8, Weight: Approx.430g

Technical data:

Function

Range

Resolution

Accuracy

Temperature

-10-60C

0.1C

0.1C

14-140F

0.1F

2F

Humidity

20%-80%RH

0.1%RH

3.0%RH

<20% OR>80%RH



5.0%RH

Light

0-50000LUX

1LUX

(5.0%+10)

Anemometer

0.4-20m/s

0.1m/s

(3.0%+10)

1.4-72khm/h

0.1km/h

(3.0%+10)

1.3-65.7ft/s

0.1ft/s

(3.0%+10)

0.8-38.9knots

0.1knots

(3.0%+10)

Air Flow

(CMM)

0-999900CMM

0.1CMM<1000CMM

1CMM>1000

(3.0%+10)

Air Flow

(CFM)

0-9999900CFM

0.1CFM<1000CFM

1CFM>1000

(3.0%+10)

Sound Level

30-130db(A)

0.1DB

1.5db

35-130db(C)

0.1DB

1.5db

Application:

In food, Health, Environment Protection field.

 ( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )
