Features:
* Applicable on singlemode/multimode fibers
* Microprocessor & linear amplifier ensure long-time accuracy
* Quick response, no warm-up
* Interchangeable connectors: FC/SC/ST
* Dual-way power supply: 9V alkaline battery/Optional AC adapter
* Pocketsize, large LCD display
* Multi-wavelength measurement
* Display units: dB/dBm/mW/?W
* Link loss testing
* CW/Modulation mode (270/1K/2K Hz)
* Low power indication/Auto off |
OLT-20 series Optical Loss Tester

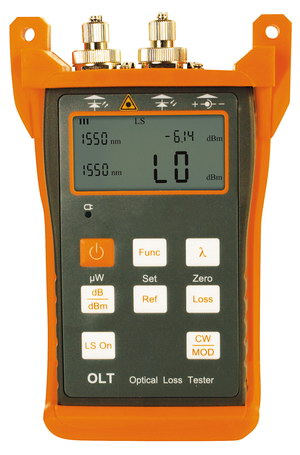

OLT-20 Optical Loss Tester integrates
laser source module and power meter module in one set, which can
perform power testing and link loss testing in optic fiber network
conveniently. The typical applications include fiber identification,
attenuation and loss measurement, continuity verification and fiber
link transmission quality evaluation for installation, routine
inspection and daily maintenance of MAN, WAN and CATV systems as
well as for lab test and research work.
Specifications:
|
Model |
OLT-20A |
OLT-20C |
|
Laser Source Module |
|
Wavelength (¡À20nm) |
1310/1550 |
1310/1550 |
|
Output Power |
¡Ý -7dBm |
|
Spectral Width |
¡Ü 5nm |
|
Emitter Type |
FP-LD |
|
Stability |
¡À0.05 dB/15min; ¡À0.10dB/8hr@1310/1550nm; |
|
MOD Frequencies |
270, 1K, 2K Hz |
|
Connector Type |
FC/PC (Interchangeable ST, SC) |
|
Optical
Power Meter Module |
|
Detector Type |
InGaAs |
|
Measurement Range |
-70 ~ +10dBm (1) |
-50 ~ +27dBm |
|
Accuracy |
¡À5%¡À0.01nW (¡À0.5dB@850nm) |
¡À5%¡À1nW (¡À0.5dB@850nm) |
|
Resolution |
0.01dB |
|
Calibrated Wavelength(2) |
850, 1300, 1310,1490, 1550, 1625nm |
|
General Specifications |
|
Power Supply |
9V Alkaline battery / optional 9V AC adapter |
|
Battery Life |
OPM mode¡Ý40 hours; OPM+SLS mode¡Ý20 hours |
|
Operating Temperature |
-20¡ãC ~ 50¡ãC |
|
Storage Temperature |
-40¡ãC ~ 70¡ãC |
|
Relative Humidity |
0 to 95% (Non-condensing) |
|
Weight |
300g |
|
Dimension (H¡ÁW¡ÁT) |
145¡Á75¡Á25mm |
Note:
(1) For Model A&B At 850nm, the lower limit of measurement range is
-60 dBm;
(2) Other wavelengths are open for customization. |
|
 |
OLT-55 series Intelligent Optical Loss Tester

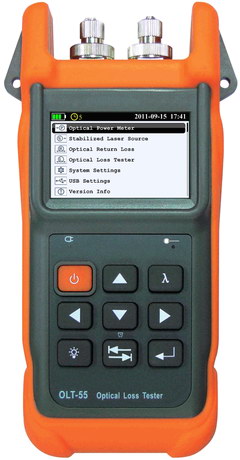

OLT-55 Intelligent Optical Loss Tester
is an all-in-one loss tester integrated with Stabilized Laser
Source, Optical Power Meter, Optical Loss Tester, ORL Tester and
Length Testing functions. It can perform automatic bidirectional
loss test on single fiber with Pass/Fail assessment. With rich
functions, flexible configuration and excellent user friendly
design, OLT-55 is the ideal optical loss tester to completely
evaluate the optical fiber link condition in FTTx, LAN and CATV
network.
Automatic Bidirectional Loss Test on
Single Fiber
Two OLT-55 at both ends of a single optical fiber can perform
bidirectional loss test by just pressing one button and can
automatically measure and display the entire fiber attenuation to
help users acquire complete and accurate optical fiber loss
information.
Features:
* All-in-one: SLS + OPM + OLT + ORL + Length test
* Optical power monitoring (Auto power trace)
* Bidirectional loss test on single fiber
* ORL test
* Pass/Fail assessment
* Automatic wavelength identification/switch (AutoID)
* Remote reference value setting
* Internal clock & fiber S/N editable
* 1000 test records (CSV) storage & management
* Data transfer to PC via USB (Driver-free)
* Auto test records save in local unit/remote unit/both units
* USB power charging
* Over 35 hours continuous operation
* Multilanguage support
* No warm-up, quick start
* High resolution color LCD
* Pocketsize, lightweight and easy-to-use |
|
Specifications:
|
Stabilized Laser Source |
|
Wavelength (¡À20nm) |
1310/1550nm |
1310/1490/1550nm |
1310/1550/1625nm |
|
Spectrum Width |
¡Ü5nm |
|
Emitter Type |
FP-LD |
|
Output Power |
>-4dBm |
|
Power Stability |
¡À0.05dB/15min; ¡À0.10dB/8hr |
|
Output Mode |
CW, 270Hz, 1KHz, 2KHz |
|
Optical Power Meter |
|
Calibrated Wavelength |
850, 1300, 1310, 1490, 1550, 1625nm |
|
Power Range (dBm) |
-70 ~ +10 (-60 ~ +10@850nm) |
-50 ~ +27 |
|
Display Unit |
W/mW/¦ÌW/nW/pW/dBm/dB(REF) |
|
Detector Type |
InGaAs |
|
Accuracy |
¡À5%¡À0.01nW (¡À0.5 dB@850nm) |
¡À5%¡À1nW (¡À0.5 dB@850nm) |
|
Resolution |
0.01dB |
|
Auto Wavelength Identification |
Yes (With our specified Stabilized Laser Source) |
|
MOD Identification |
270Hz, 1KHz, 2KHz |
|
Optical Loss Test |
|
Link Loss Range |
50dB (1550nm, 200km) |
|
Link Loss Accuracy |
¡À0.25dB |
|
Link Loss Test Time |
< 2 seconds per wavelength |
|
ORL Test (Optional) |
|
ORL Range |
0~60dB (APC connector) |
|
ORL Accuracy |
¡À0.75dB@(0~50dB), ¡À1.5dB@(50~60dB) |
|
ORL Uncertainty |
¡À0.5dB@20dB |
|
General Specifications |
|
Connector |
FC (Interchangeable SC, ST) |
|
Data Storage |
1000 records |
|
Data Interface |
USB |
|
Backlight Display |
Yes |
|
Auto Off |
Yes (Auto-off after 5 minutes idle) |
|
Power Supply |
Lithium Battery/ AC Adapter |
|
Battery Life |
Continuous operation ¡Ý35 hours |
|
Operating Temperature |
-20¡ãC ~ 50¡ãC |
|
Storage Temperature |
-40¡ãC ~ 70¡ãC |
|
Relative Humidity |
0 ~ 95% (Non-condensing) |
|
Weight |
350g |
|
Dimensions (H¡ÁW¡ÁT) |
177¡Á80¡Á44mm |

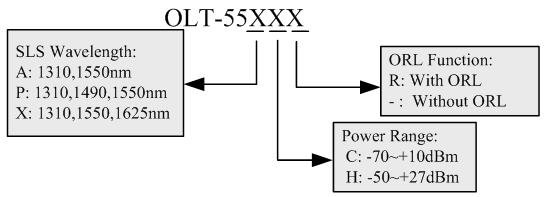

Order information:
 |
