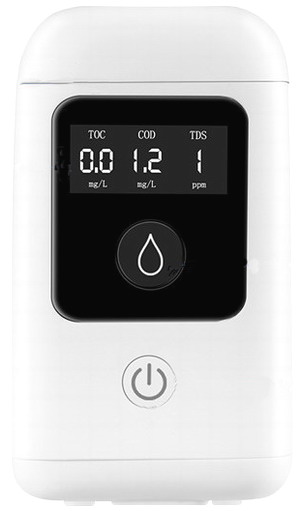

SRWQM01H Water Quality Detector
Applicaiton:

The product can be used to detect the filtration effect of water purifier on organic matter and dissolved solids, and to reflect the water quality change.

It can be only used to detect the water quality of drinking water at required room temperature and is not allowed to be used in beverage and sewage detection, which will cause the permanent damage on product.

　

Specification:

Parameters

TDS

(Total Dissolved solids)

TOC

(Total Organic Carbon)

COD

(Chemical Oxygen Demand)

Detection Range

0-2000

0-10

0-10

Max Error

10%FS

10%FS

10%FS

Reading Resolution

1

0.1

0.1

　

Unit: mg/L

Water Quality Grade with Parameter Value

TOC( mg/L)

COD( mg/L)

Water Quality

0-1

0-1

Great

1-2

1-2

Good

2-3

2-3

Normal

m3

m3

Poor

　

Temperature Range of Detecting Water Sample: 5-45ºC
Product Use Temperature Range: 10-40ºC

Battery: 200mAH
Power Input: 5V, 1A
Dimensions: 92*52*52mm
Weight: 115g

　

 ( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@163.com )
