Process Calibrator

(Process Calibrator, Temperature calibrator, Voltage/mA Calibrator, Process Source Calibrator, Multifunction Process Calibrator Instrument, Loop Calibrator Multimeter, Loop Calibrator, Multifunction Process Calibrator Machine,  USB Interface Digital RTD Temperature Process Calibrator, Thermocouple Temperature Process Calibrator)
﹛

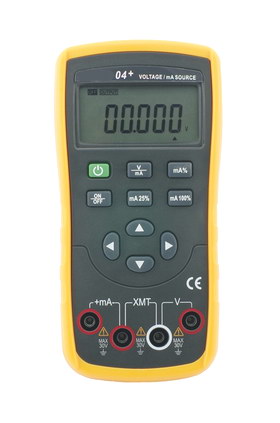

PC700 Volt/mA Calibrator

Key Features:
♂ Provides adjustable 0 to 24mA and 0 to 15V calibration source
♂ Large 5 digit LCD with full angel
♂ High accuracy maximum up to 0.015%
♂ With Standard jack for external power supply

SPECIFICATIONS:
﹞ DC Voltage Input and Output: 100mV㊣(0.02%+3),
 15V㊣(0.02%+3)
﹞ DC Current Input and Output: 24mA㊣(0.015%+3)
﹞ Loop Power Output: 24V㊣10%
﹞ Input Impedance: 2M(nominal), < 100pF
﹞ Over Voltage protection: 30 V
﹞ Voltage Driver Capability: 1 mA
﹞ Large 5 digit LCD
﹞ Overload Protection: 125 mA, 250V fast acting fuse
﹞ Current Percent Display: 0%=4mA, 100%=20mA

GENERAL CHARACTERISTICS

Power Supply:

1.5V battery (AAA)*6

LCD Size :

64x42

Product Color:

Grey+yellow

Product Size

205x97x45

Standard Accessories

Test Lead, Manual, Battery

Standard Individual Packing

Gift Box

﹛

PC710 Multi-Type Thermocouple Process Calibrator

Key Features:
♂ Source and measure 8 thermocouple type devices

 (J,K,T,E,R,S,B,N) or mV (-10mV~75mV)
♂ Large 5 digit LCD with full angel
♂ High accuracy maximum up to 0.3∼C and 0.025% for mV
♂ With Standard jack for external power supply

PC710 Thermocouple Calibrator
The PC710 Thermocouple Calibrator is a precision source and measurement tool for calibrate thermocouple instrument. The calibrator measures through a thermocouple jack. Measuring units are ∼C,∼F or MV.

SPECIFICATIONS:

Display: 88888 counts.

Thermocouple Type: J, K, T, E, R, S, B, N

Measuring a Thermocouple

Simulating a Thermocouple

Temperature Resolution: J, K, T, E, B, R, S, N 0.1∼C or ∼F

Temperature Error: J, K, T, E, B, R, S, N ㊣(0.3∼C+10uV)

Range : -10mV~75mV

Resolution: 0.01mV

Accuracy: ㊣(0.025%+2count)

Accessories included:

﹞Free DC 1.5V (AAA) BatteryX6

﹞Free Protective bag

﹞One spare K-type connector

﹞User Manual

﹛

﹛

PC720 Multi-Type RTD Process Calibrator

Key Features:

♂ Source and measure 7 RTD type devices (PT10, PT50, PT100, PT200, PT500, PT1000(385), PT100(JIS)) or 次

♂ Large 5 digit LCD with full angel

♂ High accuracy maximum up to 0.2∼C and 0.1次

♂ With Standard jack for external power supply

The PC720 RTD(Resistance Temperature Detector) Calibrator is a precision source and measurement tool for calibrate RTD instrument.

SPECIFICATIONS:

RTD Type: PT10, PT50, PT100, PT200, PT500, PT1000(385), PT100(JIS)

Measuring and Simulating RTD

Temperature Resolution: 0.1∼C or 0.1∼F

Resistance Resolution: 0.1次

Temperature Accuracy: ㊣0.2∼C

Resistance Accuracy: ㊣0.1次

Range : 0.00~3200.0次 or -200.0~630.0∼C

Accessories included:

﹞Free DC 1.5V (AAA) BatteryX6

﹞Free Protective bag

﹞2 test lines, 2 Crocodile jacks

﹞User Manual
﹛

PC501 USB Interface Digital RTD Temperature Process Calibrator (Equivalent to Fluke 712)

Specifications:
• Digital RTD Temperature Process Calibrator
• USB Interface
• Rechargeable Battery
• Measure/Simulate Output Source RTD/Ohm
• With CE certificate.
• Calibrating RTD (Resistance Temperature Detector) transmitters, including the most pulsed transmitters. simulating and measuring seven different types of RTDs in units of ∼C or ∼F and resistance in units of ohms. being source and measurement tool simultaneously.
• With USB interface
• Measure temperature from RTD output
• Simulate RTD output
• Operable with seven types of RTD
• Simulate additional RTD using Ohms output function
• synchronously display output temperature values of simulation RTD and Resistance value.
• 25% step output
• 0%~100% manual output range setting
• with Backlight
• Selectable ∼F/∼C
• Range: 0次 ~ 3200次
• Resolution: 0.1次
• Accuracy: 0.1次 ~ 1次
• Power : Rechargeable battery (Recharge via USB)
• Operation temperature: -10∼C~ 55∼C
• Storage temperature: -40∼C ~60∼C
• Dimension: 190*89*42mm
• Weight: 350g
Technical Specification:
1. Ohms Specifications

RANGE

Input Accuracy 4 Wrie ㊣ 次

Output Accuracy ㊣ 次

Allowable Excitation (mA)

0.00 次~400.00 次

0.1

0.1

0.1~3.0

400.0 次~1500. 0 次

0.5

0.5

0.05~0.8

1500.0 次~3200.0 次

1

1

0.05~0.4

2. RTD Specifications

RTD TYPE

RANGE∼C (∼F)

Accuracy (∼C)

Allowable Excitation (mA)

INPUT

OUTPUT

4W

2W/3W

Pt10 (385)

-200.0 ~ 800.0 (-328.0 ~ 1472.0)

1.5

1.5

1.5

0.1 ~ 3.0

Pt50 (385)

-200.0 ~ 800.0 (-328.0 ~ 1472.0)

0.3

0.5

0.5

0.1 ~ 3.0

Pt100 (385)

-200.0 ~ 800.0 (-328.0 ~ 1472.0)

0.3

0.4

0.4

0.1 ~ 3.0

Pt200 (385)

-200.0 ~630.0 (-328.0 ~ 1166.0)

0.2

0.4

0.4

0.1 ~ 3.0

Pt500 (385)

-200.0 ~630.0 (-328.0 ~ 1166.0)

0.2

0.4

0.4

0.05~ 0.8

Pt1000(385)

-200.0 ~630.0 (-328.0 ~ 1166.0)

0.2

0.4

0.4

0.05~ 0.4

Pt100(385)JIS

-200.0 ~ 800.0 (-328.0 ~ 1472.0)

0.3

0.4

0.4

0.1 ~ 3.0

﹛

PC717 Loop Calibrator (Equivalent to Fluke 707)

Specifications:
Rechargeable Battery Calibrators
4-20mA loop Calibrators
mA accuracy 0.025% calibrate
4-20mA loop Calibrators
HART Mode 250ohms
Features:
The fast, one-handed tool for loop checks. Just click to calibrate.
This feature-rich solution combines the best features push-button and knob-base loop calibrator and offers:
1, Large display and simple, quick-click interface for easy one-handed operation.
2, mA accuracy of 0.025%, superior to other loop calibrators in this price range.
3, Simultaneous mA and % readout for quick, easy interpretation of readings.
4, 1 µA resolution for mA source, simulate and measure.
5, Selectable slow ramp, fast ramp, and step ramp to provide smooth outputs for valve slewing and loop functional tests
6, 0-100%  'span check' for fast confirmation of zero and span.
7, 24 volt internal loop supply, so you can power and read a transmitter at the same time without carrying a DMM.
8, HART ™ mode connects 250 次 resistor in series with 24 V loop for compatibility with HART communicators.
9, Measures V dc to 28 V.
10, Single 9V battery that is easily changed without braking calibration seal
11, Push button 25% steps for fast, easy linearity checks.
12, 0~20mA or 4~20mA default start up modes.
13, Innovative output adjustment dial with 1 µA and 100 resolution.

Technical Specifications

Measurement

Range:

0 to 24 mA

Resolution:

0.001 mA

Accuracy:

0.025% Rdg + 2 LSD

Current Sourcing

Range:

0 to 20 mA or 4 to 20 mA

Accuracy:

0.025% Rdg + 2 LSD

Drive Capability:

1200 次; 950 次 at 20 mA in HART mode

Current Simulation

Range:

0 to 20 mA or 4 to 20 mA

Accuracy:

0.025% Rdg + 2 LSD

Ext. loop voltage requirement:

12-30 V

Loop Power

While measuring mA, 24 V

Voltage measurement

Range:

0 to 28 V DC

Resolution:

1 mV

Accuracy:

0.025% Rdg + 2 LSD

﹛

PC787 Process Multimeter  (Equivalent to Fluke 787)

Specifications:
0.05 Accuracy
20mA current Source simulator Mulitmeters
2 in 1 Loop calibrators and Multimeters
Process Meters
Calibrators Multimeters Process
Process Multimeters
Features:
• DMM and loop calibrator in one tool
• Clear LCD with backlight; 4,000 counts (30,000 counts for dc current)
• Ni 每 MH rechargeable batteries
• 1000V overload protection on V, ohms, frequency.
• 25% Manual Step plus Auto Step and Auto Ramp on mA output.
• Measure ac and dc volts, ac and dc current, resistance, continuity, and frequency
• 0.1% dc voltage accuracy
• 0.05% dc current accuracy, 1 'A resolution to 30 mA
• Simultaneous mA and % of scale readout
• True rms ac voltage measurement to 1 kHz
• Frequency measurement to 20 kHz
• Min/Max/Average/TouchHold/Relative modes
• Diode test and continuity beeper
DC current source/loop calibrator
• 20 mA current source/simulator
• Simultaneous mA and % of scale readout
• Manual step (25%, coarse, fine) plus auto step and auto ramp
Technical Specifications:

Current Measurement

Range:

0-10A

Resolution:

1 mA

Accuracy:

0.2% + 2 LSD

Range:

0-40 mA

Resolution:

0.001 mA

Accuracy:

0.05% + 6 LSD

Current Sourcing

Range:

0-20 mA or 4-20 mA

Accuracy:

0.05% of span

Drive Capability:

1000 次 @ 20 mA

Frequency

20Hz to 50 kHz, 0.05% + 5LSD

Voltage measurement

Range:

0-700 V AC or 1000V DC

Resolution:

0.1 mV to 1.0 V

Accuracy:

0.03% Rdg + 5LSD (VDC)

Resistance measurement

to 4 M次, 0.2% + 10 LSD, 4 M次 to 40 M次 0.5% + 50 LSD

Diode test

2.4 V shows diode voltage drop

﹛

Mechanical & General Specifications:

Size

40 x 100 x 200 mm

Weight

600 g

Batteries

Ni 每 MH rechargeable batteries

Warranty

2 years

Battery Life

50 hours typical (measurement), 12 hours typical (sourcing 12 mA)

Shock & Vibration

Random, 2g, 5-500 Hz

1 meter drop test

Display current and % of span

Yes

Auto step, auto ramp

Yes

﹛

PC724 Multifunction Process Calibrator (Equivalent to Fluke 724)


Specifications:
0.025% accuracy process calibrators
Multifunction Process Calibrators
4-20mA,RTD,C/F, frequency meters

Features:
1. A split screen display: The upper display allows users to measure volts, current, and only.

The upper display: voltage and current measurements.
Lower display: measure and source volts, current, resistant temperature detectors, thermocouples and ohms.
2. A thermocouple TC input/output terminal with cold function temperature compensation, ambient temperature can be set and calibrate within the menu function
3. Each parameters can manual and automatic stepping and ramping output, signal output can be arbitrarily set within 0% and 100% of the value.
4. Thermocouple (TC) input / output terminals and internal calibrator is terminal block (with automatic reference-junction temperature compensation)
5. Manually setting menu: shutdown time, backlight off time, the screen contrast, cold junction compensation ON / OFF, HART resistor ON / OFF
6. Calendar and clock function
7. Store up to 8 measurement and output data, all the settings and the functions of the last operation be auto-stored after power off
8. Large-capacity rechargeable battery with power adapter, integrated charge -management function
9. 24V power output
10. 0.025% accuracy
Technical Specifications:

Function

Measure Singal

Measure Accuracy





DC Voltage

0.000~30.000 V

0.02%+3 counts (The upper display)

0.000~24.000 V

0.02%+ 3 counts (The lower display)

0.000~90.000 mV

0.01%+ 10 counts

-10.000~80.000mV 0.01 % + 10 counts (use the thermocouple jack )

DC Current

0.000~24.000 mA

0.02%+ 4 counts (The upper display)

0.000〞24.000 mA

0.02%+ 4 counts (The lower display)

Resistance

0.00~ 400.00次

0.1次 (4 wire), 0.15次 (2 wire and 3 wire)

400.0~4000.0次

0.5次 (4 wire), 1次 (2 wire and 3 wire)

﹛

Output

Range

Accuracy

DC Voltage

0.000~20.000 V

0.02%+3 counts

0.000~90.000 m V

0.01%+10 counts

-10.000 mV〞 80.000 mV 0.01 % + 10 counts (use the thermocouple jack )

DC Current

0.000〞24.000 mA

0.02%+ 4 counts

Resistance

5.00~400.00次

0.15 次 (Excitation current 0.15 to 0.5 mA), 0.1次 (Excitation current 0.5 to 2 mA)

400.0~4000.0次

0.5次(Excitation current 0.05 to 0.8 mA)

Accessories:
Power Adaptor (European Standard, Chinese Standard) 1pcs
Manuals 1pcs
Test Leads 1pair
Alligator clips
Fuse----3pcs
Ni-MH rechargeable battery
Thermocouple plug
Aluminum Box

﹛


﹛

PC712 Process Calibrator

﹛

SPECIFICATIONS:

Basic Functions

Range

Best Accuracy

Measure / Source Voltage

200mV / 20V

㊣(0.04%+2)

Measure / Source Current

20mA

㊣(0.04%+2)

Special Functions





Sinking Current

-20mA

㊣(0.04%+2)

Loop Current

20mA

㊣(0.04%+2)

Loop Power

24V

㊣10%

Temperature coefficient

0∼C~18∼C/ 28∼C~50∼C

㊣0.005%Range/∼C

Low Battery Display



Yes

Input Impedance for DC Voltage

1MW

Yes

GENERAL CHARACTERISTICS:

Power

9V Battery (6F22)

LCD Size

40 x 63mm

Product Color

Red and Grey

Product Net Weight

410g

Product Size

96 x 193 x 47mm

Standard Accessories

Test Lead, Battery, English Manual, Carrying Bag

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

24pcs

Standard Carton Measurement

610 x 450 x 355mm (0.097 CBM Per Standard Carton)

Standard Carton Gross Weight

19kg

﹛

PC713 Process Calibrator

﹛

SPECIFICATIONS:

Basic Functions

Range

Best Accuracy

Measure / Source Voltage

-10~110mV /-110~1100mV

㊣(0.04 %+2)

Measure / Source
Thermocouple:
J/K/T/E/R/S/B/N/L/U



㊣0.04%㊣1∼C

Special Functions





Temperature coefficient



㊣0.005%Range/∼C

Cold Junction Tolerance



㊣0.5oC

Criterion Thermometric Scale



Yes

Graduation Thermometric Scale



Yes

Low Battery Display



Yes

GENERAL CHARACTERISTICS:

Power

9V Battery (6F22)

LCD Size

40 x 63mm

Product Color

Red and Grey

Product Net Weight

410g

Product Size

96 x 193 x 47mm

Standard Accessories

Test Lead, Battery, English Manual, Carrying Bag

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

24pcs

Standard Carton Measurement

610 x 450 x 355mm (0.097 CBM Per Standard Carton)

Standard Carton Gross Weight

19kg

﹛

PC725 Multi-function Process Calibrator

Detailed Product Description

Measuring function

Range

Measuring range

Resolving power

Accuracy

Remark

DC Voltage

50mV

-5.000mV55.000mV

1米V

0.02%+10

input impedance: about100M次

500mV

-10.00mV550.00mV

10米V

0.02%+2

5V

-0.1000V5.5000V

0.1mV

0.02%+5

input impedance: 1M次

50V

0.00V55.00V

10mV

0.03%+5

DC Current

50mA

-5.000mA55.000mA

1米A

0.02%+2

input impedance: 10次

OHM

500次 About 1mA exciting

0.00次550.00次

0.01次

0.02%+0.1次

Plough voltage: about 2.5V not including the accuracy of down-lead resistance

5K次 About 0.1mA exciting

0.0000 K次5.5000K次

0.1次

0.02%+0.5次

Frequency

100Hz

2Hz110.0Hz

0.1Hz

㊣2

input impedance: 100 k次 or more Square wave at least 1Vp-p 50% duty cycle

1KHz

0.100KHz1.100KHz

1Hz

10KHz

0.10KHz11.0KHz

0. 1KHz

Thermocouple

R

-40∼C~1760∼C

1∼C

0~500∼C: 1.8∼C
500~1767∼C: 1.5∼C

Adopt ITS-90  thermometric scale not including the accuracy of inner temperature compensatory error

S

-20∼C~1760∼C

K

-200∼C~950∼C

0.1∼C

-100.0~0.0∼C: 1.2∼C
0.0~1372.0∼C: 0.8∼C

E

-200∼C~500∼C

-50.0∼C~0.0∼C: 0.9∼C
0.0~1000.0∼C: 1.5∼C

J

-200∼C~700∼C

-60.0~0.0∼C: 1.0∼C
0.0~1200.0∼C: 0.7∼C

T

-200∼C~400∼C

-100.0~0.0∼C: 1.0∼C
0.0~400.0∼C: 0.7∼C

N

-200∼C~1000∼C

-200.0~0.0∼C: 1.5∼C
0.0~1300.0∼C: 0.9∼C

B

400∼C~1800∼C

1∼C

600~800∼C: 2.2∼C
800~1000∼C: 1.8∼C
1000~1820∼C: 1.4∼C

Thermo resistance

PT100

-200∼C~700∼C

0.1∼C

-200.0~0.0∼C: 0.5∼C
0.0~400.0∼C: 0.7∼C
400.0~800.0∼C : 0.8∼C

PT100-385 thermometric scale not including the accuracy of down-lead resistance

PT1000

-200∼C~630∼C

-200.0~100.0∼C: 0.3∼C
100.0~300.0∼C: 0.5∼C
300.0~630.0∼C: 0.7∼C

Cu50

-50∼C~150∼C

0.7∼C

Switch mete measure

About 1mA exciting

CLOSE / OPEN







Continuity test

500次 About 1mA exciting

≒50次 vocalism

0.01次





﹛

﹛

﹛

﹛

﹛

﹛

PC701+ Temperature Simulator Calibrator

﹛

PDF catalogue/user manual

﹛

Detailed Product Description

Specifications:
1) Analogue output 8 types of thermocouple
2) 2 types of thermo-resistance
3) DCV output and resistance analogue output
4) MV and resistance output function can take the calibration of process
    calibration of extra temperature
5) Celsius scale/Fahrenheit scale displaying
6) 5-digits LCD easy keyboard operation
7) Auto calibrate function
8) Small, suitable for field operation
9) Color: dark gray
10) Size: 20 x 100 x 40mm
Inner packing:
Color box
﹛

PC702+  Thermocouple Calibrator

﹛

PDF catalogue/user manual

﹛

Detailed Product Description

Out put Range:
Voltage: 100mV/1000mV
Thermometer:
R: -40-17600C
S: -20-17600C
B: 400-18000C
E: -200-10000C
K: -200-13700C
J: -200-12000C
T: -200-4000C
N: -200-13000C
Measuring Function:
Input range:
Voltage: 100mV
Thermometer: R: -40-17600C
S: -20-17600C
B: 400-18000C
E: -200-10000C
K: -200-13700C
J: -200-12000C
T: -200-4000C
N: -200-13000C

﹛

PC703+  RTD Calibrator

﹛

PDF catalogue/user manual

﹛

Output Function









Output

Range

Output range

Resolution

Accuracy

Explanation

Resistance



400次

0.0~450.0次

0.1次

㊣0.05% Setting Value ㊣0.2次

㊣1mA exciting current Note1.2

Thermo-resistance



Pt100

 -200.0~850.0∼C

0.1∼C

㊣0.05% Setting Value ㊣0.6∼C

㊣1mA exciting current use Pt100-385

Cu50

 -50.0~150.0∼C

0.1∼C

 Note1.2

㊣1mA excitong current Note1.2

﹛
﹛ ﹛

PC704+ Voltage/mA Source Calibrator

﹛

PDF catalogue/user manual

﹛

Detailed Product Description

Input range:
Voltage: 10 V
Current: 20mA
Analogue transducer: -20mA
Loop power: 24V
General Characters:
Power: 9V battery or AC power adapter
Max. allowable voltage: 30V
Size: 200 x 100 x 40mm (with hoster)
Accessories: Operation manual, test line CF-36 (PROBE WITH ALLIGATOR CLIP)

﹛

﹛

PC705+ Loop Calibrator

﹛

Specification:

Project

PC705+

Measurement

DC voltage

Range

28V

Resolution

0.001V

Basic accuracy

0.02%+2dgt

Resistance

Range

/

Resolution
