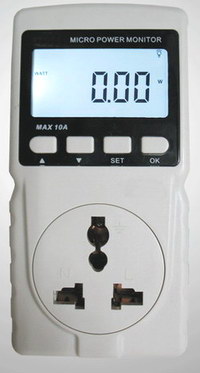

PCM6 Micro Power Monitor

Specifications:

* Power supply:220V 50Hz Max 10A(within 2.2KW)
* Accuracy: 1.0
* Constant: 6400imp/kWh
* Power dissipation: <1W
* Operating Temperature: 0~45°C
* Storage Temperature: -20~60°C
* Monitoring of the current value of the active power
* Monitoring of the current voltage /current / frequency
* Record the total time consumption
* Record the total electricity consumption
* Calculate CO2 emissions
* Power factor detection
* Set the alarm threshold load
* Large LCD display

Packing:
*Standard Quantity Per Carton: 60PCS
*Standard Carton Size: 48.5*36.3*43.8CM
*Standard Carton Gross Weight: 11.4KG

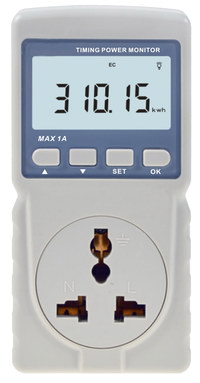

PCM7 Precision Power Monitor

1. Power supply:220V 50Hz Max 1A(within 220W)

2. Accuracy: 1.0

3. Constant: 6400imp/kWh

4. Power dissipation: <1W

5. Operating Temperature: 0~45ºC

6. Storage Temperature: -20~60ºC

7. Monitoring of the current value of the active power

8. Monitoring of the current voltage /current / frequency

9. Record the total time consumption

10. Record the total electricity consumption

11. Calculate CO2 emissions

12. Power factor detection

13. Set the alarm threshold load

14. Large LCD display

15. Standard Quantity Per Carton: 60PCS

16. Standard Carton Size: 48.5*36.3*43.8CM

17. Standard Carton Gross Weight: 11.4KG

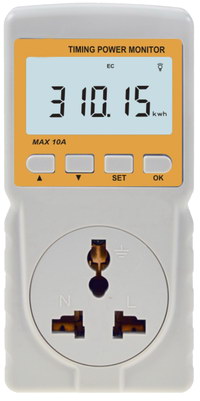

1. Power supply:220V 50Hz Max 10A(within 2.2KW)

2. Accuracy: 1.0

3. Constant: 6400imp/kWh

4. Power dissipation: <1W

5. Operating Temperature: 0~45ºC

6. Storage Temperature: -20~60ºC

7. Monitoring of the current value of the active power

8. Monitoring of the current voltage /current / frequency

9. Record the total time consumption

10. Record the total electricity consumption

11. Calculate CO2 emissions

12. Power factor detection

13. Set the alarm threshold load

14. Large LCD display

15. Clock Display

16. Time switch

17. Over current

18. Buzzer alarm

19. Standard Quantity Per Carton:60PCS

20. Standard Carton Size: 48.5*36.3*43.8CM

21. Standard Carton Gross Weight: 11.4KG

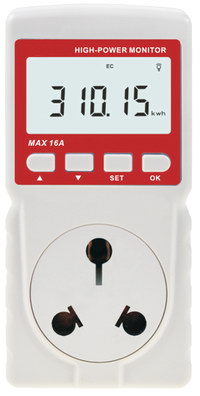

PCM9 High-Power Monitor

Specifications:

* Power supply: 220V 50Hz Max 16A

* Accuracy: 1.0
* Constant: 6400imp/kWh
* Power dissipation: <1W
* Operating Temperature: 0~45°C
* Storage Temperature: -20~60°C
* Monitoring of the current value of the active power
* Monitoring of the voltage /current / frequency
* Record the total electricity consumption
* Calculate CO2 emissions
* Power factor detection
* Set the alarm threshold load
* Large LCD display

Packing:
*Standard Quantity Per Carton: 60PCS
*Standard Carton Size: 48.5*36.3*43.8CM
*Standard Carton Gross Weight: 11.4KG

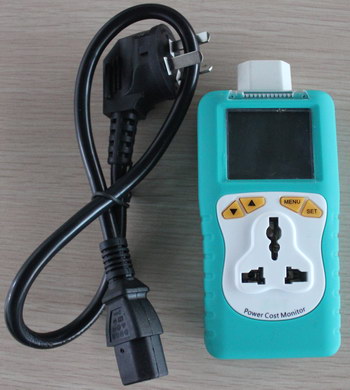

PCM5 Power Cost Monitor

Main Features
Measures up to eight parameters of the monitoring power
Monitors and calculates the cost of single running home or office appliance
Calculates the CO2 consumption for the monitoring appliance
External power cable design makes testing sockets free for other appliances
Standard optional sockets versions provides international socket compatibility for measurement in travel
Currency customization is welcomed
Specifications
