Sound Level Meter

APPLICATION: It is used to measure the sound level of machines, vehicles, traffic, architecture acoustics, environment noise and electric noise.

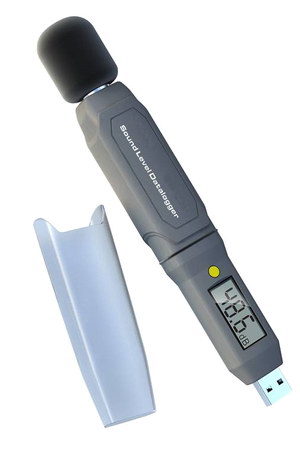

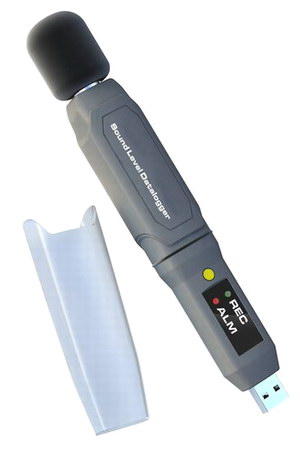

USB Digital Sound Level Data Logger SRDL130A

Features:
1, Two dual color(red and green) LED indicators
2, Range: 30~130dB; Resolution: 0.1dB
3, Accuracy: ±2dB
4, A/C weighting
5, FAST/SLOW weighting
6, Build in EEPROM memory, offers the ability to track and store 32000 set of data. Data is available until next setup, and can be download to a computer.
7, USB data link
8, High and low alarm limit, selectable sampling time
9, Users is able to analyze the data in graph view using included software and also print or save the results.

Specifications:

Product name		USB digital sound level data logger
Model		SRDL130A
Structure	Dimension	180×28×27(mm)
	Display	Dual color LED
	Housing	ABS engineering plastic housing, safe and reliable
Range		30~130dB
Resolution		0.1dB
Accuracy		±2dB
A/C weighting		Yes
FAST/SLOW weighting		Yes
Max data storage		32000 set of data
Power supply		DC3.6V Li Battery Capacity: 1200mAh
Data link		USB 1.0/2.0
Software		Included

USB Digital Sound Level Data Logger SRDL130B

Features:
1, LCD displays current sound level
2, Range: 30~130dB; Resolution: 0.1dB
3, Accuracy: ±2dB
4, A/C weighting
5, FAST/SLOW weighting
6, MAX/MIN/AVG display mode
7, Build in EEPROM memory, offers the ability to track and store 32000 set of data. Data is available until next setup, and can be download to a computer.
8, USB data link
9, High and low alarm limit, selectable sampling time
10, Users is able to analyze the data in graph view using included software and also print or save the results.

Specifications:

Product name		USB digital sound level data logger
Model		SRDL130B
Structure	Dimension	180×28×27 (mm)
	Display	LCD screen
	Housing	ABS engineering plastic housing, safe and reliable
Range		30~130dB
Resolution		0.1dB
Accuracy		±2dB
A/C weighting		Yes
FAST/SLOW weighting		Yes
Max data storage		32000 set of data
Power supply		DC3.6V Li Battery Capacity: 1200mAh
Data link		USB 1.0/2.0
Software		Included

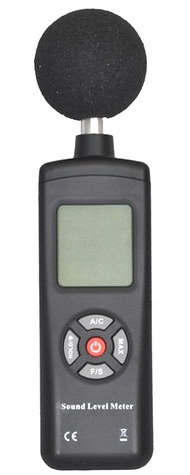

SR6621 Sound Level Meter

Specifications:

1.Sound level Range:30 to 130dB(Low=30-100dB ,High=60-130dB).

2.Accuracy :+1.5dB (ref 94dB @1kHz).

3.Frequency Range:31.5Hz to 8kHz.

4.Frequency Weighting: A,C.

5.Max Hold and Data Hold Function.

6.Time Weighting: Fast ,slow.

7.Operation temperature:0 to 50C(32 to 122F).

8.Operation humidity:10 to 90%RH.

9.Storage temperature: -10 to 60C(14 to 140F).

10.Storage humidity:10 to 75%RH.

11.Backlight,Auto power off and Disable sleep mode.

12.Over range ,Low range, low power symbol display.
13.Power Supply: 9V Battery x 1.

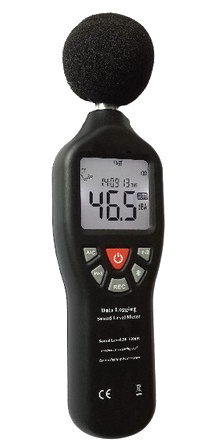

SR6620 Sound Level Meter (USB interface, Data Logger)

Specifications:

1.Sound level Range:30 to 130dB(Low=30-100dB ,High=60-130dB).

2.Accuracy :+1.5dB (ref 94dB @1kHz).

3.Frequency Range:31.5Hz to 8kHz.

4.Frequency Weighting: A,C.

5.Max Hold.

6.Time Weighting: Fast ,slow.

7.Operation temperature0 to 50C(32 to 122F).

8.Operation humidity:10 to 90%RH.

9.Storage temperature: -10 to 60C(14 to 14F).

10.Storage humidity:10 to 75%RH.

11.Backlight,Bar Graph display.

12.Over range ,Low range, low power symbol display.

13.Record 32000 datas.

14.Download data to a computer via supplied software.

15.Auto power off and Disable sleep mode.
16.Power Supply: 1.5V Battery (AA) x 4.

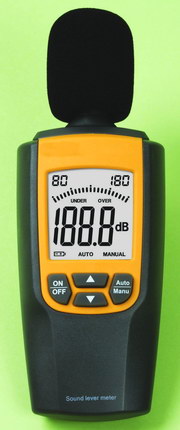

SR8080 Sound level meter

The Sound Level Meter has been designed to measure sound level for various environments. It is used to detect noise, music level or sound engineering.

SPECIFICATIONS:

●Standard applied: IEC651 Type2, ANSI S1.4 Type 2

●Frequency range: 31.5Hz~8KHz

●Measuring range: 30-60dB, 50-80dB, 70-100dB, 90-120dB

●Frequency weighting: A Type

●Digital display:4 digitals

●Resolution:0.1 dB.

●Accuracy: 30~60dB ±3 dB; 60~120dB ±2 dB

●Time response: Analog bar: 125ms ; Digital :750ms

●Operating temperature: 0 ~ +40℃

●Operating humidity: 10 ~ 80%RH

FEATURES:

● automatic ranging / manual ranging selection.

● Analog bar indicator.

● Frequency weighting A Type.

● Range display.

● Automatic shutdown / continuous working mode selection.

● Low battery voltage indication.

● Sound OVER or UNDER display.

● Software calibrating to insure high reliability.

● Good circuit designed to save power.

● Small volume, large LCD.

● Low power consume

● Complete with pouch case

● Power supply: DC1.5V (AAA) x 3pcs

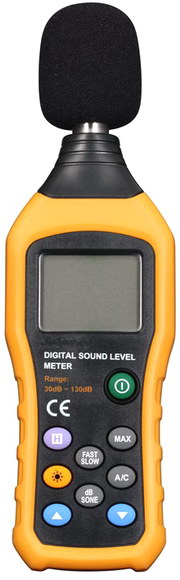

SR6708 Sound Level Meter (same as MASTECH MS6708)

Specification
Sound pressure accuracy	± 1.5 dB (sound pressure standard, 94 dB @ 1KHz)
Sound pressure accuracy	±5 dB (sound pressure standard, 94 dB @ 8KHz)
Sound pressure frequency response	50 dB (for each measurement gear level)
Dynamic range of sound pressure	30-130 dB A, 35-130 dB C
Sound pressure frequency weighting characteristics	A and C characteristics
Dynamic characteristic of sound pressure	FAST 125ms, SLOW 1sec
Microphone	polarized capacitive microphone
Features
Display	Digital Display & Analog Bars Display
Auto range	√
Reaction rate	Fast/Slow Selection
MAX/MIN/HOLD	√
Back light	√
Low battery indication	√
GENERAL
Power Supply	4x1.5V AAA Batteries
Product Size	184mm×60mm×29mm
Product Weight	190g(0.41lb)
Category	CE RoHS

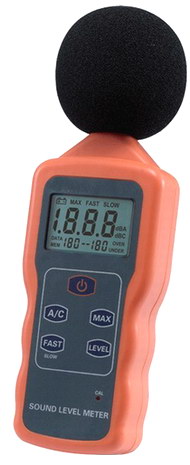

SR6200 Sound Level Meter

Specifications:

1.Frequency range:125Hz to 8KHz
2.Measuring range:35-130dB
3.Frequency Weighting:A/C
4.Microphone:1/2 inch electret condenser
5.Display:3 1/2 digits LCD display
6.Resolution:0.5dB
7.Sampling time:0.5 second
8.Time Weighting:FAST 125ms
　　　　　　　    SLOW 1 second
9.Measuring ranges:
　　　                 Range 1:（30）32dB to 70 dB
　　　                 Range 2:60dB to 100 dB
　　　                 Range 3:90dB to 130 dB
10.Accuracy:±2dB(94dB@1kHz)
11.Dynamic range:30dB
12.MAX hold: "MAX"
13.Power supply: one 9V battery (model 6F22)
14.Operating environment: (Temperature: 0-40℃（32-104°F）)
15.Relative humidity: ≤90%RH

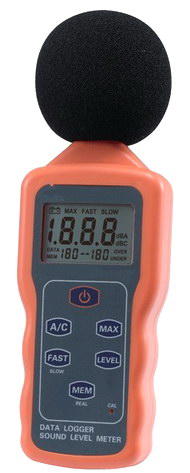

SR6201 Sound Level Meter

Specifications:

1.Frequency range:31.5Hz to 8KHz
2.Measuring range:(28)30-130dB
3.Frequency Weighting:A/C
4.Microphone:1/2 inch polarization capacitance microphone
5.Digital Display:4 digit LCD
6.Resolution:0.1dB
7.Display Update:2 times/sec
8.Time Weighting:FAST 125ms
                          SLOW 1 second
9.Measuring ranges:
                           Range 1:（28）30dB to 70 dB
                           Range 2:60dB to 100 dB
                           Range 3:90dB to 130 dB
10.Accuracy:±1.5dB(reference conditions 94dB@1kHz)
11.Dynamic range:40dB
12.MAX hold: "MAX"
13.Data storage:60000 samples
14.Interface:USB interface
15.Power: one 9V battery
16.Operating environment:
17.Temperature: 0-40℃（32-104°F）
18.Relative humidity: ≤75%RH

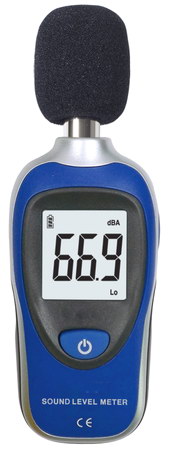

SR55M3 MINI Sound Level Meter

Features:

1. Portable, nice, easy operation
2. MAX/MIN holding
3. Backlit LCD display
4. Low battery indication
5. Auto power off
Specification:

Applied standard

IEC61672-1 CLASS2

Measuring level range

30dB~130dB

Operating conditions

-20°C~60°C, 10％RH~90％RH

Storage conditions

-20°C~60°C, 10％RH~75％RH

Accuracy

±1.4dB

Resolution

0.1dB

Frequency range

31.5Hz~8KHz

Dynamic range

50dB

Data update

0.5 second

Frequency weighting

dBA

Microphone

1/2 inch electret condenser

Dimension (L*W*H)

144* 55* 38mm

Weight

90g

Power supply

one 9V battery

Accessories

User's manual, 9V battery, windscreen, carrying box, gift box

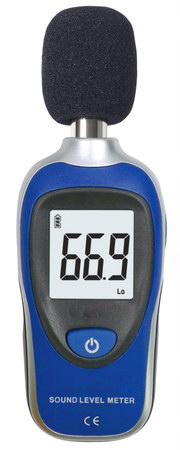

SR55M4 MINI Sound Level Meter

Features:

1. Portable, nice, easy operation
2. MAX/MIN holding
3. Backlit LCD display
4. Low battery indication
5. Auto power off
Specification:

Applied standard

IEC61672-1 CLASS2

Measuring level range

30dB ~ 130dB

Operating conditions

-20°C ~ 60°C, 10％RH ~ 90％RH

Storage conditions

-20°C ~ 6 0°C, 10％RH ~ 75％RH

Accuracy

±1.4dB

Resolution

0.1dB

Frequency range

31.5Hz ~ 8KHz

Dynamic range

50dB

Data update

0.5 second

Frequency weighting

dBC

Microphone

1/2 inch electret condenser

Dimension (L*W*H)

144* 55* 38mm

Weight

90g

Power supply

one 9V battery

Accessories

instruction manual, 9V battery, windscreen, carrying box, gift box

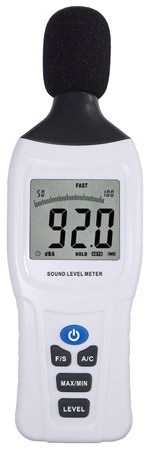

SR9033 Sound Level Meter

Features:
1, Time weighting: FAST and SLOW
2, MAX/MIN record
3, Data Hold
4, Overrange indication
5, analog bar-graph indication
Specification:

Applied standard: IEC61672-1 CLASS2
Accuracy: ±1.4dB
Frequency range: 31.5Hz~8kHz
Dynamic range: 50dB
Measuring level range:

Lo: 30dB~80dB Med: 50dB~100dB
Hi: 80dB~130dB Auto: 30dB~130dB
Frequency weighting: A and C
Time weighting: FAST 125ms; SLOW ( 1s )
Microphone: 1/2 inch electret condenser microphone
Resolution: 0.1dB
Sampling time: 2 times/second
MAX hold: MAX
MIN hold: MIN
DATA hold: HOLD
Overrange indication: "OVER" or "UNDER"
Backlight display: YES
Analog measurement: fast analog bar-graph indication
Operating conditions: -20°C~+60°C: 10％RH~90％RH
Storage conditions: -20°C~+60°C: 10％RH~75％RH
Auto power off: the meter will be automatically shut off in activity of 15 minutes

SR9053 Sound Level Meter

Features:

1. Analog AC/DC outputs for connection to
frequency analyzer or X-Y shaft recorder
2. A/C frequency weighting
3. Time and Date display
4. Over/Under input alarm
5. MAX/MIN record

Specification:

Applied standard

IEC61672-1 CLASS2

Measuring level range

Lo: 30dB~80dB; Med: 50dB~100dB;
Hi: 80dB~130dB; Auto:30dB~130dB

Operating conditions

-20°C ~ 60°C; 10％RH ~ 90％RH

Storage conditions

-20°C ~ 60°C; 10％RH ~ 75％RH

Accuracy

±1.4dB

Resolution

0.1dB

Frequency range

31.5Hz ~ 8kHz

Dynamic range

50dB

Frequency weighting

A & C

Time weighting

FAST 125ms; SLOW ( 1s )

Microphone

1/2 inch electret condenser microphone

Sampling time

2 times/second

Display

4digits LCD display with a of 0.1dB

Dimension (L*W*H)

252*66 *33 mm

Weight:

262g

Power supply

one 9V battery

Accessories

instruction manual, battery,￠3.5mm earphone, plug,

windscreen, regulator rod, tripod (optional), carrying box, large gift box

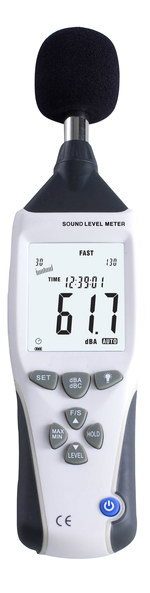

SR9058 Professional Sound Level Meters with Datalogger

Features:
1. MAX & MIN record
2. Overrange / Underrange indication
3. A & C weighting
4. FAST & SLOW response
5. Analog AC/DC outputs
6. PC real-time monitoring and recording
7. Datalogger function
8. Memory up to 262144 readings

Specification:

Applied Standard

IEC61672-1 CLASS2

Measuring Level Range

Lo:30~80dB; Med:50~100dB；

Hi:80~130dB; Auto:30~130dB

Operating Conditions

-20~60°C/10%~90%RH(Non-condensation)

Storage Conditions

-20~60°C/ 10%~75%RH(Non-condensation)

Accuracy

±1.4dB

Resolution

0.1dB

Frequency Range

31.5Hz~8kHz

Dynamic Range

50dB

Frequency Weighting

A & C

Time Weighting

FAST 125ms; SLOW ( 1s )

Sampling Time

2 times/second

Microphone

1/2 inch electret condenser microphone

Dimension (L*W*H)

252*66 *33 mm

Weight

262g

Accessories

User's manual, 9V battery, windscreen, regulator rod,

Φ3.5 earphone plug, USB cable, adaptor, software, tripod (optional), gift box, carrying case

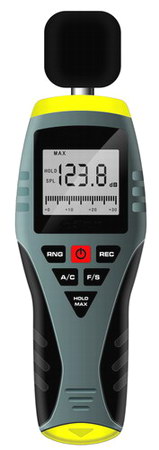

Digital Sound Level Meter SR5330C

Features:
1, LCD displays current sound level
2, Range: 40~130dB; Resolution: 0.1dB
3, Accuracy: ±2dB
4, Range options: Auto and manual (40~70dB; 60~90dB; 80~110dB; 100~130dB)
5, A/C weighting
6, FAST/SLOW weighting
7, MAXHOLD display
8, MAX/MIN record
9, Backlight
10, Auto power off in 20 minutes
11, Low battery alarm
Specifications:

Product name		Digital Sound Level Meter
Model		SR5330C
Structure	Dimension	207×61×40 (mm)
	Display	LCD screen
	Housing	ABS engineering plastic housing, safe and reliable
Range		40~130dB
Resolution		0.1dB
Accuracy		±2dB
A/C weighting		Yes
FAST/SLOW weighting		Yes
Max reading display mode		Yes
Record Max and Min readings		Yes
Range options		Yes
Auto power off		20 minutes
Backlight		Yes
Low battery alarm		Yes
Power supply		9V block battery

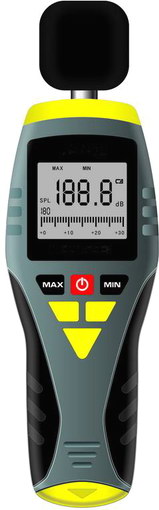

SR5330D Digital Sound Level Meter

Features

1, LCD screen show sound level
2, Measuring range: 40~130dB; Resolution: 0.1db
3, Accuracy: ±2Db
4, A Weighting
5, Fast time weighting
6, Max/Min with backlight
7, After 20 minutes Auto power off
8, Low battery indication
Specifications

Product Name		Digital Sound Level Meter
Model		SR5330D
Structure	Product dimension	207×61×40 (mm)
	display modes	LCD screen
	Structure form	ABS Engineering plastic shell, safe and reliable
Measuring range		40~130dB
Resolution Measuring precision		0.1dB
		±2dB
A/C Weighting		A
FAST/SLOW time indication		FAST
Max display mode		√
Min display mode		√
Auto power off		20minutes
Backlight		√
Low voltage alarm		√
Power supply		9Vbattery

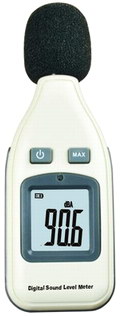

SR5451 Sound level meter

Measuring range: 30~130 dBA
*Accuracy: ±1.5 dB
*Digit & Resolution: 4digit & 0.1 dB
*Frequency response: 31.5Hz ~8.5KHz
* Frequency weighting characteristic: A
*Sampling rate: 2times/second
*Microphone: polarization capacitance microphone
*Low battery indication
*Power: 9V battery
*Standard Quantity Per Carton: 60pcs
*Standard Carton Size: 48*47*40CM
*Standard Carton Gross Weight: 12kg

*Volume Weight: 18.05KGS

　

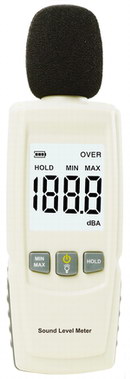

SR5452 Sound level meter

Measuring Range: 30~130dBA
Accuracy: ±1.5dB
Frequency Response: 31.5Hz~8KHz
Frequency Weighting Features: A Weighting
Resolution: 0.1dB
Power Source: 3*1.5V AAA Batteries
Working Temperature and Humidity: 0~40°C, 10~80%RH
Storage Temperature and Humidity: -10~60°C, 0~90%RH
Weight: 84.08g (Excluding Battery )
External Dimension: 50*33*159.5mm

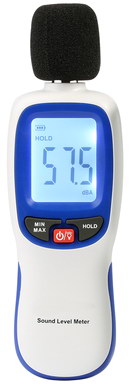

SR5453 Sound level meter

Weight: 96.38g (Excluding Battery )
External Dimension: 56.1*177*36.03mm

SR5450 Sound level meter

1.with a panoramic backlight (scale range: 30dB-130dB)
2. Two measurement method provides the accuracy of 1.5dB
3.The compact novel, with high-performance, comply with IEC651 standard
4. to maintain and maximum data retention
5.Weight: 230 grams
6. Range:

Lo (low) - Band: 30dB ~ 100dB
Hi (high) - Band: 60dB ~ 130dB
Basic accuracy: 94dB when ± 1.5dB, 1kHz sine wave
Sound level bands: A, C
Resolution: 0.1dB

SR5480 Sound level meter

Feature:

Provides 3dB accuracy

Newly and small Design Shape

High Performance

Max Hold Function

Specification
Level Range	LoA=35-100dB
Accuracy	+3dB (ref 94dB @1kHz)
Frequency Range	31.5Hz to 8k Hz
Frequency Weighting	A
Battery Type	9V battery
Operation Temp	0 °C -40 °C (<80% R.H.)
Storage Temp	-10 °C ~60 °C (<70% R.H.)

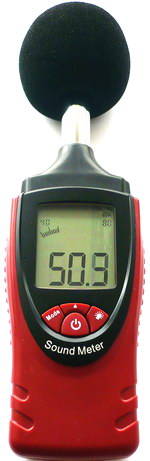

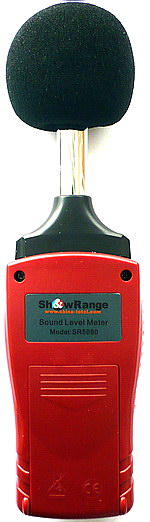

SR5080 Sound level meter

Feature:

Frequency range: 31.5Hz~4KHz
Measuring range: 40-130dB (40~80dB, 50~90dB, 60~100dB, 70~ 110dB, 90~130dB)
Frequency weighting: A Type

Microphone: 1/2 electret condenser microphone

Display: LCD
Digital display: 4 digital
Resolution: 0.1 dB

Sampling rate: 0.5 sec
Accuracy: +/- 2dB (At 94dB, 1KH)
Time response: Fast (125ms)

Over range indication: "OVER", "UNDER"
Auto power off: 10 minutes without operation

Power Supply: 3*AAA, LR03 AM4 (continuously working for 6h)

Operation temperature: -10~40°C, 14~104ºF

Operation Humidity: 10~90%RH

Storage temperature: -20~60°C (-4~140ºF)

Dimension: 170 x 55 x 25mm

Weight: 165g (batteries included)
Accessories included:
instruction manual, 3*AAA batteries, wind screen

Packing: 70PCS/CTN, CTN SIZE: 53x33x37CM, G.W: 18.5KGS

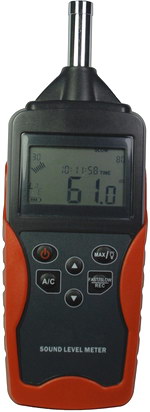

Sound Level Meter SR821S
Product Readme:
l Compliant with JJG 188-200 and IEC 61672-1:2001 2 requirements
l Easy measurement of sound pressure level (Lp),equivalent continous sound pressure level (Leq),maximum sound pressure level (Lmax),sound exposure level (LE),and peak sound level (LCpeak)
l Backlit display.
l Auto Off function.
Feature:

Technical data
Microphone:1/2 inch electret condenser microphone
Sensitivity level: -33dB ~3dB (1V/Pa = 0dB)
Range:A-weighting:30dB ~ 130dB
C- weighting:35dB ~ 130dB
Measurement frequency range:20Hz to 8KHz
Measurement time settings:1min,5min,10min,1h
Time weighting characteristics:FAST;SLOW
Calibration:94dB
Display(TN positive display)
Numeric display :0.1dB resolution
Bar graph: Scale range 100dB,5dBresolution
Warming indicators: OVER (overload),UNDER(underload)
DC output:3V, 25mV/dB
Ambient conditions :-20 ~ 70 oC/-4 ~ 158oF
Storage/transport condition:-30 ~80oC,-22 ~176oF
Specification:

Power supply: 1x 9.0V,6F22 batteries
Size: 160*74*35 mm
Weight: 330g (batteries included)
Packing: Gift box + PP Box

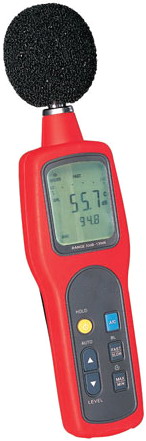

SR5351

Sound Level Meter SR5351

Specifications

Measurement Functions	SR5351
Total Range	30 to 130dB
Maximum Level	130dB
Accuracy	±1.5dB
Range Selections	30 to 80dB, 50 to 100dB, 60 to 110dB, 80 to 130dB
Frequency Range	31.5Hz to 8000Hz
Frequency Weighting	A and C
Time Weighting	FAST (125ms)
Time Weighting	SLOW (1 second)
Analogue Bar Graph	30~130dB
Warning	Over-Range “OVER”, Under-Range “UNDER”
Analogue Outputs	AC: 0.707Vrms full scale; Output impedance: around 600Ω
Analogue Outputs	DC: 2Vrms full scale; 10mV/dB; Output impedance around 100Ω
Max/Min Mode	Yes
Data Hold	Yes
Display Backlight	Yes
Sleep Mode	Yes
Low Battery Display	4.8V

General Characteristics

Power	1.5V Battery (AA) x 4
LCD Size	53 x 41mm
Product Color	Red and Grey
Product Net Weight	330g
Product Size	273 x 70 x 39mm
Standard Accessories	Batteries, English Manual
Standard Individual Packing	Gift Box
Standard Quantity Per Carton	30pcs
Standard Carton Measurement	670 x 385 x 300mm (0.077 CBM Per Standard Carton)
Standard Carton Gross Weight	18kg

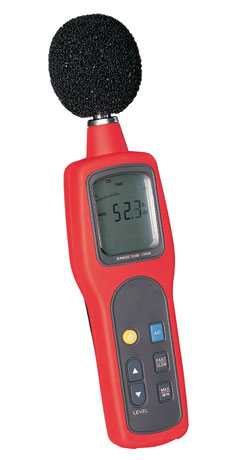

SR5352

Sound Level Meter SR5352

Specifications

Measurement Functions	SR5352
Total Range	30 to 130dB
Maximum Level	130dB
Accuracy	±1.5dB
Range Selections	30 to 80dB, 50 to 100dB, 60 to 110dB, 80 to 130dB
Frequency Range	31.5Hz to 8000Hz
Frequency Weighting	A and C
Time Weighting	FAST (125ms) SLOW (1 second)
Analogue Bar Graph	30~130dB
Warning	Over-Range “OVER”, Under-Range “UNDER”
Analogue Outputs	AC: 0.707Vrms full scale; Output impedance: around 600Ω DC: 2Vrms full scale; 10mV/dB; Output impedance around 100Ω
Max/Min Mode	Yes
Data Hold	Yes
Display Backlight	Yes
Sleep Mode	Yes
Low Battery Display	4.8V
Data Logging	63 data sets

General Characteristics

Power	1.5V Battery (AA) x 4
LCD Size	53 x 41mm
Product Color	Red and Grey
Product Net Weight	330g
Product Size	273 x 70 x 39mm
Standard Accessories	Batteries, English Manual
Standard Individual Packing	Gift Box
Standard Quantity Per Carton	30pcs
Standard Carton Measurement	670 x 385 x 300mm (0.077 CBM Per Standard Carton)
Standard Carton Gross Weight	18kg

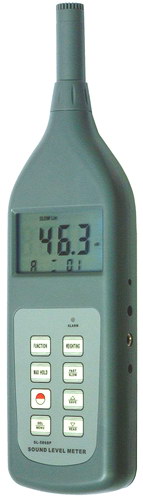

SR5368P Sound Level Meter

This instrument is compatible with several standards of GB/T 3785,IEC 651 Type 2,ANSIS 1.4 Type 2. It is widely used to test the sound level of environment, mechanic, vehicle,ship and other noise.Fit for industry environment protecting,working,sanitation, teaching search and other departments.

Specification	Model		SR5368P
Standard			GB/T3785,IEC651 Type2, ANSIS1.4Type2
Function	Lp (sound level)		√
	Leq (simple equivalent sound level)		√
	LN (statistic sound level)		√
Measuring range	Lp	A	30~130dB
		C	35~130dB
		Line	35~130dB
	Leq		30~130dB (10s, 1m, 5m, 10m,15m, 30m, 1h, 8h, 24h)
	LN		0~100%
Filter			--
Detection characteristics			Fast/slow
DC output (AC optional)			10mv=1dB
Resolution			0.1dB
Accuracy			1dB
Memory			30 groups
Display			LCD display
Alarm set			30~130dB
Alarm output			Relay contact
Power supply			4x1.5V AAA battery
Battery indicator			Low battery indicator
PC interface			RS232C
Auto-switch off			√
Dimension			236x63x26mm
Weight (Not including battery)			170g
Standard Accessories	Main Unit		1
	Windscreen		1
	Carry Case		1
	Operation Manual		1
Optional Accessories			1, RS-232C Cable & software, USB Cable & software, Bluetooth data output
			2, AC Adapter
			3, SR29 sound level calibrator

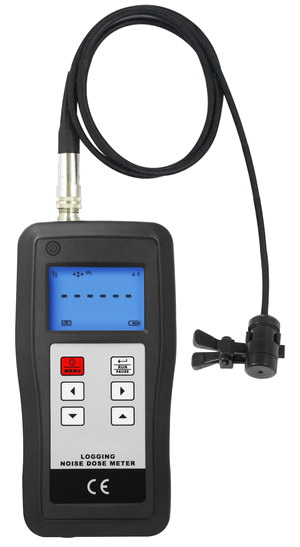

SR5600 Logging Personal Noise Dose Meter
Principle of Measuring Accumulated Noise Exposure
DOSE is a parameter used to quantify noise exposure measured in a period, during turns of % noise exposure relative to 90dBA for 8 hours.
i.e. 100% DOSE = 90dBA for 8 hours
This is known as the Criterion. Other criterion are available such as 100% DOSE = 85dBA for 8 hours to meet legislation in different countries.
If the person stayed in this environment for 4 hours, he would receive 50%DOSE.
Also if the noise level was say 93dBA, 3dB higher, a 100% DOSE would be accumulated in only 4 hours, The above example is for a dose meter with 3dB Exchange Rate, where a 3dB increase in sound level corresponds to a doubling energy. A dose meter with 5dB Exchange Rate is also, available where the sound must increase by 5dB to double the dose as required to meet noise legislation in some countries.

Features
The Noise Dose Meter measure the frequency weighted noise exposures and peak sound levels simultaneously.
* Simple operation, including direct read–out of results.
* Eight built–in standard dose measurement setups : OSHA80, OSHA90, MSHA-80, MSHA-90, DOD, ACGIH, ISO85 and ISO90.
* Nine user – defined measurement setups.
* A single sound level meter (SLM) setup.
* A single sound level meter (SLM) setup.
* 50 dose (DATA) result stores.
* Download of setups from PC to the meter.
* Keypad lock protects meter against accidental operation.
* Timers support pre–selection of measurement time and duration.
* Use USB data output to connect with PC.
The meter is ideal for quick on–site surveys and for monitoring personal noise exposure in accordance with European ISO or USA OSHA, MSHA, DOD AND ACGIH standards.
The meter is two overlapping measurement ranges : 60 – 130 & 70 – 140dB, A & C RMS weightings, Linear & C Peak weightings, Fast & Slow time weightings, and energy exchange rates (Q) of 3, 4, 5 & 6. In dose measurement mode, it display % dose, % dose projected for an 8 hour period, peak level and measurement duration.
For countries that are subject to European Union regulations or the equivalent ISO standards, the meter measure the daily sound exposure level (LAeq,8hr,Pa2h according to IEC 61252, which is identical with the L EX,8h required by ISO 1999), while for USA OSHA/MSHA regulations they measure the Time Weighted Average level (TWA).
When used as a sound level meter it display sound level, time–averaged (L Aeq) sound level, peak and sound exposure level (SEL).
The meter is automatic run timing facilities controlled by the built–in clock and time–history recording capabilities. Sampling times can be specified between 1s and 1 hour, while storage is 120000 data points.
The meter is able to measure and save up to five specified Ln values (Statistical noise levels). Run duration, start and stop times preset, and other setting via the meter keys or software.

Accessories:

Standard Accessories: Main Unit, External Probe, Screwdriver, Carrying Case (B04)
Operation Manual

Optional Accessories: USB Data with Software, Bluetooth Data Adapter with Software

Specifications:

Standard Applied	IEC61252, ANSI S1.25 – 1992 for dose meter and sound exposure meters. IEC 61672-1-2013 Class 2
Microphone	1/2-inch electret condenser microphone with 31-inch integral cable
Display	Liquid Crystal Display
Measurement Ranges (Linearity and Indicator ranges at 4KHz)	60 – 130 : 60 – 130dB (A and C)
Measurement Ranges (Linearity and Indicator ranges at 4KHz)	70 – 140 : 70 – 140dB (A and C)
Peak Ranges (C–weighted or Linear Peak over the top 40dB of each measurement range)	60 – 130 : 93 – 133dB Peak
	70 – 140 : 103 – 143dB Peak
Frequency Weightings	RMS Detector: A or C
Frequency Weightings	Peak Detector: C or Z (Linear)
Time Weightings	Fast and Slow (RMS detector)
Exchange Rate	3, 4, 5 or 6dB
Stabilization Time	10 seconds from power on
Threshold and Criterion Levels (From the setup, predefined in the built-in setup according to applicable standards)	User–defined setups in the following ranges :
	Threshold Level : 70 – 90dB in 1dB steps
	Criterion Level : 80, 84, 85 or 90dB
Criterion Level : 80, 84, 85 or 90dB	At 0.1dB above the top of the selected measurement range
At 0.1dB above the top of the selected measurement range	Under–Range Indications
High Level Detector	115dB
Keypad Lock	Lock and unlock by pressing key combinations: Up and right arrows to lock; left and down arrows to unlock
Clock	Real–time clock with calendar
Memory	Results from 50 measurements can be stored for later viewing and download
Measurement Control	Measurement Duration : May be set to 5, 10, 15, or 30 minutes or 1, 2, 4, 8, 10, 12, or 24 hours
Timers	Up to 16 timers (automatic start and stop) can be set (maximum up to one month ahead of measurement time)
Timer Controlled Started / Stop	Set up from the PC software or meter keypad
Logging	All measurement parameters values can be logged
Logging Period (LP)	1s, 2s, 5s, 10s, 15s, 20s, 30s, 1min, 2min, 5min, 10min, 15min, 20min, 30min or 60min
Logging Capacity	120000 values can be stored at any one time
Setup	Eight built–in (predefined) default setups are included. Nine additional user–defined setups can be stored
Output	USB interface
Power Supply	4x1.5V AAA Size (UM-4)Battery
Battery Indicator	Symbol indication battery voltage level in 4 steps. Indicator flashes when voltage is insufficient for operation
Operating Temperature & Humidity	0 – 50ºC (32 to 122ºF) ,10 – 90%RH
Storage Temperature & Humidity	-10 – 60ºC(14 to 140ºF) ,10 – 75%RH
Size	140x72x34mm
Weight	Approx. 350g (including batteries)

GENERAL FEATURES &SPECIFICATIONS

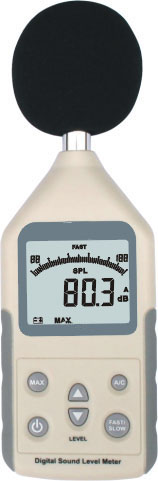

Model	SR5814
Measuring Range	30~130dBA
Measuring Range	35~130dBC
Accuracy	+/- 1.5dB
Frequency Range	31.5HZ-8.5KHZ
Linearity Range	50dB
AC/DC Output	Yes
Auto Power Shut Off	Yes
Low Battery Indication	Yes
Over Range Indication	Yes
Digit & Resolution	5Digits & 0.1dB
Time Weighting Selection	Fast/Slow
Microphone	1/2 Inch Electret Condenser Microphone
Frequency Weighting	A & C
Frequency Weighting	Yes
Max Hold Function	Yes
RS232 PC Interface	-
Calendar function	-
Sampling Frequency	2 times/sec

GENERAL CHARACTERISTICS

Power	9V (Alkaline or DC Adapter)
LCD size	30*50mm
Product Color	Ivory
Product Net Weight	178g
Product Size	2077029mm

PACKING INFORMATION

Packing	Gift box
Standard Quantity Per Carton	20
Standard Carton Size	62.545.028.5cm
Standard Carton Gross Weight	14.68kg
Packing2(other countries)	Blister
Standard Quantity Per Carton	20
Standard Carton Size	41.037.533.2cm
Standard Carton Gross Weight	5.76kg

GENERAL FEATURES & SPECIFICATIONS

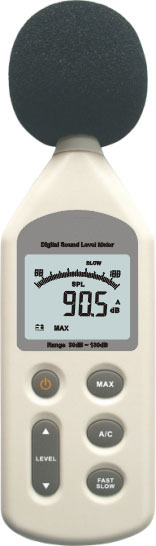

Model	SR5824
Measuring Range	30~130dBA
Measuring Range	35~130dBC
Accuracy	+/- 1.5dB
Frequency Range	31.5HZ-8.5KHZ
Linearity Range	50dB
AC/DC Output	Yes
Auto Power Shut Off	Yes
Low Battery Indication	Yes
Over Range Indication	Yes
Digit & Resolution	5Digits & 0.1dB
Time Weighting Selection	Fast/Slow
Microphone	1/2 Inch Electret Condenser Microphone
Frequency Weighting	A & C
Frequency Weighting	Yes
Max Hold Function	Yes
RS232 PC Interface	-
Calendar function	-
Sampling Frequency	2 times/sec

GENERAL CHARACTERISTICS

Power	9V (Alkaline or DC Adapter)
LCD size	30*50mm
Product Color	Ivory
Product Net Weight	300g(include battery)
Product Size	2657035mm

PACKING INFORMATION

Packing	Gift box
Standard Quantity Per Carton	20
Standard Carton Size	62.545.028.5cm
Standard Carton Gross Weight	17.2kg
Packing2(other countries)	Blister
Standard Quantity Per Carton	20
Standard Carton Size	41.037.533.2cm
Standard Carton Gross Weight	6.2kg

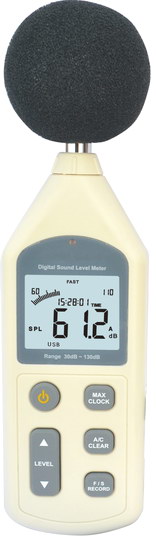

Sound Level Meter SR5834 (USB Interface, with Datalogger)

Specification

Standard	IEC PUB 651 TYPE2; ANSI S1.4 TYPE2
Measuring Range	30~130dBA, 35~130dBC
Accuracy	+/- 1.5dB
Digit & Resolution	5Digits & 0.1dB
Frequency Range	31.5HZ-8.5KHZ
Measuring Level	30~130,40~90,50~100, 60~110,80~130
Frequency Weighting characteristic	A & C
Time Weighting Selection	Fast/Slow
Sampling Frequency	2 times/sec
Microphone	1/2 inch polarization capacitance microphone
AC/DC output	Yes
MAX reading	Yes
PWM output	Yes
Calenda	Yes
USB interface	Yes
Data Store	4700
Analysis software	Yes
Automatic backlight	Yes
Auto power off	Yes
Overload indication	OVER/UNDER
Low battery indication	Yes
Power	4pcs 1.5V AA or DC 6V 100mA adapter
Product Size & Weight	7035256mm, 308g (including batteries)
Packing method	PP box + Gift box
Standard Quantity Per Carton	20PCS
Standard Carton Size	66.945.830.7CM
Standard Carton Gross Weight	19.8kg

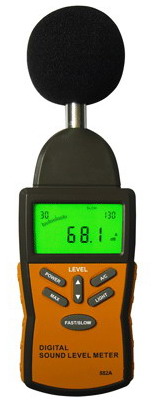

SR882A New type Sound Level Meter
Basic function
Measure Range: 30~130dBA 35~130dBC
Accuracy: +/-1.5dB
Frequency Range: 31.5HZ-8.5KHZ
Linearity Range: 50dB
Digit & Resolution: 5Digits & 0.1dB
Sampling Frequency: 2 times/sec

Express function

AC/DC Output: Yes
Auto Power Shut Off: Yes
Low Battery Indication: Yes
Over Range Indication: Yes
Microphone: 1/2 Inch Electret Condenser Microphone
Time Weighting Selection: Fast/Slow
Frequency Weighting: A & C
Max Hold Function: Yes

General Features
Standard Accessory: RS232 caliber×1pcs, Drive CD ×1pcs ( only for 834), User' s Manual×1pcs, Gift box
Battery Type: 6×1.5v AA (Alkaline or DC Adapter)
Dimension: 300g
MOQ: 20pcs
Ctn Size: 62.5×45.0×28.5cm
Q'TY / Ctn: 20pcs
GW/NW: 19 kg/18 kg

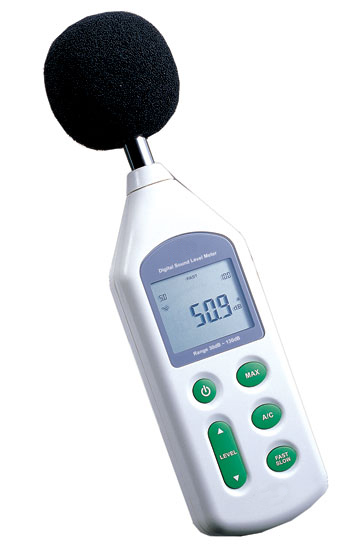

SR4001 Digital Sound level meter

Nice design makes this meter a special one in its peers. Better design, good accuracy and easy to use.

Features

1, The meters is designed to meet standard IEC651 TYPE2 and ANSI S1.4 TYPE2.

2, The meters includes SPL measurement function.

3, Measuring rang is 30~130dB

4, A & C weighting networks are conformity to standards.

5, Time weighting (FAST & SLOW)dynamic characteristic modes .

6, AC/DC output for system expansion.

Specifications

Range	Accuracy	Resolution	Dynamic response
30dB-130dB	+/- 1.5dB	0.1dB	50dB

1, Accuracy: +/- 1.5dB (94 dB@1KHz)

2, Frequency response: 31.5Hz ~ 8.5KHz

3, Dynamic characteristic: 50dB

4, Measuring range: 30 ~ 130dB

5, A & C frequency weighting characteristic

6, Display : LCD display, 5 digits,

Resolution is 0.1dB; sampling rate is 2 to 5 times per second.

7, Scale display: per "-"indicates 1dB, sampling rate is 2 times per second

8, Measuring range : 30~80dB, 50~100dB, 60~110dB, 80~130dB

9, "OVER" overload indication, "UNDER" under load indication .

10, AC signal output: 0.707 rms on each range, out impedance is 600 ohm.

11, DC signal output: 10mV/dB, out impedance is 100 ohm.

12, FAST and SLOW dynamic characteristic mode.

13, Size of microphone: 1/2-inch standard size

14, Lock Maximum value: MAX

15, Power supply: 4×1.5V AA cells or 6V,100mA DC power supply

16, Self-test time: 10 seconds

17, Operating temperature and humidity: 0~+40ºC , 10 ~ 80%RH

18, Stored temperature and humidity: -10 ~ +50ºC , 10 ~70%RH

19, Dimensions : 265(L)*72(W)*35(H)

20, Weight: 300g (including batteries)

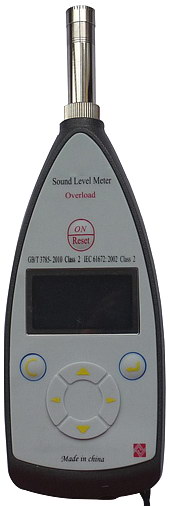

SR6636 Sound Level Meter Class 2

Features:

-Complies with IEC-61672 Class 2

-Frequency Range: 20HZ~12.5KHz
-Latest digital signal processing technology
-Wide dynamic range
-High precision
-Modular design, on demand selection
-Wide warm design, operating temperature from -15ºC to 50ºC
-Small and light weight

Applications:
-Widely use in industrial noise surveys, machinery, vehicles, ships and etc
-May also be used in ambient noise

Model	SR6636-0	SR6636-1	SR6636-2	SR6636-3	SR6636-4
Frequency Range	A	A, C, Z	A, C, Z	A, C, Z	A, C, Z
Time Weighting	F, S			F, S, I	F, S, I, Peak
Frequency Range	20Hz~12.5kHz
Meas. Upper Range	>130dB
Self generated Noise	<30dBA	<25dBA
Display	128*64mm LED
Output	AC, DC			AC, DC, RS232
AID Bits	32 kHz
Integrating Function	No		Yes
Measure Parameters	Lp, Lmax		Lp, Lmax, Lmin, SEL, E	Lp, Leq1s	LXYp, LXeq,T, LXYmax, LXYmin, LN (Note: X is A, C, Z; Y is F, S, I; N can be 1-99), SEL, Lex, 8h, Lavg, TWA, DOSE, E, SD, LXpeak
Statistical Analysis Function	No		Optional, L5, L10, L50, L90, L95, SD	No	Yes
Integral Time	No		Manual, 10s, 1m, 5m, 10m, 20m, 30m, 1h, 2 h, 4h, 8h, 12h, 16h, 24h	Manual, 10s, 1m, 5m, 10 m, 20m, 30m, 1h, 2 h, 4h, 8h, 12h, 16h, 24 h	1s~24h
RS232 Interface	No	Optional	Yes, with software	Yes, with software	Yes, with software
USB Interface	No	Optional	Optional	Optional	Yes, with software
Data Storage	No				Yes, 8000 groups
Recording Function	No				Optional
Over Limit Indicate	No		Yes, Limits can be settled
Working Temp.	0°C~40°C	-10°C~50°C		-20°C~50°C	-10°C~50°C

Features:
Double channel acoustic measuring instrument
Different software could be selected
2 G great capacity storage
Small size and light weight, fit in a pocket or on shoulder
Comply with the hearing protection standards around the world

Uses:
Precision acoustic measurement;
Parallel noise measurement, sound level recording and precision recording;
Personal noise exposure measurements around the workplace.

Detailed Product Description:
1. Small size and light weight;
2. Fit on shoulder or wrist;
3. Measuring noise exposure;
4. Comply with hearing protection standard.

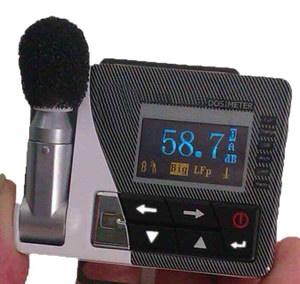

SR6610 Noise Dosimeter

Using ARM chip it realizes digital frequency weighting, digital detection and real-time spectral analysis functions. Its special file management system could manage a 2G great capacity storage chip and high reliability makes sure no files damaged when power-off happens, also converting quickly to FAT32 format is available. Noise measurement, sound level recording and precision recording three function can be used at the same time. Meanwhile the pre-amplifier’s rotational structure can meet the installed requirement for measuring standards.
Specifications:

Items	SR6610
Fulfils Standards	IEC61672 Class 2, IEC61252
Microphone	1/4"Prepolarized Condenser Mic. including the preamplifier sensitivity about-50 dB
Channel	2
Frequency Range	Parallel (simultaneous) A, C, Z
Time Weighting	Parallel (simultaneous) F, S, I, peak
Measurement Range of Sound Exposure	0.01Pa2h~99.99Pa2h
Noise Dose Measurement Range	0%~9999%
Frequency Range	20Hz-12.5kHz
The Sound Pressure Level Measurement Range	60-140dBA,65-140dBC,70-140dBZ(sensitivity: -50 dB ) 40-120dBA,45-120dBC,50-120dBZ( sensitivity: -30 dB )
Self-generated Noise	<30dBA
Peak C Sound Level Measuring Range	80-143dB
Display	128*64
Outputs	Mini USB interface, no need for driver, or the USB Flash disk
Integrating Function	YES
Measure Parameters	L_XYp, L_Xeq,T, L_XYmax, L_XYmin, L_N, SEL, Lex8h, LAVG, TWA, DOSE, SD, Lpeak Note: X is A, C, Z; Y is F, S, I; N can be 1-99
Statistical Analysis Function	YES
Integral Time	1s~24h
Data Storage	2GB Flash RAM , maximum 8187 groups
Download to PC	YES
Recording Precision	32kHz/16bit,16kHz/16bit,8kHz/8bit optional and 48kHz/16bit, 24kHz/16bit,12kHz/8bit ( user order)
Overrun Instructions	YES
Working Temperature	0°C~40°C
Dimensions	68(H)48(W)20(D)
Weight	100g

Class 2 (Type2) Class 1 (Type1), Analyzer, Calibrator, Microphone

( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@163.com )

Sound Level Meter

(sound level tester, Sound Dosimeter, Noise level meter, Programmable Sound Level Meter, Integrating Sound Level Meter, Noise Dose Meter, Sound Analyzer, Sound Level Analyzer, Octave band sound level meter, Sound Level Meter Datalogger, sound level meter calibrator, Sound Level Calibrator)

Class 2 (Type2) Class 1 (Type1), Analyzer, Calibrator, Microphone

Class 2 (Type2) Class 1 (Type1), Analyzer, Calibrator, Microphone
