Soil tension meter/Soil tensiometer


SRST series Soil tension meter/Soil tensiometer

Description: Soil tension meter is specially used for monitoring soil moisture dynamic variation. SRST series Soil tensiometer is made up of tension meter tube, pointer type negative pressure gauge.

About Soil tension meter/Soil tensiometer

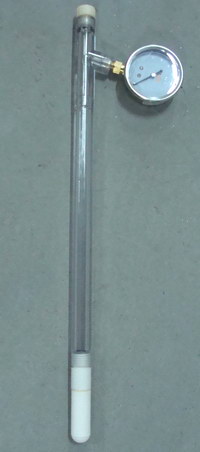

soil tensionmeter is made up of pressure gauge, acrylic tube and ceramic probe, when the acrylic tube is filled with water, ceramic probe gets wet and it can prevent outside air into the ceramic probe .if there is pressure difference between measured soil water potential and tensionmeter, water in tensionmeter, will infiltrate into the measured soil until in reaches equilibrium state. At this moment, the value shown by the pressure gauge is the measured soil water potential.

Instrument components: tensionmeter tube, pointer type pressure gauge, soil water potential optional component: earth probe is recommended to prepuce.

Technical parameter:

Length can be made according to the customer demand. (Standard length is the length of transparent polycarbonate tube in the middle of tension meter tube)

Testing range: 1 Bar (1 Bar = 100 Kpa)

SRST-15 (15cm)

SRST-30 (30cm)

SRST-45 (45cm)

SRST-50 (50cm)

SRST-60 (60cm)

SRST-90 (90cm)

SRST-120 (120cm)

 ( If you need user manual or E-catalogue for above meters, please ask for at: )
