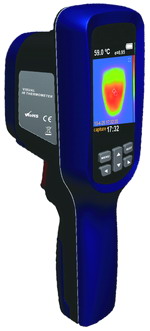

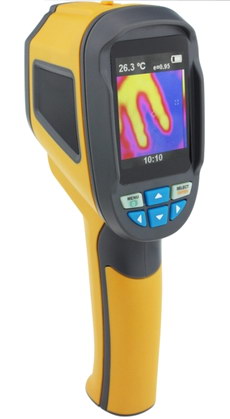

SRU890 Handheld thermal Imaging camera
Features
-2.4" color lcd display
-Adjustable emissivity from 0.1 to1.0
-Selectable color palettes
-Visual/heat map image alignment
-Led light allows the unit to be used in poor light
-Image capture and image
-Units/date/time set
-Auto power off

Specification

Model

 SRU890

Display

 2.4inch full color screen

Infrared resolution

 60*60 (3600 pixels)

Detector resolution

300,000 pixels

Field of view

 20*20

Minimum focus distance

 0.5m

Thermal sensitivity

 0.15ºC

Emissivity

 Adjustable 0.1~1.0

Temperature measurement range

 -20ºC ~300ºC / -4ºF~ 572ºF

Accuracy

 2%  or 2.0ºC /3.6ºF

Spectral band

 8~14um

Frame rate

 6HZ

Focus system

 Fixed focus

Color palettes

 Ironbow, Iridescence, Iridescence high contrast, Grayscale, Grayscale inverted

View options

 25% step-length, infrared and detector blend

Storage

 SD card (TF Micro) 2GB

Image file formats

 Bmp

Batteries

 Alkaline battery AA 1.5V*4

Battery life

 6 hours

Automatic shutdown time

 12 hours

Operating temperature and humidity

 -5ºC ~40ºC / 23ºF ~ 104ºF;10%RH ~80%RH

Storage temperature and humidity

 -20ºC ~50ºC / -4ºF~ 122ºF;10%RH~80%RH

SRU120 Infrared Camera for Medical Application

Description:

SRU120 is a professional thermal imaging for medical application. Utilizing advanced detector, can take crisp thermal imaging for flowing crowds with accurate, non contact, non invasive method to visualize skin surface temperature difference, which is the ideal instrument of the frontline of defense for government and corporation in public and private sectors.

Product Features:
New generation high performance IR detector 160x120 pixels 25m
Crisp thermal images
Bright 3.5 Color LCD
50Hz Real-time Imaging
High accuracy, +/-0.6ºC
Automatic search and alarm
Non contact monitoring

Application:
medical applications, such as airport checkpoint, flu prevention.

Specification:

Item

SRU120

Detector Data

Detector type

Focal plane array(FPA), uncooled Microbolometer

IR resolution

160 x 120 pixels

Pixel pitch

25m

Imaging and Optical Data

Spectral range

8-14m

Field of view (FOV)

1813.5/0.15m (standard lens)

Spatial resolution (IFOV)

1.4mrad (1813.5)

Thermal sensitivity(NETD)

100mk at 30ºC

Image frequency

50/60Hz

Focus

Manual

Image Presentation

Display

3.5" color LCD

Measurement

Temperature range

20ºC to +50ºC

Accuracy

+/- 0.6ºC

Measurement spot

1 moveable spot

Measurement area

Automatically capture maximum temperature

Line profile

Horizontal / vertical line profile

Isotherms analysis

Yes

High temperature alarm

Voice, color

Emissivity correction

Adjustable from 0.01 to 1.0

Temperature correction

Auto

Image Storage

Storage type

Build-in flash card, up to 1500 images

Files format

Standard JPEG, 14-bit measurement data included

Voice comments

40s voice record digital voice, stored with per image via built-in microphone.

Laser Indication

Classification type

Class 2, 1mW/635nm Red

Power System

Battery type

Rechargeable and replaceable Li-ion battery

Battery operating time

Approx 3 hours

Power saving

User defined

Power operation

7-9V DC

Environment Data

Operating temperature range

-20ºC - +50ºC

Storage temperature range

-40ºC - +70ºC

Humidity (operating and storage)

<=90non-condensing

IP rating

IP54 IEC529

Shock

25G  IEC68-2-29

Vibration

2G  IEC68-2-26

Physical Data

Size, L x W x H

330mm 95mm 86mm

Weight

650g

Tripod mounting

1/4-20

Interfaces

External DC input

Yes

Audio output

Yes

Video output

PAL / NTSC

PC

USB

Camera Includes:

Standard

Infrared thermal imaging with 18 standard lens, 2 Li-ion batteries, charger, adapter, Video cable, USB cable, Software CD, manual, transport case.

Optional accessories

Tripod, Li-ion battery, infrared lens

SRU160 Infrared Camera

Description:

SRU160 with a high thermal sensitivity of 65mk can identify the smallest temperature difference from the object and display it by excellent thermal images. As a potential fault always coming with the partial overheat / overcool, so the user can locate the overheated / overcooled part with a ULIRvision Thermal Imaging Camera instantaneously, and more details about the fault will be found by assistance of our professional Thermal Imaging Analysis Software.

Product Features:
Excellent thermal image and high accuracy temperature measurement
Wide temperature measurement range
Laser pointer
Built-in microphone to record 40sec voice annotation
Exchangeable IR lenses for more flexibility
High temperature measurement option
Automatic Hot/Cold/Average spot recognition
Intuitive and easy operation menu
Multifunction PC analysis software IRSee

Application:
Building Diagnostics
Electrical/Mechanical Inspection
Research & Development
Automation Applications
Preventative & Predictive Maintenance

Specification:

Item

SRU160

Detector Data

Detector type

Focal plane array (FPA), uncooled Microbolometer

IR resolution

160 x 120 pixels

Pixel pitch

25m

IR Imaging and Optical Data

Spectral range

8-14m

Field of view (FOV)/min focus distance

21x 16/0.15m (standard lens)

35x 27/0.05m (wide angle lens, optional)

4 x 3 /0.8m (telephoto lens,optional)

Image Presentation

Spatial resolution (IFOV)

2.3mrad( standard lens)

Thermal sensitivity(NETD)

<65mk at 30ºC

Image frequency

50/60Hz

Focus

Manual

Electronic zoom

2x

Display

Built-in 3.5" color LCD

Measurement

Temperature range

-20ºC to +120ºC / 0ºC to +350ºC(switchable)

Up to 1200ºC(optional)

Accuracy

+/-2ºC or +/-2% of reading

Measurement spot

Up to 4 moveable spots

Measurement area

Up to 3 moveable boxes, automatically capture maximum minimum, average temperature

Line profile

Vertical, horizontal

Isotherms analysis

Detect high/low temperature/interval

High temperature alarm

Voice, color

Emissivity correction

Adjustable from 0.01 to 1.0

Temperature correction

Auto

Multiple Language Menu

10 Languages (English, French, Italian, German, Spanish, Portuguese, Russian, Korean, Japanese, Simplified Chinese & Traditional Chinese)

Image Storage

Storage type

Built-in flash card, up to 1500 images

Files format

Standard JPEG, 14-bit measurement data included

Voice comments

40s voice record, stored with per image via built-in microphone.

Laser Indication

Classification type

Class 2, 1mW/635nm Red

Power System

Battery type

Rechargeable and replaceable Li-ion battery

Battery operating time

Approx 3 hours

Power saving

User defined

Power operation

12V 5%

Environment Data

Operating temperature range

-20ºC - +50ºC

Storage temperature range

-40ºC - +70ºC

Humidity (operating and storage)

<=90non-condensing

Shock

25G  IEC68-2-29

Vibration

2G  IEC68-2-26

Physical Data

Size, L x W x H

330mm 95mm 86mm

Weight

650g

Tripod mounting

1/4"-20

Interfaces

External DC input

Yes

Audio output

Yes

Video output

PAL / NTSC

USB

Images transfer to PC

Camera Includes:

Standard

Thermal imaging camera with standard IR lens, 2 Li-ion batteries, battery charger, adapter, Video cable, USB cable, Software CD, instruction, warranty card, transport case

Optional accessories

Li-ion battery, IR lens

SRU384 Infrared Camera

Description:

SRU384 with a high thermal sensitivity of 65mk can identify the smallest temperature difference from the object and display it by excellent thermal images. As a potential fault always coming with the partial overheat / overcool, so the user can locate the overheated / overcooled part with a ULIRvision Thermal Imaging Camera instantaneously, and more details about the fault will be found by assistance of our professional Thermal Imaging Analysis Software.

Product Features:
Excellent thermal image and high accuracy temperature measurement
Wide temperature measurement range
Laser pointer
Built-in microphone to record 40sec voice annotation
Exchangeable IR lenses for more flexibility
High temperature measurement option
Automatic Hot/Cold/Average spot recognition
Intuitive and easy operation menu
Multifunction PC analysis software IRSee

Application:
Building Diagnostics
Electrical/Mechanical Inspection
Research & Development
Automation Applications
Preventative & Predictive Maintenance

Specification:

Item

SRU384

Detector Data

Detector type

Focal plane array (FPA), Uncooled Microbolometer

IR resolution

384 x 288 pixels

Pixel pitch

25m

IR Imaging and Optical Data

Spectral range

8-14m

Field of view (FOV)/min focus distance

18x 14/ 0.15m (standard lens)

30 x 23/0.1m(wide angle lens, optional)

9 x 6/0.8m (telephoto lens,optional)

Image Presentation

Spatial resolution (IFOV)

1.0mrad (standard lens)

Thermal sensitivity (NETD)

<65mk at 30ºC

Image frequency

50/60Hz

Focus

Manual

Electronic zoom

2x

Display

Built-in 3.5" color LCD

Measurement

Temperature range

-20ºC  to +120ºC  / 0ºC  to +350ºC (switchable)

Up to 1200ºC(optional)

Accuracy

+/-2ºC or +/-2% of reading

Measurement spot

Up to 4 moveable spots

Measurement area

Up to 3 moveable boxes, automatically capture maximum minimum, average temperature

Line profile

Vertical, horizontal

Isotherms analysis

Detect high/low temperature/interval

High temperature alarm

Voice, color

Emissivity correction

Adjustable from 0.01 to 1.0

Temperature correction

Auto

Multiple Language Menu

10 Languages (English, French, Italian, German, Spanish, Portuguese, Russian, Korean, Japanese, Simplified Chinese & Traditional Chinese)

Image Storage

Storage type

Built-in flash card, up to 1500 images

Files format

Standard JPEG, 14-bit measurement data included

Voice comments

40s voice record, stored with per image via built-in microphone.

Laser Indication

Classification type

Class 2, 1mW/635nm Red

Power System

Battery type

Rechargeable and replaceable Li-ion battery

Battery operating time

Approx 3 hours

Power saving

User defined

Power operation

12V 5%

Environment Data

Operating temperature range

-20ºC - +50ºC

Storage temperature range

-40ºC - +70ºC

Humidity (operating and storage)

<=90non-condensing

Shock

25G  IEC68-2-29

Vibration

2G  IEC68-2-26

Physical Data

Size, L x W x H

330mm 95mm 86mm

Weight

650g

Tripod mounting

1/4-20

Interfaces

External DC input

Yes

Audio output

Yes

Video output

PAL / NTSC

USB

Images transfer to PC

Camera Includes:

Standard

Thermal imaging camera with standard IR lens, 2 Li-ion batteries, battery charger, adapter, Video cable, USB cable, Software CD, instruction, warranty card, transport case

Optional accessories

Li-ion battery, IR lens

SRU170 Infrared Camera

Description:

SRU170 is the third generation thermal imaging system product. With cutting-edge infrared technology, including high sensitivity IR detector(25m pixel pitch, NETD<50mK) and ergonomic design, it is the ideal choice for professional thermographers to have the most efficient instrument for building diagnostics.

Product Features:
Excellent thermal image and high accuracy temperature measurement
Folding and 270rotatable display
Auto/Motor focus for one-hand operation
Compact size, lightweight and ergonomic design
Laser pointer
Bright LED light
Built-in digital camera
Built-in microphone to record 40sec voice annotation
Wide-angle and telephoto IR lens
Scalable P-I-P and Thermal fusion
Automatic Hot/Cold/Average temperature detection
Real-time thermal video transfer to PC via USB, and remote transfer via MSN and Skype
Intuitive and easy operating menu
New generation IRSee analysis software

Application:
Building Diagnostics
Electrical/Mechanical Inspection
Research & Development
Automation Applications
Preventative & Predictive Maintenance

Specification:

Item

SRU170

Detector Data

Detector type

Uncooled FPA

IR resolution

160 x 120 pixels

Pixel pitch

25m

IR Imaging and Optical Data

Spectral range

8-14m

Field of view (FOV)/min focus distance

21x 16/0.15m (standard lens)

4232/0.1m (wide lens, optional)

108/1m (telephoto lens,optional)

Spatial resolution (IFOV)

2.3mrad

Thermal sensitivity (NETD)

<50mk at 30ºC

Image Presentation

Display

3.2  270 tiltable LCD

Image modes

Thermal image, visual image, thermal fusion, picture-in-picture, thumbnail gallery

Thermal fusion

IR image shown above, below or within temp interval on visual image

Picture in Picture

Resizable and movable IR area on visual image

Frequency

50Hz(PAL)/60Hz(NTSC)

Focus

Auto/Motor

Digital Zoom

1-4x Continuous

Visual camera

3 M pixel

Spotlight

10cd/m²

Measurement

Temperature range

-20ºC to +100ºC (Building)

Accuracy

+/-2ºC or +/- 2% of reading

Spotmeter

4 adjustable spot

Measurement area

3 adjustable boxes with max./min./average

Line profile

Horizontal / vertical

Isotherms analysis

Detect high/low temperature/interval

Dew point alarm

Yes

Hot/cold spot Auto detection

Max/Min/Average temp

Emissivity correction

Variable from 0.01~1.0

Temperature correction

Auto

Alarm

Voice and Color

Multiple Language Menu

10 languages (English, French, Italian, German, Spanish, Portuguese, Russian, Korean, Japanese, Simplified Chinese & Traditional Chinese)

Set-up commands

Real-time Video

Transfer via USB

Color palettes

 Iron, anti-iron, feather red, black hot, white hot, medical

Set-up commands

Date/time, temperature units C/F/K, language, scale

Measuring Calibration

Automatic, based on inputs

Image Storage

Storage type

2G SD card, Building-in flash

Storage capacity

Up to 800 images in built-in flash card

Up to 6600 images in 2G SD card

Storage format

Standard JPEG, including measurement data

Periodic image storage

user definited, 6 seconds at least

Laser pointer

Grade/Type

Class II, 1mW/635nm red

Power System

Battery type

Li-ion, 3 hours operating time

Battery operating time

Approx 3 hours

Charging system

In camera or AC adapter

AC supply

90 ~ 260V AC, 50/60Hz, 5V DC output

Voltage

5V +/- 5% DC

Power management

Automatic shutdown (user selectable)

Environment Data

Operating temperature range

-20ºC ~ +50ºC

Storage temperature range

-40ºC ~ +70ºC

Humidity (operating and storage)

<=90non-condensing

IP level

IP50

Shock

25G  IEC68-2-29

Vibration

2G  IEC68-2-26

Physical Data

Size, L x W x H

12862154mm

Camera weight,incl. battery and standard lens

393g

Size of screw nut on tripod

1/4-20

Data communication interfaces

USB

Data transfer to and from PC

Video output

PAL / NTSC

Audio output

Yes

Packaging contents

Standard

Infrared camera with standard lens,2 Batteries, Battery charger, USB cable, SD card, SD card reading, IRSee software CD-ROM,Power supply, User documentation, Warranty extension card or registration card, Calibration certificate.

Optional accessories

IR lens, Li-ion battery

SRU175 Infrared Camera

Description:

SRU175 is the third generation thermal imaging system products. With cutting-edge infrared technology, including high sensitivity IR detector(25m pixel pitch, NETD<65mK) and ergonomic design, it is the ideal choice for professional thermographers to have the most efficient instrument for maintenance inspections.

Product Features:
Excellent thermal image and high accuracy temperature measurement
Folding and 270rotatable display
Auto/Motor focus for one-hand operation
Wide temperature measurement range, up to 1200ºC
Laser pointer
Bright LED light
Built-in digital camera
Built-in microphone to record 40sec voice annotation
Wide-angle and telephoto IR lens
Scalable P-I-P and Thermal fusion
Automatic Hot/Cold/Average temperature detection
Real-time thermal video transfer to PC via USB, and remote transfer via MSN and Skype
Intuitive and easy operating menu
New generation IRSee analysis software

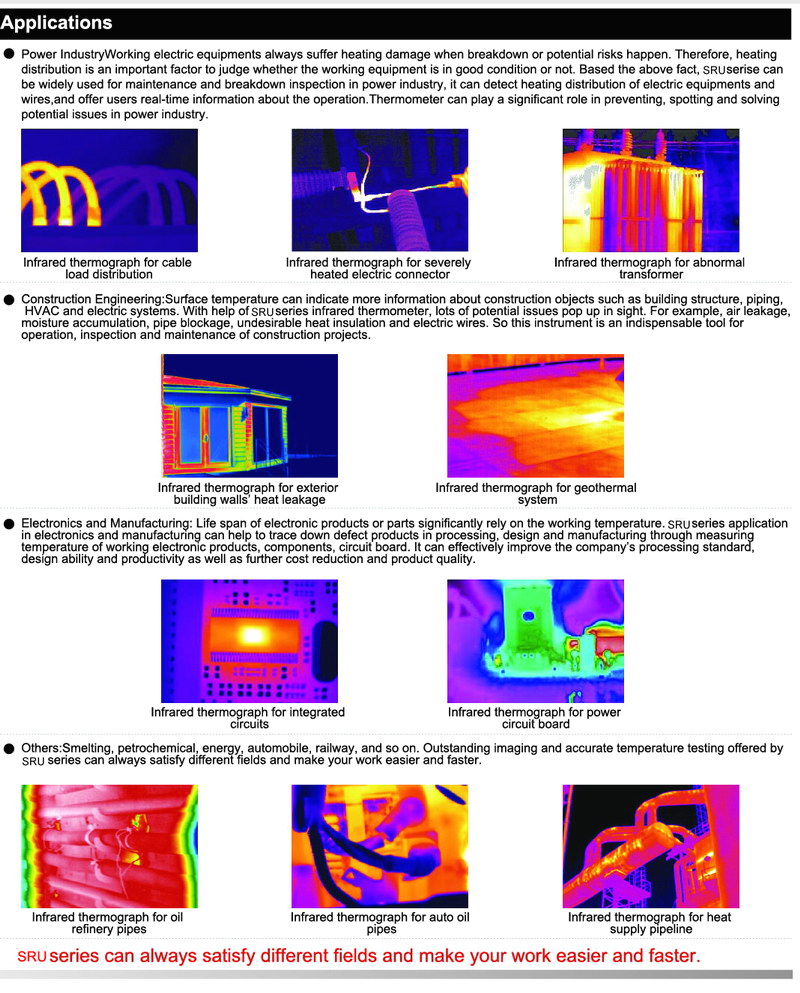

Application:
Building Diagnostics
Electrical/Mechanical Inspection
Research & Development
Automation Applications
Preventative & Predictive Maintenance

Specification:

Item

SRU175

Detector Data

Detector type

Uncooled FPA

IR resolution

160 x 120 pixels

Pixel pitch

25m

IR Imaging and Optical Data

Spectral range

8-14m

Field of view (FOV)/min focus distance

21x 16/0.15m (standard lens)

4232/0.1m (wide lens, optional)

108/1m (telephoto lens,optional)

Spatial resolution (IFOV)

2.3mrad

Thermal sensitivity(NETD)

<65mk at 30ºC

Image Presentation

Display

3.2  270 tiltable LCD

Image modes

Thermal image, visual image, thermal fusion, picture-in-picture, thumbnail gallery

Thermal fusion

IR image shown above, below or within temp interval on visual image

Picture in Picture

Resizable and movable IR area on visual image

Frequency

50Hz(PAL)/60Hz(NTSC)

Focus

Auto/Motor

Digital Zoom

1-4x Continuous

Visual camera

3 M pixel

Spotlight

10cd/m²

Measurement

Temperature range

-20ºC to +250ºC (Industrial)
-20ºC to +600ºC (optional A)
-20ºC to +1200ºC (optional B)

Accuracy

+/-2ºC or +/- 2% of reading

Spotmeter

4 adjustable spot

Measurement area

3 adjustable boxes with max./min./average

Line profile

Horizontal / vertical

Isotherms analysis

Detect high/low temperature/interval

Dew point alarm

No

Hot/cold spot Auto detection

Max/Min/Average temp

Emissivity correction

Variable from 0.01~1.0

Temperature correction

Auto

Alarm

Voice and Color

Multiple Language Menu

10 languages (English, French, Italian, German, Spanish, Portuguese, Russian, Korean, Japanese, Simplified Chinese & Traditional Chinese)

Set-up commands

Real-time Video

Transfer via USB

Color palettes

 Iron, anti-iron, feather red, black hot, white hot, medical

Set-up commands

Date/time, temperature units C/F/K, language, scale

Measuring Calibration

Automatic, based on inputs

Image Storage

Storage type

2G SD card, Building-in flash

Storage capacity

Up to 800 images in built-in flash card

Up to 6600 images in 2G SD card

Storage format

Standard JPEG, including measurement data

Periodic image storage

user definited, 6 seconds at least

Laser pointer

Grade/Type

Class II, 1mW/635nm red

Power System

Battery type

Li-ion, 3 hours operating time

Battery operating time

Approx 3 hours

Charging system

In camera or AC adapter

AC supply

90 ~ 260V AC, 50/60Hz, 5V DC output

Voltage

5V +/- 5% DC

Power management

Automatic shutdown (user selectable)

Environment Data

Operating temperature range

-20ºC - +50ºC

Storage temperature range

-40ºC - +70ºC

Humidity (operating and storage)

<=90non-condensing

IP level

IP50

Shock

25G  IEC68-2-29

Vibration

2G  IEC68-2-26

Physical Data

Size, L x W x H

12862154mm

Camera weight,incl. battery and standard lens

393g

Size of screw nut on tripod

1/4-20

Data communication interfaces

USB

Data transfer to and from PC

Video output

PAL / NTSC

Audio output

Yes

Packaging contents

Standard

Infrared camera with standard lens,2 Batteries, Battery charger, USB cable, SD card, SD card reading, IRSee software CD-ROM, Power supply, User documentation, Warranty extension card or registration card, Calibration certificate.

Optional accessories

IR lens, Li-ion battery

SRU390 Infrared Camera

Description:
SRU390 is the third generation thermal imaging system product. With cutting-edge infrared technology, including high sensitivity IR detector(25m pixel pitch, NETD<50mK) and ergonomic design, it is the ideal choice for professional thermographers to have the most efficient instrument for building diagnostics.

Product Features:
Excellent thermal image and high accuracy temperature measurement
Folding and 270rotatable display
Auto/Motor focus for one-hand operation
Compact size, lightweight and ergonomic design
Laser pointer
Bright LED light
Built-in digital camera
Built-in microphone to record 40sec voice annotation
Wide-angle and telephoto IR lens
Scalable P-I-P and Thermal fusion
Automatic Hot/Cold/Average temperature detection
Real-time thermal video transfer to PC via USB, and remote transfer via MSN and Skype
Intuitive and easy operating menu
New generation IRSee analysis software
Application:
Building Diagnostics

Specification:

Item

SRU390

Detector Data

Detector type

Uncooled FPA

IR resolution

384288 pixels

Pixel pitch

25m

IR Imaging and Optical Data

Spectral range

8-14m

Field of view (FOV)/min focus distance

21x 16/0.15m (standard lens)

3828/0.3m (wide lens, optional)

118.5/1.2m (telephoto lens,optional)

Spatial resolution (IFOV)

1.2mrad

Thermal sensitivity(NETD)

<50mk at 30ºC

Image Presentation

Display

3.2  270 tiltable LCD

Image modes

Thermal image, visual image, thermal fusion, picture-in-picture, thumbnail gallery

Thermal fusion

IR image shown above, below or within temp interval on visual image

Picture in Picture

Resizable and movable IR area on visual image

Frequency

50Hz(PAL)/60Hz(NTSC)

Focus

Auto/Motor

Digital Zoom

1-8x Continuous

Visual camera

3 M pixel

Spotlight

10cd/m²

Measurement

Temperature range

-20ºC to +100ºC (Buliding)

Accuracy

+/-2ºC or +/- 2% of reading

Spotmeter

4 adjustable spot

Measurement area

3 adjustable boxes with max./min./average

Line profile

Horizontal / vertical

Isotherms analysis

Detect high/low temperature/interval

Dew point alarm

Yes

Hot/cold spot Auto detection

Max/Min/Average temp

Emissivity correction

Variable from 0.01~1.0

Temperature correction

Auto

Alarm

Voice and Color

Multiple Language Menu

10 languages (English, French, Italian, German, Spanish, Portuguese, Russian, Korean, Japanese, Simplified Chinese & Traditional Chinese)

Set-up commands

Real-time Video

Transfer via USB

Color palettes

 Iron, anti-iron, feather red, black hot, white hot, medical

Set-up commands

Date/time, temperature units C/F/K, language, scale

Measuring Calibration

Automatic, based on inputs

Image Storage

Storage type

2G SD card, Building-in flash

Storage capacity

Up to 600 images in built-in flash card

Up to 5000 images in 2G SD card

Storage format

Standard JPEG, including measurement data

Periodic image storage

user definited, 6 seconds at least

Laser pointer

Grade/Type

Class II, 1mW/635nm red

Power System

Battery type

Li-ion, 3 hours operating time

Battery operating time

Approx 3 hours

Charging system

In camera or AC adapter

AC supply

90 ~ 260V AC, 50/60Hz, 5V DC output

Voltage

5V +/- 5% DC

Power management

Automatic shutdown (user selectable)

Environment Data

Operating temperature range

-20ºC - +50ºC

Storage temperature range

-40ºC - +70ºC

Humidity (operating and storage)

<=90non-condensing

IP level

IP50

Shock

25G  IEC68-2-29

Vibration

2G  IEC68-2-26

Physical Data

Size, L x W x H

12862154mm

Camera weight,incl. battery and standard lens

393g

Size of screw nut on tripod

1/4-20

Data communication interfaces

USB

Data transfer to and from PC

Video output

PAL / NTSC

Audio output

Yes

Packaging contents

Standard

Infrared camera with standard lens,2 Batteries, Battery charger, USB cable, SD card, SD card reading, IRSee software CD-ROM, Power supply, User documentation, Warranty extension card or registration card, Calibration certificate.

Optional accessories

IR lens, Li-ion battery

SRU395 Infrared Camera

Description:
SRU395 is the third generation thermal imaging system product. With cutting-edge infrared technology, including high sensitivity IR detector(25m pixel pitch, NETD<50mK) and ergonomic design, it is the ideal choice for professional thermographers to have the most efficient instrument for building diagnostics.
Product Features:
Excellent thermal image and high accuracy temperature measurement
Folding and 270rotatable display
Auto/Motor focus for one-hand operation
Wide temperature measurement range, up to 1200ºC
Laser pointer
Bright LED light
Built-in digital camera
Built-in microphone to record 40sec voice annotation
Wide-angle and telephoto IR lens
Scalable P-I-P and Thermal fusion
Automatic Hot/Cold/Average temperature detection
Real-time thermal video transfer to PC via USB, and remote transfer via MSN and Skype
Intuitive and easy operating menu
New generation IRSee analysis software
Application:
Building Diagnostics
Electrical/Mechanical Inspection
Research & Development
Automation Applications
Preventative & Predictive Maintenance

Specification:

Item

SRU395

Detector Data

Detector type

Uncooled FPA

IR resolution

384288 pixels

Pixel pitch

25m

IR Imaging and Optical Data

Spectral range

8-14m

Field of view (FOV)/min focus distance

21x 16/0.15m (standard lens)

3828/0.3m (wide lens, optional)

118.5/1.2m (telephoto lens,optional)

Spatial resolution (IFOV)

1.2mrad

Thermal sensitivity(NETD)

<65mk at 30ºC

Image Presentation

Display

3.2  270 tiltable LCD

Image modes

Thermal image, visual image, thermal fusion, picture-in-picture, thumbnail gallery

Thermal fusion

IR image shown above, below or within temp interval on visual image

Picture in Picture

Resizable and movable IR area on visual image

Frequency

50Hz(PAL)/60Hz(NTSC)

Focus

Auto/Motor

Digital Zoom

1-8x Continuous

Visual camera

3 M pixel

Spotlight

10cd/m²

Measurement

Temperature range

-20ºC to +250ºC (Industrial)
-20ºC to +600ºC (optional A)
-20ºC to +1200ºC (optional B)

Accuracy

+/-2ºC or +/- 2% of reading

Spotmeter

4 adjustable spot

Measurement area

3 adjustable boxes with max./min./average

Line profile

Horizontal / vertical

Isotherms analysis

Detect high/low temperature/interval

Dew point alarm

No

Hot/cold spot Auto detection

Max/Min/Average temp

Emissivity correction

Variable from 0.01~1.0

Temperature correction

Auto

Alarm

Voice and Color

Multiple Language Menu

10 languages (English, French, Italian, German, Spanish, Portuguese, Russian, Korean, Japanese, Simplified Chinese & Traditional Chinese)

Set-up commands

Real-time Video

Transfer via USB

Color palettes

 Iron, anti-iron, feather red, black hot, white hot, medical

Set-up commands

Date/time, temperature units C/F/K, language, scale

Measuring Calibration

Automatic, based on inputs

Image Storage

Storage type

2G SD card, Building-in flash

Storage capacity

Up to 600 images in built-in flash card

Up to 5000 images in 2G SD card

Storage format

Standard JPEG, including measurement data

Periodic image storage

user definited, 6 seconds at least

Laser pointer

Grade/Type

Class II, 1mW/635nm red

Power System

Battery type

Li-ion, 3 hours operating time

Battery operating time

Approx 3 hours

Charging system

In camera or AC adapter

AC supply

90 ~ 260V AC, 50/60Hz, 5V DC output

Voltage

5V +/- 5% DC

Power management

Automatic shutdown (user selectable)

Environment Data

Operating temperature range

-20ºC - +50ºC

Storage temperature range

-40ºC - +70ºC

Humidity (operating and storage)

<=90non-condensing

IP level

IP50

Shock

25G  IEC68-2-29

Vibration

2G  IEC68-2-26

Physical Data

Size, L x W x H

12862154mm

Camera weight,incl. battery and standard lens

393g

Size of screw nut on tripod

1/4-20

Data communication interfaces

USB

Data transfer to and from PC

Video output

PAL / NTSC

Audio output

Yes

Packaging contents

Standard

Infrared camera with standard lens,2 Batteries, Battery charger, USB cable, SD card, SD card reading, IRSee software CD-ROM, Power supply, User documentation, Warranty extension card or registration card, Calibration certificate.

Optional accessories

IR lens, Li-ion battery

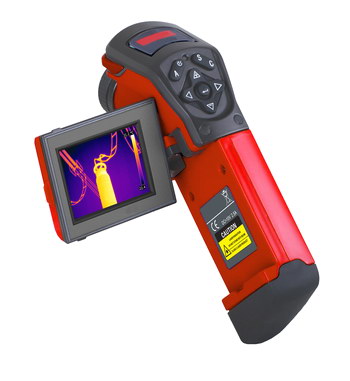

Infrared Thermal Imager SRU100

Description:

SRU100 infrared thermal imaging meter can measure the maximum and minimum surface temperature, its reading result is equivalent to point thermometer 4800 times reading.
Reasonable price, super-thin appearance, portrait design and convenient operation makes SRU100 satisfy with all class customers.

Basic Function:

Visual Angle/Min Imaging Distance: 12x9.4/0.1m

Temperature Sensitivity: 0.08C @ 30C

Sensor: UFPA

Resolution: 100*80 pixels

Working Wave Range: 8-14um

Focus Model: Manual Focus

Spatial Resolution: 2.2mrad

Imaging Mode: Infrared (iron-red/anti-iron-red/rainbow red/reddish/white hot/black hot)

LCD: 2.5TFT

Special Function:

Video Output: PAL(50Hz)or NRSC(60Hz)composite video(socket selection required)

Temperature Range: -20C~300C

Temperature Accuracy: 2C or reading 2%

Temperature Mode: Moveable measure or max/min temperature autoreading

Control Setting: Language/time/colour/unit

Temperature Correction: Environment temperature/emissivity/humidity/distance/modified temperature

Type: 2GB SD card, max support 16GB

File Format: .UIR

Alarm: Yes

Battery Life: Rechargeable battery/2.5 hours

Power Save Mode: Sleep Mode

Special Specification:

Working temperature: -15C to 50C;
Storge temperature: -14C to 70C;
• Humidity: 95%non-condensation
• Water/Dust-proof: IP54;
• Shock/vibration resintance: 25G/2G;
• Weight: 500g (include battery
• Size: 172mmx80mmx162mm
• Analysis report software

Standard delivery: Battery, changer, 2G memory card, card reader, lens cap, PC software CD and instructions.

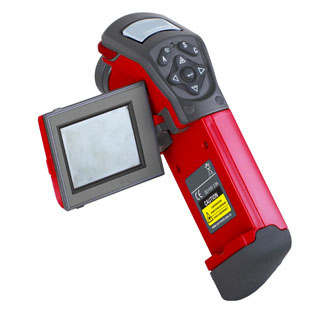

Infrared Thermal Imager SRU160A

Imaging Function:

Visual Angle/Min Imaging Distance: 20X15/0.1m

Spatial Resolution: 2.2mrad

Thermal Sensitivity: 0.08C @ 30C

Sensor: UFPA

Resolution: 160X120 pixels

Working Wave Range: 8~14um

Focus Model: Manual focus

Temperature Function:
Range: -20 C to 300 C (extendable to 1500 C)
Accuracy: 2 C or 2%

Temperature Mode: fixed center/Max/Min temperature auto reading.

Temperature Correction: Environment Temperature, Emissivity, Humidity, Distance

Palette: Six Types (iron-red, anti-rion-red, rainbow red, reddish, white hot, black hot)

High Alarm and low alarm: Yes

Laser indication: Yes.

Image Display/Memory Function:
LCD: 2.5" TFT
Memory: Standard 2GMB SDcard, max 16GB.
File format: UIR
Video output: NTSC 60Hz / PAL 50 Hz composite video (socket selection required)
Power:
Battery type: Rechargable Lithium Battery
Battery operating time: 2.5 Hours continous
Power Adaptor: 8-11VDC output
Power saving: Automatic shut down and sleep mode
Environmental and mechanical design
Operating temperature: Negative 20 to 50 C
Storage temperature: Negative 40 to 70 C
Relative humidity: 10% to 95%, non-condensing
Water and dust resistant: IP54
Shock: Operational: 25G
Vibration: Operational: 2G
Weight (battery included): 500g
Size: 172mm x 80mm x 162mm
Tripod mounting: 1/4"_20

5PCS/CTN, CTN SIZE: 51*37.5*32CM, N.W/G.W: 10.4/11.6KGS volume weight: 12.5kgs

Standard Accessories:

Battery, changer, 2G memory card, card reader, lens cap, PC software CD and instructions.
Optional Accessories:
   General Accessories: Base, power adapter, video cable, 16G memory card, vehicle power cable and sunshade.
   Lens: 38 wide-angle lens, 12 2X telescope lens, 6.4 3X telescope lens and 3.8 5X telescope lens
   Customized Temperature: 600ºC, 1000 ºC, 1500 ºC

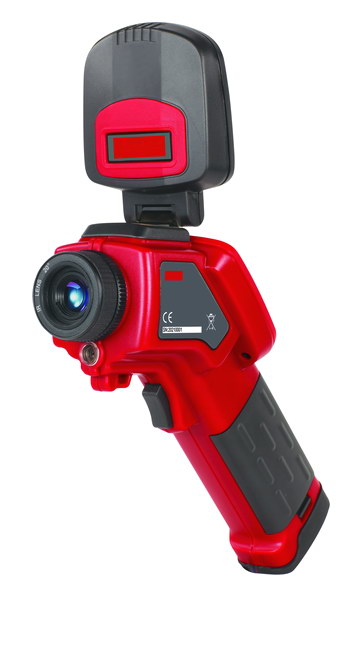

Infrared Thermal Imager SRU160B

Description:

SRU160B infrared Thermal Imaging Meter, design accord in IP54 standard and have water/dust proof. Vibration resistance can up 2.5G and shock resistance can up 25G.It is suitable for different area. The standard temperature measure range is -20C ~ +300C,extendable to 1500C.

"Direct aiming" design, the imaging data and temperature data will display when you aiming the abject. The photo is smoothly and user can find every detail data.

Identification Accuracy, quick positioning: it have different kinds of analyze tools such as max/min temperature capture function, can identify the temperature anomaly, particular laser indication function can capture the unnormal temperature quickly.

Applicable Industries: Electric power, Construction, Electronics, Smelting, Energy, Railway, Automobile, Petrochemical

Imaging Function:

Visual Angle/Min Imaging Distance: 20X15/0.1m

Spatial Resolution: 2.2mrad

Thermal Sensitivity: 0.08C @ 30C

Sensor: UFPA

Resolution: 160X120 pixels

Working Wave Range: 8~14um

Focus Model: Manual focus

Imaging Display:

Video Output: NTSC(60HZ) or PAL(50HZ) composite video

LCD: 3.5 TFT

Palette: various types(iron red, anti-iron-red, black hot, white hot, colourful, feather red)

Temperature Function:

Temperature Range: -20C~+300C (extendable to 1500 C)

Temperature Accuracy: 2C or reading 2%

Temperature Mode: Moveable point or max/min temperature auto reading

Correction: Emissivity: 0.1 to 1.0 adjustable; environment temperature, distance

High Alarm and low alarm: Yes

Imaging Storage: PC capacity: storage capacity: 2GB,minisd card (can save 16000 standard infrared chart imaging)

File Format: UIR

Software Analysis function:

Detail Iamging processing and analysis function

Report format: can automatic create report, can transmit to word format

Chinese/English display: Yes

Inquires The Historical data: Yes

Appearance, size, weight, battery system:

Weight: < 0.6KGS

Battery Life: 2.5 hours

Battery Charging Time: 1.5 hours

Detector Life: 20000 hours

Unit life: 10years

Environment Requirement:

Working Temperature: -15C ~ +50C

Working Relative Humidity: 95%

Stock temperature: -40C ~ +70C

Power Voltage: 190V ~ 250V, Frequency: 50Hz

Water/Dust proof: IP54

Vibration Resistance: 2.5g

Shock Resistance: 25g

Anti-electromagnetic Interference: IEC60960:1991+A1:1992, A2:1993, A3:1995, A4:1996

Software Analysis: Report format: can automatic create report; can transmit to WORD format Chinese/English display; can inquires the historical data.
Standard Accessories:

Battery, changer, 2G memory card, card reader, lens cap, PC software CD and instructions.
Optional Accessories:
   General Accessories: Base, power adapter, video cable, 16G memory card, vehicel power cable and sunshade.
    Lens: 38 wide-angle lens, 12 2X telescope lens, 6.4 3X telescope lens and 3.8 5X telescope lens
   Customized Temperature: 600ºC, 1000 ºC, 1500 ºC

SRU160B

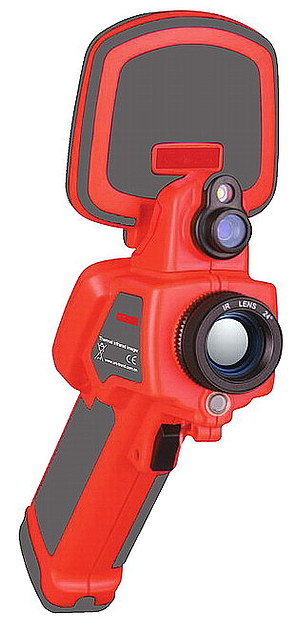

SRU160D

Imaging Function



SRU160B

SRU160D

Visual Angle /Min Imaging Distance

20x15/0.1m(Lens selectable)

Spatial Resolution

2.2 mrad

Temperature Sensitivity

0.08C @ 30C

Sensor

UFPA(Uncooled Infrared Focal Plane Array)

Imaging Mode

Infrared



Infrared / Visible light/ PIP / Blend



Resolution

160*120

Visible Light Resolution

640*480 full color



Working Wave Range

8 ~14um

Focus Mode

Manual Focus

Imaging Mode

Infrared (Iron red/Anti-iron red/ Rainbow red/ reddish/White hot/Black hot)

LCD

3.5TFT

Special Function







Video Output

PAL (50Hz) or NTSC (60Hz) composite video

Temperature Range

-20C~ 300C (Max support +1500C)



-20C~ 350C (350C for reference only, Max support +1500C)



Temperature Accuracy

2C or reading 2%

Temperature Mode

Moveable point or Max/min temperature auto reading



4 moveable point, Max/Min temperature capture mode, Isothermality analysis



Control Setting

Language/Time/Colour/Unit

Temperature Difference Calculate



Parameter Modify

Emissivity, Environment temperature, Distance, Relative humidity

High Alarm and Low Alarm





Alarm



Imaging Storage

PC capacity: 2GB mini SD card (Can save 16000, Max support 16GB)

File Format

.TIR



.TIR, Visible light file .CCD



Battery Type/ Working Time

Rechargeable lithium battery/ 3hours

Analysis Software

Report format: can automatic creat report, can transmit to word format. Chinese / English display: yes. Inquires the historical data: yes. Standard infrared chart imaging.

Special Specification

Working temperature: -15C to +50C
Storage temperature: -40C to +70C
Humidity: 95
RH
IP54 shock resistance
25G  vibration resistance
Analysis software report form

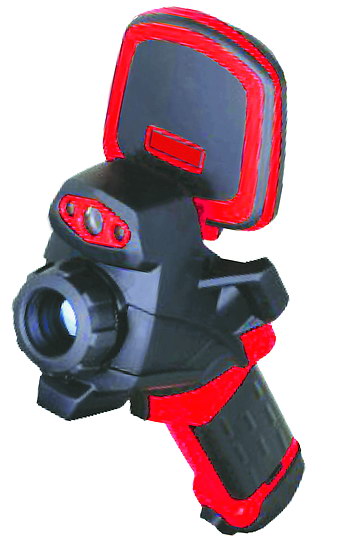

Infrared Thermal Imager SRU380D

Basic Function:

Visual Angle/Min Imaging Distance: 24x18/0.1m (Lens selectable)

Temperature Sensitivity: 0.05C @ 30C

Sensors: UFPA (Uncooled Infrared Focal Plane Array)

Imaging Model: Infrared / Visible light/PIP /Blend

Visible Light Resolution: 640*480 full color

Resolution: 384*288

Working Wave Range: 8 ~ 14um

Focus Mode: Manual Focus

Spatial Resolution: 1.3mrad

Refresh Rate: 50Hz

Imaging Model: Infrared (Iron red/ Anti-iron red/Rainbow red/Reddish/White hot/Black hot)

LCD: 3.5TFT (Can fold up and down / equipped with lens hood)

Special Function:

Video Output: PAL (50Hz) or NTSC (60Hz) composite video

Temperature Range: -20C~300C (Extendable to 1500C)

Temperature Accuracy: 2C or reading 2%

Temperature Mode: 9 moveable point, Max/Min temperature capture mode, Isothermality analysis, Straight line analysis, Five moveable area mode

Temperature Calculate:

Parameter Modify: Emissivity, Environment temperature, Distance, Relative humidity

Storage Type: 2GB mini SD card (Can save 16000, Max support 16GB)

File Format: .TIR, Visible light file .CCD

Light:

Laser Pointer:
Alarm:

Battery type/working time: Rechargeable lithium battery /3 hours

Power Save Mode: Auto power off or Sleep mode

Special Specification: Working temperature: -20C to +50C
Storage temperature:

Working temperature: -40C to +70C
Humidity: 95RH
IP54 shock resistance
25G vibration resistance
Analysis software
Work out report form automatically

General Characteristics:

Power: Rechargeable battery, 7.2V / 1450mAh

Product Color: Red+Grey

Product Net Weight: 700g (Battery included)

Product Size: 220mm*80mm*215mm

Standard Accessories: Batteries, Power Adaptor, 2G SD Card, Card Reader, Camera Cover, Software CD

Standard Individual Packing: Gift Box, English Manual, Tool box

Standard Quantity Per Carton: 3PCS

Infrared Thermal Imager SRU160D/SRU380D visible light/blend

Infrared Thermal Imager SRU160D/SRU380D PIP

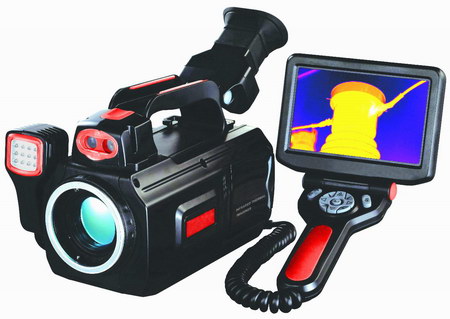

SRU640B Infrared Thermal Imager

SRU640B is one kind of infrared thermal imaging meter with 5 inch LCD display can enlarge subtle object instantly, which is designed with disconnect-type remote control handle. Equipped with Res 640*480 imported sensor, 3000,000 response unit (through Real-time dynamic induction), it can provide accurate temperature value. Installed with newly operation interface system, it is very convenient for user to achieve measuring task.
Applicable industries:

Electric power, Scientific research, Construction, Smelting, Energy, Petrochemical, Transportation, ect.
Specifications:

Function

SRU640B

Visual Angle/Min Imaging Distance

24x18/0.5m (Lens is optional)

Temperature Sensitivity

0.05C @ 30C

Spatial Resolution

0.65mrad

Sensor Type

UFPA

Resolution

640*480 Full Color

Working wave range

8~14um

Focus Model

Manual Focus

Imaging Display



Imaging Model

Infrared/ Visible light/ Blend

LCD Display

5 TFT LCD Display

View Finder

Build-in high definition OLED viewfinder

Temperature measuring



Temperature Range

-20C~+600C (Max support 2000C)

Measuring Accuracy

2C or reading 2%

Temperature Model

Five moveable point, Max/Min temperature auto reading, Straight line analysis, One area analysis

Parameter Modify

Emissivity, Environment temperature, Distance, Relative humidity

Temperature Alarm

Yes

Imaging Storage



Type

2GB SD Card (Can save 16000 pictures, Max support 16GB)

Other Function



Light

Yes

Optional Lens

Multi-type- (7, 12, 48)

SRU Series Infrared Thermal Imager Application

( If you need prices, pictures without our warter mark, user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )

If you need Visual IR Thermometer, Visual Infrared Thermometer, click here: Visual IR Thermometer, Visual Infrared Thermometer
