Infrared Thermometer SRF710, SRF711, SRF712
Features:
1. Optical resolution: D:S=12:1
2. Built-in laser pointer
3. Overrange indication
4. Backlit LCD display
5. Fixed at 0.95 emissivity
6. Data Hold
7. Auto power off
Specification:
|
Model |
SRF710 |
SRF711 |
SRF712 |
|
IR Temp Range |
-50ºC to 330ºC |
-50ºC to 500ºC |
-50ºC to 800ºC |
|
-58ºF to 626ºF |
-58ºF to 932ºF |
-58ºF to 1472ºF |
|
Basic Accuracy (IR) |
-50ºC~0ºC: ¡À4ºC |
-50ºC~0ºC: ¡À4ºC |
-50ºC~0ºC: ¡À4ºC |
|
0ºC~330ºC:
¡À2% ¡À2ºC |
0ºC~500ºC:
¡À2% ¡À2ºC |
0ºC~800ºC:
¡À2% ¡À2ºC |
|
Response Time |
¡Ü1s |
|
Emissivity |
fixed at 0.95 |
|
Optical Resolution |
D:S=12:1 |
|
Resolution |
0.1ºC/ºF |
|
Spectral Response |
8~14um |
|
Diode Laser |
Output<1mW, 630~670nm, class 2(II) |
|
Auto Power Off |
Auto shut off after 20 seconds of inactivity |
|
Operating Temp. |
0ºC to 50ºC / 32ºF to 122ºF |
|
Storage Temp. |
-20ºC to 60ºC / -4ºF to 140ºF |
|
Relative Humidity |
Operating:10~95%RH; Storage: <80%RH |
|
Power Supply |
9V battery |
|
Dimensions (L*W*H) |
134*88.5*36mm |
|
Weight |
105g |
|
Accessories |
User's Manual, 9V Battery, Blister Card |
|
|
¡¡ |
¡¡ |
|
 |
Infrared Thermometer SRF701, SRF702, SRF703
Features:
1. Optical resolution: D:S=13:1
2. Built-in laser pointer
3. Overrange indication
4. Backlit LCD display
5. Fixed at 0.95 emissivity
6. Data Hold
7. Auto power off
Specification:
|
Model |
SRF701 |
SRF702 |
SRF703 |
|
IR Temp Range |
-50 ¡ãC ~ 350 ¡ãC |
-50 ¡ãC ~ 550 ¡ãC |
-50 ¡ãC ~ 850 ¡ãC |
|
-58 ¡ãF ~ 662 ¡ãF |
-58 ¡ãF ~ 1022 ¡ãF |
-58 ¡ãF ~ 1562 ¡ãF |
|
Basic Accuracy (IR) |
-50 ¡ãC ~ 0 ¡ãC: ¡À4 ¡ãC |
-50 ¡ãC ~ 0 ¡ãC: ¡À4 ¡ãC |
-50 ¡ãC ~ 0 ¡ãC: ¡À4 ¡ãC |
|
0 ¡ãC ~ 350 ¡ãC:
¡À2% ¡À2 ¡ãC |
0 ¡ãC ~ 550 ¡ãC:
¡À2% ¡À2 ¡ãC |
0 ¡ãC ~ 850 ¡ãC:
¡À2% ¡À2 ¡ãC |
|
Response Time |
¡Ü500ms |
|
Emissivity |
fixed at 0.95 |
|
Optical Resolution |
D:S=13:1 |
|
Resolution |
0.1 ¡ãC/ ¡ãF |
|
Spectral Response |
8 ~ 14um |
|
Diode Laser |
Output<1mW, 630 ~ 670nm, class 2(¢ò) |
|
Auto Power Off |
Auto shut off after 20 seconds of inactivity |
|
Operating Temp. |
0 ¡ãC ~ 50 ¡ãC / 32 ¡ãF ~ 122 ¡ãF |
|
Storage Temp. |
-20 ¡ãC ~ 60 ¡ãC / -4 ¡ãF ~ 140 ¡ãF |
|
Relative Humidity |
Operating:10 ~ 95%RH; Storage: <80%RH |
|
Power Supply |
9V battery |
|
Dimensions (L*W*H) |
155.5*98.8*27.5mm |
|
Weight |
166g |
|
Accessories |
User's Manual, 9V Battery, Blister Card |
|
|
¡¡ |
¡¡ |
|
 |
Infrared Thermometer SRF706, SRF708, SRF709
Features:
1. Optical resolution: D:S=30:1
2. Adjustable emissivity 0.1~1.0
3. MAX/MIN record
4. Fast response time <250ms
5. Overrange indication
6. Data Hold
7. Auto power off
Specification:
|
Model |
SRF706 |
SRF708 |
SRF709 |
|
IR Temp Range |
-50 ¡ãC ~ 650 ¡ãC |
-50 ¡ãC ~ 850 ¡ãC |
-50 ¡ãC ~1050 ¡ãC |
|
-58 ¡ãF ~ 1202 ¡ãF |
-58 ¡ãF ~ 1562 ¡ãF |
-58 ¡ãF ~ 1922 ¡ãF |
|
Basic Accuracy (IR) |
-50 ¡ãC ~ 0 ¡ãC: ¡À4 ¡ãC |
-50 ¡ãC ~ 0 ¡ãC: ¡À4 ¡ãC |
-50 ¡ãC ~ 0 ¡ãC: ¡À4 ¡ãC |
|
0 ¡ãC ~ 650 ¡ãC:
¡À2% ¡À2 ¡ãC |
0 ¡ãC ~ 850 ¡ãC:
¡À2% ¡À2 ¡ãC |
0 ¡ãC ~ 1050 ¡ãC:
¡À2% ¡À2 ¡ãC |
|
Response Time |
¡Ü250ms |
|
Emissivity |
Adjustable: 0.1~1.0 |
|
Optical Resolution |
D:S=30:1 |
|
Resolution |
0.1 ¡ãC/ ¡ãF |
|
Spectral Response |
8 ~ 14um |
|
Diode Laser |
Output<1mW, 630 ~ 670nm, class 2(II) |
|
Auto Power Off |
Auto shut off after 20 seconds of inactivity |
|
Operating Temp. |
0 ¡ãC ~ 50 ¡ãC / 32 ¡ãF ~ 122 ¡ãF |
|
Storage Temp. |
-20 ¡ãC ~ 60 ¡ãC / -4 ¡ãF ~ 140 ¡ãF |
|
Relative Humidity |
Operating:10 ~ 95%RH; Storage: <80%RH |
|
Power Supply |
9V battery |
|
Dimensions (L*W*H) |
155.5*98.8*27.5mm |
|
Weight |
172g |
|
Accessories |
User's Manual, 9V Battery, Blister Card |
|
|
¡¡ |
¡¡ |
|
 |
Professional High Temperature Infrared
Thermometer
SRF761, SRF762, SRF763, SRF765, SRF766
Features:
1. Optical resolution: D:S=50:1
2. Adjustable emissivity 0.1~1.0
3. MAX/MIN/AVG/DIF functions
4. Adjustable high/low alarm
5. Fast response time <250ms
6. Overrange indication
Specification:
|
|
Model |
SRF761 |
SRF762 |
SRF763 |
SRF765 |
SRF766 |
|
IR Temp Range |
-50¡ãC~1150¡ãC |
-50¡ãC~1350¡ãC |
-50¡ãC~1650¡ãC |
-50¡ãC~1850¡ãC |
-50¡ãC~2250¡ãC |
|
-58¡ãF~2102¡ãF |
-58¡ãF~2462¡ãF |
-58¡ãF~3002¡ãF |
-58 ¡ãF~3362¡ãF |
-58¡ãF~4082¡ãF |
|
Basic Accuracy |
-50¡ãC~20¡ãC:¡À3 ¡ãC |
-50¡ãC~20¡ãC:¡À3 ¡ãC |
-50¡ãC~20¡ãC:¡À3¡ãC |
-50¡ãC~20¡ãC:¡À3 ¡ãC |
-50¡ãC~20¡ãC:¡À3¡ãC |
|
20¡ãC~500¡ãC: 1.0%¡À1¡ãC(1.8¡ãF) |
20¡ãC~500¡ãC: 1.0%¡À1¡ãC(1.8¡ãF) |
20¡ãC~500¡ãC: 1.0%¡À1¡ãC(1.8¡ãF) |
20¡ãC~500¡ãC: 1.0%¡À1¡ãC(1.8¡ãF) |
20¡ãC~500¡ãC: 1.0%¡À1¡ãC(1.8¡ãF) |
|
500¡ãC~1150¡ãC: 1.5%¡À2¡ãC(4¡ãF) |
500¡ãC~1350¡ãC: 1.5%¡À2¡ãC(4¡ãF) |
500¡ãC~1650¡ãC: 1.5%¡À2¡ãC(4¡ãF) |
500¡ãC~1850¡ãC: 1.5%¡À2¡ãC(4¡ãF) |
500¡ãC~2250¡ãC: 1.5%¡À2¡ãC(4¡ãF) |
|
Response Time |
¡Ü250ms |
|
Emissivity |
Adjustable: 0.1~1.0 |
|
Optical Resolution |
D:S=50:1 |
|
Resolution |
0.1¡ãC(0.1¡ãF)©‚1000;
1¡ãC(1¡ãF)©ƒ1000 |
|
Spectral Response |
8 ~ 14um |
|
Diode Laser |
Output<1mW, 630 ~ 670nm, class 2(II) |
|
Auto Power Off |
Auto shut off after 20 seconds of inactivity |
|
Operating Temp. |
0 ¡ãC ~ 50 ¡ãC / 32 ¡ãF ~ 122 ¡ãF |
|
Storage Temp. |
-20 ¡ãC ~ 60 ¡ãC / -4 ¡ãF ~ 140 ¡ãF |
|
Relative Humidity |
Operating:10 ~ 95%RH; Storage: <80%RH |
|
Power Supply |
9V battery |
|
Dimensions (L*W*H) |
191.5*126*60mm |
|
Weight |
299g |
|
Accessories |
User's Manual, 9V Battery, Tripod, carrying case with gift box |
|
|
¡¡ |
¡¡ |
|
 |
USB IR Thermometer
SRF761U, SRF762U, SRF763U, SRF765U, SRF766U
Features:
1, Adjustable emissivity: 0.1~1.0
2, MAX, MIN, DIF, AVG Record
3, Backlight LCD display
4, PC real-time monitoring and recording
5, High/Low Alarm
6, Automatic trigger off and power off
Specification:
|
|
Model No. |
SRF761U |
SRF762U |
SRF763U |
SRF765U |
SRF766U |
|
Range |
-50~1150¡ãC |
-50~1350¡ãC |
-50~1650¡ãC |
-50~1850¡ãC |
-50~2250¡ãC |
|
-58~2102¡ãF |
-58~2462¡ãF |
-58~3002¡ãF |
-58~3362¡ãF |
-58~4082¡ãF |
|
Accuracy |
-50~0¡ãC:¡À4¡ãC |
-50~0¡ãC:¡À4¡ãC |
-50~0¡ãC:¡À4¡ãC |
-50~0¡ãC:¡À4¡ãC |
-50~0¡ãC:¡À4¡ãC |
|
0~1150¡ãC:2.0 % ¡À2¡ãC |
0~1350¡ãC:2.0%¡À2¡ãC |
0~1650¡ãC:2% ¡À2¡ãC |
0~1850¡ãC:2.0%¡À2¡ãC |
0~2200¡ãC:2% ¡À2¡ãC |
|
Optical Resolution |
50:1 |
|
Emissivity |
Adjustable: 0.10~1.0 |
|
Resolution |
0.1¡ãC(0.1¡ãF)©‚1000;
1¡ãC(1¡ãF)©ƒ1000 |
|
Response Time |
©‚250ms |
|
Spectral Response |
8~14um |
|
Polarity Display |
Auto display, "-" indicates negative,
while positive with no sign. |
|
Diode Laser |
Output<1mW, 630~670nm, class 2(II) |
|
Automatic Power Off |
Meter shuts off automatically after 20 seconds |
|
Operating Temp. |
0¡ãC~50¡ãC (32¡ãF~122¡ãF) |
|
Storage Temp. |
-20¡ãC~60¡ãC (-4¡ãF~140¡ãF) |
|
Relative Humidity |
Operating:10 to 95%R; Storage:<80%RH |
|
Power Supply |
9V battery |
|
Weight |
290g |
|
Dimensions (L*W*H) |
191.5*126*60mm |
|
Resolution |
0.1¡ãC(0.1¡ãF)©‚1000;
1¡ãC(1¡ãF)©ƒ1000 |
|
Weight |
299g |
|
Accessories |
User's Manual, 9V Battery, Tripod, carrying case with gift box,
USB cable and software |
|
|
¡¡ |
¡¡ |
|
 |

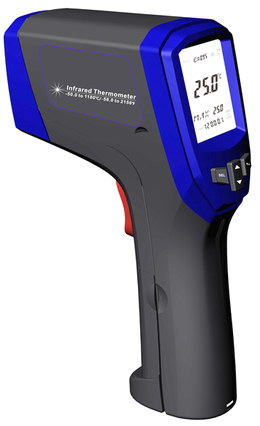

Infrared Thermometer with
Type K Input + USB + SD
Storage
SRF767, SRF768, SRF769, SRF770, SRF771
Features:
1. Measuring data automatically converted into a CSV format to SD card
2. Infrared temperature and K type temperature measuring
3. 2.2inches three lines big LCD display with backlight
4. The built-in laser circle with 13 laser spots increases the target
accuracy
5. PC real-time monitoring and recording
6. C / F conversion
7. Adjustable high/ low alarm
8. Low power / overrange indication
9. Auto power off |
|
Specifications:
|
Model |
SRF767 |
SRF768 |
SRF769 |
SRF770 |
SRF771 |
|
Range |
IR |
-50~1180¡ãC
-58~2156¡ãF |
-50~1380¡ãC
-58~2516¡ãF |
-50~1680¡ãC
-58~3056¡ãF |
-50~1980¡ãC
-58~3596¡ãF |
-50~2280¡ãC
-58~4136¡ãF |
|
TK |
-50~1370¡ãC / -58~2498¡ãF |
|
Accuracy |
IR |
-50~0¡ãC/ -58~32¡ãF: ¡À4¡ãC/ 7.2¡ãF
0~500¡ãC/ 32~932¡ãF: ¡À1.5% of reading ¡À2¡ãC/ 3.6¡ãF
Above 500¡ãC/ 932¡ãF: ¡À2% of reading ¡À2¡ãC/ 3.6¡ãF |
|
TK |
-50~1370¡ãC/ -58~2498¡ãF: 1.5% ¡À 1¡ãC/ 1.8¡ãF |
|
Optical resolution |
50:1 |
|
Emissivity |
Adjustable: 0.10~1.0 |
|
Resolution |
<1000: 0.1¡ãC (0.1¡ãF); >1000: 1¡ãC (1¡ãF) |
|
Response time |
<250ms |
|
Spectral response |
8~14um |
|
Polarity display |
Auto display, ¡°_¡± indicate negative, while positive with no
sign |
|
Auto power off |
Meter shuts off automatically after 20 seconds inactivity |
|
Operation temp. |
0¡ãC~50¡ãC (32¡ãF~122¡ãF) |
|
Storage temp. |
-20¡ãC~60¡ãC (-4¡ãF~140¡ãF) |
|
Relative humidity |
Operating: 10~95%RH; Storage: <80%RH |
|
Power supply |
9V battery |
|
Weight |
290g |
|
Dimensions (L*W*H) |
198*128*58mm |
|
|
¡¡ |
¡¡ |
|
 |
Infrared Thermometer with
Type-K Input SRF720, SRF721, SRF722, SRF723
Features
1.
¡ãC/¡ãF
selection
2. Data Hold
3. White Backlit and Overrange indication
4. MAX, MIN, DIF, AVG record
5. High and Low Alarm
6. Trigger Lock
7. Emissivity: 0.1~1.0
8. Type K temperature.
9. Data logger
Specification:
|
|
Model |
Range |
Accuracy |
D:S |
Resolution |
|
SRF720 |
IR: -30~500¡ãC/-22~932¡ãF |
-30~20¡ãC;¡À4¡ãC |
13:1 |
0.1¡ãC/¡ãF |
|
20~500¡ãC;¡À2% of reading ¡À2¡ãC |
|
TK: -30~300¡ãC/-22~572¡ãF |
¡À1% of reading ¡À1.5¡ãC |
|
SRF721 |
IR: -50~850¡ãC/-58~1472¡ãF |
-50~20;¡À4¡ãC |
30:1 |
0.1¡ãC/¡ãF |
|
20~850¡ãC;¡À1.5% of reading ¡À2¡ãC |
|
TK: -50~1370¡ãC/-58~2498¡ãF |
¡À1% of reading ¡À1¡ãC |
|
SRF722 |
IR: -50~1050¡ãC/-58~1922¡ãF |
-50~20¡ãC;¡À4¡ãC |
30:1 |
0.1¡ãC/¡ãF |
|
20~1050¡ãC;¡À1.5% of reading ¡À2¡ãC |
|
TK: -50~1370¡ãC/-58~2498¡ãF |
¡À1% of reading ¡À1¡ãC |
|
SRF723 |
IR:-50~1350¡ãC/-58~2462¡ãF |
IR:-50~0¡ãC:¡À4¡ãC |
30:1 |
0.1ºC/ºF |
|
IR:0~500¡ãC:¡À1.5%¡À2¡ãC |
|
IR: 500~1350¡ãC:¡À2%¡À2¡ãC |
|
TK:-50~1370¡ãC/-58~2498¡ãF |
TK:-50~1370¡ãC:¡À1.5%¡À1¡ãC |
|
Accessories |
User' manual, 9V Battery, Tripod
(optional), K-type probe, Gift box with carrying pouch. |
|
|
¡¡ |
¡¡ |
|
 |
SRF729, SRF730, SRF731 Circle Laser Infrared
Thermometer
Features:
1. Fast and easy measurement
2. Precise non-contact measurement
3. The built-in laser pointer increases the target accuracy
4. Max/ Min record
5. Backlight LCD display
6. Emissivity adjustable from 0.1~1.0
7. Automatic measurement range selection with resolution 0.1¡ãC/
¡ãF
8. Automatic trigger off
9. Auto power off
¡¡
 |
|
Specifications:
|
Model |
SRF729 |
SRF730 |
SRF731 |
|
Range |
-30~950¡ãC/ -22~1742¡ãF |
-30~1150¡ãC/ -22~2120¡ãF |
-30~13500¡ãC/ -22~2462¡ãF |
|
Accuracy |
-30~0¡ãC/ --22~32¡ãF: ¡À3¡ãC/ 5.4¡ãF
Above 0¡ãC/ 32¡ãF: ¡À1.5% of reading ¡À2¡ãC/ 3.6¡ãF |
|
Optical resolution |
30:1 |
|
Emissivity |
Adjustable: 0.10~1.0 |
|
Resolution |
0.1¡ãC (0.1¡ãF) |
|
Response time |
<500ms |
|
Spectral response |
8~14um |
|
Polarity display |
Auto display, ¡°_¡± indicate negative, while positive with no
sign |
|
Diode laser |
Output <1mW-630-670nm, class 2 (II) |
|
Auto power off |
Auto shuts off after 20 seconds inactivity |
|
Operation temp. |
0¡ãC~50¡ãC (32¡ãF~122¡ãF) |
|
Storage temp. |
-20¡ãC~60¡ãC (-4¡ãF~140¡ãF) |
|
Relative humidity |
Operating: 10~95%RH; Storage: <80%RH |
|
Power supply |
9V battery |
|
Weight |
176g |
|
Dimensions (L*W*H) |
155.5*98.8*27.5mm |
|
|
¡¡ |
¡¡ |
|
 |
Infrared thermometer SRG320
Temperature range: -50 ~ 330ºC
(-58~626ºF)
Accuracy: ¡À1.5% or ¡À1.5ºC
Repeatability: ¡À1% or ¡À1ºC
Distance Spot Ratio: 12:1
Emissivity: 0.95 preset
Resolution: 0.1ºC/
ºF
Response Time: 500ms
Wavelength: 8-14¦Ìm
ºC/
ºF
Selection
Data Hold function
Laser Target Pointer selection
Backlight ON/OFF selection
Auto Power Shut OffPower supply: 2*1.5V AAA battery
Weight: 115.1g(Including battery)
Packing Method: Blister+Card |
|
¡¡ |
¡¡ |
|
 |
infrared thermometer SRG300
¡¡
Temperature range: -50 ~ 380ºC
(-58~716ºF)
Accuracy: ¡À1.5% or ¡À1.5ºC
Repeatability: ¡À1% or ¡À1ºC
Distance Spot Ratio: 12:1
Emissivity: 0.95 preset
Resolution: 0.1ºC/
ºF
Response Time: 500ms
Wavelength: 8-14¦Ìm
ºC/ºF
Selection
Data Hold function
Laser Target Pointer selection
Backlight ON/OFF selection
Auto Power Shut Off
Guarantee: 12 months
Power supply: 9V battery
Weight: 147.5g(Including battery)
Dimension: 153*101*43mm
Packing Method: Blister+Card
|
|
¡¡ |
¡¡ |
|
 |
infrared thermometer SRG300E
¡¡
Temperature range: -50 ~ 420ºC
(-58~788ºF)
Accuracy: ¡À1.5% or ¡À1.5ºC
Repeatability: ¡À1% or ¡À1ºC
Distance Spot Ratio: 12:1
Emissivity:
0.1~1.00 adjustable
Resolution: 0.1ºC/
ºF
Response Time: 500ms
Wavelength: 8-14¦Ìm
ºC/ºF
Selection
Data Hold function
Laser Target Pointer selection
Backlight ON/OFF selection
Auto Power Shut Off
Max/Min/Dif/Avg temperature reading
Hi-Low temperature alarm setup
Guarantee: 12 months
Power supply: 9V battery
Weight: 147.5g (Including battery)
Dimension: 153*101*43mm
Packing Method: Blister+Card
|
|
¡¡ |
¡¡ |
|
 |
infrared thermometer SRG321
features:
1.ºC/ºF
temperature unit conversion
2.Data retention
3.Positioning laser
4.LCD backlight
5.Max / Min display
6.Self-calibration
7.Ambient temperature view
8.Automatic shut-down
specifications:
Temperature range: -50~400ºC
(-58~752ºF)
Accuracy: 0~400ºC
(32~752ºF):
¡À1.5ºC(¡À2.7ºF)
or ¡À1.5%
-50~0ºC(-58~32ºF):
¡À3ºC
(¡À5ºF)
Whichever is greater
Repeatability: 1% of reading or 1ºC
Response time: 500 mSec, 95% response
Spectral response: 5~14 um
Emissivity: 0.10~1.00 optional (0.95 Preset)
Distance to Spot size: 12:1
Operating Temperature: 0 ~40ºC
(32 ~ 104ºF)
Operating Humidity: 10~95%RH non-condensing, up to 30ºC(86ºF)
Storage Temperature: -20 ~ 60ºC
(-4~140ºF)
Power: 3V (1.5V AAA * 2)
Typical battery life (Alkaline): Laser Models:12 hrs |
|
¡¡ |
¡¡ |
|
 |
infrared thermometer SRG530
features:
1.ºC/ºF
temperature unit conversion
2.Data retention
3.Positioning laser
4.LCD backlight
5.Automatic shut-down
specifications:
Temperature range: -50~530ºC
(-58~986ºF)
Accuracy: 0~530ºC
(32~986ºF):
¡À1.5ºC(¡À2.7ºF)
or ¡À1.5%
-50~0ºC(-58~32ºF):
¡À3ºC
(¡À5ºF)
Whichever is greater
Resolution: 0.1ºC
/ 0.1ºF
Repeatability: 1% of reading or 1ºC
Response time: 500 mSec, 95% response
Spectral response: 8~14 um
Emissivity: 0.95 Preset
Distance to Spot size: 12:1
Operating Temperature: 0 ~40ºC
(32 ~ 104ºF)
Operating Humidity: 10~95%RH non-condensing, up to 30ºC(86ºF)
Storage Temperature: -20 ~ 60ºC
(-4~140ºF)
Power: 1.5V AAA*2 battery
Typical battery life (Alkaline): Laser Models:12 hrs |
|
¡¡ |
¡¡ |
|
 |
infrared thermometer SRG531
features:
1.ºC/ºF
temperature unit conversion
2.Data retention
3.Positioning laser
4.LCD backlight
5.Max / Min display
6.Self-calibration
7.Ambient temperature view
8.Automatic shut-down
specifications:
Temperature range: -50~530ºC
(-58~986ºF)
Accuracy: 0~530ºC
(32~986ºF):
¡À1.5ºC(¡À2.7ºF)
or ¡À1.5%
-50~0ºC(-58~32ºF):
¡À3ºC
(¡À5ºF)
Whichever is greater
Repeatability: 1% of reading or 1ºC
Response time: 500 mSec, 95% response
Spectral response: 5~14 um
Emissivity: 0.10~1.00 optional (0.95 Preset)
Distance to Spot size: 12:1
Operating Temperature: 0 ~40ºC
(32 ~ 104ºF)
Operating Humidity: 10~95%RH non-condensing, up to 30ºC(86ºF)
Storage Temperature: -20 ~ 60ºC
(-4~140ºF)
Typical battery life (Alkaline): Laser Models:12 hrs |
|
¡¡ |
¡¡ |
|
 |
infrared thermometer SRG550
Temperature range: -50 ~ 550ºC
(-58~1022ºF)
Accuracy: ¡À1.5% or ¡À1.5ºC
Repeatability: ¡À1% or ¡À1ºC
Distance Spot Ratio: 12:1
Emissivity: 0.95 preset
Resolution: 0.1ºC/ºF
Response Time: 500ms
Wavelength: 8-14¦Ìm
ºC/ºF
Selection
Data Hold function
Laser Target Pointer selection
Backlight ON/OFF selection
Auto Power Shut Off
Power supply: 9V battery
Weight: 147.5g(Including battery)
Dimension: 153*101*43mm
Packing Method: Blister+Card |
|
¡¡ |
¡¡ |
|
 |
Infrared thermometer SRG550E
*Temperature range: -50 ~ 550ºC
(-58~1022ºF)
*Accuracy: ¡À1.5% or ¡À1.5ºC
*Repeatability: ¡À1% or ¡À1ºC
*Distance Spot Ratio: 12:1
*Emissivity: 0.1~1.00 adjustable
*Resolution:0.1ºC/
ºF
*Response Time: 500ms
*Wavelength: 8-14¦Ìm
*MAX/MIN/AVG/DIF reading
*High/Low Temperature alarm setup
*¡æ/¨H Selection
*Data Hold function
*Laser Target Pointer selection
*Backlight ON/OFF selection
*Auto Power Shut Off
*Low power indication
*Power supply: 9V battery
*Weight: 147.5g (Including battery)
*Dimension: 153*101*43mm
*Packing Method: Blister+ Card |
|
¡¡ |
¡¡ |
|
 |
infrared thermometer SRG700
Temperature range: -50 ~ 700ºC
(-58~1292ºF)
Accuracy: ¡À1.5% or ¡À1.5ºC
Repeatability: ¡À1% or ¡À1ºC
Distance Spot Ratio: 12:1
Emissivity: 0.1~1.00 adjustable
Resolution: 0.1ºC/ºF
Response Time: 500ms
Wavelength: 8-14¦Ìm
MAX/MIN/AVG/DIF reading
High/Low Temperature alarm setup
Data Store/Recall Function
ºC/ºF
Selection
Data Hold function
Laser Target Pointer selection
Backlight ON/OFF selection
Auto Power Shut Off
Packing Method: Gift Box+PP box
Power supply: 9V battery
Weight: 210g(Including battery)
Dimension: 175*100*49mm
¡¡ |
|
¡¡ |
¡¡ |
|
 |

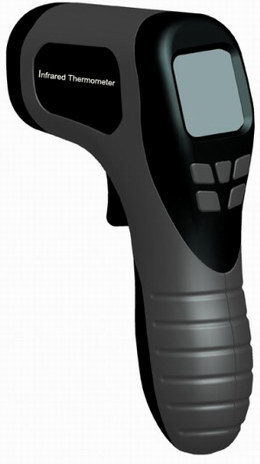

Infrared thermometer SRG750T
features:
1.ºC/ºF
temperature unit conversion
2.Positioning laser
3.Data retention
4.Max / Min / Difference / Average display
5.High / low temperature alarm settings
6.Measurement data storage
7.Automatic shut-down
specifications:
Temperature range: -50~750ºC
(-58~1382ºF)
Accuracy: 0~750ºC
(32~1382ºF):
¡À1.5ºC(¡À2.7ºF)
or ¡À1.5%
-50~0ºC(-58~32ºF):
¡À3ºC
(¡À5ºF)
Whichever is greater
Resolution: 0.1ºC
/ 0.1ºF
Repeatability: 1% of reading or 1ºC
Response time: 500 mSec, 95% response
Spectral response: 8~14 um
Emissivity: 0.10~1.00 optional (0.95 Preset)
Distance to Spot size: 12:1
Operating Temperature: 0 ~40ºC
(32 ~ 104ºF)
Operating Humidity: 10~95%RH non-condensing, up to 30ºC(86ºF)
Storage Temperature: -20 ~ 60ºC
(-4~140ºF)
Power: 9V Alkaline or NiCd battery
Typical battery life (Alkaline): Non-laser mode: 22 hrs; Laser Models:12
hrs
Weight: 222g
Dimension; 111*50*172mm |
|
¡¡ |
¡¡ |
|
 |
Infrared Thermometer SRG900
Temperature range:-50 ~ 900ºC
(-58~1652ºF)
Accuracy:¡À1.5% or ¡À1.5ºC
Repeatability:¡À1% or ¡À1ºC
Distance Spot Ratio:12:1
Emissivity:0.1~1.00 adjustable
Resolution:0.1ºC/ºF
Response Time:500ms
Wavelength:8-14¦Ìm
MAX/MIN/AVG/DIF reading
High/Low Temperature alarm setup
Data Store/Recall Function
ºC/ºF
Selection
Data Hold function
Laser Target Pointer selection
Backlight ON/OFF selection
Auto Power Shut Off
Packing Method: Gift Box+PP box
Power supply:9V battery
Weight:210g(Including battery)
Dimension:175*100*49mm |
|
¡¡ |
¡¡ |
 |
Infrared thermometer SRG950T
features:
1.ºC/ºF
temperature unit conversion
2.Max / Min / Difference / Average display
3.Positioning laser
4.Data retention
5.High / low temperature alarm settings
6.Measurement data storage
7.Automatic shut-down
specifications:
Temperature range: -50~950ºC
(-58~1742ºF)
Accuracy: 0~950ºC
(32~1742ºF):
¡À1.5ºC(¡À2.7ºF)
or ¡À1.5%
-50~0ºC(-58~32ºF):
¡À3ºC
(¡À5ºF)
Whichever is greater
Resolution: 0.1ºC
/ 0.1ºF
Repeatability: 1% of reading or 1ºC
Response time: 500 mSec, 95% response
Spectral response: 8~14 um
Emissivity: 0.10~1.00 optional (0.95 Preset)
Distance to Spot size: 12:1
Operating Temperature: 0 ~40ºC
(32 ~ 104ºF)
Operating Humidity: 10~95%RH non-condensing, up to 30ºC(86ºF)
Storage Temperature: -20 ~ 60ºC
(-4~140ºF)
Power: 9V Alkaline or NiCd battery
Typical battery life (Alkaline): Non-laser mode: 22 hrs; Laser Models:12
hrs
Weight: 222g
Dimension; 111*50*172mm |
|
¡¡ |
¡¡ |
|
 |
Infrared Thermometer SRG1150
Temperature range:-18 ~ 1150ºC
( -0~2102ºF)
Accuracy:¡À1.5% or ¡À1.5ºC
Repeatability:¡À1% or ¡À1ºC
Distance Spot Ratio:20:1
Emissivity:0.1~1.00 adjustable
Resolution:0.1ºC/ºF
Response Time:500ms
Wavelength:8-14¦Ìm
MAX/MIN/AVG/DIF reading
High/Low Temperature alarm setup
Data Store/Recall Function
ºC/ºF Selection
Data Hold function
Laser Target Pointer selection
Backlight ON/OFF selection
Auto Power Shut Off
Packing Method: Gift Box+PP box
Power supply:9V battery
Weight:312g(Including battery)
Dimension:200*155*59mm
|
|
¡¡ |
¡¡ |
|
 |
Infrared Thermometer SRG1150A
Temperature range:-18 ~ 1150ºC
( -0~2102ºF)
Accuracy:¡À1.5% or ¡À1.5ºC
Repeatability:¡À1% or ¡À1ºC
Distance Spot Ratio:50:1
Emissivity:0.1~1.00 adjustable
Resolution:0.1ºC/ºF
Response Time:500ms
Wavelength:8-14¦Ìm
MAX/MIN/AVG/DIF reading
High/Low Temperature alarm setup
Data Store/Recall Function
ºC/ºF
Selection
Data Hold function
Laser Target Pointer selection
Backlight ON/OFF selection
Auto Power Shut Off
Packing Method: Gift Box+PP box
Power supply:9V battery
Weight:312g(Including battery)
Dimension:200*155*59mm
|
|
¡¡ |
¡¡ |
|
 |
Infrared Thermometer SRG1350
Temperature range:-18 ~ 1350ºC
( 0~2462ºF)
Accuracy:¡À1.5% or ¡À1.5ºC
Repeatability:¡À1% or ¡À1ºC
Distance Spot Ratio:50:1
Emissivity:0.1~1.00 adjustable
Resolution:0.1ºC/ºF
Response Time:500ms
Wavelength:8-14¦Ìm
MAX/MIN/AVG/DIF reading
High/Low Temperature alarm setup
Data Store/Recall Function
ºC/ºF Selection
Data Hold function
Laser Target Pointer selection
Backlight ON/OFF selection
Auto Power Shut Off
Packing Method: Gift Box + PP box
Power supply:9V battery
Weight:312g(Including battery)
Dimension:200*155*59mm |
|
¡¡ |
¡¡ |
|
 |
Infrared Thermometer SRG1650
Temperature range:200 ~ 1650ºC
( 0~3002ºF)
Accuracy:¡À1.5% or ¡À1.5ºC
Repeatability:¡À1% or ¡À1ºC
Distance Spot Ratio:50:1
Emissivity:0.1~1.00 adjustable
Resolution:0.1ºC/ºF
Response Time:500ms
Wavelength:8-14¦Ìm
MAX/MIN/AVG/DIF reading
High/Low Temperature alarm setup
Data Store/Recall Function
ºC/ºF Selection
Data Hold function
Laser Target Pointer selection
Backlight ON/OFF selection
Auto Power Shut Off
Packing Method: Gift Box+PP box
Power supply:9V battery
Weight:312g(Including battery)
Dimension:200*155*59mm |
|
¡¡ |
¡¡ |
|
 |
USB Infrared Thermometer SRG1651
Temperature range: -30~1650ºC
( -22~3002ºF)
Accuracy:¡À1.5% or ¡À1.5ºC
Repeatability:¡À1% or ¡À1ºC
Distance Spot Ratio:50:1
Emissivity:0.1~1.00 adjustable
Resolution:0.1ºC/ºF
Response Time:500ms
Wavelength:8-14¦Ìm
MAX/MIN/AVG/DIF reading
High/Low Temperature alarm setup
13 data store/recall function
ºC/ºF Selection
Data Hold function
Laser Target Pointer selection
Backlight ON/OFF selection
Auto Power Shut Off
USB Recall
Packing Method: Gift Box+ PP box
Power supply:9V battery
Weight:312g(Including battery)
Dimension:200*155*59mm |
|
¡¡ |
¡¡ |
|
 |
Infrared Thermometer SRG1850
Temperature range:200 ~ 1850ºC
( 392~3362ºF)
Accuracy:¡À1.5% or ¡À1.5ºC
Repeatability:¡À1% or ¡À1ºC
Distance Spot Ratio:80:1
Emissivity:0.1~1.00 adjustable
Resolution:0.1ºC/ºF
Response Time:500ms
Wavelength:8-14¦Ìm
MAX/MIN/AVG/DIF reading
High/Low Temperature alarm setup
Data Store/Recall Function
ºC/ºF Selection
Data Hold function
Laser Target Pointer selection
Backlight ON/OFF selection
Auto Power Shut Off
Packing Method: Gift Box+PP box
Power supply:9V battery
Weight:312g(Including battery)
Dimension:200*155*59mm |
|
¡¡ |
¡¡ |
|
 |
Infrared Thermometer SRG2200
Temperature range:200 ~ 2200ºC
( 392~3990ºF)
Accuracy:¡À1.5% or ¡À1.5ºC
Repeatability:¡À1% or ¡À1ºC
Distance Spot Ratio:80:1
Emissivity:0.1~1.00 adjustable
Resolution:0.1ºC/ºF
Response Time:500ms
Wavelength:9-17¦Ìm
MAX/MIN/AVG/DIF reading
High/Low Temperature alarm setup
Data Store/Recall Function
ºC/ºF Selection
Data Hold function
Laser Target Pointer ON/OFF selection
Backlight ON/OFF selection
Auto Power Shut Off
Packing information:
Standard Quantity Per Carton: 12 PCS
Standard Carton Size: 53*50.6*35CM
Standard Carton Gross Weight: 15.5KG |
|
¡¡ |
¡¡ |
|
¡¡ |
¡¡ |
|
 |
Infrared Thermometer SRG750
Precise non-contact thermometer, safe and easy to use.
Simply point to an object and read its temperature.
Laser light allows accurate targeting.
Celsius and Fahrenheit switchable.
MAX, MIN, AVG, DIF reading.
Room temperature display
High/Low temperature alarm setup.
Laser on/off switch, Auto power off & temperature data hold; auto power off.
Simple One-Handed operation.
Lightweight and compact.
High quality with one year warranty.
Temperature range: -50 to 750ºC (-58 to 1292F)
Accuracy: ¡À1.5% or ¡À1.5ºC
Resolution: 0.1ºC or 0.1F
Repeatability: 1% of reading or 1ºC
Response time: 500mSec, 95% response
Spectral response: 8-14 um
Emissivity: 0.95 preset (adjustable)
Distance to spot size: 12 : 1
Operating temperature: 0 ~ 40ºC (32 ~ 104F)
Operating humidity: 10 ~ 95 % R.H.
Storage temperature: -20 ~ 60ºC (-4 ~ 140F)
Power supply: 9V Battery |
|
¡¡ |
¡¡ |
|
 |
ST6898
Non-contact High temperature Infrared thermometers with
Type K Input
Specifications
|
Range |
-50ºC-1850ºC (58ºF~3362ºF) |
|
Optical resolution |
D:S=50:1 |
|
Type K Temp.range |
-50ºC to 1370ºC/ -58ºF to 2498ºF |
|
Type K temp.resolution |
0.1º up to 2000º, 1º over 2000º |
|
Response Time |
Less than 150ms |
|
Resolution |
0.1ºC/ ¡ãF |
|
Basic Accuracy |
2% of reading ¡À3.6ºF (+2) |
|
Spectral response |
8~14um |
|
Emissivity |
Adjustable 0.1-1.0 |
|
Operating temp |
32-122ºF (0 to 50ºC) |
|
Storage temp |
-4 to 140ºF (-20 to 60ºC) |
¡¡
Features
Precise Non-contact Measurements
Unique flat surface, modern housing design
Laser targeting
Automatic Data Hold and Auto power off
ºC/ ¡ãF
Switch
Max, Min, DIF,
AVG record
Backlight LCD display
Over range indication
Adjustable emissivity
High and low alarm |
