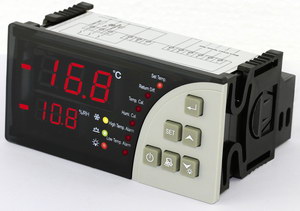

Temperature Humidity Controller, temperature and humidity controller



Temperature Controller





SRTC180 Temperature Controller

Technical parameters

1)  Measuring range: -50ºC90ºC or -58ºF゛194ºF (only when sensor calibration is set as 0)

2)  Resolution:0.1ºC or 1ºF

3)  Accuracy:-40ºC50ºC,+/-1ºC,51ºC70ºC,+/-2ºC,others, +/-3ºC

             or -40ºF゛122ºF,+/-2ºF,123ºF゛158ºF,+/-4ºF,others,+/-6ºF

4)  Controlling range:-50ºC85ºC or -58ºF゛185ºF

5) Power supply: 220+/-10 %( VAC)  50/60Hz

6)  Power consumption:<3W

7)  Input: Cabinet sensor, evaporator sensor, door switch

(When door is open, sensor signal: normal open)

8) Front panel waterproof level:IP65

9)  Work ambient temperature:0ºC55ºC

10)  Storage temperature:-25ºC75ºC

11)  Relative humidity:20%85%(non condensing)



Remark:

230V, built-in transformer and relays( comp, fan, light), defrost by turning off compressor, high low temp alarm, door switch detection, alarm output, energy saving function, -45~66ºC, blue digital display

SRTC402 Temperature Controller

Features

Mini-sized and integrated temperature control

can directly control 1HP compressor (include 1HP)

Temperature display/Temperature control

Manual, automatic defrost

Evap. fan control

Energy saving mode/Light control

Value storing/Parameter locking/Self testing

Technical Data

Temperature display range:-45~66ºC(-45~150ºF)

Set temperature range:40ºC~45ºC(40~113ºF)

Accuracy:+/-01ºC(02ºF)

Temperature sensor: NTC, two sensors (cold room&defrost control), 2 meters/

One door control switch line (optional)

Compressor N.O. 30A/250VAC(can directly connect to 1HP compressor, if more needs to connect an AC contactor)

Evap. Fan N.O. 5A/250VAC

Light:N.O 5A/250VAC

Increase dor (condenser sensor, door switch, alarm input) model selection input, when door control

input there is energy saving mode.

Dimension:77(L)mm*35(W)mm*70(D)mm

Mounting hole dimension: 71mm( L)*29mm(W)



Remark:

230V, built-in transformer and relays( comp, fan, defrost, light), 3 defrost type selection( defrost by turning off/electric heater/ hot gas), high low temp alarm, door switch detection, alarm output, energy saving function, -45~66ºC, blue digital display

SRTC406 Temperature Controller

Features

Mini-sized and integrated temperature control

can directly control 1HP compressor (include 1HP)

Temperature display/Temperature control

Manual, automatically defrost/

Evap. fan control/ Time, temperature setting to end defrost

Energy saving mode/

Light control/Value storing

Parameter locking/ Self testing

Technical Data

Temperature display range: -45~66ºC(-45~150ºF)

Set temperature range:40ºC~45ºC(40~113ºF)

Accuracy:+/-1ºC(1ºF)

Temperature sensor: NTC, two sensors, 2 meters (Neither positive nor negative ,white)

Compressor: N.O. 30A/250VAC (can directly connect to 1HP compressor, if more needs to connect an AC contactor)

Defrost heater: N.O. 8A/250VAC (can directly connect to 1KWload, if more needs to connect an AC contactor)

Evap. fan: N.O.5A/250VAC Light: N.O.5A/250VAC

Increase dor (condenser sensor, door switch, alarm input) model

Dimension:77 L mm 35(W)mm 70(D)mm

Mounting hole dimension: 71mm L 29mm(W)



Features:

-Temperature Control
-Alarm output
-Value Storing
-Self Testing

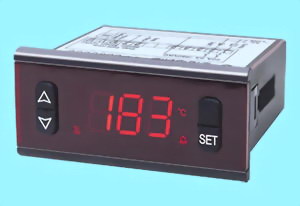

Temperature controller SRTC681

Technical Data:
Range: 0~999ºC
Accuracy: +/-0.3%FS+/-1dig
Temperature sensor: K-type thermocouple (purchase additionally), 1pc
Control output: N.O. 10A/250VAC
Alarm output: N.O. 5A/250VAC
Dimension: 77(Length)〜35(Width)〜6(Depth)mm
Mounting hole dimension:71(Length)〜29(Width)mm

Parameters:

Paramete

Function

Set range

Default

E1

Lower setpoint limit

0ºC~Set temp.

0ºC

E2

Higher setpoint limit

Set temp.~999ºC

400ºC

E3

Temp.hysteresis

1~99ºC

10ºC

E4

Comp.start delay time

0~10Min

2Min

E5

Offset on cold-room temp.

100~100ºC

0ºC

P1

High temp.alarm value

P2~999ºC

500ºC

P2

Low temp.alarm value

0ºC~P1

10ºC

P3

Alarm delay time

0~90Min

60Min



Features:
-Temperature Control
-Refrigerating & heating modes selection
-Value Storing/Selt Testing

-High temperature heating

Temperature controller SRTC66 (Refrigerating & heating modes selection)

Technical Data
-Range of temperature display:-150~550ºC
-Range of set temperature:-150~550ºC
-Accuracy:+/-1ºC
-Temperature sensor: PT100(purchase additionally), 1pcs
-Compressor: N.O. 10A/250VAC
-Dimension:77(Length)*35(Width)*60(Depth)mm
-Mounting hole dimension:71(Length)*29(Width)mm

Parameters:

Parameter

Function

Set range

Default

E1

Lower setpoint limit

-150ºC~Set temp.

-100ºC

E2

Higher setpoint limit

Set temp.~550ºC

400ºC

E3

Temp. Hysteresis

1~99ºC

10ºC

E4

Comp. start delay time

0~10Min

0Min

E5

Offset on room temp.

-5~5ºC

0

C1

Temperature control mode

0=refrigerating   1=heating

1





Features:
-Temperature control
-Refrigerating & heating modes selection
-The alarm function
-The alarm signal output
-Celsius/Fahrenheit degrees
-Value Storing / Self Testing

Temperature controller SRTC330A (Refrigerating & heating modes selection)

Technical Data
-Range of temperature display:-45~120ºC(-40~248ºF)
-Range of set temperature:-45~120ºC(-40~248ºF)
-Accuracy:+/-0.1ºC(+/-1.8ºF)
-Control output: N.O. 16A/250VAC
-Alarm output: N.O. 5A/250VAC
-Dimension:77(Length)*35(Width)*60(Depth)mm
-Mounting hole dimension:71(Length)*29(Width)mm
Parameter:

Parameter

Function

Set range

Default

E1

Lower setpoint limit

-45ºC/-49ºF~Set temp.

-35ºC/-31ºF

E2

Higher setpoint limit

Set temp.~120ºC/248ºF

90ºC/194ºF

E3

Temp.hysteresis

0.1~30.0ºC/0.2~54.0ºF

4.0ºC/7.2ºF

E4

Comp.start delay time

0~10Min

2Min

E5

Offset on room temp.

-19.9~20.0º/-35.0~36.0ºF

0

C1

Temperature unit

0=ºC1=ºF

0

C2

Temperature control mode

0=refrigerating   1=heating

0

P1

High temperature alarm value

-45~100ºC/-49~212ºF

45ºC/113ºF

P2

Low temperature alarm value

-45~100ºC/-49~212ºF

-40ºC/-40ºF

P3

Alarm delay time

0~90Min

60Min

P4

Alarm hysteresis

0.1~10.0ºC/0.2~18.0ºF

2.0ºC/3.6ºF





Features:
-Temperature Control
-Heating Control
-Value Storing
-Self Testing

-High temperature heating

Heating type temperature controller SRTC330L

Technical Data
-Range of temperature display:-20~300ºC
-Range of set temperature:-20~280ºC
-Accuracy:+/-1ºC
-Control output: N.O. 16A/250VAC
-Dimension:77(Length)*35(Width)*60(Depth)mm
-Mounting hole dimension:71(Length)*29(Width)mm
Parameter:

Parameter

Function

Set range

Default

E1

Lower setpoint limit

-20ºC~Set temp.

10ºC

E2

Higher setpoint limit

Set temp.~280ºC

200ºC

E3

Temp.Hysteresis

1~100ºC

6ºC

E4

Comp.start delay time

0~10Min

2Min

E5

Cold-room sensor correction

-50~50ºC

0





Features:
-Temperature Control
-Value Storing
-Self Testing

Heating type temperature controller SRTC803

Technical Data:
-Range of temperature displayed:-45ºC~120ºC
-Range of set temperature:-40ºC~110ºC
-Accuracy:+/-1ºC
-Heater: 10A/250VAC
-Dimension:77(Length)*35(Width)*60(Depth)mm
-Mounting hole dimension:71(Length)*29(Width)mm
Parameter:

Parameter

Function

Set range

Default

E1

Lower setpoint limit

-40ºC~Set temp.

0ºC

E2

Higher setpoint limit

Set temp.~110ºC

110ºC

E3

Temp.hysteresis

1~50ºC

3ºC

E4

Start delay time

0~10Min

0Min

E5

Offset on room temp.

-20~20ºC

0ºC



Features:
-Temperature control
-Refrigerating & heating modes selection
-Re-start delay
-Celsius/Fahrenheit degrees
-Value Storing / Self Testing

Temperature controller SRTC330 (Refrigerating & heating modes selection)

Technical Data:
-Power supply:230VAC/120VAC
-Range of temperature display:-45~120ºC(-40~248ºF)
-Range of set temperature:-45~120ºC(-41~248ºF)
-Accuracy:+/-1.0ºC(+/-1.8ºF)
-Resolution:0.1ºC(-19.9~99.9ºC)
-Relay output: N.O. 16A/250VAC
-Dimension:77(Length)*35(Width)*60(Depth)mm
-Mounting hole dimension:71(Length)*29(Width)mm
Parameter:

Parameter

Function

Set range

Default

E1

Lower setpoint limit

-45ºC/-41ºF~Set temp.

-35ºC/-31ºF

E2

Higher setpoint limit

Set temp.~120ºC/248ºF

90ºC/194ºF

E3

Temp.hysteresis

0.1~30.0ºC/0.2~54.0ºF

4.0ºC/7.0ºF

E4

Comp.start delay time

0~10Min

2Min

E5

Offset on room temp.

-19.9~20.0ºC/-35.0~36.0ºF

0

C1

Temperature unit

0=ºC 1=ºF

0

C2

Temperature control mode

0=refrigerating  1=heating

0



SRTC310 Temperature Controller

Main Feature:

1. Refrigeration, defrost  Control.

2. User's menu separate with administrator menu, easy for user to operate, suitable for administrator adjust;

3. Return difference; temperature resolution: 0.1ºC;

4. Multi alarm mode optional;

Technical Parameter:

1.Temperature measure range: -50~150ºC; Temperature control range: -50~150ºC

2. Power supply: 220VAC +/-10%, 50/60Hz

3. Compressor relay output capacity: 30A/220VAC

4. Relay(light defrost): 10A/220VAC

5. Digital display: Three-digit  LED+ Status indicator light( set; refrigeration; defrost;)

6. Temperature sensor: NTC, two sensors





SRTC311 Temperature Controller

Main Feature:
1. Refrigeration, defrost, fan controlling, multi modes optional;
2. User menu and administrator menu separately, easy for user operate and save adjustment value for senior administrator;
3. Return differential;
4, Multi alarm mode optional;
Technical Parameter:
1.Measuring range: -50
~150ºC Controlling range: -50~150ºC
2. Power supply: 220VAC 50Hz
3. Relay (Compressor) capacity: 30A/220VAC
4. Relay (Defrost, fan) capacity: 10A/220VAC
5. Resolution: 0.1
6. Digits display minus digit + status indicators (setting, refrigeration, defrost, alarm)

7. Temperature sensor: NTC, two sensors



SRTC1000 Temperature controller (Refrigerating & heating modes selection)

Features:

Switch the modes between cool and heat;

Control temperature by setting the temperature setting value and the difference value;

Temperature calibration;

Refrigerating control output delay protection;

Alarm when temperature exceeds temperature limit or when sensor error.

Specifications:

Temperature measuring range: -50ºC~120ºC     Resolution: 0.1ºC

Accuracy: 1ºC (-50ºC~70ºC)                            Sensor error delay: 1 minute

Power supply: 240V AC \10%, 50/ 60Hz          Power consumption: <3W

Sensor: NTC sensor (1pcs)                              Sensor length: 2M (include the probe)

Relay contact capacity: Cool (10A/ 250V AC); Heat (10A/ 250V AC)

Ambient temperature: 0ºC~60ºC                        Storage temperature: -30ºC~75ºC

Relative humidity: 20~85% (No condensate)



Refrigerating type SRTC301C Temperature Controller

Specification:

-Power supply: 220VAC OR 110VAC

-Power consumption: <3W
-Measuring range: -50ºC-110ºC

-Controlling range: -50ºC-110ºC
-Display resolution: 0.1
-Measurement accuracy: +/-1
-Relay capacity: 10A/250VAC





Refrigerating type SRTC302C/SRTC302F Temperature Controller

Specification:

-Power supply: 220VAC OR 110VAC

-Power consumption: <5W
-Measuring range: -50ºC-110ºC (-58<F-230<F)

-Controlling range: -50ºC-110ºC (-58<F-230<F)
-Display resolution: 0.1
-Measurement accuracy: +/-1ºC/+/-1<F
-Relay capacity:10A/250VAC



Heating type SRTC302CHH/SRTC302FHH Temperature Controller

Specification:

-Power supply: 220VAC OR 110VAC

-Power consumption: <5W

-Measuring range: -50ºC-120ºC (-58<F-248<F)

-Controlling range: -50ºC-110ºC (-58<F-248<F )

-Display resolution: 0.1
-Measurement accuracy: +/-1ºC

-Relay (Compressor) capacity: 30A



Description:

-Multi-control mode among refrigeration, defrost etc.
-Differential control mode, resolution is 0.1.
-Multi-protection and alarm mode optional.

Refrigerating type SRTC303C Temperature Controller

-User menu and administrator menu can beset separately. Not only convenient for user operation, but also left enough space for the adjustment of high-level management.

Specifications:

-Panel size: 75*34(mm)

-Installing size: 71*29(mm)

-Product size: 75*34.5*85(mm)

-Temperature measuring and controlling range: -50-50ºC

-Power supply: 220VAC 50HZ

-Power consumption: <5W

-Ambient temperature: 0-60ºC

-Relative humidity: 20%-85%(No condensate)

-Accuracy: +/-1ºC

-Relay capacity of compressor alarm and defrost: 10A/220VAC



Description:

-Multi-control modes among refrigeration, defrost and compressor.
-Resolution is 0.1
-Multi-protection and alarm modes optional

Refrigerating type SRTC304C Temperature Controller

-User menu and administrator menu can be set separately. Not only convenient for user operation, but also left enough space for the adjustment of high-level management.

Specification:
-Panel size: 75*34(mm)

-Installing size: 71*29(mm)

-Product size: 75*34.5*85(mm)

-Temperature measuring and controlling range: -50~50ºC

-Power supply: 220VAC 50Hz

-Power consumption: <5W

-Ambient temperature: 0~60ºC

-Relative humidity: 20%-85%(No condensate)

-Accuracy: +/-1ºC

-Relay capacity of compressor: 10A/220VAC Relay capacity of compressor and defrost.



Refrigerating type SRTC401X Knob Type Temperature Controller

Specification:

-Temp. Measuring range: -40ºC to +90ºC
-Resolution: 0.1ºC
-Accuracy: +/-1ºC
-Refrigerant relay output: 30A/240VAC(max. Load is 1.5HP)
-Compressor start-up delay time: 2 minutes
-Temp. controlling level: 0-7 level
-Power consumption: <3W
-Safe level: IP65



Refrigerating type SRTC402X Knob Type Temperature Controller

Specification:

-Temp. Measuring range: -40ºC to +90ºC
-Resolution: 0.1ºC
-Accuracy: +/-1ºC
-Refrigerant relay output: 30A/240VAC(max. Load is 1.5HP)
-Compressor start-up delay time: 2 minutes
-Temp. controlling level: 0-7 level
-Power consumption: <3W
-Safe level: IP65



Description:
A new series of products especially designed for refrigerant, kitchen refrigerator, refrigerant cabinet having the features of temperature display, control, compressor start-up delay protection,

Refrigerating type SRTC403X Knob Type Temperature Controller

sensor error and exceeding temperature limit code display, etc. Adjust temperature by switch knob, easy to operate, stable and reliable performance.
Specification:
-Product size: 170*56*80(mm)

-Installation size: 155*45(mm)

-Temperature measuring range: -40ºC~+90ºC

-Measuring accuracy: +/-1ºC

-Resolution: 0.1ºC

-Refrigerant relay output: 30A/240VAC(max. load is 1.5HP)

-Compressor start-up delay time: 2 minutes

-Temperature controlling level: 0~7 level (OFF is to close controller)

-Power consumption: <3W

-Safe level: IP65





Description:

Two way temperature(refrigeration, frozen)measurement and control, start compressor delay protect, sensor fault code shows etc. simple operation.

Refrigerating type SRTC404X Knob Type Temperature Controller
Specification:
-Product size: 170*56*80(mm)

-Installation size: 155*45(mm)

-Temperature measuring and controlling range: -40~70ºC

-Measuring and controlling accuracy: +/-1ºC

-Power supply: 220VAC/50HZ

-Compressor output contact capacity: 30A/250VAC

-Resolution: 0.1ºC

-Power consumption: <3W

-Sensor: NTC, 2 meters

-Safe level: IP65

-Operating environment: humidity: 10%~90%RH(No condensate),

Temperature: -10ºC~60ºC





Refrigerating type SRTC405X Knob Type Temperature Controller

Specification:

-Product size: 170*56*80(mm)
-Installation size: 155*45(mm)
-Temperature measuring and controlling range: -40~70ºC
-Measuring and controlling accuracy: +/-1ºC
-Power supply: 220VAC/50HZ
-Compressor output contact capacity: 30A/250VAC
-Resolution: 0.1ºC
-Power consumption: <3W
-Sensor: NTC, 2 meters
-Safe level: IP65
-Operating environment: humidity: 10%~90%RH(No condensate),

Temperature: -10ºC~60ºC





Refrigerating type SRTC501H Wine Cooler Temperature Controller

Specification:

-Product size: 137*56*69(mm)
-Installation size: 112*39(mm)
-Power supply: 115-250VAC+/-15% 50HZ
-Temperature measuring and controlling range: 4~18ºC(39-64 ºF)
-Accuracy: +/-1ºC/ ºF





Refrigerating type SRTC502H Wine Cooler Temperature Controller

Description:

Temperature measurement and control. animation backlit working state, fault alarm, the parameters of power lost memory. Apply to all kinds of high and low wine

Specification:

-Product size: 137*56*69(mm)

-Installation size: 112*39(mm)

-Power supply: 115-250VAC+/-15% 50HZ

-Temperature measuring and controlling range: 4~18ºC(39-64 ºF)

-Accuracy: +/-1ºC/ ºF



Humidity Controller (Temperature and Humidity Controller)



Features:
-Relative humidity display
-Relative humidity control

SRHC462 Humidity Controller

Technical Data:
-Range of displayed: 1~99%RH
-Regulating range: 20~99%RH
-Accuracy:
+/-5%RH
-Sensor: Capacitor type
-Regulating range: 20~99ºC
-Output contact capacity: 16A/250VAC
-Dimension: 77(L)*35(W)*60(D)mm
-Mounting hole dimension: 71(L)*29(W)mm

Parameters:

Parameter

Function

Set range

Default

E1

Start delay time

0~10Min

2Min

E2

Humidity hysteresis

1~70%RH

20%RH

E3

Humidity offset

-30~30%RH

0%RH

E4

Dehumidify&Humidity Switch

Dehumidify=0 Humidify=1

0





Features:
-Humidity Display
-Automatic dehumidify, humidification Control
-Value Storing/ Self Testing
-Parameter Locking

Technical Data:

-Range of displayed: 0~99%RH
-Regulating range: 10~90%RH
-Accuracy:
+/-5%RH
-Dehumidify relay: N.O. 10A/250VAC
-Humidification relay: N.O. 8A/250VAC



SRHC463 Humidity Controller

-Dimension: 77(Length)*35(Width)*60(Depth)mm
-Mounting hole dimension: 71(Length)*29(Width)mm

Parameters:

Parameter

Function

Set range

Default

E1

Lower setpoint limit

10%RH~Set temp.

40%RH

E2

Higher setpoint limit

Set temp.~90%RH

70%RH

E3

Humi. hysteresis

5~5%RH

20%RH

E4

Humidificationo hysteresis

5~5%RH

20%RH

E5

Transformation delay time

0~10Min

5Min

E6

Offset on humidity

-30~30%RH

0%RH

C1

Low humidity alarm

1%RH~C2

40%RH

C2

High humidity alarm

C1~99%RH

70%RH

C3

Alarm delay time

0~90~0Min

90Min



Features:
-Relative humidity display
-Temperature display
-Relative humidity control

SRHC465 Humidity Controller

Technical Data:
-Range of displayed: -45~120ºC
-Humidity display range: 1~99%RH
-Humidity control range: 1~99%RH
-Output relay: N.O. 16A/250VAC
-Dimension: 77(Length)*35(Width)*60(Depth)mm
-Mounting hole dimension: 71(Length)*29(Width)mm

Parameters:

Parameter

Function

Set range

Default

E1

Start delay time

0~10Min

2Min

E2

Humidity hysteresis

1~70%RH

20%RH

E3

Humidity offset

-10~30%RH

0%RH

E4

Dehumidify&Humidity Switch

Dehumidify=0 Humidify=1

0





Features:
-Temperature Display / Temperature Control
-Humidity control / Self Testing
-Manual, automatic defrost by electric heater
-Parameter Locking / Value storing

Technical Data:
-Range of displayed: -45~120ºC
-Humidity display range: 1~99%RH
-Accuracy:
+/-5%RH
-Humidity control range: 1~99%RH
-Compressor: N.O. 16A/250VAC
-Humidification Control: N.O.10A/250VAC
-Light: N.O. 8A/250VAC

SRHC468 Temperature and Humidity Controller

-Dimension: 77(Length)*35(Width)*60(Depth)mm
-Mounting hole dimension: 71(Length)*29(Width)mm

Parameters:

Parameter

Function

Set range

Default

E1

Lower setpoint limit

-45ºC~Set temp.

-35ºC

E2

Higher setpoint limit

Set temp.~45ºC

20ºC

E3

Temp.hysteresis

1~10ºC

4ºC

E4

Comp.start delay time

0~10Min

2Min

E5

Offset on room temp.

-20~20ºC

0

F1

Max.Defrost duration

1~60Min

20Min

F2

Defrost interval time

0~24Hr

6Hr

F3

Defrost during defrost

0=Normal display
1=Last value before defrost

0

C2

High temperature alarm

Set~49ºC~OFF

40ºC

C3

Lowe temperature alarm

OFF~49ºC~Set

OFF

C4

Alarm time delay

0~90Min

30Min

H1

Set humidity

1~99%RH

50%RH

H2

Humidity hysteresis

1~70%RH

20%RH

H3

Humidity offset

-10~30%RH

0%RH

H4

Humidification & dehumidification switch

0=dehumidification 1=humidification

0

H5

Dehumidify mode switch

0=dehumidifier

1=dehumidifying by compressor

1





Features:
-Temperature Control
-Humidity control
-Self Testing
-Parameter Locking
-Value storing

Technical Data:
-Temperature sensor,1pc; Humidity Sensor,1pc
-Range of displayed: -45~120ºC(-49~248ºF)
-Accuracy:
+/-1ºC(+/-2ºF)
-Humidity display range: 1~99%RH
-Accuracy:
+/-5%RH
-Temperature control: N.O. 16A/250VAC
-Humidity Control: N.O.10A/250VAC

SRHC469 Temperature and Humidity Controller

-Dimension: 77(Length)*35(Width)*60(Depth)mm
-Mounting hole dimension: 71(Length)*29(Width)mm

Parameters:

Parameter

Function

Set range

Default

E1

Lower setpoint limit

-45ºC/-49ºF~Set temp.

-35ºC/-31ºF

E2

Higher setpoint limit

Set temp.~110ºC/230ºF

40ºC/104ºF

E3

Temp. hysteresis

1~10ºC / 2~18ºF

4ºC/7ºF

E4

Comp. Start delay time

0~10Min

2Min

E5

Offset on room temp.

-20~20ºC / -36~36ºF

0

C1

High humidity alarm

Set~115ºC~OFF

Set~239ºF~OFF

40ºC/104ºF

C2

Low humidity alarm

OFF~-44ºC~Set

OFF~-47ºF~Set

OFF

C3

Alarm delay time

0~90Min

30Min

CF

Temperature unit

C=Celsius   F=Fahrenheit

C

CH

Temperature control mode

C=Cooling   F=Heating

C

H1

Humidity hysteresis

1~70%RH

20%RH

H2

Humidity offset

-10~30%RH

0%RH

H3

Dehumidify&Humidity switch

0=Dehumidify

1=Humidify

0



SRHC604 Temperature and Humidity Controller

Working conditions
Operating Voltage: 220-240 VAC, 50~60Hz;
Compressr relay contact capacity:16A;
Fan relay contact capacity: 7A;
Working temperature: -15
ºC~ - 60ºC
Features, safety requirements:
Temperature measuring range: -40.0~50.0,
The minimum display resolution :0.1;
Accuracy:\1.0
ºC;
Humidity display rang:0%RH~100RH%,
Display resolution: 1;
Accuracy: \3%RH(25
ºC)
Other: Meet the Gb4706.1-2005 safety standards.





SRHC1000 Humidity Controller
Product Overview:
Widely used for humidifier, dehumidifier, air humidity controller and relative humidity measuring and display device.

Features:
Humidification, dehumidification modes optional
Advanced humidity sensor, fast response, anti-interference
Key lock function
Humidity value Calibration

Main Function:
Humidification ,Dehumidification,1Sensor,Humidity Calibration

Parameter:
Power supply: 220VAC+10%/-15%, 50/60HZ
Humidity measuring range: 0%RH~+99%RH
Humidity controlling range: +10%RH~+99%RH
Resolution: 1%RH
Accuracy: \ (5%RH+0.5digit) at 25
ºC
\ (6%RH+0.5digit) at 0%RH~59%RH
\ (8%RH+0.5digit) at others, when +10
ºC~+40ºC
Relay output contact capacity: 10A/220VAC (single phase load is 0.5HP/220VAC)
Sensor type: humidity sensor, 2M
Temperature annual drift: \0.5%RH
Shell: gray ABS flame retardant material





( If you need prices, pictures without our warter mark, user manual or E-catalogue for above meters, please ask for at: xiushunjie@163.com)
