Turbidity meter/Turbidimeter

(Turbidity meter, portable Turbidity meter, Lab Turbidity meter, bench-top Turbidity meter, portable Turbidity Analyser, bench-top Turbidity Analyser)

SRTU, SRW Series scattered light turbidity meter is used for measuring the scattering degree of the lights generated by the insoluble grain matters suspended in water or transparent liquids, with capability to characterize the content of these suspended grain matters.

It can be broadly applied in the measurement of turbidity in power plants, waterworks, treatment stations of domestic sewage, beverage factories, environmental protection departments, industrial water, wine and pharmacy industries, epidemic prevention divisions, hospitals, and etc.

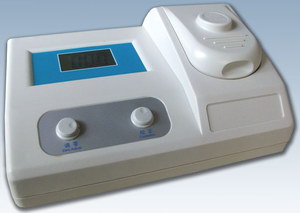

SRTU-1, SRTU-1A Turbidity Meter

Specification:

Model

SRTU-1

SRTU-1A

Minimum Principle

90 Scattered light

Minimum readout  (NTU)

0.1

0.01

Measuring range  (NTU)

0~199.9

0~19.99

Basic error F.S

2.5%F.S

2.0%F.S

Repeatability

1.0%

Characteristics

Bench type; Economic; Good stability.

External dimension

272*205*118mm

SRTU-1B Portable Turbidity Meter

Specification:

Model

SRTU-1B

Minimum Principle

90 Scattered light

Minimum readout  (NTU)

0.1

Measuring range  (NTU)

0~199.9

Basic error F.S

2.5%F.S

Repeatability

1.0%

Power supply

DC 1.5V AA alkaline dry cells * 5;

AC 220V/50Hz adapter

External dimension

235*75*65mm

Characteristics

Standard type; Password box packing; Auto power-off;

AC and DC two kind of power supply.

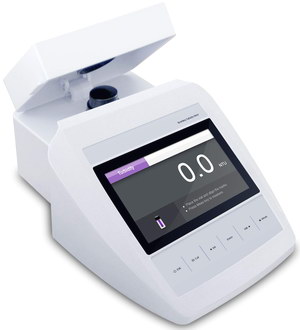

SRTU-1C, SRTU-1CB, SRTU-200 Turbidity meter

Specification:

Model

SRTU-1C

SRTU-1CB

SRTU-200

Measuring Principle

90 Scattered light

Minimum readout (NTU)

0.01

0.001

0.01

Measuring range (NTU)

0 ~ 20

0 ~ 2;

0 ~ 20

0 ~ 20;

0 ~ 200

Linear error F.S

2.0%F.S

Repeatability

1.0%

Computer interface

RS232 data communication interface (optional)

Characteristics

Bench microcomputer type; Economic; Good stability; Can be used for high and low turbidity analysis.

External dimension

272*205*118mm

Standard accessories

1. 400NTU/ 250ml Standard turbidity solution;
2. 6pcs sample bottle.

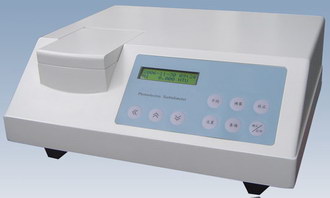

SRTU-2, SRTU-2A, SRTU-2B, SRTU-2C Turbidity meter

Specification:

Model

SRTU-2

SRTU-2A

SRTU-2B

SRTU-2C

Measuring Principle

90 Scattered light

Minimum readout

(NTU)

0.01

Measuring range

(NTU)

0~10.00
0~100.0
0~200.0

0~10.00
0~100.0

0~100.0
0~200.0

0~100.0
0~200.0
0~500.0

Linear error F.S

2.0%F.S

2.0%F.S

2.5%F.S

Repeatability

1.0%

Data storage

30 groups

Computer interface

RS232 data communication interface (optional)

Characteristics

High-precision; Good stability; Auto-switch measuring range; Can be used for high and low turbidity analysis.

External dimension

320*280*130mm

SRTU-2S, SRTU-2AS, SRTU-2BS, SRTU-2CS Turbidity meter

Specification:

Model

SRTU-2S

SRTU-2AS

SRTU-2BS

SRTU-2CS

Measuring Principle

90 Scattered light

Minimum readout

(NTU)

0.01

Measuring range

(NTU)

0~10.00
0~100.0
0~200.0

0~10.00
0~100.0

0~100.0
0~200.0

0~100.0
0~200.0
0~500.0

Linear error F.S

2.0%F.S

2.0%F.S

2.5%F.S

Repeatability

1.0%

Computer interface

RS232 data communication interface (optional)

Characteristics

High-precision; Good stability; Auto-switch measuring range; Can be used for high and low turbidity analysis.

External dimension

272*205*118mm

SRTU-400, SRTU-2000, SRTU-200A Turbidity meter

Specification:

Model

SRTU-400

SRTU-2000

SRTU-200A

Measuring Principle

90 Scattered light

Minimum readout

(NTU)

0.01

0.01

0.001

Measuring range

(NTU)

0~10.00;
0~100.0;
0~400.0

0~10.00;
0~100.0;
0~400.0

0~2000

0~2.000;
0~20.00;
0~200.0

Linear  error F.S

0~10.00; 0~100.0: 2.0%F.S
0~400.0: 2.5%F.S;
0~2000: 3.0%F.S

2.0%F.S

Repeatability

1.0%

Data storage

30 groups

Computer interface

RS232 data communication interface (optional)

Characteristics

High-precision; Good stability; Auto-switch measuring range; Can be used for high and low turbidity analysis.

External dimension

320*280*130mm

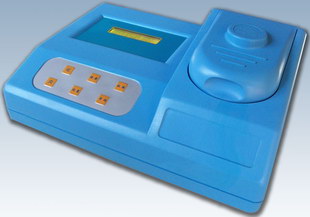

SRTU-400S, SRTU-2000S, SRTU-200AS Turbidity meter

Specification:

Model

SRTU-400S

SRTU-2000S

SRTU-200AS

Measuring Principle

90 Scattered light

Minimum readout

(NTU)

0.01

0.01

0.001

Measuring range

(NTU)

0~10.00;
0~100.0;
0~400.0

0~10.00;
0~100.0;
0~400.0

0~2000

0~2.000;
0~20.00;
0~200.0

Linear  error F.S

0~10.00; 0~100.0: 2.0%F.S
0~400.0: 2.5%F.S;
0~2000: 3.0%F.S

2.0%F.S

Repeatability

1.0%

Computer interface

RS232 data communication interface (optional)

Characteristics

High-precision; Good stability; Auto-switch measuring range; Can be used for high and low turbidity analysis.

External dimension

272*205*118mm

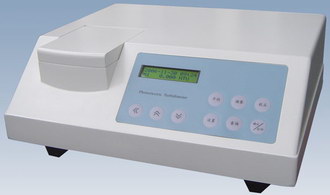

SRTU-3, SRTU-3A Turbidity meter

Specification:

Model

SRTU-3

SRTU-3A

Measuring Principle

90 Scattered light

Minimum readout (NTU)

0.001

0.01

Measuring range (NTU)

0~10.00; 0~100.0;  0~400; 0~1000

Linear error F.S

   0 ~ 10.00; 0 ~ 100.0: 2.0%F.S

   0 ~ 400.0; 0 ~ 1000: 2.5%F.S

Repeatability

1.0%

Data storage

30 groups

Computer interface

RS232 data communication interface (optional)

Characteristics

High-precision; Good stability; Auto-switch measuring range; Can be used for high and low turbidity analysis.

External dimension

320*280*130mm

SRTU-3S, SRTU-3AS Turbidity meter

Specification:

Model

SRTU-3S

SRTU-3AS

Measuring Principle

90 Scattered light

Minimum readout (NTU)

0.001

0.01

Measuring range (NTU)

0~10.00; 0~100.0;  0~400.0; 0~1000

Linear error F.S

   0 ~ 10.00; 0 ~ 100.0: 2.0%F.S

   0 ~ 400.0; 0 ~ 1000: 2.5%F.S

Repeatability

1.0%

Computer interface

RS232 data communication interface (optional)

Characteristics

High-precision; Good stability; Auto-switch measuring range; Can be used for high and low turbidity analysis.

External dimension

272*205*118mm

SRTU-3B Beer Turbidity meter

Specification:

Model

SRTU-3B

Minimum Principle

90 scattered light

Minimum readout (EBC)

0.01

Measuring range (EBC)

0 ~ 2; 0 ~ 20

Basic error F.S

2%F.S

Repeatability

1%

Data storage

30 groups

Computer interface

RS232 data communication interface (optional)

Characteristics

High precision; Good stability; Auto-switch measuring range; Especially for beer low turbidity analysis

External dimension

320*280*130 mm

SRTU-3BS Beer Turbidity meter

Specification:

Model

SRTU-3BS

Minimum Principle

90 scattered light

Minimum readout (EBC)

0.01

Measuring range (EBC)

0 ~ 2; 0 ~ 20

Basic error F.S

2%F.S

Repeatability

1%

Computer interface

RS232 data communication interface (optional)

Characteristics

High precision; Good stability; Auto-switch measuring range; Especially for beer low turbidity analysis

External dimension

272*205*118mm

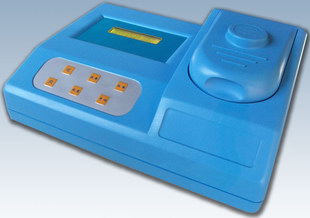

SRTU-1M Bacteria Turbidity Meter

Specification:

Model

SRTU-1M

Minimum readout (MCF)

0.01 MCF

Measuring range (MCF)

 0~1.00MCF; 0~6.00MCF

Basic error F.S

3.0%F.S

Repeatability

1.0%

Computer interface

RS232 data communication interface (optional)

Characteristics

Bench microcomputer type; Good stability; LCD backlight display; Auto-switch measuring range.

External dimension

272*205*118mm

Sample tube size

Common size: 15*100mm, 16*100mm, 18*50mm

 Please indicate the specific size when place order.

(The tube size also can be customized)

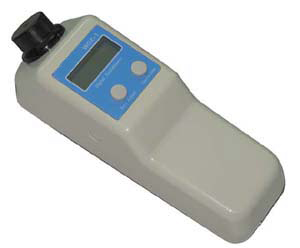

Portable Turbidity meter

Product  Characteristics

a) AC & DC power supply, low power consumption, cabinet and handsome contour design, facilitating field and lab use;

b) Configured with auto power-off function and low power dissipation circuit, able to effectively prolong service life of battery;

c) Adopting big-screen highly transparent LCD display, with comfortable reading, and free of ill influence from sunlight;

d) Adopting low-drift and high-accuracy integrated circuit, efficient and timeproof light source, effectively ensuring long reliable performance

e) Unique locative structure and high-accuracy light path system, effectively ensuring exactness and repeatability;

f) Low voltage indication, cuing users to change battery, to ensure exact and effective measurement;

g) Configured with output port of measured values, possible to connect with recording meter

Specifications

Model

SRW-1B

SRW-20B

SRW-200B

Measure Principle

90 scattered light

Minimum readout (NTU)

0.1

0.01

0.01

Measuring range (NTU)

0~200 NTU

0~20 NTU

0~20, 0~200 NTU

Basic error F.S

8% (+/-2.5% F.S)

Repeatability

1%

Zero draft (NTU)

1%F.S

Power supply

DC1.5V x 5 AA alkaline dry cells

AC 220V/50Hz DC7.5V 0.2A adapter

External dimension

235*75*65 mm

Others

LCD display, LED Light source, auto power off.

Portable Turbidity meter

Product Characteristics

a, AC & DC power supply, low power consumption, cabinet and handsome contour design, facilitating field and lab use;

b, Configured with auto power-off function and low power dissipation circuit, able to effectively prolong service life of battery;

c, Microcomputer, touch keyboard, backlight LCD, standard parallel RS232 data communication interface

d, Custom-made high strength long service life lamp-house, provided with data storage and inquiry function, can meet GLP requirements

e, Data nonlinear processing and data smoothing function, quick and automatic multi-points calibration, self-diagnostic information prompt, selectable span C automatic or manual switch

f, Adopting big-screen highly transparent LCD display, with comfortable reading, and free of ill influence from sunlight;

g, Adopting low-drift and high-accuracy integrated circuit, efficient and time proof light source, effectively ensuring long reliable performance

h. Unique locative structure and high-accuracy light path system, effectively ensuring exactness and repeatability;

i, Low voltage indication, cuing users to change battery, to ensure exact and effective measurement;

j, Configured with output port of measured values, possible to connect with recording meter

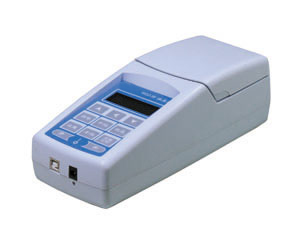

Specifications

Model

SRW-500B

SRW-2B

SRW-3B

SRW-4000B

Measure Principle

90scattered light

Minimum readout (NTU)

0.01

0.001

0.01

0.001

Measuring range (NTU)

0~50

0~10

0~10

0~10

0~500

0~100

0~100

0~100

0~500

0~1000

0~500

0~1000

0~4000

Basic error (F.S.)

2%

Repeatability

1%

Zero draft (F.S.)

0.5% (0.1 NTU)

0.5% (0.02 NTU)

Computer interface

RS232 data communication interface

Power supply

DC1.5V x 5 AA alkaline dry cells

AC 220V/50Hz DC7.5V 0.2A adapter

Bench Turbidity meter

Product  Characteristics

Streamline outward,Beautiful international fashilnable snow lacquer.

wide&bright LCD display.

Operation easily,wide measuring range,high rate of function price.

Special fixed position construction,high precision light parh.

Adopting low-drift and high-accuracy integrated circuit, efficient and timeproof light source, effectively ensuring long reliable performance

Added chromaticity compensation system,avoided the disturber of sample color.

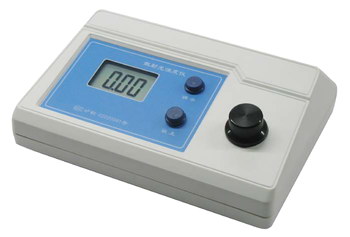

Specifications

Model

SRW-20S

SRW-1A

SRW-200S

Measure Principle

90 scattered light

Minimum readout (NTU)

0.01

0.1

0.01

Measuring range (NTU)

0~20 NTU

0~200 NTU

0~20, 0~200 NTU

Basic error F.S

8%(2.5% F.S.)

Repeatability

0.8%

Zero draft

0.8%F.S

Power supply

AC 220V/50Hz, 3W

Others

Benchtop one, Economical, Easy Operated, Good Stability.

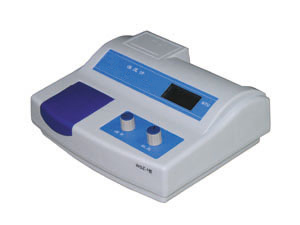

Bench Turbidity meter

Product  Characteristics

Streamline outward,Beautiful international fashilnable snow lacquer.

wide&bright LCD display.

Operation easily,wide measuring range,high rate of function price.

Special fixed position construction,high precision light parh.

Adopting low-drift and high-accuracy integrated circuit, efficient and timeproof light source, effectively ensuring long reliable performance

Added chromaticity compensation system,avoided the disturber of sample color.

Specifications

Model

SRW-1

SRW-200

SRW-800

Measure Principle

90º scattered light

Minimum readout NTU

0.1

0.01

0.1

Measuring range NTU

0-100 2.5%F.S

0-20 2%F.S

0-200 2.5%F.S

Basic error F.S

0-200 2.5%F.S

0-200 2.5%F.S

0-800 3%F.S

Repeatability

1%

Zero draft NTU

0.2

0.02

0.2

Using

for General-purchase

for low measuring range

for high measuring rane

Bench Turbidity meter

Product  Characteristics

Microcomputer, touch keyboard, backlight LCD, standard parallel RS232 data communication interface

Custom-made high strength long service life lamp-house, provided with data storage and inquiry function, can meet GLP requirements

Data nonlinear processing and data smoothing function, quick and automatic multi-points calibration, self-diagnostic information prompt, selectable span C automatic or manual switch

Set average measuring mode with shortcut to obtain correct data within quickest time, applicable particularly to measure extreme-low turbidity and can be used to measure unstable water sample

Precise light route system, reliable positioning structure, effective tone compensation, direct turbidity reading

Specifications

Model

SRW-200A

SRW-2

SRW-2A

SRW-100

Model (with printer)

SRW-200AP

SRW-2P

SRW-2AP

SRW-100P

Measure Principle

90º scattered light

Minimum readout NTU

0.01

0.001

0.01

0.001

Measuring range NTU

0-10 2%F.S

0-100 2%F.S

0-10 2%F.S

0-100 2%F.S

0-100 2%F.S

0-200 3%F.S

0-100 2%F.S

0-200 2%F.S

0-200 2%F.S

0-500 3%F.S

Basic error F.S

0-500 2%F.S

Repeatability

1%

Zero draft NTU

0.1

0.02

0.1

0.02

Computer interface

RS232 data communication interface

Characteristics

Average measuring method, Year/Month/Day/Time display, Data record and auto range change, auto zero, 1~5 point calibration, RS232 port

Bench Turbidity meter

Product  Characteristics

Microcomputer, touch keyboard, backlight LCD, standard parallel RS232 data communication interface

Custom-made high strength long service life lamp-house, provided with data storage and inquiry function, can meet GLP requirements

Data nonlinear processing and data smoothing function, quick and automatic multi-points calibration, self-diagnostic information prompt, selectable span C automatic or manual switch

Set average measuring mode with shortcut to obtain correct data within quickest time, applicable particularly to measure extreme-low turbidity and can be used to measure unstable water sample

Precise light route system, reliable positioning structure, effective tone compensation, direct turbidity reading

Specifications

Model

SRW-3

SRW-3A

Model (with printer)

SRW-3P

SRW-3AP

Measure Principle

90 scattered light

Minimum readout NTU

0.01

0.001

Measuring range NTU

0-10/0-100/0-200/0-500/0-1000

Basic error F.S

2%F.S

Repeatability

1%

Zero draft NTU

0.02

Computer interface

RS232 data communication interface

Characteristics

Average measuring method, Year/Month/Day/Time display, Data record and auto range change, auto zero, 1~5 point calibration, RS232 port

Laboratory Bench Turbidity meter

Product  Characteristics

►Microcomputer, touch keyboard, backlight LCD, standard parallel RS232 data communication interface

►Custom-made high strength long service life lamp-house, provided with data storage and inquiry function, can meet GLP requirements

►Data nonlinear processing and data smoothing function, quick and automatic multi-points calibration, self-diagnostic information prompt, selectable span C automatic or manual switch

►Set average measuring mode with shortcut to obtain correct data within quickest time, applicable particularly to measure extreme-low turbidity and can be used to measure unstable water sample

►Precise light route system, reliable positioning structure, effective tone compensation, direct turbidity reading , built-in or external printer is optional

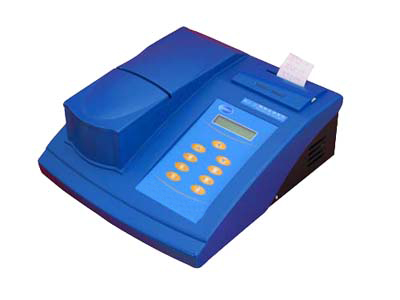

Specifications

Model

SRW-2000

SRW-2000A

SRW-4000

SRW-4000A

Measure Principle

90º scattered light

Minimum readout NTU

0.001

0.01

0.001

0.01

Measuring range NTU

0-10/0-100/0-1000/0-2000

0-10/0-100/0-1000/0-4000

Basic error F.S

2%F.S/3%F.S/5%F.S

Repeatability

1%

Zero draft NTU

0.02

Computer interface

RS232 data communication interface

Bacterium Turbidity Meter SRW-2XJ SRW-2XJP

Summary of functions
It can be used for the determination of the concentration of bacteria strains in suspension. The instrument adopts ( BaS04 ) Maxwell turbidity standard solution for calibration, using MCF ( McFarland ) Maxwell turbidity unit. Show McCain unit turbidity value Directly. Mainly applicable to the bacterial liquid concentration determination in all levels of medical and health units, biological products, quarantine institutions and scientific research institutions, . etc.
Product Characteristics
Microcomputer, the touch keyboard, LCD backlight LCD display, serial RS232 data communication interface standard
Instrumental readings automatically in response to balance or at a desired time interval of automatic data collection, can effectively stabilize readings
Instrumental fast setting average measurement mode, with the most short time to get the correct data, measurable unstable water
Place the built-in clock memory storage system, can be long-term storage and call the recent correction and measurement data
Multiple measurement model, measurement units were available, a special high intensity light source, the running time up to 100000 hours
Precise optical system, the reliable positioning structure, effective chroma compensation, direct bacterial turbidity value

Specifications

  Model

  SRW-2XJ

  SRW-2XJP

  Minimum readout

  0.001MCF

  0.001MCF

  Measuring range

0~6 MCF    1MCF=3 10 8 CFU/ml

0~6 MCF      1MCF=3 10 8 CFU/ml

  Basic error

6% ( 5%F. S)

  6% ( 5%F. S)

  Repeatability

  0.5%

  0.5%

  Zero draft

0.5% F. S

0.5% F. S

Computer interface

RS232 data communication interface

Characteristics

Bacterium turbidity analysis of direct reading ( MCF ) Maxwell turbidity unit

Bacterium turbidity analysis of direct reading ( MCF ) Maxwell turbidity unit

Note: model with " P" with a built-in printer

Note: model with " P" with a built-in printer

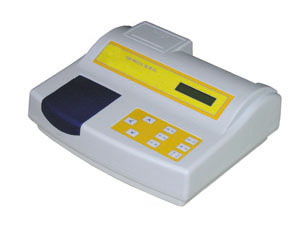

Beer Turbidity Meter SRW-2PJ SRW-2PJP

Summary of functions
Used for measuring suspended in water or in transparent liquids insoluble particulate matter generated by the degree of light scattering, and quantitative characterization of the suspended particulate matter content. The instrument is mainly used specially for determination of turbidity in beer, wine etc. At the same time it can also be applied to the power plant, the pure water plant, water plant, sewage treatment plants, beverage plants, environmental protection departments, industrial water, wine making industry and the pharmaceutical industry, hospitals, epidemic prevention departments and other departments of the turbidity value.
Product Characteristics
Microcomputer, the touch keyboard, LCD backlight LCD display, serial RS232 data communication interface standard
Instrumental readings automatically in response to balance or at a desired time interval of automatic data collection, can effectively stabilize readings
Instrumental fast setting average measurement mode, with the most short time to get the correct data, measurable unstable water
Place the built-in clock memory storage system, can be long-term storage and call the recent correction and measurement data
Multiple measurement model, measurement units were available, a special high intensity light source, the running time up to 100000 hours
Precise optical system, the reliable positioning structure, effective chroma compensation, direct read EBC turbidity value

Specifications

Model

SRW-2PJ

SRW-2PJP

Minimum Principle

Scattering of light

Scattering of light

Minimum readout

  0.01 EBC

  0.01 EBC

Measuring range

  0~10, 0~100 EBC

  0~10, 0~100 EBC

Basic error

  0.6%( 2%F. S)

0.6%( 2%F. S)

Repeatability

0.5%

0.5%

Zero draft

  0.5%F. S

0.5%F. S

Computer interface

RS232 data communication interface

Characteristics

liquor turbidity analysis in beer, yellow rice wine and others, RS232 data output, directly read EBC turbidity value

  liquor turbidity analysis in beer, yellow rice wine and others, RS232 data output, directly read EBC turbidity value

Accessories:
Glass Sample Vials
Calibration Standards 0, 10, 200 and 1000 NTU
Lint-Free Cloth
9V Battery
Carrying Case

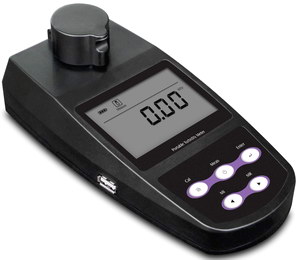

SRTU-100 Portable Turbidity Meter
Features:

• Easy-to-use portable turbidimeter is equipped with a standard carrying case.
• 2 to 5 points calibration using the Formazin Standards.
• Selectable four turbidity units, including the NTU (Nephelometric Turbidity Unit), FNU (Formazine Turbidity Unit), EBC (European Brewery Convention) and ASBC (American Society of Brewing Chemists).
• Single measurement mode automatically recognizes the stable reading.
• Continuous measurement mode that can used for indexing and matching the sample vials.
• Auto-Power Off helps user effectively conserve battery life.
• System menu allows setting the 7 parameters, including the date and time, resolution, etc.
• Reset feature automatically resumes all settings back to factory default settings.
• Expanded memory stores and recalls up to 100 readings.
• Stored data can be transferred into computer by USB communicationinterface.
• Multi-mode power scheme (battery, power adapter, USB port) ensures that use the meter smoothly.

Specifications:

 Measurement Method

ISO 7027 nephelometric method (90)

 Measurement Range

0~1100 NTU/FNU, 0~275 EBC, 0~9999 ASBC

 Resolution

0.01 (0~100 NTU), 0.1 (100~999 NTU), 1 (999~1100 NTU)

 Accuracy

2% (0~500 NTU), 3% (501~1100 NTU)

 Calibration Standards

0.02, 10, 200, 500, 1000 NTU or User-Defined

 Light Source

Infrared-emitting diode (850 nm wavelength)

 Detector

Silicon Photodiode

 Stray Light

< 0.02 NTU

 Sample Vials

60(H)25(Dia.)mm

 Power Off

Manual or Automatic (15 minutes)

 Memory

Stores up to 100 data sets

 Output

USB Communication Interface

 Operating Temperature

0~60C

 Power Requirements

19V Battery

 Dimensions

180(L)85(W)70(H)mm

 Weight

300g

Accessories:
Glass Sample Vials
Calibration Standards 0, 10, 200, 500, 1000 and 1500 NTU
Lint-Free Cloth
DC12V Power Adapter


SRTU-200 Benchtop Turbidity Meter

Features:
• Standard benchtop turbidity meter is equipped with a 4.5" LCD display.
• 2 to 7 points calibration using the Formazin Standards.
• Selectable four turbidity units, including the NTU, FNU, EBC and ASBC.
• TSS conversion factor ensures accurate measurement for Total Suspended Solids.
• Continuous measurement mode that can used for indexing and matching the sample vials.
• Hold function freezes current reading for easy viewing and recording.
• Password protection prevents the unauthorized calibration and settings.
• Help message as a operational guide that helps user quickly begin using the meter.
• System menu allows setting the 9 parameters, including the date and time, resolution, etc.
• Reset feature automatically resumes all settings back to factory default settings.
• Expanded memory stores and recalls up to 200 readings.
• Stored data can be transferred into computer by USB communication interface.

Specifications:

 Measurement Method

ISO 7027 nephelometric method (90)

 Turbidity Range

0~2000 NTU/FNU, 0~500 EBC, 0~9999 ASBC

 TSS Range

Depends on conversion factor

 Resolution

0.01 (0~100 NTU), 0.1 (100~999 NTU), 1 (999~2000 NTU)

 Accuracy

2% (0~500 NTU), 3% (501~2000 NTU)

 Calibration Standards

0.02, 10, 200, 500, 1000, 1500, 2000 NTU or User-Defined

 Light Source

Infrared-emitting diode (850 nm wavelength)

 Detector

Silicon Photodiode

 Stray Light

< 0.02 NTU

 Sample Vials

60(H) 25(Dia)mm

 Power Off

Manual or Automatic (2 hours after last key pressed)

 Reset Function

Yes

 Memory

Stores up to 200 data sets

 Output

USB Communication Interface

 Operating Temperature

0~60C

 Power Requirements

DC12V Power Adapter

 Dimensions

250(L)177(W)96(H)mm

 Weight

1.2kg

Application:

  The online Turbidity monitoring for the source water quality of the environment environmental monitor station, for the industrial water treatment Recycling process, for the every water inlet and outlet in the sewage water treatment, and the TSS monitoring for the sludge treatment process. Widely used in the water supply factory, paper mill, coal washery and the like Turbidity online monitoring.

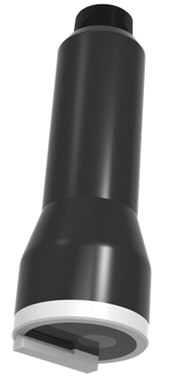

SRTU-2000SS Digital Turbidity/ TSS Online Analyzer

Features:

* Performance characteristics;

* High range TUR/ TSS two in one Turbidity analzer;

* RS485 Digital communication, Modbus RTU standard protocol;

* Combine arbitrarily with the HMI and the wireless module to the system integration;

* Build-in optical maintenance brush/ wiper, cycling/ presetting cleaning optical  window.

Specifications:

Measurement range

Turbidity: (0.01~4000)NTU;

TSS: (0.001~50)g/L

Light source

850nm (infrared light)

Resolution



<10NTU, 0.001NTU

<100NTU, 0.01NTU

<1000NTU, 0.1NTU

<4000NTU, 1NTU

Accuracy



Turbidity: (0-100)NTU 3.0%FS

      (100-1000)NTU 1.0%FS

      (1000-4000)NTU 1.0%FS

TSS: 5% of reading

Repeatability

1%

Sample flow

<3m/s

Cable length

Standard length 10m (or customize)

Maintenance

Build-in brush, settable period

Power supply

DC 24V15%

Installation

Submersible installation

Communication port

RS485(Modbus RTU protocol)

 Pressure range

6bar

Working Environment

(0~40)C

Weight

1.5Kg

Consumption

<10W

( If you need prices, pictures without our water mark, user manual or E-catalogue for above meters, please ask for at: xiushunjie@163.com )
