Vibration Meter

(vibration tester, Bearing Condition Detector, Machine Condition Checker, Vibration data collector, Field Balancer Analyzer, vibchecker, vib-cheker, vibration checker)

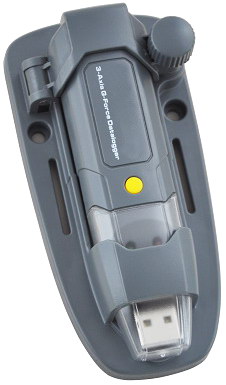

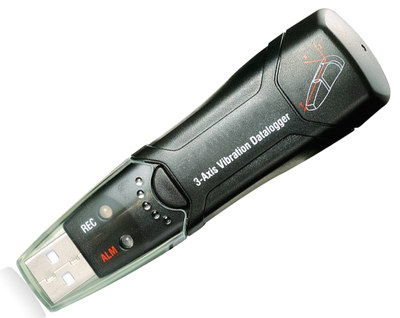

SRDL140A USB Vibration Meter, 3-Axle G-Force Datalogger

Features

SRDL140A can measure and record under the range from -16g to 16g, and record triaxial acceleration value of gravity as well as shock and vibration. It can also be used to detect tilt, shock, vibration and other motion condition, to help achieve a variety of applications in the field of industrial, medical, communications, consumer electronics and automotive fields.



Users can be configured record rate, high and low alarm value and startup mode. Plug SRDL140A into the USB port on the computer and run on the computer software packages which supported to draw and print measured data, and other application software output, such as Office software (Notice: the software can’t be used under office 2016 at present, only can be used under versions such as office 2013, 2010, 2007, 2003). This data logger comes with long-life lithium battery for 1000H with 16MB of flash memory devices which can accommodate up to 327,6000 data.



Specifications

Product name

USB Vibration Meter

Model

SRDL140A

Acceleration measurement range

-16g to 16g

Acceleration resolution

3.9mg

Accuracy

±0.5g

Frequency range

0~60HZ

Record the memory

16Mb FLASH,327600 of three direction acceleration data storage

Time interval

50mS to 24hours

PC interface

USB 2.0

Software work environment

Windows XP/Vista/WIN7/WIN8

Power supply

3.6V/1200mA disposable lithium battery1/2AA

Power consumption of product

Record<20mA, spare time<600uA

Battery life

>2500 hours (standby mode)

Battery continuous recording time

60hours

Operating Temperature

0°C~45°C

Operating humidity

5%~95% RH non-condensing

Storage temperature

-20°C~+60°C, ≤85% (without battery)

Dimension

113mm×54mm×32.5mminclude the base

Product weight

About73.5 g (without battery)

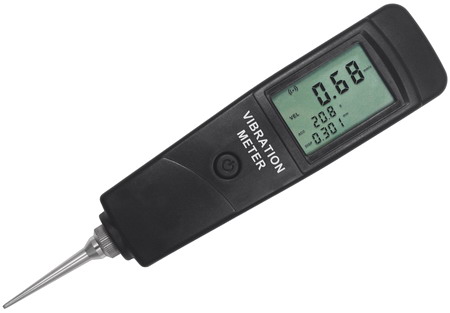

SR7213 Vibration Meter
Applications

Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery. Specifically designed for present measuring various mechanical vibration. So as to provide the data for the quality control, run time and equipment upkeep.

Features
* Can display the parameters of Displacement, Velocity and Acceleration simultaneously.
* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control, commissioning, and predictive maintenance purposes.
* Individual high quality accelerometer for accurate and repeatable measurements.
* With Max Hold function.
* Wide frequency range (10Hz~10kHz) in acceleration mode.
* Bearing condition monitoring function.
* Use "USB data output" to connect with PC.
* Provide "Bluetooth™ data output" choice.

Specification

 Sensor

  Piezoelectric Transducer

  Measuring Parameters & Range

  Acceleration: 0.1-300.0m/s² equivalent peak 985ft/s²

  Velocity:  0.01-300.00mm/s  true RMS  0.000~13.00inch/s

  Displacement: 0.001-3.000mm 0.04~120.0mil  equivalent pk-pk

  Frequency Range

  Acceleration: 10 Hz ~ 10k Hz

  Velocity: 10 Hz ~ 1k Hz

  Displacement: 10 Hz ~ 1k Hz

  Accuracy

  ±5% + 2digits

  Metric / Imperial Conversion

  Yes

  Max. Value Hold

  Yes

  Power Off

  Manual Power Off or Auto Power Off

  Data Output

  USB

  Operating Conditions

  Temperature: 0~50°C Humidity: <90 %RH

  Power Supply

  Lithium battery

  Dimensions

  202x43x23 mm  ( 8.0x1.7x0.9 inch )

  Weight

  130g (Including Batteries)

  Standard delivery

  1. Main Unit

  2. Carrying Case

  3. Manual Book

  Optional accessories

  1. USB data cable with software

  2. Bluetooth data out put with software

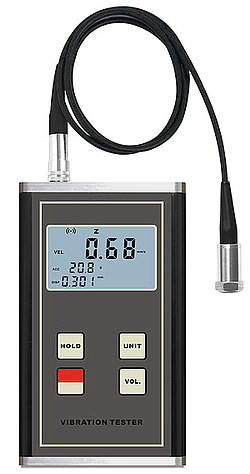

SR7370 Vibration Meter

Specification

Display: 4 digit LCD backlit
Measurement Range:
Velocity : 0.01-400.0 mm/s 0.000-16.00 inch/s true RMS
Acceleration: 0.1-400.0 m/s² 0.3-1312 ft/s² 0.0-40g equivalent peak
Displacement: 0.001-4.000mm 0.04-160.0 mil equivalent peak-peak
Frequency Range for Measuring:10Hz. to 10kHz.
Accuracy: 5% of reading + 2 digits
Metric/ Imperial conversion
Analogue Output: AC output 0~2.0V peak full scale
(load resistance: above 10k)
With Max. value hold and low battery indication
PC interface: USB or Bluetooth interface (Cable and software is not included)
Power supply: 2x1.5v AA size (UM-3) batteries
Power off : Manual off at any time or auto power off is enabled by user
Operating conditions:
Temperature : 0-50
ºC
Humidity: below 95% RH
Dimensions: 130 x 76 x 32mm
Weight: 340g (Not Including Batteries)
Accessories included :
Powerful rare earth magnet 1 pc.
Accelerometer 1 pc.
Stinger probe (Cone) 1 pc.
Stinger probe (Ball) 1 pc.
Carrying case 1 pc.
Operation manual 1 pc.
Optional accessories: Headphones for use as electronic stethoscope, Cable and software for USB

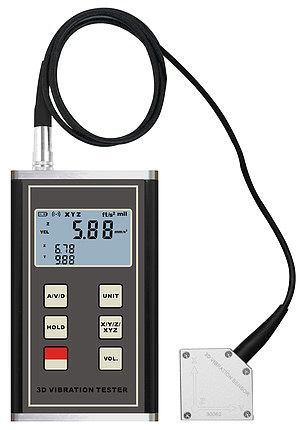

SR7380 3D Vibration Tester

Specification

Vibration Sensor: 3-Axis Piezoelectric accelerometer
Display: 4 digit LCD backlit
Axial Vibration: any one axis of X ,Y,Z or 3 axes of XYZ
Measurement Range:
Velocity: 0.01-400.0 mm/s 0.000-16.00 inch/s true RMS
Acceleration: 0.1-400.0 m/s² 0.3-1312 ft/s² 0.0-40g equivalent peak
Displacement: 0.001-4.000mm 0.04-160.0 mil equivalent peak-peak
Frequency Range for Measuring:10Hz. to 10kHz.
Accuracy: 5% of reading + 2 digits
Metric/ Imperial conversion
Analogue Output: AC output 0~2.0V peak full scale
(load resistance: above 10k)
With Max. value hold and low battery indication
PC interface: USB or Bluetooth interface ( Cable and software is not included)
Power supply: 2x1.5v AA size (UM-3) batteries
Power off: Manual off at any time or auto power off is enabled by user
Operating conditions:
Temperature: 0-50
ºC
Humidity: below 95% RH
Dimensions: 130 x 76 x 32mm
Weight: 340g (Not Including Batteries)
Accessories included:
Powerful rare earth magnet 1 pc.
Accelerometer 1 pc.
Stinger probe (Cone) 1 pc.
Stinger probe (Ball) 1 pc.
Carrying case 1 pc.
Operation manual 1 pc.
Optional accessories: Headphones for use as electronic stethoscope, Cable and software for USB

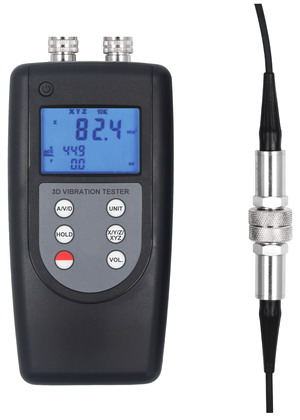

SR7382 Double Channel Vibration Meter
Applications

Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery. Specifically designed for present measuring various mechanical vibration. So as to provide the data for the quality control, run time and equipment upkeep.

Features
* 2 same parameters in one display for 3 dimensional measurement or 1 dimensional measurement specified, showing 3 different parameters of velocity, acceleration and displacement in 1 display.
* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.
* Individual high quality ccelerometer for accurate and repeatable measurements.
* Wide frequency range (10Hz~10kHz) in acceleration mode.
* Optional headphones for use as electronic stethoscope.
* Bearing condition monitoring function.
* Use "USB data output" to connect with PC.

Specification

  Sensor

  Piezoelectric Transducer

  Measuring Range

  Acceleration: 0.1~400 m/s²   0.3~1312 ft/s²   0.0~40 g   Equivalent Peak

  Velocity: 0.01~400 mm/s   0.004~16.0 inch/s   True RMS

  Displacement: 0.001~4.0 mm   0.04~160.0 mil   Equivalent Peak-peak

  Frequency Range

  Acceleration: 10 Hz ~ 1k Hz 10 Hz ~ 10k Hz

  Velocity: 10 Hz ~ 1k Hz

  Displacement: 10 Hz ~ 1k Hz

  Accuracy

  5 % of Reading + 2 digits

  Metric / Imperial Conversion

  Yes

  Analogue Output

  AC Output 0~2.0 V Peak Full Scale (Load Resistance: Above 10k)

  Max. Value Hold

  Yes

  Power Off

  Manual Power Off or Auto Power Off

  Battery Indicator

  Low Battery Indicator

  Data Output

  USB

  Operating Conditions

  Temperature: 0~50 °C Humidity: <90 %RH

  Power Supply

  4 x 1.5V AAA size (UM-3) Battery

  Dimensions

  140 x 73 x 35 mm

  Weight

  350g (Not Including Batteries)

  Standard delivery

  1. Main Unit

  2. Magnetic Suction Seat

  3. Piezoelectric Transducer

  4. Probe (Cone)

  5. Probe (Spherical)

  6. Carrying Case

  7. Manual Book

 Optional accessories

  USB data cable with software

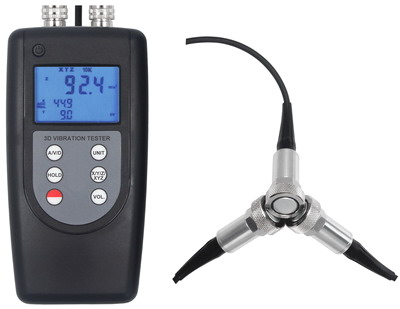

SR7383 Three Channel Vibration Meter
Applications

* 3 same parameters in one display for 3 dimensional measurement or 1 dimensional measurement specified, showing 3 different parameters of velocity, acceleration and displacement in 1 display.
* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.
* Individual high quality ccelerometer for accurate and repeatable measurements.
* Wide frequency range (10Hz~10kHz) in acceleration mode.
* Optional headphones for use as electronic stethoscope.
* Bearing condition monitoring function.
* Use "USB data output" to connect with PC.

Features
Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery. Specifically designed for present measuring various mechanical vibration. So as to provide the data for the quality control, run time and equipment upkeep.

Specification

  Sensor

  Piezoelectric Transducer

  Measuring Range

Acceleration: 0.1~400 m/s²   0.3~1312 ft/s²   0.0~40 g   Equivalent Peak

  Velocity: 0.01~400 mm/s   0.004~16.0 inch/s   True RMS

  Displacement: 0.001~4.0 mm   0.04~160.0 mil   Equivalent Peak-peak

  Frequency Range

  Acceleration: 10 Hz ~ 1k Hz 10 Hz ~ 10k Hz

  Velocity: 10 Hz ~ 1k Hz

  Displacement: 10 Hz ~ 1k Hz

  Accuracy

  5 % of Reading + 2 digits

  Metric / Imperial Conversion

  Yes

  Analogue Output

  AC Output 0~2.0 V Peak Full Scale (Load Resistance: Above 10k)

  Max. Value Hold

  Yes

  Power Off

  Manual Power Off or Auto Power Off

  Battery Indicator

  Low Battery Indicator

  Data Output

  USB

  Operating Conditions

  Temperature: 0~50 °C Humidity: <90 %RH

  Power Supply

  4 x 1.5V AAA size (UM-3) Battery

  Dimensions

  140 x 73 x 35 mm

  Weight

  360g (Not Including Batteries)

  Standard delivery

  1. Main Unit

  2. Magnetic Suction Seat

  3. Piezoelectric Transducer

  4. Probe (Cone)

  5. Probe (Spherical)

  6. Carrying Case

  7. Manual Book

 Optional accessories

  USB data cable with software

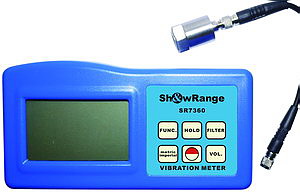

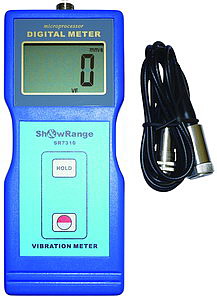

SR7310

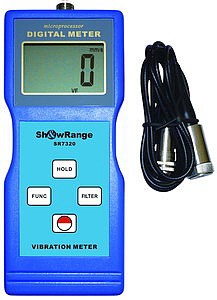

SR7320

SR7360



Specification

Model

SR7360

SR7320

SR7310

Acceleration
(Peak value)

Bandpass filter

10Hz to 1KHz
10Hz to 10KHz

20.1~400 m/s²
0.3~1312 ft/s²

0.1~200 m/s²

--

Velocity (RMS)

10Hz to 1KHz

0.1~400 (mm/s)
0.004~16.0 inch/s

0.1~200 (mm/s)

0.1~200 (mm/s)

Displacement
(Peak to peak)

10Hz to 1KHz

0.001~4.0 (mm)
0.04~160 mil

0.001~2.0 (mm)

--

RPM (Revolution)

5-100,000 r/min

--

Frequency

0.1 to 10 KHz

--

Accuracy

<5%+2

Metric / Imperial Conversion

Auto power off

Max Hold

Regulated output

AC output 2.0V peak full scale

--

With RS-232C

Yes

Operating conditions

0ºC to 50ºC, 90%RH

Power Suppply

4x1.5V AAA
(UM-4) Battery

4x1.5V AA
(UM-3) Battery

Battery Indicator

Low battery indicator

Dimension

124x62x30 mm

160x68x32 mm

Weight (Not including Battery)

120g

181g

Standard Accessories

Main unit

1

Instruction Manual

1

Carrying case

1

Powerful rare earth magnet

1

Piezoelectricity Transducer

1

Sting probe (Cone / Ball)

1

Optional Accessories

USB Cable & software, Bluetooth data output
Headphone as electronic stethoscope

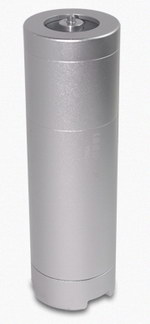

SRC706 Vibration Calibrator

Features:

*Operates at 159.2 Hz.
*10 mm/s RMS velocity output.
*Drives vibration sensors up to 150g.
*CE compliant.

Specifications:

Operating Frequency: 159.2 Hz ± 0.5 %
Acceleration Output: 10 m/s² (RMS) ± 3%
Velocity Output: 10 mm/s (RMS) ± 3%
Displacement Output: 10 um (RMS) ± 3%
Transverse Output: < 5%
Distortion: < 3%
Maximum Load: 150 g
Ramp-Up Time: < 3 Seconds
Operating Conditions: Temperature: -10~40 °C, Humidity: < 85 %RH
Internal Battery:  1*9V 6F22

Diameter of top screw: 5mm
Size (Diameter x Height): 56 mm * 200 mm
Weight (with batteries): 900g

Applications:

The Vibration Calibrator is a small, self-contained handheld shaker designed for quick and easy check-ing of accelerometers, vibration monitoring systems and recording systems. Providing a known and cont-rolled RMS vibration for verification of accelerometers weighing up to 150g.
Standard Accessories:
1. Main Unit
2. Carrying Case
3. Manual Book



SR7063A Vibration Meter

Features

Vibration meter (also called  vibration severity) uses Piezoelectric Acceleration Transducer transfer the vibration signal in to electrical signal, analyze the input signals, and show the Acceleration, speed, shift of the vibration .It is widely used in the lines of Power, petrochemical, machinery manufacturing, metallurgy, vehicles, etc.

Specifications

Vibration Pickup

Piezoelectric Ceramic Accelerometer (shear-type)

Acceleration

0.1~199.9m/s

Velocity

0.1~1999.9m/s

Displacement

0.001~1.999mm P-P

Acceleration Frequency Range

10HZ~1KHZ(LO)

1KHZ~15KHZ(HI)

Velocity Frequency Range

10HZ~1KHZ(LO)

Displacement Frequency Range

10HZ~1KHZ(LO)

Accuracy

±5%

Signal Output

AC Output 2V peak (display full scale) load impedance 10 KΩ or more earphones can be connected

LCD display

3.5 digits display

Operation condition

0~40 0C

Power

9VDC battery

Packing Information



Standard Quantity Per Carton

12PCS

Standard Carton Size

66.9*45.8*30.7cm

Standard Carton Gross Weight

16.5KG

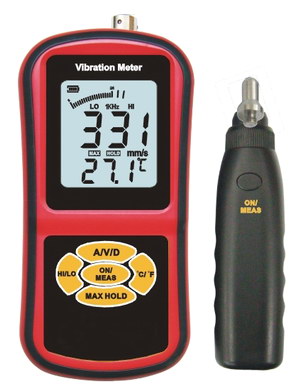

SR7063B Vibration Meter

Features

Vibration meter (also called  vibration severity) uses Piezoelectric Acceleration Transducer transfer the vibration signal in to electrical signal, analyze the input signals, and show the Acceleration, speed, shift of the vibration. It is widely used in the lines of Power, petrochemical, machinery manufacturing, metallurgy, vehicles, etc.

Specifications

Vibration Pickup

Piezoelectric Ceramic Accelerometer (shear-type)

Acceleration

0.1~199.9m/s

Velocity

0.1~1999.9mm/s rms

Displacement

0.001~1.999mm P-P

Acceleration Frequency Range

10HZ~1KHZ(LO)

1KHZ~15KHZ(HI)

Velocity Frequency Range

10HZ~1KHZ

Displacement Frequency Range

10HZ~1KHZ

Accuracy

±5%

LCD display

3.5 digits display

Temperature Selection

Yes

Max hold function

Yes

Operation condition display

Yes

Operation condition

0~40 0C

Power

9V

Packing Information



Standard Quantity Per Carton

20PCS

Standard Carton Size

66.9*45.8*30.7cm

Standard Carton Gross Weight

16.5KG

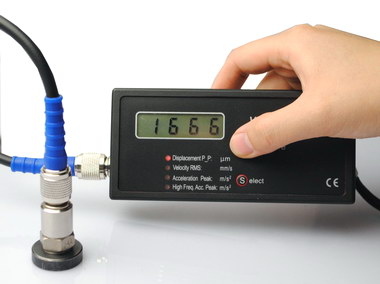

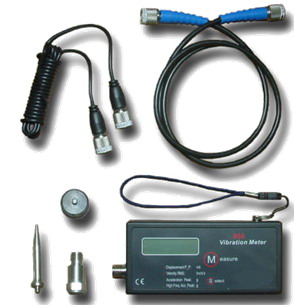

SRVM6908L Vibration meter Low Frequency 1Hz-10kHz

Features:
Measuring vibration for low rotation speed machine such as Hydro
Turbine, Wind Turbine, Rotary Kiln & Building
Small size, transducer included,
battery powered, external accelerometer
One button control both power and
measurement. Very easy to use.
3 1/2 LCD digital display, sampling per second.
Holding function.
Automatic power off.
True RMS measurement.
Suitable for monitoring machinery vibration caused by imbalance, misalignment, gear & bearing faults and Construction vibration
Specifications:
Amplitude Ranges:
Displacement 0.01-19.99 mm Eq. peak-peak
Velocity 0.1-199.9 mm/s true RMS
Acceleration 0.1-199.9 m/s2 Eq. Peak
High Frequency Acceleration: 0.1-199.9 m/s2 (or 20 g) Eq. Peak
Temperature range: 0 - 50ºC
Frequency response & Accuracy:
Displacement: 4~500Hz(5%); 2.5~4Hz(10%); 1~1000Hz(3dB)
Velocity: 4~1000Hz(5%); 2.5~4Hz(10%); 1~2000Hz(3dB)
Acceleration: 4~1000Hz(5%); 2.5~5000Hz(10%); 1~10000Hz(3dB)
High Frequency Acceleration: 1000-5000Hz 10%; 5kHz~10kHz(3dB)
Battery: 9V 6F22/Rechargeable, 25/10 hours of continuous operation.
Pickup: Accelerometer with handheld probe and/or magnetic mount
Dimensions: 13x6x2.3 cm; Weight: 200 g
Optional Intrinsically safe version



SRVM6908

SRVM6908B-EX

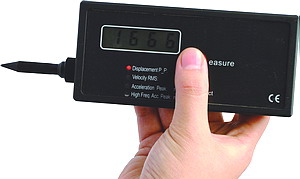

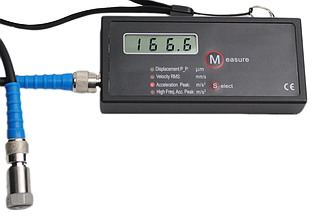

SRVM6908 Vibration Meter

SRVM6908B-EX (Intrinsically safe version)

Features:

- Measuring vibration velocity, displacement and acceleration.

- Small size, transducer included, battery powered, no other component required.

- Optional for inner or external Accelerometer.

- One button control both power and measurement. Very easy for use.

- 3 1/2 LCD digital display, sampling per second.

- Holding function.

- Automatic power off.

- Suitable for monitoring machinery vibration caused by out-of- balance, misalignment, gear damage, bearing faults and etc.

Specifications:

- Amplitude Ranges:

  Displacement: 1—1999 µm (or 200 mil)peak-peak
  Velocity: 0.1—199.9 mm/s (or 20 in/s) true RMS
  Acceleration: 0.1—199.9 m/s2 (or 20 g) Peak
- Overall accuracy: +5%

- Temperature range: 0 - 40 0C

- Frequency response:

  Displacement: 10-500Hz
  Velocity: 10-1000Hz
  Acceleration: 10-1000Hz (Inner accelerometer 908B)
                      10-10000Hz (Depending on external   accelerometer model)

- Battery: 9V 6F22, 25 hours of continuous operation.

- Pickup: Accelerometer with handheld probe and /or magnetic base

- Dimensions: 13×6×2.3 cm; Weight: 200 g

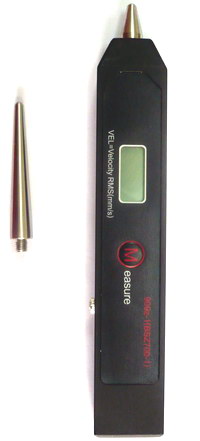

SRVM6909Z-1V Vibration Meter

Features:

- Extremely reliable and potable, low cost instrument specifically designed for on site maintenance in your plant or workshop. It measures overall vibration level by velocity RMS. This easy to use instrument requires little operator training.

- It features with one-button operation, holding function and automatic power off.

Specifications:

Measurement parameter

RMS of vibration velocity (mm/s)

velocity Range

0.1mm/s~199.9mm/s

Accuracy

±5% ± 2 digits

Frequency response

10Hz < f < 1000Hz, ±10%

Display

4 digits LCD, refresh interval about 0.5 second

Power supply

1/2 AA, 3.6V, Operation Current 4-7mA

Battery capacity

>100 hours continuously or 4000 times measurement

Operation environment

Operation Temperature: 0oC~50 oC;

Relative humidity: < 85%

Dimensions

160mm x 25mm x 17mm  (WxDxH)

Weight

120g (include batteries)

Case Material

Aluminum

Standard delivery:
1. Vibration meter 2. Small pocket bag 3. User’s Manual 4. Battery (Inside meter) 5.remote switch

6, magnet base

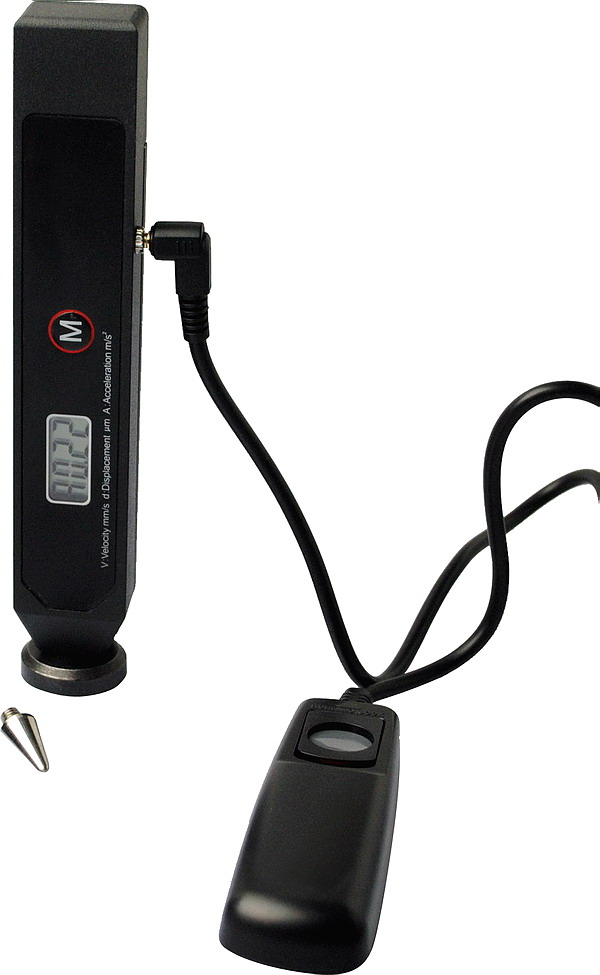

SRVM6909Z-1D Vibration Meter

Features:

- Extremely reliable and potable, low cost instrument specifically designed for on site maintenance in your plant or workshop. It measures overall vibration level by Displacement Peak_Peak. This easy to use instrument requires little operator training.  This easy to use instrument requires little operator training.

- It features with one-button operation, holding function and automatic power off.

Specifications:

Measurement parameter

Displacement Peak_Peak (micron)

Range

1~1999 micron

Accuracy

 + 5% ± 2 digits

Frequency response

10Hz < f < 1000Hz, ±10%

Display

4 digits LCD, refresh interval about 0.5 second

Power supply

1/2 AA, 3.6V, Operation Current 4-7mA

Battery capacity

>100 hours continuously or 4000 times measurement

Operation environment

Operation Temperature: 0oC~50 oC;

Relative humidity: < 85%

Dimensions

160mm x 25mm x 17mm  (WxDxH)

Weight

120g (include batteries)

Case Material

Aluminum

Standard delivery:
1. Vibration meter 2. Small pocket bag 3. User’s Manual 4. Battery (Inside meter) 5.remote switch

6, magnet base

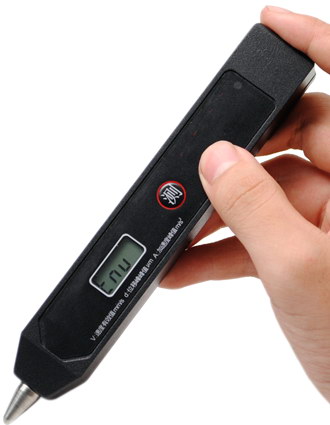

SRVM6909Z-3 3 Parameter Vibration meter

Extremely reliable and potable, low cost instrument specifically designed for on site maintenance in your plant or workshop. It measures overall vibration level by Velocity RMS, Displacement Peak_Peak & Acceleration Peak. This easy to use instrument requires little operator training.

It features with one-button operation, holding function and automatic power off. It is with remote switch and magnet base to avoid handheld problem, get reliable and consistent data.

Specifications:

Measurement Parameter

Velocity RMS (mm/s) 0.2 ~199.9mm/s

Measurement Range

Displacement Peak_Peak 1~1999 micron



Acceleration Peak 0.2 ~180 m/s2

Accuracy

±5% ± 2 digits

Frequency response

Acceleration Peak: 10~1000Hz(0.5dB±2 digits)

10004000Hz(3dB±2 digits)

Velocity RMS: 10Hz < f < 1000Hz, ±10%

Displacement Peak_Peak: (0.5dB±2 digits)

Display

4 digits LCD, refresh interval about 0.5 second

Power supply

1/2 AA, 3.6V, Operation Current 4-7mA

Battery capacity

>100 hours continuously or 4000 times measurement

Operation environment

Operation Temperature: 0oC~50 oC;

Relative humidity: < 85%

Dimensions

160mm x 25mm x 17mm  (WxDxH)

Weight

120g (include batteries)

Case Material

Aluminum

Standard delivery:
1. Vibration meter 2. Small pocket bag 3. User’s Manual 4. Battery (Inside meter) 5.remote switch

6, magnet base



SRVM6909Z Pen-size Bearing Condition Detector

Features:
- Measure vibration velocity for overall evaluation of the machine health (caused by rotational and structural problems like imbalance, misalignment, looseness, etc.)
- Measure acceleration envelop in higher frequencies (caused by rolling element bearing or gear mesh problems).
- Small Pen size, Sener included
- One button control both power, parameter selection, measure- ment and holding. easy to use.
- 4 LCD digital display
- Holding function.
- Automatic power off.
- True RMS measurement.
- Metal case, Robust, Reliable
- Both Metric & English Unit

Specifications:
- Amplitude Ranges:

  Velocity 0.1—199.9 mm/s (or 20 in/s) true RMS
  High Frequency Acceleration Enveloping: 0.1—20 units
- Linearity Accuracy: + 5% and 2 digits
- Temperature range: 0 - 50°C
- Frequency response (+ 10%) :

  Velocity: 10-1000Hz
  Acceleration Enveloping: 5-2000Hz demodulated from 3kHz-10kHz
- Battery: 1/2 AA, 3.6V, 4-7mA, >100 hours of continuous operation.
- Pickup: Accelerometer with handheld probe and/or magnetic mount
- Dimensions: 160×25×17 mm; - Weight: 120 g (Including battery)
- Warranty: 3 years free

Standard delivery:
1. Vibration meter 2. Small pocket bag 3. User’s Manual 4. Battery (Inside meter) 5.remote switch

6, magnet base

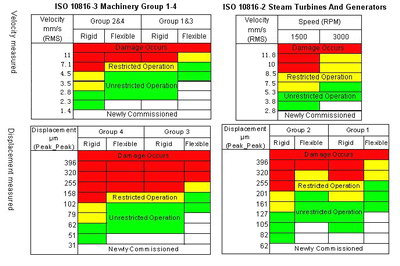

(Indicator for machine health according to ISO 10816-2/3)

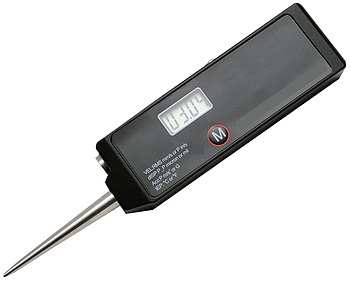

SRVM6909Z-6 Multi-Parameter Machine Condition Checker
Features:
- Multi-parameter vibration, bearing parameter (acceleration envelope) & IR temperature measuring
- One button control power, parameter selection, ISO10816 group selection, measurement and holding.
- With remote switch and magnet base to avoid handheld problem to get reliable and consistent data.
- Measuring vibration velocity, displacement & acceleration envelope to check machine/bearing health with yellow/red/green LED indicator
- Build-in ISO10816-2 & -3 groups selectable
- 4 digital LCD display
- Optional magnet base and remote switch
- Sensor included, Easy to use.
- Automatic power off.
- Metal case, Robust, Reliable
- Both Metric & English Unit

Specifications:
- Accuracy + 5% +2 digits
- Measurement Range & Frequency response :
  Acceleration: 0.1 to 100 m/s2 / 0.01 to 10 g / 10Hz~1kHz
  Velocity:0.1 to 250 mm/s / 0.01 to 15 inch/s / 10Hz~1000Hz
  Displacement: 1 to 3000 µm / 0.03 to 120 mil / 10 Hz~500Hz
  Enveloped Acceleration: 0.1 to 25 unit / 5Hz~2kHz demodulated    from 3kHz~10kHz
  Temperature:-33 to 220 ºC / -27.4 to 428 oF
- Battery: 1/2 AA, 3.6V, 20-29mA, >100 hours of continuous operation.
- Pickup: Integrated accelerometer with extension stinger
- Dimensions: 110x35x17 mm; Weight: 100 g (Including battery

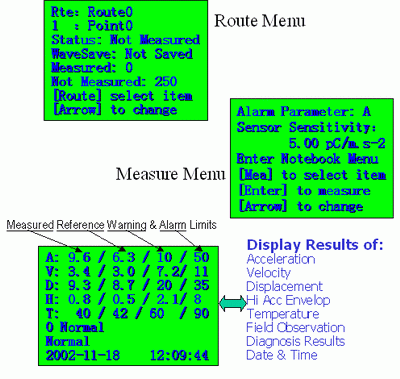

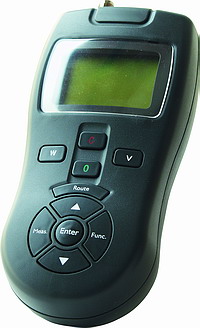

SRVM6911 Economic Vibration data collector

Features:

- Full automatic measurement of Vibration
- Automatic diagnosis of machinery faults by time domain characteristics: Askew index, Kurtosis index
- Envelope demodulation of acceleration for gears and bearings diagnosis
- Built-in ISO standard for machine health evaluation
- Full function Route Management with MCMe2
- Optional Laser-aimed infrared non-contact temperature measurement module.

Specifications:

- Maximum measurement range / frequency range: (when the sensitivity of the sensor is 5pC/ ms-2)

Parameter

Maximum Measurement Range

Maximum Resolution

Frequency Range

Displacement Peak-Peak value

2 mm

1 micrometer

10 - 500Hz

Velocity RMS value

200mm/s

0.1 mm/s

10 – 1kHz

Acceleration Peak value

250m/s2

0.1 m/s2

20 – 10kHz

High Frequency Acceleration Envelope RMS value

20unit

0.1unit

5-1kHz, Demodulated from15-40kHz acceleration

- Accuracy:

Noise Level (without vibration input): ACC<0.25 m/s2, VEL<0.5mm/s, Disp<3mm

Frequency response accuracy: ±5%, ±10% for ACC 4.5kHz - 10kHz

Non-linearity: ±5%

- Type of sensors: Piezoelectric accelerometer.

- Range of frequency analysis: 100, 200, 500, 1k, 2k, 5k, 10k (Hz).

- The sampling frequency is 2.56 times of the analysis frequency range.

- Anti-aliasing filter: 8-order ellipse

- Power supply: Nickel-Hydrogen battery. Work for at least 8 hours continuously after fully charged.

- Storage capacity for 320 sets of data (including sequential number, peak of acceleration, RMS of velocity, peak-peak of displacement, and RMS of envelope) and 48 x 1024-points vibration waveforms.

Dimensions: 196 x 101 x 45 (mm)

Weight: 1100 grams (including battery)

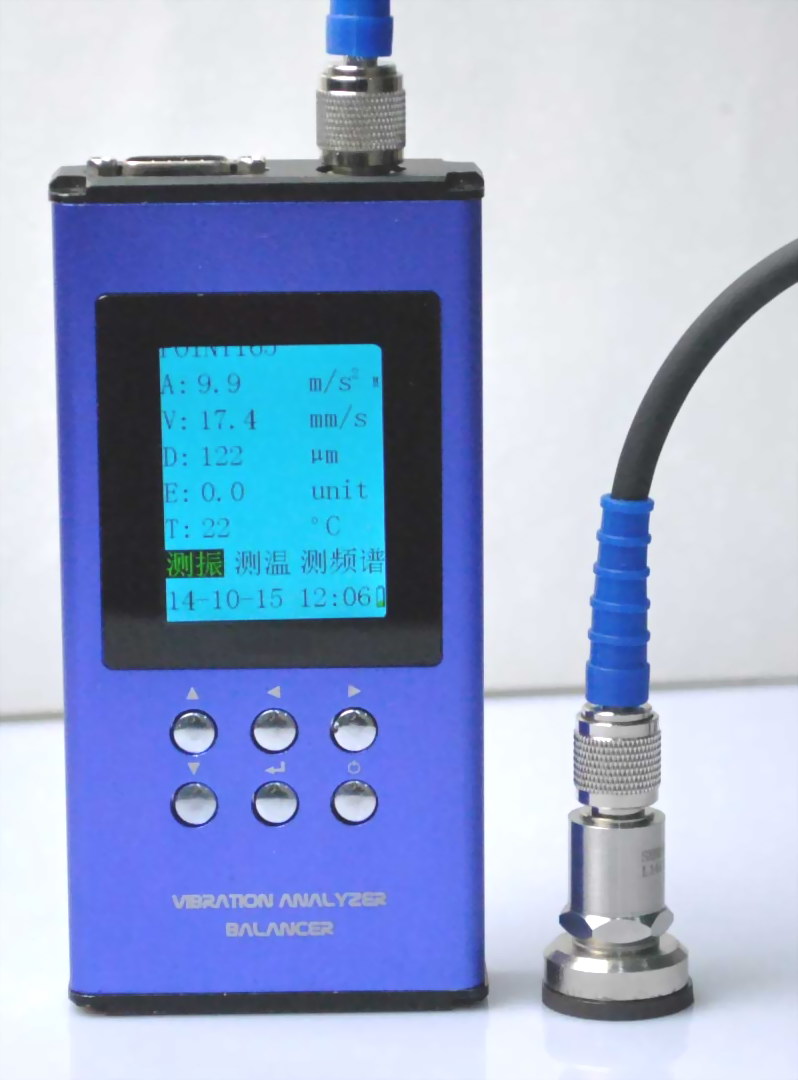

SRVM6911H Bearing Vibration FFT Analyzer / Data Collector

SRVM6911H is a small sized economical vibration Spectrum analyzer & data collector. It can be used for overall vibration measurement, vibration spectrum analysis & machinery condition monitoring. Measurement of high frequency acceleration envelope makes it very effective for bearing fault detection. The data can be sent to computer for database and trending analysis.

Features:
- All in 1 screen, a very easy to use spectrum analyzer
- Measurement of high frequency acceleration envelope makes it a very effective bearing fault detector
- Download from computer database point / location ID & upload overall value to database for trending

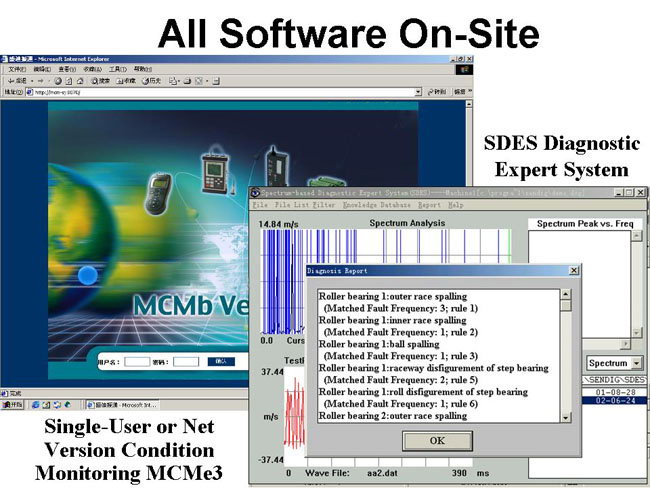

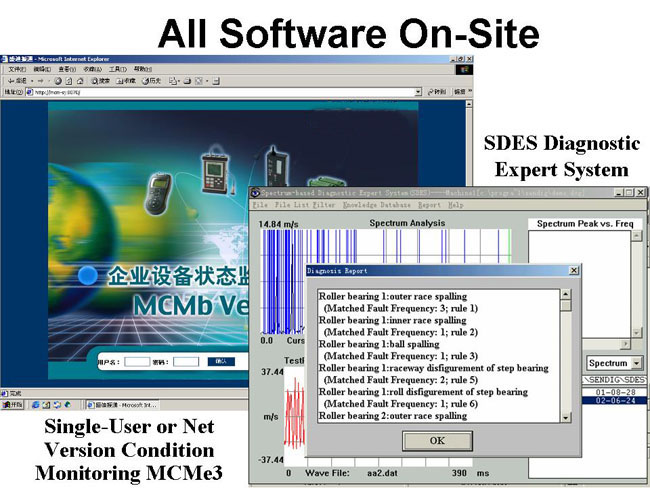

- Standard maintenance software MCMe2/MCMe3
- 400 line spectrum analysis,
- Parameter selection of Acceleration, velocity, displacement and acceleration envelope
- USB 2.0 interfaces to computer
- Date/Time & Battery Status Display
- True RMS measurement

Specification:
Maximum measurement range / Resolution / frequency range:

Parameter

Maximum Measurement Range

Maximum
Resolution

Frequency Range

Displacement Peak-Peak value

2 mm

1 micron

10 – 500Hz

Velocity RMS value

200mm/s

0.1 mm/s

10 – 1000Hz

Acceleration Peak value

180m/s2

0.1 m/s2

10 – 2500Hz

High Frequency Acceleration Envelope

20unit

0.1unit

 5Hz-2kHz #

Accuracy:
Noise Level (without vibration input): ACC<0.25 m/s2, VEL<0.5mm/s, Disp<1mm
Frequency response accuracy: ±5% + 2 digits
Non-linearity: ±5% + 2 digits
- Rechargeable battery powered, Automatic power off, >12 hours operation time
- Operation temperature range: 0 - 50°C
- Pickup: Accelerometer with extension stinger and magnetic mount
- Storage: 200 sets of ID, acceleration, velocity, displacement, envelope & spectrum
- Size: 196 x 101 x 45 (mm)
- Weight: 230 gram (including battery)
- Warranty: 3 years free

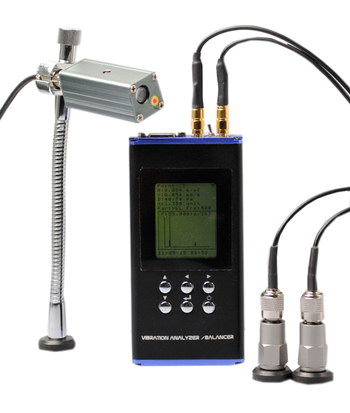

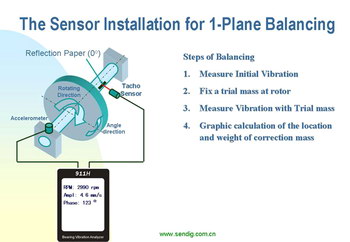

SRVM6911HD Vibration Balancer / Vibration Analyzer / Data Collector



SRVM6911HD is a small sized economical vibration Spectrum analyzer & data collector. It can be used for overall vibration measurement, Spectrum analysis. Measurement of high frequency acceleration envelope makes it very effective for bearing fault detection. The data can be sent to computer for database and trending analysis.
It is also a low-cost, easy-to-use balancing meter with the measurement of Rotation speed RPM, Amplitude & Phase measurement.

Features:
All in 1 screen, a very easy to use spectrum analyzer
Measurement of high frequency acceleration envelope makes it a very effective bearing fault detector
Download from computer database point / location ID & upload overall value to database for trending
Standard maintenance software MCMe2
400 line spectrum analysis,
Parameter selection of Acceleration, velocity, displacement and acceleration envelope
USB 2.0 interfaces to computer
Date/Time & Battery Status Display
True RMS measurement

Specification:
Maximum measurement range / Resolution / frequency range:
Parameter Maximum
Measurement Range Maximum
Resolution Frequency Range:
Displacement Peak-Peak value 2 mm 1 micron 10 – 500Hz
Velocity RMS value 200mm/s 0.1 mm/s 10 – 1000Hz
Acceleration Peak value 180m/s2 0.1 m/s2 10 – 5000Hz
High Frequency Acceleration Envelope 20unit 0.1unit 5Hz-2kHz #
Note: Demodulated from 15kHz-40kHz
Accuracy of vibration measurement:
Noise Level (without vibration input): ACC<0.25 m/s2, VEL<0.5mm/s, Disp<1m
Frequency response accuracy: 5% + 2 digits
Non-linearity: 5% + 2 digits
Rechargeable battery, Automatic power off, >20 hours operation time
Operation temperature range: 0 - 50°C
Pickup: Accelerometer with extension stinger and magnetic mount, Optional tacho-sensor
Rotation speed measurement range: 10-60000 RPM
Storage: 200 sets of ID, acceleration, velocity, displacement, envelope & spectrum
Size: 196 x 101 x 45 (mm)
Weight: 230 gram (including battery)

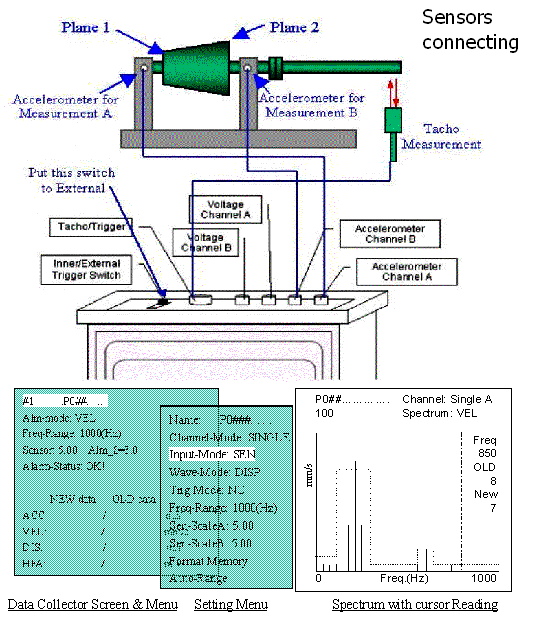

SRBA6904 2 channel vibration data collector/analyzer/balancer

Features:

- Easy to use data collector
- 2 channels simultaneous sampling & display
- On-site 400-lines FFT spectrum and waveform display; Transfer function analysis;
- Data storage: 62 1024-point time waveforms and 240 data sets
- Acceleration envelope demodulation for rolling bearing and gear-box diagnosis
- On-site spectrum comparison function
- Inner or external trigger selectable

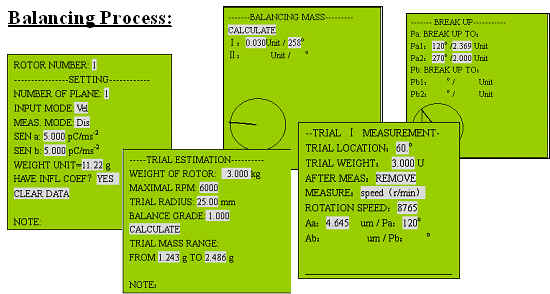

- Full featured 1 and 2-planes field balancing (10 sets balancing data storage; balancing process clarified by vector graph; trial weight estimation; can remain or remove trial after balancing; balancing weight decomposition)
- Balancing report automatic generation.
- with communication port for computer and the software capability

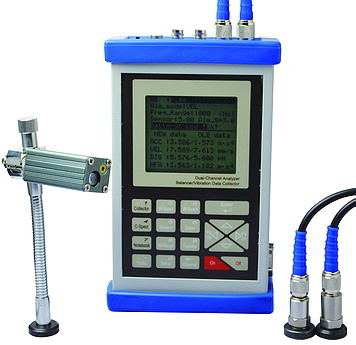

SRBA6907 2 channel vibration data collector/analyzer/balancer

Features:

- 1or 2 plane On-site Balancer
- 10 sets balancing data storage
- Process clarified by vector graph
- Trial weight estimation
- Trial can remain or be removed
- Trial validity test
- Balancing weight can be broken up to 2 required position
- Rechargeable battery for more than 10 hours continuous operation
- Dual-channel vibration Analyzer
- 400 lines FFT spectrum
- Acceleration envelope demodulation
- Storage: 240 vibration values & 62 waveforms of 1024 samples

- SRBA6907 is the same instrument as SRBA6904, but without communication port for  computer  nor the software capability



Specifications

l        Rotation speed range for dynamic balancing: 180-24,000 r/min

l        Auto-range and manual-range selectable

l        Measurement accuracy:

n       Noise Level (without vibration input): ACC<0.25 m/s2, VEL<0.5mm/s, Disp<3mm

n       Frequency response accuracy: ±5%, ±10% for ACC 4.5kHz - 10kHz

n       Non-linearity: ±5%

l        Sensors: Piezoelectric accelerometer, Magnetoelectricity velocity, Eddy displacement and etc.

l        8th-order ellipse anti-aliasing filter, RPM band-pass filter

l        Input signal: Accelerometer, and voltage

l        Amplitude spectrum analysis: 100 lines to 400 lines (zoom), Hanning windowed

l        Frequency span of spectrum analysis: 100, 200, 500, 1k, 2k, 5k, 10kHz(only for 1-channel sampling)

l        Data storage: 62 waveforms of 1024-points and 240 data sets

l        Amplitude ranges & Frequency Response for overall vibration measurement:



Amplitude ranges

Frequency Response

Displacement

0.003 – 5 mm  peak-peak

10 – 500 Hz

Velocity

0.2 – 200mm/s  true RMS

10 – 1000 Hz

Acceleration

0.5 – 250m/s2  peak

20 – 5000 Hz

Envelope

0.1 – 20unit  true RMS

5-1000Hz from 15-40 kHz

Voltage

0.1 – 10V  peak-peak

10 – 10000 Hz

l        Notepad: 10 condition codes for visual inspection, Output: RS232C for communication with PC

l        Power: Ni-MH rechargeable battery for 8 hours continuous operation, low battery warning

l        Operating Environment: 0~55 oC, 90% humidity non-condensing, Rotating speed measurement with photocell sensor

l        Dynamic Range: 60dB with 48dB adjustable gain range, Dimensions: 21×13×4 cm; Weight: 1.2 kg (Include batteries)

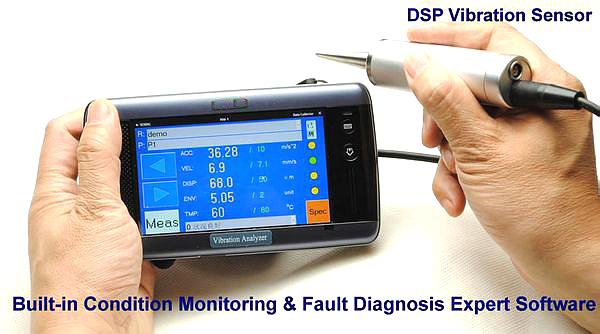

SRVM6906 Vibration Analyzer/Balancer/Recorder



SRVM6906 including two kinds of models : SRVM6906-1, there is no balancing function; SRVM6906-1D with balancing feature.

Features
• Based on 7(or 9) inch screen Ultra Mobile Computer, Window XP operating system
• DSP intelligent sensor, USB interface, No battery required for the sensor
• ISO-10816 Standard for machine health evaluation. After velocity or displacement measurement, LED will show its severity according to selected ISO10816 group (See standard ISO10816)
• The average function with a continuous measurement makes the spectrum more accurate
• You can customize the time interval of the long-term data record (> 30G storage capacity)
• Route management as a full-featured data collector, an infinite number of measurement points allowed
• Frequency range 100,200,500,1 k, 2k, 5k Hz
      • Spectral lines resolution 400-1600 lines
• Full-featured 1- / 2- planes Balancing Instrument (optional, 906-1D). All balancing process data/graphics displayed in 1 screen

• Single-channel vibration measurements, 12-bit AD
• Built-in condition monitoring software MCM906, fault diagnosis expert system software SDES
• Envelope demodulation for bearing & gear box fault detection and diagnosis, direct red, yellow, green alarm light display
• Optional RPM measurement, phase measurement and diagnosis (optional, SRVM6906-1D)

Safety
SRVM6906-1D can not be in direct contact with the mechanical part in running.

Specifications
1 Maximum measuring range / Best Resolution
Acceleration Peak       180m/s2    0.1m/s2
Velocity RMS          200mm / s   0.1mm / s
Displacement p-p value  5000μm     1μm
Envelope RMS         25unit      0.1unit
2 Frequency range, frequency response error:
Acceleration Peak       10 ~ 2kHz: +/- 5%; 2k-3k Hz: +/- 10%; 3k-5kHz: +/- 30%
Velocity RMS           10 ~ 1000Hz, +/- 5%
Displacement p-p value   10 ~ 500Hz, +/- 5%

High Frequency Acceleration Envelope 5Hz-2kHz demodulated from 3kHz-10kHz
3 Signal dynamic range:     72dB
4 Rotation speed measuring range (optional, 906-1D):  60 ~ 24000 r / min
5 8-order elliptic anti-aliasing filter
6 Whole system powered by mobile computer, continuous operation for 2-3 hours, easy to replace the battery
7 mobile computer size: 190
x120x28mm (7-inch screen), weight: 880 grams (including vibration sensors)
8 working condition: Temperature 0 oC ~ 50 oC, Not more than 85
% relative humidity, non-saturated, No corrosive gases
No strong Electric-magnetic field interference and strong vibration, shock source

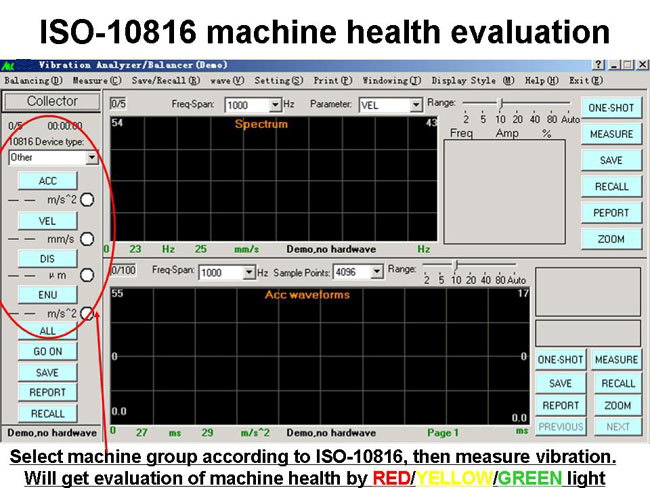

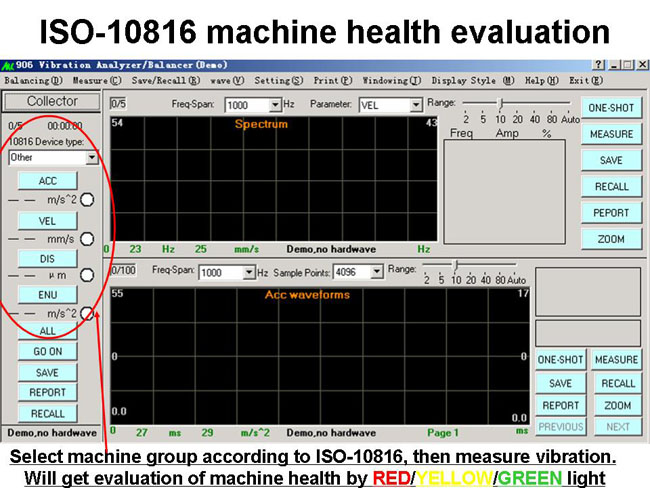

ISO-10816 machine health evaluation

Select machine group according to ISO-10816, then measure vibration. Will get evaluation of machine health by RED/YELLOW/GREEN light

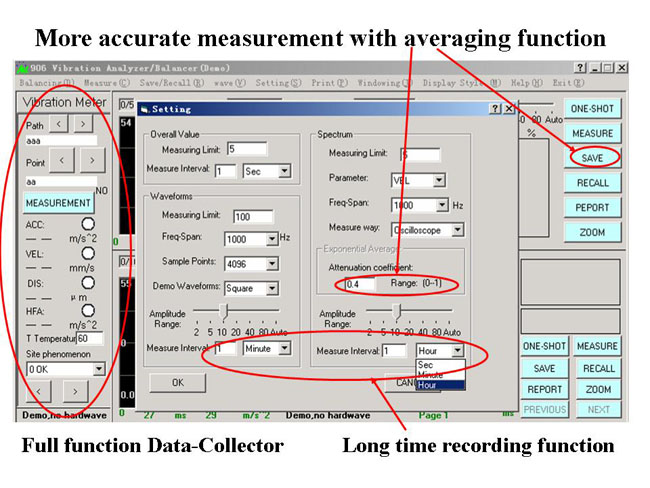

More accurate measurement with averaging function

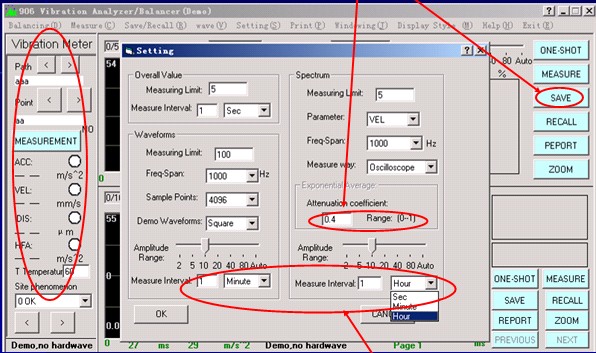

    Full function Data-Collector                   Long time recording function

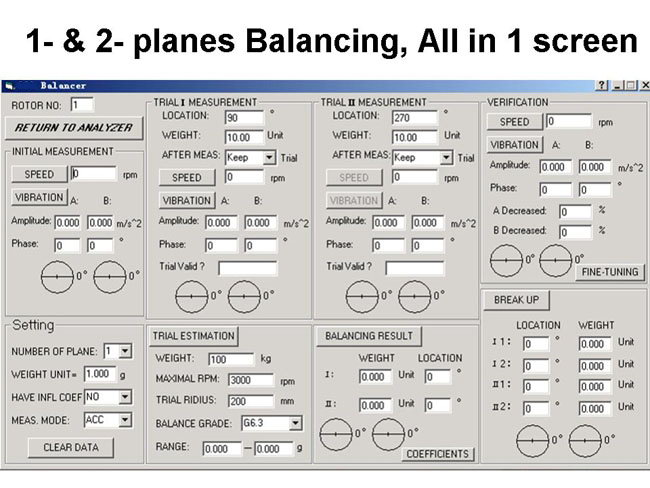

 1- & 2- planes Balancing, All in 1 screen

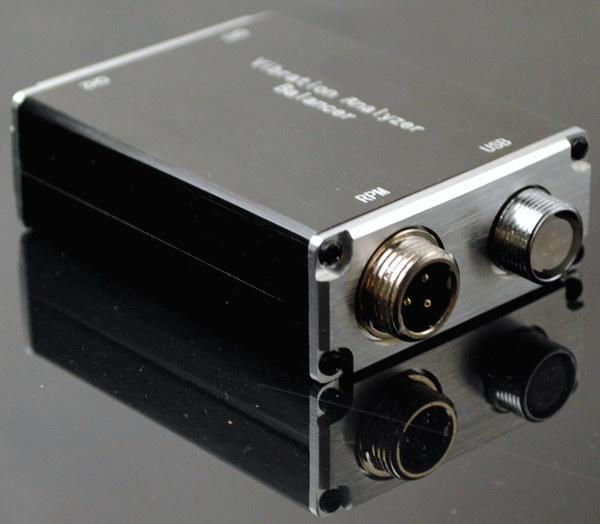

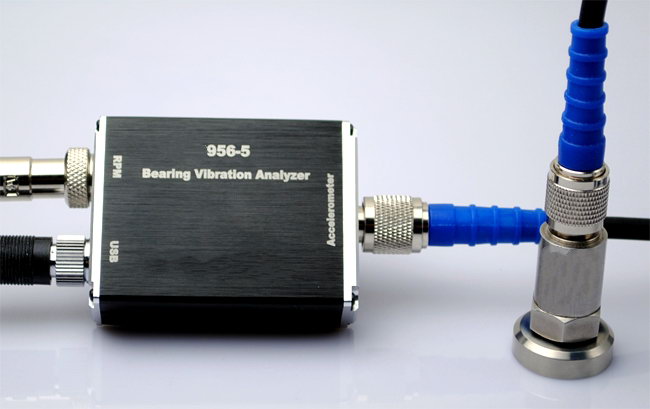

SRVM6956-5 Bearing Vibration Analyzer/Balancer/Recorder

1 Channels,Automatic Diagnosis,
1&2 Plans Balancing & Long Period Recording

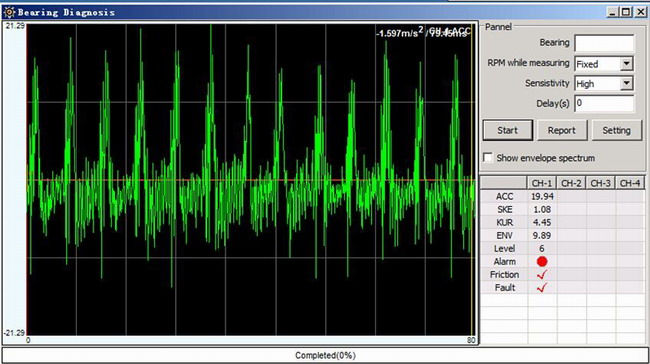

Specific bearing fault detection tool for even non-steady working element bearing.

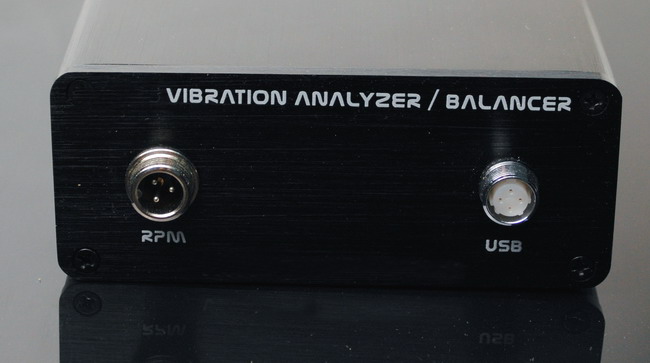

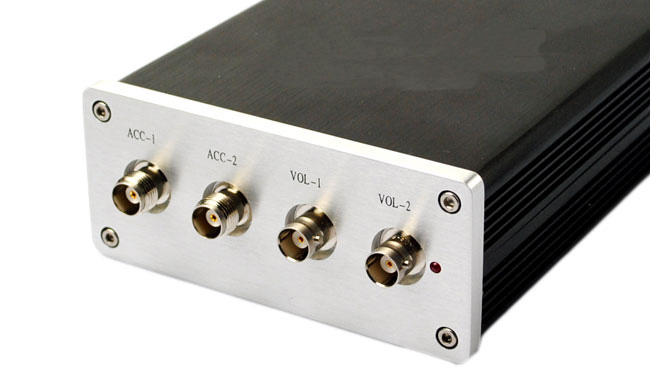

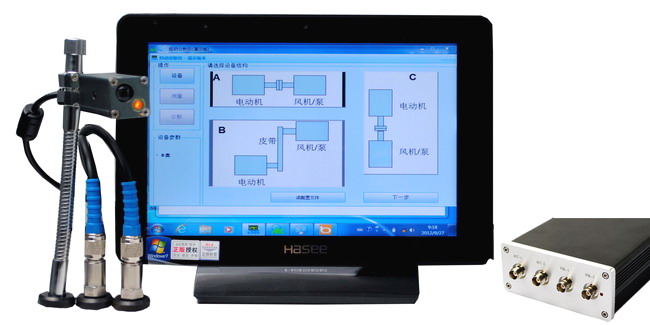

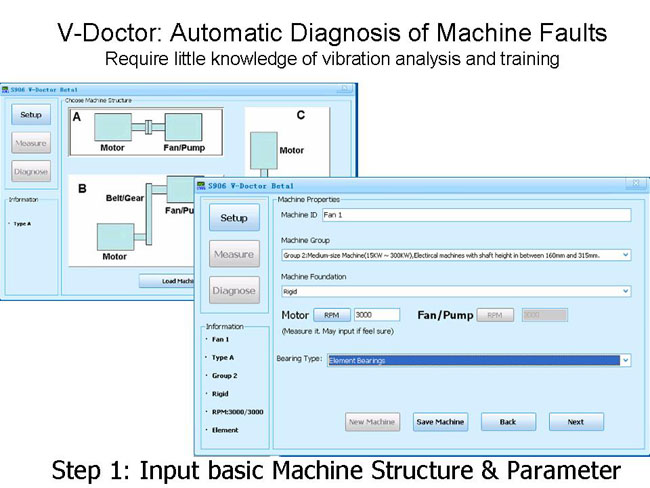

SRVM6956-2E Analyzer/Balancer/Recorder-Economical
2 Channels,Automatic Diagnosis,
1&2 Plans Balancing & Long Period Recording

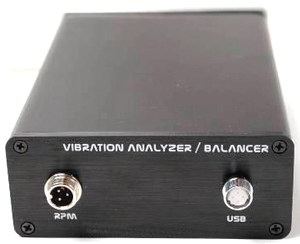

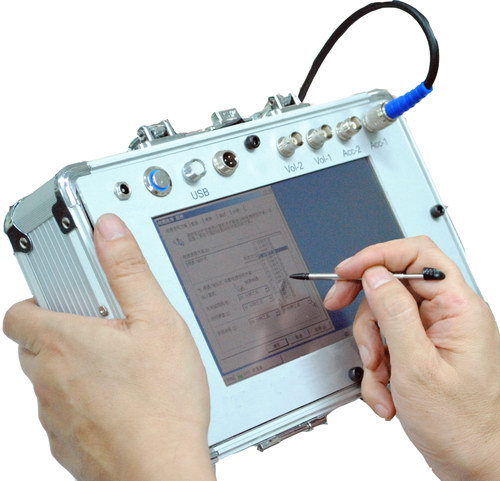

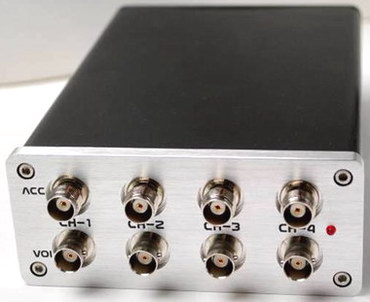

SRVM6956 Vibration Analyzer/Balancer/Recorder

2 (SRVM6956-2) / 4 (SRVM6956-4) Channels, Automatic Diagnosis, 1 & 2 Plans Balancing & Long Period Recording





(2 channels Vibration Analyzer have integrated type, please click integrated type to find.)

Features:
400-1600 Lines Spectrum
Frequency Span: 100,200,500,1k,2k,5kHz
ISO-10816 included, Health condition indicated by Green/Yellow/Red Light.

Super DSP intelligent sensor, USB interface
Envelop demodulation for bearing diagnosis

To do speed measurement, phase measurement and phase fault diagnosis


Specification:
Frequency Range: 3Hz~10kHz;
RPM Range (optional): 60~60000 RPM
Vibration Measurement Range/Resolution:
Acceleration Peak: 180m/s2 0.1m/s2
Velocity RMS : 200mm/s 0.1mm/s
Displacement peak-peak: 5000um 1µm

Vibration Measurement accuracy: +/-5%

Signal dynamic Range: 72dB
8th-order Anti-aliasing Filter

2-Channels & 4-Channels vibration Measurement

Instrument size: 12*26.6*17cm

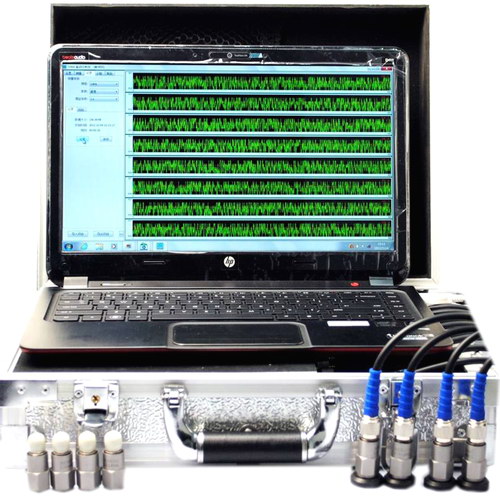

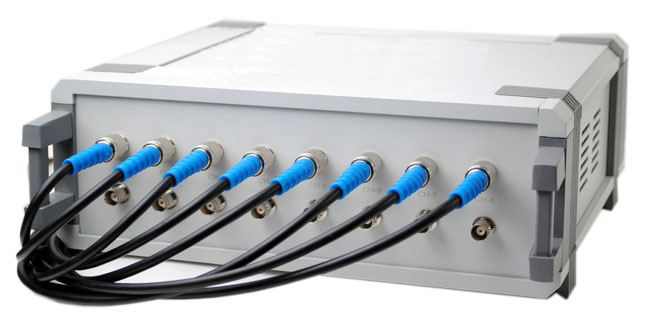

SRVM6966 8-Channel Vibration Analyzer
Simultaneously Seamless Measure and Record with Low Frequency Option, Auto Diagnosis



Features:
8-Channels long-time seamless recording
Input: Charge or IEPE Accelerometer, Voltage
Overall values, Raw waveform, Spectrum, Bode Graph, 1X Phase, 1/2 planes Balancing
Non-stable Vibration Analysis
Startup-Shutdown Recording & Analysis
400-3200 Lines Spectrum
Frequency Span: 10,20,50,100,200,500,1k,2k,5k,10kHz,15kHz

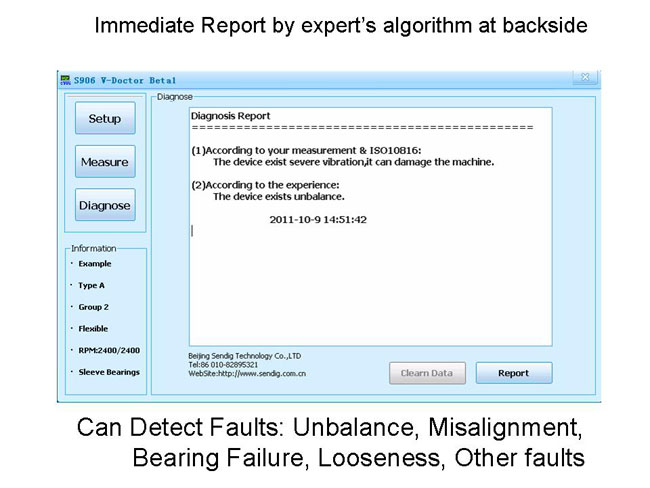

Dual diagnostic Expert System: Automatic & Accurate, MS-Word Format diagnosis report
ISO-10816 included, Health condition indicated by Green/Yellow/Red Light.
Envelop demodulation for bearing diagnosis


Specification:
Frequency Range: 0.5Hz~15kHz(3dB);
2.5Hz~10kHz(1dB); 4Hz~5kHz(0.5dB)
RPM Range: 60~60000 RPM
Vibration Measurement Range/Resolution
Acceleration Peak: 100m/s2 0.1m/s2
Velocity RMS : 100mm/s 0.1mm/s
Displacement peak-peak: 2mm 1
Voltage Peak : +10V 0.1mV
Auto Range & Manual Range Selectable
8th-order Anti-aliasing Filter
Powered by USB, No additional power required
2-Channels & 4-Channels version optional
Robust Metal Carry Case for Field Testing







 ( If you need user manual or E-catalogue without watermark for above meters, please ask for at: xiushunjie@163.com )
