Viscometer/Viscosity Meter

　

　

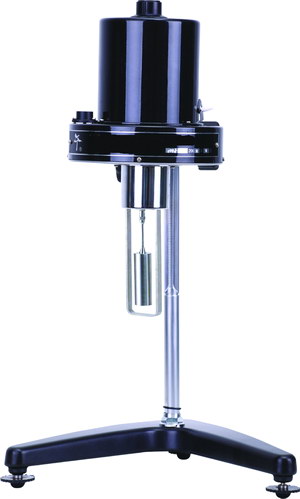

Model:SRV-1/SRV-0/SRV-4

Model:SRV-5S/SRV-8S/SRV-5S1

Viscometer/Viscosity Meter

It is used to measure viscosity resistance and absolute viscosity of fluids, including lipid, oil, food.

Display by pointer, easy install, operate simplify.

　

 Model

SRV-1

SRV-0

SRV-4

SRV-5S

SRV-8S

SRV-5S1

Display mode

dial

dial

dial

digital

digital

digital

Rotors speed(r/min)

6/12/30/60

6/12/30/60

0.3/0.6/1.5/3/

6/12/30/60

6/12/30/60

0.3/0.6/1.5/3/

6/12/30/60

6/12/30/60

Speed governing

Manual dived

Manual dived

Manual dived

Intelligence

Eight Level

Intelligence

Rotor

1,2,3,4

0,1,2,3,4

1,2,3,4

1,2,3,4

1,2,3,4

1,2,3,4

Measure Range

(mPa.s)

1~105

0.1~105

10~2〜106

10~105

10~2〜106

10~105

Measureerror             (Newtonian liquid)

+/-5%

+/-5%

+/-5%

+/-5%

+/-5%

+/-2%

Dimension(mm)

275*265*445

275*230*475

　
　 　

　

( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )
