Automatic Level

(Automatic Level, Optical Level, Surveying Instrument, Auto Level, Cross Line Laser Level, Laser Level Meter)

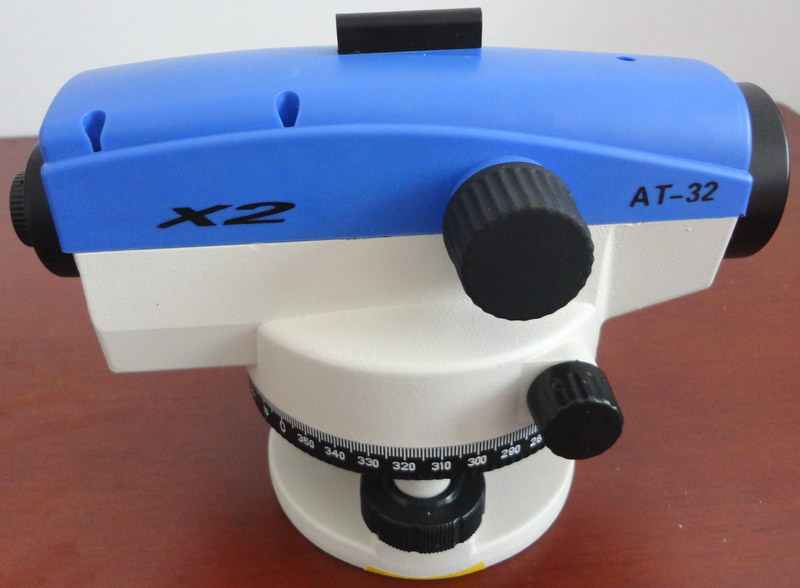

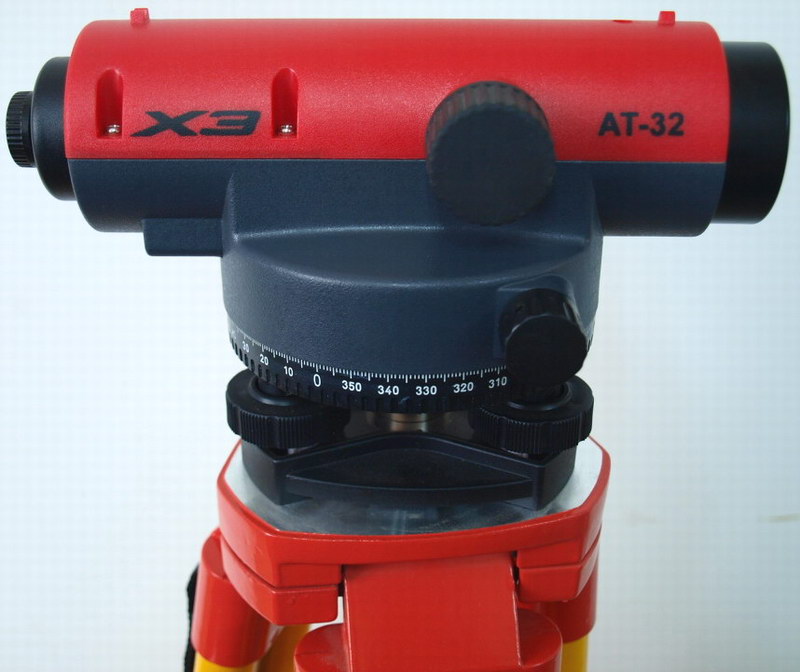

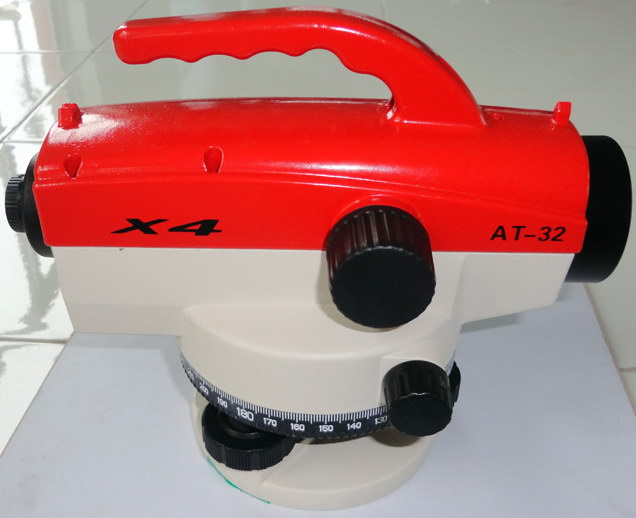

DSX Series Automatic Level

¡¡

¡¡

Model Number     DSX232   DSX332   DSX432
(these 3 model just with different shape, function is same )
Standard deviation per kilometer double-run 1.5mm
Telescope imaging  Positive image
Magnification 32X
Clear objective aperture 36mm
 Field of view 1¡ã20¡ä
Shortest focusing distance 0.4m
Stadia multiplication constant 100
Stadia adding constant 0
Circular bubble precision 8¡ä/2mm
The division unit of dial 1¡ã or 1gon
Working scope for the equipment ¡À15¡ä
Setting accuracy ¡À0.3¡å
 Screw thread connected to tripod M16 or 5/8¡å
Water proof IP4

¡¡

Model

DSC224

DSC228

DSC232

Standard deviation for lkm double run levelling

2.0mm

1.5mm

1.0mm


Erect

Magnification

24X

28X

32X

Objective aperture

36mm

38mm

Field of view

1¡ã20'

Minimum focus

0.3m

Multiplication constant

100

Additive constant

0

Compensator range

¡À 15'

Compensator setting accuracy

¡À 0.6¡±

¡À 0.5¡±

Sensitivity of bubble

8 ' /2mm

Horiz. circle reading

1¡ã or 1gon

Instrument weight

1.85kg

Tripod

M16 or 5/8¡±

¡¡ ¡¡

Model

DSC324

DSC328

DSC332

Standard deviation for lkm double run levelling

2.0mm

1.5mm

1.0mm


Erect

Magnification

24X

28X

32X

Objective aperture

36mm

38mm

Field of view

1¡ã20'

Minimum focus

0.3m

Multiplication constant

100

Additive constant

0

Compensator range

¡À 15'

Compensator setting accuracy

¡À 0.6¡±

¡À 0.5¡±

Sensitivity of bubble

8 ' /2mm

Horiz. circle reading

1¡ã or 1gon

Instrument weight

1.50kg

Tripod

M16 or 5/8¡±

¡¡ ¡¡

Model

DSC424

DSC428

DSC432

Standard deviation for lkm double run levelling

2.0mm

1.5mm

1.0mm


Erect

Magnification

24X

28X

32X

Objective aperture

36mm

38mm

Field of view

1¡ã20'

Minimum focus

0.3m

Multiplication constant

100

Additive constant

0

Compensator range

¡À 15'

Compensator setting accuracy

¡À 0.6¡±

¡À 0.5¡±

Sensitivity of bubble

8 ' /2mm

Horiz. circle reading

1¡ã or 1gon

Instrument weight

1.70kg

Tripod

M16 or 5/8¡±

¡¡ ¡¡

Model

DSC524

DSC528

DSC532

Standard deviation for lkm double run levelling

2.0mm

1.5mm

1.0mm


Erect

Magnification

24X

28X

32X

Objective aperture

36mm

38mm

Field of view

1¡ã20'

Minimum focus

0.3m

Multiplication constant

100

Additive constant

0

Compensator range

¡À 15'

Compensator setting accuracy

¡À 0.6¡±

¡À 0.5¡±

Sensitivity of bubble

8 ' /2mm

Horiz. circle reading

1¡ã or 1gon

Instrument weight

1.50kg

Tripod

M16 or 5/8¡±

¡¡ ¡¡

Model

DSC624

DSC628

DSC632

Standard deviation for lkm double run levelling

2.0mm

1.5mm

1.0mm


Erect

Magnification

24X

28X

32X

Objective aperture

36mm

38mm

Field of view

1¡ã20'

Minimum focus

0.3m

Multiplication constant

100

Additive constant

0

Compensator range

¡À 15'

Compensator setting accuracy

¡À 0.6¡±

¡À 0.5¡±

Sensitivity of bubble

8 ' /2mm

Horiz. circle reading

1¡ã or 1gon

Instrument weight

1.50kg

Tripod

M16 or 5/8¡±

¡¡ ¡¡

Model

DSC724

DSC728

DSC732

Standard deviation for lkm double run levelling

2.0mm

1.5mm

1.0mm


Erect

Magnification

24X

28X

32X

Objective aperture

36mm

38mm

Field of view

1¡ã20'

Minimum focus

0.3m

Multiplication constant

100

Additive constant

0

Compensator range

¡À 15'

Compensator setting accuracy

¡À 0.6¡±

¡À 0.5¡±

Sensitivity of bubble

8 ' /2mm

Horiz. circle reading

1¡ã or 1gon

Instrument weight

1.85kg

Tripod

M16 or 5/8¡±

¡¡

DSZ3 Series Automatic Level

    DSZ3 series automatic level is a precision surveying instrument both optical and mechanically. With a horizontal scale ,and meets the demand for the application in civil engineering, architectural engineering and land surveys to measure altitude difference, horizontal angel as well as distance by using the stadia lines.



DSZ3-A

DSZ3-B

Noted: -A, -B is totally same in data, just the shape is different. -B model is more economical in price.

DSZ3 included in standard package:: laser level, instruction manual, plastic case, plumb bob and wool cloth.
Features:

DSZ3 comes in a compact,sturdy, and easier to use carrying case. Horizontal line of slight stability is assured by four suspension wires
    and magnetic damping compensator. Accuracy over 1km double leveling is ¡Àmm, but for models DSZ3-30A,DSZ3-32A it can be
    improved to ¡Àmm combined with the optional parallel plate micrometer.

Excellent structure is sturdy,compact, and more tightly sealed against humidity and dust for superior performance whatever the
    conditions. It is quick and easy to set up, simple to sight, and immune to vibration, shock, and other environment conditions.

Four suspension wires and magnetic damping action ensure stability, even under rapidly changing atmospheric conditions, vibration ,
     and shock. The reliable automatic compensator is high quality, with a large ¡À15¡¯

The levels comes with an easy-to-use horizontal circle for measuring angles(direct to 1¡Àor 1gon). The readout window is conveniently
     located on the instrument base-directly below the eyepiece.

The level incorporates an endless horizontal motion drive with two knobs for fast and easy aiming, operable with the right or left hand.
    simply turn the instrument, then use the fine motion to precisely aim the level at the target.

The stadia wires on the reticle allow easy calculations of distance, Simply the distance on the rod between the top and bottom stadia
     lines by 100.


Standard equipment: Instrument, Lens cap, Flannelette, Plumb bob, Vinyl cover, Tool kit, Operation manual, Plastic case
Specification:

Parts

Model

DSZ-32A/B

DSZ-30A/B

DSZ-28A/B

DSZ-26A/B

DSZ-24A/B

DSZ-22A/B

DSZ-20A/B

Telescope

Magnification

32X

30X

28X

26X

24X

22X

20X


Erect image

Objective aperture

more than 42mm

more than 42mm

more than 42mm

more than 36mm

more than 36mm

more than 32mm

more than 32mm

Min.focusing distance

0.3mm

Stadia multiplication constant

100

stadia additive constant

0

Resolution

  4" or less

  5" or less

5.6" or less

Compensator

Pattern of reticule

¡À15'

Compensating error

¡À0.3"/1'

Scale minimum value

¡À0.5"

Scale

Scale graduation range

360¡ã/400G

Scale minimum value

1¡ã¡À/lgon

Sensitivity of circular bubble

8'/2mm

Base screw

M16 Or 5/8" for option

Environmental temperature

-25¡æ ¡×+50¡æ

Carry case

Plastic case(aluminiium case for option with extra cost)

Parallel plate micrometer

Available for option

Not available

 ( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )
