Cable Tracker

CT6810 MULTI-NETWORK CABLE TESTER

Tests for Coaxial Cable (BNC), Unshield Twisted Pare (UTP) and Shield Twisted Pair (STP) Cable.
Automatically checks for open circuit, shorts, miswires and reversals.
Shield detection tests a cable's shield integrity.
Easy to read fault display and high speed.

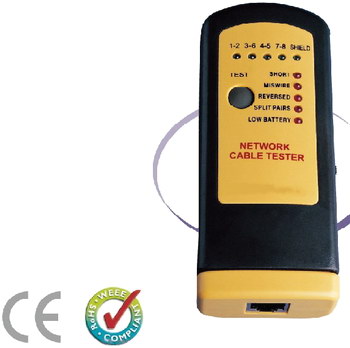

CT6811 Network cable tester

Introduction
The network cable tester is a small hand-held cable tester, which enables network professionals to quickly and easily verify the integrity of Ethernet twisted pair cables.
Features
Test device used with UTP (Unshield Twisted Pare) and STP (Shield Twisted Pair) wiring.
Checks continuity and configuration of wiring with unshielded and shielded modular plugs.
Tests for open circuits, shorts, miswires, reversals and split pairs.
SHIELD detectiontests a cable's shield integrity.
Main unit and one remote allow one person to test T568A, T568B, 10Base-T and Token Ring.
DEBUG quickly identifies which cable pairs have a specific wiring fault.
Low power indication.

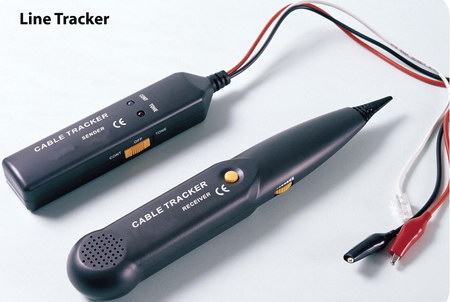

CT6812 LINE TRACKER

Introduction:
The Cable Tracker is designed to identify and trace wires or cables within a group without damaging the insulation. For telephone line, it can identify some states in the line, and more convenient to install, debug, maintain telephone line.

Features:
Judge continuity of the cables or wires.
Track the cables or wires, and diagnose and break point.
Receive the tone signal on the cables or wires (telephone line).
Identify the state in the working telephone line (clear, ring, busy).
Send a single solid tone or a dual alternating tone to the object cables or wires.

Specifications:
Send tone frequency: 1.5kHz
Receive frequency range: 100~300KHz
Power: 6F22 (9V) x 1
Size: Receiver 238x43x26mm; Emitter 145x35x25mm
Wight: Receiver 106g (including battery); Emitter 114g (including battery)

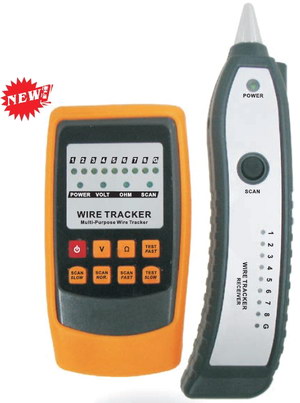

CT860 Multi-Purpose Wire Tracker

Signal Transmit Distance

>1km

Display

LED

Tracing Function

YES

Pal\ntsc Standard Indentifying

Non

Low Battery Alert

YES

Volume Regulation

YES

Earphone Plug-in

YES

Torch Function

YES

Video Monitoring

Non

Power Charging

Non

Auto Power Off

Non

Operating Temperature

-10 ~40C (14 ~ 104F)

Relative Moisture

10-95%

Storage Temperaure

-20 ~ 60C (-4~140F)

Weight

Transmitter:119.2g, Receiver:68.8g

Size

Transmitter: 48.6*26*177mm;

Receiver: 48.6*26*177mm

Power

Transmitter:3*15V AAA batteries, receiver: 6F22 9V battery

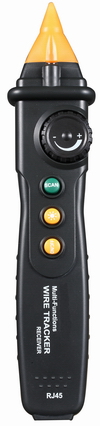

CT6816 MULTI-FUNCTIONS WIRE TRACKER

Features

Wire track

directly track wire type: RJ45,RJ11

Track other wire through the attachment

sequence collation

Open circuit, short circuit, detection of cable line sequence

Network wire collation

Test device used with UTP (Unshield Twisted Pair) and STP (Shield twisted Pair) wiring

Tests for open circuits, shorts, miswires, reversals, and split pairs

Allow one person to test T568A, T568B, 10Base-T, and Token Ring

DC level test

DC level test

telephone line test

Identify the state of working telephone line(clear,ringing,busy)

Continuity

Judge continuty of the cables or wires

Switch port collation

detection switch connected condition

General

Power Supply

Receiver: 9V 6F22 Battery ;     Emitter:3x1.5V AA

Product Size

Receiver:212mmx45mmx28mm

Emitter:120mm x66mm x31mm

Product Weight

Receiver:120g

Emitter:160g

Category

CE CAT.III 300V RoHS

click here

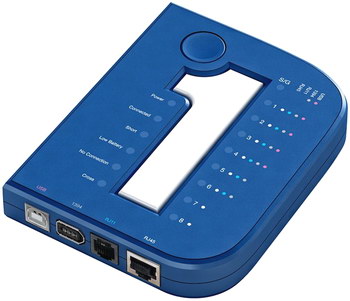

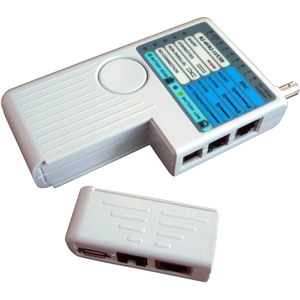

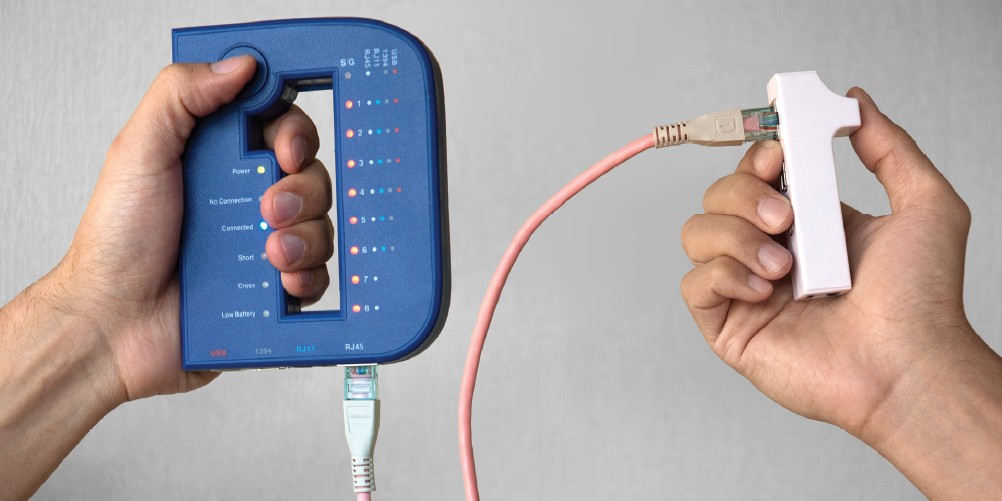

CT814 4 in 1 LAN Cable Tester

Overview:

The CT814  tests 4 common LAN and Computer cables. It tests installed cables or patch cords with RJ-45, RJ-11, 1394 and USB connectors. CT814  is intended to test cables with straight through connections; not cables with reversed or transposed connections like some LAN crossover cables or reverse wired telephone cables.
Features:

- Test 4 types of cables: RJ11, RJ45, USB, 1394
- Easily read pin configuration of RJ45, RJ11, USB Cable
- Simple one button test
- Ergonomic portable handheld design
- Tests installed wiring or patch cables.
- Remote unit stores in Main Unit
- 180 meters (600 FT) test distance for RJ45 and RJ11
- Convenient battery access
- Built in battery test
- LED indicate connections and faults
- Visible LED pin/wires status display
- Beeper provides audible annunciation of test results.
- Tests shielded (STP) or unshielded (UTP) LAN cables
- Tests shields in 1394 and USB cables
- CE and FCC certificate

Specification:

Cable Tested

-UTP and STP LAN cables terminated in RJ-45 male connectors (EIA / TIA 568)

-RJ-11 cables with male connectors, 2 to 6 conductors installed

-1394 Cables with Type 1 plugs on both ends

-USB cables with Type A "flat" plug on one end and Type B "square" plug on other end

Faults Indicated

No Connection, Shorts, Opens, Crosses

Low Battery Annunciator

LED lights to indicate low battery

Case Dimensions

130 x 101 x 22 mm, (L x W x H)

Battery

1 standard 9 volt alkaline battery

Check for Cable

- Continuity

- Miswiring

- Open

- Short

- Cross Over

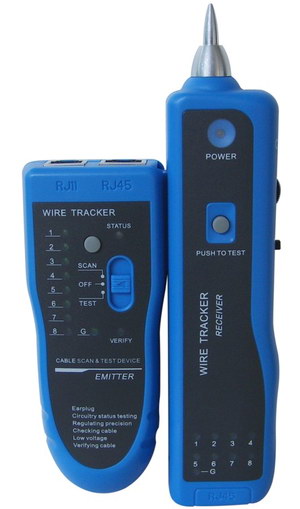

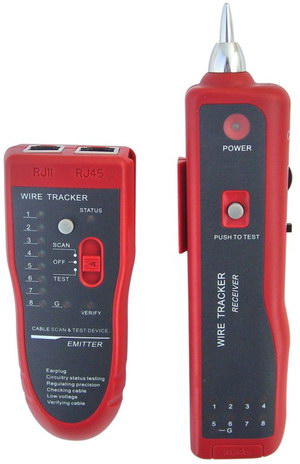

CT801R

CT801B

CT801R, CT801B Cable Tracker

Function:
1. Trace telephone wire/LAN cable, 2. Trace wire in electrical system 3. Verify LAN cable condition 4. Continuity test 5. DC level testing function. 6. Bright white LED flash light
Important :
1. Find wire on all types of connected operating Ethernet switch /Router/PC terminal.
2. Rapidly find the target wire from among plenty of telephone wires .
3. Rapidly find the target wire from among plenty of network wires.
4. It can take place of cable tester.
5. Compare the volume of the tout sound and the brightness of the signal indicator.
Then you can find the target wire which has the highest volume and brightest indicator.
specification:
Name : Wire tracker ( cable scan & finding)
Product name Wire tracker(cable scan & finding)
The max working current Emitter 10mA
Receiver 30mA
Signal transmission format Multi-frequency impulse
Signal output electric status 8Vp-p
Distance of signal transmission 3km
Packing list:
Appearance dimension

Emitter 1264934,mm
Receiver 1754227,mm,

Whole set 27016545,mm,

Weight Emitter 0.060kg,

Receiver 0.072kg;

Whole set 0.420kg


The list of package
1. Emitter 1piece               6. Cable with crocodile clamp 1piece
2. Receiver 1piece              7. RJ45 network cable 1piece
3. 9V battery 2pieces           8. Instruction manual 1piece
4. Earphone 1piece              9. Toolkit 1piece
5. RJ11 telephone cable 1piece  10.Color box 1piece

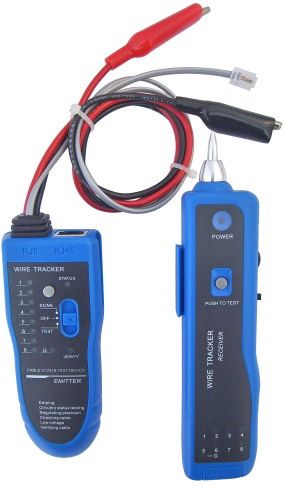

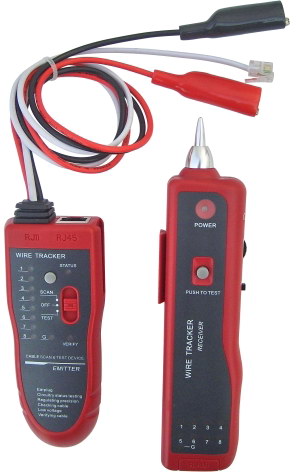

CT806R

CT806B

CT806R/CT806B Cable Tracker

Function:
1. Trace telephone wire/LAN cable
2. Trace wire in electrical system
3. Verify LAN cable condition
4. Continuity test
5. DC level testing function.
6. Bright white LED flash light

Important :
1. Find wire on all types of connected operating Ethernet switch /Router/PC terminal.
2. Rapidly find the target wire from among plenty of telephone wires .
3. Rapidly find the target wire from among plenty of network wires.
4. It can take place of cable tester.
5. Compare the volume of the tout sound and the brightness of the signal indicator.
Then you can find the target wire which has the highest volume and brightest indicator.

Specification:
Name : Wire tracker ( cable scan & finding)
Item Specification
Product name Wire tracker(cable scan & finding)
The max working current Emitter 10mA
Receiver 30mA
Signal transmission format Multi-frequency impulse
Signal output electric status 8Vp-p
Distance of signal transmission 3km

The message of package:
Appearance dimension Emitter 1264934,mm
Receiver 1754227,mm
Whole set 27016545,mm
Weight Emitter 0.060kg
Receiver 0.072kg
Whole set 0.420kg

Packing: 40PCS/CTN, CTN SIZE: 53*33*53CM, N.W/G.W: 15/16KGS, VOLUME WEIGHT: 19KGS
The list of package:
1. Emitter 1piece 6. Cable with crocodile clamp 1piece
2. Receiver 1piece 7. RJ45 network cable 1piece
3. 9V battery 2pieces 8. Instruction manual 1piece
4. Earphone 1piece 9. Toolkit 1piece
5. RJ11 telephone cable 1piece 10.Color box 1piece

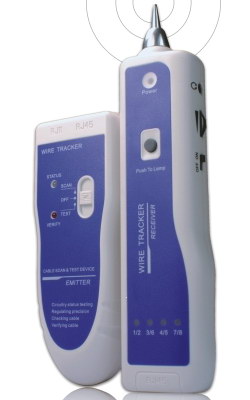

CT812 Cable finder

Important :
1. Find wire on all types of connected operating Ethernet switch /Router/PC terminal.
2. Rapidly find the target wire from among plenty of telephone wires .
3. Rapidly find the target wire from among plenty of network wires.
4. It can take place of cable tester.
5. Compare the volume of the tout sound and the brightness of the signal indicator.
Then you can find the target wire which has the highest volume and brightest indicator.
(specification):
Name : Wire tracker ( cable scan & finding)
Item Specification
Product name Wire tracker(cable scan & finding)
The max working current Emitter 10mA
Receiver 30mA
Signal transmission format Multi-frequency impulse
Signal output electric status 8Vp-p
Distance of signal transmission 3km

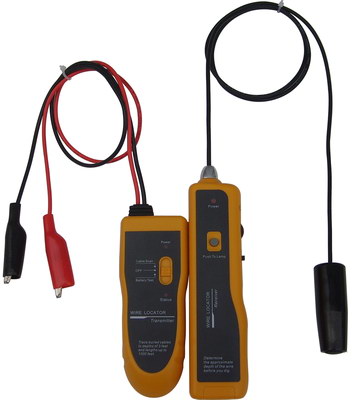

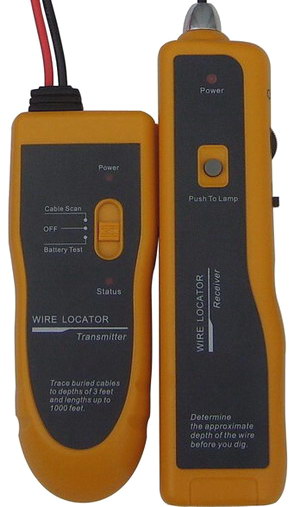

CT816 Underground wire locator

Product features
Battery Test Locating & Tracking Buried Wires Measuring Depth Tracking Behind Walls Locating Circuit Breakers (Light Commercial & Residential Applications) Pinpointing Drill Sites Determining Which Receptacles are
on Specific Circuits. Locating Alarm, Sound & Computer Wires Locating Hidden Receptacles White LED Flash Light
Description
1. The Underground Wire Locator is designed to locate the path of non-energized wires behind walls and underground. The 816 is also capable of locating a specific circuit breaker, pinpointing wires before drilling and verifying dig sites underground. The effective range is up to 3 feet deep and up to 1000 feet in length.
2. The unit consists of a transmitter, model 816T, is equipped with a thumb wheel switch for turning the unit on and adjusting the output level on the front of the unit for use with the large alligator clip leads. Push the switch to select to testCable Scan orBattery TestThe transmitter is constructed of high impact plastic and is powered by one 9V battery.
3. The receiver, model 816R, is equipped with a thumb wheel switch for turning the unit on and adjusting the receiver gain. The tracking antenna is attached to the receiver with a 3-foot long cable. Also is equipped with a White LED light and a external earphone, The receiver has been designed to filter AC power related noise. The receiver is constructed of high impact plastic and is powered by one 9V battery.
4. The alligator clip leads are available to connect the transmitter to electrical wire, CATV coax, telephone drops, irrigation control wires or metallic pipes.
5. This locating system is packaged in a toolkit & box with extra batteries, external earphone and has operating instructions in the behind of the toolkit.
CT816 Underground Wire Locator
Technical parameters
Electrical
Output Voltage (open circuit). . . . . . . . .. . . 9Vp-p
Output Frequency (nominal):
Carrier. . . . . . . . . . . . . . . . . . . . . .. . 447.5KHz
Audio Modulation . . . . . . . . . . . . . . . 900Hz
Battery . . . . . .. . . . . . . . . .. . . . . .9 V DC
Battery Life (nominal)
816T. . . . . . . 35 hrs
816R . . . . . . . . . . . . . 20 hrs
Physical
Measurements
816T. . . . .. . . . 49x135x33 mm (1.93x5.31x1.3)
816R. . . . . . . . 43x168x27 mm (1.69x6.61x1.06)
Kit . . . . .. . . . . .150x286x52 mm (5.91x11.26x2.05)
Weight
816T. . . . . . . . . . .. . . . . .124 g (4 oz)
816R. . . . . . . . . .. . . . .148 g (5 oz)
Kit . . . . . . . . .. . . . . . . . . 0.420 kg (15 oz)
Operating/Storage Conditions
Operating Temperature:
Celsius. . . . . . . . . . . . . . . . . . . . . -10C to 50C
Fahrenheit. . . . . . .. . . . .. . . .. . . . . 14F to 122F
Storage Temperature:
Celsius. . . . . .. . . . . . . .-17C to 75C
Fahrenheit. . . . . . . . . .. . .0F to 167F
Standard configuration
Toolkit:  1Piece, 9V battery: 2 Pieces
Operation Manual :  1Piece
Box :  1Piece, 816T:  1Piece, 816R:  1Piece

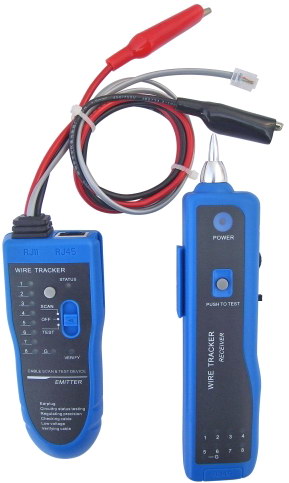

CT889 Wire Tracker

Function:
1. Trace telephone wire/LAN cable
2. Trace wire in electrical system
3. Verify LAN cable condition
4. Continuity test
5. DC level testing function.
6. Bright white LED flash light
Important :
1. Find wire on all types of connected operating Ethernet switch /Router/PC terminal.
2. Rapidly find the target wire from among plenty of telephone wires .
3. Rapidly find the target wire from among plenty of network wires.
4. It can take place of cable tester.
5. Compare the volume of the tout sound and the brightness of the signal indicator.
Then you can find the target wire which has the highest volume and brightest indicator.

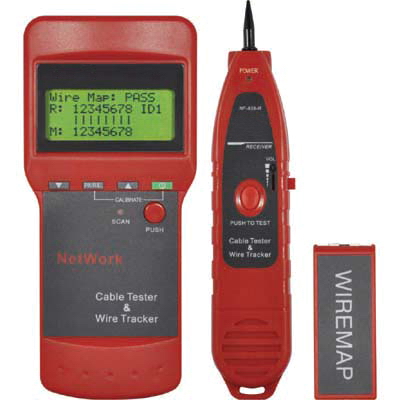

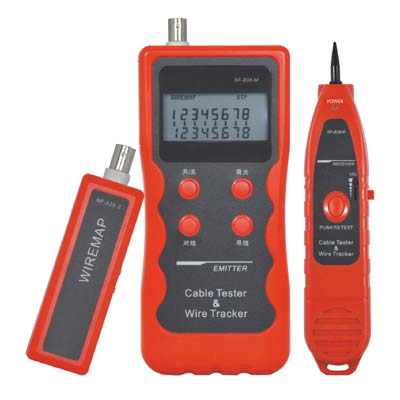

CT838 Network Cable Tester & Multipurpose LCD Cable Tester
Product features:
LCD, the display effect is more direct, more visual and clearer.
The wire can be hunted directly in connection with Ethernet switch/ router /PC  terminal of different models in startup.
Test 5E, 6E, telephone wire, coaxial cable, USB cable, 1394 line and other cables for troubleshooting.
RJ45/RJ11/BNC/USB/1394 and other ports are included and the complex switch is not required.
Select startup/shutdown function and backlight display function.
Sound hint function of different circuit status
9V battery for power supply and low-voltage hint function
Technical indexes :
(1) Overall dimension : Emitter: 185x80x32mm; receiver:  218x46x29mm;  Remote identifier: 107x30x24mm
(2) Power :Two laminated batteries of 9V
(3) Display: Large screen LCD segmented display (effective visual area 54x26mm)
(4) Type of cable tested :RJ 45/RJ11/BNC/USB/1394 and other different types
(5) Type of cable detected :RJ 45/RJ11/BNC/USB/1394 and other metal wires
(6) Ambient temperature in work: -10
ºC~+60ºC
(7) Signal transmission distance :More than 3 km
(8) Location of wire order and cable failure : Failure test, open circuit, short circuit, reversed position,

CT308 Multipurpose Network Cable Test #Inspection Instrument with lot of NEW Functions
Main Functions and features:
One person enough to complete cable continuity check.
Directly hunt 5E, 6E, telephone wire, coaxial cable, USB cable and other cables.
Check wiring error in 5E, 6E, telephone line, coaxial cable, USB cable and such as open circuit, short circuit, jumper wire, reverse connection or cross-talk interference.
Locate the wiring or connection error.
Measure cable length and determine the distance of open circuit and short circuit.
Dynamically calibrate cable length and make length measurement as accurate as 97%.
Simple and easy use. Big screen to display test result clear.
Portable unit with long battery life (wait-case 50 hours).
Automatically time-delay shut off and backlight display function.
Measure length and pair with or without far-end recognizer.
Locate cable and there are 8 far-end passive test jacks (ID No.ID1-ID 8).
Far-end recognizer with prompting voice.
Self-checking function and automatically compensate any change in battery capacity or ambient temperature.
Single board computer software watchdog design and reliable operation.
Technical indexes:
 (1). Overall dimension :Main tester: 18510550mm; receiver: 2184629mm;
Remote identifier: 843427mm.
 (2). Power: Two laminated batteries of 9V.
 (3). Display: Special 4 x 16 character big screen LCD lattice (valid visual field 61.6 x 25.2 mm).
 (4). Type of cable tested: STP/UTP twin twisted cable, coaxial cable, telephone line.
 (5). Type of cable detected :5E, 6E, telephone wire, coaxial cable, USB cable and other metal wires.
 (6). Ambient temperature in work:-10ºC~+60ºC
 (7). Tester Port: Tester RJ45 master port (M), tester LOOPBACK RJ45 port (L), hunting RJ45 port (With RJ45);
Remote identifier  RJ45 port (R). The extra BNC and RJ11 converters are used to measure and check the
continuity of coaxial cable and telephone line.
 (8). Length Measurement of Twin Twisted Cable
Scope: 1~350 M ( 3 ~200 ft)
Calibration accuracy: 3% (+/- 0.5M or +/- 1.5 ft) (calibrating cable > 5 M)
Shipment accuracy: 5% (+/- 0.5 M or +/- 1.5 ft). (AMP, AT&T Class 5 cable)
Display: M or ft.
 (9). Length Calibration: User can set calibration factor by himself with a given length cable.
The length of calibrating cable is more than 5 M.
 (10). Wire Sequence and Locating Cable Error: Check errors such as open circuit, short circuit,
reverse connection, cross-over or cross-talk interference.
 (11). Locating Cable:8 Remote identifier test jacks (ID 1ID 8).
 (12). Automatic Time-delay Shut Off Time: The tester does not operate for 30 minutes.

Packing: 30PCS/CTN, CTN SIZE: 49*45*46CM, G.W: 22.0KGS

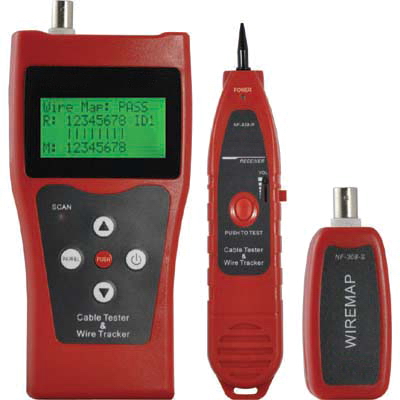

CT8208 Cable Tester & Find Wire Tracker
Main Functions and features :
One person enough to complete cable continuity check.
The function of probing the audio and tracing the cable.
 Check wiring error in 5E, 6E, such as open circuit, short circuit, jumper wire, reverse connection.
Measure length of network cable, and locate the position of cable breaking point.
Simple and easy use. Big screen to display test result clear.
Portable unit with long battery life (wait-case 50 hours).
Automatically time-delay shut off.
Measure length and pair with or without far-end recognizer.
Remote recognizer is with prompting voice.
Self-checking function and automatically compensate any change in battery capacity or ambient temperature.
Single board computer software watchdog design and reliable operation.
Technical indexes:
 (1). Overall dimension and unit weight:

Main tester: 180*80*40mm/ 235g; receiver: 218*46*29mm/ 93g;
 Remote identifier: 77*31*21mm/ 37g.
 (2). Power: Main tester uses 6V DC for power supply;  Receiver uses 9V battery for power supply.
 (3). Display: Special 4 x 16 character big screen LCD lattice (valid visual field 61.6 x 25.2 mm).
 (4). Type of cable tested: STP/UTP twin twisted cable, coaxial cable, telephone line.
 (5). Type of cable detected: 5E, 6E.
 (6). Ambient temperature in work: -10
ºC~+60ºC
 (7). Tester Port:

Tester RJ45 master port (M), tester LOOPBACK RJ45 port (L),
 hunting RJ45 port (SCAN);

Remote identifie RJ45 port (R)
 The extra BNC and RJ11 converters are used to measure and check  the continuity of coaxial cable and telephone line.
 (8). Length Measurement of Twin Twisted Cable:
 Scope: 1~350 M ( 3 ~200 ft)
 Calibration accuracy: 3% (+/- 0.5M or +/- 1.5 ft) (calibrating cable > 5 M)
 Shipment accuracy: 5% (+/- 0.5 M or +/- 1.5 ft). (AMP, AT&T Class 5 cable)

Display: M or ft.
 (9). Length Calibration:

User can set calibration factor by himself with a given length cable.
The length of calibrating cable is more than 10 M.
 (10). Wire Sequence and Locating Cable Error: Check errors such as open circuit, short circuit, reverse connection, cross-over
 (11). Automatic Time-delay Shut Off Time: The tester does not operate for 30 minutes.

Packing: 30PCS/CTN, CTN SIZE: 48.8*43.5*44.5CM, G.W: 19.5KGS

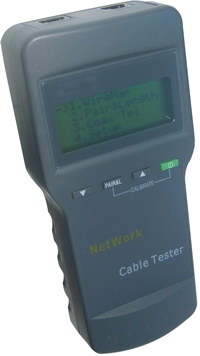

CT8108 Cable Tester, Wire Length Tester

Specifications:

LCD: 4 x 16 characters big LCD screen (valid visual field 61.6 x 25.2 mm)

Type of Tester Cable: STP / UTP twin twisted cable, coaxial cable, telephone line

Tester Port: Tester RJ45 master port (M), tester LOOPBACK RJ45 port (L), far-end recognizer RJ45 port (R). The extra BNC and RJ11 converters are used to measure and check the continuity of coaxial cable and telephone line.

Length Measurement of Twin Twisted Cable:

Scope: 1 to 350M (3 to 1,200 FT) calibration

Calibration accuracy: 3% (0.5m or 1.5 ft) (calibrating cable > 5 M)

Shipment accuracy: 5% (0.5m or 1.5 ft) (AMP, AT&T Class 5 cable)

Unit of Measurement: Display in meter (M) or feet (FT)

Length Calibration: User can set self-calibration factor by a given length cable.

The length of calibrating cable is more than 5M

Wire Sequence and Locating Cable Error

Check errors such as open circuit, short circuit, reverse connection, cross over or cross-talk interference

Locating Cable: Included 1 far-end passive test jack

Working Ambient Temperature: -10C to 60C

Automatic Time-delay Shut Off Time: The tester is idle for 30 minutes

Use 4 x AA batteries

Package Including:

Multi-Network Cable Tester

Far-End Test Jack

Instruction Manual

Packed Safely in a Standard Factory Box

Description:



1. This scanner will help you to check and find the twin cables in need among so many cables in no time.

2. With the verifying function of the scanner it will be very fast to test the basic physical connecting feature of open and short and cable sequence on the cables.

3. Circuitry status testing.

4. The function of regulating precision.

5. The function of earplug.



Specification:

Power: 9V battery

The max working current: Emitter <10mA Receiver<30mA

Signal transmission format: Multi-frequency impulse

Signal output electric status: 8Vp-p

Distance of signal transmission>3km

Dimension: 265x165x38mm

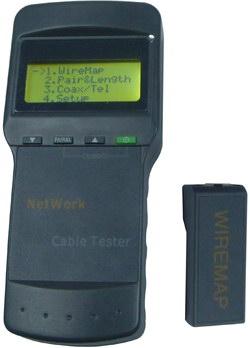

CT8108-A Cable Tester, Wire Length Tester

(with back light than CT8108)

* Check Types 5, 5e and 6 twisted cord network and trouble.
* Check cable sequence
* Use TDR (time domain reflectometer), Measure length and distance, find the trouble location.
* Find the determine open circuit, short circuit, jumper or crossfire.
* Service line test and no external adaptor is required
* Determine continuity and wiring pattern.

1. Overall Dimension: 108x80x40mm
2. Power Supply: 4x1.5V Size AA batteries with power consumption 16mA.
3. Display: Special 4x16 character big screen LCD lattice(valid visual filed 61.6x25.2mm)
4. Type of test cable: STP/UTP twin twisted cable, coaxial cable, telephone line.
5. Working ambient temperature: -10 Deg. C _ +60Deg. C.
6. Tester port
Tester RJ45 master port(M). Tester LOOPBACK RJ45 port(L). Far-end recognizer RJ45 port(R). The extra BNC and RJ11 converters are used to measure and check the continuity of coaxial cable and telephone line.
7. Length measurement of twin twisted cable
Scope: 1350M (31, 200ft)
Calibration accuracy: 3%(+/-0.5M or +/-1.5ft) (calibrating cable>5M)
Shipment accuracy: 5%(+/-0.5M or +/-1.5ft) (AMP, AT&T Class 5 cable)
Display: M or ft.
8. Length calibration: User can set calibration factory by himself with a given length cable. The length of calibrating cable is more than 5M.
9. Wire sequence and locating cable error: Check errors such as circuit, short circuit, reverse connection, cross-over or cross-talk interference.
10. Locating cable: 8 far-end passive test jacks.
11. Automatic time-delay shut off time: The tester does not operate for 30 minutes.

CT3468 4 in 1 Cable tester

1. Introduction

The 4 in 1 Cable Tester tests 4 common LAN and Computer cables. It tests installed cables or patch cords with RJ-45,RJ-11,1394,USB ,and BNC connectors. It is intended to test cables with straight through connections not cables with reversed or transposed connections like some LAN crossover cables or reverse wired  telephone cables.

2.:PRODUCT FEATURES
2.1 Test 5 types of cables
2.2 Simple one button test
2.3 Ergonomic portable handheld design
2.4 Tests installed wiring or patch cables
2.5 Remote unit stores in Main unit
2.6 600 ft test distance (RJ-45/RJ-11/BNC
2.7 Convenient battery access
2.8 Built in battery access
2.9 LEDs indicate connections and faults
2.10 Beeper provides audible annunciation of test results
2.11 Tests shielded (STP) or unshielded(UTP) LAN cables
2.12 Test shields in 1394 and USB cables

3:. SPECIFICATIONS

3.1Cables Tested: UTP and STP LAN caTerminated in RJ-45 male connectors.(EIA/TIA 568) RJ-11 cables with male connectors, 2 to 6 conductors installed.1394 Cables with Type 1 plugs on both ends. USB cables with Type A flat plug on one end and type B square Plug on other end. BNC cables with male connectors.

3.2 Faults Indicated: No Connection , Shorts, Opens, crosses.
3.3 Low battery Indicator: LED lights to indicate low battery.
3.4 Case Dimensions: 7.254.01.0 inches (LWH).
3.5 Weight:202 grams,0445Ibs.(Without battery).
3.6Battery: 1 standard 9-volt alkaline battery.

4. General Information:
the LEDs that should light for a good cable.
The 5 in 1 Cable Tester performs its tests when the
single button on its front panel is pressed and released.
6 Status LEDs indicate the condition of the cable being
tested, as well as informing the user that Power is turned
on, and that the battery is good(or bad).
8 additional connection LEDs light to indicate that specific wires in a
cable are connected .
A chart beneath the 8 LEDs shows
Note: Only one cable can be tested at a time. I.e. A BNC
cable and an RJ-45 cable cannot be tested simultaneously.

5. General Information:The following section provides
information to the user about common cable types,
common failures, and repairs. It  is not  meant to be an
exhaustive study of the topic, just some basic information
that the uninitiated may find helpful.
Main Unit
Remote
Female BNC Terminator
Male/Male BNC jumper cable,(5)
Male/Male RJ-11 jumper cable,4 wire
Male/Male RJ-45 STP jumper cable,(5),EIA/TIA 568
9-Volt Battery
Instruction Manual
Carrying Case9.1 The 4 in 1 Cable Tester includes the following items

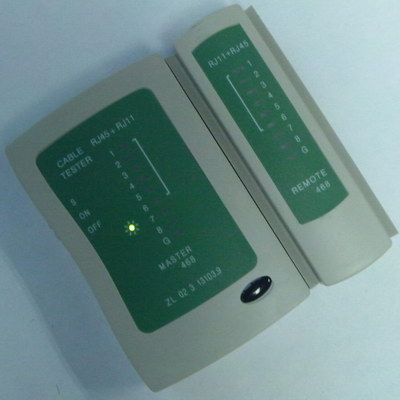

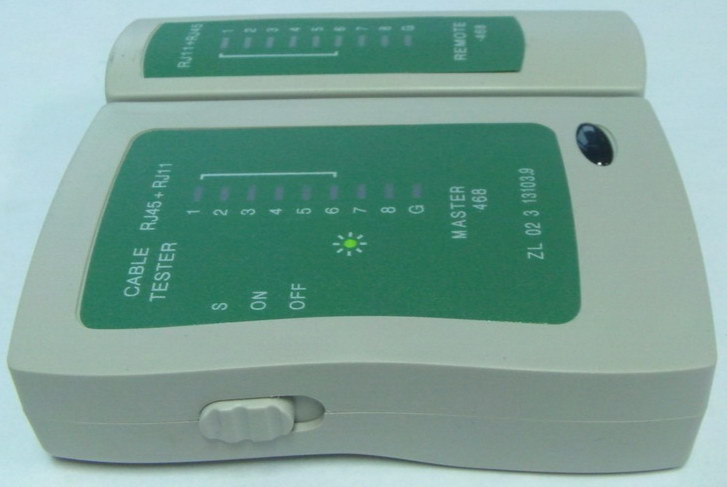

CT468 cable tester

Features:

1) Tests corresponding double twisted cables 1, 2, 3, 4, 5, 6, 7, 8 and G.
2) Judges wrong connection, short circuits, and open circuit
3) NS-468 tests RJ11 and RJ45 cables

Specifications:

The base unit of the cable tester can be connected via a network cable directly to a hub or switch to test wire connections, or to a network card to test the send receive pairs of wires, it can test if there is any open or miss-wire without the remote kit.
9 LEDs to show you exactly which wire is open or miss-wire on both remote and master unit. Old version has 4 LEDs.
MASTER and REMOTE unit are both INCLUDED!
Automatic scan mode, rapidly testing.
Power switch is not a push buttom, will not easily turn on and waste battery.
Included all the traditional features:
Test the correct pin configuration of 10/100 Base-T 10Basc-2 Thin Ethernet cable, RJ11, RJ12, RJ45 modular cables AT & T 258A, TIA-568A/568B, Cat 5 etc
Easy to verify cable continuity, open, short and miss-wire
With remote kit, it can remotely test cable up to 1000 ft in length either on wall plate or patch panel
Can test the grounding
Auto scan with 2 speeds for pin-out indicators
A power switch is provided for saving battery power
Deluxe vinyl carrying pouch included
9 volt battery for power NOT INCLUDED

Packing: 100PCS/CTN, CTN SIZE: 58*31*38CM, G.W.:15KGS

telephone for telecommunications

CT855 telephone for telecommunications

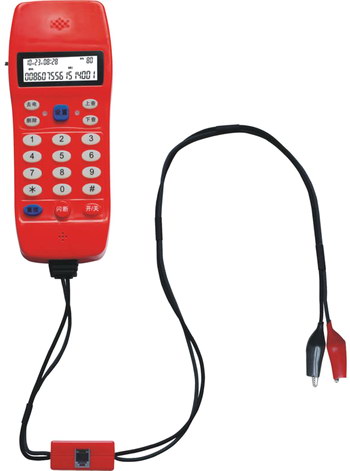

CT856 telephone for telecommunications

Can show the numbers of telephones.

Packing: 50PCS/CTN, CTN SIZE: 19.5*41*52.5, G.W.: 12KGS

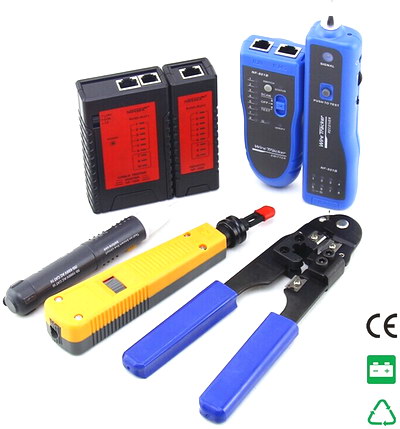

CT1107 Network Toolkit

Item Specifics:
*Is customized: Yes
*Model Number: CT1107
*Place of Origin: Shanghai. China
*Main Function : Network tools used in engineering wiring
*Color: Black
*Warranty: 1Year

Included:

1.Wire Tracker CT801B
2.Network Cable Tester CT468
3.Non-contact Voltage Detector CT608
4.Punch Tool CT110
5.Crimping Tool CT178

Main Functions:

* Wire Tracker -Trace locate and verify RJ11 and RJ45 cables.
* Network Cable Tester :Used for verify RJ11/FJ45 cables status.
* Non-contact Voltage Detector :Used for identify hot and neutral conductors, find a break in a wire and detect the AC voltage.
* Punch Tool - Cut not needed cable with the blade and steady function.
* Crimping Tool-8p8c,6p6c cable criper.

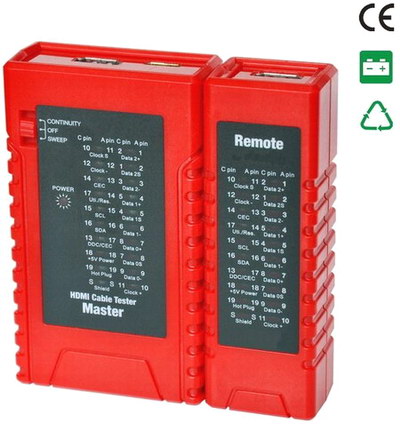

CT-HDMI Cable Tester

Item Specifics:
* Is_customized: Yes
* Model Number: CT-HDMI
* Place of Origin: Shanghai.China
* Port: HDMI- A / C
* Tracking Type: HDMI cable
* Testing Type: HDMI Cable
* Power: 9V Alkaline battery (not included)
* Certificates: CE/ ROHS/ REACH
* Warranty: 1Year

Features:

1. Fast and accurate verification with type A - A, A - C and C - C connectors.
2. Check miswires, short, open and cross status of HDMI cables.
3. Mapping continuity and proper configuration.
4. Displays 19 pin-to-pin and shield connection status on both main and remote unit.
5. Adjustable test modes: Fast/slow scan/manual test for step by step.
6. Design with loopback function.

Attention:

1.Don't connected high voltage lines to avoid burning out the machine.
2.Put into the right place to avoid hurting others, because of the sharp part.
3.Connected the cable to the right port.
4.Read the user manual before use it.

( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@163.com )
