USB Data Logger



SRDL310

SRDL311



Introduction:

This data logger measures and stores up to 32,000 temperature(-35 to 80°C(-31~176°F)) readings. Some professional applications can be provided by the PC software DGraphTM. Logger status, alarm indication and low battery indication are via flashing red/green LED and yellow LED. The button on housing can be used to start logging, or confirm and clear LED alarm when LED alarm is hold status.
User can plug data logger straight into PC’s USB port without any cables. Before getting started, user need to install USB driver and DGraphTM software, provided on the CD which is included in product packing box. All the software can run under Windows XP, Vista, 7 or 8(32 bit and 64 bit Versions). User can easily use DGraphTM software to setup sample rate (from 10 seconds to 12 hours), high/low alarm limit and start/stop method , and download data to PC, etc. And then user can view, analyze and print the data, or export other file formats (txt, xsl, csv, bmp, jpg).

Especially, for some professional applications, user can set access password, name each channel, enable/disable specified channel, input calibration data for each channel, disable LED indication for saving power, and select sample mode (Instant, Average, Maximum and Minimum), etc.

Applications:
This data logger is used mainly to monitor and verify humidity& temperature-sensitive goods, equipment or areas. e.g.:

Shipping, Computer Rooms, Libraries, Food, Communications Equipment, HVAC,
Pharmaceutical, Containers, Refrigeration, Warehouse, Aircraft Cabins, Agriculture and Livestock, Museums, Equipment Run Time, Greenhouses, Buildings, Laboratories, Environmental and Weather Monitoring

USB Temperature Data Logger SRDL310 & SRDL311


Features:
1, USB interface directly communicate with PC for setup and data download
2, User can set access password for data logger
3, User can name each channel and enable/disable specified channel freely
4, LED alarm enable/disable, LED alarm hold enable/ disable and alarm limit settings for all channels via DGraphTM
5, User can input formula to customize compound graph from selected logging data
6, User can create and customize new unit easily and freely for all measurement parameters
7, Logging status indication via red/green LED and battery status indication via yellow LED
8, Start logging method: Immediately, Button, Delayed
9, User can input two point calibration value for each channel when setup
10, Dew point calculated via software DGraphTM
11, IP66 environmental protection
12, Replaceable lithium battery and logged data are not lost if battery exhausted



Specifications:

Model

SRDL310

SRDL311

Temperature

Measurement range

-35~80°C (-31~176°F)

Accuracy (Typ.)

+/- 0.3°C (+/- 0.5°F)

Resolution (Typ.)

0.1°C (0.2°F)

LCD

-

Yes

Memory Capacity

64Kbytes (Total 32,000 readings)

Sample Rate

User selectable from once every 10 seconds to once every 12 hours

PC Software

DGraphTM software and USB driver required (Included on CD)

Power Supply

User replaceable 1/2AA 3.6V Lithium Battery, 1200mAh

Battery Life

Approx. 2 Years @ 1 Minute

Sample Rate
Approx. 4 Years @ 10 Minute

Sample Rate
Approx. 8 Years without any

sample task
NOTE: It also Depends on ambient temperatures and using of LEDs

Case Material

ABS, TPU, PC

Dimensions

123mm * 37mm * 23mm

(4.8" * 1.5" * 0.9")

Weight

Approx. 90 grams(3.19 oz)





SRDL320

SRDL322



Introduction:

This data logger measures and stores up to 32,000 humidity(0 to 100%RH) and temperature(-35 to 80°C(-31~176°F)) readings. Dew point and more professional applications can be provided by the PC software DGraphTM. Logger status, alarm
indication and low battery indication are via flashing red/green LED and yellow LED. The button on housing can be used to start logging, or confirm and clear LED alarm when LED alarm is hold status.
User can plug data logger straight into PC’s USB port without any cables. Before getting started, user need to install USB driver and DGraphTM software, provided on the CD which is included in product packing box. All the software can run under Windows XP, Vista, 7 or 8(32 bit and 64 bit Versions). User can easily use DGraphTM software to setup sample rate (from 10 seconds to 12 hours), high/low alarm limit and start/stop method , and download data to PC, etc. And then user can view, analyze and print the data, or export other file formats (txt, xsl, csv, bmp, jpg).
Especially, for some professional applications, user can set access password, name each channel, enable/disable specified channel, input calibration data for each channel, disable LED indication for saving power, and select sample mode (Instant,
Average, Maximum and Minimum), etc.

Applications:
This data logger is used mainly to monitor and verify humidity& temperature-sensitive goods, equipment or areas. e.g.:

Shipping, Computer Rooms, Libraries, Food, Communications Equipment, HVAC,
Pharmaceutical, Containers, Refrigeration, Warehouse, Aircraft Cabins, Agriculture and Livestock, Museums, Equipment Run Time, Greenhouses, Buildings, Laboratories, Environmental and Weather Monitoring

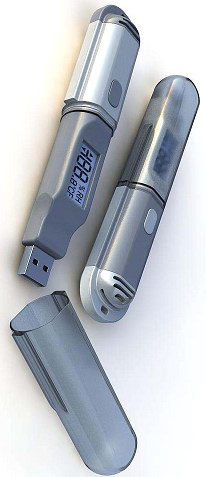

USB Temperature and Humidity Data Logger

SRDL320 & SRDL322 & SRDL322P
Features:
1, USB interface directly communicate with PC for setup and data download
2, User can set access password for data logger
3, User can name each channel and enable/disable specified channel freely
4, LED alarm enable/disable, LED alarm hold enable/ disable and alarm limit settings for all channels via DGraphTM
5, User can input formula to customize compound graph from selected logging data
6, User can create and customize new unit easily and freely for all measurement parameters
7, Logging status indication via red/green LED and battery status indication via yellow LED
8, Start logging method: Immediately, Button, Delayed
9, User can input two point calibration value for each channel when setup
10, Dew point calculated via software DGraphTM
11, IP66 environmental protection
12, Replaceable lithium battery and logged data are not lost if battery exhausted

Specifications:

Model

SRDL320

SRDL322

SRDL322P

Temperature

Measurement range

-35~80°C (-31~176°F)

Accuracy (Typ.)

+/- 0.3°C (+/- 0.5°F)

Resolution (Typ.)

0.1°C (0.2°F)

Relative Humidity



Measurement range

0~100%RH

Accuracy (Typ.)

+/- 3%RH

Resolution (Typ.)

0.1%RH

 LCD

-

Yes

Yes

Exporting Files Formats

EXCEL/ /TXT/JPG/PBM

PDF/EXCEL/ /TXT/JPG/PBM

Memory Capacity

64Kbytes (Total 32,000 readings for all channels)

Sample Rate

User selectable from once every 10 seconds to once every 12 hours

PC Software

DGraphTM software and USB driver required (Included on CD)

Power Supply

User replaceable 1/2AA 3.6V Lithium Battery, 1200mAh

Battery Life

Approx. 2 Years @ 1 Minute

Sample Rate

Approx. 4 Years @ 10 Minute

Sample Rate

Approx. 8 Years without any

sample task

NOTE: It also Depends on ambient temperatures and using of LEDs

Case Material

ABS, TPU, PC

Dimensions

123mm * 37mm * 23mm

(4.8" * 1.5" * 0.9")

Weight

Approx. 90 grams(3.19 oz)



Applications:
1. Manufacturing or Processing Plant Audit
2. Plant Systems Verification
3. Temperature Monitoring’
4. Food and Drink
5. Laboratory and Scientific Research
6. Industrial Processing

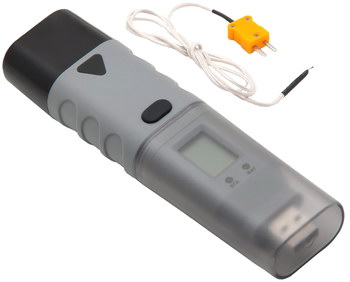

SRDL361 Thermocouple Temperature Data Logger with USB Interface

Features:

1.Portable, precise, compact and low cost

2.Unique and uniform PC control software: DGraph

3.USB interface directly communicate with PC for setup and data download

4.Each unit has single serial number

5.User can set access password for each data logger

6.Two point calibration for each channel

7.Start logging method: Immediately, Button, Start at

8.Replaceable lithium battery and data is not lost if exhausted

9.Alarm limit settings for all channels

10.User can customize compound graph

11.User can customize new unit easily

12.User can name each channel and enable/disable it

Model

SRDL361

Thermocouple Temperature

Measurement Range

K-type: -200 to 1370°C (-328 to 2498°F)

 J-type: -200 to 1190°C (-328 to 2174°F)

T-type: -200 to 390°C (-328 to 734°F)

Accuracy(Typ.)

+/-0.3%+/-1°C(+/-0.3%+/-2°F)

Resolution(Typ.)

0.5°C(1°F)

Sensor Location

External

LCD

Yes

Memory Capacity

64Kbytes (Total 32,000 readings)

Sample Rate

Every 1sec. to every 24hr.

PC Software

DGraph software and USB driver required (Included in CD)

Power Supply

User replaceable 1/2AA 3.6V lithium battery, 1200mAh

Battery Life

Approx. 1.5Years@ 1 Minute Sample Rate

Dimensions

139mm*37mm*23mm(5.5’’*1.5’’*0.9’’)

Case Material and Weight

ABS; Approx. 72grams(2.54 oz)

















Introduction:

This data logger can measure and store air pressure, humidity and temperature readings automatically. Especially, more professional applications can be provided by the unique PC software DGraphTM under Windows xp/7/8 (32/64 bits). User can easily use the software to setup and download data to PC via USB. And user can view, analyse and print the data, or export other file formats (txt, xls, csv, bmp, jpg). Logger status, alarm indication and low battery indication are via flashing red/green LED and yellow LED. The button on housing can be used to start logging or confirm and clear LED alarm.

Applications:

Measure and log air pressure, humidity and temperature for
transportation, equipment operation, manufacture, storage.
It can log the altitude.

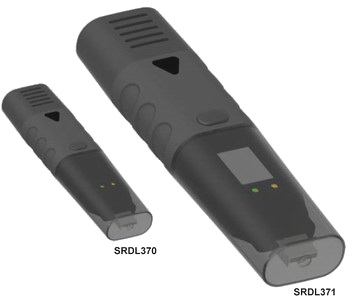

USB Air pressure, Temperature and Humidity Data Logger

SRDL370 & SRDL371

Features:
1. Portable, compact and low cost

2. Unique and uniform PC control software: DGraph
3. USB interface directly communicate with PC for setup and data download

4. Each unit has single serial number

5. User can set access password fo each data logger

6. Two point calibration for each channel

7. Start logging method: Immediately, Button, Start at

8. Replaceable lithium battery and data is not lost if exhausted

9. Alarm and status indication via LED

10. Alarm limit settings for all channels

11. User can customize compound graph
12. User can customize new unit easily
13. User can name each channel and enable/disable it

Specifications:

Model

SRDL370

SRDL371

Air Pressure

Measurement range

300 to 1100 hPa

Accuracy (Typ.)

+/- 1.5hPa

Resolution (Typ.)

0.1hPa

Temperature

Measurement range

-35~80°C (-31~176°F)

Accuracy (Typ.)

+/- 0.3°C (+/- 0.5°F)

Resolution (Typ.)

0.1°C (0.2°F)

Humidity

Measurement range

0~100%RH

Accuracy (Typ.)

+/- 3%RH

Resolution (Typ.)

0.1%RH

LCD

-

Yes

Sensor Location

Internal

Memory Capacity

64Kbytes (Total 31,998 readings)

Sample Rate

Every 2sec. to every 24hr.

PC Software

DGraphTM software and USB driver required (Included in CD)

Power Supply

User replaceable 1/2AA 3.6V Lithium Battery, 1200mAh

Battery Life

Approx. 2 Years @ 1 Minute

Sample Rate

Approx. 4 Years @ 10 Minute

Sample Rate

Approx. 8 Years without any

sample task

NOTE: It also Depends on ambient temperatures and using of LEDs

Dimensions

139mm * 37mm * 23mm

(5.5" * 1.5" * 0.9")

Case Material and Weight

ABS; Approx. 72 grams(2.54 oz)











Introduction:

This data logger measures and stores up to 32,000 DC Voltage readings. Especially, more professional applications can be provided by the unique PC software DGraphTM. Logger status, alarm indication and low battery indication are via flashing red/green LED and yellow LED. The button on housing can be used to start logging or confirm and clear LED alarm.

Applications:

Manufacturing or Processing Plant Audit; Shock, Flow, and/or Vibration Monitoring; Plant Systems Verification; Quality Assurance; System Profiling; Industrial& Food

SRDL330 DC Voltage Data Logger

Features:
1, Portable, compact and low cost
2, USB interface directly communicate with PC for setup and data download
3, Easy to use
4, Unique and uniform PC control software: DGraph
5, Each unit has single serial number
6, Enhanced design make it reliable and stable
7, User can set access password fo each data logger
8, Two point calibration for each channel
9, Alarm and status indication via LED
10, Start logging method: Immediately, Button, Start at
11, Replaceable lithium battery and data is not lost if exhausted

Specifications:

Model

SRDL330

DC Voltage

Measurement range

0 to 30V (0 to 3V, 5V, 10V, 12V and 24V etc. can be customized)

Accuracy

+/- 1%

Resolution

40mV (For 0 to 30V range)

Memory Capacity

64Kbytes (Total 32,000 readings)

Sample Rate

User selectable from once every 10 seconds to once every 12 hours

PC Software

DGraphTM software and USB driver required (Included on CD)

Power Supply

User replaceable 1/2AA 3.6V Lithium Battery, 1200mAh

Battery Life

Approx. 3 Years @ 1 Minute

Sample Rate

Case Material

ABS, TPU, PC

Operating Temperature Range

-35 to 80°C (-31 to 176°F)

Dimensions

130mm * 37mm * 23mm

(5.1" * 1.5" * 0.9")")

Weight

Approx. 80 grams(2.82 oz)

If you need other measured ranges, please contact us for help.















Introduction:

This data logger measures and stores up to 32,000 DC Current readings. Especially, more professional applications can be provided by the unique PC software DGraphTM. Logger status, alarm indication and low battery indication are via flashing red/green LED and yellow LED. The button on housing can be used to start logging or confirm and clear LED alarm.

Applications:

Manufacturing or Processing Plant Audit; Shock, Flow, and/or Vibration Monitoring; Plant Systems Verification; Quality Assurance; System Profiling; Industrial& Food

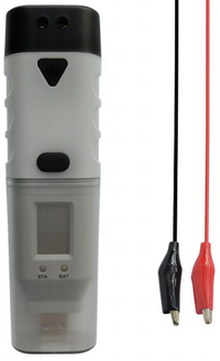

SRDL340 Current Loop Data Logger

Features:

1, Portable, compact and low cost
2, Easy to use
3, Unique and uniform PC control software: DGraph
4, USB interface directly communicate with PC for setup and data download
5, Each unit has single serial number
6, User can set access password fo each data logger
7, Two point calibration for each channel
8, Start logging method: Immediately, Button, Start at
9, Long Battery Life: Approx. 3 years @ 1minute sample rate
10, Replaceable lithium battery and data is not lost if exhausted
11, Alarm and status indication via LED

12, Enhanced design make it reliable and stable

Specifications:

Model

SRDL340

Current Loop

Measurement range

4 to 20mA (0 to 20mA can be customized)

Accuracy

+/- 1% + 1 digit

Resolution

40mV (For 0 to 30V range)

Memory Capacity

64Kbytes (Total 32,000 readings)

Sample Rate

User selectable from once every 10 seconds to once every 12 hours

PC Software

DGraphTM software and USB driver required (Included on CD)

Power Supply

User replaceable 1/2AA 3.6V Lithium Battery, 1200mAh

Battery Life

Approx. 3 Years @ 1 Minute

Sample Rate

Case Material

ABS, TPU, PC

Operating Temperature Range

-35 to 80°C (-31 to 176°F)

Dimensions

130mm * 37mm * 23mm

(5.1" * 1.5" * 0.9")")

Weight

Approx. 80 grams(2.82 oz)

If you need other measured ranges, please contact us for help






Functions

1).Display carbon dioxide concentration and ratio by lcd.

2).Close/Open backlight by key.

3).Close/Open transfinite alarm by key.

4).Record and check the maximum minimum value.

5).Set time function.

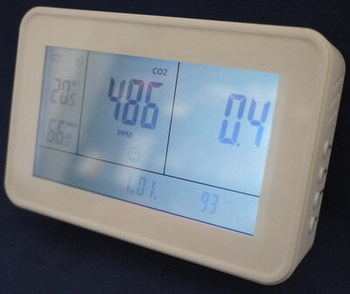

SRDL344D CO2 Carbon dioxide, Temperature & humidity Monitor; 3 in 1 Data logger

Introduction
SRDL344D CO2 monitor could measure the CO2 concentration, air temperature, humidity. Poor indoor air quality is considered unhealthy because it causes tiredness, loss of ability to concentrate, and even illness. IAQ monitoring and survey, especially on CO2 level and air ventilation become widely applied in public areas such as offices, classrooms, factories, hospitals and hotels. It is also suggested in regulations of industrial hygiene in some countries.

Technical Specification:

The power supply

5VDC±10%

Average power

2.5W

Detection of gas

Carbon dioxide,  NDIR (Non-Dispersive Infra-Red)

Measuring range

CO2: 0-9999ppm

Temperature: -40~80ºC

Humidity: 0~100%RH

Accuracy

CO2: ±50ppm +5%

Temperature: ±0.5ºC

Humidity: ±3%RH

Resolution

CO2: 1ppm

Temperature: 0.1ºC

Humidity: 0.1%RH

Response Time

<30 Second

Preheating Time

<5 Minutes

Data Logger

a. Memory: 12332 readings

b. Used as a u-disk

c. Generate TXT logging file

Charging

Input: AC100-240V Output: 5V,2A

Operating Environment

0~50ºC (32~122°F); 0~95%RH

Store Condition

-20~50ºC, 0~90%RH, A standard atmospheric pressure

Weigh/Size

221g/126mm*84mm*36mm

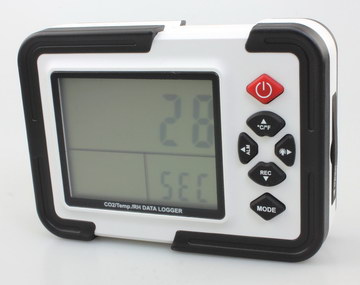

SRDL2000 CO2 Carbon dioxide, Temperature & humidity Monitor; 3 in 1 Data logger

Features
•Super large LCD simultaneously display and log CO2 Level, Temperature, Relative Humidity, Calendar (Y/M/D) and Time (clock)
•DIGITAL WALL MOUNTABLE/ DESKTOP TYPE!
•32000dataloggingmemory
•WARNING CARBON DIOXIDE LEVEL!
•Stable NDIR sensor for CO2 concentration
•NDIR (Non-Dispersive Infrared) WAVE GUIDE TECHNOLOGY WITH ABC (Automatic Background Calibration)
•High and Low threshold setting
•ALARM OUTPUT DRIVE RELAY TO CONTROL SYSTEM
•Back light Function
•Recall MAX and MIN reading
•LONG TIME DRIFT COMPENSATION
•Comes with Power Adaptor (choose one from the available plug US/ UK/ AU/ EUR)

Specifications
Large LCD Display: 3.5”(8.9cm) LCD display with backlight
Logger mode: Key start/ stop, Immediately, Schedule, Real-time& Roll-over
Carbon Dioxide (CO2)
Range: 0~9999 (out of scale), Accuracy: ±50ppm ±5%rdg (0~2000)
Response time: 10sec
Temperature
Range: -10.0~70.0°C(14~158°F)
Resolution: 0.1°C/°F
Accuracy: ±0.6°C/±0.9°F(0~50°C/32~122°F), others ±1.2°C
Humidity

Range: 0.1~99.9%
Resolution: 0.1%
Accuracy: ±3%(10~90%)
Logging Memory: 40000
Operating Condition: 0~50°C,0~95%RH
Storage Condition: -20~60°C,0~99%RH
Sensor life: 15years in normal comm. Environments with ABC on
Storage Temp: -40~70°C(-40~158°F)
Power Supply: 1A Output 9V AC Adaptor

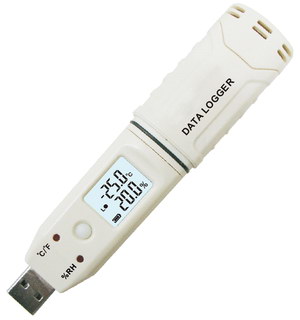

SRDL365 Temperature and humidity data logger
Functional and technical parameters

Measuring range: temperature -30-80 °C, humidity: 0-100% RH
Recording capacity: 32256
Maximum, minimum: Yes
High alarm value, lower limit alarm value: Yes
USB: Yes
In response to the sampling period setting: Yes
Alarm settings: Yes
Light Alarm: Yes
Low power prompts: Yes
Dimensions: 126 * 28 * 22mm
Weight: 49g
Packing:

TEU Quantity: 80PCS
Standard box size: 59.1 * 41.8 * 44CM
Power: 1 / 2AA3.6V lithium battery
Accessories: protective cover, mounting bracket, screws x2, CD

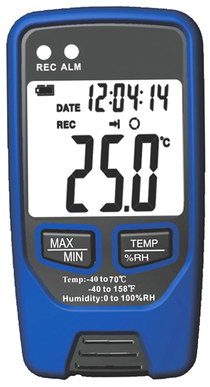

SRDL175 Temperature and humidity data logger

Features:

1. Memory for 32700 readings

2. LCD to show logging information easily

3. Free selectable measurement cycle from 1 sec to 24 hours

4. Battery life: more than 2 years (under ideal condition at 22°C)

5. Display all status for Alarm and Record through 2 LED'S

6. Alarm display if user-defined max/ min values are exceeded Text model for  logging data

7. USB computer interface (Advanced software program for all windows)

Specifications:

Temperature range

-40°C~70°C/ -40°F~158°F

Temperature accuracy

0°C~70°C/ 32°F~158°F: 1.0°C/ 1.8°F;

-40°C~0°C/ -40°F~32°F: 1.5°C/ 2.7°F

Humidity range

0~100%RH

Humidity accuracy

30~70%RH: 3.0%RH;

0~30%RH & 70~100%RH: <5%RH

Memory

32000 reading

(16000 each for temperature andhumidity)

Measuring rate

1 second to 24 hours

Analysis software

Windows 98/ 2000/ XP, WIN7/ 8/ 10

Accessories

3.6V lithium battery, software and gift box

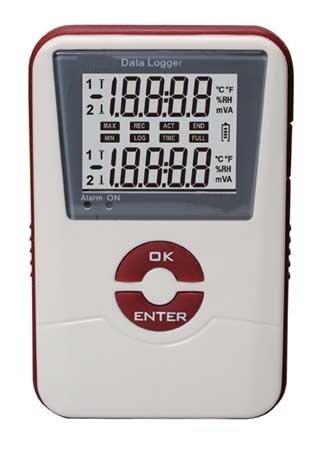

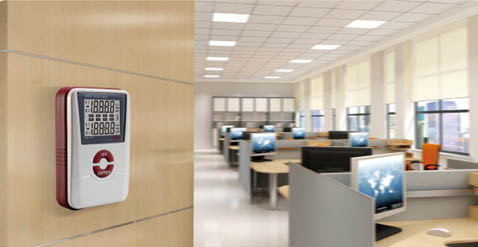

SRDL600/SRDL601/SRDL602 Series Multi-function Data Logger

Introduction:
Multi-function data logger is a new instrument designed for the actual demand of various industrial site, which integrating display, processing, records, calibration, accumulate, alarm functions etc. It can be used to measure the voltage, low current (0-24mA), high current (0 ~ 600A), temperature (thermocouple), temperature (thermal resistance RTD), etc.





Features:
· Up to 16000 data record point

· Sample rating/record interval: 5s to 24 hours

· LCD display 43*33mm
· USB port connect to PC to browse the recording data, and generation curve, export the file with TXT/excel format.
· Maximum/minimun display and alarm function
· Low power indication, Real-time clock RTC. Auto sleep and wake up function
· Online mode log more than 16000 point
· Receive various input signal as thermocouple, RTD, current and voltage etc.
· Long battery life: 3 year (measure and record each 1 hour)
· IP65 or IP40 housing
· Magnetic mounting
· Upper and lower alarms seting
· Mini USB port connector
· Power failure do not lost log data

· Software support English/France/Germany/Spanish/Italian

Specifications:
· Temperature (internal NTC):
  -30~+60°C ±1°C
· Humidity: 20~90%RH ±3%RH (internal)
· Voltage: DC 0~50V ±0.02V (external adaptor)
    AC 0~400V ±1.0V (external high voltage adaptor)
· Current: DC 0~24mA ±0.05mA (external adaptor)
· Current: AC/DC 0~600A ±1~2.5% (external clamp head A2-3510):
(optional, not inclued in standard delivery, you can buy separately this clamp from us if you need it)
· Temperature (external thermocouple):

K: -200~800°C ±0.4%reading±1.2°C, include cold junction compensate

(K type thermocouple is inclued in standard delivery)

J-200~800°C ±0.4%reading±1.2°C, include cold junction compensate

(J type thermocouple is not inclued in standard delivery, you should have or buy it locally to use with our data logger, we don't supply it)
· Temperature (external RTD):

  PT100 -200~850°C
(not inclued in standard delivery, you should have or buy it locally to use with our data logger, we don't supply it)
  PT1000 -200~850°C
(not inclued in standard delivery, you should have or buy it locally to use with our data logger, we don't supply it)
  ±0.5%, ±0.5°C

Resolution: Temperature: 0.1; Humidity: 0.1%; VDC: 0.01V; VAC: 0.1V; mA DC: 0.01mA; A AC: 0.1A.

Instrument Dimension: 113*74*32mm

Weight: 150g

Power Supply: ER14250 Lithium battery, 3.6v (1000 days at standby state)

Accessories: PC-software, USB cable




SRDL600/SRDL601/SRDL602 Series Data Logger

Basic

Single way

Dual ways

Specification



SRDL600

SRDL601

SRDL602

Parameter (sensor)

Range

Accuary

Internal sensor

N (IP40)

N1 (IP65)

internal NTC

-30~60°C

±1°C

NH



internal NTC
internal RH%

-30~60°C
20~90% (0~100%)

±1°C,±3%RH

Voltage

V1



○○

VDC

0~50V

±0.02V

V2



○○

VAC

0~400V

(high voltage adaptor)

1.0V

Current

A1



○○

mA DC

0~24mA (4~20mA)

±0.05mA

A2



○○

A AC

0~600A (clamp Adapter)

±2.5%

Thermocouple

TK



○○

TC-K TYPE

-200~800°C

±1.2°C

TJ



○○

TC-J TYPE

-200~800°C

±1.2°C

PTC

R1



○○

PT100

-200~850°C

±0.5%, ±0.5°C

R2



○○

PT1000

-200~850°C

±0.5%, ±0.5°C

 Option Include internal NTC temperature measurement function

SRDL600 – XX

XX

Measurement parameters:
N: Internal temperature measurement
NH: Internal temperature+Humidity measurement

SRDL600

Basic type

For example: SRDL600-N internal NTC temperature

N
NH

SRDL601 – XX

XX-CH1

measurement parameters:
V1: DCV 0~50V
V2: ACV 0~400V
A1: DCmA 0~24mA
A2: ACA 0~600A
TK: TC-K TYPE
TJ: TC-J TYPE
R1: PT100
R2: PT1000

SRDL601

External single way
(include internal NTC temperature measurement)

For example: SRDL601-V1 external DCV 0~50V

TK
TJ

V1
V2
A1
A2
R1
R2

SRDL602-XX-XX

XX-CH1

measurement parameters:
V1: DCV 0~50V
V2: ACV 0~400V
A1: DCmA 0~24mA
A2: ACA 0~600A
TK: TC-K TYPE
TJ: TC-J TYPE
R1: PT100
R2: PT1000

XX-CH2

measurement parameters:
V1: DCV 0~10V
V2: ACV 0~380V
A1: DCmA 0~24mA
A2: ACA 0~600A
TK: TC-K TYPE
TJ: TC-J TYPE
R1: PT100
R2: PT1000

SRDL602

External dual ways
(include internal temperature measurement)

For example: SRDL602-V1-R1
external 1 DCV 0~50V
external 2 PT100




V1-V2 / V2-R2
V1-A1 / A1-A2
V1-A2 / A1-R1
V1-R1 / A2-R1
V1-R2 / A1-R2
V2-A1 / A2-R1
V2-A2 / R1-R2
V2-R1



TK-TJ
TK-TK
TJ-TJ

V1-TK / A1-TJ
V2-TK / A2-TJ
V1-TJ / R1-TK
V2-TJ / R2-TK
A1-TK / R1-TJ
A2-TK / R2-TJ

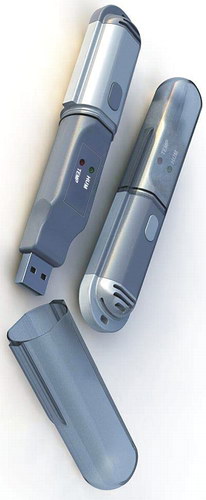

USB Humidity and Temperature Data Logger SRDL120A

Features:
1, Recording status displayed by two dichromatic LED lights; Measurement range: temperature: -20°C-70°C; Humidity: 10-90%RH
2, Internal EERROM memory, tracks and records 16000 set temperature/humidity readings for as long as 12 months
3, Data transmission via USB link
4, Using the included software, users are allowed to set up alarm threshold, measuring unit, recording rate/timing etc.
5, Time synchronization when connected to PC.
6, The included software also supports data analysis, recorded data can be export into a .txt file for further analysis. Recorded temperature and humidity readings can be displayed in a curve graph which can be printed and archived as well.

Technical specification:

Product name

USB Humidity and Temperature Data Logger

Model

SRDL120A

Structure

Dimension

126×28×51mm

Display

Two dichromatic LED lights

Material

ABS engineering plastic housing, safe and reliable

Temperature

Range

-20~70°C

Resolution

0.1°C

Precision

+/-0.3°C

Humidity

Range

0-100%RH

Resolution

0.1%RH

Precision

+/-2%RH

IP rating

IP30

Power supply

DC3.6V lithium battery

Battery dimension: 14.3×24.6

Capacity: 1200mAh

Power Consumption

<0.2mA

Data interface

USB 1.0/2.0

Software CD

Included





USB Humidity and Temperature Data Logger with LCD SRDL120B

Features:
1, Readings and recording status are displayed by the 3 and half digit LCD (please refer to "Display Illustration"); Measuring range: temperature: -20°C-70°C; Humidity: 10-90%RH
2, Internal EERROM memory, tracks and records 16000 set temperature/humidity readings for as long as 12 months
3, Data transmission via USB link
4, Using the included software, users are allowed to set up alarm threshold, measuring unit, recording rate/timing etc.
5, Time synchronization when connected to PC.
6, The included software also supports data analysis, recorded data can be export into a .txt file for further analysis. Recorded temperature and humidity readings can be displayed in a curve graph which can be printed and archived as well.

Technical Specifications:

Product name

USB Humidity and Temperature Data Logger

Model

SRDL120B

Structure

Dimension

126×28×51mm

Display

LCD

Material

ABS engineering plastic housing, safe and reliable

Temperature

Range

-20°C~70°C

Resolution

0.1°C

Precision

+/-0.3°C

Humidity

Range

0-100%RH

Resolution

0.1%RH

Precision

+/-2%RH

IP rating

IP30

Power supply

DC3.6V lithium battery

Battery dimension: 14.3×24.6

Capacity: 1200mAh

Power Consumption

<0.5mA

Data interface

USB 1.0/2.0

Software CD

Included

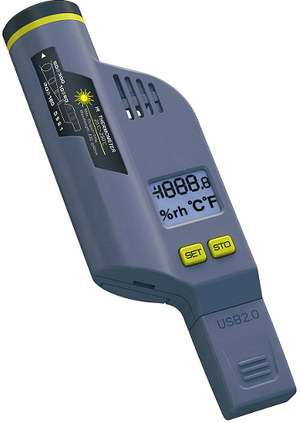

USB Humidity and Temperature Data Logger with Build-in IRT SRDL120C

Features:
1, Real time ambient temperature/humidity and recording status will be displayed on the LCD screen; Measurement range: temperature: -20°C-70°C; Humidity: 10-90%RH
2, Measure surface temperature using the build-in infrared thermometer, Measurement range: -20°C-250°C;
3, Internal EERROM memory, tracks and records 5000 set temperature/humidity readings; battery is capable to power the logger for at most 1 year; data recorded stays in the memory until the next reset-up using the included software. Users are allowed to download data from the logger to the computer.
4, Data transmission via USB link
5, Setup high and low alarm limit, measuring unit, sampling rate, start time etc from the included software.
6, Time synchronization when connected to PC.
7, The included software also supports data analysis, recorded data can be export into a .txt file for further analysis. The temperature and humidity data can also be displayed in a curve graph which can be printed and archived.

Technical Specifications:

Product name

USB Humidity and Temperature Data Logger with Build-in IRT

Model

SRDL120C

Structure

Dimension

125×43×24mm

Display

LCD

Material

ABS engineering plastic housing, safe and reliable

Temperature

Range

-20°C~70°C

Resolution

0.1°C

Precision

+/-0.3°C

Humidity

Range

0-100%RH

Resolution

0.1%RH

Precision

+/-2%RH

IRT Temperature

Range

-20°C-250°C

Resolution

0.1°C

Precision

+/-3°C

Max laser output power

<1mW

Laser wavelength

630-650nm

D:S

2:1

Emissivity

0.95

Power supply

DC3.6V lithium battery

Battery dimension: 14.3×24.6

Capacity: 1200mAh

Power Consumption

<1mA (laser off) ; <20mA(laser on)

Data interface

USB 1.0/2.0

Software CD

Included

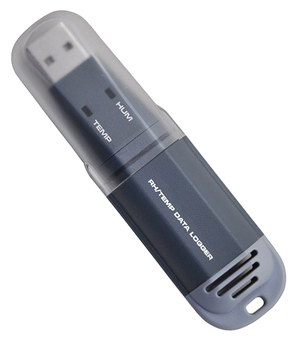

SRDL120D USB Humidity and Temperature Data Logger

Features
1. Recording status displayed by two dichromatic LED lights; Measurement range: temperature: -20°C-70°C; Humidity: 0-100%RH
2. Internal EERROM memory, tracks and records 16300 set temperature/humidity readings for as long as 12 months. The stored data can be stored permanently, for software to download before the software reset.
3. Data transmission via USB link
4. Using the included software, users are allowed to set up alarm threshold, measuring unit, recording rate/timing etc.
5. The device could check the real time after connecting to the computer;
6. The included software also supports data analysis, recorded data can be export into a .txt file for further analysis. Recorded temperature and humidity readings can be displayed in a curve graph which can be printed and archived as well.
7. With the include CD, user can review the environment temperature, relative humidity, dew point, wet bulb temperature, GPP .etc, also have analysis curve lines;

Technical specification

Product name

USB Humidity and Temperature Data Logger

Model

SRDL120D

Display Means

Red and green LED's indication

Material

ABS engineering plastic housing, safe and reliable

Temperature

Range

-20°C~70°C (-4°F~158°F)

Resolution

0.1°C

Precision

20~ 40.0°C:±0.6°C; the rest:±1.7°C

 Humidity

Range

0-100%RH

Resolution

0.1%RH

Precision

±3%RH (20-80%RH)the rest:±3.5%RH

Date interface

USB 1.0/2.0

Software

Included

Power supply

DC3.6V/1200mAh lithium battery

Working current

<0.5mA

Recommended usage

environment

In places with standard atmospheric pressure and no high power EMF

 Operating temperature

-20°C~70°C (-4°F~158°F)

Working humidity

0-100%RH non-condensing

Storage Condition

-20°C~70°C (-4°F~158°F),

≤85%w/o batteries

Size

95×28×31mm (bracket accessories included)

Weight

About 40g

(bracket included and battery not included)





USB Digital Sound Level Data Logger SRDL130A

Features:
1, Two dual color(red and green) LED indicators
2, Range: 30~130dB; Resolution: 0.1dB
3, Accuracy: +/-2dB
4, A/C weighting
5, FAST/SLOW weighting
6, Build in EEPROM memory, offers the ability to track and store 32000 set of data. Data is available until next setup, and can be download to a computer.
7, USB data link
8, High and low alarm limit, selectable sampling time
9, Users is able to analyze the data in graph view using included software and also print or save the results.

Specifications:

Product name

USB digital sound level data logger

Model

SRDL130A

Structure

Dimension

180×28×27(mm)

Display

Dual color LED

Housing

ABS engineering plastic housing, safe and reliable

Range

30~130dB

Resolution

0.1dB

Accuracy

+/-2dB

A/C weighting

Yes

FAST/SLOW weighting

Yes

Max data storage

32000 set of data

Power supply

DC3.6V Li Battery

Capacity: 1200mAh

Data link

USB 1.0/2.0

Software

Included





USB Digital Sound Level Data Logger SRDL130B

Features:
1,  LCD displays current sound level
2, Range: 30~130dB; Resolution: 0.1dB
3, Accuracy: +/-2dB
4, A/C weighting
5, FAST/SLOW weighting
6, MAX/MIN/AVG display mode
7, Build in EEPROM memory, offers the ability to track and store 32000 set of data. Data is available until next setup, and can be download to a computer.
8, USB data link
9, High and low alarm limit, selectable sampling time
10, Users is able to analyze the data in graph view using included software and also print or save the results.

Specifications:

Product name

USB digital sound level data logger

Model

SRDL130B

Structure

Dimension

180×28×27 (mm)

Display

LCD screen

Housing

ABS engineering plastic housing, safe and reliable

Range

30~130dB

Resolution

0.1dB

Accuracy

+/-2dB

A/C weighting

Yes

FAST/SLOW weighting

Yes

Max data storage

32000 set of data

Power supply

DC3.6V Li Battery

Capacity: 1200mAh

Data link

USB 1.0/2.0

Software

Included



SRDL140A USB Vibration Meter, 3-Axle G-Force Datalogger

Features:

SRDL140A can measure and record under the range from -16g to 16g, and record triaxial acceleration value of gravity as well as shock and vibration. It can also be used to detect tilt, shock, vibration and other motion condition, to help achieve a variety of applications in the field of industrial, medical, communications, consumer electronics and automotive fields.



Users can be configured record rate, high and low alarm value and startup mode. Plug SRDL140A into the USB port on the computer and run on the computer software packages which supported to draw and print measured data, and other application software output, such as Office software (Notice: the software can’t be used under office 2016 at present, only can be used under versions such as office 2013, 2010, 2007, 2003). This data logger comes with long-life lithium battery for 1000H with 16MB of flash memory devices which can accommodate up to 327,6000 data.



Specifications:

Product name

USB Vibration Meter

Model

SRDL140A

Acceleration measurement range

-16g to 16g

Acceleration resolution

3.9mg

Accuracy

±0.5g

Frequency range

0~60HZ

Record the memory

16Mb FLASH,327600 of three direction acceleration data storage

Time interval

50mS to 24hours

PC interface

USB 2.0

Software work environment

Windows XP/Vista/WIN7/WIN8

Power supply

3.6V/1200mA disposable lithium battery1/2AA

Power consumption of product

Record<20mA, spare time<600uA

Battery life

>2500 hours (standby mode)

Battery continuous recording time

60hours

Operating Temperature

0°C~45°C

Operating humidity

5%~95% RH non-condensing

Storage temperature

-20°C~+60°C, ≤85% (without battery)

Dimension

113mm×54mm×32.5mminclude the base

Product weight

About73.5 g (without battery)

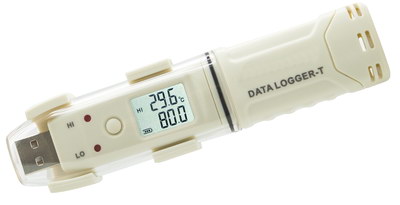

SRDL17x Temperature USB Data Logger

>

LCD display shows high/low and last readings

>

Data save even when battery is spent

>

Selectable °C or °F

>

Mini USB interface

>

43,000 log readings

>

Free configuration and graphing software

>

Dimensions: 125mm * 28mm * 22mm

Model

SRDL170

SRDL171

SRDL172

Accuracy

+/-1.0°C (+/-1.8°F)

+/-0.5°C (+/-0.9°F)

+/-0.3°C (+/-0.6°F)

Memory

43,000 readings

Measurement Range

-30 to +85°C

Resolution

0.1°C

Battery

1/2 AA, 3.6V Lithium Battery

Typical battery life

1 year

IP Rating

IP67

Logging rate

2s ~ 24h

LCD display area

18mm * 13.5mm

Accessories

ToAnalyzer U CD,User Manual, Battery.

 Packing

114PCS/CTN, CTN SIZE: 61.5*37*26CM, N.W/G.W: 11.5/12.5KGS

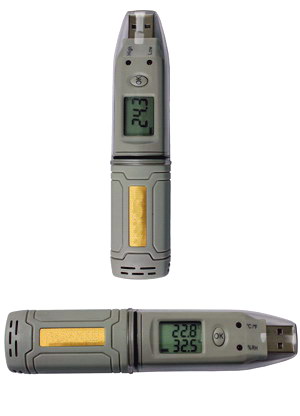

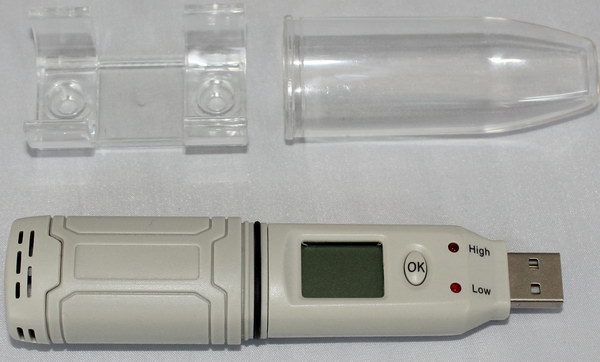

SRDL173/SRDL174 Temperature and Humidity Data Logger

>

LCD display shows high/low and last readings

>

Data save even when battery is spent

>

Selectable °C or °F

>

Mini USB interface

>

43,000 log readings

>

Free configuration and graphing software

>

Dimensions: 125mm * 28mm * 22mm

Model

SRDL173

SRDL174

Accuracy

+/-0.5°C (+/-0.9°F)

+/-0.3°C (+/-0.6°F)

+/-3%RH

+/-2%RH

Memory

43,000 readings

Measurement Range

-30 to +85°C , 0 to 100%RH

Resolution

0.1°C, 0.1%RH

Battery

1/2 AA, 3.6V Lithium Battery

Typical battery life

1 year

IP Rating

IP67

Logging rate

2s ~ 24h

LCD display area

18mm * 13.5mm

Accessories

ToAnalyzer U CD, USB cable, User Manual, Battery.

 Packing

114PCS/CTN, CTN SIZE: 61.5*37*26CM, N.W/G.W: 11.5/12.5KGS

this product's Temperature and Humidity can be calibrated by the software

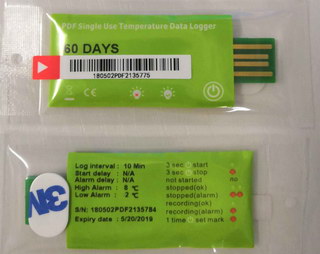

SRDL12 Single Use temperature Data Logger

This data logger is ideal for monitoring the temperature in transport, storage and testing process. Recording are stared and stopped by pressing a button. And place into USB slot on any computer to get PDF report directly without any software and driver.

Features:

* Generating PDF report without any software and driver

* Build-in USB interface

* 6 mark points supported

* LED status and alarm indication

Specifications:

Use type: Single-use

Measuring range: -30~70°C

Accuracy: +/-0.5°C

Resolution: 0.1°C

Data storage capacity: 8640

Sample interval: 10sec. to 18hours

Run days: 1~360days

High and low alarm: User configurable

Alarm delay: 0~960min.

Alarm type: Single type; Accumulation type

Start delay: 0~254min.

Start mode: By button

Stop mode: By button; Memory full; When into USB

Operation environment: -30~70°C

Storage environment: -40~70°C

Size/ Weight: 62*27*4mm/ 10g

Protection class: IP67

Standards/ Certificates: CE, ROHS, EN12830

Communication interface: Build-in USB 2.0

Power supply: CR2032 (non-replaceable)

Shelf life: 2 years



SRDL112 USB Disposable Temperature Data Logger

Features:

1. Temperature records for the entire cold chain logistics;

2. MKT indicator function;

4. Easy operation with single Icon on PC software (No need of menu operations);Through PC software can be exported in the form of Word/Excel/PDF, easy management.

5. PC software simulation of the over temperature with red or green lights .

6. Dual bar code labels.

Parameters:

Use Type

Multiple use

Temperature measurement range

-30°C~+70°C

Temperature measurement accuracy

+/-0.5°C (-20~+40°C); +/-1°C, for other range.

Resolution

0.1°C

Data Capacity

14400 (MAX)

Shelf life / battery

1 year/3.0v Lithium Battery

Recording interval/Sample rate

1, 2, 3, 5, 6 (mins) selectable, this can't be set by user, we will make and set this Recording interval before delivery (see below detailed models and must indicate us which model you want when you order!)

Recording period

6, 15, 30, 45, 60 (days) selectable, this can't be set by user, we will make and set this Recoring period before delivery  (see below detailed models and must indicate us which model you want when you order!)

Startup Mode

Manual to start

Alarm Type

Single type / accumulation type

Protection class

IP67

Size

L: 79.9mm W: 47mm H: 4.4mm

Authenticate

CE, ROSH, GSP, EN12830

Supporting software

Easy-tracking

Report generation mode

PC software report

Communication Interface

USB 2.0

detailed models:

SRDL112-6

Max Recording 6 Days, 1 Minute Sample rate (Suggested Use: 1-6 Days)

SRDL112-15

Max Recording 15 Days, 2 Minute Sample rate (Suggested Use: 1-15 Days)

SRDL112-30

Max Recording 30 Days, 3 Minute Sample rate (Suggested Use: 1-30 Days)

SRDL112-45

Max Recording 45 Days, 5 Minute Sample rate (Suggested Use: 1-45 Days)

SRDL112-60

Max Recording 60 Days, 6 Minute Sample rate (Suggested Use: 1-60 Days)





SRDL105 USB Temperature Data Logger

Features:

This data logger is mainly used for temperature recording during storage and transportation of foodstuff, medicine, chemicals and other products, especially widely used in all links of warehousing, logistics and cold chain, such as refrigerated containers, refrigerated trucks, refrigerated package, cold storage, laboratory, etc. Through PC software can be exported in the form of Word/Excel/PDF, easy management.

Parameters:

1. Temperature unit: °C or °F optional
2. Temperature measuring range: -30
°C~+70°C
3. Accuracy: +/-0.5
°C (-20°C~+40°C); Others, +1°C;
4. Resolution: 0.1
°C;
5. Record capacity: 32000points(MAX);
6. Record interval: 10s~24hour adjustable;
7. Sensor: Internal NTC thermal resistor;
8. Communication interface: USB interface;
9. Power supply: inner side temperature CR2032 battery or power supply via USB interface;
10. Battery life: in normal temperature, if the record interval sets as 15 minutes, it could be used half a year.
11. Waterproof level: IP65
12. System compatibility: Windows XP, Win7(32bit, 64bit)
13. Product size: Length 80mm, Width25mm, Height12mm.

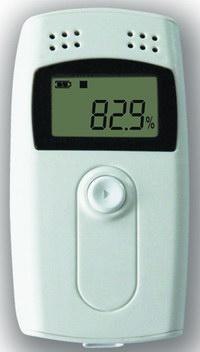

SRDL104 Temperature data logger

Features:

This data logger is mainly used for temperature recording during storage and transportation of foodstuff, medicine, chemicals and other products, especially widely used in all links of warehousing, logistics and cold chain, such as refrigerated containers, refrigerated trucks, refrigerated package, cold storage, laboratory, etc.

Technical parameters:
1. Temperature unit:°C or °F optional
2. Temperature measuring range:-30°C~+60°C;for optional external sensor, -40°C~+85°C;
3.Ambient environmental temperature: -30°C~+60°C;
4. Accuracy:+1°C;
5. Resolution:0.1°C;
6. Record capacity: 16000points(MAX);
7. Record interval:10s~24hour adjustable;

8. Sensor: Internal NTC thermal resistor;
9. Communication interface:USB interface;
10. Power supply:inner CR2450 battery or power supply via USB interface;
11. Battery life: in normal temperature, if the record interval sets as 15 minutes, it could be used above one year.



SRDL104HA Temperature and Humidity data logger

1. Temperature measuring range: -30°C~ +60°C; for optional external sensor, -40°C~ +85°C;

2. Temperature accuracy:-30°C~ +60°C, +/-1°C;others, +/-1.5°C;

3. Temperature unit: °C or °F optional, set through RC-4H data management software.

4. Humidity measuring range: 0~ 99%RH

5. Humidity accuracy: +/-3%RH(25°C,20~90%RH),others,+/-5%RH;

6. Resolution:Temperature 0.1°C;Humidity 0.1%RH;

7. Record capacity:RC-4HA 8000points(MAX); RC-4HC 16000points(MAX);

8. Record interval:10s~ 24hour adjustable;

9. Communication interface:USB interface;

10. Power supply:inner CR2450 battery or power supply via USB interface;

11. Battery life: in normal temperature, if the record interval sets as 15 minutes, it could be used above one year.

12. Ambient environmental temperature: -30°C~ +60°C;in the low temperature environment, LCD displays slowly, while it has not an impact on the normal measuring nor recording. Once the temperature recovers, it could display normally.

Record capacity: 8000points

Standard accessory list

One SRDL104HA temperature and humidity data logger

One software installation CD

One operation instruction

One USB cable

Optional accessory list

External temperature sensor (1.1 M): connect external sensor through the headphone jack, temperature measuring will automatically switch to the external temperature sensor.



SRDL104HC Temperature and Humidity data logger

1. Temperature measuring range: -30°C~ +60°C; for optional external sensor, -40°C~ +85°C;

2. Temperature accuracy:-30°C~ +60°C, +/-1°C;others, +/-1.5°C;

3. Temperature unit: °C or °F optional, set through RC-4H data management software.

4. Humidity measuring range: 0~ 99%RH

5. Humidity accuracy: +/-3%RH(25°C,20~90%RH),others,+/-5%RH;

6. Resolution:Temperature 0.1°C;Humidity 0.1%RH;

7. Record capacity:RC-4HA 8000points(MAX); RC-4HC 16000points(MAX);

8. Record interval:10s~ 24hour adjustable;

9. Communication interface:USB interface;

10. Power supply:inner CR2450 battery or power supply via USB interface;

11. Battery life: in normal temperature, if the record interval sets as 15 minutes, it could be used above one year.

12. Ambient environmental temperature: -30°C~ +60°C;in the low temperature environment, LCD displays slowly, while it has not an impact on the normal measuring nor recording. Once the temperature recovers, it could display normally.

Record capacity: 16000points

Standard accessory list

One SRDL104HC temperature and humidity data logger

One software installation CD

One operation instruction

One USB cable

Optional accessory list

External temperature sensor (1.1 M): connect external sensor through the headphone jack, temperature measuring will automatically switch to the external temperature sensor.





Software TempTrak

All USB data loggers are fully compatible with our user friendly software – TempTrak. TempTrak is free of charge and allows the logger to be set up and the data read and displayed in graphical format. Graphs can be stored, printed or retrieved at a later time.

Specific Features

USB design is compact and delicate.

USB interface communication, the data can be read in a simpler and more efficient way.

With E-3 anti-treatment, it is usable in extreme environments such as low-temperature, high humidity, strong earthquakes and etc.

USB Temperature Data Logger SRDL179

Specifications

SRDL179

Power

Don`t need to recharge Battery

Battery type

EF651615T 3.6V 400mAH, 3 -5 years

Temperature Range

-40°F ~176°F, -40°C ~80°C

Temperature Accuracy

 ±0.5°C

Temperature Resolution

0.01°F/ 0.01°C

Number of Readings

32,000  readings

Delayed Start

Yes, Up to 1 Year

Sample Rate

1min to 24 hours

Dimension

3.5″ x 1.3″ x 0.5″(8.9cm * 3.4 cm *1.2 cm)

Net Weight

1.25 oz.( 35g )

Warranty

1 Year

Accessories

Operating manual, software, with protective cap

Packing

5 pcs/Box

Application

Shipping, Transportation, and Food Monitoring

Lab, Vaccine Refrigeration, Pharmaceuticals, Agriculture, chemical medicines monitoring

Temperature-sensitive refrigerated daily necessities, freight containers by sea/air, etc.



Features

U disk design is compact and delicate.

USB interface communication, the data can be read in a simpler and more efficient way.

Charging through computer USB port, it can last for three months with full power.

With E-3 anti-treatment, it is usable in extreme environments such as low-temperature, high humidity, strong earthquakes and etc.

Application

1. Shipping, Transportation, and Food Monitoring

2. Vaccine Refrigeration, Pharmaceuticals, Agriculture, chemical medicines monitoring

3. temperature-sensitive refrigerated daily necessities, freight containers by sea/air, etc.

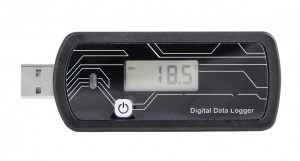

USB Temperature/Humidity Data Logger SRDL179H

Specifications

SRDL179H


Relative humidity

Temperature



Measurement range

0%RH to 100%RH

-40°F~176°F, -40°C ~80°C

Accuracy

+/- 3%RH

±0.5°C

Resolution

0.01%RH

0.01°F/ 0.01°C

Record capability

32,000 Readings (16,000 RH% 16,000 Temp.)

Recording time intervals

1min to 24 h (selectable)

Record of time delay

1min to 24 h (selectable)

Battery life

3 -5 years

Dimension

3.4″ x 1.1″ x 0.5″(8.6cm * 2.8 cm *1.2 cm)

Weight

1.25 oz.( 35g )

Power Don`t need to recharge Battery

Battery type

EF651615T 3.6V 400mAH, 3 -5 years

Operating Instruction

Start Record: Hold down button about 3 seconds. Red indicator will flash 3 times, then flash 10 times fast that means data logger has been started.(Data logger can be started through software.)

Recording Logger: Press the button, red indicator will keep bright about 3 times that means logging status.

Data Read: Please install Apresys software on PC to read, save and analyze recorded data.

Note: If data logger has not been started, hold down button about 3 second to start again. The last data will be lost; the default start time instead is 2 minutes. The next one shall be according to the last one.



Features:
USB port Connected with Computer Directly for Data reading, saving, printing, easy to use
This model of temperature recorder is efficient, durable and portable, economical and practical for low cost requirement.
As our products are made of superior soft material, they are shock-proof, dust-proof and fog-proof.
This model we produced is characterized by its compact size and high accuracy.
Even if the power is using up, it still can be used for reading and printing data.

Application:

Lab, Shipping, Transportation, and Food Monitoring for cold-chain management.
Vaccines Refrigeration, Pharmaceuticals, Agriculture, chemical medicines monitoring
Temperature-sensitive refrigerated daily necessities, freight containers by sea/air, etc.

Low Cost USB Disposable Temperature Data Logger

Specifications:

Models

SRDL25, SRDL50, SRDL99

Temperature Range

-40°F~185°F, -40°C~85°C

Accuracy

+/-0.8°F (+/-0.5°C)

Resolution

0.01°F/0.01°C

Battery

Lithium Manganese Battery

Storage life

3-5 Years normal use

Dimension

3.5" x 1.3" x 0.5"(8.9cm * 3.4 cm *1.2 cm)

Weight

1.25 oz.( 35g )

Selection Guide:
Model SRDL25 Max Recording 25 Days, 5 Minute Sample rate (Suggested Use: 1-25 Days)
Model SRDL50 Max Recording 50 Days, 10 Minute Sample rate (Suggested Use: 25-50 Days)
Model SRDL99 Max Recording 99 Days, 20 Minute Sample rate (Suggested Use: 50-99 Days)





Data Logger, Recorder



SRDL100-T Temperature Data Logger



SRDL100-ET (NTC probe) Temperature Data Logger

(with external probe than SRDL100-T)

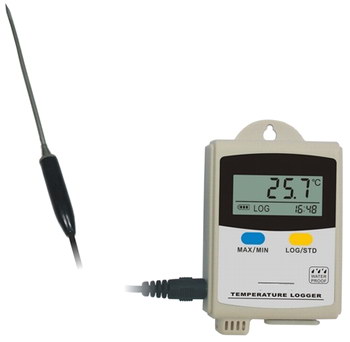

SRDL100-ETN (NTC probe) Temperature Data Logger

 (with sharper probe than SRDL100-ET)

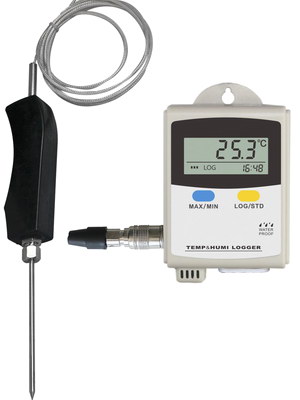

SRDL100-EPT (PT100 probe) Temperature Data Logger

LCD display shows lasting reading

Data save even when battery is spent

Selectable °C or °F

Mini USB interface

43,000 log readings

Free configuration and graphing software

Dimensions: 92mm * 57mm * 20mm



Model

SRDL100-T

SRDL100-T+

SRDL100-ET

SRDL100-ET+

SRDL100-ETN

SRDL100-EPT

Accuracy

+/-0.5°C (+/-0.9°F)

+/-0.3°C (+/-0.6°F)

+/-0.5°C (+/-0.9°F)

+/-0.3°C (+/-0.6°F)

+/-0.5°C (+/-0.9°F)

+/-0.5°C (+/-0.9°F)

Sensor Type

Internal

External, with 3m cable

Memory

43,000 readings

Measurement Range

-20 to +70°C

-40 to +85°C

-40 to +120°C

-100 to +100°C

Storage Temperature

-35 to +80°C (-31 to +176°F)

Resolution

0.1°C

Battery

2 * AAA (1.5V Battery)

Typical battery life

1 year

IP Rating

IP54

Logging rate

2s ~ 24h

Weight

150g(without battery) / 200g(with battery)

Accessories

ToAnalyzer 1 CD, USB cable, User Manual, Battery.



SRDLM-T Temperature Data Logger

LED shows working state

Data save even when battery is spent

Selectable °C or °F

Mini USB interface

43,000 log readings

Free configuration and graphing software

Dimensions: 92mm * 57mm * 20mm



Accuracy

SRDLM-T

SRDLM-T+

+/-1.0°C (+/-1.8°F)

+/-0.5°C (+/-0.9°F)

Memory

43,000 readings

Measurement Range

-30 to +70°C (-22 to +158°F)

Storage Temperature

-35 to +80°C (-31 to +176°F)

Resolution

0.1°C

Battery

CR03 * 2

Typical battery life

1 year

IP Rating

IP54

Logging rate

2s ~ 24h

Weight

150g(without battery) / 200g(with battery)

Accessories

ToAnalyzer 1 CD, USB cable, User Manual, Battery.



SRDL100-TH Temperature and Humidity Data Logger

LCD display shows high/low and last readings

Data save even when battery is spent

Selectable °C or °F

Mini USB interface

43,000 log readings

Free configuration and graphing software

Dimensions: 92mm * 57mm * 20mm



Model

SRDL100-TH

SRDL100-TH+

SRDL100-TH++

Accuracy

+/-0.5°C (+/-0.9°F)

+/-0.3°C (+/-0.6°F)

+/-0.2°C (+/-0.4°F)

+/-5%RH

+/-3%RH

+/-2%RH

Memory

43,000 readings

Measurement Range

-30 to +70°C (-22 to +158°F) , 0 to 100%RH

Storage Temperature

-35 to +80°C (-31 to +176°F)

Resolution

0.1°C, 0.1%RH

Battery

2 * AAA (1.5V Battery)

Typical battery life

1 year

IP Rating

IP54

Logging rate

2s ~ 24h

LCD display area

42mm * 20mm

Weight

150g(without battery) / 200g(with battery)

Accessories

ToAnalyzer 1 CD (software), USB cable, User Manual, Battery.



Applications:
It has been widely applied in agricultural research industry, food industry, medical industry, electrical industry, environment protection and laboratory fields

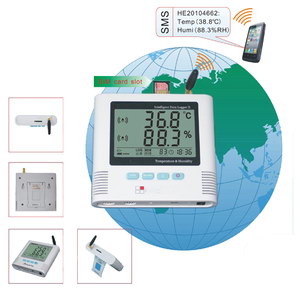

GSM Alarm Temperature and Humidity Data Logger



Features:
-Elegant appearance, easy to operate and reliable. Desktop and wall-mounted
-High accuracy (0.2~0.5°C/2~5%RH) with large capacity. (65000)
-Large LCD display, temperature and humidity being showed simultaneously
-Internal audible and visual alarm and send alarm message to mobile phone once the setting limits beings exceeded
-Data query function via mobile phone. Get the real time data anytime at anywhere

Detailed Product Description:
SRDL series GSM temperature humidity data logger is the new generation data logger of Shanghai TOTAL company, which has been added with the GSM alarm message function based on the original series. Users can dial the data logger through any mobile phone to get the temperature and humidity values, besides, the temperature humidity data logger will send alarm message to defined users automatically once the setting limits being exceeded.
Standard accessories:

Battery, PC-Software, USB cable, User manual, Screw

Optional accessories:

AC-DC Adapter, External sensor cable 5m, Extemal alarm, USB/RS232, External sensor cable 3m

Model

Accuracy

Measuring range

Sensor type

Capacity

SRDL500-TH

+/-0.5°C/+/-5%RH

-20~70°C 0~100%RH

Temperature + humidity, internal

65000

SRDL500-EX

+/-0.5°C/+/-3%RH

-40~85°C 0~100%RH

Temperature + humidity, external sensor with 3 meters

65000

SRDL520-TH

+/-0.3°C/+/-3%RH

-20~70°C 0~100%RH

Temperature + humidity, internal

65000

SRDL520-EX

+/-0.3°C/+/-3%RH

-40~85°C 0~100%RH

Temperature + humidity, external sensor with 3 meters

65000

SRDL580-TH

+/-0.2°C/+/-2%RH

-20~70°C 0~100%RH

Temperature + humidity, internal

65000

SRDL580-EX

+/-0.2°C/+/-2%RH

-40~85°C 0~100%RH

Temperature + humidity, external sensor with 3 meters

65000

SRDL500-ET

+/-0.5°C

-40~100°C

Single Temperature external sensor with 3 meters

65000

SRDL500-DT

+/-0.5°C

-40~100°C

Dual Temperature external sensor with 3 meters

65000

SRDL520-ET

+/-0.3°C

-40~100°C

Single Temperature external sensor with 3 meters

65000

SRDL520-DT

+/-0.3°C

-40~100°C

Dual Temperature external sensor with 3 meters

65000





SRDL500 series GPRS temperature humidity data logger is the new generation data logger of TOTAL company, which is integrated with GSM & GPRS Module. Through the wireless GPRS Network, It will automatically measure temperature requested and upload temperature data to end-users' monitoring PCs. Upload interval and Data Logging interval are user programmable from 1 min to 24 hours. The GPRS Logger is a solution for temperature and humidity measurement logging to PC real-time Monitoring Center by GPRS in the worldwide.

Applications
It has been widely applied in laboratory fields, food industry, medical industry, electrical industry, environmental protection agricultural etc.

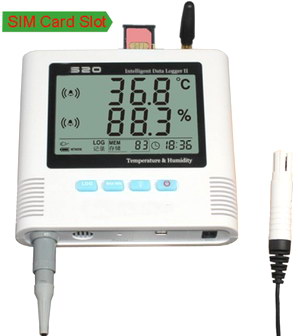

SRDL500 series GPRS temperature humidity data logger

Instrument Features

Temperature and Humidity data Acquisition and Logging.

Simple, Quick and Easy to Install. Desktop and Wall-mounted.

Simultaneous Data Transmission via GPRS without distance limitation..

Integrated Quad-band GSM Module.

Programmable by GPRS / Local Commands.

Capacity 43,000-86,000 Data Memory.

Software Features

Remote real-time integrative network solution, the real-time data can be uploaded and seen on the ToMonitor software, and the history data can be searched by the ToClient software.

Real-time Monitoring on User’s Computer.

Clients & Data Loggers Grouping.

Real Time Alert via SMS or E-mail from PC.

NET Client Tomonitor Software.

Live & Logged Data Graphics Display.

User & Database Management.

Exceed Limits Alarm / Power off Alarm.

SMS Alarm Features

If user defined max/min values are exceeded, system will send SMS to USER’S Mobile phone.

The largest number of alarm & frequency can be set.

When the Temperature or Humidity returns to normal range, system will send the SMS to user’s mo-bile phone again.

Technical Specifications

Resolution

Temperature: 0.1°C / Humidity: 0.1%RH

Frequency Range

GSM 850 / 900 / 1800 / 1900 MHz

Power Supply

9V Block Battery & 9V DC

Display

LCD Display

Dimension

135mm*78mm*35mm (5.31*4.88*1.37 inch)

LCD Size

97mm*78mm (3.81*1.37 inch)

Weight

380g

Interface

USB

Accessories

USB-Cable, 9V Block Battery, AC-DC Adapter, Screw, User Manual

Model

Sensor Type

Range

Accuracy

Memory

SRDL500-EX (GPRS)

Temperature & Humidity External Probe with 3m cable

-20~ +70°C; 0~ 100%RH

±0.5°C; ±5%RH

65,000

SRDL500-DT (GPRS)

Double External Temperature Probe with 3m cable

-40~ +85°C

±0.5°C

SRDL500-ET (GPRS)

Single External Temperature Probe with 3m cable

SRDL500-DPT (GPRS)

Double External PT100 Temperature Probe with 1.5m cable

-200~ +600°C

±0.5°C

SRDL500-EPT (GPRS)

Single External PT100 Temperature Probe with 1.5m cable

SRDL500-EX (GPRS)

Temperature & Humidity External Probe with 3m cable

-20~ +70°C; 0~ 100%RH

±0.3°C; ±3%RH

SRDL520-DT (GPRS)

Double External Temperature Probe with 3m cable

-40~ +85°C

±0.3°C

SRDL520-ET (GPRS)

Single External Temperature Probe with 3m cable







SRDL400W series Wireless Data Logging System

Features:

* Using Zigbee 2.4GHz wireless technology

* Up to 100 meters transmission range (line of sight)

* Repeater available to extend transmission range

* Logger memory automatically download

* Real-time monitoring on your computer

* Alarm functions: SMS/ E-mail available as following picture shows

* Long battery life (6 months @ 10 minutes interval)

* Maximum 32 data loggers to one base station (base station is opptional)

* Simple, quick and easy to install

Applications:
Realize temperature humidity central-monitoring and central management for cold storage, server room, refrigerator, pharmaceutical and industry warehouse, museum as well as laboratory.

Technical Specifications for SRDL400W

* Recording capacity:

Maximum 8192, record for more than 2 years is log interval can be set 10 minutes.

* Long interval: 2 second ~ 24 hours. Timing recorder time, sample Interval and log interval can be set in the software.

* Recording protection: Recording function will stop when battery is low but recording values can be saved forever safety.

* Adopt Switzerland digital temperature humidity integration sensor, which assure the reliability & stability.

* Display resolution: temperature: 0.1/ humidity: 0.1%RH

* PC interface: Zigbee + USB

* Wireless transmission rate: 115200 BPS

* Waterproof level: IP54

* Dimension: 90*87*44mm

* Wireless antenna: Built-in (2.4G)

* Installation: Wall-mounted with fixed support, easy to use and convenient to maintain.

* Alarm type: Audible & visual alarm (LED + Buzzer). Automatic alarm when any setting limits are exceeded.

* Battery: 4*AA 1.5V battery

Technical Specifications for SR2400 Wireless Base Station (Transmission Relay)

* Wireless transmission rate: 115200 BPS

* Wireless temperature humidity data logger terminal units available: 32 units

* Frequency number supported: 15 Bands

* Display: Dual display. The first line shows the packets count received; the second line shows the last five numbers of the serial No of the last packets data logger.

* PC interface: Zigbee + RJ45, can be connected directly to the internal LAN of enterprise.

* IP address: Fixed IP

* Dimension: 126*120*30mm

* It will connect several data packets into one packet when receive data packet from multiple wireless data loggers and send to the ToMonitor system.

* Relay configuration rules: Each relay has one unique ID ro assure no conflict. Evert adjoining relay work in different band.

* Installation: Wall-mounted

Model

Sensor Type

Range

Accuracy

Memory

SRDL400W-TH

Temperature & Humidity Internal Sensors

-20~ +70°C; 0~ 100%RH

±0.5°C; ±3%RH

8,192

SRDL400W-EX

Temperature & Humidity External Probe with 3m cable

-40~ +85°C; 0~ 100%RH

±0.5°C; ±3%RH

SRDL400W-ET

Single External Temperature Probe with 3m cable

-40~ +100°C

±0.5°C

SRDL400W-DT

Double External Temperature Probe with 3m cable

SRDL400W-EK

Single External Temperature Probe (Thermocouple) with 3m cable

-100~ +480°C

±2°C



Features:

 Two channel 0-25mA input fully scalable

 Third channel for Hz/Rate or pulse count (logged but not displayed)

 Dual LCD with real-time display of mA inputs and logger status

 43,000 record memory (1 record = all three channels)

 USB port to connect to PC for data download, setup and graphing

 Export data as Text (.txt) or Excel (.xls) file

 Maximum/minimum display and alarm function

 Low power indication, display off button to extend battery life

 Long battery life: 1 year (measure and record once a minute)

 DC jack for external power supply (AC adapter, optional)

 IP40 housing

 Wall mounting or free standing

 Size: 103 x 82 x 24mm

SRDL210-AS multifunctional data logger

Technical Data:

Measuring range

0 to 25mA DC



0 to 100Hz (TTL 0V=off / More or =2V=on, max 30VDC)

Input Data Scaling

Two point linear (4mA and 20mA)



Multiplier Factor for Pulse/Rate

Engineering Units

User input up to three characters



e.g. m/s, kmh, pH, KPa, Bar, %, °C etc.

Battery Life

1 Year run life at 1 minute sampling, 1.5V Battery×2

Accuracy

+/-0.2% FS

Memory Capacity

43,000 data points

Recording Mode

Stop when memory full or FIFO rollover selectable via the software

Effective resolution

mA inputs = 15 bits / Pulse input = 16 bit (65535 counts)

Display Current Readings

Dual 4 digit Display with engineering units (mA inputs)



(Pulse/Rate is only logged in memory – Not displayed on LCD)

Start-Up Delay

Minimum: 2 seconds Maximum: 300 days

Start Stop Buttons

Finger buttons for easy manual starting and stopping of logger

Waterproof protection

IP40

Programmable Measurement Interval

Minimum - 1 seconds



Maximum -24 hours

Connector

8-way removable screw terminal and USB

Accessory

AC adapter(optional), batteries, Software CD and USB connection cable



Product Features:

1. Monitor and record temperature and humidity

2. Temperature and humidity recording cycle could be flexibly adjusted

3. Large recording capacity. If record every 15 minutes, it could last recording for half a year

4. Big LCD screen can simultaneously display system clock, current work status, recording capacity, temperature and humidity data.

5. The upper/lower temperature and humidity alarming values could be separately set. It will alarm when the temperature/humidity exceeds the upper or lower limit.

6. Internal clock rechargeable battery and charging circuit. When the external power is cut off and the clock battery is fully charged, the clock could keep running for over half a year.

7. Several kinds of data interfaces for your convenient data uploading and printing

8.Form a Local Area Network by RS-485 interface to monitor several data loggers’ temperature at the same time

9. It is matched with our DR-210A data processing software which could real-time monitor, print and manage the data

10. It has two alarming output: buzzer, and alarming relay

11. It has the standby rechargeable battery, which could run up to ten days without the external power.

SRDL210A Temperature and Humidity Data Logger with printer



Specification:

Mounting Size:   Length: 131.5mm    Width: 131.5mm

Product Size:    Length: 144mm    Width: 144mm   Depth: 83mm


Technical parameters:

Power Supply: 12V AC / DC ~ 24V AC / DC, power supply 90 ~ 264VAC, 50/60HZ is available by connecting external power adaptor

Temperature Measuring Range: -50.0 °C ~ 120.0 °C

                              Temperature accuracy:+/- 0.5 °C for the range -30 °C ~ +20 °C ; +/- 1 °C for -40°C <the temperature<-30°C and 20°C <the temperature<70°C;+2°C for other range (If sensor wire is longer than 50meter,accuracy deviation 1%)

Temperature Sensor Type: NTC (sensor wire length five meters)

Humidity Measuring Range: 0~ 95%RH

Humidity Accuracy:  (@25°C)  : +/-5%RH ;

 (@10~ 40°C) :0~ 59%RH: +/- 6%RH(max)

                               60~ 95%RH: +/- 8%RH (max)

Temperature Sensor Type:Honeywell

Display Resolution: 0.1

Recording Cycle: 1 minute to 24 hours continuously set

                                                           Recording Capacity: each 130,000 poin(When the data record is full, the new record will overwrite the original data)

                               Operation Environment: Temperature -35 °C ~ 70 °C;Humidity 0% ~ 95%

Alarming Output: buzzer, and alarming relay

Communication Interface: USB interface and RS-485 interface

Standby battery: 3.6V 2200mAh NI-MH Battery

Device Standard Accessories
DR-210A Temperature data logger
One Temperature Sensor (length: five meters)

One Humidity Sensor (length: five meters)
One Computer installation software CD
One USB Serial Extension Cable
One Operation Instruction

One Power Adaptor

Optional Accessories

Micro-Stylus Printer 24SH

RS232/RS485 Converter





Click for big picture

SRDL140 Cold Chain Network Temperature and Humidity data logger

Main Features:

SRDL140 is a data logger with four channels of temperature or humidity detectors (more details in specification). It has the advantages of wide temperature measuring range and high measuring precision. SRDL140 communicates with Cold-Chain Cloud on Internet. The LCD screen displays current working state, the recording capacity and the recording data. It can alarm by buzzer or by the SMS. Users can view and download data of temperature and himidity through cloud anywhere and anytime. Users can also view data by smart phones (Support IOS and Android only).

Technical parameters:

Power supply: 12V AC/ DC 24V AC / DC.

It could connect with power supply of 100-264VAC, 50/60HZ by external power adaptor.

Temperature measuring range: -40ºC~70ºC

Temperature accuracy:

+/- 0.5 ºC (0 ºC  ~+40ºC )

+/- 1 ºC (-25 ºC  ~0ºC )

+/- 2 ºC  (others) (If sensor wire is longer than 50M, accuracy deviates 1%).

Humidity measuring range: 10~90%RH;

Display resolution: 0.1;

Humidity accuracy: (@10ºC, 25 ºC, 40ºC); +/- 5%(30-80%)

Temperature sensor type: NTC;

Humidity sensor type: SHT21

Record cycle: 1 min to 24 hours continuously set;

Record capacity: each channel 20000 points (MAX);

Applicable environment: temperature -20 ºC~50ºC; humidity 0%~95%

External alarm relay: 10A/220VAC;

Communication interface: WCDMA(3G), with 3M antenna



SRDL800 Thermocouple Thermometer with Data Logging

User Selectable ºC or ºF

Type K J E T R S N B Thermocouples

Wide variety of interchangeable Thermocouple Probes

LCD display with backlit

Max Hold and Data Hold

Mini USB interface

36,000 log readings

Free configuration and graphing software

Dimensions: 187mm * 73mm * 53mm

Standard delivery is without thermocouple



Model

SRDL801

SRDL802

SRDL804

Inputs (Channels)

1

2

4

Accuracy

+/-1.0°C +/-0.3%FS

Memory (manual recording)

88 readings

Memory (auto-recording)

36,000 readings

Measurement Range

-200~1800°C

Environment Range

-30 to +70°C (-22 to +158°F)

Resolution

0.1°C

Battery

9V

Typical battery life

1 week

Logging rate

1s ~ 24h

LCD display area

42mm * 20mm

Weight

150g(without battery) / 200g(with battery)

Accessories

To Analyzer 1 CD, USB cable, User Manual, Battery. (without thermocouple)





SRDL220-T8 8 Channels Thermocouple Thermometer with Data Logging

Introduction:

SRDL220-T8 thermocouple data logger with 8 channels is kind of high precision instrument; developed and manufactured by TOTAL company; which have passed all strict calibrations and professional testing (via FLUKE instrument). Support 8 types thermocouples (K, J, E, T, R, S, N, B), including thermocouple temperature compensation function and can measure temperature range -200°C-1800°C. Together with ShowRange special analysis software, SRDL220-T8 enjoys many good features and quite convenient to operate. It have been widely in industrial production, food processing, pharmacy and various research testing fields.

Features:

* Both °C and °F are available.

* Capacity 36000 data memory.

* Big size LCD and USB interface.

* Log interval: 2s-24h.

* ToAnalyzer Analysis software used to view graph for logging data, configuration, powerful ability of data analysis and friendly.

Technician Specifications:

 Measuring accuracy

 +/-0.2%FS

 Resolution

 0.1°C

 Sampling rate

 Fastest 1/sec, from 1 to 240 seconds can st.

 Power supply

 3.6V Lithium battery*2

 Display

 LCD display

 Product dimension

 158*95*35mm

 LCD size

 68*53mm

 Weight

 320g

 Accessories

Software CD, 3.6V Lithium battery*2, USB cable, user manual, AC-DC adapter(optional) and carrying box.

Applications:

Widely applied in Electronics, food industry, warehousing, textile industry, incubator and scientific research etc.



SRDL653 CO2, Temperature and Humidity 3 in 1 Data Logger

Features:

* All the sensors are manufactures in Europe, with high accuracy and stability.

* Large capacity, can record up to 43000 groups of data.

* Measures and displays CO2, temperature and humidity at the same time.

* Elegant appearance and easy to operate.

* Lower power consumption, battery can work for at least 6 months.

Specifications:

CO2

Measuring range: 0~5000ppm; Accuracy: less than ±3%F.S; Resolution: 1ppm

Temperature

Measuring range: -40 to 85°C; Accuracy: ±0.2°C; Resolution: 0.1°C

Humidity

Measuring range: 0 to 100%RH; Accuracy: ±3%; Resolution: 0.1%

Record interval: 10s~24h

Record volume: 43000

Refresh interval: 10 to 240 seconds adjustable

Sensor type: British import CO2 sensor, Switzerland import temperature humidity sensor

Battery: wo 3.6V lithium battery

Communication interface: USB

LCD size: 40*27.8mm

Product size: 108.6*90.8*35.8mm

Weight: 176g

Accessories: PC software, specification, professional USB link power, two 3.6V lithium battery, guarantee card.

Application:

* Green housed in agriculture.

* Public places such as hospital, rail station.

* Factories, laboratories, archives and libraries.







For other branded ones, click here

Data logger

Datalogger with printer

temperature data logger



( If you need prices, pictures without our warter mark, user manual or E-catalogue for above meters, please ask for at: xiushunjie@163.com)
