dissolved oxygen meter

( dissolve oxygen meter, Portable Dissolved Oxygen Meter, Portable Dissolved Oxygen analyser, bench type Dissolved Oxygen analyser  )



DO-10 Pocket Dissolved Oxygen Tester

Specification:

Model

DO-10

Dissolved Oxygen Range

0.0~20.0mg/L

Dissolved Oxygen Accuracy

0.5mg/L

% Saturation of Oxygen

0.0~200.0%

Accuracy

10%

Temperature Range

0.0~50.0C, 32.0~122.0F

Temperature Accuracy

0.5C

Temperature Compensation

0~40C, 32~104F

Salinity Correction

0~35g/L

Barometric Pressure Correction

60.0~112.5kPa, 450~850mmHg

Auto-Off

Manual or Automatic (8 minutes after last key pressed)

Hold Function

Manual or Automatic endpoint

Reset Function

Yes

Sensor Type

Polarographic Sensor (Order Code: DO100)

Connector

6-pin

Power Requirements

21.5V "AAA" batteries

Battery Life

Approximately 150 hours

Dimensions

185(L)40(Dia.)mm

Weight

100 grams

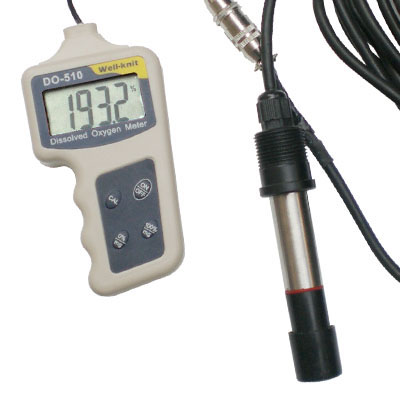

DO-510 Portable Dissolved Oxygen Meter

Specification
Range: 0.00~19.99mg/L 0.0~255.0%
Resolution: 0.01mg/L 0.1%
Accuracy: 1.5%F.S
Temperature Compensation: 0~45
ºC
Power Supply: DC 9V
Dimensions: 123mm72mm33mm



SR820 Portable Dissolved Oxygen/C/F Meter

Specification:

Model

SR820

Dissolved Oxygen Range

0.0~20.0mg/L or ppm

Resolution

0.1mg/L

Dissolved Oxygen Accuracy

0.5mg/L

% Saturation of Oxygen

0.0~200.0%

Accuracy

10%

Temperature Range

0.0~50.0C, 32.0~122.0F

Temperature Accuracy

0.5C

Temperature Calibration

Manual

Temperature Compensation

0~40C, 32~104F, Automatic

Salinity Correction

0~35g/L

Barometric Pressure Correction

60.0~112.5kPa, 450~850mmHg

Sensor Type

Polarographic Sensor (Order Code: DO100)

Connector

6-pin

Hold Function

Manual

Memory

48 data sets with Date/Time stamping

Output

USB Communication Interface

Power Requirements

19V/800mA battery

Battery Life

Approximately 150 hours

Dimensions

185(L)88(W)32(H)mm

Weight

300 grams

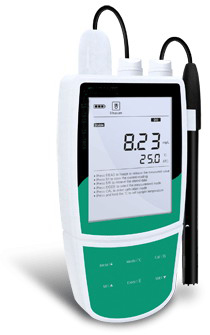

SR821 Portable Dissolved Oxygen/C/F Meter

Specification:

Model

SR821

Dissolved Oxygen Range

0.00~20.00mg/L or ppm

Resolution

0.01mg/L

Dissolved Oxygen Accuracy

0.2mg/L

% Saturation of Oxygen

0.0~200.0%

Accuracy

2.0%

Temperature Range

0.0~50.0C, 32.0~122.0F

Temperature Accuracy

0.5C

Temperature Calibration

Manual

Temperature Compensation

0~50C, 32~122F, Automatic

Salinity Correction

0~50g/L

Barometric Pressure Correction

60.0~112.5kPa, 450~850mmHg

Auto-Off

Manual or Automatic (10, 20, 30 minutes after last key pressed, Selectable)

Hold Function

Manual or Automatic endpoint

Stability Conditions

Low or High, Selectable

Calibration due reminder

1 to 30 days or Off

Reset Function

Yes

Sensor Type

Polarographic Sensor (Order Code: DO100)

Connector

6-pin

Memory

500 data sets with Date/Time stamping

Output

USB Communication Interface

Power Requirements

31.5V "AA" batteries

Battery Life

Approximately 150 hours

Dimensions

170(L)85(W)30(H)mm

Weight

300 grams

Features:

-Built-in microprocessor chip, with the intelligent functions of automatic calibration, automatic temperature compensation, data storage, function setting and automatic self-diagnose, auto power off and low voltage display etc.

-Adopts digital filter and step slipping technology to intelligently improve meter's response speed  and result accuracy. ""will appear when reading to be stable.

- Automatically recognize 13 kinds of pH standard buffer solution. User can choose anyone from three series of buffer solutions: Europe & U.S.A. series, NIST series, China series.

-Purified water and ammonia added purified water pH measuring mode can be set up, especially suitable for the fields of electric power and petrochemical etc.

-Meter's circuit board adopts SMT film-covering technology to improve meter's production reliability.

-Meter has the back light LCD display monitor.

-Dustproof and waterproof meter meets IP57 rating.

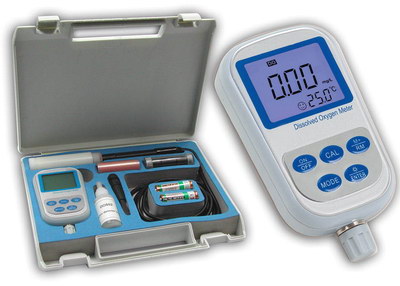

Model: SR716 DO/Temp. Meter

Technical Parameters:

Dissolved Oxygen:

Measuring range

(0 to 40.00) mg/L(ppm)  (0 to 200.0) %

Resolution

0.1/0.01 mg/L(ppm)  1/0.1%

Accuracy

Meter: 0.10 mg/L, connect meter with electrode: 0.40 mg/L

Response time

30 s (25ºC, 90% response)

Residual current

0.1 mg/L

Temp. compensation range

(0 to 45) ºC (automatic)

Salinity compensation range

(0 to 45) ppt (automatic)

Barometric pressure compensation range

(66 to 200) kPa (manual)

Automatic calibration

Air saturated by water; water saturated by air

Electrode type

Polarogram type

Other Technical Parameters:

Data storage

100 groups

Storage content

Series number, measuring value measuring unit and temperature,

Power

Two AA batteries (1.5V x2)

Size and weight

Meter: (6512031)mm/180g  Carrying case:(255 x 210x 50)mm/790g

Quality and safety certification

ISO9001:2000, CE and CMC

Working Condition:

Environment temperature

5 to 35 ºC (0.01 grade)

Environmental humidity

85%

IP rating

IP57 Dustproof and waterproof

Standard Delivery:
1. Model SR716 DO meter 1unit
2. DO500 DO electrode 1pc
3. DO503 membrane cap (DO electrode use) 3pc
4. DO502 DO electrode inner solution (30mL) 1bottle
5. Cathode polishing paper 2pc
6.Screw driver 1pc
7. Spare AA batteries 2pcs
8. Operation manual 1pc
9. Carrying case 1unit

Prominent Features

1. Double parameters meter, with pH and DO electrode, also with calibration solution and special carrying case, easy to use.

2. Built-in microprocessor chip, with the intelligent functions of automatic calibration, automatic temperature compensation, data storage, function setting and automatic self-diagnose, auto power off and low voltage display etc.

3. Adopts digital filter and step slipping technology to intelligently improve meter's response speed and result accuracy. "" will appear when reading to be stable.

4. It automatically recognizes 13 kinds of pH standard buffer solution. User can choose anyone from three series of buffer solutions: Europe & U.S.A. series, NIST series and China series.

5. Purified water and ammonia added purified water pH measuring mode can be set up, for this two special pH measuring modes, besides the general slope compensation, also added function of nonlinearity temperature compensation for pH values of solution to make measurement more accurate, especially suitable for use in the fields of electric power and petrochemical etc.

6. Equipped with new type of DO electrode with temperature and salinity sensor which makes DO measuring mode has auto temperature compensation, auto salinity compensation and manual barometric pressure compensation. It's easy to use and accurate to measure.

7. Polarogram type DO electrode has special electrode calibration cap. Only needs 3 to 5 minutes for electrode polarization. Electrode adopts combination diaphragm cap which very convenient to use. Each DO electrode equips with three spare diaphragms caps.

8. Meter's circuit board adopts SMT film-covering technology to improve meter's production reliability.

9. Meter has the blue back light LCD display monitor.

10. Dustproof and waterproof meter meets IP57 rating.

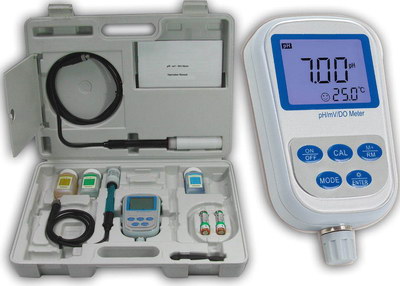

Model: SR725  pH/mV/DO/Temp. 4-in-1 Meter

Technical parameter

1. pH:

Measuring range

(-2.00 to 19.99) pH

Resolution

0.1/0.01 pH

Accuracy

Meter:0.01pH; connect meter with electrode: 0.02pH

Temp. Compensation range

(0 to 100) ºC (automatic)

2. mV:

Measuring range (mV/ORP/EH)

-1999 mV to 0 to 1999mV

Resolution

1mV

Accuracy

Meter:0.1% FS, connect meter with electrode: 15mV

3. Dissolved Oxygen:

Measuring range

(0 to 40.00) mg/L(ppm)  (0 to 200.0) %

Resolution

0.1/0.01 mg/L(ppm)  1/0.1%

Accuracy

Meter:0.10 mg/L, connect meter with electrode:0.40 mg/L

Temp. Compensation range

(0 to 45) ºC (automatic)

Salinity compensation range

(0 to 45) ppt (automatic)

Barometric pressure compensation range

(66 to 200) kPa (manual)

Automatic calibration

Air saturated by water; water saturated by air

Electrode type

Polarogram type

4. Other Technical Parameters:

Data storage

300 groups

Storage content

Series number, measuring value measuring unit and temperature,

Power

Two AA batteries (1.5V x2)

Size and weight

(360 x 270x 76) mm/1.7kg

Quality and safety certification

ISO9001:2000, CE and CMC

IP rating

IP57 Dustproof and waterproof

Package includes

1. SR725 portable meter;

2. 201T-S plastic pH/ATC 3-in-1 combination electrode

3. DO500 DO electrode

4. pH calibration solution (4.00, 7.00, 10.01pH/50ml)

5. Carrying case

3pcs of membrane caps inner solution for DO probe (30ml)

Prominent Features

1. Double parameters meter, equipped with conductivity electrode, DO electrode, calibration solution and special carrying case, easy to use.

2. Built-in microprocessor chip. Its features up to functions of automatic calibration, automatic temperature compensation, data storage, function stting, auto power off and low voltage indication etc.

3. Adopts digital filter and step slipping technology to intelligently improve meter's response speed and result accuracy. "" will appear when reading to be stable.

4. Adopts advanced automatic frequency convertible and voltage regulation technology to enlarge the measuring range 10 times for conductivity electrode which constant K=1. It can meet measuring accuracy requirement for range within 0 to 200mS/cm by using only one-point calibration. It is the particular oneCpoint calibration function for this meter.

5. It automatically recognizes 8 kinds of conductivity standard solution. User can choose anyone from two series of standard solutions: Europe & USA series and China series.

6. Automatically select conductivity measuring range, the meter will do non-linearity temperature compensation test for purified and high purified water less than 10 uS/cm, which greatly improve the measuring accuracy. It is especially suitable for use in fields of electric power, microelectronics and medicine.

7. Equips new type of DO electrode with temperature and salinity sensor which has function of automatic temperature compensation and automatic salinity compensation as well as manual barometric pressure compensation inside meter, easy to use, accurate to measure.

8. Polarogram type DO electrode has special electrode calibration cap. Only needs 3 to 5 minutes for electrode polarization. Electrode adopts combination diaphragm cap which very convenient to use. Each DO electrode equips with three spare diaphragms caps.

9. Meter's circuit board adopts SMT film-covering technology to improve meter's production reliability.

10. Meter has the blue backlight LCD display.

11. Dustproof and waterproof meter meets IP57 rating.

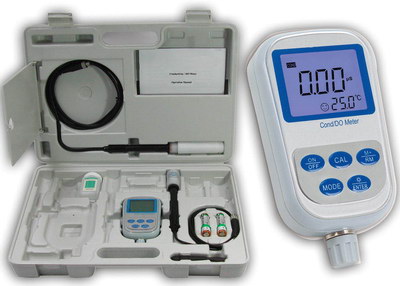

Model: SR726 Conductivity/TDS/Sal./Res./DO/Temp. 6-in-1 Meter

Technical parameter

1. Conductivity:





Measuring range

Conductivity:

(0.00 to 19.99)S/cm  (20.0 to 199.9)S/cm

(200 to 1999)S/cm   (2.00 to 19.99) mS/cm

(20.0 to 199.9) mS/cm

TDS:     (0 to 100) g/L

Salinity :  (0 to 100) ppt

Resistivity:(0 to 100) M*cm

Resolution

0.01/0.1/1S/cm  0.01/0.1 mS/cm

Accuracy

Meter:1.0% FS, connect meter with electrode:1.5% FS

Temp. compensation range

(0 to 50) ºC (automatic)

Electrode constant

0.1 / 1 / 10 cm-1

Benchmark temperature

25ºC, 20ºCand 18ºC

2. Dissolved Oxygen:

Measuring range

(0 to 40.00) mg/L(ppm)  (0 to 200.0) %

Resolution

0.1/0.01 mg/L(ppm)  1/0.1%

Accuracy

Meter:0.10 mg/L, connect meter with electrode:0.40 mg/L

Temp. Compensation range

(0 to 45) ºC (automatic)

Salinity compensation range

(0 to 45) ppt (automatic)

Barometric pressure compensation range

(66 to 200) kPa (manual)

Automatic calibration

Air saturated by water; water saturated by air

Electrode type

Polarogram type

3. Other Technical Parameters:

Data storage

200 groups

Storage content

Series number, measuring value measuring unit and temperature,

Power

Two AA batteries (1.5V x2)

Size and weight

(360 x 270x 76) mm/1.7kg

Quality and safety certification

ISO9001:2000, CE and CMC

IP rating

IP57 Dustproof and waterproof

Package includes

1. SR726 portable meter;

4. Conductivity calibration solution (1413S/cm/50ml)

2. 2301-S plastic conductivity electrode (ATC, K=1)

5. Carrying case

3. DO500 DO electrode

3pcs of membrane caps inner solution for DO probe (30ml)

Extech DO700 is OEM made based on ours this meter SR736. They use totally same IC borard and shell, and technology to produce.

Prominent Features

1. Multi-parameter meter, equipped with pH electrode, ORP Electrode, conductivity electrode, temperature electrode, DO

electrode, when connect the electrode to the meter, the meter can automatically know the electrode, easy to use.

2. Built-in microprocessor chip.. Its features up to automatic calibration, automatic temperature compensation, data storage, auto power off, low voltage indication, functions setting and automatic self-diagnose etc.

3. Adopts digital filter and step slipping technology to intelligently improve meter's response speed and result accuracy. "" will appear when reading to be stable.

4. Automatically recognize 13 kinds of pH standard buffer solution. User can choose anyone from three series of buffer solutions: Europe & U.S.A. series, NIST series, and China series.

5. High purified water and ammonia added purified water pH measuring mode can be set up, for this two special pH measuring modes, besides the general slope temperature compensation, also added function of nonlinearity solution temperature compensation to make measurement more accurate, especially suitable for the fields of electric power and petrochemical etc.

6. Adopts advanced automatic frequency convertible and voltage regulation technology to enlarge the measuring range of conductivity electrode which constant K=1 to 10 times. It can meet measuring accuracy requirement for range within 0 to 200mS/cm by using only one-point calibration. It is the particular oneCpoint calibration function for this meter.

7. Automatically recognize 8 kinds of conductivity standard solution. User can choose anyone from two series of standard solutions: Europe & USA series and CHINA series.

8. Automatically select conductivity measuring range, the meter will do non-linearity temperature compensation test for purified and high purified water less than 10uS/cm, which greatly improve the measuring accuracy. It is especially suitable for use in fields of electric power, microelectronics and medicine.

9. Equips new type of DO electrode with temperature and salinity sensor which has function of automatic temperature compensation and automatic salinity compensation as well as manual Atmospheric pressure compensation inside meter, easy to use, accurate to measure.

10. Polarogram type DO electrode has special electrode calibration cap. Only needs 3 to 5 minutes for electrode polarization. Electrode adopts combination diaphragm cap which very convenient to use. Each DO electrode equips with three spare diaphragms caps.

11. Meter's circuit board adopts SMT film-covering technology to improve meter's production reliability.

12. Meter has the back light LCD display monitor.

13. Dustproof and waterproof meter meets IP57 rating.

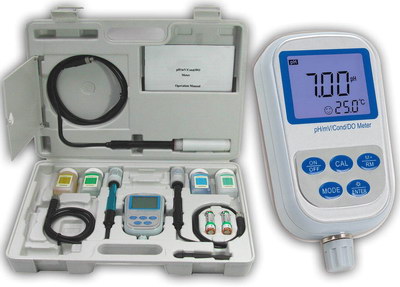

Model: SR736 pH/mV/Conductivity/TDS/Sal./Res./DO/Temp. 8-in-1 Meter

Technical parameter

1. pH:

Measuring range

(-2.00 to 19.99) pH

Resolution

0.1/0.01 pH

Accuracy

Meter:0.01pH; connect meter with electrode: 0.02pH

Temp. Compensation range

(0 to 100) ºC (automatic)

2. Conductivity:





Measuring range

Conductivity:

(0.00 to 19.99)S/cm  (20.0 to 199.9)S/cm

(200 to 1999)S/cm   (2.00 to 19.99) mS/cm

(20.0 to 199.9) mS/cm

TDS:     (0 to 100) g/L

Salinity :  (0 to 100) ppt

Resistivity:(0 to 100) Mcm

Resolution

0.01/0.1/1S/cm  0.01/0.1 mS/cm

Accuracy

Meter:1.0% FS, connect meter with electrode:1.5% FS

Temp. compensation range

(0 to 50) ºC (automatic)

Electrode constant

0.1 / 1 / 10 cm-1

Benchmark temperature

25ºC, 20ºCand 18ºC

3. Dissolved Oxygen:

Measuring range

(0 to 40.00) mg/L(ppm)  (0 to 200.0) %

Resolution

0.1/0.01 mg/L(ppm)  1/0.1%

Accuracy

Meter:0.10 mg/L, connect meter with electrode:0.40 mg/L

Temp. Compensation range

(0 to 45) ºC (automatic)

Salinity compensation range

(0 to 45) ppt (automatic)

Barometric pressure compensation range

(66 to 200) kPa (manual)

Automatic calibration

Air saturated by water; water saturated by air

Electrode type

Polarogram type

4. Other Technical Parameters:

Data storage

400 groups

Storage content

Series number, measuring value measuring unit and temperature,

Power

Two AA batteries (1.5V x2)

Size and weight

(360 x 270x 76) mm/1.7kg

Quality and safety certification

ISO9001:2000, CE and CMC

IP rating

IP57 Dustproof and waterproof

Package includes

1. SR736portable meter;

2. 201T-S plastic pH/ATC 3-in-1 combination electrode

3. 2301-S plastic conductivity electrode (ATC, K=1)

4. DO500 DO electrode
3pcs of membrane caps inner solution for DO probe (30ml)

5. pH calibration solution (4.00, 7.00, 10.01pH/50ml)

6. Conductivity calibration solution (1413S/cm/50ml)

7. Carrying case

8. Battles (1.5V x 2)

9. Operation Maunal

Prominent Features

1. Multi-parameter meter, equipped with pH electrode, ORP Electrode, conductivity electrode, temperature electrode, DO

electrode, when connect the electrode to the meter, the meter can automatically know the electrode, easy to use.

2. Built-in microprocessor chip.. Its features up to automatic calibration, automatic temperature compensation, data storage, auto power off, low voltage indication, functions setting and automatic self-diagnose etc.

3. Adopts digital filter and step slipping technology to intelligently improve meter's response speed and result accuracy. "will appear when reading to be stable.

4. Automatically recognize 13 kinds of pH standard buffer solution. User can choose anyone from three series of buffer solutions: Europe & U.S.A. series, NIST series, and China series.

5. High purified water and ammonia added purified water pH measuring mode can be set up, for this two special pH measuring modes, besides the general slope temperature compensation, also added function of nonlinearity solution temperature compensation to make measurement more accurate, especially suitable for the fields of electric power and petrochemical etc.

6. Adopts advanced automatic frequency convertible and voltage regulation technology to enlarge the measuring range of conductivity electrode which constant K=1 to 10 times. It can meet measuring accuracy requirement for range within 0 to 200mS/cm by using only one-point calibration. It is the particular oneCpoint calibration function for this meter.

7. Automatically recognize 8 kinds of conductivity standard solution. User can choose anyone from two series of standard solutions: Europe & USA series and CHINA series.

8. Automatically select conductivity measuring range, the meter will do non-linearity temperature compensation test for purified and high purified water less than 10uS/cm, which greatly improve the measuring accuracy. It is especially suitable for use in fields of electric power, microelectronics and medicine.

9. Equips new type of DO electrode with temperature and salinity sensor which has function of automatic temperature compensation and automatic salinity compensation as well as manual Atmospheric pressure compensation inside meter, easy to use, accurate to measure.

10. Polarogram type DO electrode has special electrode calibration cap. Only needs 3 to 5 minutes for electrode polarization. Electrode adopts combination diaphragm cap which very convenient to use. Each DO electrode equips with three spare diaphragms caps.

11. Meter's circuit board adopts SMT film-covering technology to improve meter's production reliability.

12. Meter has the back light LCD display monitor.

13. Dustproof and waterproof meter meets IP57 rating.

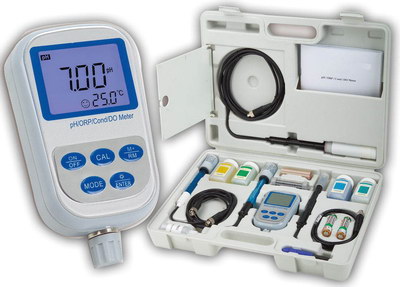

Model: SR751 pH/ORP/Conductivity/TDS/Sal./Res./DO/Temp. 8-in-1 Meter

Technical parameter

1. pH:

Measuring range

(-2.00 to 19.99) pH

Resolution

0.1/0.01 pH

Accuracy

Meter:0.01pH; connect meter with electrode: 0.02pH

Temp. Compensation range

(0 to 100) ºC (automatic)

2. ORP(mV):

Measuring range (mV/ORP/EH)

-1999 mV to 0 to 1999mV

Resolution

1mV

Accuracy

Meter:0.1% FS, connect meter with electrode: 15mV

3. Conductivity:





Measuring range

Conductivity:

(0.00 to 19.99)S/cm  (20.0 to 199.9)S/cm

(200 to 1999)S/cm   (2.00 to 19.99) mS/cm

(20.0 to 199.9) mS/cm

TDS:     (0 to 100) g/L

Salinity :  (0 to 100) ppt

Resistivity:(0 to 100) M*cm

Resolution

0.01/0.1/1S/cm  0.01/0.1 mS/cm

Accuracy

Meter:1.0% FS, connect meter with electrode:1.5% FS

Temp. compensation range

(0 to 50) ºC (automatic)

Electrode constant

0.1 / 1 / 10 cm-1

Benchmark temperature

25ºC, 20ºCand 18ºC

4. Dissolved Oxygen:

Measuring range

(0 to 40.00) mg/L(ppm)  (0 to 200.0) %

Resolution

0.1/0.01 mg/L(ppm)  1/0.1%

Accuracy

Meter:0.10 mg/L, connect meter with electrode:0.40 mg/L

Temp. Compensation range

(0 to 45) ºC (automatic)

Salinity compensation range

(0 to 45) ppt (automatic)

Barometric pressure compensation range

(66 to 200) kPa (manual)

Automatic calibration

Air saturated by water; water saturated by air

Electrode type

Polarogram type

5. Other Technical Parameters:

Data storage

400 groups

Storage content

Series number, measuring value measuring unit and temperature,

Power

Two AA batteries (1.5V x2)

Size and weight

(360 x 270x 76) mm/1.7kg

Quality and safety certification

ISO9001:2000, CE and CMC

IP rating

IP57 Dustproof and waterproof

Package includes

1. SR751portable meter;

 5. DO500 DO electrode
3pcs of membrane caps inner solution for DO probe (30ml)

2. 201T-S plastic pH/ATC 3-in-1 combination electrode

6. pH calibration solution (4.00, 7.00, 10.01pH/50ml)

3. 301Pt-S ORP combination electrode

7. Conductivity calibration solution (1413S/cm/50ml)

4. 2301-S plastic conductivity electrode (ATC, K=1)

8. Carrying case

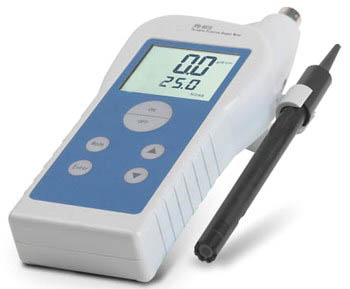

SRS-607A Dissolved oxygen analyzers
Characteristics:

1. 3/1/2LCD with blue-light
2. Automatic temperature compensation
3. Immediate response
4. Easy to carry
5. D.C. power supply: one piece of 9V battery
6. The electrode system is composed of polarographic oxygen electrode and temperature electrode
Specifications:
1. Measurement range: Dissolved oxygen: 0-20 mg/L
Temperature: 0-40ºC
2. Accuracy:
Dissolved oxygen: 0.3 mg/L1bit (under the basic temperature)
0.5 mg/L1bit(differ: 10ºC from the basic temperature)
Temperature: 1ºC1bit
3. Response time: 30s (90% response at 20.0ºC).
4. Stability of the meter: not over 0.2mg/L 1bit within one hour
5. Remaining current: 0.15mg/L
6. The range of automatic temperature compensation: 0-40ºC

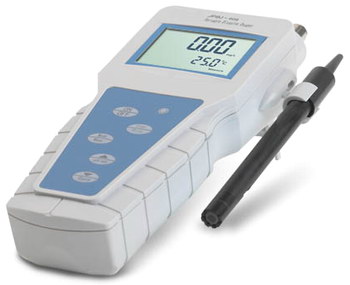

SRS-608 Dissolved oxygen analyzers
Characteristics:

1. With the function of double displays of dissolved oxygen concentration value and temperature, dissolved oxygen saturation value and temperature
2. Measuring D. O. concentration, saturation, electrode current and temperature; With the functions of automatic temperature compensation and calibration of zero oxygen, full scale, atmosphere pressure and salinity.
3. The meter has the function of protection from electricity cutting off. With Measuring results can be stored, deleted, viewed and printed. At most 250 sets of data can be stored.
4. With wide screen LCD. It is easy to operate with the prompt facility. With PC panel of new material, thus the meter has good reliability.
5. With low power consumption design, with the functions of lack of voltage display, switching off automatically.
6. With RS-232 interface which is connected and with Model TP-16 printer to print measuring results or connected with computer to communicate.
7. Grade of the case protection is IP65, resistant to water and dirt, suitable for field operation
8. The electrode system is composed of polarographic oxygen electrode and temperature electrode.

Specifications:
1. Measuring range: Dissolved oxygen concentration: (0.00~19.99)mg/L
Dissolved oxygen saturation: (0.0~199.9)%;
Temperature: (0~40.0)ºC.
2. Automatic temperature compensation range: (0.0~40.0) ºC.
3. Accuracy of the meter: D. O. concentration: 0.3mg/L1bit(under basic temperature);
0.5mg/L (differ: 15ºC from the basic temperature)
D. O. saturation : 5.0% (under basic temperature);
10.0% differ: 15ºC from the basic temperature
Temperature: 0.5ºC1bit.
4. Repeatability of the meter: 0.2mg/L.
5. Stability of the meter: not over 0.2mg/L within one hour.
6. Remaining current: 0.1mg/L.
7. Response time 20s (90% response at 20.0ºC).
8. Salinity calibrating range: (0.0~40.0)g/L.
9. IP65 protection grading

PHS810 Benchtop Dissolved Oxygen Meter

Specification:

Model

PHS810

Dissolved Oxygen Range

0.0~20.0mg/L

Dissolved Oxygen Accuracy

0.5mg/L

% Saturation of Oxygen

0.0~200.0%

Accuracy

10%

Temperature Range

0.0~50.0C, 32.0~122.0F

Temperature Accuracy

0.5C

Temperature Compensation

0~40C, 32~104F

Temperature Calibration

Manual

Salinity Correction

0~35g/L

Barometric Pressure Correction

60.0~112.5kPa, 450~850mmHg

Auto-Off

Manual or Automatic (180 minutes after last key pressed)

Hold Function

Manual or Automatic endpoint

Reset Function

Yes

Sensor Type

Polarographic Sensor (Order Code: DO100)

LCD Display

Custom Dual-Display LCD (13575mm)

Power Requirements

DC9V, using AC adapters, 220VAC/50Hz

Dimensions

210(L)205(W)75(H)mm

Weight

1.2kg

Features:
1 or 2 points auto-calibration (100% in saturated air or air-saturated water, 0% in zero oxygen solution).
Automatically compensates salinity and barometric pressure after manual input.
Selectable readout in ppm, mg/L or % saturation.
Selectable either temperature units between degrees Celsius (C) and degrees Fahrenheit (F).
Automatic Temperature Compensation ensures high accuracy of measurements.
Manual temperature calibration provides accurate temperature value.
Calibration due reminder prompts you to calibrate the meter regularly.
Automatic endpoint function freezes the stable measured values for easy reading and recording data.
Help message as a operational guide to helps you understand how to use meter.
Setup menu lets user customize calibration points, temperature units, date and time to meet measurement requirements.
Expanded memory stores and recalls up to 500 readings.
Built-in real-time clock stamps stored data to meets GLP standards.
Stored data can be transferred into computer via USB communication interface.

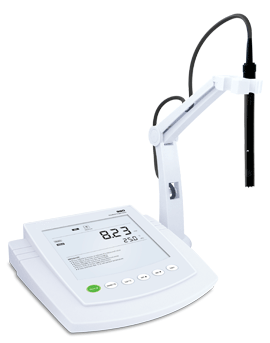

PHS980 Precision Dissolved Oxygen/C/F Meter

PHS980 is professional dissolved oxygen meter designed for laboratory applications. The meter is equipped with a polarographic sensor for measurement of dissolved oxygen concentration or percent saturation in water.

Model

PHS980

   Dissolved Oxygen Range

0.00~20.00mg/L or ppm

   Resolution

0.01mg/L

   Dissolved Oxygen Accuracy

0.2mg/L

   % Saturation of Oxygen

0.0~200.0%

   Accuracy

2.0%

   Temperature Range

0.0~50.0C, 32.0~122.0F

   Temperature Accuracy

0.5C

   Temperature Calibration

Manual

   Temperature Compensation

0~50C, 32~122F, Automatic

   Salinity Correction

0~50g/L

   Barometric Pressure Correction

60.0~112.5kPa, 450~850mmHg

   Auto-Off

Manual or Automatic (10, 20, 30 minutes after last key pressed, Selectable)

   Hold Function

Manual or Automatic endpoint

   Stability Conditions

Low or High, Selectable

   Calibration due reminder

1 to 30 days or Off

   Reset Function

Yes

   Sensor Type

Polarographic Sensor (Order Code: DO100)

   Connector

6-pin

   Memory

500 data sets with Date/Time stamping

   Output

USB Communication Interface

   LCD Display

Custom dual-display LCD (130110mm)

   Power Requirements

DC5V, using AC adapters, 220VAC/50Hz

   Dimensions

210(L)188(W)60(H)mm

   Weight

1.2kg

Features and Applications:

- The worthy lab dissolved oxygen meter for its good performance and low cost.

- New type dissolved oxygen electrode has function of salinity measurement, can automatic achieve salinity compensation and temperature compensation;  Meter inside with air pressure sensor, can automatic achieve air pressure compensation.

- PolarograPHic type dissolved oxygen electrode, short polarization time, fast response and accurate measurement.

- Convenient used dissolved oxygen electrode calibration cover and combined type diaPHragm cap.

- Meter meets with the requirement of international GLP standards. It features up to automatic calibration, automatic temperature compensation, storage data, clock display, time measurement, RS232 output, functions setting and self-diagnose information etc.

- It adopts digital filter and step slipping technology to improve meter's response speed and repeatability.

- Dustproof and waterproof meter meets IP54 standards.

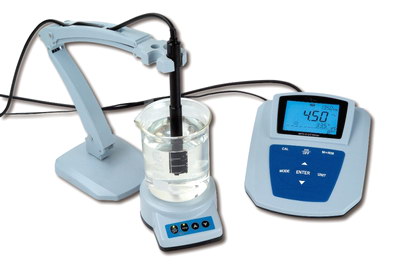

Model: SR516 Dissolved Oxygen Meter

Measuring Parameters: Dissolved Oxygen and temperature

Specifications:

Range:

DO: (0 to 40.00)mg/L(ppm); (0 to 200.0)%

Temp: (0 to 45) ºC

Accuracy: DO: 0.10 mg/L

Temp: 0.4 ºC

Other Parameters:

Automatic Temperature Compensation: (0 to 45) ºC

Automatic Salinity Compensation: (0 to 45) ppt

Automatic Air Pressure Compensation: (80 to 105) kPa

Storage Data: 600 groups;

Communication Connector: RS-232;

Power: DC9V/300mA;

Size & Weight: (16019070)mm/880g

What's included:

1. DO500 dissolved oxygen electrode

2. Model 901 intelligent stirrer

3. Model 602 flexible electrode holder

4. RS-232 communication software and cable

5. DO502 DO electrode inner solution

SR-605F Dissolved Oxygen Meters

Functions:
*Three reading modes to meet different customer measuring needs. (Smart-Read mode, Continuous-Read mode, Timed-Read mode).
*More accuracy measurement with reminder the electrode performance and calibration.
*Auto upgrade hardware: Complete and simple users operation.
*Support GLP norm: More complete checking the stored information.
1) The meter requires setting operator No and records the all operating procedures.
2) It can record, view and print calibration data.
3) It can store measuring data(500 sets) which follows GLP norm.
4) Support view, print, delete stored data.
*Large and light screen: displaying measurement value, temperature value, constant, measurement mode, operation date and time.
*Auto temperature compensation.
*Auto zero oxygen calibration and full scale calibration.
*Support barometric pressure calibration and salinity calibration.
*Support USB.
*Supports the function of power-off protection, protect your data.

Specifications:

Model

SR-605F

Parameters

Concentration/Saturation/ºC

Range

DO

0.00-45.00mg/L

DO Saturation

0.0-300.0%

Temperature

-5.0-115.0 ºC

Accuracy

DO

0.10 mg/L

DO Saturation

2.0%FS

Temperature

0.2 ºC

Stability

(0.07mg/L)/1h

Response Time

45s (90% respond at 20 ºC)

Zero Error

0.10mg/L

Barometric Pressure Calibration

(77.0-110.0)kPa

Temp Compensation

Automatic: 0.0-40.0 ºC

Power

Universal power adapter (9VDC, 800mA)

Dimension&Weight

28021592mm, 1kg

Standard Configuration

DO-958-S DO Probe

Standard configuration:

Product Name and Specification

Quantity

COD-571 Chemical Oxygen Demand Meter

1

Universal power line

1

Printer connecting line

1

Operation instruction manual

1

Accessory box

1

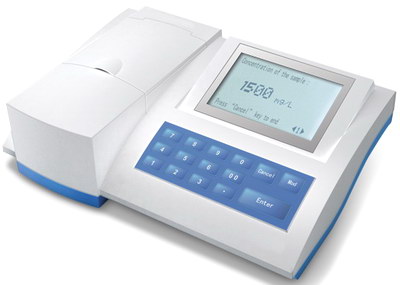

COD-571 Chemical Oxygen Demand (COD) Meter

Functions:
* English language menu and LCD display for easy use
* It adopts dichromate colorimetric method.
* Direct reading of COD results and no need to analyze by other means such as titration.
* 2 point calibration (zero COD and full scale calibration)
* Measuring results can be viewed, deleted and printed. Up to 200 sets of measuring data can be stored and it can be connected with TP-16 printer.
* It adopts digestion method of sealing reflux and can conduct simultaneous digestion of 21 samples for low energy consumption.
* The digestion temperature can be adjusted from ambient temperature to 165ºC. Also, it is equipped with over temperature alarming system.
* The digestion time can be set from 0 to 120 min. It will be power off after response.

Specifications:

Model

COD-571

Range

COD

0~1500mg/L

Accuracy

Basic accuracy

150mg/L: 8% reading 1 mg/L;

150mg/L: 8% reading

Repeatability

3% reading

Stability

2% (reading )/15min

Measuring Principle

Dichromate colorimetric method

Digestion Method

Sealing reflux methodcould dispelling 21 samples simultaneously

Digestion Temperature

room-temperature~165ºC

Digestion Time

0~120min

Calibration

Two-point calibration (zero and full scale calibration)

Data Storage

200 data with time-and-date stamp

View, delete and print

Yes

Display

LCD

Power

AC(22022)V, (501)Hz

Case outside serial No.

COD-571: WXS-A010-4

COD-571-1: WXS-A002-3

Dimension (mm), Weight(kg)

COD-571: 270*280*125, 2

COD-571-1: 330*228*132, 4

Gross weight (kg)

4

Packing Size (mm)

350*340*200

Certification

SRB-5 conforms to GB7488-87

Application

Apply to Surface Water, Sewage, and Industrial Wastewater in the BOD.

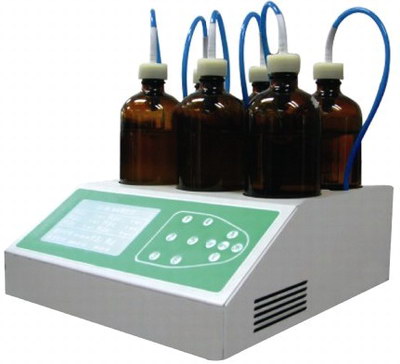

SRB-5 Pressure Difference Method BOD Tester

Principle of Operation

The instrument is designed by the pressure-difference method, simulating the

degradation of natural organic matter. 21% of the oxygen in the air on the top of

Test Bottle continuously replenish the dissolved oxygen consumed in water, carbon

dioxide (CO2) produced in the  process of organic matter degradation  is absorbed

by Sodium hydroxide coming from sealed cap, pressure sensor monitor constantly

the pressure change of sample bottle. There is a correlation between Biochemical

oxygen demand BOD (correspond to the consumption of oxygen in the test bottle)

and Gas pressure, such relevance is dealt with by instrument, display directly

Biochemical oxygen demand BOD value on the screen.

Specification

Measurable: liquid containing soluble organic matter, such as drainage and river

water
Range:0-35, 0-70, 0-350, 0-700mg/L (without dilution) 700-4000 mg/L (need to

dilute)
Sample Quantity: 6 Bottle Capacity: 500mL
Repeatability: 5%

Resolution: 0.1mg/L (0-35, 0-70mg/L) 1mg/L (0-350mg/L, 0- 700mg/L)
Size :350*400*350mm
Display: LED
Power Supply: AC 220 50Hz

Features

Display the trend curve

Printer output

Link to the compute through USB interface

Mercury-free devices to ensure the accuracy and safety of the BOD measurement

Real-time clock display

Automatic collection and storage of data

Depict BOD curves for the user to view

Link to the computer to print curves

No parameter and data loss after suddenly electricity cut-off

LCD humanization interface display, easy to operation

1-30days of the test time, setting by the keys

Store data and update the result, observe the change rate of BOD in the LCD

screen during any testing time, store 240 data points and 20 groups data of each

sample.

Features:
#1 Operability and Maintainability

Exchangeable microbe electrode units make operation smoother and less time-consuming than loading and replacing conventional membranes.
Once mounted, electrode units may be used immediately.
Electrode units may be used for one month continuously or for three months intermittently with standard samples. (Electrode units should be stored in refrigerators when not taking measurements.)
Front panel allows simple, pushbutton operation.
Compact size, taking up little space.
Ease of replacement by installing electrode units or tubing into the opened door in the front panel.
Anti-reflux valves and antibacterial tubing reduce the frequency of maintenance.
#2 Stability
Bacteriostatic is mixed into standard and buffer solutions, so measurements are stable over the long term.
Measurements in regions of low concentration are especially stable.
High correlation with officially certified methods.
#3 Applicability
Changing pump rpm or sample contact time allows measurements in regions of high concentration.
The optional microbe fixation kit enables the use of other microbes and, therefore ,a variety of water samples.
#4 Environmental Friendliness
Making no use of dangerous reagents and emitting no harmful effluents, the Quick BOD SRB-I is environmentally friendly.
Used electrode units are recovered with a dedicated shipping and recovery box, and replacement electrode units are shipped with the same dedicated box.
Application areas

Determination applies to surface water and domestic sewage, industrial effluents in the BOD.

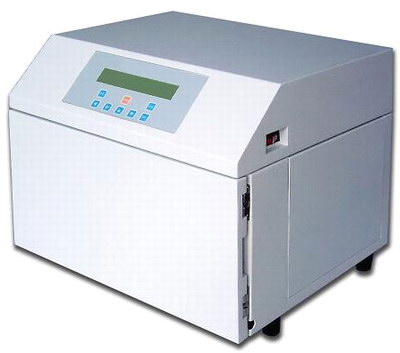

SRB-1 Quick BOD Tester

Advanced technology Principle

An oxygen electrode monitors the change in respiratory action caused by the consuming of organic matter by bacteria. The bacteria (trichosporon cutaneum) are incorporated into the oxygen electrode. When a solution containing organic matter is fed to the microbe electrode sensor, the microbes ingest the organic matter, increasing respiratory action and in turn the consumption of oxygen. The amount of oxygen passing through the microbe membrane decreases resulting in a change in the current, which is output by the dissolved oxygen electrode. This change corresponds to the concentration of organic matter.

The Quick BOD SRB-1 takes significant steps to do away with the weaknesses of biosensor BOD measuring apparatus entailed by trouble and time required to replace and load microbe membrane andwith an exchangeable electrode unit that makes it easy to use right awayprovides improved operability and maintainability standard and buffer bacteriostatic solutions and antibacterial tubing allow stable measurements over the long term. The dedicated shipping and recovery box for Used and replacement electrode units may be reused any number of times and the exclusion of apparatus environmentally friendly and easy to use .

Principle of Microbe Electrode Measuring Method
Apparatus for the estimation of biochemical oxygen demand (BOD) with microbial sensor JIS K 3602-1990 (established Sept.1, 1990) although the BOD (JIS K 3602) microbe electrode method and BOD5 (JIS K 102) 5-day method are different, the expected BOD5 value can be approximated from the BOD value. This enables water quality to be monitored over a short period of time in order to permit any necessary measures to be enacted as separate standard.

Specifications:

Model

Quick BOD SRB-1

Measurement method

Biosensor (JIS K3602)

Measurable

Liquid samples containing soluble organic matter such as drainage and river water

Measurement range

0-20 mg/l (base Measurement range)

Variable with pump rpm and sample

Contact time

Measurement time

60 min/specimen assuming calibration for each specimen)

Calibration

Single-point calibration with glucose glutamic solution

Readout

LCD, 20 characters x 2 lines, Precision up to 0.1 mg/L

Reproducibility

Full-scale within 5%

Output

Recorder output (0-5 V analog output)

Hot output (0-5 V analog output)

Printer output (Printy3 serial thermal printer)

Temperature controller

Adjustable within 35C0.2C

Rated power source

AC 100V10V,50/60HZ,3A max

Dimensions

370(w) * 350 (d) * 300(h)mm

Weight

14kg

Ambient temperature

5-40C

Ambient humidity

90% RH max (Without condensation)

Peripherals

Standard solution, buffer solution, antibacterial tubing set, printer

SRB-1 Quick BOD Tester System Diagram

 ( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@163.com )
