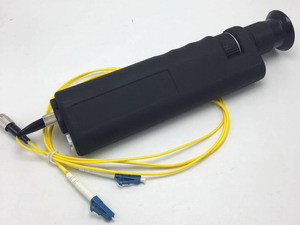

The CL-
Series Fiber Microscope utilizes a white LED for
coaxial illumination. Light is introduced into the
optical path
(axis) so
that it comes out the tip of the objective and strikes
the sample perpendicular to the fiber end-face. It
produces
excellent
detail of scratches and contamination. For critical
examination of polish quality, we strongly recommend the
CL-Series microscope.
Cat. No.
Description
CL-200
200x Fiber Microscope with universal ¡°slip-grip¡±
adapter
CL-400
400x Fiber Microscope with universal ¡°slip-grip¡±
adapter
¡¡
The OL-Series
Fiber Microscope utilizes a white LED for oblique
illumination. It produces good image of core
condition and contaminants. Some customers prefer
oblique lighting because it doesn¡¯t show ¡°too much¡±.
Technicians will see
enough detail to clean connectors and even polish
to low loss level, but not too much detail to waste
time over polishing. For critical examination of
polish quality, we strongly recommend the CL-Series
microscope.
Cat. No.
OL-200
200x
OL-400
400x
¡¡
Specifications:
Optical
Magnification: 200x, 400x
Power
Requirements: 3 ¡°AAA¡± alkaline batteries
LED:
Rated life: 100,000 hrs.
Weight:
0.6kg
Size:
225mm/8.76¡±L x 32mm/1.25¡± Diameter
Controls: Momentary on/off switch Fine-Focus
control
Safety
Filter: Built-in
Adapter
interface: Uses interchangeable, presented universal
or dedicated adapters
¡¡
Operation
Step:
Step 1.Input
the Fiber which will be checked into the Fiber Insert
Entrance, insert another fiber connector into the light
source
entrance.
Step 2.See
from the Eyepiece and press on the on/off LED switch
(Illumination)
Step
3.Adjust the focus control, just to find the clearest
viewing;
Guarantee
Terms:
All products
from our company are warranted to be free of all defects
in material and workmanship for period of 12 months
from the date of delivery. The warranty does not apply
to any instrument which has become worn, defective,
damaged or broken due to abuse , misuse, tampering, or
unauthorized repairs. Under this warranty, We will
repair or replace, without
charge to
the purchaser, any part of which upon our examination,
appears to be defective in materials or workmanship.
Laser Safety
information:
Every our
Fiber Scope is equipped with an attenuating, laser
safety filter to reduce the risk of accidental viewing
of active
fiber
emissions. Since many of the wavelengths of light used
in the fiber optic industry are invisible to the naked
eye, the
natural
aversion reflex to viewing bright light is suppressed
resulting in the potential for long periods of
accidental exposure which can lead to permanent damager.
The filter
we install will provide over 35dBm of attenuation at
wavelengths from1310nm to 1550nm. In addition,it will
provide over 20.5dBm of attenuation at 850nm. However,
it should be stressed that in spite of the protection
offered, under no
circumstances should an actively emitting fiber be
viewed with a visual inspection scope such as the
CL-200X.
How to
choose between the OL-Series and the CL-Series?
Both our
fiber microscopes provide excellent views of the ferrule
end face. We recommend 200x magnification for
multi-mode
and 400x magnification for single-mode:
(1) If you frequently terminate fiber and have received
professional training, you are probably best served by
our CL Series microscope.
(2) If you only occasionally terminate fiber, and are
unsure, you might consider the OL Series.
