OTDR

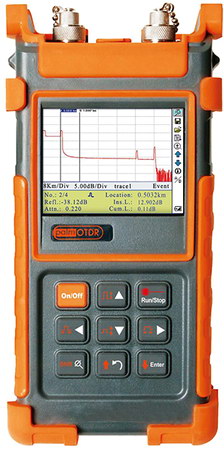

Series Handheld OTDR
The
compact OTDR series now offers even more testing capacities,
flexibility and value with combination of
850/1300/1310/1490/1550/1625/1650nm (Mono/double/triple wavelength)
OTDR, 1310/1490/1550nm PON Power Meter, Stabilized Laser Source and
VFL. The OTDR wavelengths cover the applications of regular
end-to-end fiber characterization (1310/1550nm), premise/enterprise
LAN testing (850/1300nm), FTTx fiber link construction verification
(1490nm) and PON live fiber troubleshooting (1625/1650nm with
filter). The integrated PON Power Meter can perform in-service
testing of all PON signals (1310/1490/1550nm) on any spot of the
network featuring pass-through design and burst mode support. OTDR
series is your ultimate solution to meet various testing
requirements of entire fiber network.
Features:
*
Comprehensive fiber applications, ideal for LAN/WAN/FTTx
certification & trouble-shooting: SM: 1310/1490/1550, 1625/1650nm
(with filter), up to 50dB MM: 850/1300nm, 21/24dB
* Fault locating, fiber length/loss measurement, connector/ splice/
splitter/ macro bend/fiber-end detection
* Built-in PON Power Meter for Triple-play live measurement
* Optional Stabilized Laser Source, SM/MM Power Meter and VFL FTTx
in-service testing/ Testing through splitter: (1625/1650nm with
filter)
* Splitter & fiber-end identifiable
* Auto/Manual(2-point/5-point)/Averaging/Real-time test
* Pass/Fail assessment and ORL test function
* Quick start: <5 seconds
* Excellent user interface, handheld & lightweight (1kg)
* Hotkeys: easy to use, push-and-test
* 1000 test records storage
* Bellcore file format (.sor)
* PC software for batch data processing
* USB data interface, driver-free
* Multiple languages: EN/DE/IT/FR/ES/PT/RU/KR/VN/CN etc.
* 8 hrs continuous operation/20 hrs standby
* Dust-shock proof (2mdrop test)
* CE, FCC, FDA certificates
¡¡ |
|
Specifications:
|
Model(1) |
Wavelength (¡À20nm) |
Dynamic Range(2) |
EDZ (m)(3) |
ADZ (m)(3) |
|
Basic |
Advanced |
|
palmOTDR-M20AE |
palmOTDR-M20AE-VPSI |
850/1300 |
21/24dB |
1.5 |
5 |
|
palmOTDR-S20AE |
palmOTDR-S20AE-VPSI |
1310/1550 |
32/30dB |
1.8 |
5 |
|
palmOTDR-S20BE |
palmOTDR-S20BE-VPSI |
1310/1550 |
35/34dB |
1.5 |
5 |
|
palmOTDR-S20C/N |
palmOTDR-S20C/N-VPSI |
1310/1550 |
40/38dB |
0.8 |
4.5 |
|
palmOTDR-S20D/N |
palmOTDR-S20D/N-VPSI |
1310/1550 |
45/43dB |
0.8 |
4.5 |
|
palmOTDR-S20F |
palmOTDR-S20F-VPSI |
1310/1550 |
50/48dB |
0.8 |
4.5 |
|
palmOTDR-S20C/P |
palmOTDR-S20C/P-VPSI |
1310/1490/1550 |
38/37/37dB |
0.8 |
4.5 |
|
palmOTDR-S20C/X |
palmOTDR-S20C/X-VPSI |
1310/1550/1625(4) |
38/37/37dB |
0.8 |
4.5 |
|
palmOTDR-P11C |
palmOTDR-P11C-VSI |
1625 |
37dB |
0.8 |
4.5 |
|
palmOTDR-P13C |
palmOTDR-P13C-VSI |
1650 |
37dB |
0.8 |
4.5 |
|
palmOTDR-P31C |
palmOTDR-P31C-SI |
1310/1550/1625(4) |
38/37/37dB |
0.8 |
4.5 |
|
Selectable Range (Km) |
0.1,0.3,0.5,1.3,2.5,5,10@850nm;
0.1,0.3,0.5,1.3,2.5,5,10,20,40,80@1300nm;
0.3,1.3,2.5,5,10,20,40,80,120,160,240@others |
|
Pulse Width |
10ns,30ns,100ns,300ns,1µs@850nm;
10ns,30ns,100ns,300ns,1µs,2.5µs@1300nm; 5ns,10ns,
30ns,100ns, 300ns,1µs,2.5µs,10µs,20µs@others |
|
Averaging Time |
Quick, 15s, 30s, 1min, 2min, 3min |
|
Distance Measure Accuracy |
¡À(1m+ 5x10-5 x distance+
sampling space) |
|
Attenuation Detect Accuracy |
¡À0.05 dB/ dB |
|
Reflection Detect Accuracy |
¡À4 dB |
|
Data Storage |
1000 records |
|
Connectivity |
USB |
|
Connector |
FC/PC (Interchangeable SC, ST) |
|
Power Supply |
NiMH Battery / AC Adapter |
|
Battery Life |
8 hrs continuous operation, 20
hrs standby (on one charge); recharging time < 4 hrs |
|
Operating Temperature |
-20¡ãC ~50¡ãC |
|
Storage Temperature |
-40¡ãC ~70¡ãC |
|
Relative Humidity |
0~95% (non-condensing) |
|
Weight |
1kg (2.2 lbs) |
|
Dimensions (H*W*T) |
220*110*70mm (8.7*4.3*2.7 inch) |
¡¡
OTDR series optional module:
|
Visible Fault Locator Module(5) |
|
Wavelength (¡À20nm) |
650nm |
|
Output Power (dBm) |
¡Ý-3 |
|
Max Measurement Range |
5 Km |
|
Stabilized Laser Source Module(5) |
|
Wavelength (¡À20nm) |
Same as OTDR working wavelength(5) |
|
Output Power (dBm) |
¡Ý-7 |
|
Optical Power Meter Module(5) |
|
Calibrated Wavelength (nm) |
850,1300,1310,1490,1550,1625 |
|
Power Range (dBm) |
-70 ~ +6 (-60 ~ +6 @ 850nm) |
|
Detector Type |
InGaAs |
|
Display Resolution |
0.01dB |
|
Accuracy |
¡À 5% ¡À 0.01nW (¡À0.5dB@850nm) |
|
MOD Identification |
1K, 2K Hz |
|
PON Power Meter Module(6) |
|
Calibrated Wavelength |
1310nm |
1490nm |
1550nm |
|
Measurement Range(dBm) |
-40 ~ +8 (Burst mode: -30 ~ +8) |
-40 ~ +8 |
-40 ~ +20 |
|
Spectral Passband (nm) |
1310¡À40 |
1490¡À10 |
1550¡À10 |
|
Power Uncertainty (dB) |
¡Ü 0.5 |
|
Display Resolution (dB) |
0.01 |
|
Insertion Loss (dB) |
¡Ü 1.5 |
|
Threshold |
60 user-definable threshold sets |
|
Data Storage |
1200 records |
|
MCI100 Optical Connector Inspector Module |
|
Zoom |
250X |
|
Resolution |
0.75¦Ìm |
|
Focus |
Manual |
|
Adaptor |
Standard: 25-U-M: FC/SC/ST/E2000 UPC
male; 125-U-M: LC/MU UPC male; 25-U-F: FC/SC/ST/E2000 UPC
female; LC-U-F: LC UPC female;
Optional: 125-A-M: LC/MU APC male;
25-A-M: FC/SC/ST/E2000 APC male; SC-A-F: SC APC female;
FC-A-F: FC APC female; LC-A-F: LC APC female; |
|
Weight / Size |
150g/ 165*38*35mm |
Notes:
(1) Specifications describe the instrument¡¯s warranted performance,
measured with typical PC-type connectors. Uncertainties due to the
refractive index of fiber are not considered.
(2) The dynamic range is measured at maximum pulse width and
averaging time of 3 minutes.
(3) Conditions for dead zone measurement: Reflection event is
at0.6Km, reflection intensity is less than -45dB, event dead zone is
measured with pulse width of 10ns; attenuation dead zone is measured
with pulse width of 10ns.
(4) 1625nm can be replaced by 1650nm.
(5) Visible fault locator module, Stabilized laser source module and
Optical power meter module is standard on -VPSI models. Stabilized
laser source shares OTDR series optical port and work on the same
working wavelength of OTDR series.
(6) PON power meter module is standard on P11C, P13C and P31C.
Ordering Information
Standard Package Includes:
Instrument, FC/PC connector, NiMH battery, TraceManager software CD,
USB Data cable, AC adaptor, Soft carrying case, Warranty card,
Certificate of calibration, Quick reference guide.
Options:
OTDR-XXXX-VPSI: Visible Fault Locator module , Optical Power Meter
module, Stabilized Laser Source module and Optical Connector
Inspector Module for OTDR series£»
MCI100 Module: Optical Connector Inspector
LM100 Function: LinkImage software |
|
¡¡ |
¡¡ |
|
¡¡
Network
Remote Control Module (optional)
* Convenient networking
* Remote control instrument operation
Optical Connector Inspector Module (optional)
* Focusing
knob for fast focus
* Eye-safe and clear video viewing
* Interchangeable connector tips
* Automatic Pass / Fail analysis based on IEC61300-3-35
Stabilized Laser Source Module (optional)
* Wavelength same as the OTDR
* High precision and easy operation
Optical Power Meter Module (optional)
* Multi-wavelength Calibration
* High Precision
* Convenient Operation
Applications
* Installation Stage
* Service Deployment
* Maintenance Stage |
MTP-200
series Hand-held High Performance OTDR
MTP-200
series are the compact multi-functional platform, which are
specially designed for FTTx/WAN applications and can meet the test
requirements of installers, contractors and service operators during
network installation, construction, maintenance and troubleshooting.
It is convenient and accurate for auto/manual testing,
multi-wavelength testing and multi-functional analysis.
Multi-Function and High Performance OTDR Testing
* Dynamic Range up to 50dB
* Short zone: EDZ 0.8m, ADZ 4.5m
* Auto/Manual test and analysis
* Multi-wavelength testing
* Visible laser source function
* In-Line test and through Splitter test(1625/1650nm with filter)
* OTDR Module up to four wavelengths, SM/MM Option
* Fault locating, fiber length/loss/return loss measurement,
connector/ splice/ splitter/ macro bend/fiber-end detection
* LAN/WAN/FTTx application
* GR-196-CORE (.SOR) file format
* SOR and JPG file format
* Flexible file Naming
Optimized Platform Performance
* Lightweight, 2.1kg
* 7 inch touch screen
* Excellent Man-Machine interface for easy operation
* Damp-dust-shock proof
* Optimized power management: 10 hours continuous operation
* Fast power up and off with Windows CE
* Direct printing function (compatible with PCL printers)
* Remote/local control by PC
MTP
Suite PC Software
* Multi traces analysis
* Single/multi traces printing in one report
* Batch editing and printing
* Bidirectional traces analysis
* CSV report formats
* Remote control function |
|
Specifications:
|
MTP-200 Series |
|
Display |
7 inch TFT Touch Screen (800*480) |
|
Connectivity |
USB*2; 10/100Mbit/s RJ-45*1 |
|
Memory |
2GB |
|
Power Supply |
Rechargeable Li-Ion Battery/AC
Adapter |
|
Battery Life |
10 hours continuous operation |
|
Working Temperature |
-20¡ãC - 50¡ãC |
|
Storage Temperature |
-40¡ãC - 60¡ãC |
|
Humidity |
0 - 95% (Non-Condensing) |
|
Weight |
2.1kg |
|
Dimensions (L*W*H ) |
290*175*75mm |
|
OTDR Module |
Wavelength (¡À20nm) |
Dynamic Range (dB)(1) |
EDZ (m) (2) |
ADZ (m) (2) |
|
MTP-200-20VC |
1310/1550 |
38/37 |
0.8 |
4.5 |
|
MTP-200-20VD |
1310/1550 |
45/43 |
0.8 |
4.5 |
|
MTP-200-20VF |
1310/1550 |
50/48 |
0.8 |
4.5 |
|
MTP-200-31VC |
1310/1550/1625 |
38/37/37 |
0.8 |
4.5 |
|
MTP-200-33VC |
1310/1550/1650 |
38/37/37 |
0.8 |
4.5 |
|
MTP-200-40VC |
850/1300/1310/1550 |
23/28/38/36 |
1.5 |
8/8/10/10 |
|
Selectable Range |
SM: 1.3, 2.5, 5, 10, 20, 40, 80,
160, 240Km MM: 1.3, 2.5, 5, 10, 20, 40Km |
|
Pulse Width |
SM:
5ns,10ns,30ns,100ns,300ns,1µs,2.5µs,10µs,20µs MM: 5ns,
10ns, 30ns, 1µs, 2.5µs |
|
Averaging Time |
Quick, 15s, 30s, 45s, 60s, 90s,
120s, 180s |
|
Emitter Type |
LD |
|
Connector |
FC/PC (Interchangeable SC, ST) |
|
Distance Measure Accuracy |
¡À(1m + 10-5 x distance +
sampling spacing) |
|
Attenuation Detect Accuracy |
¡À0.05 dB/dB |
|
Reflection Detect Accuracy |
¡À4 dB |
|
Visible Laser Source |
Output Power: ¡Ý -3dBm; MOD
Frequency: 1Hz; Detecting Range: 5Km |
|
MCI100 Optical Connector Inspector Module (Optional) |
|
Field of View |
400µm*300µm |
|
Resolution |
¡Ü1.5µm |
|
Focusing |
Manual Focus |
|
Microscope Dimensions |
Ø32*175mm |
|
LS100 Stabilized Laser Source (Optional) |
|
Wavelength (¡À20nm) |
Same as OTDR¡¯s |
|
Output Power |
¡Ý-7dBm |
|
PM100 Normal Power Meter Module (Optional) |
|
Calibrated Wavelength |
850nm,1300nm,1310nm,1490nm,1550nm,1625nm,1650nm |
|
Measurement Range |
-70dBm - +6dBm (-60dBm - +6dBm @
850nm) |
|
Detector Type |
InGaAs |
|
Display Resolution |
0.01dB |
|
Accuracy |
¡À 5% ¡À 0.01nW (¡À0.5dB@850nm) |
Notes:
(1)
Dynamic range measurement at 20µs pulse width and 180s averaging
time;
(2) Dead Zone measurement at 0.6Km and reflection <-45dB; EDZ
measurement at 5ns, ADZ measurement at 10ns.
Order Information
Standard Package
MTP-200 Host, Lithium Battery, CD (User Manual + PC Software), AC
adaptor, Carrying Case, Warranty card, Calibration Certificate,
Package Items List.
Optional Module
LS100: Stabilized Laser Source Module (as OTDR)
PM100: Optical Power Meter Module
MCI100: Optical Connector Inspector Module
RC100: Remote control Module
LM100: Link Image Module |
|
¡¡ |
¡¡ |
|
 |

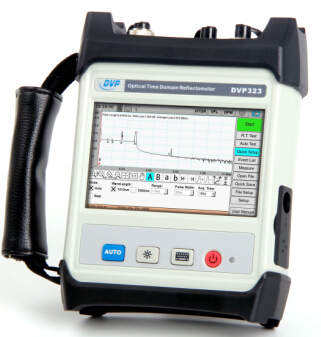

DVP-323 OTDR
Optical Time Domain Reflectometer (OTDR)
acquires and analyses the information of backscattering and
reflective light propagating in fiber, based on the light
backscatter and Fresnel reflection principle, to get the length,
loss, fault points, light return loss, connector loss and so on. It
is an essential tool for optical cable construction, deployment and
maintenance.
The DVP323 series is a high-performance portable OTDR presented in
2017. This series product adopts some new techniques such as touch
screen and real-time analysis. The optimized interface makes
operations more convenient. Meanwhile the OPM and VFL are standard
accessories. It is the best tool for fiber construction, deployment
and maintenance.
Features
1. 5 inch touch screen, 800*480 high dot array resolution.
2. Compact structure design, lighter, thinner and smaller.
3. Exceptional short distance performance; minimum 0.8m event dead
zone; minimum 4m attenuation dead zone.
4. Support 28dB to 36dB dynamic range of various application
demands.
5. Convenient and fast UE design.
6. Support OPM and VFL.
7. Complete data interfaces such as LAN, USB and so on. |
|
Specifications
|
Model |
Wavelength (nm) |
Dynamic Range (Db) |
Event Dead Zone (m) |
Attenuation Dead Zone (m) |
|
DVP323 |
1310¡À20/1550¡À20 |
34/32 |
<3m |
<25m |
¡¡
|
Distance range(Km) |
5m-160km |
|
Pulse width(ns) |
5ns~20¦Ìs (5ns, 10ns, 20ns, 50ns, 100ns,
200ns, 500ns, 1¦Ìs, 2¦Ìs, 5¦Ìs, 10¦Ìs, 20¦Ìs) |
|
Measurement time |
user-defined (smart link), with real-time
measurement function |
|
Distance accuracy(m) |
¡À (1m +0.001%*range + sampling
resolution) |
|
Attenuation accuracy |
¡À0.05dB/dB |
|
Loss limit(dB) |
0.01dB |
|
Loss resolution(dB) |
0.001dB |
|
Sampling resolution(m) |
0.1m |
|
Sampling points |
128000 |
|
Data storage |
3000 items |
Other Indicators
|
LCD type |
5 inch TFT colorized LCD |
|
Laser adapter |
FC/PC, SC/PC (option) |
|
Interface |
USB |
|
Battery |
built-in rechargeable Li-ion battery
charging time <4 hours working time >8 hours |
|
Power |
AC input: 100~240V, 600mA, 50/60Hz
DC output: 12.0V, 2A |
|
Operating temperature |
0¡ãC~40¡ãC |
|
storage temperature |
-20¡ãC~70¡ãC |
|
relative humidity |
<80% |
|
weight |
<1kg |
|
dimensions (mm) |
200*126*62mm |
|
