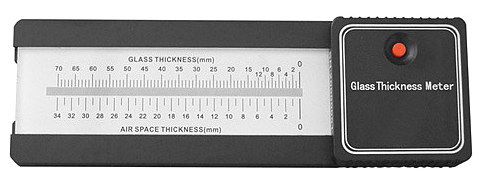

SR3800 Glass Thickness Meter

The SR3800 Glass Thickness Meter is mainly used on measuring glass and air space in insulated glass (IG), it also can measure individual panes of glass and the thickness of a glass bottle etc, special for those situations where common ruler can not easily do it.

Parameters:
1. Dimensions: 160mm*55mm*25mm(L*W*H)
2. Weigh: 250g
3. CR2032 battery 3V
4. Resolution: ±0.5mm
5. Range: Glass Thickness Scale 70mm, Air Space Scale 34mm

Feature:
1. Laser reflects on graduated scale to measure glass thickness and Air thickness
2. Measure Glass & Air Space (insulated glass) quickly from single side of IG Units

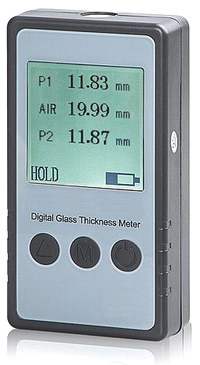

SR3810 Digital Glass thickness meter

The SR3810 Digital Glass thickness meter is mainly used on measuring glass and air space in insulated glass (IG), it also can measure individual panes of glass and the thickness of a glass bottle etc, special for those situations where common ruler can not easily do it.

Parameters:
1. Dimensions: 130mm*70mm*28mm(L*W*H)
2. Weigh: 200g
3. Resolution: ±0.2mm
5. Range: Glass Thickness Scale 60mm, Air Space Scale 35mm

Feature:
1. Laser reflects on CCD to measure glass thickness and Air thickness
2. Measure Glass & Air Space (insulated glass) quickly from single side of IG Units
3. Accuracy: ±0.2mm
4. Large LCD, simple operation, easy reading result value
