Infrared Power Meter

(Infrared Power Meter, IR Power Meter, IR transmission meter, Power Meter, Optical Power Density Meter, Optical Power Density Tester)

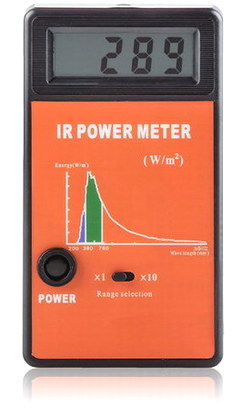

SR3722 Infrared Power Meter

The SR3722 meter is a wide range spectral wavelength power meter. It can be used for measuring the optical power density of infrared ray.

It is used for

Evaluating heat-insulating property of the tint of windows, solar films, glass and other transparent materials ;
Measuring optical power density of infrared ray, wavelength response (1000nm1700nm), gives visual and reliable result ;
Evaluating the efficient of solar equipment;

Parameter:
1. Accuracy: (4 %FS2digit) FS: Full scale
2. Infrared peak response wavelength is 1400nm, range (1000nm-1700nm)
3. Range: 1 (0-1999 W/m2); 10 (2000 -19990 W/m2, displayed value10)
4. Size: 125mm*68mm*22mm(L*W*H)
5. Weigh: about 110g
6. 9V alkaline battery, 6F22

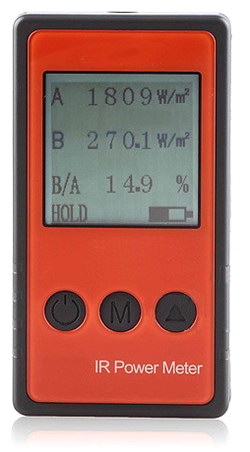

SR3727 IR Power Meter

The SR3727 Infrared Power meter is manufactured by Shanghai Total Meter Co., Ltd. It can be used for measuring the optical power density of infrared ray and automatically calculate the IR transmission value.

Feature:
1. IR transmission meter, IR power meter, two function in ONE device
2.Evaluating heat-insulating property of the tint of windows, solar films, glass and other transparent materials
3.measuring optical power density of infrared ray, wavelength response (1000nm1700nm), gives visual and reliable result
4.Large LCD, simple operation, easy reading result value

Parameter:
1. Accuracy: 4 %
2. Infrared peak response wavelength is 1400nm, range (1000nm-1700nm)
3. Range: 0-8000 W/m2
4. Size: 130mm*70mm*28mm(L*W*H)
5. Weigh: about 140g
6. Battery: 4 AAA alkaline batteries

 ( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )
