Rotating Evaporator

　

SRE-205, SRE-52AA Rotating Evaporator

　

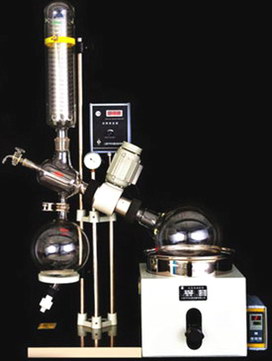

SRE-301, SRE-501 Rotating Evaporator

　

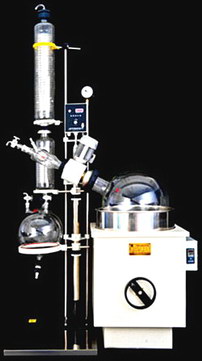

SRE-1002, SRE-2002, SRE-5002 Rotating Evaporator

　
　

Characteristics:
1. Motorized lift
2. Water or oil bath
3. Build in vacuum controller
4. With digital display and control
5. With vertical or diagonal condenser
6. Variable inclination angle of evaporating flask
7. Fitted and designed for controlling and communication by PC
Technical Data:

Model

SRE-205

SRE-52AA

SRE-301

SRE-501

SRE-1002

SRE-2002

SRE-5002

Rotary flask (L)

0.5-2

3

5

10

20

50

Collection flask (L)

1

2

3

5

10

20

Motor power (W)

40

60

120

180

Rotating speed (rpm)

3~120

3~110

3~90

Water bath power (kw)

1.5

2

3

5

Power supply

220V/50HZ

Bath temp control range(°C)

RT-199

RT-99

Sealing

PTFE sealing

Vacuum degree

<399.9pa

<133pa

　

( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )
