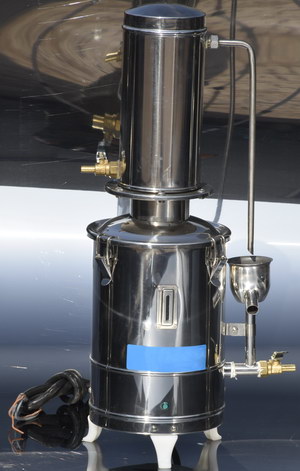

SRWD-Z68 series Electro-thermal
Distilling Apparatus
Summary of Use:
It applies in producing distilled water
in laboratories of fields of medical treatment, health care,
scientific research, chemical industry and colleges or universities.
Characteristics:
1. It adopts high quality stainless steel plate and made by stamping
and advanced welding technology.
2. Corrosion and ageing-resistant, simple-operating, stable
function, safety and durability.
Major technical parameter:
|
Model |
SRWD-Z685 |
SRWD-Z6810 |
SRWD-Z6820 |
|
Voltage (V) |
AC220V 50Hz |
AC380V 50Hz |
AC380V 50Hz |
|
Specification (L) |
5 |
10 |
20 |
|
Output quantity (L/H) |
5 |
10 |
20 |
|
Power (W) |
5 |
7.5 |
15 |
|
Overall dimension
(mm) (diameter*high) |
Φ220*750 |
Φ260*855 |
Φ320*970 |
|
NW (kg) |
5 |
6 |
9.2 |
|
Packing size (mm) |
350*360*820 |
355*360*900 |
370*540*745 |
|
GW (kg) |
8 |
10 |
13 |
|
|
 |

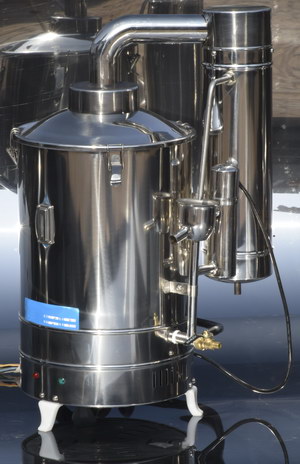

SRWD-Z5L series Water-break Auto control
Distiller
Summary of Use:
It applies in making distilled water in
laboratories of medical and health industry, chemical industry and
scientific research units.
Characteristics:
1. It adopts high quality stainless steel and manufactured in
advanced technology.
2. It has functions of water-deficient and power-off alarm and
automatic make up water and heat again.
3. With power, heating instructions and water display.
4. Adopts the working principle of the electrode to prevent
electrode fouling due to long working hours, lack of water power can
not function properly.
Major technical parameter:
|
Model |
SRWD-Z5L |
SRWD-Z10L |
SRWD-Z20L |
|
Voltage (V) |
AC220V 50Hz |
AC380V 50Hz |
AC380V 50Hz |
|
Specification (L) |
5 |
10 |
20 |
|
Output quantity (L/H) |
5 |
10 |
20 |
|
Power (W) |
5 |
7.5 |
15 |
|
Overall dimension (mm) (L*W*H) |
415*415*85 |
380*385*915 |
475*475*1030 |
|
NW (kg) |
6 |
7.5 |
11 |
|
NW (kg) |
9.5 |
10.5 |
13.5 |
|
