Laser Liner

(line laser, cross line laser, Cross Laser liner, Laser Liner, Gravity Pendulum multiline laser, Electronic sensor Multiline laser)


Gravity Pendulum multiline laser
SRLL299T Laser Liner
  (3D Line Laser)
Introduction:
1.Both Indoor & Outdoor available.
2.Provides Three Precise 360degree Full Plane Coverage in Both Horizontal and Vertical Operations.
3.Freestanding base with rubber bar-To stand more stably. Both 1/4 inch and 5/8th inch tripod

mounting.
4."Pulse" Laser Receiver Mode-Mode for use with laser receiver at long distances and/or in bright

light conditions.
5.90 horizontal and vertical bright red laser layout lines and gravity pendulum self-leveling system.
6.Self-levels and audible alarm indicates out-of level condition(2).
7.Secure transport lock protects pendulum when unit is switched off.
8.The laser lines can be locked when in use, can play as the role of ruler.

9. Laser auto-off when out of leveling range.

10. Emit four vertical lines and four horizontal lines,with down dot.
Specification:
Accuracy: 1.5mm/5m
Down dot accracy: 1mm/1.4m

cross accuarcy: 9030
Leveling Range 3

Self-leveling range:Approx. 24
Working Range/With Detector 15m/50m with detector
Tripod Thread 1/4" & 5/8"
Laser Type 635 nm, laser class II
Working temperature: -10C--45C
Storage Temperature -20C  to 60C
Dimension 162 x 79 x 127/mm3
Continuous Working Time (All Diodes) 5hour
Protection Class Spray Water/Dust IP44

Power supply: 4.8V-6V(4pcs AA alklaine batteries or Ni-Mh rechargeable batteries)

Standard accessories:protective glass,laser marker,batteries,Alum. Carrying case,belt

Gravity Pendulum multiline laser

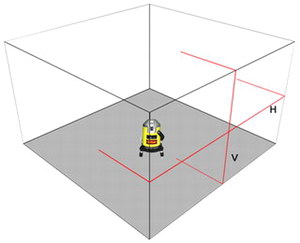

SRLL201 Laser Liner    (1V1H1D)


Specification:

Accuracy: 1mm/5m
Self-leveling range: 2.5
Output: <1mW ,class II
Working distance: Radius: approx.10m(indoors), Radius: approx.50m(using the detector)
Line laser wavelength :635nm*2; 650nm*1( Down point)
Safety Class: less than 1mw (Class II)
Working temperature:10C ~ 45C
Power:DC 4.5V(3 sections of 5# NI-MH rechargeable batteries)
working time: Approx.8 hoursAll diodes light
Dimension:90(Dia)* 190(H)mm
Weight:1.4kg

Gravity Pendulum multiline laser

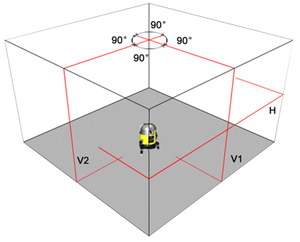

SRLL202 Laser Liner    (2V1H1D)


Specification:

Accuracy: 1mm/5m
Self-leveling range: 2.5
Working distance:Radius: approx. 10m (indoors),Radius: approx. 50m(using the detector)
Line laser wavelength:635nm*3( 2V & 1H): 650nm*1( Down point)
Working temperature:10C ~45C
Output: <1mW ,class II
Power: DC 4.5V (3 sections of 5# NI-MH rechargeable batteries)
Continuously working time: Approx.8 hours (All diodes light)
Dimension:140(Dia) * 185(H)mm
Laser class:Class II
Weight: 1.9kg

Gravity Pendulum multiline laser

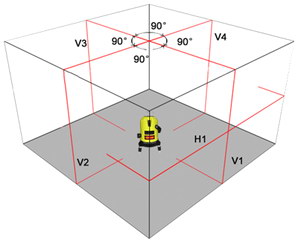

SRLL203 Laser Liner    (4V1H1D)


Specification:

Accuracy 1mm/5m or 40sec
Self-leveling range: 2.5
Working distance:Radius: approx. 10m (indoors),Radius: approx. 50m(using the detector)
Line laser wavelength:635nm5( 4V & 1H); 650nm1( Down point)
Working temperature:10
C~45C
Output <1mW ,class II
Power: DC 4.5V (3 sections of 5# NI-MH rechargeable batteries)
Continuously working time: Approx.6 hours (All diodes light)
Dimension 185mm*120mm(Dia)
Laser class:Class II
Weight: 1.4kg

Gravity Pendulum multiline laser

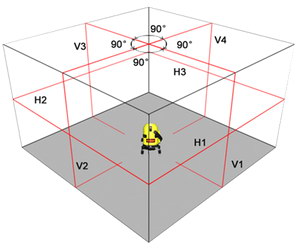

SRLL205 Laser Liner    (4V3H1D)

Specification:

Accuracy: 1mm/5m or 40sec
Self-leveling range: 2.5

Working distanceRadius: approx.10m(indoors),Radius: approx.50m(using the detector)
Line laser wavelength635nm7( 4V & 3H); 650nm1( Down point)
Working temperature10
C~45C
Power: DC 4.5V (3 sections of 5# NI-MH rechargeable batteries)
Continuously working time: Approx.6.5 hours (All diodes light)
Output: <1mW ,class II
Working Time: About 7hours = All Lasers
Dimension: 100(Dia)X200(H)mm
Weight: 1.48kg

Gravity Pendulum multiline laser

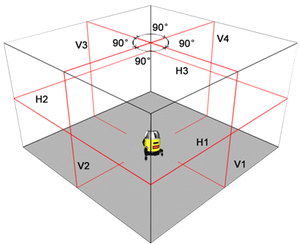

SRLL206 Laser Liner    (4V3H1D)

Specification:

Accuracy: 1mm/5m or 40sec
Self-leveling range: 2.5
Working distance: Radius: approx.10m(indoors),Radius: approx.50m(using the detector)
Line laser wavelength: 635nm7( 4V & 3H); 650nm1( Down point)
Working temperature:10
C~45C
Output: <1mW ,class II
Power: DC 4.5V (3 sections of 5# NI-MH rechargeable batteries)
Continuously working time: Approx.5 hours (All diodes light)
Dimension: 200mmx150mm(Dia)

Weight: 1.5kg

Electronic sensor Multiline laser

SRLL208 Laser Liner    (3D Line Laser)

Introduction:
Adopt self-leveling (sensor leveling), high accuracy and high stability.
Emit four vertical lines and four horizontal lines, with down dot
Laser auto-off when out of leveling range.
Both indoor and outdoor.
Specification:

Accuracy: 1.5mm/5m
Down dot accracy: 1mm/1.4m
cross accuarcy: 9030

Self-leveling range: Approx. 2
Wavelength: 635nmx6(V) + 635nmx4(H)+645nm x1(D)
Output: <1mW ,class II
Power supply: 4.8V-6V (4pcs AA alklaine batteries or Ni-Mh rechargeable batteries)

Working temperature:-10C ~45C
Working Time: About 5.5hours = All Lasers
Working Distance: With a radius of up to 10m (50m with detector)
Dimension: 230mm * 160mm(Dia)

Standard accessories: protective glass, laser marker, batteries, Alum. Carrying case, belt

Gravity pendulum Multiline laser

SRLL209 Laser Liner (4V1H1D)  (Green)

Specifications:

Accuracy

1mm/5m or 40sec

Leveling theory

Gravity pendulum

Dimension

190*120/mm (Dia)

Net Weight

1.1kg

Battery type

1700mAh 7.4V Li-ion battery

Other power supply

Standard Charger for Lithium-ion battery

Continuous working (hr)

3.5

Leveling range

+/-3

Diode power

7mw

Working distance

20m/70m with detector

Output power

Less than 1mw, laser class II

Laser source

532nm Pump Diode (Down point 650nm)

Working Temperature

0C-40C

Standard Packaging

Plastic Carry Case, goggle, laser target, charger, belt

Note: Please indicate the laser color you need when you place an order.

Electronic sensor Multiline laser

SRLL210 Laser Liner

Specifications:

Laser lines

4V4H1D (Red beam)

4V4H1D (Green Beam)

Accuracy

 1mm/10mor 20sec

 1mm/10mor 20sec

Leveling theory

Electronic sensor

Electronic sensor

Dimension

200mm x130mm(Dia)

200mm x130mm(Dia)

Weight (Laser only)

1.8kg

1.8kg

Battery type

3.7V 5400mah Li-ion

7.4V 2700mah Li-ion

Continuous working

8hours

5hours

Leveling range

+/-4

+/-4

Diode power

20mw

7mw

Working distance

20m/80mwith detector

20m/80mwith detector

Output power

Less than 1mw, Laser class II

1mw-5mw,Laser class 3R

Laser source

635nm Diode (Down point 650nm)

535nm Diode (Down point 650nm)

LP40 cross line laser

Features:

The LP-40 Cross Line Laser is classified as a Class III laser product.

Three V-lines, a horizontal line and a floor point are projected in one pass.
Magnetic damping compensator ensure more quick self-leveling.
When the instrument inclines over 2, the laser line gleams automatically to issue an alarm.
Fine adjustment rotation mechanism makes it easier to find objects correctly.

The instrument has Indoor/ Outdoor switch function.

Built-in locking system can lock the compensator automatically when turning off the power to avoid vibration in transportation.

Specification

Items

Parameters

Irradiating laser

Horizontal line/Three vertical line( every 90)/Floor point

Light sources

Four 635nm laser diode/floor point 650 nm

Laser safety class

Class IIIa, a>1mW&<5mW

Accuracy

2mm at a distance of 10 m

Self-leveling range

3

Working range

Up to 10m dependent upon illumination of work area

Sensitivity of circular level

120/2mm

Incline alarm range

2

Fine adjustment range

Approx. 5

Power supply

3AA size rechargeable Batteries (1500mA/h) or 3AA size alkaline batteries

Continuous operating time

8h

Tripod Mount

5/811 or M16

operating temp

-10C~40C

Dimensions

85*165mm

Weight

0.9kg



LP41 cross line laser

Use range

    Outside door and inside: For outside door and inside horizontal and vertical survey. It suits for construction, building, measure. smooth, ceiling, subarea, pipeline paving and so on. It is also suit for numerous workers to operate together.


Specification

Items

Parameters

Irradiating laser

Down point/one horizontal line/four vertical lines

Light sources

635nm(5mW/10mW)laser diode/650nm(down point)

Output power

1mW

Vertical accuracy

1mm/5m

Horizontal accuracy

1mm/5m

Down point accuracy

1mm/2m

Cross accuracy

0.01

Angle of horizontal line

110

Angle of vertical line

120

Self-leveling method

Magnetic damping system

Self-leveling range

3

Incline alarm range

3

Fine adjustment range

3

Self-leveling time

4s

Working range

Up to 10m or Up to 40m(with detector

Power supply

4.5V

Continuous operating time

8h

operating temp

-10C~40C

Dimensions

905090mm

Weight

290g

LP50 cross line laser

Features:

The LP-50 Cross Line Laser is classified as a Class III laser product.

Four V-lines (vertical lines, floor lines, ceiling lines and a four-direction right angle intersection), a horizontal line and a floor point are projected in one pass.
Magnetic damping compensator ensure more quick self-leveling.
When the instrument inclines over 2, the laser line gleams automatically to issue an alarm.
Fine adjustment rotation mechanism makes it easier to find objects correctly.

The instrument has Indoor/ Outdoor switch function.

Built-in locking system can lock the compensator automatically when turning off the power to avoid vibration in transportation.

Specification

Items

Parameters

Irradiating laser

Horizontal line/Four vertical line( every 90)/Floor point

Light sources

Five 635nm laser diode/floor point 650 nm

Laser safety class

Class IIIa, 1mW

Accuracy

2mm at a distance of 10 m

Self-leveling range

3

Working range

Up to 10m dependent upon illumination of work area

Sensitivity of circular level

60/2mm

Incline alarm range

2

Fine adjustment range

Approx. 360

Power supply

3AA size rechargeable Batteries (1500mA/h) or 3AA size alkaline batteries

Continuous operating time

8h

Tripod Mount

5/811 or M16

operating temp

-10C~40C

Dimensions

9.1X8.7X10.6 (Inches)/ 230X220X270 (mm)

Weight

1.66kg

LP60 cross line laser

Use range

Partition-work, framework, marble and brick construction

Fitment, ceiling, floor and office construction of woodworker

Ceiling fitment, water and electricity work, air-condition setting, fire control and roadway building

It suits for all kind of construction work which need horizontal and vertical lines


Specification

Items

Parameters

Irradiating laser

Down point/two horizontal lines/four vertical lines

Light sources

635nm(5mW/10mW)laser diode/650nm(down point)

Output power

1mW

Vertical accuracy

1mm/5m

Horizontal accuracy

1mm/5m

Down point accuracy

1mm/2m

Cross accuracy

0.01

Angle of horizontal line

200

Angle of vertical line

120

Self-leveling method

Magnetic damping system

Self-leveling range

3

Incline alarm range

3

Fine adjustment range

360

Self-leveling time

4s

Working range

Up to 10m or Up to 40m(with detector

Power supply

4.5V

Continuous operating time

8h

operating temp

-10C~40C

Dimensions

Dia122217mm

Weight

1.8kg

LP80 cross line laser

Features

Four horizontal lines/Four vertical lines/One down point

Laser lines flickering

Accuracy 1mm/7m

Revolve around degree 360

Electronic automatic leveling ensures more quick self-leveling

Continuous operating time 8hours

Use range

Partition-work, framework, marble and brick construction

Fitment, ceiling, floor and office construction of woodworker

Ceiling fitment, water and electricity work, air-condition setting, fire control and roadway building

It suits for all kind of construction work which need horizontal and vertical lines


Specification

Items

Parameters

Irradiating laser

Down point/four horizontal line/four vertical lines

Light sources

Visible red diode

Wave length

635nm650nm(Down point)

Output power

1mW

Power supply

DC 6V4XXAA Size Alkaline Batteries

Working range

Up to 10m or Up to 40m(with detector

Self-leveling range

3

Incline alarm range

3

Self-leveling time

4s

Revolve around degree

360

Fine adjustment range

5

Vertical accuracy

1mm/7m

Horizontal accuracy

1mm/7m

Cross accuracy

0.01

Self-leveling method

Magnetic damping system

Continuous operating time

8hours

Out-of-level warning

Laser lines flickering

operating temp

-10C~40C

Dimensions

Dia92200mm

Weight

1.7kg

Items included in standard package: Cross line laser, instruction manual, aluminum alloy carry case and one pair of laser glasses.

 ( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )
