magnetic-stirrer

(Digital magnetic stirrer, permanent magnetic stirrer, electromagnetic stirrer, portable magnetic stirrer, electric magnetic stirrer, cartoon magnetic stirrer)

Ultra silim 12mm, light and easy to carry with

MS132D Ultra-thin Magnetic Stirrer

Product highlights
1. Original design for elegant and smooth operation with simple touch and slide on finger tip
2. LCD displaying real time parameters

3. Clockwise/Counter Clockwise stirring ensure better stirring
4. Advance wear free magnetic coil technology, thinner, lighter, quieter
5. Timer for stirring
6. High protection level (IP65)

7. CE certificate

Technical Data
Maximum stirred quantity(H2O)	1L
Motor rating output	3W
Rotation Speed range	20 – 1500rpm
Reverse of rotation direction	45 seconds
Timer	0 – 9 hour
Display	LCD
Stirring bar length range	20 – 30mm
Plate material	polyester
Plate Dimensions	Ø100mm
Dimensions (W * H * D)	11018012mm
Weight	0.2kg
Power adapter Input	100 – 240V,~50/60Hz
Power adapter Output	DC 12V, 1A
Permissible ambient temperature	5 – 40 °C
Permissible relative moisture	80%
IP protection class (DIN EN 60529)	IP 65

Maximum joint position up to 10 stirrers

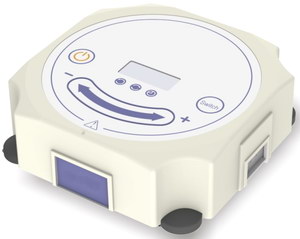

MS152D (control) Modular Multi-position Magnetic Stirrer

Product highlights

1. Assembled(modular) magnetic stirrers. The stirrer units can be added or reduced freely,

and the shape/direction of combination can be adjusted as you desired

2. Convenient USB interface design enable simple and prompt plug in/out

3. Original design for elegant and smooth operation with simple touch and slide on finger tip

4. Light emitting edge circle on the plate leads to accurate position

5. Clockwise/Counter Clockwise stirring ensure better stirring

6. LCD displaying real time parameters

7. Chemical corrosion-resistant glass plate

8. Timer for stirring

9. CE certificate

Technical Data	MS152D
Rotation Speed range	100 – 1500rpm
Reverse of rotation direction	45 seconds
Timer	0 – 9 hour
Display	LCD
Dimensions (W * H * D)	10910936mm
Weight	0.16kg
Power adapter Input	100 – 240V, ~50/60Hz
Power adapter Output	DC 12V, 1A
Permissible ambient temperature	5 – 40 °C
Permissible relative moisture	80%
IP protection class (DIN EN 60529)	IP 44

Notice: The control unit should work with at least one stirrer unit to make a complete set.

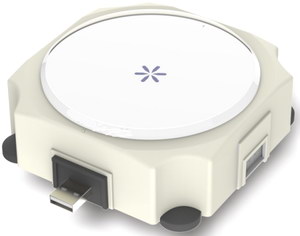

MS150 (stirrer) Modular Multi-position Magnetic Stirrer

Product highlights

1. Assembled(modular) magnetic stirrers. The stirrer units can be added or reduced freely,

and the shape/direction of combination can be adjusted as you desired

2. Convenient USB interface design enable simple and prompt plug in/out

3. Original design for elegant and smooth operation with simple touch and slide on finger tip

4. Light emitting edge circle on the plate leads to accurate position

5. Clockwise/Counter Clockwise stirring ensure better stirring

6. LCD displaying real time parameters

7. Chemical corrosion-resistant glass plate

8. Timer for stirring

9. CE certificate

Technical Data	MS150
Maximum stirred quantity(H2O)	0.5L
Motor rating output	1W
Rotation Speed range	100 – 1500rpm
Stirring bar length range	20 – 30mm
Plate material	Glass
Plate Dimensions	Ø92mm
Dimensions (W * H * D)	109122 40mm
Weight	0.3kg
Permissible ambient temperature	5 – 40 °C
Permissible relative moisture	80%
IP protection class (DIN EN 60529)	IP 44

MS112E LCD Display Magnetic Stirrer (without Heating)

Product highlights
1. Innovative touch and slide control panel ultimately avoid liquid outflow damage through knob-panel interspaces
2. Store stirring bar in socket to prevent unexpected lose
3. Clockwise/Counter Clockwise stirring ensure better stirring
4. Display all setting and parameter via LCD screen
5. Brushless motor ensure longer working life
6. High magnetic adhesion
7. Highly polished mirror stainless steel plate

8. CE certificate

Technical Data
Maximum stirred quantity(H2O)	20L
Motor rating output	5W
Rotation Speed range	100 – 1800rpm
Reverse of rotation direction	45 seconds
Timer	0 – 9 hour
Display	LCD
Stirring bar length range	20 – 80mm
Plate material	304 stainless steel
Plate Dimensions	Ø135mm
Dimensions (W * H * D)	17527076mm
Weight	2.5kg
Voltage & Frequency	220V,~50/60Hz
Power input	30W
Permissible ambient temperature	5 – 40 °C
Permissible relative moisture	80%
Protection class (DIN EN 60529)	IP 42

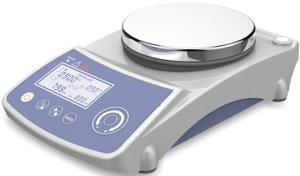

MS114E LCD Display Heating Magnetic Stirrer

MS117E LCD Display Heating Magnetic Stirrer

Product highlights
1. Twice PID control power adjustment system ensure heated liquid reach setting temperature rapidly and then maintain a stable status
2. Innovative touch and slide control panel ultimately avoid liquid outflow damage through knob-panel interspaces
3. Store stirring bar in socket to prevent unexpected lose
4. Additional temperature control circuit ensure temperature stability in case one of the circuits malfunctions
5. Dual temperature protect system supervised both by software and hardware to prevent safety temperature overrun
6. Integrated temperature sensor precisely control heating plate temperature
7. Adjustable safety temperature setting accompany by digital display and prevention of unexpected setting change
8. Keyboard lockable to prevent unexpected operation to change the working status
9. Hot surface warning remain highlighted even when switch off to better prevent burns
10. Clockwise/Counter Clockwise stirring ensure better stirring
11. Display all setting and parameter via LCD screen
12. Brushless motor ensure longer working lif

13. CE certificate

Technical Data	MS114E	MS117E
Maximum stirred quantity(H2O)	20L	20L
Motor rating output	5W	5W
Rotation Speed range	100 – 1800rpm	100 – 1800rpm
Reverse of rotation direction	45 seconds	45 seconds
Heat output	300W	300W
Heating rate (1L H2O)	3.5 °C/min	3.5 °C/min
Plate temperature setting range	RT – 260 °C	RT – 260 °C
Sensor temperature setting range	RT – 160 °C	RT – 160 °C
Heating plate control accuracy	+/-5 °C	+/-5 °C
External connected temperature sensor (Standard)	Pt1000( Heat control accuracy +/-1 °C)	Pt1000( Heat control accuracy +/-1 °C)
Timer	―	0 – 9 hour
Display	LCD	LCD
Stirring bar length range	20 – 80mm	20 – 80mm
Heating plate material	Stainless steel	Stainless steel
Heating plate Dimensions	Ø135mm	Ø135mm
Dimensions (W * H * D)	17527076mm	17527076mm
Weight	2.6kg	2.6kg
Voltage & Frequency	220V,~50/60Hz	220V,~50/60Hz
Power input	330W	330W
Permissible ambient temperature	5 – 40 °C	5 – 40 °C
Permissible relative moisture	80%	80%
Protection class (DIN EN 60529)	IP 42	IP 42

Efficient composite heating plate

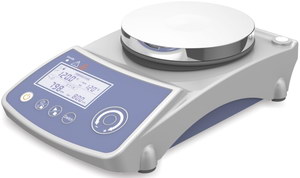

MS115E LCD Display Heating Magnetic Stirrer

MS118E LCD Display Heating Magnetic Stirrer

Product highlights

1. Twice PID control power adjustment system ensure heated liquid reach setting temperature rapidly and then maintain a stable status

2. Innovative touch and slide control panel ultimately avoid liquid outflow damage through knob-panel interspaces

3. Store stirring bar in socket to prevent unexpected lose

4. Additional temperature control circuit ensure temperature stability in case one of the circuits malfunctions

5.Dual temperature protect system supervised both by software and hardware to prevent safety temperature overrun

6. Integrated temperature sensor precisely control heating plate temperature

7.Adjustable safety temperature setting accompany by digital display and prevention of unexpected setting change

8. Keyboard lockable to prevent unexpected operation to change the working status

9. External connected contact thermometer (KES-061F) enables precise temperature control

10. Hot surface warning remain highlighted even when switch off to better prevent burns

11. Clockwise/Counter Clockwise stirring ensure better stirring

12. Display all setting and parameter via LCD screen

13. Brushless motor ensure longer working life

14. CE certificate

Technical Data	MS115E	MS118E
Maximum stirred quantity(H2O)	20L	20L
Motor rating output	5W	5W
Rotation Speed range	100 – 1800rpm	100 – 1800rpm
Reverse of rotation direction	45 seconds	45 seconds
Heat output	600W	600W
Heating rate (1L H2O)	6.5 °C/min	6.5 °C/min
Plate temperature setting range	RT – 340 °C	RT – 340 °C
Sensor temperature setting range	RT – 320 °C	RT – 320 °C
safety temperature	50 – 360 °C	50 – 360 °C
Heating plate control accuracy	+/-5 °C	+/-5 °C
External connected temperature sensor (Standard)	Pt1000( Heat control accuracy +/-1 °C)	Pt1000( Heat control accuracy +/-1 °C)
External connected contact thermometer (Optional)	KES-061F( Heat control accuracy +/-0.5 °C )	KES-061F( Heat control accuracy +/-0.5 °C )
Timer	―	0 – 9 hour
Display	LCD	LCD
Stirring bar length range	20 – 80mm	20 – 80mm
Heating plate material	Aluminum alloy	Aluminum alloy
Heating plate Dimensions	Ø135mm	Ø135mm
Dimensions (W * H * D)	17527076mm	17527076mm
Weight	2.6kg	2.6kg
Voltage & Frequency	220V,~50/60Hz	220V,~50/60Hz
Power input	630W	630W
Permissible ambient temperature	5 – 40 °C	5 – 40 °C
Permissible relative moisture	80%	80%
Protection class (DIN EN 60529)	IP 42	IP 42

MS188 Compact Magnetic Mini-Stirrer

Product description:
1) Compact design; Easy to handle, these lightweight and compact stirrers need little room and are quickly recognizable on busy benches
2) Adjustable stirring speed functions: flexible speed adjustment, using control buttons, multi-speed
3) Timing mixing function: 4 files regular time (30,60,90 minutes and without timer)
4) 25 degrees Celsius reminder function: Connect the temperature sensor, the measured solution reaches 25 degrees Celsius, the automatic alarm to remind the user can perform the corresponding operation
5) AC-DC, a battery low voltage alarm function.
6) It can be carry and field use.
7) Configuring strut and the electrode holder, It can be as Agitation type Electrode stand to use.

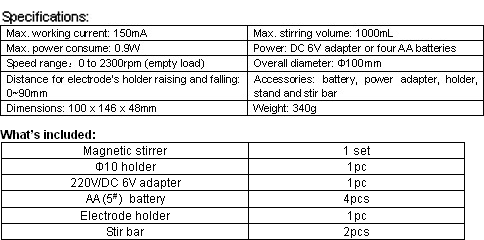

Specification:

Speed Range	0~2300 rpm
Maximum Stirring Capacity	1000ml
Dimensions for working area	100mm x 100mm
Environment	0~50°C
Timing Range	0~90 minutes
Maximum Operating Current	150mA
Maximum Power Consumed	0.9W
Installing Size	Φ16mm and Φ13mm
Space for up and down	0~250mm
Power Supply	DC6V or 4×1.5V( AA Batteries)
Dimensions	100 x 146 x 48 mm
Weight	340g

(Cartoon)

(Star)

(Tool)

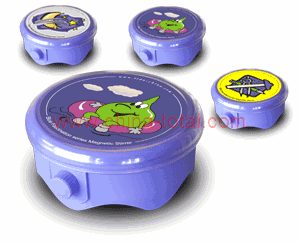

MS100 CARTOON MAGNETIC STIRRER
MS100 cartoon magnetic stirrer with beautiful colour can make your lab colourful. The stirrer is designed with motor and magnet, the speed is the range of 0to 1250rpm. It can make static solution begin to stir in very short time.
　
What's included: Stir bar

Specification:

Model	MS100
Maximum Stirring Volume	0~2000mL
Stirring Speed Range	0~1250RPM
Top Plate Size	Dia.145mm
Panel Material	Engineering Plastic
Pattern	Cartoon / Tool / Star
Stir Bar's Dimensions	30(L)×Dia.7mm
Power Requirements	220VAC (110VAC)/50Hz
Dimensions	185(Dia.)×75(H)mm
Weight	1.5kg

MS200 Magnetic Stirrer

Microprocessor-Based:

MS200 magnetic stirrer is designed in high performance

digital circuit and CPU.

Digital Speed Control:
The stirrer is press-key designed to adjust speed, which prevent the stirring bar from stopping. The indicator display the stirrer's motor speed.

What's included: Stir bar

Specifications:

Model	MS200
Maximum Stirring Volume	0~2000mL
Stirring Speed Range	0~1250RPM
Top Plate Size	135mm×135mm
Panel Material	Steel
Timer	999 minutes
Stir Bar's Dimensions	30(L)×Dia.7mm
Power Requirements	220VAC/50Hz
Dimensions	230(L)mm×180(W)mm×120(H)mm
Weight	2.7kg

MS300/400 HOT PLATE MAGNETIC STIRRER

Microprocessor-Based:
MS300/400 hot plate magnetic stirrer is designed in high performance digital circuit and CPU, The maximum temperature can be up to the range of 300 to 400^oC.

Digital Speed Control:
The stirrer is press-key designed to adjust speed, which prevent the stirring bar from stopping. The indicator display the stirrer's motor speed.

Setup:
MS300/400 can set object temperature, hold temperature, stirring time and other parameter that make your work easy.

Automatic Temperature Control:
Connecting the temperature sensor into the stirrer, so that it can measure temperature and control object temperature, the accuracy is 1^oC.
　
What's included: Stir bar, temperature probe

Specification:

Model	MS300	MS400
Maximum Stirring Volume	0~2000mL	0~2000mL
Stirring Speed Range	0~1250RPM	0~1250RPM
Top Plate Size	135mm×135mm	135mm×135mm
Panel Material	Steel
Temperature	0 to 300^oC	0 to 400^oC
Accuracy	+/-1^oC (<100^oC),+/-3^oC (<400^oC)
Timer	999 minutes
Stirring Bar's Dimensions	30(L)×Dia.7mm
Power Requirements	220VAC (110VAC)/50Hz
Dimensions	230(L)mm×180(W)mm×120(H)mm
Weight	2.7kg

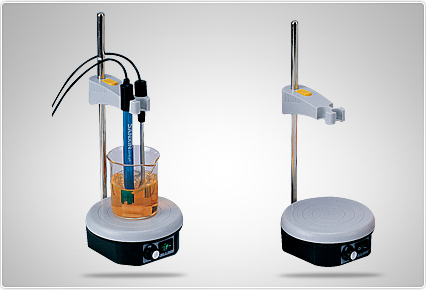

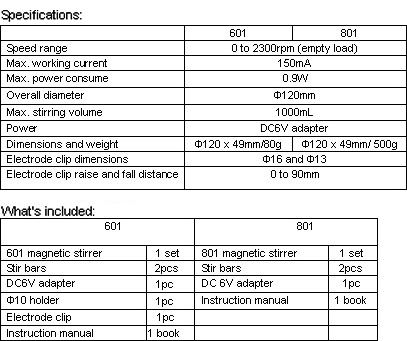

MS601

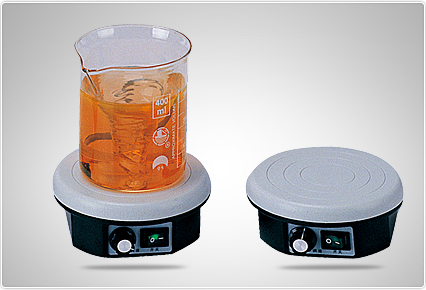

MS801

Detailed Product Description

1) Adopts ABS plastic housing, beautiful appearance and easy to use

2) Adopts precision DC electrical machinery, stable rotation and none grade speed adjustment

3) Equipped with stir bars and DC 6V power adapter

4) Equipped with holder and clip, can be used as stirring type electrode holder (model MS601 only)

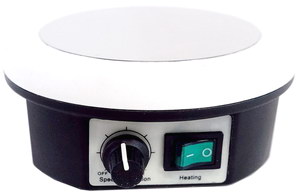

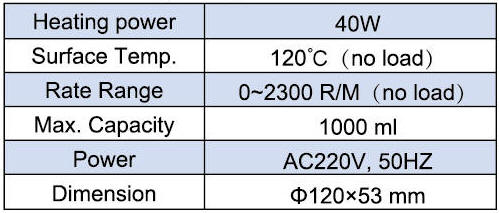

MS802 Heating Magnetic Stirrer

Detailed Product Description

* Safe, Reliable & Economical choice for a small magnetic heating stirrer/mixer
* Smooth speed control (0 to 2300 RPM, Max. stirring capacity: 1000ml)
* Heating the stirring surface to 120°C (248°F) within 5 minutes at fixed power
* The overheating protection makes sure the heating stops when the surface temperature exceeds 150°C (302°F)
* Two-year warranty and CE Certified

MS901

Detailed Product Description

1) Adopts the microprocessor chip design; Rotate speed can be adjusted automatically; Just need to press the "RPM" button

2) Adopts ABS plastic housing, transparent coping design and beautiful appearance

3) Waterproof meter case meets IP 67 standards, can stir in moisture environment or in water

4) Two kinds of choices from AC/DC, portable product can be used in the field, water and incubator and online

5) Low battery (<5V) and consumption indicator

6) Special electrode holder, easy to raise and fall, more convenient to use; It can be used for titration analysis or testing, as a stirring type electrode stand

Remarks:

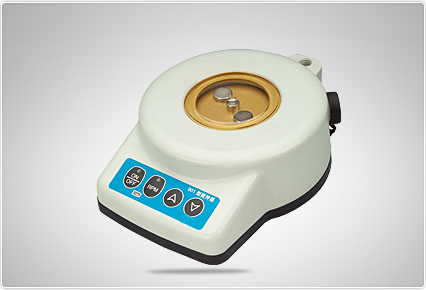

Picture 1: model 901 magnetic stirrer and standard accessories

Picture 2: can be used in water

( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@163.com )
