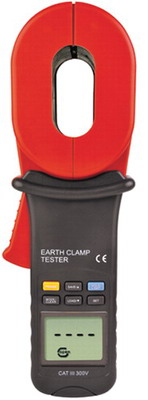

CLAMP-ON GROUND RESISTANCE METER



( ground resistance clamp on meter, ground resistance clamp-on meter, clamp-on ground resistance meter, clamp on ground resistance meter, earth resistance clamp on meter, earth resistance clamp-on meter, clamp on earth resistance meter, clamp-on earth resistance meter, Digital Clamp On Meter, Digital Clamp-On Meter, Digital Clamp Multimeter )





SRT273 & SRT275 Clamp Earth Ground Testers

SPECIFICATIONS

Basic Functions

Range

Best Accuracy

Model



SRT273 SRT275

Earth Ground Resistance

0.01~0.099Ω

±(1%+0.01)

±(1%+0.01)

0.1~0.99Ω

±(1%+0.01)

±(1%+0.01)

1.0~49.9Ω

±(1.5%+0.1)

±(1.5%+0.1)

50~99.5Ω

±(2%+0.5)

±(2%+0.5)

100~199Ω

±(3%+1)

±(3%+1)

200~395Ω

±(10%+5)

±(10%+5)

400~590Ω

±(20%+10)

±(20%+10)

600~1000Ω

±(25%+20)

±(25%+20)

Leakage Current

0.00~299mA



±(2.5%+2mA)

0.30~2.99A

±(2.5%+100mA)

3.00~30.0A

±(2.5%+300mA)

Special Functions







Display Count



9999

9999

Auto Range



Yes

Yes

Jaw Capacity



28mm

28mm

Auto Power Off   Yes Yes
Low Battery Indication   < 5.2V < 5.2V
Data Hold   Yes Yes
Data Logging   30 30
Data Recall   Yes Yes
LCD Backlight   Yes Yes

Auto Calibration



Yes

Yes

Resistance Limit Alarm



Yes

Yes

GENERAL CHARACTERISTICS

Power

1.5V Alkaline Batteries (LR6) x 4

LCD Size

47 x 28.5 mm

Product Colour

Red and Grey

Product Net Weight

1320g

Product Size

293 x 90 x 66mm

Standard Accessories

Test Ring, Tool Box

Standard Individual Packing

Gift Box, English Manual

Standard Quantity Per Carton

5 pcs

Standard Carton Measurement

495 x 368 x 310mm (0.057CBM Per Standard Carton)

Standard Carton Gross Weight

16kg

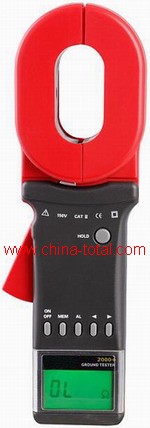

MODEL: Earth Resistance Tester SRT2000+  CE

1. Brief Introduction
SRT2000+ Earth Resistance Tester is widely used in the grounding resistance measurement of the power, telecommunications,    meteorology, oilfield, construction and the industrial and electrical equipment.
SRT2000+ Earth Resistance Tester, in the measurement of a grounding system with loop current, does not require breaking down the grounding wire, and need no auxiliary electrode. It is safe, fast and simple in use.
SRT2000+ Earth Resistance Tester can measure out the faults beyond the reach of the traditional methods, and can be applied in the occasions not in the range of the traditional methods.
SRT2000+ Earth Resistance Tester can measure the integrated value of the grounding body resistance and the grounding lead resistance.


2. Technical specifications

Range

0.01-1200Ω

Resolution

0.001Ω

Sound and light alarm

"beep - beep - beep -" alarm sound, Flashing alarm symbol, By AL key to open, close, set

LCD

4-digital LCD, 47×28.5mm in length

Working temperature

-20ºC -55ºC

Relative Humidity

10%-90%

Explosion-proof mark

Exia Ⅱ BT3

Shift

Automatic Shifting

External Magnetic Field

<40A/m

External Electric Field

<1V/m

Single Measurement Time

0.5 second

Resistance Measurement Frequency

>1KHz

The Measured Current Frequency

50/60Hz Automatism

Storable Measurement Data

99groups

Setting Range of Resistance Alarm Critical Value

1-199 Ω

Protection Level

Double insulation

Structural Feature

In the jaw way CT

Power Source

6VDC (4×5# alkaline battery)

Span of Jaw

28mm

Net Weight (including batteries)

1160g

Dimension

285mm long, 85mm wide,56mm thick

RS232 Interface (Optional)

The data stored in the meter are uploaded to the computer through RS232 interface and data wire, Then generate report files

Accessories

Meter:1 PCS; Test Ring:1 PCS; Meter Box:1 PCS

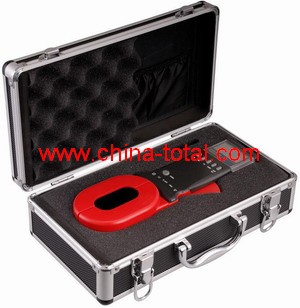

MODEL: Earth Resistance Tester SRT2000A+ CE

1. Brief Introduction
SRT2000A+ Earth Resistance Tester is widely used in the grounding resistance measurement of the power, telecommunications, meteorology, oilfield, construction and the industrial and electrical equipment.
SRT2000A+ Earth Resistance Tester, in the measurement of a grounding system with loop current, does not require breaking down the grounding wire, and need no auxiliary electrode. It is safe, fast and simple in use.
SRT2000A+ Earth Resistance Tester can measure out the faults beyond the reach of the traditional methods, and can be applied in the occasions not in the range of the traditional methods.
SRT2000A+ Earth Resistance Tester can measure the integrated value of the grounding body resistance and the grounding lead resistance.


2. Technical specifications

Range

0.01-200Ω

Resolution

0.001Ω

Sound and light alarm

"beep - beep - beep -" alarm sound, Flashing alarm symbol, By AL key to open, close, set

LCD

4-digital LCD, 47×28.5mm in length

Working temperature

-20ºC -55ºC

Relative Humidity

10%-90%

Explosion-proof mark

Exia Ⅱ BT3

Shift

Automatic Shifting

External Magnetic Field

<40A/m

External Electric Field

<1V/m

Single Measurement Time

0.5 second

Resistance Measurement Frequency

>1KHz

The Measured Current Frequency

50/60Hz Automatism

Storable Measurement Data

99groups

Setting Range of Resistance Alarm Critical Value

1-199 Ω

Protection Level

Double insulation

Structural Feature

In the jaw way CT

Power Source

6VDC (4×5# alkaline battery)

Span of Jaw

28mm

Net Weight (including batteries)

1160g

Dimension

285mm long, 85mm wide,56mm thick

RS232 Interface (Optional)

The data stored in the meter are uploaded to the computer through RS232 interface and data wire, Then generate report files

Accessories

Meter:1 PCS; Test Ring:1 PCS; Meter Box:1 PCS



MODEL: Earth Resistance Tester SRT2000C+ CE

1. Brief Introduction
SRT2000C+ Earth Resistance Tester is widely used in the grounding resistance measurement of the power, telecommunications, meteorology, oilfield, construction and the industrial and electrical equipment.
SRT2000C+ Earth Resistance Tester, in the measurement of a grounding system with loop current, does not require breaking down the grounding wire, and need no auxiliary electrode. It is safe, fast and simple in use.
SRT2000C+ Earth Resistance Tester can measure out the faults beyond the reach of the traditional methods, and can be applied in the occasions not in the range of the traditional methods.
SRT2000C+ Earth Resistance Tester can measure the integrated value of the grounding body resistance and the grounding lead resistance.



2. Technical specifications

Range

0.01-1200Ω;   0.0mA-20A

Resolution

0.001Ω;     0.05mA

Sound and light alarm

"beep - beep - beep -" alarm sound, Flashing alarm symbol, By AL key to open, close, set

LCD

4-digital LCD, 47×28.5mm in length

Working temperature

-20ºC -55ºC

Relative Humidity

10%-90%

Explosion-proof mark

Exia Ⅱ BT3

Shift

Automatic Shifting

External Magnetic Field

<40A/m

External Electric Field

<1V/m

Single Measurement Time

0.5 second

Resistance Measurement Frequency

>1KHz

The Measured Current Frequency

50/60Hz Automatism

Storable Measurement Data

99groups

Setting Range of Resistance Alarm Critical Value

1-199 Ω

Setting Range of Current Alarm Critical Value

1-499mA

Protection Level

Double insulation

Structural Feature

In the jaw way CT

Power Source

6VDC (4×5# alkaline battery)

Span of Jaw

28mm

Net Weight (including batteries)

1160g

Dimension

285mm long, 85mm wide,56mm thick

RS232 Interface (Optional)

The data stored in the meter are uploaded to the computer through RS232 interface and data wire, Then generate report files

Accessories

Meter:1 PCS; Test Ring:1 PCS; Meter Box:1 PCS

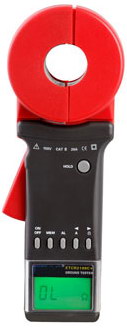

MODEL: Earth Resistance Tester SRT2100C+ CE

1. Wider range: 0.01Ω -1200Ω
2. Current range: 0.00-20.00A
3. Resistance Resolution: 0.001Ω , 0.05mA
4. Stored data: 99 groups.
5. Size of Jaw: ø 32
6. Data upload: RS232 interface
7. Sound and light alarm

Function

Ground resistance test, Loop resistance test

Resistance Range

0.01-1200Ω

Resistance Resolution

0.001Ω

Highest Res   istance Accuracy

±1%±0.01Ω

Current Range

0.00mA-20.0A

Current Resolution

0.05mA

Highest Current Accuracy

±2.5%±1mA

Data memory

99 Sets

Alarm Threshold Setting Range

Resistance: 1-199Ω

Alarm Sound and Light

“Beep-beep-beep” alarm tone, Alarm Symbol Flashing, Press AL key to turn on, turn off Alarm or set Alarm Threshold.

Interference Signal Recognition

“Beep-beep-beep” tone, NOISE symbol blinking

Working Temperature and Humidity

-20°C-55°C;20%RH-90%RH

LCD Screen

4 Digits LCD display, Screen L×W: 47mm×28.5mm

Clamp Size

Φ32mm

Clamp Opening Extent

32mm

Tester Weight

1160g(With batteries)

Clamp Dimension

L×W×T: 285mm×85mm×56mm

Protection Level

Dual Insulation

Structural Feature

ClampCT

Shifting

Automatic shifting

External magnetic field

<40A/m

External electrical field

<1V/m

Single measurement time

0.5 second

Resistance measurement frequency

>1KHz

Measured current frequency

50/60Hz Automatic measurement

Memory Full Indication

MEM symbol blinks when all 99 sets memory is full

Over Range Indication

Out of range indication “OLΩ”, “L0.01” or “OL A”

Auto Power-off

5 minutes after Boot up

RS232 Interface (Optional)

The data stored in the meter are uploaded to the computer through RS232 interface and data wire, Then generate report files

Accessories

Meter: 1 piece, Test ring: 1 Piece, Meter Suitcase: 1 Piece

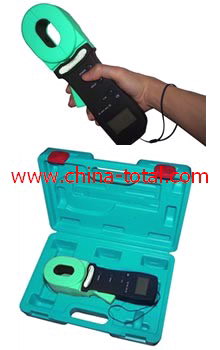

MODEL: Earth Ground Resistance Tester SRT1200 CE

1. Main Features

-55*32mm jaw size for larger ground rods

-Autoranging ground resistance measurements from 0.01Ohm to 1000Ohm with 0.01Ohm resolution

-AC Leakage current range of 10mA to 30.00A with 50µA resolution

-Configurable alarm value for resistance and current to support your measurement

-Ergonomic mold, full rubber coating for slip proof

-Simplifies ground resistance measurements on multiple point ground systems

-Verification resistor confirm accuracy of meter

-Datalogging with 99 data points

-Complete with heavy duty case and verification resistor



2. Specifications

Clamp-on Ground Resistance tester

Earth Ground Resistance

Range

Resolution

Precision

0.01Ω ~ 0.99Ω

0.01Ω

±1%+0.01Ω

1.0Ω ~ 49.9Ω

0.1Ω

±1.5%+0.1Ω

50.0Ω ~ 99.5Ω

0.5Ω

±2%+0.5Ω

100Ω ~ 199Ω

±3%+1Ω

200Ω ~ 395Ω

±6%+5Ω

400Ω ~ 590Ω

10Ω

±10%+10Ω

600Ω ~ 1000Ω

20Ω

±20%+20Ω

Min. Resolution

0.01Ω

Configurable alarm value of resistance

0~199Ω

Leakage current

Range

Resolution

Precision

0 ~ 80mA

50µA

±2.5%+1mA

80mA ~ 650mA

0.5mA

±2.5%+2mA

650mA ~ 4A

5mA

±2.5%+10mA

4A ~ 30A

10mA

±2.5%+20mA

Min. Resolution

50µA

Measurement of leakage current

46 ~ 65 Hz, RMS

Configurable alarm value of current

0~499mA

Memory

99 sets

Conductor Size

32 * 55 mm

Working Temperature

-10ºC ~ 55ºC

Working Humidity

10% ~ 80%

LCD Size

28.5 x 47 mm



3. General Characteristics

Power

AA1.5V x 4

Product Size

285*90*60 mm

Product Net Weight

1320g(including battery)

Standard individual packing

carry case

Standard Quantity per Carton

6 pcs.

Measurement of Standard Carton

645*360*276mm (0.064 CBM)

Gross weight of Standard Carton

12kgs

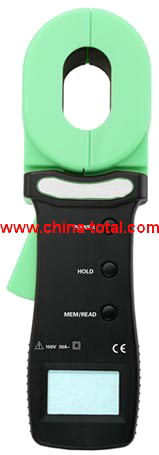

MODEL: Earth Ground Resistance Tester SRT1000A CE

1. Main Features

-55*32mm jaw size for larger ground rods

-Autoranging ground resistance measurements from 0.01Ohm to 1000Ohm with 0.01Ohm resolution

-Configurable alarm value in resistance to support your measurement

-Ergonomic mold, full rubber coating for slip proof

-Simplifies ground resistance measurements on multiple point ground systems

-Verification resistor confirm accuracy of meter

-Datalogging with 99 data points

-Complete with heavy duty case and verification resistor



2. Specifications

Earth Ground Resistance

Range

Resolution

Precision

0.01Ω ~ 0.99Ω

0.01Ω

±1%+0.01Ω

1.0Ω ~ 49.9Ω

0.1Ω

±1.5%+0.1Ω

50.0Ω ~ 99.5Ω

0.5Ω

±2%+0.5Ω

100Ω ~ 199Ω

±3%+1Ω

200Ω ~ 395Ω

±6%+5Ω

400Ω ~ 590Ω

10Ω

±10%+10Ω

600Ω ~ 1000Ω

20Ω

±20%+20Ω

Min. Resolution

0.01Ω

Configurable alarm value of resistance

0 ~ 199Ω

Memory

99 sets

Conductor Size

32 * 55 mm

Working Temperature

-10ºC ~ 55ºC

Working Humidity

10% ~ 80%

LCD Size

28.5 x 47 mm



3. General Characteristics

Power

AA1.5Vx4

Product Size

285*90*60 mm

Product Net Weight

1320g(including battery)

Standard individual packing

carry case

Standard Quantity per Carton

6 pcs.

Measurement of Standard Carton

645*360*276mm (0.064 CBM)

Gross weight of Standard Carton

12kgs
