dual-display

(Dual Display Digital AC Clamp Meter, Dual Display Digital AC/DC Clamp Meter, Digital Clamp On Meter, Digital Clamp-On Meter, Digital Clamp Multimeter, Digital Clamp-On Multimeter, AC Clamp On Meter, Clamp-On Meter)

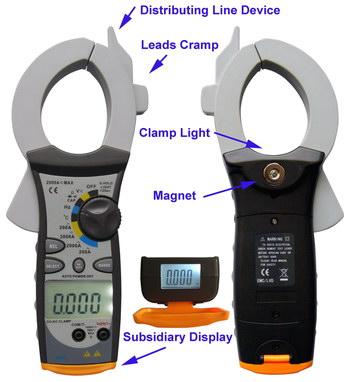

SRT850 series New style Dual Display 2000A Clamp Multimeter

Basic function	Range
Basic function	SRT850A	SRT850B	SRT850C	SRT850D	SRT850E
DC Voltage	60mV～1000V	60mV～1000V	60mV～1000V	40mV～1000V	1000V
AC Voltage	60mV～750V	60mV～750V	60mV～750V	40mV～750V	750V
DC Ccrrent	400A～2000A	400A～2000A		200A～2000A
AC Ccrrent	400A～2000A	400A～2000A	400A～2000A	200A～2000A	200A～2000A
Resistance	600Ω～60MΩ	600Ω～60MΩ	600Ω～60MΩ	400Ω～40MΩ	200Ω～200KΩ
Capacitance	40nF～4000uF	40nF～4000uF	40nF～4000uF	40nF～100uF
Temperature	-20℃～1000℃	-20℃～1000℃	-20℃～1000℃	-20℃～1000℃	-20℃～1000℃
Frequency	10Hz～10MHz	10Hz～10MHz	10Hz～10MHz	10Hz～10MHz
Duty Cycle	0.1%～99.9%	0.1%～99.9%	0.1%～99.9%	0.1%～99.9%
Express function
Display	5999	5999	5999	3999	1999
Range Select	Auto	Auto	Auto	Auto	Manual
Diode Test	√	√	√	√	√
Continuity Buzzer	√	√	√	√	√
Date Hold	√	√	√	√	√
Back Light	√	√	√	√	√
Auto Power Off	√	√	√	√	√
℃/℉ unit select	√	√	√
Ture RMS	√
Relative Value	√	√	√	√
MAX/MIN	√	√	√
Bar Graph Display	√	√	√
Dual Display	√	√	√	√	√
Jaw Caliber	56mm	56mm	56mm	56mm	56mm
General Features
Battery Type	9V(6F22)x1	9V(6F22)x1	9V(6F22)x1	9V(6F22)x1	9V(6F22)x1
Dimension	275x120x33mm	275x120x33mm	275x120x33mm	275x120x33mm	275x120x33mm
Weight	540g	540g	540g	540g	540g
MOQ	30	50	100	100	100
Ctn Size	530x310x400mm	530x310x400mm	530x310x400mm	530x310x400mm	530x310x400mm
Q'TY / Ctn	20	20	20	20	20
GW/NW	18/17Kg	18/17Kg	18/17Kg	18/17Kg	18/17Kg
Certificate	CE Approval , CATIII 1000V

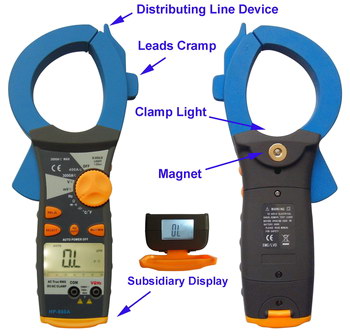

SRT860 series New style Dual Display 3000A Clamp Multimeter

Basic function	Range
Basic function	SRT860A	SRT860B	SRT860C	SRT860D
DC Voltage	60mV～1000V	60mV～1000V	60mV～1000V	40mV～1000V
AC Voltage	60mV～750V	60mV～750V	60mV～750V	40mV～750V
DC Ccrrent	400A～3000A	400A～3000A		200A～3000A
AC Ccrrent	400A～3000A	400A～3000A	400A～3000A	200A～3000A
Resistance	600Ω～60MΩ	600Ω～60MΩ	600Ω～60MΩ	400Ω～40MΩ
Capacitance	40nF～4000uF	40nF～4000uF	40nF～4000uF
Temperature	-20℃～1000℃	-20℃～1000℃	-20℃～1000℃	-20℃～1000℃
Frequency	10Hz～10MHz	10Hz～10MHz	10Hz～10MHz	10Hz～10MHz
Duty Cycle	0.1%～99.9%	0.1%～99.9%	0.1%～99.9%	0.1%～99.9%
Express function
Display	5999	5999	5999	3999
Range Select	Auto	Auto	Auto	Auto
Diode Test	√	√	√	√
Continuity Buzzer	√	√	√	√
Date Hold	√	√	√	√
Back Light	√	√	√	√
Auto Power Off	√	√	√	√
℃/℉ unit select	√	√	√
Ture RMS	√
Relative Value	√	√	√	√
MAX/MIN	√	√	√
Bar Graph Display	√	√	√
Dual Display	√	√	√	√
Jaw Caliber	65mm	65mm	65mm	65mm
General Features
Battery Type	9V(6F22)x1	9V(6F22)x1	9V(6F22)x1	9V(6F22)x1
Dimension	275x120x33mm	275x120x33mm	275x120x33mm	275x120x33mm
Weight	560g	560g	560g	560g
MOQ	30	50	100	100
Ctn Size	530x310x400mm	530x310x400mm	530x310x400mm	530x310x400mm
Q'TY / Ctn	20	20	20	20
GW/NW	19/18Kg	19/18Kg	19/18Kg	19/18Kg
Certificate	CE Approval , CATIII 1000V

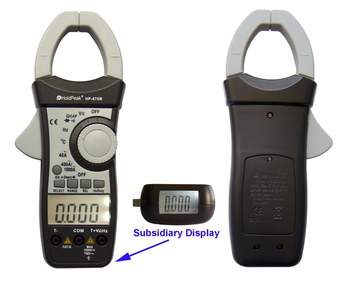

SRT870 series New style Dual Display Clamp Multimeter

Basic Function	Range
Basic Function	SRT870A	SRT870B	SRT870C	SRT870CR	SRT870E
DC Voltage	1000V	400mV～1000V	400mV～1000V	400mV～1000V	1000V
AC Voltage	750V	400mV～750V	400mV～750V	400mV～750V	750V
DC Ccrrent			200A～1000A	200A～1000A
AC Ccrrent	2000mA～1000A	40A～1000A	40A～1000A	40A～1000A	20A～1000A
Resistance	200Ω～2000Ω	400Ω～40MΩ	400Ω～40MΩ	400Ω～40MΩ	200Ω～2000Ω
Capacitance		40nF～100uF	40nF～100uF	40nF～100uF
Temperature		-20℃～1000℃	-20℃～1000℃	-20℃～1000℃
Frequency		10Hz～10MHz	10Hz～10MHz	10Hz～10MHz
Duty Cycle		0.1%～99.9%	0.1%～99.9%	0.1%～99.9%
Express function
Display	1999	3999	3999	3999	1999
Range Select	Manual	Auto	Auto	Auto	Manual
Diode Test	√	√	√	√	√
Continuity Buzzer	√	√	√	√	√
Date Hold	√	√	√	√	√
Back Light	√	√	√	√	√
Auto Power Off		√	√	√
Relative Value		√	√	√
Three Phase Live					√
True RMS				√
Dual Display	√	√	√	√	√
Jaw Caliber	48mm	48mm	48mm	48mm	48mm
General Features
Battery Type	9V(6F22)x1	1.5V(5#)x2	1.5V(5#)x2	1.5V(5#)x2	9V(6F22)x1
Dimension	230x85x40mm	230x85x40mm	230x85x40mm	230x85x40mm	230x85x40mm
Weight	430g	430g	430g	430g	430g
MOQ	100	100	100	100	100
Ctn Size	530x310x400mm	530x310x400mm	530x310x400mm	530x310x400mm	530x310x400mm
Q'TY / Ctn	30	30	30	30	30
GW/NW	19/18Kg	19/18Kg	19/18Kg	19/18Kg	19/18Kg
Certificate	CE Approval , CATIII 1000V

( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )
