Optical Fiber Meter and Instruments

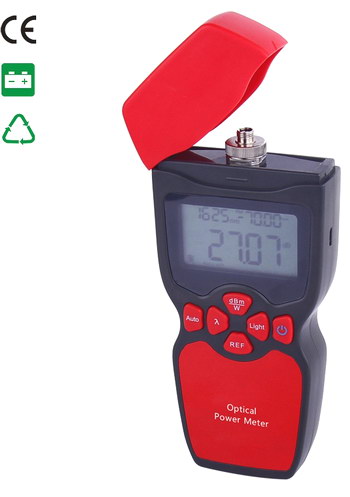

SRFM900 Optical Power Meter

Main functions:
1. Measurement of the power of optical sender (dBm and W).
2. Insertion loss test of optical devices.
3. New REF user-defined.
4. FC/SC/ST general-purpose interface.
5. Wavelength:850/1300/1310/1490/1550/1625nm.

Technical indexes:

Model

 SRFM900

 Power meter

 Power detecting range (dBm)

 -70 ~ +10

  -50 ~ +26

 Wavelength (nm)

 800-1700

 Probe

 InGaAs

 Detection limit

 1.0mm

 Standard wavelength

 850, 1300, 1310, 1490, 1550, 1625nm

 Display resolution

 0.01dBm

 Working temp

 -20 ~ +70°C

 Power supply

 1.5V*3pcs

 Overall dimension

 160*75*32mm





SRFM901 Optical Light Source

Main functions:
1. Work with
SRFM900 optical power meter.
2. A fast, stable and cost effective test solution.
3. Provide 2 wavelengths output: 1310, 1550nm .
4. CW/ 270Hz, 1KHz, 2KHz modulation output.
5. FC/ SC/ ST general-purpose interface.
Technical indexes:

Model

 SRFM901

 Wavelength (nm)

 1310, 1550

 Emitter type

 FP-LD

 Output power

 -7dBm

 Modulation frequencies

 CW/ 270Hz, 1Hz, 2Hz

 Fiber Type

 SM/MM

 Optical connector

 FC/SC/FC

 Automatic shutdown time

 15mins

 Power supply

 1.5V*3pcs

 Overall dimension

 160*75*32mm

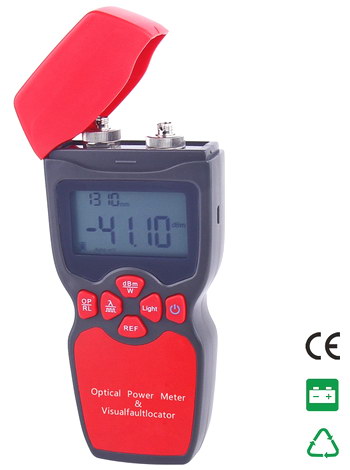

SRFM907 2-in-1 Optical Multimeter (Optical Power Meter + Visual Fault Locator)

Main functions:
1. Measurement of the power of optical sender (dBm and W).
2. Insertion loss test of optical devices.
3. Check fiber breakage, winding, ect.
4. New REF user-defined.
5. FC/ SC/ ST general-purpose interface.
6. Wavelength: 850/ 1300/ 1310/ 1490/ 1550/ 1625nm (powermeter)
7. Wavelength: 650nm (visual fault locator).

Technical indexes:

Model

 SRFM907

Power meter

 Power detecting range (dBm)

 -70 ~ +10

  -50 ~ +26

 Wavelength (nm)

 800-1700

 Probe

 InGaAs

 Detection limit

 1.0mm

 Standard wavelength

 850, 1300, 1310, 1490, 1550, 1625nm

 Display resolution

 0.01dBm

VFL

 Emitting Energy

 5mw/ 10mw/ 20mw/ 30mw selectable

 Standard wavelength

 650±10nm

 Working temp

 -20 ~ +70°C

 Power supply

 1.5V*3pcs

 Overall dimension

 160*75*32mm

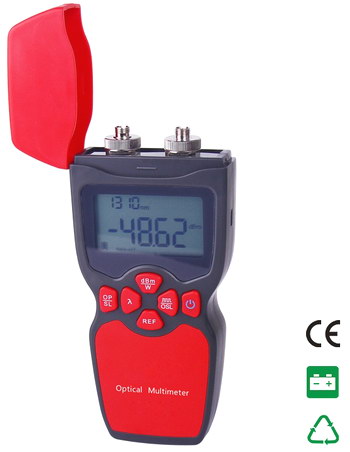

SRFM909 2-in-1 Optical Multimeter (Optical Power Meter + Light Source)
Main functions:

1. Measurement of the power of optical sender (dBm and W).
2. Insertion loss test of optical devices.
3. Light source function
4. New REF user-defined.
5. FC/ SC/ ST general-purpose interface.
6. Wavelength: 850/ 1300/ 1310/ 1490/ 1550/ 1625nm(powermeter)
7. Wavelength: 1310/ 1550nm( light source)
Technical indexes:

Model

 SRFM909

 Power meter

 Power detecting range (dBm)

 -70 ~ +10

  -50 ~ +26

 Wavelength (nm)

 800-1700

 Probe

 InGaAs

 Detection limit

 1.0mm

 Standard wavelength

 850, 1300, 1310, 1490, 1550, 1625nm

 Display resolution

 0.01dBm

 Light source

 Modulation frequencies

 CW/ 270Hz, 1Hz, 2Hz

 Standard wavelength

 1310, 1550nm

 Emitter type

 FP-LD

 Working temp

 -20 ~ +70°C

 Power supply

 1.5V*3pcs

 Overall dimension

 160*75*32mm

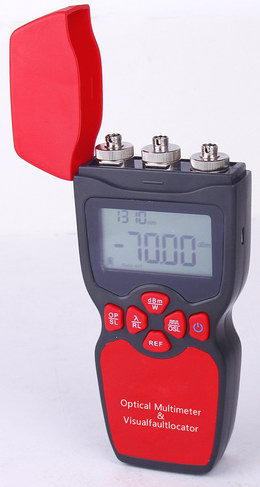

SRFM911 3-in-1 Optical Multimeter (Optical Power Meter + Light Source+ Visual Fault Locator)

Main functions:
1. Measurement of the power of optical sender (dBm and W).
2. Insertion loss test of optical devices.
3. Light source function
4. Check fiber breakage, winding, ect.
5. New REF user-defined.
6. FC/ SC/ ST general-purpose interface.
7. Wavelength: 850/ 1300/ 1310/ 1490/ 1550/ 1625nm(powermeter)
8. Wavelength: 1310/ 1550nm (light source)

9. Wavelength: 650nm (visual fault locator)

Technical indexes:

Model

 SRFM911

 Power meter

 Power detecting range (dBm)

 -70 ~ +10

  -50 ~ +26

 Wavelengths (nm)

 800-1700

 Probe

 InGaAs

 Detection limit

 1.0mm

 Standard wavelength

 850, 1300, 1310, 1490, 1550, 1625nm

 Display resolution

 0.01dBm

 Light source

 Modulation frequencies

 CW/ 270Hz, 1Hz, 2Hz

 Standard wavelength

 1310, 1550nm

 Emitter type

 FP-LD

 VFL

 Emitting Energy

 5mw/ 10mw/ 20mw/ 30mw selectable

 Standard wavelength

 650±10nm

 Working temp

 -20 ~ +70°C

 Power supply

 1.5V*3pcs

 Overall dimension

 160*75*32mm

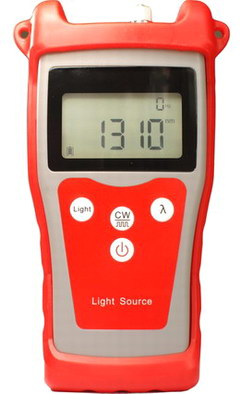

SRFM902 Light Source

SRFM902 laser source offer good stability and portability for fiber optic testing. It can provide two wavelength export according to the specific requirements including the 1310nm,1550nm. And works at a variety of modulation frequency (CW,270Hz,1KHz,2KHz). It is widely used in optical fiber communications, CATV, optical fiber sensing , optical information processing field. It is an important fiber optical testing instrument in scientific research and engineering.

Specifications:

Wavelength (nm)

1310, 1550

Emitter Type

FP-LD

Optical connector

FC

Output stability (dBm)

0.5dBm

Modulation Frequencies

CW/270Hz/1000Hz/2000Hz

Fiber type

SM , MM

Power supply

AAA 1.5V(3PCS batteries)

Working time (h)

20

Operating temperature(°C)

-10~+60

Storage temperature(°C)

-25~+70

Dimension (mm)

160*80*38

Weight (g)

350

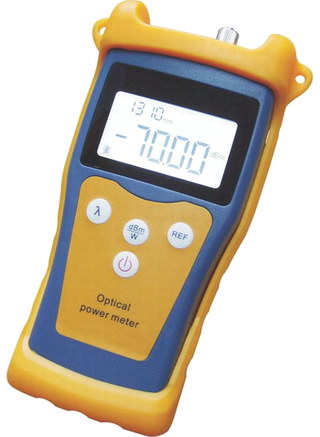

SRFM906A/SRFM906C Optical Power Meter

1.2 Summarize

As a new-developed one with more functions, this SRFM906 portable optical power meter has been equipped with diameter 1.0mm large-area detector so that the stability and reliability can be enhanced effectively; With human oriented design with smooth appearance, the customer requirements can be met to the max, also it is a kind of portable tester used for the installation, debugging and maintenance of fiber network specially, in addition, with the features including light-handed body, optional backlight display, automatic shutdown, wider test range, high precision as well as brand-new design of user-defined and general-purpose interface, this tester has been widely used in various fields, such as cable construction and maintenance, optical fiber transmission, optical fiber communication, fiber optical sensor, CATV, etc.

1.3 Product features:

New REF user-defined.

User self-calibration function.

With extra-long service life, a common 9V laminated battery which can serve as long as 200hrs continuous operating is engaged.

With FC/SC/ST general-purpose interfaces, free from any complicated transform.

Optional auto-off function and backlight switch.

1.4 Main applications

1)Measurement of the power of optical sender (dBm and W)

2)Loss test of optical fiber link

3)Insertion loss test of optical device

4)Installation and maintenance of fiber fiber link

Model

SRFM906A

SRFM906C

wave length (nm)

800~1700

detector type

InGaAs

detector area

diameter 1.0mm

detecting range (dBm)

-70~+10

-50~+26

accuracy

±5%

standard wave length (nm)

850, 1300, 1310, 1490, 1550, 1625

resolution

0.01dBm

working temp. (°C)

-10~+60

storage temp. (°C)

-25~+70

auto power-off time (min)

15

battery working life (h)

200

dimension (mm)

185×105×50

power

9V battery, AC adaptor

weight (g)

350





Configuration and accessories:

1.

SRTM6070 Optical Power Meter

1

2.

Operation Manual

1

3.

9V Alkaline Battery

1

4.

Product Warranty Cards

1

5.

Certificate

1

6.

Desiccant

1

7.

Portable Bag

1

8.

ST/SC converter (Optional)

2

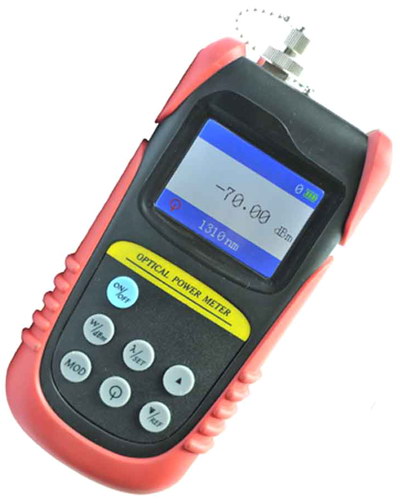

Handheld Optical Power Meter SRTM6070 series

DESCRIPTION:

Power Meter SRTM6070 series with a chip microcomputer control and the large-screen graphics LCD, it can provide precision measurement from 850 to 1625nm wavelength ranges and measuring range including -70 dBm to +6 dBm, -50 dBm to +26 dBm. Optical power meter can test the PM power to the light, light stability, insertion loss, optical transmittance, reflectance of light and so on. It widely used in optical fiber communications, CATV, Fiber Optical Sensors etc. It is indispensable for scientific research and engineering construction.

Features:

Self-calibration function.
1. High performance import laser detector.
2. High sensitivity and large dynamic range
3. 0.01 dBm precision
4. Automatically converted Range
5. Small size, light weight, high reliability
6. Battery-powered, convenient field work
7. Line display or relative loss displayed.

Applications:

1. Fiber optic production and research
2. Testing and maintenance of fiber-optic network
3. Teaching and testing in optical communication

Specifications:

Type

SRTM6070

SRTM6070B

Detector

InGaAs

Fitered  InGaAs

Wavelength Range (nm)

850, 1300, 1310, 1490, 1550, 1625

 850, 1300, 1310, 1490, 1550, 1625

Power Measurement range (dBm)

+6 ~ -70

+26 ~ -50

Uncertainty

5%

Resolution Ratio

0.01dBm

Power Supply

9V alkaline battery

Optical Connector

FC-type adapter (SC,ST is optional)

Operating Temperature

-10°C to 60°C

Storage Temperature

-20°C to 70°C

Work Humidity

<95%

APO

10min

Dimensions

16.5 * 8.0 * 3.5cm

Weight (g)

280g

Remark:

(1) Wavelength range: the provisions of a standard operating wavelength is from λmin to λmax.The power meter designed in this kind of wavelength range can work in target.
(2) Power Measurement range:can test the maximum optical power range according to the provisions of indicators.
(3) Uncertainty:the error between the test results of certain optical-power and the test results of standard optical-power.



Application:

Optical Communication Engineering and maintenance
security monitoring optical fiber transmission Installation and maintenance
CATV fiber optic project and maintenance
Researching Fiber Optic Sensing

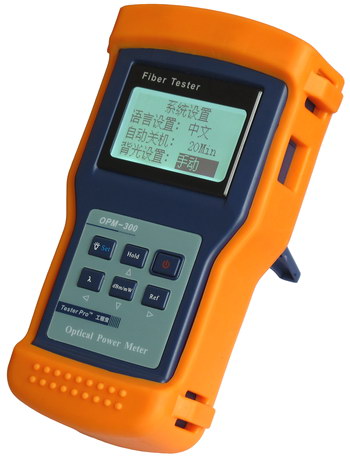

OPM-300 Series Optical Power Meter

Overview:
OPM300 using in advanced high-precision laser detection and processing technology, which is for the installationOf fiber optic transmission equipment, inspection, Design and development of maintenance. Applicable on single mode, Multi mode fibers, Large-size LCD displays, Compact appearance, Shock-proof design and normal battery No. 5. wide range of lab and field assay, Concise design of function keys, easy-to-use, Operator almost can get started quickly without training
Feature:
High measurement and display resolution
Quick response and fast test
Wide range of power measurement
Multi- Calibrated Wavelength
Absolute and relative power measurement
Lower battery warning
Self-calibrating function
Full range Calibrated Wavelength (step 5nm)
Wavelength auto-identify
Frequency auto-identify
Brand-new REF function
Barnd-new Alarm function

Parameter:

Model

 OPM-300A

 OPM-300B

Detector Type

InGaAs

Connector Type

Multi connector

Power Range (dBm)

-70~+6

-50~+26

Calibrated Wavelength (nm)

850, 1300, 1310, 1490, 1550, 1625

Display Resolution

Linear: 0.1%  accuracy: 0.01dBm

Power

Two NO.5 type power

Battery life (h)

48hours

Operating Temperature(°C)

-10°C~+60°C

Storage Temperature(°C)

-25°C~+70°C

Dimensions (mm)

168*103*45

Weight (g)

300



Overview:
PON power meter PPM-300 is a tester designed for design, operation and maintenance FTTX/PON network. It's able to concurrently measure the BPON/EPON/GPON values of voice, data and video signals. It's an ideal choice for the construction and maintenance of FTTX network works.
Features:
-The only Power Meter truly designed for BPON, EPON, GPON networking structures.  Simply connect the fiber and read the results.
-Simultaneous measurement of PON signals of 1310/1490/1550nm Wave length voice, data and video.

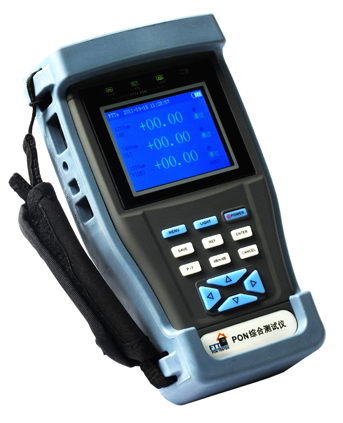

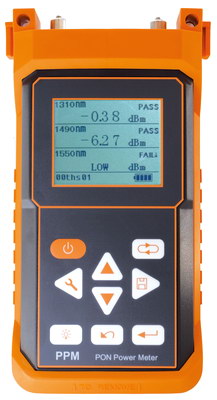

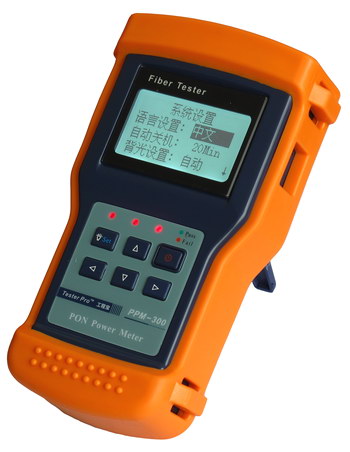

PPM-300 PON Power Meter
-On-site test and measurement of PON signals, anywhere on the network without interrupting the services.
-200 definable threshold sets to be named individually
-Pass/ warming/fail indicators for easy realization of pass/fail analysis
-Upstream burst detection at 1310nm

Application:
-FTTX Networks testing
-PON Netwoks testing
-An ideal tool for FTTx /PON pass-through and maintenance
Pass-through:
-Measurement of all PON signals all the way during the pass-through stage to ensure they meet network standard.
-Pass-through connection and simultaneous measurement of all PON signals.
-Filtered detectors for individual measurement of each wavelength.
-Upstream burst detection at 1310nm

Parameter:

Model

PPM-300

Calibrated Wavelength (nm)

1310

1490

1550

Meas. Range (dBm)

+10~-40

+10~-40

25~-40

Spectral Pass band (nm)

1310+/-20

1490+/-10

1550+/-10

Power Uncertainty (dB)

≤ 0.5

Accuracy (dB)

0.01

Insertion Loss (dB)

≤ 1.5

Fiber Type

Single-mode fiber

Connector Type

FC/APC (interchangeable SC,ST)

General Specifications

Data Storage

200 sets

Power Supply

Dual way power supply: NiMH rechargeable/AC adapter

Battery Life

≥ 70 hrs

Operating Temp.

0°C to 50°C

Storage Temp.

-20°C to 60°C

Relative Humidity

0 to 95% (non-condensing)

Weight

1.6 lbs (0.75kg)

Dimension (H*W*T)

196*100*44mm (7.7*3.9*1.7 inch)



Configuration and accessories:

1.

TLD607P PON optical power meter

1

2.

Operation Manual

1

3.

USB data transmission lines

1

4.

User Guide

1

5.

9V Alkaline Battery

1

6.

AC adapter

1

7.

Product Warranty Cards

1

8.

Certificate

1

9.

Desiccant

1

10.

Clean cotton swab

1

11.

Portable Bag

1

Product applications:
1. FTTx / PON opening: In the opening stage of all PON signals are measured to verify and ensure that meet network standards.
2. FTTx / PON maintenance: routine maintenance of various transport issues, such as: connector end surface contamination, fiber macro bending, breaking, Optical fault, etc.; that will have a loss of signal or transmission performance.
simultaneously measure and display 1310 upstream, 1490 downstream and 1550 downstream the power of three wavelength values.

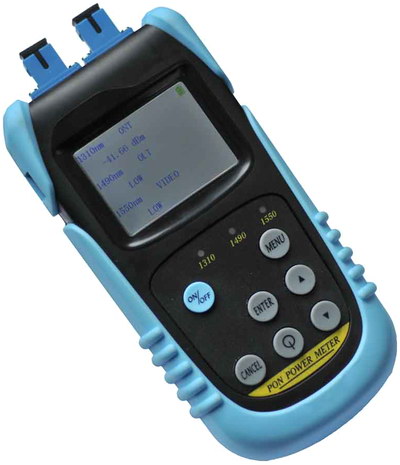

SRTM607P PON Optical Power Meter

DESCRIPTION:

PON optical power meter is a tester designed for design, operation and maintenance of FTTX network. It is able to concurrently measure the optical power values of voice, data and video signals. It is an ideal choice for the construction and maintenance of FTTX network works.

Features:

1. Providing simultaneous measurement at all three wavelengths on the fiber (1490nm, 1550nm,1310nm).
2. Used in Burst mode measurement of 1310nm upstream.
3. Dual-port through the design, guarantee the full communication testing from the OLT to the ONT
4. Three status LEDs represents different optical signal conditions of Pass, Warn and Fail respectively.
5. Easy to use, simply connect the fiber to read the results
6. HD TFT color LCD
7. USB communication port enables data transfer ,easy and quick
8. 200 measurement items can be saved in PON power meter or computer for data review.
9. Through the background software setting threshold, upload data,
calibration wavelength
10. Auto power off function, and time settings on the device, the threshold setting.

Specifications:

Type

SRTM607P

Calibrating wave length

1310 upstream measurement

1490 downstream measurement

1550 downstream measurement

Pass zone (nm)

1260 ~ 1360

1470 ~ 1505

1535 ~ 1570

Measurement range (dBm)

 -40 ~ +10

-40 ~ +10

-40 ~ +20

Isolation 1310nm (dB)

-

>40

>40

Isolation 1490nm (dB)

>40

-

>30

Isolation 1550nm (dB)

>40

>40

-

Measurement accuracy

Connatural uncertainty (dB)

±0.5

PDL (dB)

<±0.25

Linearity (dB)

±0.1

Pass through insertion loss (dB)

<1.5

General Indicators

Display

LCD:128×64

Unit

dB dBm xW

Resolution

0.01dB

Input voltage

DC 6.5V ~ 8.5V

Rechargeable battery

9V battery

AC adapter

9V

Type of optical fibre

Single mode optical fibre

Working temperature

-10 ~ 60°C

Storage temperature

-25 ~ 70°C

Dimensions (CM)

16.5 * 8.0 * 3.5





Features:
-2.8 inch TFT-LCD. Brightness, Contrast, Saturation adjustable
-1310nm, 1490nm, 1550nm power value simultaneous measurement in the PON systems.
-Dual measurement ports, support test burst mode 1310nm upstream and 1490nm,1550nm downstream.
-Inner 1310nm/1490nm/1550nm wavelength stable laser source, output power adjustable, stepping-4dBm.
-Optional 650nm visible laser source, convenient for testing bending, fracture and recognize fiber.
-UTP cable tester, test the UTP cable connection status and display on the screen.
-DC12V/1A power output for ONU, and test optical power.
-Quick, on-site test and measurements of PON signals, anywhere on the network.
-Three Indicator light shows the fiber state, pass, warn and fail.
-Relative power test, can set the time, up to 10 groups user defined threshold
-1000 sets data storage , transmitting data from USB to PC.
-Data transfer via USB interface, convenient and save time.
-Set the threshold through software, data upload and wavelength calibrate.
-Easy to operation, just connect the fiber to read the data.
-Auto-off function, energy saving.
-Lithium Ion Polymer Battery supply power output, stable working and low consumption.

-Professional portable design, with shock absorbing gum case, suitable for using at spot.

PPM-300C & PPM-300CP PON Optical Power Meter

Overview:
PON optical power meter PPM-300C is a new tester designed for design, operation and maintenance FTTX/PON network. Its through-mode allows simultaneous measurement at all three wavelengths on the fiber ,1490nm and 1550 nm downstream and 1310nm upstream . The 1310nm channel provides correct power measurements of bust mode upstream PON power signals.
It also be able to measure optical power Value of 850nm/1300nm/1310nm/ 1490nm/1550nm/1625nm wavelength in normal optical network
(only PPM-300CP have this function), testing Ethernet cable connection status .It's an ideal choice for the construction and maintenance of PON systems.

Parameter:

Model

PPM-300C &  PPM-300CP

Calibrating wave length

1310nm

  1490nm

1550nm



InGaAS

Isolation

1490nm >40dB

1550nm >40dB

1310nm >40dB

1550nm >30dB

1310nm >40dB

1490nm >30dB

Measurement range (dBm)

Burst mode:-35vi+10 Stable :-40vi+10

-50vi+10

-45vi+20

Spectral Pass band (nm)

1310+/-20

1490+/-10

1550+/-10

Connatural uncertainty (dB)

≤0.5

Resolution (dB)

0.01

Pass through Insertion Loss (dB)

≤1.5

Optical Fiber Model

SM

Connector Type

FC (FC, SC, ST connector)

Other parameter

Optical power meter

(PPM-300CP)

Detector Type: InGaAs

Wavelength: 850/1300/1310/1490/1550/1625nm

Measurement range: -70~+10dBm

Uncertainly: +/-5%

Display Resolution: Linear: 0.1% Nonlinear: 0.01dBm

Connector type: FC/SC/ST

Threshold setting

10 groups

Data storage

1000 sets

Communication Port

USB

Power

Lithium Ion Polymer Battery(3000mAh)

Working time

≥20 hours

Operating Temperature

-10°C to 60°C

Humidity

0 to 95%(non-condensing)

Weight

480g

Dimensions (H*W*T)

112*189*47mm



Standard Packages:

1.

SRTM7002Handheld Laser sources

1

2.

Operating manual

1

3.

9V alkaline battery

1

4.

Maintenance card

1

5.

Certificate

1

6.

Drying agent

1

7.

Carrying case

1

8.

ST/SC Converters( Optional)

2

Applications:
1. Fiber production and research devices
2. Fiber Network Testing and Maintenance
3. Optical Communication Teaching and Test

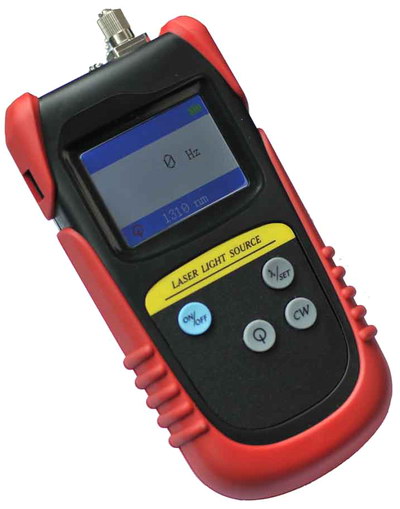

Handheld Optical Light Source SRTM7002 series

DESCRIPTION:

SRTM7002 Handheld Laser source series is microprocessor-controlled intelligent Handheld Laser source. It can be used to test the usual single-mode optical fiber connector loss,a single-mode fiber-optic network, LAN, FDDI, ATM , FTTH fiber optic systems, It also can test the telecommunications networks, CATV systems which need large dynamic range test system maintenance. The handheld stable source with the international advanced level in the micro-processing hardware ,software technology , microelectronic technology, and surface mount (SMT) technology provides its users with high performance, high reliability, which are the best performance at home and the most practical appearance of the light source. With the current international advanced level, handheld light source provides continuous or modulated light output (2 KHz) in the state of the two working conditions.

Features:

1. Larger and more stable output power comparable to
desktop source. Stabilized Output
2. Using the Single key to switch the wavelength is flexible
and convenient. High Reliability
3. Universal interface has three types of adapter: FC /SC / ST.
Easy to operate
4. Small size/light weight/ high reliability. Flexibly switch the wavelength
5. Battery-powered, convenient field work. Omnipotence joint
6. Backlight at night.

Technical Specifications:

Type

SRTM7002

SRTM7002 A

SRTM7002B

Emitter Type

F-P LD

Wavelength (nm)

1310/1550

850/1300

850/1310/1550

Output Power

-7 ~ -9 dBm

Output Stability

±0.10dB/1h (20°C)

Mode of Light Output

CW & MOD

Modulation

CW, 270HZ, 1KHZ, 2KHZ

Optical Interface

FC adapter (SC, ST Optional)

Operating Temperature

-10°C ~ + 60°C

Storage Temperature

-20°C ~ + 70°C

Work humidity

<95%

Automatic shutdown time

10min

Battery

9V alkaline battery

Dimensions

16.5 * 8.0 * 3.5cm

Weight

280g

Notes:
1. we can supply the other wavelengths of dual-wavelength light source according to customers' requirements.
2. Besides the light sources listed in the table, we can make up the arbitrary single-wavelength and dual-wavelength light source into an integrated three-wavelength light source output. Parameter index reference to dual-wavelength data.
3. Obtaining data in the way of CW, (we can provide the output-power according customers' requirements.) we can provide product which output power is customer request.
4. In the CW mode, the warm half-hour later measured.
5. CW refers to a constant optical power output.



Overview:

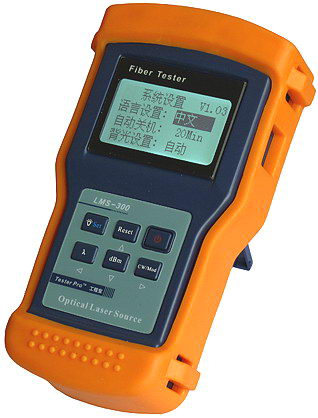

LMS-300 hand-held can generate highly stable signals at 650nm, 1310nm, 1550nm and1490nm wavelength. Use in advanced precision laser control technology, it can supply the stability of high-performance laser light source for engineering, Research and development and equipment manufacturing, which also have been widely used for PON optical communication, optical measurement, optical fiber sensing and other fields by its excellent cost performance, stability, reliability and security.

LMS-300 series Laser Sources
Feature:
-Large LCD displays status of the operating wavelength
-High stability oftwo wavelength, three wavelength, four-wavelength laser output
-Continuous wave and modulated waves can be output
-A key switch to Wavelength and Operational flexibility
-Adjustable optical power output, 4 step output power, each step is -4dBm
-Optional 650nm red light output
-Continuous working time be up to 38 hours
-Optional Auto-off function
-Optional backlight
-Display real-time battery
-Two No.5 batteries, easy to change
Application:
-Optical Communication Engineering and maintenance
-CATV fiber optic Engineering and maintenance
-Researching Fiber Optic Sensing
-Passive Optical Network (PON)

Parameter:

Model

LMS-300A

LMS-300B

LMS-300C

LMS-300D

LMS-300P

Wavelength (nm)

1310, 1550

650, 1310,

1550

850, 1310,

1550

1310, 1550, 1625

1310, 1550, 1490

Emitter Type

FP-LD

Optical Connector

FC (SC/ST optional)

Out power (dBm)

Typical value: -0.0dBm -6dBm optional

Power

Two No.5 Batteries

Fiber mode

SM, MM

Battery operating time (h)

38

Operating temperature

-10°C ~+60°C

Storage temperature

-25°C ~+70°C

Dimensions (mm)

168*103*45

Weight (g)

300



Overview:

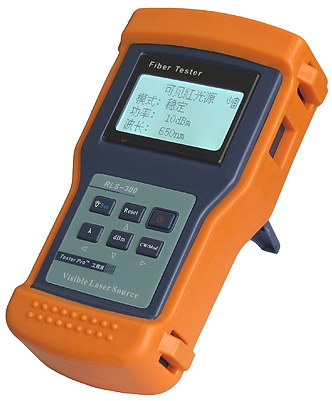

The RLS-300 Visual Fault Locator using 650nm laser, which can output 30mW high brightness red laser, Using in both No.5 batteries, Sustainable work over 80 hours. Continuous light and 1HZ, 2Hz modulating light be output. In Mini compact design, easy to carry and use.

RLS-300 series Visual Laser Sources
Features:
-With professional design, it is easy to carry and use
-LCD display mode
-High power output, 20Km for Max. Measurement Range
-Continuous light and 1HZ, 2Hz modulating light output
-Two 5 batteries, easy to change
Application:
-Optical Communication Engineering and maintenance
-CATV fiber optic Engineering and maintenance
-Researching Fiber Optic Sensing

Parameter:

Model

RLS-300A

RLS-300B

RLS-300C

RLS-300D

Center wavelength (nm)

650

Output Mode

CW, 1Hz/2Hz

Display Type

LCD

Emitter Type

FP-LD

Connector Type

FC/PC

Optical Fiber model

SM, MM

Output Power

5mW

10mW

20mW

30mW

Distance

5-20KM

Battery

Two AA model batteries

General Specifications

Operating Temp.

-10°C~60°C

Storage Temp.

-25°C~70°C

Battery Life

38hours

Weight (g)

300

Dimension (mm)

168*103*45



Standard Packages

1.

SRTM1306 series digital variable optical attenuator

1

2.

Operating manual

1

3.

Protective Holster

1

4.

9V alkaline battery

1

5.

Maintenance card

1

6.

Certificate

1

7.

Drying agent

1

8.

Carrying case

1

9.

ST/SC Converters( Optional)

4

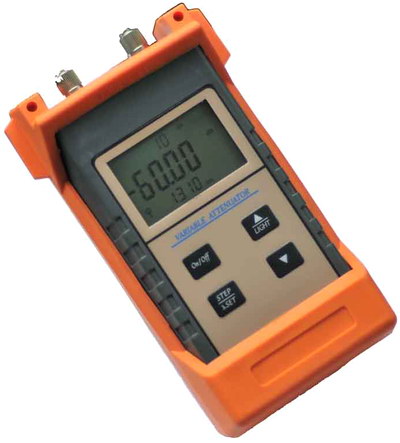

Digital Variable Optical Attenuator SRTM1306

DESCRIPTION:

SRTM1306 series of digital variable optical attenuator is designed by our company according to the developing optical communication and the application of the project. It’s with the small volume, light weight, low power consumption, has the competitive price and capability. This handheld variable attenuator enables consistent operation in various testing situation, such as photoelectric device, optical passive component, optical fiber, optical cable, optical fiber communication, as well as the construction and maintenance of the fiber communication engineering.

Main Functions:

1. 0.1dB weaken resolution
2. Three kind of attenuation step elected
10dB, 1.0dB, 01dB.
3. Universal interface has three types of
adapter: FC /SC / ST. Easy to operate
4. Small size/light weight/ high reliability.
Flexibly switch the wavelength
5. Battery-powered, convenient field work.
Omnipotence joint
6. Backlight at night.

Specifications:

Type

SRTM1306

Wavelength

1310nm/1550nm

Attenuation Range

0 ~ -60dB (not contain insert loss)

Accuracy

≤ ±0.1dB

Resolution

0.01dB

Insert loss

<1.5dB

Echo loss

>60dB(APC)          >50dB(PC)

Batteries

9V alkaline battery

Fiber Type

SM9/125μm

Interface Type

FC (standard), ST, SC are available for use

Operating temp

-10°C to 60°C

Storage temp

-20°C to 70°C

Work humidity

<95%

Automatic shutdown time

10min

Dimension

14.0 * 7.8 * 3.8cm

Weight

200g

Applications:
1. Fiber production and research devices
2. Fiber Network Testing and Maintenance
3. Optical Communication Teaching and Test



Standard Packages:

1.

SRTM1400 series Handheld Optical Multi Meter

1

2.

Cases

1

3.

Protective Holster

1

4.

Manual

1

5.

9V battery (rechargeable)

1

6.

AC adapter for power supply

1

7.

ST/SC Converters (Optional)

4

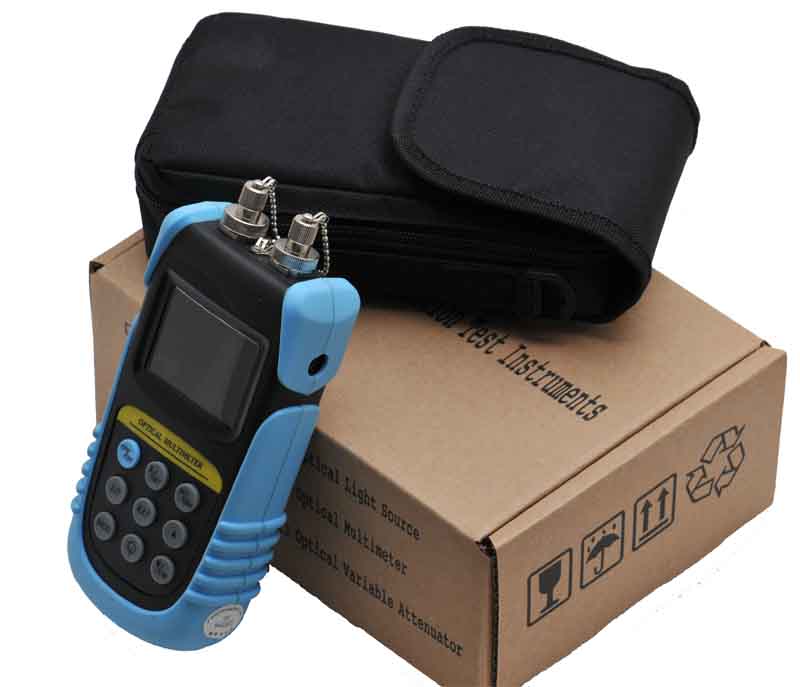

Handheld Optical Multimeter SRTM1400 series

Product Description
SRTM1400 series Handheld Optical Multi Meter are versatile power measurement devices which can be used for optical power module 0.63 ~ 1.65 μ m band in the optical power detection. It has mw, dB and dBm units for optical power measurement which can be used to direct optical power measurement. SRTM1400 series Handheld Optical Multi Meters offer five calibrated points: 850nm, 980nm, 1310nm, 1480nm and 1550nm. This dynamic range makes SRTM1413 powerful enough to optic fiber CATV systems, optic fiber communications networks deployment and test.

Applications:
1. Optical device production and research
2. Testing and maintenance of fiber-optic network
3. Teaching and test optical communication

Features:
1. Can be operated in measurement of output power with nw, uw, mw, dB and dBm readings.
2. High display resolution.
3. Linear and nonlinear display of output power.
4. Can be used for absolute power measurement and relative measurement of link loss.
5. Compact design, portable, light weight, energy-saving.
6. Large LCD display screen, helpful to your eyes.
Technical Specification:

Power Meter

Detector

InGaAs

Operating Wavelength

850, 1300, 1310, 1490, 1550, 1625

Power  meter type

3C

4C

Measurement Range

+3 ~ -70

+26 ~ -50

Uncertainty

±5%(±0.25dB)

Resolution

0.01

Light Source

Emitter Type

LD or DFB-LD

Operating Wavelength

635 or 850 or 1310 or 1550 or 850/1310 or 1310/1550±20nm(Optional)

Output Power (dBm)

> -7

Output Stability (dB)

±0.05/15min       ±0.1/1H

Optical Multi Meter

Rechargeable Battery Working Time (h)

(Light Source and Optical Multi Meter work at the same time) >3, (Only Optical Multi Meter works) >20

Power Supply

9V battery

Operating Temperature

-15 ~ 60

Dimensions (cm)

16.5 * 8.0 * 3.5cm

Weight (g)

350

Type description:

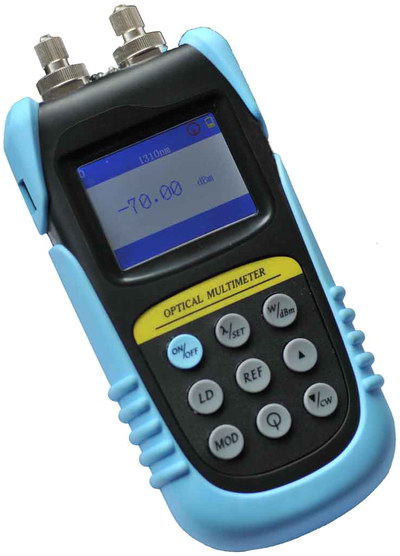

SRTM1485/13: 3Cpower meter + 850/1310 light source

SRTM1485/13: 4Cpower meter + 850/1310 light source
SRTM1413/15: 3Cpower meter + 1310/1550 light source

SRTM1413/15: 4Cpower meter + 1310/1550 light source

SRTM1465/70: 3Cpower meter + 635 redlight source

SRTM1465/70: 4Cpower meter + 635redlight source





Overview:

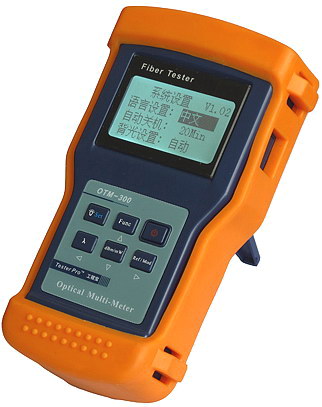

OTM-300 series optical MultiMate is a new comprehensive test of optical network product, which has a portable, intelligent, multi-functional, fast test, two-way power supply and other notable features. Larger LCD screen displays real-time testing of all information quickly. OTM-300 be widely acclaimed with its powerful combination of features and outstanding value, reliability and security in the industry.

Application:
-Optical Communication Engineering and maintenance.
-Security monitoring optical fiber transmission Installation and maintenance.
-CATV fiber optic project and maintenance.
-Researching Fiber Optic Sensing.

OTM-300 series Optical Multimeter

Feature:
-Portable design, large LCD display.
-Power meter and light source combination.
-Power meter all the functions.
-Stability of the full functionality of the laser light source.
-Separately or simultaneously using light source and optical power meter.
-Two number 5 batteries, low power, and ultra-long working hours.
-Backlight display automatically or manually optional, automatically off can be set.
-Battery usage time display.

Parameter:

Model

OTM300P

OTM300R

Optical

Power

meter



850,1300, 1310, 1490, 1550,1625

Detector Type

InGaAs (Si)

Power Range (dBm)

-70~+6

-50~+26

Accuracy

+/-0.13dB@22°C& @-10dBm

Display Resolution (dBm)

0.001dBm@-10dBm~+10dBm
0.01dB@>+10dBm,<-10dBm

Connector type

FC/PC (Interchangeable SC, ST)

Light

source

reference

Wavelength Range (nm)

850,1310, 1490,1550(Optional650nm, any combination of Single

light source, Dual light source and three light source

Spectral Width (nm)

≤10

Output Power (dBm)

-6.0dBm,0dBm,-4dBm

Stability

+/-0.04dB/15min & 20°C

Display

LED

Modulation Frequencies

CW, 270Hz, 1KHz, 2KHz, Frequency can be customized

Emitter Type

FP-LD, LED, VCSEL

Connector Type

FC/SC/ST

Other

reference

Backlight Auto off time (Sec)

5 Auto/manually operation

Operating Temp.(°C)

-10~+60

Storage Temp.(°C)

-20~+70

Relative Humidity

<70%

Power Supply

AA battery

Battery life (h)

48h(stable sources)
  38h(optical power meter)

Auto off Time (min)

20 can be set time

Weight (g)

300

Dimensions (H*W*T) (mm)

168*103*45

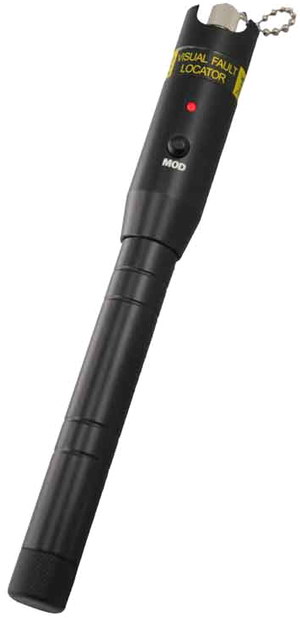

Optical Fiber Checker SRTM1565

DESCRIPTION:
SRTM1500 Series is high quality of Optical Fiber Checker, It contains the most advanced laser technology and microelectronics technology, and can be measured with various fiber optic adapter with &oslash;2.5mm common Interface. It is very convenient for them to check the single-mode and multimode fiber.
Features:
1. F-P LD laser source
2. CW and MOD mode
3. FC SC and ST interface
4. Test far distance
5. High reliability power output
6. Low power consumption
7. Nanotechnology multi-static
protection
8. Shell durable
9. Pen-shaped design, portable
and easy to use

Function:
 1. Fiber fracture and bending fault location
 2. OTDR shadow of the failed inspection
 3. End to end fiber identification
 4. Mechanical access point optimization

Applications:
1. Telecommunications ,CATV engineering
and maintenance
2. Integrated wiring construction
and Maintenance
3. Optical components research and production
4. Other fiber projects

Technology Parameters:

Type

SRTM1565

Wavelength

650±10 nm

Fiber  types

SM  MM

Light Output

1 / 3 / 5 / 10 / 15 / 20mW

Optical Interface

Universal Interface (FC, SC, ST)

Power Supply

2 *  batteries

Operating Temperature

-10~+60

Storage Temperature

-125

Shell material

Aluminum alloy

Battery Operating Time

20

Size

Ф25*190mm

Weight

140g

Type description:

SRTM1565: 650nm 5mw 5KM

SRTM1565B: 650nm 10mw 10KM

SRTM1565C: 650nm 15mw 15KM

SRTM1565D: 650nm 20mw 20KM



INTRODUCTION:
ADSL2+ Tester is an easy-to-use, hand-held advanced telecommunication tester that used for the installation, maintenance and measurement of ADSL2+ service. It supports the testing function such as parameter, error, DMM, PING that related to ADSL2+ service, user register authentication on the ADSL2+ user's line side. It also directly enables the engineers to verify, troubleshoot and evaluate the ADSL2+ service. It is the right tool for the job.
Main Feature:
1. Comply with multi-standards: ITU-T G.992.1 (G.DMT), ITU-T G.992.2 (G.Lite), ADSL2 (G.992.3) , ADSL2+ (G.992.5)
2. Automatically fit for the ADSL line standards, real-time display ADSL line connection status
3. Support both WAN PING and LAN PING
4. Support replacing MODEM and simulating the whole process of login on Internet
5. High resolution backlight large LCD, Handheld design and easy-to-use
6. Built-in Li rechargeable battery and smart charger circuit.
7. High storages capacity, can store up to 70 groups of test results including settings and results information.
8. Various Voice alarm and LED indications
9. Upgradeable software via an integrated RS-232 interface
10. Test results uploaded, conserved and printed by PCManager Software

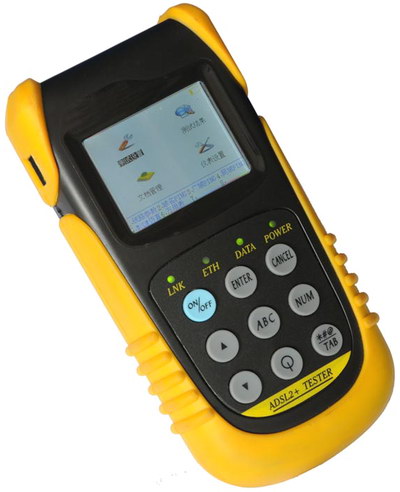

ADSL2 + Lan/network Tester SRTM801C

Specification:
1. Basic:
Line standard,
Frame structure,
Line connection.
2. Parameter:
Fast Bit Rates (FAST): Upstream and Downstream;
Interleaved Bit Rate (INTL): Upstream and
Downstream;
Max Bit Rate: Upstream and Downstream;
Utilize Rate: Upstream and Downstream;
Transmit Power: Upstream and Downstream;
Line Attenuation: Upstream and Downstream;
SNR Margin (Signal to Noise Ratio) : Upstream and Downstream;
3. Link: (Near and Far)
Loss of Power (LOP)
Loss of Signal (LOS)
Severe Error Frame (SEF)
Reed-Solomon Forward Error Corrections (FEC) INTL
Reed-Solomon Forward Error Corrections (FEC) FAST
Cyclic Redundancy Check (CRC) anomalies INTL
Cyclic Redundancy Check (CRC) anomalies FAST
No Cell Delineation (NCD) INTL
No Cell Delineation (NCD) FAST
Header Error Check (HEC) INTL
Header Error Check (HEC) FAST
Out of Cell Delineation (OCD) INTL
Out of Cell Delineation (OCD) FAST
Sever Error Second (SES)
Error Second (ES),
Bit Error (BE)
4. Alarm:
Downstream Transmit Speed Threshold
Downstream SNR Margin Threshold
Downstream Channel Threshold
Downstream Line Attenuation Threshold
Upstream Line Attenuation Threshold
5. DMT
SNR and Character bits allocation (graphic format) under 256/512 DMT
6. PING testing
WAN PING testing: IP or domain ping testing, statistic Percentage of PING packet loss
LAN PING testing: IP PING testing, Find out the faultily connected PC and statistic Percentage of PING packet loss
7. DMM
AC, DC voltage
Loop feeding current
Round resistance
Line capacitance
Line insulation capacitance
Estimate line distance

Packing: 10PCS/CTN, CTN SIZE: 30*34.5*43CM, G.W.: 10KGS





 ( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@163.com )
