PORTABLE DIGITAL STORAGE OSCILLOSCOPE

(digital oscilloscope, digital storage oscilloscope, portable oscilloscope)

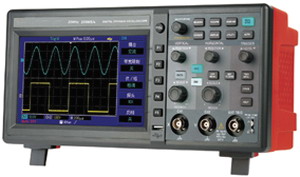

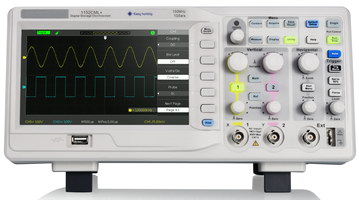

Portable Digital Storage Oscilloscope SRD7025CL

Feature

Channel 2

Bandwidth

25 MHz

Rise Time

≒14 ns

Real-time Sampling Rate

250MS/s

Memory Depth 25kpts
Waveform Acquisition Rate ≡2000wfms/s

Vertical Sensitivity

1mV ~ 20V/div

Scan Time Base

10ns ~ 50s/div

Storage Type

Setup, Wave, Bitmap

Trigger Type

Edge, Pulse, Video, Alternate

Ports

USB OTG, Pass/Fail

GENERAL CHARACTERISTICS

Power

100 - 240VACRMS, 45Hz -440Hz, CAT II

LCD Size

Diagonal 178mm (7 inches)

Product Color

Red and Grey

Product Net Weight

2.2kg

Product Size

306mm x 147mm x 122mm

Accessories

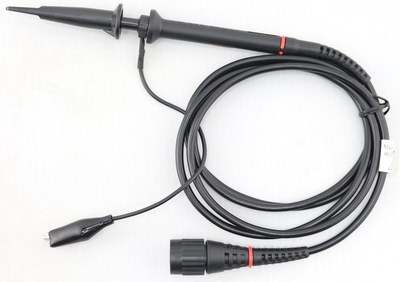

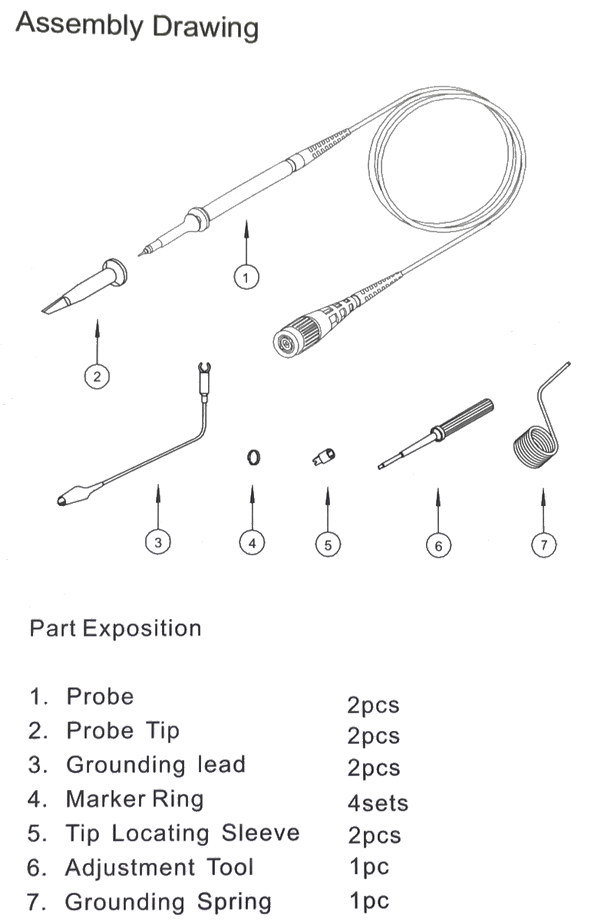

Probe x2 (1x,10x switchable), Power Cord and English Manual,UT-D05 USB Cable, PC Communication Software

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

2 pcs

Standard Carton Measurement

450mm ℅ 420mm ℅ 280mm (0.053 CBM Per Export Carton)

Standard Carton Gross Weight

Around 8.5kg

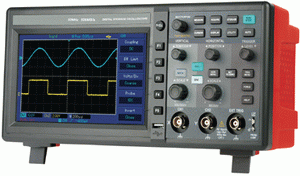

 Portable Digital Storage Oscilloscope SRD7052CL

Feature

Bandwidth

50 MHz

Rise Time

≒7 ns

Real-time Sampling Rate

500MS/s

Equivalent Sampling Range

50GS/s

Vertical Sensitivity

1mV ~ 20V/div

Record Length (Max)

2 x 600k

Scan Time Base

5ns ~ 50s/div

Trigger Type

Edge, Pulse, Alternate

Automatic Waveform Measurements

28

Frequency Counter

6 digits frequency counter

Ports

USB OTG

Mathematics

Add, Subtract, Multiply, Divide, FFT

Other Features

Special Print Screen Feature

GENERAL CHARACTERISTICS

Power

100 - 240VACRMS, 45Hz -440Hz, CAT II

LCD Size

Diagonal 178mm (7 inches)

Product Color

Red and Grey

Product Net Weight

2.2kg

Product Size

306mm x 147mm x 122mm

Accessories

Probe x 2 (1x, 10x switchable), Power Cord, English Manual,UT-D05 USB Cable, PC Communication Software

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

2 pcs

Standard Carton Measurement

445 x 410 x 270mm (0.055 CBM Per Export Carton)

Standard Carton Gross Weight

Around 8.5kg

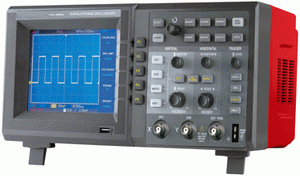

Portable Digital Storage Oscilloscope SRD7062C



Feature

Bandwidth

60 MHz

Rise Time

≒5.8 ns

Sample Range

500MS/s

Vertical Sensitivity

2mV ~ 5V/div

Record Length (Max)

2 x 512k

Sample Rate

Real time 500MS/s, Equivalent: 25GS/s

Scan Time Base

5ns ~ 50s/div

Trigger Type

Edge, Pulse, Video and Alternate

Automatic Waveform Measurements

28

Ports

Standard: USB Device, USB Host, RS232. Optional: LAN

Mathematics

Add, Subtract, Multiply, Divide, FFT

Applications

College Education, R&D, Electronic product assemble line, Industrial Control etc.

Display

64k, Full color LCD, 320 x 240

GENERAL CHARACTERISTICS

Power

100 - 240VACRMS, 45Hz - 440Hz, CAT II

LCD Size

Diagonal 145mm (5.7 inches)

Product Color

Red and Grey

Product Net Weight

2.5kg (Excluding packaging)

Product Size

320mm x 150mm x 130mm

Standard Accessories

Probe x 2 (1x, 10x switchable), Power Cord and English Manual

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

2 pcs

Standard Carton Measurement

445 x 410 x 270mm (0.055 CBM Per Export Carton)

Standard Carton Gross Weight

9.2kg

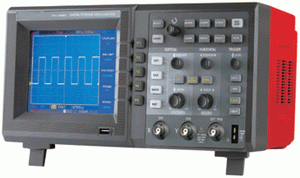

Portable Digital Storage Oscilloscope SRD7062CE

Feature

Bandwidth

60 MHz

Rise Time

≒5.8 ns

Sample Range

1GS/s

Vertical Sensitivity

2mV ~ 5V/div

Record Length (Max)

2 x 512k

Sample Rate

Real time 1GS/s, Equivalent: 50GS/s

Scan Time Base

5ns ~ 50s/div

Trigger Type

Edge, Pulse, Video and Alternate

Automatic Waveform Measurements

28

Ports

Standard: USB Device, USB Host; PASS/FAIL, Optional: LAN

Mathematics

Add, Subtract, Multiply, Divide, FFT

Applications

College Education, R&D, Electronic product assemble line, Industrial Control etc.

Display

64k, Full color LCD, 320 x 240

GENERAL CHARACTERISTICS

Power

100 - 240VACRMS, 45Hz - 440Hz, CAT II

LCD Size

Diagonal 145mm (5.7 inches)

Product Color

Red and Grey

Product Net Weight

2.5kg (Excluding packaging)

Product Size

320mm x 150mm x 130mm

Standard Accessories

Probe x 2 (1x, 10x switchable), Power Cord and English Manual

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

2 pcs

Standard Carton Measurement

445 x 410 x 270mm (0.055 CBM Per Export Carton)

Standard Carton Gross Weight

9.2kg

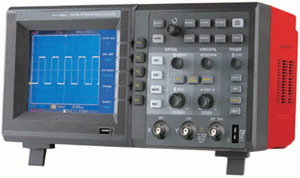

Portable Digital Storage Oscilloscope SRD7102CE

Feature

Bandwidth

100 MHz

Rise Time

≒3.5 ns

Sample Range

1GS/s

Vertical Sensitivity

2mV ~ 5V/div

Record Length (Max)

2 x 512k

Sample Rate

Real time 1GS/s, Equivalent: 50GS/s

Scan Time Base

5ns ~ 50s/div

Trigger Type

Edge, Pulse, Video and Alternate

Automatic Waveform Measurements

28

Ports

Standard: USB Device, USB Host; PASS/FAIL, Optional: LAN

Mathematics

Add, Subtract, Multiply, Divide, FFT

Applications

College Education, R&D, Electronic product assemble line, Industrial Control etc.

Display

64k, Full color LCD, 320 x 240

GENERAL CHARACTERISTICS

Power

100 - 240VACRMS, 45Hz - 440Hz, CAT II

LCD Size

Diagonal 145mm (5.7 inches)

Product Color

Red and Grey

Product Net Weight

2.5kg (Excluding packaging)

Product Size

320mm x 150mm x 130mm

Standard Accessories

Probe x 2 (1x, 10x switchable), Power Cord and English Manual

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

2 pcs

Standard Carton Measurement

445 x 410 x 270mm (0.055 CBM Per Export Carton)

Standard Carton Gross Weight

9.2kg

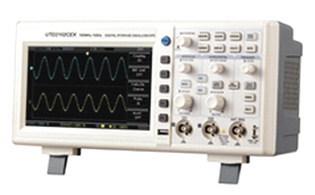

Digital Storage Oscilloscopes SRD7102CEX

Features:

1. Dual analog channels width range 1mV/div~20V/div;
2. 7 inches widescreen LCD displays;
3. The new interface style;
4. Supports plug-and-play USB storage device. Communication with and remote control of computer through the USB device;
5. USB drive system software upgrade;
6. Storage of waveforms setups and interfaces waveforms and setups reproduction;
7. Automatic measurement of 34 waveform parameters;
8. Unique waveform recording and replay function;
9. Multilingual menu displays.

Specification

SRD7102CEX

Channels

2

Bandwidth

50MHz

Sample Rate

1Gs/s

Rise Time

≒7ns

Memory Depth

40kpts

Waveform Acquisition Rate

≡2000wfms/s

Vertical Sensitivity(V/div)

1mV/div~20V/div

Time base Range(s/div)

2ns/div~50s/div

Storage

Setup, Wave, Bitmap

Trigger Modes

Edge, Pluse, Alternate

Interface

USB OTG

General Characteristic

Power

100-240VAC, 40-440Hz

Display

7 Inches 64K Color TFT LCD, 800℅480

Product Color

White and Gray

Product Net Weight

2.2 Kg

Product Size

306mm*147mm*122mm

Standard Accessories

Probe℅2 (1℅,10℅ switchable), Power Cord , USB Cable, PC Software CD

Standard Individual Packing

Gift Box, English Manual

Standard Quantity Per Carton

2 pcs

Standard Carton Measurement

450mm ℅ 420mm ℅ 280mm

Standard Carton Cross Weight

8.5 Kg

Optional Accessories

LA Module (UT-M09)

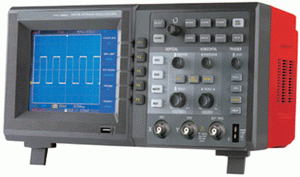

Portable Digital Storage Oscilloscope SRD7202CE

Feature

Bandwidth

200 MHz

Rise Time

≒1.8 ns

Sample Range

1GS/s

Vertical Sensitivity

2mV ~ 5V/div

Record Length (Max)

2 x 512k

Sample Rate

Real time 1GS/s, Equivalent: 50GS/s

Scan Time Base

2ns ~ 50s/div

Trigger Type

Edge, Pulse, Video and Alternate

Automatic Waveform Measurements

28

Ports

Standard: USB Device, USB Host; PASS/FAIL, Optional: LAN

Mathematics

Add, Subtract, Multiply, Divide, FFT

Applications

College Education, R&D, Electronic product assemble line, Industrial Control etc.

Display

64k, Full color LCD, 320 x 240

GENERAL CHARACTERISTICS

Power

100 - 240VACRMS, 45Hz - 440Hz, CAT II

LCD Size

Diagonal 145mm (5.7 inches)

Product Color

Red and Grey

Product Net Weight

2.5kg (Excluding packaging)

Product Size

320mm x 150mm x 130mm

Standard Accessories

Probe x 2 (1x, 10x switchable), Power Cord and English Manual

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

2 pcs

Standard Carton Measurement

445 x 410 x 270mm (0.055 CBM Per Export Carton)

Standard Carton Gross Weight

9.2kg

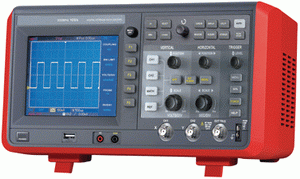

Portable Digital Storage Oscilloscope SRD6102C

Feature

Bandwidth

100 MHz

Rise Time

≒3.5 ns

Sample Range

2GS/s

Vertical Sensitivity

1mV ~ 10V/div

Record Length (Max)

1024k

Sample Rate

2GS/s

Scan Time Base

5ns ~ 50s/div

Trigger Type

Edge, Pulse, Video, Slope and LA

Automatic Waveform Measurements

27

Ports

Standard: USB Device, USB Host; PASS/FAIL, LA interface, Multimeter interface, LAN and GPIB

Mathematics

Add, Subtract, Multiply, FFT

Applications

College Education, R&D, Electronic product assemble line, Industrial Control etc.

Display

Digital Multimeter and Logic Analyzer

GENERAL CHARACTERISTICS

Power

100 - 240VACRMS, 45Hz - 440Hz, CAT II

LCD Size

Diagonal 145mm (5.7 inches)

Product Color

Red and Grey

Product Net Weight

3.8kg (Excluding packaging)

Product Size

330mm x 165mm x 165mm

Standard Accessories

Probe x2(1x,10x switchable), Logic Analyzer, Power Cord, Current-to-Voltage Convertor module, (UT-M03, UT-M04),English Manual, Probe UT-P06

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

2 pcs

Standard Carton Measurement

540 x 425 x 325mm (0.063 CBM Per Export Carton)

Standard Carton Gross Weight

Around 13.7kg

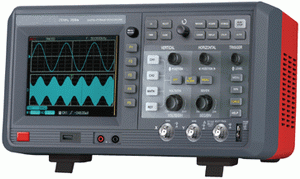

Portable Digital Storage Oscilloscope SRD6302C

Feature

Bandwidth

300 MHz

Rise Time

≒1.2 ns

Real-time Sampling Rate

2GS/s

Equivalent Sampling Range

50GS/s

Vertical Sensitivity

2mV ~ 5V/div

Record Length (Max)

1024k

Scan Time Base

1ns ~ 50s/div

Trigger Type

Edge, Pulse, Video, Slope and Alternate

Automatic Waveform Measurements

27

Frequency Counter

6 digits frequency counter

Ports

Standard: USB Device, USB Host; PASS/FAIL.
LA interface, Multimeter interface, LAN and GPIB

Mathematics

Add, Subtract, Multiply, Divide, Reverse and FFT

Applications

College Education, R&D, Electronic product assemble line, Industrial Control etc.

Other Features

Digital Multimeter and Logic Analyzer

GENERAL CHARACTERISTICS

Power

100 - 240VACRMS, 45Hz -440Hz, CAT II

LCD Size

Diagonal 145mm (5.7 inches)

Product Color

Red and Grey

Product Net Weight

3.8kg(Excluding packaging)

Product Size

330mm x 165mm x 165mm

Accessories

Probe x2(1x, 10x switchable), Logic Analyzer, Power Cord, Current-to-Voltage Convertor module, (UT-M03,UT-M04), English Manual, Probe UT-P06

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

2 pcs

Standard Carton Measurement

540 x 425 x 325mm (0.063 CBM Per Export Carton)

Standard Carton Gross Weight

Around 13.7kg

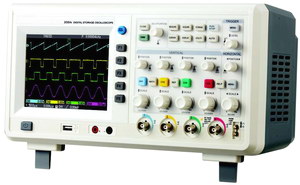

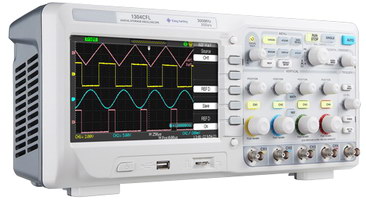

Digital Storage Oscilloscope SRD6104C

Features:

1. Analog channels and 2GS/s real-time sampling rate;
2. Dual time base function; unrivaled waveform detail observation and analysis capabilities;
3. 3½ digital multimeter;
4. Supports plug-and-play USB storage devices and capable of communicating with a computer;
5. USB drive system software upgrade;
6. Built-in FFT and Multiple waveform mathematics functions (including add, subtract, multiply and divide);
7. Edge, Video, Pulse Slop and Alternate trigger functions.

Specification

SRD6104C

Channels

4

Bandwidth

100MHz

Sample Rate

2GS/s

Rise Time

≒3.5ns

Memory Depth

24kpts

Vertical Sensitivity

2mV/div~5V/div

Timebase Range

5ns/div~50s/div

Storage

Setup, Wave, Bitmap, CSV

Trigger Modes

Edge, Pluse, Video, Slope, Alternate

Interface

USB Device, USB Host, Multimeter Interface

Multimeter Specifications

Range

Best Accuracy

DC Voltage (V)

400mV, 4V, 40V, 400V

㊣ (1% + 5)

AC Voltage (V)

4V, 40V, 400V

㊣ (1.2% + 5)

DC Current (A)

4mA, 40mA, 400mA, 4A

㊣ (1% + 5)

Resistance  (次)

400次, 4k次, 400k次, 4M次, 40M次

㊣ (1.5% + 5)

Display Count

4000

Auto Range

Yes

General Characteristic

Power

100-240VAC, 40-440Hz

Display

5.7 Inches 64K Color TFT  LCD,  320*240

Product Color

White and Gray

Product Net Weight

3.8 Kg

Product Size

330mm * 165mm * 165mm

Standard Accessories

Probe*4 (1℅,10℅ switchable), Current-to-Voltage Convertor Module, Test Leads, Power Cord, USB Cable, PC Software CD

Standard Individual Packing

Gift Box, English Manual

Standard Quantity Per Carton

2 PCs

Standard Carton Measurement

540mm * 425mm * 325mm

Standard Carton Cross Weight

13.7 Kg

 Application:
 1. Electronic circuit debugging
 2. Circuit testing
 3. Design and manufacture
 4. Education and training
 5. Automobile maintenance and testing

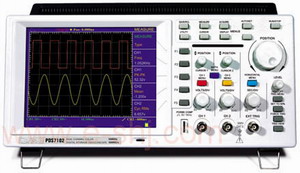

 Main Features:
 25MHz~100MHz Bandwidth
 Up to 500MS/s real time sample rate
 Max.6000 record length for each channel
 Dual channels plus External trigger
 Waveform mathematic function
 7.8 inch color LCD display for large view
 PC communication through the USB or
 RS232 port for real-time data transmission
 Advanced trigger: Edge trigger, Video trigger and Alternate trigger
 Oscilloscope Specification
 Model  PDS5022  PDS6042  PDS6062  PDS7102
 Bandwidth  25MHz  40MHz  60MHz  100MHz
 Sample Rate ( Real time )  100MS/s  250MS/s  250MS/s  500 MS/s
 Rise time  14ns  8.75ns  5.8ns  3.5ns
 Display  7.8 inch colored LCD, 256 colors for STN screen /65536 colors for  TFT  screen, 640℅480 pixels
 Channel  Dual channels external trigger
 Sampling mode  Normal sample, Peak detect and Average
 Record length  Max.6000 for each channel
 Sampling range  10S/s~100MS/s  10S/s~250MS/s  1S/s~500MS/s
 Horizontal scale (s/div)  5ns/div~5s/div  5ns/div~5s/div step by 1-2-5
 step by 1-2.5-5
 Vertical sensitivity  5mV ~5V/div (at BNC input)
 DC Gain Accuracy  ㊣5%   ㊣3%
 Max. input voltage  300V(PK-PK)(DC + AC PK-PK) 400V(PK-PK)(DC+ AC PK-PK)
 Input impedance  1M次㊣2% in parallel with 20pF㊣5pF   1M次㊣2% in parallel with  20pF㊣5pF
 Input coupling AC, DC AC, DC, GND
 Trigger Mode Edge, Video Edge, Video, Alternate
 Vertical resolution (A/D) 8 bits (2CH simultaneously)
 Sampling rate / relay time  accuracy ㊣100ppm
 Interval(T) accuracy  Single: ㊣(1 interval time+100ppm℅reading+0.6ns)
 (DC~100MHz)  Average>16: ㊣(1 interval time +100ppm℅reading+0.4ns)
 Waveform storage  4 waveforms
 Automatic measurement  Peak-to-Peak, Average, Root mean square, Frequency, and Cycle
 Waveform math  ㄚ, ㄜ, Invert
 Lissajou*s Bandwidth  25 MHz 40MHz 60 MHz 100 MHz
 figure Phase difference  ㊣3 degrees
 Interface  USB, RS232
 Power supply  100-240 VACRMS, 50Hz, CAT II
 Dimension  350mm(L)*157mm(H)*103mm(W)
 Weight 1KG 1.75KG

 Application:
 1.Electronic circuit debugging
 2.Circuit testing
 3.Design and manufacture
 4.Education and training
 5.Automobile maintenance and testing

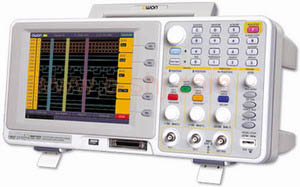

 Main Features:
 Support both DSO and LA
 25MHz~100MHz Bandwidth, up to 500MS/s real time sample rate
 16 optional logic input channels
 Max 6000 points record length for each channel
 Dual channels + External trigger + Logic Analyzer
 7.8 inch color LCD display for large view
 Support USB data transmission, display by real-time
 Advanced trigger functions: Edge trigger, Bus trigger, Pattern trigger, Sequential queue trigger,  Distributed queue trigger and Data width trigger.
 Oscilloscope Specification
 Model Name  MSO5022
 Bandwidth  25MHz
 Sample Rate (Real time)  100MS/s
 Rise time  ≒14ns
 Display  7.8 inch colored LCD, 256 colors, STN/TFT screen, 640℅480 pixels
 Channel  Dual channels + external trigger +  Logic Analyzer
 Horizontal scale (s/div)  5ns/div-5s/div (step by 1-2.5-5)
 Interval(→T) accuracy (full  bandwidth)  Single: ㊣(1 interval time+100ppm℅reading+0.6ns)
 Average>16: ㊣(1 interval time +100ppm℅reading+0.4ns)
 Vertical Sensitivity  5mV/div~5V/div (at input)
 DC Gain Accuracy  ㊣3%
 Vertical resolution (A/D)  8bits resolution (2CH simultaneously)
 Max. Input Voltage  300V(DC+ AC Peak) (1M次 input  impedance, Probe Attenuation rate 10:1)
 Input impedance  1M次㊣2% in parallel with 20pF㊣5pF
 Input coupling  DC, AC
 Trigger Mode  Edge, Video, Alternate, Mains supply
 Sampling Mode  Normal, Peak detection, Average
 Record length  Max. 6000 points on each channel
 Waveform storage  4 waveforms
 Automatic Measurement  PK-PK, Average, RMS, Frequency, Cycle.
 Waveform math  ㄚ,ㄜ, Inverted
 Power supply  100-240VACRMS,50Hz,CATj
 Battery  7.4V, 8000mAh
 Dimension  370mm℅180mm℅120mm
 Weight  2.1KG
  Logic Analyzer specification
 Sample rate (real time)  20S/s-500MS/s
 Bandwidth  33MHz-166MHz
 Channels  16 optional
 Record length  4M/channel
 Input impedance  1M次㊣2%
 Trigger mode  Edge trigger, Bus trigger, State trigger, Data alignment trigger, Data  width trigger
 Trigger position setting  Pre-trigger, mid-trigger, Post-trigger
 Threshold Voltage  0~4V(4 settings)
 Input Signal Range  0~5V
 Data search  Support
 Data System  Binary system, Decimal system, Hex
 Digital filter  0,1,2 optional
 Setting storage  Support 10 settings
 USB storage  Support

Features:

1.Advanced in domestic , high technology product Vertical two channels, bandwidth of each channel is 200MHz, 100MHz, 60MHz, 40MHz, 25MHz;
2.Max. real time sampling 1GSa/s, equivalent sampling 50GSa/s;
3.High LCD, adjustable intensity;
4.Support communication interface. RS232, USB (main, sub), RJ45 LAN;
5.Delay sweep, shorten time;
6.Measure Multi-waveform parameters automatically, record and recall waveform;
7.SFFT, differential coefficient, integral and FFT analysis;
8.Multi- language menus display, help to display information;
9.Input attenuation 2mV/div~50V/div, easy to measure big signal;
10.Display date and time;
11.Auto-track: Sweep auto-track, vertical auto-track, completely auto-track;
12.Edge, video, pulse width, slope, alt. etc;
13.Pass/Fail measure;
14.Kinds of correction signals output frequency (1K, 10K, 100K).

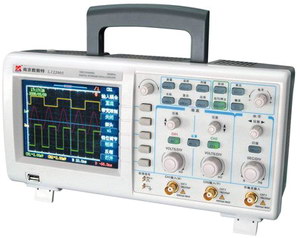

MODEL

LDS22005
LDS22010

LDS21005
LDS21010

LDS20605

LDS20405

LDS20205

Vertical System

Channel

CH1, CH2, ADC, 8bits resolution

Vertical ratio

2mV/div-50V/div, 1-2-5 14 steps

Analog Bandwidth

200MHz

100MHz

60MHz

40MHz

25MHz

Single Bandwidth

DC~200MHz(LDS22010), DC~100MHz(LDS21005, LDS21010, LDS22005), DC~60MHz(LDS20605), DC~40MHz(LDS20405), DC~25MHz(LDS20205)

Expand Bandwidth (2mV/div)

DC~40MHz(200MHz)   -3dB     DC~20MHz(100MHz眕狟)   -3dB

Analog Bandwidth limt (Typical)

20MHz(200MHz, 100MHz, 60MHz, 40MHz)

5MHz(25MHz)

Rise Time

≒1.8ns

≒3.5ns

≒5.8ns

≒8.7ns

≒14ns

Low-freq. Reject (AC Couple)

≒10Hz(@BNC)

Probe ratio

1℅, 10℅, 100℅

Dynamic Range

≡12div(Centre Base㊣6div)

Input impedance

Resistance(1㊣2%)M次    Capacity(20㊣5)pF

Max. Input Voltage

400V(DC+ACpeak)  Freq.≒400Hz(@1M次 input impedance)

Deflect Error

≒㊣(3%+1pixel)(>5mV/div)   ≒㊣(4%+1pixel)(2mV/div)

CMRR

≡20dB  @50MHz

Open Noise

≒0. @5mV/div

Drift

Short drift : ≒0.5div   Long drift: ≒1div

Operation & analysis of waveform

CH1㊣CH2, CH1℅CH2, CH1/CH2, FFT, Diff, Integral, SFFT, Rectange, Correlation ratio.

Horization system

Sample Rate

Real time Sample rate up to :500MSa/s, 10 ratio:峈1GSa/s

Equal Sample rate up to :50GSa/s

Wave interal insert

Sin(x)/x

Record Lenght

4kB/CH up to512kB or 1MB

VerticalMode

Main sweep, Main sweep+ delay sweep, X-Y

Sweep Rate

1-2-5step 50s/div~1ns/div(200MHz)˙50s/div~5ns/div(100MHz)

50s/div~10ns/div(60MHz, 40MHz)˙50s/div~20ns/div(25MHz)

Attention: 05 Series 200MHz Time base up to 5ns/div

Sweet rate and delay

㊣100ppm

X-Y character

X(CH1) bandwidth: DC~ vertical full band  -3dB   Phrase error: ≒3∼ @5MHz

Trig

Trig Source

CH1, CH2, EXT, Line

Ext. Trig Input impedance

R(1㊣2%)M次  C:(20㊣5)pF

Max input

400V(DC+ACpeak)≒1kHz

Trig sensitivity

Int: ≡1div(up to 40MHz), ≡2div( >40MHz), ≡2div, TV-V, TV-H Video

Ext.: ≡100mVp-p up to 40MHz, ≡200mVp-p >40MHz, 200mVp-p, TV-V, TV-H video

Auto Trig Range

100Hz~100MHz Rectangle

Trig level range

Int: ㊣4div  ext.: ㊣1.6V

LF reject

<100kHz

HF reject

>100kHz

Trig Mode

Edge, plus, video, slope

Measurement

Cursor Readout

→V, →T, 1/→T

Auto measurement

Voltage: p-p, Amplitue, Max, Min, top, bottum, Average, SQR, overshot, preshot

Time: Frequency, time, rise time, fall time, Positive pulse-width, negative pulse-width, positive duty cycle ,negative duty cycle

Delay 1-2, Delay 1-2

Display

Screen

Dize 5.7" True color

Pixel:320(v)℅234(H), Ligth: typical≡80cd/m^2

Wave display

Vertical: 200pixel(Full), 25pixel/div, Horization: 250pixel(full), 25pixels/div

Display type

pixel, vector chart

Display mode

Normal

Smoothless

Average: 2^n(n=1~8 selectable)

Peak: time base 20ms/div~2米s/div, envelope and glitch capture

persistence : off, 100ms, 500ms, 1s, 2s, 5s, 10s,  infinite

Calibration signal

Amplitude

0.5Vp-p≒㊣1%

Frequency

1KHz, 10KHz, 100KHz rectangle selectable

Interface

Output

USB (Master, slave), RS232, RJ45(Option)

Storage

Waveform

10 groups

Setup

10 groups

Physical

Power

AC100V~240V  ㊣10%   45Hz~440Hz

Power consume

Approx. 25W

Dimension and Weight

300mm℅150mm℅130mm     2.5kg

Oscilloscope Probe

SR-P00 series Passive Probe

Click to find the Assembly Drawing

Specifications:

Model

SR-P01

SR-P02

SR-P03

SR-P04

SR-P05

SR-P06

Bandwidth

25MHz

40MHz

60MHz

100MHz

200MHz

300MHz

Passive Probe

1:1/10:1

Input Resistance

1℅: 1M次㊣2%, 10℅: 10M次㊣2%

Input Capacitance

1℅: 100pF~150PF, 10℅: 18.5pF~22.5pF

1℅: 70pF~120pF, 10℅: 14pF~18pF

1℅: 70pF~120pF, 10℅: 13pF~17pF

Compensation Range

8pF~35pF

Operating Voltage

 1℅: 300Vp-p, 10℅: 600Vp-p

( If you need user manual or E-catalogue for above meters,  please ask for at: xiushunjie@163.com )
