PHASE ROTATION TESTER

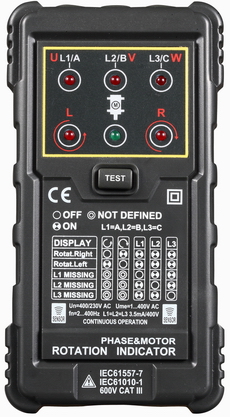

PR5900 Motor and Three Phase Rotation Indicator

  (same as MASTECH MS5900)

SPECIFICATIONS

DESCRIPTION

Operating Voltage

120V~400V AC

Current Consumption

20mA

Frequency Range

2Hz ~400Hz

GENERAL

Power Supply

1 x 9V6F22 Battery

Product Size

128mm x70mm x30mm(5" x2.75" x1.18")

Product Weight

168g(0.37lb)

Category

CE CAT.III 600V RoHS

PR8030 Phase Rotation Tester

Product Detail:

Product Features

 Sophisticated aesthetic appearance, the use of portable

 PC-shell materials, safe, durable

 Product design LEC - 348 safety standards

 LED suggested that judgment phase sequence and direction of rotation

 Sequence Detection voltage range : 200V - 480V

 Sequence Detection frequency range : 20HZ~ 400HZ

 Environment-friendly design, without the use of batteries

General characteristics

 Instrument Size : 80 (L) x59 (W) x23 (H) mm

 Tests Link Length : 800mm

PR8031 Phase Rotation Tester

Product Detail:

Product Features

 Sophisticated aesthetic appearance, the use of portable

 PC-shell materials, safe, durable

 Product design LEC - 348 safety standards

 LED suggested that judgment phase sequence and direction of rotation

 Sequence Detection voltage range : 200V - 600V

 Sequence Detection frequency range : 20HZ~ 400HZ

 Environment-friendly design, without the use of batteries

General characteristics

 Instrument Size : 80 (L) x59 (W) x23 (H) mm

 Tests Link Length : 800mm

PR7000 Phase Rotation Tester

Product Detail:

Product Features

 Sophisticated aesthetic appearance, the use of portable

 PC-shell materials, safe, durable, oil painting process shell surface

 Product design with safety standards CAT600V

 LED suggested that judgment phase sequence and direction of rotation

 Sequence Detection voltage range : 200V - 480V

 Sequence Detection frequency range : 20HZ~ 400HZ

 Environment-friendly design, without the use of batteries

General characteristics

 Instrument Size : 98 (L) x67 (W) x26 (H) mm

 Tests Link Length : 800mm

PR7000P Phase Rotation Tester

Product Detail:

Product Features

 Sophisticated aesthetic appearance, the use of portable

 PC-shell materials, safe, durable, RUBBER oil painting process shell surface

 Product design with safety standards CAT600V

 LED suggested that judgment phase sequence and direction of rotation

 Sequence Detection voltage range : 200V - 480V

 Sequence Detection frequency range : 20HZ~ 400HZ

 Environment-friendly design, without the use of batteries

General characteristics

 Instrument Size : 98 (L) x67 (W) x26 (H) mm

 Tests Link Length : 800mm

PR7010 Phase Rotation Tester

Product Detail:

Product Features

 Sophisticated aesthetic appearance, the use of portable

 PC-shell materials, safe, durable, oil painting process shell surface

 Product design with safety standards CAT600V

 Luminescence and LCD buzz suggested that judgment phase sequence and direction of rotation

 Sequence Detection voltage range : 200V - 600V

 Sequence Detection frequency range : 20HZ~ 400HZ

 Environment-friendly design, without the use of batteries

General characteristics

 Instrument Size : 98 (L) x58 (W) x23 (H) mm

 Tests Link Length : 1m

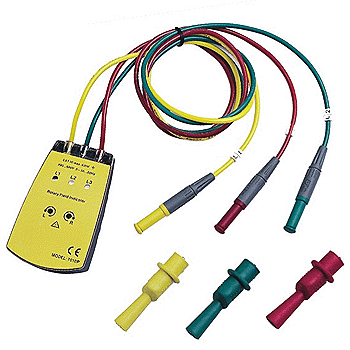

PR7010P Phase Rotation Tester

Product Detail:

Product Features

 Sophisticated aesthetic appearance, the use of portable

 PC-shell materials, safe, durable, RUBBER oil painting process shell surface

 Product design with safety standards CAT600V

 Luminescence and LCD buzz suggested that judgment phase sequence and direction of rotation

 Sequence Detection voltage range : 200V - 600V

 Sequence Detection frequency range : 20HZ~ 400HZ

 Environment-friendly design, without the use of batteries

General characteristics

 Instrument Size : 98 (L) x58 (W) x23 (H) mm

 Tests Link Length : 1m

PHASE INDICTOR SM852B

Description: It is used to measure
the opening phase condition and
order through LED and Buzzer.
Measuring frequency range:20Hz~400Hz
Operational Voltage:60V600V (3 Phase AC)

CX-1 Non-contact phase-sequence pen

Product Detail:

CX-1 Non-contact phase-sequence pen

1.The function of the 3-in-1 phase-sequence pen

(1) Phase-sequence pen: measure the phase-sequence of the threephase alternating current.

(2 Wire finder pen: find the isopen of the threephase alternating current.

(3) Neon-electroscope: measure the conductor weather it is charged body or not.

2. Characteristic

(1) 50/60Hz  For use on 50/60Hz circuits

 (2).  voltage Range: AC90~600V

(3). 600V AC CAT III

(4).SIZE: 15922mm

(5).WEIGHT: 45g

(6).POWER SUPPLY: AAA1.5V 2

CD-1/2 Non-contact detection Pen

Product Detail:

CD-1/CD-2

CD-1:Non-contact detection of AC voltage from 90VAC to 600VAC

CD-2:Non-contact detection of AC voltage from 24VAC to 600VAC

For use on 50/60Hz circuits,Buzzerand light detection

SIZE: 15922mm

POWER SUPPLY:AAA 1.5V2

WEIGHT:  about 41g(Include battery)

VD02 Non-contact Voltage Detector

Product Detail:

Voltage Sensitivity: 90-1000VAC
Bandwidth: 50/60Hz
Measurement category: CATIII, 1000V
Temperature:
Operating: -10~50C
Storage: -10~50C
Pollution: Degree 2
Normal Indicators: Beep and flashing LED indicate the presence of voltage
Use to detect voltage in outlets,lighting fixtures,circuit breakers,wires,and cables or to find a break in a wire.
Safe,non-contact voltage detection
LED LIGHT
Power: (Size AAA)1.5V x 2 Battery
Size: 150 x 109mm
Weight: Around 49g
Packing: Blister
Standard Quantity Per Carton: 200pcs
Standard Carton Size: 48.5 * 25.5 * 47cm
Standard Carton Gross Weight: 13kg

VD03 Non-contact Voltage Detector

Product Detail:

Non-contact detection of voltage in cables,cords,circuit breakers,lighting fixtures,switches,outlets,and wires.
Highe intensity,bright green LED indicates the tester is operational and aids in illuminating the workspace.
When voltage is detected,a high intensity,bright red LED illuminates and a beeping sound is generated.
Discrete digitally controlled ON/OFF power button.
Auto power-off feature conserves and extends battery life.
Microprocessor controlled low-battery indicator and tester shutdown.
CAT IV 1000 Volt rating provides expanded operation and protection
50 to 1000 Volt AC power operating rang allows broad application.
Durable polycarbonate plastic resin construction.
Lightweight compact design with a convenient clip to fit securely in your pocket.
Package Contents:
1 Owner's Manual, 1 Tester,
2 AAA 1.5 volt or IEC LR03 or NEDA 24A Batteries.
Size: 150 * 109mm
Weight: Around 49g
Packing: Blister
Standard Quantity Per Carton: 100pcs
Standard Carton Size: 48.5 * 25.5 * 47cm
Standard Carton Gross Weight: 13kg

MODEL: PRT1000A

Introduction:
This is a phase detector, designed to perform phase sequence checks and live line checks of a 3-phase circuit using a static induction voltage clip.
The static induction voltage clips are used to be able to clip on a cladded wire.
It is small with a CAT 600V safety rating.
Red LED lamps are used to make the indication visible in dimly lit areas.
The direction of phase sequence can be checked easily using the LED lamps, which blink in order.

. Specifications

1). Basic Specifications

Function

Phase detection (positive/negative)

Voltage detection method

Static induction

Object to be connected

Insulated wire (nominal sectional area of the conductor: 2 to 120mm2,finished outer diameter: up to 17mm)

Performance-guarantee voltage range

3-phase, 70V to 600 VAC (sine wave,continuous)

Operating frequency range

45Hz to 66Hz

2). Display

Phase-detection

Positive phase sequence:

Indication

The four phase-sequence lamps blink order (clockwise) and the buzzer sounds intermittently.

Negative phase sequence:

The four phase-sequence lamps blink in order (counterclockwise) and the buzzer sounds continuously.

Line-voltage indication

R-S lamp, S-T lamp

Power indication

Power ON lamp: lights up (Power ON)                             blinks (Battery Low)

3). General Specifications

Operating temperature and humidity

-10ºC to 40ºC(32 to 104ºF), 80%RH or less ( with no condensation)

Storage temperature and humidity

-20ºC to 60ºC (-4 to 140ºF), 80%RH or less (with no condensation)

Location for use

Altitude up to 2000m(6562 feet), indoors

Maximum rated voltage to earth

600V

Dielectric strength

5.4kVrms

Power supply

Rated supply voltage 1.5VDC2 Two "AA" size batteries

Maximum rated power

300mVA

Continuous operating time*

Approx.70 hours (Power ON, Standby state, using R6P manganese battery) *Battery life

Auto Power Off (This function can not Be canceled.)

The power will be turned off automatically if the Instrument remains idle for 15 minutes after the power is turned on. To reset, turn the power on  again using the Power ON switch.

Options

Carrying case, Strap*, Spiral tube*, Instruction manual, Two R6P;  manganese batteries. *Attaching as the occasion demands.

Cable length

Approx. 0.7m

Dimensions and mass

Approx. 70W75H30Dmm(2.76W2.95H1.18D)(excluding projections), Approx. 200g(7.1oz)

Applicable standards

Safety EN61010-1:2001,EN61010-031:2002 Pollution degree2, Measurement category CAT III(600V)(anticipated transient over voltage 6000V)            EMC EN61326:1997+A1:1998+A2:2001

Accessories

Phase Detector: 1 pcs; strap: 1 pcs; Meter Box: 1 pcs
