Pressure Gauge

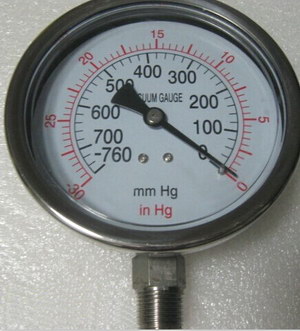

SRPG801 Pressure Gauge

This gauge is widely used in petroleum, chemical, chemical fiber, metallurgy, electric power, food and other industries. Measuring for liquid and gas which with corrosion, vibration and pulse.

Features:

With stainless steel housing, can be used in bad working environment, like high temperature, severe cold, corrosivity.

With high measurement accuracy.

Specifications:

Diameter: 100mm
Measuring Range: 0 to -760mmHg or 0 to 1000Mbar

Connection thread: 3/8", 1/2" PT or M20 NPT

Installation type: Vertical

(Please indicated the measuring range and the connection thread you need when you place an order)

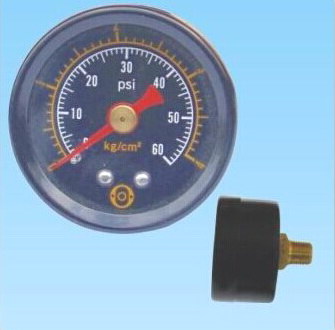

SRPG802 Pressure Gauge

This gauge is suitable for measuring the pressure of liquid and gas which is no corrosive effect on copper.

Copper material.

Specifications:
Housing: Iron with stoving varnish

Connector: Copper material

Diameter: 40mm

Measuring Range: 0 to 4kg/cm2 (0 to 60psi)

Resolution: 0.1kg/cm2, 1psi

Connection thread: 1/8"PT

Installation type: Axial

 ( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )
