Torque Wrench

　

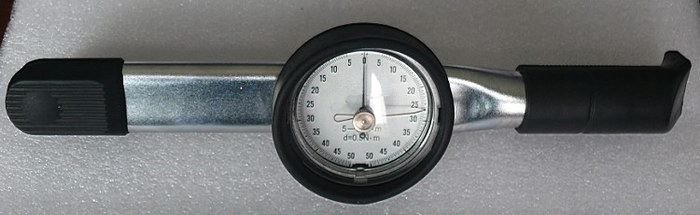

SRGW Series Dia Indicating Torque Wrench

　

Features:
SRGW Series Dia Indicating Torque Wrench  is a one of high-quality, highly accurate and ergonomic products. It is a measuring tool and the torque value is indicated on the dial face. It consists of plate-body, elastic part, amplifier, indicator and memory parts. With high accuracy, reliable performance, easy using, and long life features, it is widely used in aviation, aerospace, shipping, automobile, motorcycle, precise machinery, electric power, engine, inner-engine etc.

Specifications:

Model

Torque Range (N.m)

Gradation (N.m)

Total Length (mm)

Square Drive (mm)

Weight (Kg)

SRGW1.5A

0.2~1.5

0.02

215

6.3

0.4

SRGW3A

0.3~3

0.05

215

6.3

0.4

SRGW6A

0.6~6

0.1

215

6.3

0.4

SRGW12A

1~12

0.2

215

6.3

0.4

SRGW25A

3~25

0.5

250

10

0.6

SRGW50A

5~50

0.5

332

10

0.6

SRGW100A

10~100

1

380

12.5

0.7

SRGW200A

20~200

2

470

12.5

1

SRGW280A

30~280

5

665

20

1.7

SRGW420A

400~420

5

890

20

2.5

SRGW560A

50~560

5

1100

20

4

SRGW700A

70~700

10

1258

20

5.5

SRGW850A

100~850

10

1360

25

6.1

SRGW1000A

100~1000

10

1490

25

6.4

　

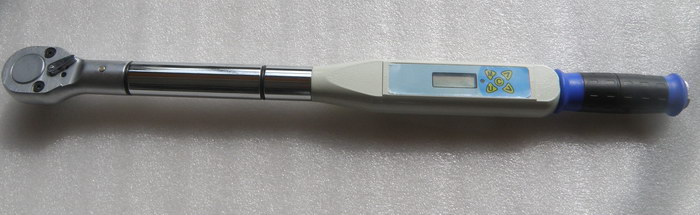

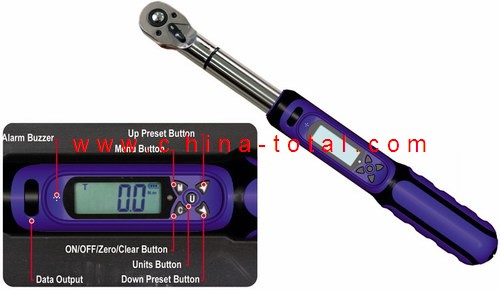

SRDW Series Digital Torque Wrench

　

Features:

SRDW Series Digital Display Torque Wrench adopts microprocessor digital technology. Use strain gauge sensor as its key part help to achieves precise torque value, good stability and low power consumption.
Function:

* Three working models: value tracking, peak hold, over-torque alarming.

* Three units (N.m, lbf.ft, lbf.in) conversion;

* Exchangeable head.

* Lack voltage displaying, auto off if three minutes no use.

* 300 sets of data memory, communicating with PC for calibrating and downloading.
 Specifications:

Model

Range

Gradation

Square

Drive (mm)



Arms of Force L2 (mm)

Total Length(mm)

Weight(Kg)

N.m

Ibf.ft

Ibf.in

N.m Ibf.ft

Ibf.in

SRDW10B

 2~10

1.47~7.38

17.7~88.5

0.01

0.1

10

277

355

0.75

SRDW20B

 4~20

2.9~14.7

35.4~177

0.01

0.1

10

277

355

0.75

SRDW50B

10~50

7.4~36.9

88.5~442.5

0.01

0.1

10

277

355

0.8

SRDW100B

20~100

14.7~73.8

177~885

0.1

1

12.5

330

412

1.1

SRDW200B

40~200

29.5~147.5

354~1770

0.1

1

12.5

400

485

1.4

SRDW300B

60~300

44~221

530~2655

0.1

1

12.5

500

588

1.7

SRDW500B

100~500

74~369

885~4425

0.1

1

20

710

798

3.45

SRDW800B

160~800

117~590

1416~7080

0.1

1

20

800

1050

4.6

SRDW1000B

200~1000

147~738

1770~8850

0.1

1

25

900

1150

7.5

SRDW 2000B

400~2000

295~1475

3540~17700

0.1

1

25

1200

1415

10.2

　

　

( If you need prices, pictures without our warter mark, user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )
