Transmission Meter, Window Tint Meter

¡¡

(Transmittance Meter, Window Transmission Meter, Window Transmittance Meter, Light Transmission Meter, UV transmission meter, IR transmission meter, Light Transmittance Meter, Split Transmission Meter, Optical Density Meter, Solar Film Transmission Meter, Spectrum Transmission Meter)

¡¡

¡¡

¡¡

¡¡

Light Transmission Meter/Window Tint Meter

¡¡ ¡¡
SRW2000 SRW2000S

SRW2000, SRW2000S Window Tint Meter

Applications:
It measures the total amount of Visual Light Transmission (henceforth referred to as VLT) through a window and any coatings (tint film) on that window.
¡¡

Specifications:
Display: 10mm LCD
Accuracy: ¡À1%

Resolution: 0.1.
Wavelength: 390~780 Nanometers
Measurement Range: 0 to 100% Light Transmission
Interface: USB or Bluetooth
Sample Thickness: Less than 10mm/0.4inch
Sample Size: 50¡Á 50mm Minimum
Time of Testing: Maximum of 4 Seconds
Effects From Stray Light: Not Effected by Stray Light
Lamp Life: 10 Years
Operating conditions: 0-50C, <90%RH
Power Source: 4¡Á 1.5vAAA Batteries
Weight: 100g(not including batteries)
Dimensions: 126¡Á 65¡Á 27mm(5.0¡Á 2.6¡Á 1.1inch)
Standard accessories included:
Carrying case: 1PC, Operation manual: 1PC
Optional accessories: USB Cable and software or Bluetooth.

¡¡

¡¡ ¡¡

SR3716 Light Transmittance Meter

¡¡

SR3716 light transmittance meter is used for measure percentage of light transmitted through transparent material (such as glass, plastic substrates etc.). This meter is self-contained light sources and self -calibration. No manual adjustment is needed.

Parameter:
1. Size: 130mm*70mm*28mm(L*W*H£©
2. Sample diameter: > 10mm
3. Weigh: 500g (exclude batteries)
4. Resolution: 0.1%
5. Accuracy: ¡À2% (Colorless and transparent material)
6. Visible light wavelength: 380nm-760nm ( Full Weighted Spectrum)
7. Battery: 4*AAA alkaline battery

Feature:
1. The light transmission meter has High repeatability and resolution;
2. auto-calibration and simple calibration;
3. High quality certified optical system for transmission value measurement;
4. Simple and ease operation.

¡¡ ¡¡

Click for Split Show Picture

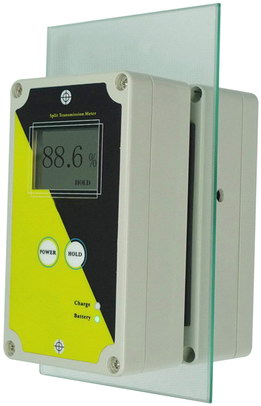

SR3710 Split Light Transmission Meter

Feature:
1. Two parts design, suitable for car windshield and any flat surface glass measurement
2. Self-calibration and auto -calibration, NO need any manual adjustments
3. Three light Transmittance Meter in one device; result is the average of three values
4. Ni-MH rechargeable battery used, no need to change batteries.
5. Two laser for two part alignment, more accuracy.
6. Visible light wavelength: 380nm-760nm (Full Weighted Spectrum)

Parameter:
1. Size: 140mm *82mm *92mm(L*W*H)
2. Weight: 940g
3. Resolution: 1%
4. Accuracy: ¡Ü¡À2%(Colorless and transparent material)
5. Visible light wavelength: 530nm
6. Battery: Built-in rechargeable lithium batteries

¡¡

¡¡

Click for Split Show Picture

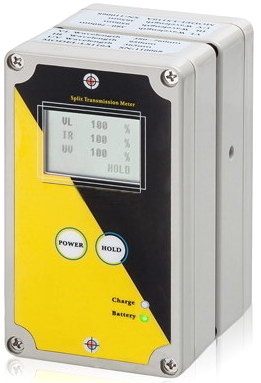

SR3710A Split Light Transmission Meter

Feature:
1. Two parts design, suitable for car windshield and any flat surface glass measurement;
2. UV light, IR light and Visible light three in one Transmittance Meter;
3. Ni-MH rechargeable battery used, no need to change batteries;
4. Two laser for two part alignment, more accuracy.

Parameter:
1. Size: 140mm *82mm *92mm(L*W*H)
2. Weight: 680g
3. Resolution: 0.1%
4. Accuracy: ¡Ü¡À2%(Colorless and transparent material)
5. Visible light wavelength: 530nm

6. UV center wavelength: 365nm
7. IR Center wavelength: 950nm
8. Battery: Built-in rechargeable lithium batteries

9. ¡°Charge¡± is the Charge indicator light. When the meter is charging, the red LED light open, and will be close after the charging is complete.
10. ¡°Battery¡± is the starting up indicator light. The LED light will be green when the meter is starting up, when the battery is using out, the green LED light will be flick, you should charge the meter now.

¡¡ ¡¡

Solar Film Transmission Meter

¡¡ ¡¡

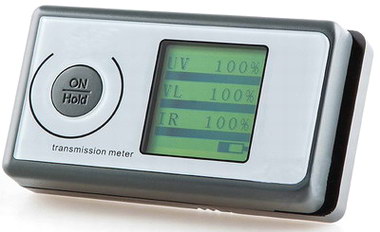

SR3760 Solar Film Transmission Meter

¡¡

SR3760 transmission meter is a small size, portable product for transmission value measurement. It is able to simultaneously measure and display UV, Visible and Infrared transmission values.

Parameter:
1. Size: 93mm *52mm *25mm(L*W*H)
2. Weigh: 65g (exclude batteries)
3. Thickness of testing sample: < 0.8mm
4. Resolution: 1%
5. Accuracy: ¡À2%(Colorless and transparent material)
6. Visible light wavelength: 380nm-760nm (Full Weighted Spectrum)
7. UV center wavelength: 365nm
8. IR Center wavelength: 950nm
9. Battery: 4*AAA alkaline battery

Feature:
1. UV transmission meter, IR transmission meter, Light Transmittance Meter, Three function in ONE device.
2. Small size, portable product for transmission value measurement.
3. Simple operation, putting the testing sample in the ¡°OPENING¡±, UV, Visible and Infrared transmission values of the sample will simultaneously display.
4. using for window film, solar film and other transparence material testing.

¡¡ ¡¡

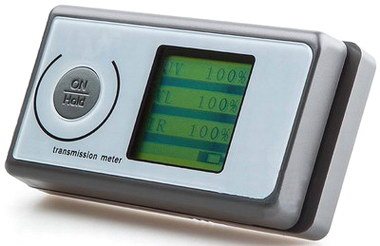

SR3760A Solar Film Transmission Meter

¡¡

SR3760A transmission meter is a small size, portable product for transmission value measurement. It is able to simultaneously measure and display UV, Visible and Infrared transmission values.

Parameter:
1. Size: 93mm *52mm *25mm(L*W*H)
2. Weigh: 65g (exclude batteries)
3. Thickness of testing sample: < 0.8mm
4. Resolution: 1%
5. Accuracy: ¡À2%(Colorless and transparent material)
6. Visible light wavelength: 380nm-760nm (Full Weighted Spectrum)
7. UV center wavelength: 365nm
8. IR Center wavelength: 1400nm
9. Battery: 4*AAA alkaline battery

Feature:
1. UV transmission meter, IR transmission meter, Light Transmittance Meter, Three function in ONE device.
2. Small size, portable product for transmission value measurement.
3. Simple operation, putting the testing sample in the ¡°OPENING¡±, UV, Visible and Infrared transmission values of the sample will simultaneously display.
4. using for window film, solar film and other transparence material testing.

¡¡ ¡¡

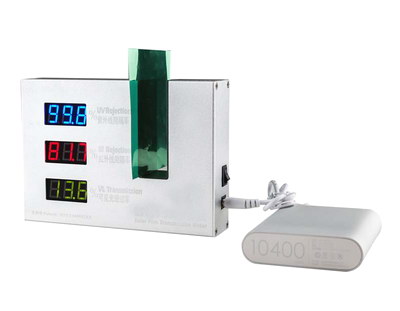

SR3701 Solar Film Transmission Meter

¡¡

SR3701 Solar Film Transmission Meter is able to simultaneously measure and display UV, IR rejection value and visible light transmission value. This meter is self-contained light sources and self-calibration. No manual adjustment is needed. The users only need plug the power supply, turn on the switch and put the solar film in the opening. The resulting performance data appear on the display.

Parameter

   1. Size: 160mm*115mm*33mm(L*W*H£©

   2. Testing opening: Wide 23mm * Height 76 mm

   3. Weigh: 425g

   4. Resolution: 0.1%

   5. Accuracy: ¡À2%(Colorless and transparent material)

   6. UV Peak wavelength: 365nm

   7. VL Peak wavelength: 550nm

   8. IR Peak wavelength: 950nm

   9. Power supply: 5V DC, mobile power supply (optional).

Features:

1. UV Rejection meter, IR Rejection meter, Light Transmittance Meter, Three function in ONE device.

2. Self-calibration and auto-calibration, NO need any manual adjustments.

3. Simple operation, putting the testing sample in the opening, UV Rejection, IR Rejection, Visible light transmission value of the sample will simultaneously display.

¡¡ ¡¡

Spectrum Transmission Meter

¡¡

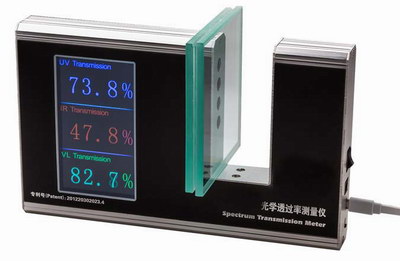

SR3783 Spectrum Transmission Meter

¡¡

SR3783 is able to simultaneously measure and display UV, Visible and Infrared transmission values. This meter is self-contained light sources and self -calibration. No adjustment is needed. The users only need plug the power supply, turn on the switch and put the sample in the opening. The resulting performance data appear on the display.

¡¡

Parameter:

1. Size: 216mm *134mm *29mm (L*H*W£©
2. Testing opening: Wide 47mm * Height 91mm
3. Weigh: 590g
4. Sample thickness: < 47mm
5. Resolution: 0.1%
6. Accuracy: ¡À2%(Colorless and transparent material)
7. UV peak wavelength: 365nm
8. Visible light wavelength: 380nm-760nm (Full Weighted Spectrum)
9. IR Peak wavelength : 940nm
10. Power supply: 5V AC/DC

¡¡

Feature:
1. UV transmission meter, IR transmission meter, Light Transmittance Meter, Three function in ONE device.
2. Self-calibration and auto -calibration, NO need any manual adjustments.
3. Simple operation, putting the testing sample in the opening, UV, Visible and Infrared transmission values of the sample will simultaneously display.

¡¡ ¡¡

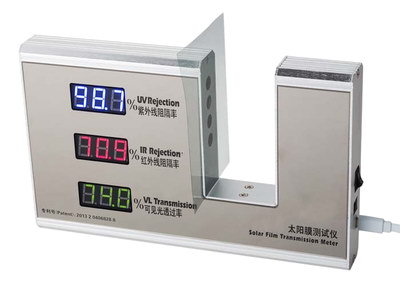

SR3780 Solar Film Transmission Meter

¡¡

SR3780 Solar Film Transmission Meter is able to simultaneously measure and display UV, IR rejection value and visible light transmission value. This meter is self-contained light sources and self-calibration. No manual adjustment is needed. The users only need plug the power supply, turn on the switch and put the solar film in the opening. The resulting performance data show on the display.

Parameter
1. Size: 216mm*134mm*29mm(L*H*W£©
2. Testing opening: Wide 47mm * Height 91 mm
3. Weigh: 590g
4. Resolution: 0.1%
5. Accuracy: ¡À2%(Colorless and transparent material)
6. UV peak wavelength: 365nm
7. VL peak wavelength: 550nm
8. IR Peak wavelength: 1400nm
9. Power supply: 5V AC/DC Adapter
Feature
1. UV Rejection meter, IR Rejection meter, Light Transmittance Meter, Three function in ONE device.
2. Self-calibration and auto-calibration NO need any manual adjustments
3. Simple operation, putting the testing sample in the opening, UV Rejection, IR Rejection, Visible light transmission value of the sample will simultaneously display.

¡¡ ¡¡

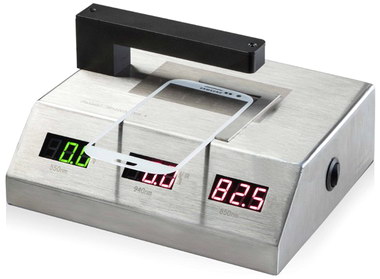

SR3708A Spectrum Transmission Meter

¡¡

Feature:

1. IR transmission meter, Light Transmittance Meter, in ONE device.
2. Self-calibration and auto-calibration, NO need any manual adjustments
3. Simple operation, putting the testing sample in the testing position, Visible and Infrared transmission values of the sample will display.

¡¡

Parameter:
1. Size: 200mm*180mm*106mm(L*W*H)
2. Size of Testing sample: > ¦µ1mm
3. Weigh: 1500g
4. Resolution: 0.1%
5. Accuracy: ¡À2%(Colorless and transparent material)
6. IR wavelength: 850nm & 940nm
7. Visible light center wavelength: 550nm
8. Power supply: 9V AC/DC or portable rechargeable lithium batteries.

¡¡

¡¡

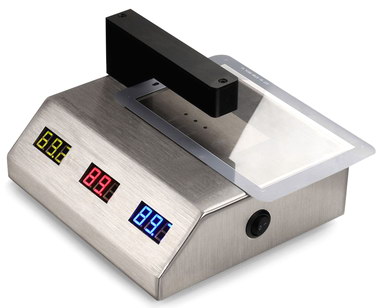

SR3708H Spectrum Transmission Meter

Professional for mobile phone lens, glass, coating materials, organic materials, coating of pervious to light material optical transmittance test and so on.

¡¡

Features:
1. UV transmittance, infrared transmittance, visible light transmittance instrument (light transmittance meter) three function in one device
2. Apply to the lens, coating, glass, PC materials transmittance test etc
3. Apply to product performance, production test and other occasions
4. Size of Testing sample: > ¦µ3.0mm
5. Table design, stainless steel shell, to facilitate analyze a placed, easy to operate

Parameters:
1. Size: 200mm*180mm*106mm(L*W*H£©
2. Size of Testing sample: > ¦µ3.0mm
3. Weigh: about 1500g
4. Resolution: measure value <10% is 0.1%, other range is 1%
5. Accuracy: ¡À2%(Colorless and transparent material)
6. UV Peak wavelength: 365nm
7. Visible light wavelength: 550nm
8. IR Peak wavelength: 950nm
9. Power supply: 5V AC/DC/Mobile power supply

¡¡ ¡¡

SR3708 Spectrum Transmission Meter

¡¡

SR3708 is able to simultaneously measure and display PL(Purple Light), BL(Blue light) and VL(Visible Light) transmission values. This meter is self-contained light sources and self-calibration. No adjustment is needed. The users only need plug the power supply, turn on the switch and put the sample in the testing position. The resulting performance data appear on the display.


Features:

1. PL transmission meter, BL transmission meter, Light Transmittance Meter, Three function in ONE device.

2. Self-calibration and auto-calibration, NO need any manual adjustments.

3. Simple operation, putting the testing sample in the testing position, PL, BL and VL transmission values of the sample will simultaneously display.

¡¡

Parameters:

1. Size: 200mm*180mm*106mm(L*W*H£©

2. Size of Testing sample: > ¡é3mm

3. Weigh: 1500g

4. Resolution: 0.1%

5. Accuracy: ¡À2%(Colorless and transparent material)

6.Purple light Peak wavelength: 395nm

7. Blue light Peak wavelength: 460nm

8. Visible light Peak wavelength: 550nm

9. Power supply: 5V DC Adapter

¡¡ ¡¡

¡¡

Optical Density Meter, Densimeter, Densitometer

¡¡

(black-white densimeter, densitometer, film densitometer, Densimeter for Radiographic Testing, Density Tester, Density Meter)

¡¡ ¡¡

SR3717 Light Transmission meter + Optical Density Meter
¡¡

Parameter:
1. Size: 130mm*70mm*28mm(L*W*H£©
2. Sample diameter: > 10mm
3. Weigh: 500g (exclude batteries)
4. Optical Density Measuring Range: 0.000-3.000

5. Light Transmittance Resolution: 0.1%
6. Light Transmittance Accuracy: ¡À1% (Colorless and transparent material)
6. Visible light wavelength: 380nm-760nm ( Full Weighted Spectrum)
7. Battery: 4*AAA alkaline battery

Feature:
1. Optical Density and Light Transmittance two in one Meter;

2. Use parallel optical path of light source and receiver condenser design in order to measure big thickness materials;

3. Date record of History measure data, Optical density max, min, average value record function (Optical density max value is the min value of Light Transmittance.);

4. Suitable for measuring the light transmittance of glass products, solar film, paster glass, coating materials, organic material panel
5. Application for exhibition, production, quality inspection, inspection and other occasions.

¡¡

¡¡

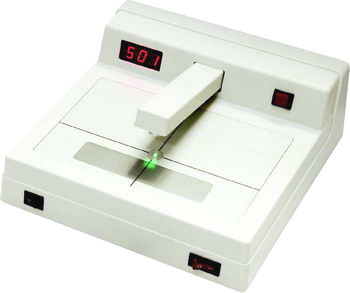

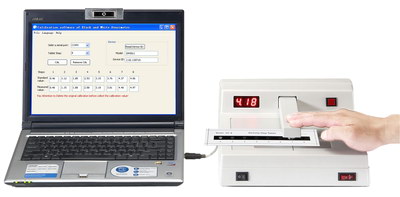

DM3000 series Black-White Densitometer

Introduction
DM3000 series black-white densitometer is used for measuring the blackness of films; it has advantages of accurate reading, high stability, strong anti-interference capacity, attractive appearance and easy operation. It can be widely applied to the fields such as nondestructive testing, sensitive materials, printing industry and medical industry etc. each unit is equipped with density tablet and calibration software for testing its accuracy.
Specifications:

Density Range

D=0.00-4.00 (DM3010)

D=0.00-4.50 (DM3010A)

D=0.00-5.00 (DM3011)

Repeatability

+/-0.02

Measuring Error

0.00-2.00: 0.02

2.00-4.50: 0.05

4.50-5.00: 0.06

Power

50~60Hz, 100V-120V or 200V-240V

Power Dissipation

25W

Aperture Size Dia.

2mm

Display

Three digital display

Light Source

27pcs LED

Sampling Time

0.8s

Communication Port

RS232 Port, optional USB connection

Working Environment

Temperature 0¡ãC~40¡ãC, Relative humidity (RH)¡Ü85%

Dimension

260*265*110mm (H*W*L)

Weight

2.1kg

Demonstration of Calibration:

The users can calibrate the densitometer by their selves with our calibration software and standard step density tablet.

 ( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )
