Video Inspection Borescope, Wireless Inspection Camera

(Video Inspection Borescope, Video Inspection Camera, Inspection Camera, Inspection Borescope, Endoscope, Video Scope, Video Inspection Scope, Video Borescope, Video Endoscope, Inspection Endoscope, Wireless Video Inspection Borescope, Wireless Inspection Camera, Wireless Video Inspection Camera, Wireless Endoscope, Wireless Inspection Borescope, Wireless Video Scope, Wireless Video Inspection Scope, Wireless Video Borescope, Wireless Video Endoscope, Wireless Inspection Endoscope, Mobile Internet Borescope, Flexible Portable LCD Video Borescope, Handheld Video Borescope, Portable Video Borescope, Handheld Recordable Video Borescope, Wi-Fi Video Borescope)

Ideal for automotive, construction and restoration, HVAC/R, and any other inspection of Hand-To-Reach and Hard-To-See areas.

Description

Extend Your Hands and Eyes with this 7mm smallest camera head lens. This Inspection Camera allows you to inspect hard-to-reach areas. This Snake scope is an ergonomic handheld video endoscope system with robust and semi flexible insertion tube. It can easily be operated by plugging directly into your computer or Laptop.

The 4 LED lights source allows adjustable illumination for more easy finding and diagnosis. See in the dark or in low light at short range with 4 infrared LED. It can capture high quality images and videos (AVI) with rich color throughout a large dynamic range.

It's 830mm flexible tube with smallest 7mm waterproof camera head and its innovative design, as well as its easy accessibility, is a handy and versatile feature for a tool for home or professional use. It enables you to perform a detailed visual inspection of the tightest, hardest to reach spots like under a car, down a drain or anywhere a 7mm diameter, 1030mm long camera will reach.

Other Applications:
* industrial inspection
* surveying pipes & equipments
* furnishing installation
* car repairing, and also
* a nifty and surveillance gadget
* automotive applications: vehicle maintenance, checking under the hood, etc.
* household use or domestic maintenance & home improvement: observe drains, gutters, vents, behind walls, inspect buildings for electrical wires, check for pests, termites, etc. or

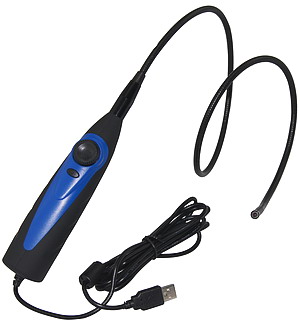

SRC188 USB Video Inspection 4 LED Borescope

Features

Allows for easy surveying of small, hard-to-reach places

View live video at 640 x 480 pixels VGA resolution @ 30fps on your laptop or PC via the 2M long USB cable

World's smallest USB Camera 7mm waterproof camera

With 830mm (2.4ft) flexible tube

Waterproof (IP67 rating) lens and flexible tube, allows you to see into damp, wet or submerged spaces like down drains, pipes or toilets

USB cable powered and operated with personal computer

Easy installation the driver for window 7/Vista (Note: XP or lower windows need not install the CD driver)

Easy take pictures by pressing the photo button and saving the file directly in the computer

Adjustable brightness on the lens-mounted LED lights

Light weight, handheld design, flexible and convenient to use

Stable, high quality product

Fast lead time

With USB1.1 or 2.0 Interface

Ideal for plumbers to access the damage before dismantling pipes or for home use when someone drops valuables down the drain. Now with a handy and durable plastic (PE covered) handler for added protection.

Specification

Waterproof Level: IP67 Waterproof (Camera Head & Flexible Tube)

Resolution: 640x480 pixel (VGA)

Frame Rate: up to 30fps (pictures/sec)

Images: Video live streaming or capture stills

Lens Size: 1/12" CMOS

White Comparison: Automatic

Exposure to Light: Automatic

LED Light Quality: 4 x white LED

Output: USB

Power: by PC via USB 1.1 or 2.0

USB Cable Length: approx. 2000mm

Ambient/Operating Temperature: 0 ~ 65C

Total Length of Device: 1030mm

Effective Tube Length: 830mm

Min. Bending Radius: 50mm

Lens Diameter: 7.0mm

Flexible Tube Diameter: 6.0mm

LEDs: 4

Focal Distance: 50mm to infinity

Weight (Main Unit): 225g

System Requirements

Processor: 1.6 GHz or faster

RAM: 512 MB or more

Hard Drive: 1 GB or more free

Video Card: Capable of displaying 800 x 600 pixels or higher

Supports: Microsoft Windows 7, Windows Vista, Windows XP

Package

1 x USB Inspection Camera with flexible tube

1 x CD Driver, 1 x Instruction Manual, 1 x Color Box Package

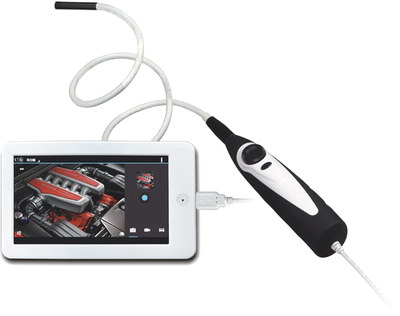

SRC189 Mobile Internet Borescope

Specifications:

7" Touch screen (800*480 pixels)
Android 4.03 system
Function: Browser, Email, Music player, Camera,
Video, sound, storage, Wi-Fi setting
Len's dia.: 7mm(View Angle 60)
Len pixel:640*480/focus distance 30mm-80mm
Flexible tube size: dia.6.4mm * 830mm
Len built-in 6pcs LED light
The LED lights' brightness adjustable
Power supply: Mobile Internet Devices

Accessories: Endoscope, MID, CD, Manual, USB Cable, Adapter, earphone

Packing:
Qty./ Ctn.: 10pcs
Size:43.2*32*27.2CM(gift box)
G.W./Ctn.: 16.0kg

Advantages:
No MOQ for standard items
Customer colors, label and logo design
Stable, high quality products
Fast lead time
Professional service
Technical support
Partnership support with marketing and product integration
OEM/ODM

Applications:
This inspection camera has many applications including:
HVAC inspection,
Vent Pipe,
Machine Equipment,
Engine,
Cable Routing,
Automotive / boat / aircraft inspection.

Accessories:
1 x Main unit
1 x Flexible Camera (Installed)
1 x Magnet Tip
1 x Hook Tip
1 x Mirror Tip
1 x Instruction Manual
Standard Factory Package

User could buy as an additional parts or make replacement for damaged parts:
1. Dia.3.9mm, 4.3mm, 5.0mm, 5.5mm, 8.5mm, 10mm camera head for observing even narrow spots
2. Optional Useful accessories: Hook, Mirror, Magnet twisted on the len for more surveying function
3. Flexible tube, Main unit, Hook, Mirror, Magnet
4. Extension tube with 1M, 2M, 3M, 5M length for easy extending
5. Professional Carry Case or Color Gift Box Package

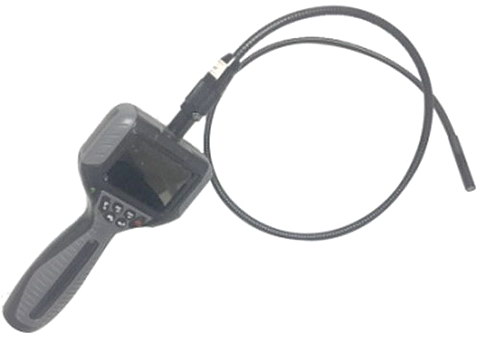

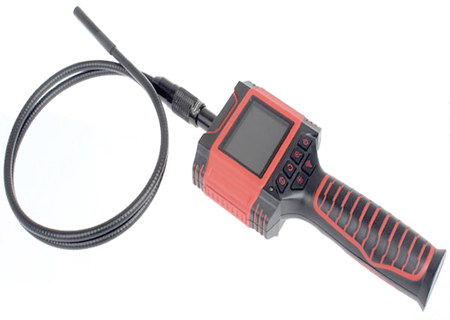

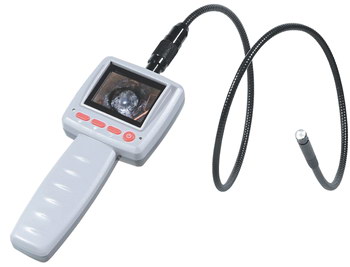

SRC190 Flexible Portable LCD Video Borescope

Specifications:

LCD:

2.4 inch TFT Color screen with 640 x 480 resolution
Lens Sensor Resolution: 640 x 480 pixels
Sensitivity: 0.7V (Lux. sec)
Color Mosaic: RGB Bayer Pattern
Automatic white comparison & exposure to light
Camera Illumination: 4 white LED


Camera:
Lens: f/2.8
Lens Coverage: 54
Focal Distance: 3 ~ 8 cm
Outer diameter: 10 mm
IP 67 water resistant


Tube:
Metal Tube Length: 1000.0 2.0 mm
Diameter of hard tube: 6.8 mm
Minimum Bending Radius: 4.5 cm
Operating Temperature: 0 ~ 45 C
Power: 4 x 1.5V AA batteries (not included)
Power Consumption: 200 mA
Handle Length: 115 mm


Features:
1. Allows for easy surveying of small, hard-to-reach places;
2. Mini 10mm water-proof camera (640x480 pixels len,IP67) with dia.6.8mm and 1 meter(3 ft) length flexible and removable extended tube;
3. Manufactured and tested to water-proof level IP67 (for imager head);
4. High quality 2.4"TFT-LCD color monitor powered with 4pcs AA batteries;
5. Images on the screen can be turned to 180 degree;
6. Adjustable contrast of the monitor screen;
7. Adjustable brightness on the lens-mounted 4pcs LED lights and 1.5M for night vision; f/2.8 Lens with 54Viewable Angle;
8. Three useful optional accessories included: hook, mirror and magnet installed on the len;
9. Light weight, handheld design for easily finding, diagnosing and solving problems of hard-to-reach and hard-to-see areas Optional Extension Cable, Suitable for hard-to-reach inspection;
10. Conformed with CE Standard.

Applications:
This inspection camera has many applications including:
HVAC inspection,
Vent Pipe,
Machine Equipment,
Engine,
Cable Routing,
Automotive / boat / aircraft inspection.

Accessories:
1 x Main unit
1 x Flexible Camera (Installed)
1 x Magnet Tip
1 x Hook Tip
1 x Mirror Tip
1 x Instruction Manual
Standard color gift Package or optional tool box


User could buy as an additional part or make replacement for damaged parts
1. Dia.3.9mm,4.3mm,5.0mm,5.5mm,8.5mm,10mm camera head for observing even narrow spots
2. Optional Useful accessories: Hook, Mirror, Magnet twisted on the len for more surveying function
3. Flexible tube, Main unit, Hook, Mirror, Magnet
4. Extension tube with 1M,2M,3M,5M length for easy extending
5. Professional Carry Case or Color Gift Box Package

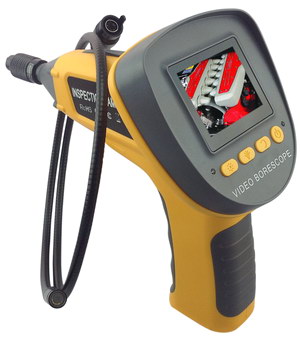

SRC191 Handheld Video Borescope

Specifications:

LCD:

2.4 inch TFT Color screen with 640 x 480 resolution
Lens Sensor Resolution: 640 x 480 pixels
Sensitivity: 0.7V (Lux. sec)
Color Mosaic: RGB Bayer Pattern
Automatic white comparison & exposure to light
Camera Illumination: 4 white LED
Camera:
Lens: f/2.8
Lens Coverage: 54
Focal Distance: 3 ~ 8 cm
Outer diameter: 10 mm
IP 67 water resistant
Tube:
Metal Tube Length: 1000.0 2.0 mm
Diameter of hard tube: 6.8 mm
Minimum Bending Radius: 4.5 cm
Operating Temperature: 0 ~ 45 C
Power: 4 x 1.5V AA batteries (not included)
Power Consumption: 200 mA
Handle Length: 115 mm

Features:
1. Allows for easy surveying of small, hard-to-reach places;
2. Mini 10mm water-proof camera (640x480 pixels len,IP67 )with dia.6.8mm and 1 meter(3 ft) length flexible and removable extended tube;
3. Manufactured and tested to water-proof level IP67(for imager head);
4. High quality 2.4"TFT-LCD color monitor powered with 4pcs AA batteries;
5. Images on the screen can be turned to 180 degree;
6. Adjustable contrast of the monitor screen;
7. Adjustable brightness on the lens-mounted 4pcs LED lights and 1.5M for night vision; f/2.8 Lens with 54Viewable Angle
8. Three useful optional accessories included: hook, mirror and magnet installed on the len;
9. Light weight, handheld design for easily finding, diagnosing and solving problems of hard-to-reach and hard-to-see areas Optional Extension Cable, Suitable for hard-to-reach inspection;
10.Conformed with CE Standard.

Advantages:
No MOQ for standard items
Customer colors, label and logo design
Stable, high quality products
Fast lead time
Professional service
Technical support
Partnership support with marketing and product integration
OEM/ODM

SRC192 Portable Video Borescope

Specifications:

3.5" LCD Monitor
Screen Contrast adjustable with 7 levels
Screen color exchanged to W/B or color
Len's dia.:10mm(View Angle 54)
Built-in 4pcs LED light
Adjustable LED lights brightness 6 levels
Len pixel:640*480/focus distance:30mm-80mm
Removable flexible tube
Flexible tube dia.:6.8mm
Tube Length: 1 meter(5M max.)
360 degree rotational image

Accessories: Magnet, Hook, Mirror, sling
Power supply: 1.5V*4pcs (AA battery)

Packing:

Gift box
Qty./ Ctn.: 5pcs
64.5*32.5*26CM (gift box) with G.W.9.7KGS

Descriptions:

This 2.4" Color LCD Video Inspection Camera use optoelectronic technology to investigate hard-to-reach area. It helps you to diagnose broken part, weld point and released parts easily to save time and increase productivity.
It has built-in 4pcs white LED light (with Brightness Control) on camera head to illuminate the inspection area. The 1 m Flexible tube is Waterproof with 10mm diameter , so that you can inspect area under water, gaps and holes. Optional Extension Cable (2m/ 3 m / 5m) allows you to extend the vision of inspection point.

Removable flexible tube
Len's Dia.: 10mm (5.5mm, 8.5mm optional)
Flexible tube dia.: 6.8mm
LCD size: 2.4''
Built in 4pcs LED light
Adjust the LED lighting or darkling
Adjust the screen's Lighting
Record function
5 times zoom in & out function
Power supply: 4pcs AA battery
Parking: Tool Box

Accessories:

Color gift box or optional PE Tool Box Packing list:
Flexible tube camera x 1
Main unit x 1
AV Cable x 1
USB Cable x 1
User Manual x 1
Optional Useful accessories: Hook, Magnet, Mirror

User could buy as an additional part or make replacement for damaged parts
1.Dia.3.9mm,4.3mm,5.0mm,5.5mm,8.5mm,10mm camera head for observing even narrow spots
2.Optional Useful accessories: Hook, Mirror, Magnet twisted on the len for more surveying function
3.Flexible tube, Main unit, AV Cable, USB Cable, Hook, Mirror, Magnet, SD Card
4.Extension tube with 1M,2M,3M,5M length for easy extending
5.Color gift box (Professional tool box optional)

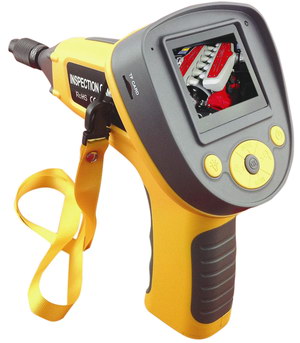

SRC193 Handheld Recordable Video Borescope
Specifications:

2.4 inch TFT LCD Color Display
4 adjustable white LED lights for night vision
Water resistant Camera Head: IP67
f/2.8 Lens with 60Viewable Angle
30~80 mm focal distance
6.8mm PE covered metal probe
Comfort Grip Housing
Conformed with CE Standard
Optional Extension Tube
LCD:

2.4" LCD monitor
Lens Sensor Resolution: 640 x 480 pixels
Sensitivity: 0.7V (Lux. sec)
Color Mosaic: RGB Bayer Pattern
Automatic white comparison & exposure to light
Camera Illumination: 4 white LED
Tube and Camera:
Lens: f/2.8
Lens Coverage: 60
Focal Distance: 30 ~ 80 mm
Outer diameter: 10mm (8.5mm, 5.5mm, 4.5mm,3.9mm optional)
IP 67 water resistant
Metal Tube Length: 1000.0 2.0 mm
Diameter of hard tube: 6.8 mm
Minimum Bending Radius: 4.5 cm
Operating Temperature: 0 ~ 45 C
Power: 4 x 1.5V AA batteries (not included)
Power Consumption: 200 mA

Features:
1. Handheld design and portable. Allows for easy surveying of small, hard-to-reach places;
2. Dia.10mm water-proof camera (640x480 pixels len) with 1 meter(3 ft) flexible and removable extended tube;
3. Manufactured and tested to water-proof level IP67;
4. Increase visibility with 5X digital zoom capacity;
5. High quality 2.4"TFT-LCD monitor powered with 4pcs AA batteries or built-in rechargeable Li-batteries (optional);
6. Real-time record what you see and hear, supports up to 32GB TF Card;
7. Adjustable brightness on lens-mounted LED lights;
8. Three useful optional accessories included: hook, mirror and magnet twisted on the len;
9. Simple menu with three different languages (optional);
10. Advanced ergonomic design, Light weight, handheld design, flexible and convenient to use;
11. Let you explore, help you find, fun to use.

Advantages:
No MOQ for standard items
Customer colors, label and logo design
Stable, high quality products
Fast lead time
Professional service
Technical support
Partnership support with marketing and product integration
OEM/ODM

Applications:
Extend Your Hands and Eyes. Appropriate for use in surveying pipes, equipments, furnishing installation, underwater viewing, parts assembly, construction sites, workshops, laboratories, education, wildlife surveillance, car maintenance and repairing, hard-to-reach areas, etc.

Descriptions:

This 3.5" Color LCD Video Inspection Camera use optoelectronic technology to investigate hard-to-reach area. It helps you to diagnose broken part, weld point and released parts easily to save time and increase productivity.
It has built-in 4pcs white LED light (with Brightness Control) on camera head to illuminate the inspection area. The 1 m Flexible tube is Waterproof with 8.5mm diameter , so that you can inspect area under water, gaps and holes. Optional Extension Cable (2m/ 3 m / 5m) allows you to extend the vision of inspection point.

Removable flexible tube
len's Dia.: 8.5mm (5.5mm, 10mm optional)
Flexible tube dia.: 6.8mm
LCD size: 3.5''
Built in 4pcs LED light
Adjust the LED lighting or darkling
Adjust the screen's Lighting
Record function
5 times zoom in & out function
Power supply: 4pcs AA battery
Parking: Tool Box

Accessories:
Professional Carry Case Package
Packing list:
Flexible tube camera x 1
Main unit x 1
AV Cable x 1
USB Cable x 1
User Manual x 1

User could buy as an additional part or make replacement for damaged parts
1.Dia.3.9mm,4.3mm,5.0mm,5.5mm,8.5mm,10mm camera head for observing even narrow spots
2.Optional Useful accessories: Hook, Mirror, Magnet twisted on the len for more surveying function
3.Flexible tube, Main unit, AV Cable, USB Cable, Hook, Mirror, Magnet, SD Card
4.Extension tube with 1M,2M,3M,5M length for easy extending
5.Professional Carry Case Package

Applications:
Extend Your Hands and Eyes. Appropriate for use in surveying pipes, equipments, furnishing installation, underwater viewing, parts assembly, construction sites, workshops, laboratories, education, wildlife surveillance, car maintenance and repairing, hard-to-reach areas, etc.

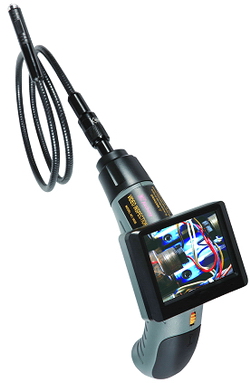

SRC194 Portable LCD Video Borescope with Recording

Specifications:

3.5 inch TFT LCD Color Display
4 adjustable white LED lights for night vision
Water resistant Camera Head: IP67
f/2.8 Lens with 60Viewable Angle
30~80 mm focal distance
6.8mm PE covered metal probe with ABS handle
Comfort Grip Housing
Conformed with CE Standard
Optional Extension Cable
LCD:

3.5" LCD monitor
Lens Sensor Resolution: 640 x 480 pixels
Sensitivity: 0.7V (Lux. sec)
Color Mosaic: RGB Bayer Pattern
Automatic white comparison & exposure to light
Camera Illumination: 4 white LED
Camera:
Lens: f/2.8
Lens Coverage: 60
Focal Distance: 30 ~ 80 mm
Outer diameter: 8.5 mm (10mm, 5.5mm, 4.5mm,3.9mm optional)
IP 67 water resistant
Probe:
Metal Tube Length: 1000.0 2.0 mm
Diameter of hard tube: 6.8 mm
Minimum Bending Radius: 4.5 cm
Operating Temperature: 0 ~ 45 C
Power: 4 x 1.5V AA batteries (not included)
Power Consumption: 200 mA
Handle Length: 115 mm

Features:
1. Allows for easy surveying of small, hard-to-reach places;
2. Mini 8.5mm water-proof camera (640x480 pixels len) with 1 meter(3 ft) flexible and removable extended tube;
3. Manufactured and tested to water-proof level IP67;
4. Increase visibility with 5X digital zoom capacity;
5. High quality 3.5"TFT-LCD monitor powered with 4pcs AA batteries or built-in rechargeable Li-batteries (optional);
6. Real-time record what you see and hear, supports up to 32GB SD Card;
7. Adjustable brightness on lens-mounted LED lights;
8. Three useful optional accessories included: hook, mirror and magnet twisted on the len;
9. Simple menu with three different languages (optional);
10. Advanced ergonomic design, Light weight, handheld design, flexible and convenient to use;
11. Let you explore, help you find, fun to use.

Advantages:
No MOQ for standard items
Customer colors, label and logo design
Stable, high quality products
Fast lead time
Professional service
Technical support
Partnership support with marketing and product integration
OEM/ODM

Descriptions:

The SRC195 is one of Wi-Fi video Borescope, a inspection tool, which owns 3.5" LCD HD monitor with photo, video, playback, storage, AV out, Zoom in/out, Wi-Fi setting, etc functions. The removable tube is Dia.6.8mm and standard length 1 meter, we can choose tubes with other dia. size and length tube. We have the camera of 3.9mm,4.5mm,5.5mm, 8.5mm,10mm with 1meter to 10meter length for your choosing.

Applications:

Extend Your Hands and Eyes. Appropriate for use in surveying pipes, equipments, furnishing installation, underwater viewing, parts assembly, construction sites, workshops, laboratories, education, wildlife surveillance, car maintenance and repairing, hard-to-reach areas, etc.

Accessories:
Flexible tube camera x 1
Main unit x 1
AV Cable x 1
USB Cable x 1
User Manual x 1
Sling x 1
2GB SD Card x 1(optional)

User could buy as an additional part or make replacement for damaged parts
1.Dia.3.9mm,4.3mm,5.0mm,5.5mm,8.5mm,10mm camera head for observing even narrow spots
2.Optional Useful accessories: Hook, Mirror, Magnet twisted on the len for more surveying function
3.Flexible tube, Main unit, AV Cable, USB Cable, Hook, Mirror, Magnet, SD Card
4.Extension tube with 1M,2M,3M,5M length for easy extending
5.Professional Carry Case Package

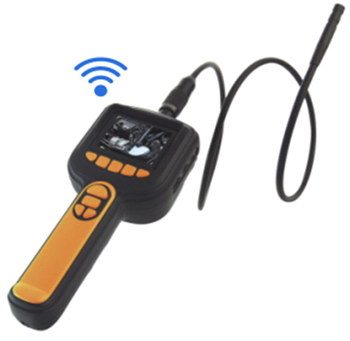

SRC195 Wi-Fi Video Borescope

Specifications:

Image Sensor: VGA CMOS Sensor, Sensor area 1/9"
Lens Specification: F 2.8, View angle 54-65
Visual Distance Range:20mm-150 mm (recommend 60mm)
Light Source:4 white LED light with adjustable light intensity
Length of detachable swan neck cable:98cm incl. camera head,90.8cm w/o camera head
For the tube size: we can do the camera of 3.9mm,4.5mm,5.5mm,
8.5mm,10mm with 1meter to 10meter length for your choosing.
Waterproof:- Camera unit: water splash resistance (IPX3)
- Probe head:1 meters deep water resistance(IP67)
Display:3.5 TFT-LCD resolution 640x480 pixels panel
Power Supply: built-in rechargeable Li-batteries
Image Mode:640x480 pixels
Video Mode (audio): VGA 640 x 480 Pixels (25-30 fps)
PC Cam Mode: USB 1.1 Interface/2.0
Compression :JPEG file (still), AVI file (video)
Storage:- SD card (SD card not included)
- Supports SD card capacity up to 32GB
TV Output:- TV out and mini USB (B type)
- Out put for NTSC / PAL
Unit Dimension (L x W x H):- 230*195*100mm
- tube length: 36 inches
Weight (g): About 500g
O / S: Microsoft Windows 98 SE / 2000 / ME / XP/Vista/7/8/Android system
Standard Accessory: USB Cable, TV Cable, Sling
Optional Accessory :mirror, hook, magnet, carry case, SD Card


Features:
1. Allows for easy surveying of small, hard-to-reach places;
2. Mini 8.5mm water-proof camera (640x480 pixels len) with 1 meter(3 ft) flexible and removable extended tube;
3. Manufactured and tested to water-proof level IP67;
4. Increase visibility with 5X digital zoom capacity;
5. High quality 3.5"TFT-LCD monitor with HD screen;
6. Wi-Fi setting (point to point);
7. Powered with the built-in rechargeable Li-batteries;
8. Real-time record photo, video, sound, supports up to 32GB SD Card;
9. Adjustable brightness on 4pcs lens-mounted LED lights;
10. Support O/S: Windows XP/Vista/7/8/Android system;
11. Simple menu with three different languages (optional);
12. Advanced ergonomic design, Light weight, handheld design, flexible and convenient to use;
13. We can use check the live view and photos with several device meantime as which supports Android system and Windows system.
14. Let you explore, help you find, fun to use.

Descriptions:

Newest Wi-Fi Borescope supports I phone, I pad, Android, Windows system.
Check hard-to-reach and hard-to-see area with the borescope together with your phone, pc or tablet pc.
Several devices operate smoothly at the same time.
Easy operation, good results

Applications:

Extend Your Hands and Eyes. Appropriate for use in surveying pipes, equipments, furnishing installation, underwater viewing, parts assembly, construction sites, workshops, laboratories, education, wildlife surveillance, car maintenance and repairing, hard-to-reach areas, etc.

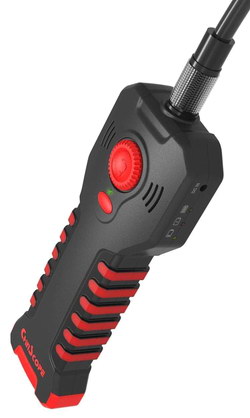

SRC196 Wi-Fi Borescope

Specifications:

O / S: Microsoft Windows 98 SE / 2000 / ME / XP/Vista/7/8/android system/I phone/I pad
Image Sensor: VGA CMOS Sensor, Sensor area 1/9"
Lens Specification: F 2.8, View angle 54-60
Visual Distance Range:20mm-150 mm (recommend 60mm)
Light Source:4 white LED light with adjustable light intensity
Standard Len Dia.: 8.5mm
Length of detachable swan neck cable:1M
Frame Rate:30fps
Waterproof:- Camera unit: water splash resistance (IPX3)
- Probe head:1 meters deep water resistance(IP67)
Power Supply: powered with the built-in rechargeable Li-ion battery
Unit Dimension (L x W x H): 230*195*100mm
Weight (g): About 500g
The customers can choose different tube: Dia.3.9mm,4.3mm,5.0mm,5.5mm,8.5mm,10mm camera head for observing even narrow spots
Standard Accessory: USB Cable, TV Cable, Sling, Power Adapter
Optional Accessory: mirror, hook, magnet, carry case

Features:
The SRC196 is another newest borescope with professional design and Wi-Fi function, which used with I PHONE, I PAD, ANDROID system and Windows XP,Vista,7,8,etc system. It is the point-to-point signal transferring. More the 5pcs I PHONE or Android devices work or operate meantime. We can take qualified photos, video, and record at the devices.
New Idea, New Design, New Function, Easy Operation, More economical

Packing list:
Flexible tube camera x 1
Main unit x 1
USB Cable x 1
Adapter x 1
Sling x 1
User Manual x 1
Accessories (Hook, Magnet, Mirror) x 1(optional)

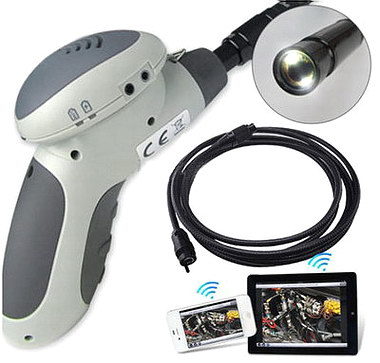

SRC197 WiFi Borescope Endoscope Camera

Features:
* Support iPad/ iPhone/ iTouch/ Android Smart Mobile/Android Pad through WIFI connect
* Photo & Video Recordable
* 1/9 inch VGA CMOS
* Camera Sensor: 640*480 Pixels
* Lens outer diameter: 9.8mm
* IP67 Waterproof Standard
* Hanging hook, Mirror and Magnetic Tip
* Rechargeable Lithium Battery can be charged by iPad/ iPhone/ Android Power Adapter or by Computer via USB
charging cable.

Specifications

Image Sensor

1/9 inch VGA CMOS

Video Resolution

640*480 (VGA)

Frame Rate

25fps (VGA on iPad/

iPhone/Android)

Video Streaming Format

MPEG4

Operation Temperature

0~45ºC

Mobile Surveillance

Support iPad/ iPhone/ iTouch/ Android Smart Mobile/

 Android Pad

Security

WEP (WIFI) Password Setup

Camera Lighting

2 White LEDs

Camera Diameter

9.8mm

Gooseneck Length

88+/-2cm

Min. Bending Radius

45mm

Power Source

Rechargeable Lithium Battery

Rechargeable Lithium Battery

3.7V, 2300mAh

Standard Packing:

1pcs in a tool case, 5pcs/CTN, CTN size: 55*40*29CM, G.W.: 8.50KGS

Accessories Include:

1x Video Borescope

1x Tool Suitcase

1x Video Tube

1x Hook, Mirror and Magnetic Tip

1x TV cable

1x Standard to mini USB cable (borescope to computer)

For below models:

12mm camera cable, tip accessories include magnet, hook, mirror; 9mm camera cable, tip accessories include magnet, hook, mirrir and protection cap.

Overview:

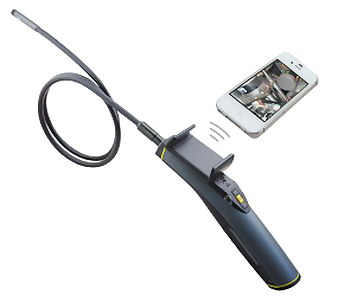

SRC363 WIFI video inspection has been designed as a user friendly and economical way of solving hidden problems and increasing productivity. (eg. Inspect vent pipe and system of air conditioner, machine equipment, engine and so on).
The unit uses WIFI technology and supports iPad/ iPhone/ Android/ MS NoteBook, and computers with WINDOWS system and wireless network card which comply with IEEE802.11n. The unit allows multiple devices to connect at the same time and displays clear real-time images. Also, you can connect the unit with homely wireless router. In this way, it is convenient for specialists to interview the real-time image via internet to guide and analyze your inspection.
The unit equips with a detachable fixture which can facilitate the installation of the mobile phone. When needed, use the fixture to install the phone above the units grip. The unit has a probe with the length of 1m and diameter of 9mm (customized camera head and probe also available). Four adjustable LED lights set around the camera head help the user to see inside dark gaps and holes. Several accessories can be equipped on the tip of the probe, making it more flexible. The accessories include magnetic, mirror, hook and screw protector.
SRC363 has built-in polymer lithium battery, also could use 5V DC adapter or USB port for charging with LED indicator. It has the advantages of small size, stable performance, easy operation and portability. It is widely used in applications such as the industry, the building, the aviation, the vehicles maintenance.

SRC363 (9mm*1m) WIFI Video Inspection

Specification:

Recommended use

Indoor

WIFI range

more than 25 meters in wide open spaces

Camera head spec.

Viewable angle

About 60

Outer diameter of camera head

Standard 9mm

camera head focus

50mm

Visible range

12.7 to 305mm

Probe length

Standard 1m (2m or 3m needs to be customized)

Light source

4 High lighting LED

Protection

Probe and camera head IP67

Camera head accessories

Magnet, hook, mirror and screw thread protector

Video

Image sensor

VGA CMOS 300,000 pixels

Compress mode

Motion-JPEG-N

FPS

30fps

Image resolution

640480 pixels

Image adjustment

Brightness, contrast, color saturation and gain can be adjustable

White balance and backlight compensation

AWB and ABLC

Internet

Wireless network standard

WIFI 802.11 b/g/n

Wireless Certification

WPA/WPA2/WE and so on

Video upload

Connect home wireless router wirelessly and transmit the video to Internet

Internet access

connect the internet via home wireless router

Support IP address

Static IP address, dynamic IP address

Web service

Support configuration based on WEB explorer ( with password protection)

Support WIFI platform

Support iPad / iPhone / Android / MS NoteBook/ WINDOWS

Attachment

USB charging wire (use adapter of ipad and iphone, compatible with all computer

Mobile phone fixture spec.

Smart phone with the width of 5585mm

Power supply

output 5V DC and input 3.7V polymer Lithium battery

Inside battery capacity

3.7V/1200mAh

Charging time of inside battery

About 3 hours

Battery life

More than 2 hours

Operating temperature

0C~45C

Operating humidity

RH 5%~95% non-condensing

Storage temperature

-20C+60C, 85% (w/o battery)

Dimension

266mm*44mm*80mm (the probe length is about 1m, the fixture is not included)

Weight

About 375g (1m probe is included, the fixture is not included)

Overview

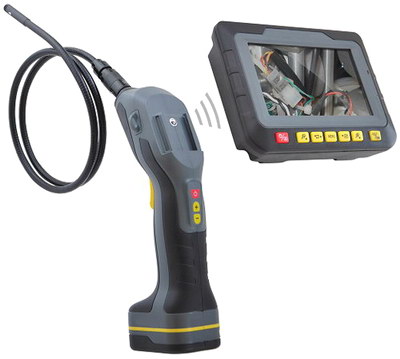

SRC368G5-09 Multifunction video inspection has been designed as a user friendly and economical way of solving hidden problems and increasing productivity. (eg. Inspect vent pipe and system of air conditioner, machine equipment, engine and so on).
The product has a high clarity color LCD of 5 size. It uses an interchangeable 9mm probe and can be connected to probes with different length and diameter (customized camera head and probes are also available). The camera head is with adjustable LED lights, which helps you to inspect gaps and holes. The camera head can equip with several accessories (magnet, mirror, hook etc.), making it more flexible.
SRC368G5-09 can take a photo wirelessly .It has built-in polymer lithium battery, also could use AC adapter for charging with LED indicator. The screen can detach from grip and the grip can control monitor to take photos and videos. SRC368G5-09 has an internal memory (support Micro SD), and is capable to capture videos and take photos both manually and automatically. It has a built-in microphone and a speaker, which makes it possible to record and playback sound. The product has a TV output and a USB port, which allows the users to connect the unit to a TV or a computer. The product also supports image zooming. It has the advantages of small size, clear image, stable performance, easy operation and portability. It is widely used in applications such as the industry, the building, the aviation, the vehicles maintenance.

SRC368G5-09 (9mm*1m) Multifunction Video Inspection

Specification

Recommended use

Indoor

Standard probe specifications

(SRC09AV4)

image sensor type

30,000 pixels CMOS image sensor

Outer diameter of camera head

9mm

Focal length

50mm

visible angle

60

Probe length

standard flexible 1m

2m/3m or customized (the longest length of flexible probe is 10mand inflexible is 40m)

Probe accessories

magnet, hook, mirror and screw thread protector

Support camera

head assembly

specifications

(not included)

SRC12AV4

The assembly of  12mm camera head

SRC05AV3

The assembly of 5.5mm flexible or inflexible camera head

SRC23AV

The assembly of 23mm camera head checking the probe

SRC12AV5

The assembly of 12mm camera head without probe

The probe connection head for

choice (not included)

Used to connect the old camera head

Probe and camera head protection

IP67

Light source

High lighting LED

Image display

5TFT/LCD

Image resolution

640480 pixels

LCD Resolution

800480 pixels

Image zooming

4 times

TV output format

NTSC/PAL

USB export mode

moveable storage mode (USB Disk)

real-time export image mode (USB Camera)

Image storage media

128MB memory

Micro SD card (Support up to 16G), the SD card for choice

Wireless transmission frequency

2468MHz

Wireless transmission distance

Up to 10M; If no obstacles, will more than 10M

Attachment

Adapter, TV cable, USB cable, signal cable, driver CD

Adapter

INPUT

AC 100~240V (50~60Hz)

OUTPUT

DC 9V 1.3A

Battery

Grip

7.4V/1350mAh  Polymer Lithium battery

Screen

7.4V/1500mAh  Polymer Lithium battery

Charging time of inside battery

About 3.5 hours

Battery life

About 2.5 hours

Operating temperature

0C~45C

Operating humidity

RH 5%~95% non-condensing

Storage temperature

-20C~+60C, 85% (w/o battery)

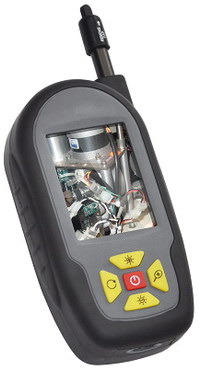

SRC2709 (9mm*60cm) Palm Scope

Introduction
SRC2709 Palm Scope has been designed as a user friendly and economical way of solving hidden problems and increasing productivity. (E.g. Inspect vent pipe and system of air conditioner, machine equipment, engine and so on).
SRC2709 has 2.7 " LCD screen, equipped with camera probe of 9mm head , length 60cm. The camera head of the probe has 4 bright LED lights that are nonadjustable, which helps you to reach gaps and holes. The camera head equips with several accessories including magnetic tip, mirror tip and hook , which makes it flexible.
SRC2709 has features of 4X image zoom and 180image rotation. The camera probe adopts unique patent structure which designs the camera probe in a built-in style. The product uses TPR and equips with safety sling and nylon bag which has a hanging buckle. It also has the advantages of small size, stable performance, easy operation and portability. It is widely used in applications such as the industry, the building, the aviation, the vehicles maintenance.

Specifications

Recommended use

Indoor

Viewable angle

60

Focal length

50mm

Visible distance

2.5cm-30cm

Diameter of camera head

9mm

Probe length

About 60cm

Image display

2.7TFT/LCD

LCD resolution

320240 pixels

Image rotation

180

Image zoom

1.0~4.0x

Protection level

Probe and camera IP67

Light source

4 Ultra high brightness LEDs

Accessory

Mirror, Hook, Magnet, Needle, Thread protector

and safety sling

Power supply

4pcs of AAA alkaline or rechargeable batteries

(LR03 orKR03)

Battery continuous working time

>3 hours

Working temperature

0C~45C

Working humidity

5%~95%RH non-condensing

Storage Condition

-20C~+60C, 85% (w/o batteries)

Main body dimension

136mm (150mm)73mm38mm

Main body weight

About 248g (w/o batteries)

USB Video Inspection Borescope (fixed camera cable)

SRC361A (12mm*1m)

Specification:

No screen;

Fully adjustable LED light;

The probe are IP67 water-proof.

Powered by computer;

Viewable angle: 60;

Resolution: 640480 pixels;

USB cable and probe are fixed;

USB2.0 interface;

Transmit real-time image to computer.

Package: Blister + Color Card.

USB Video Inspection Borescope (fixed camera cable)

SRC361A (9mm*1m)

Specification:

No screen;

Fully adjustable LED light;

The probe are IP67 water-proof.

Powered by computer;

Viewable angle: 60;

Resolution: 640480 pixels;

USB cable and probe are fixed;

USB2.0 interface;

Transmit real-time image to computer.

Package: Blister + Color Card.

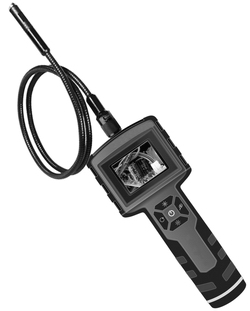

Video Inspection Borescope (fixed camera cable)

SRC150 (12mm*1m)

Specification:

Fixed obedient probe;

2.4'' TFT/LCD screen;

Image zoom from 1.0 to 2.0;

180 image rotation;

Fully adjustable LED light;

The camera head and probe are IP67 water-proof.

Transmit real-time image to TV;

4 AA alkaline batteries;

Package: Blister + Color Card.

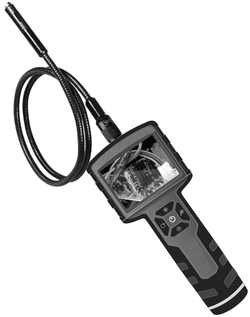

Video Inspection Borescope (fixed camera cable)

SRC160 (12mm*1m)

Specification:
Fixed probe;

3.5'' TFT/LCD screen;

Image zoom from 1.0 to 2.0;

180 image rotation;

Fully adjustable LED light;

The camera head and probe are IP67 water-proof.

Transmit real-time image to TV;

4 AA alkaline batteries;

Package: Blister + Color Card.

Video Inspection Borescope (fixed camera cable)

SRC360A1N (12mm*1m)

Specification:

Fixed probe;

2.4'' LCD screen;

Image zoom from 1.0 to 2.0;

180image rotation;

Fully adjustable LED light;

Use 9V alkaline battery (not included);

Package: Blow mold case.

Video Inspection Borescope (fixed camera cable)

SRC360B1N (12mm*1m)

Specification:
Fixed probe;

3.5'' LCD screen;

Image zoom from 1.0 to 2.0;

180 image rotation;

Fully adjustable LED light;

Use 9V alkaline battery (not included);

Package: Blow mold case.

For below models:

1, 12mm head accessories include magnet, hook, mirror; 9mm head accessories include magnet, hook, mirrir and protection cap; 5.5mm head accessories include guilding ball, mirror and protection cap.

2, Max total length of 9mm and 12mm is 5 meters, 5.5mm is up to 15 meters;

Video Inspection Borescope (detachable camera cable/probe)

Model Number:

              SRC360A-2 12X1m (w/ tip)

              SRC360A-2 9X1m (w/o tip)

              SRC360A-2 9X1m (w/ tip)

              SRC360A-2 5.5X1m (w/o tip)

              SRC360A-2 5.5X1m (w/ tip)

Specification:

Live View;

2.4'' color LCD screen with high visibility;

Image zoom from 1.0 to 2.0; 180 image rotation;

Flex obedient camera.

Fully adjustable LED light;

The camera head and probe are IP67 water-proof.

Use 9V alkaline battery (not included).

Video Inspection Borescope  (detachable camera cable/probe)

Model Number:

              SRC360B-2 12X1m (w/ tip)
              SRC360B-2 9X1m (w/o tip)
              SRC360B-2 9X1m (w/ tip)
              SRC360B-2 5.5X1m (w/o tip)
              SRC360B-2 5.5X1m (w/ tip)
Specification:

Live View;

3.5'' color LCD screen with high visibility;

Image zoom from 1.0 to 2.0; 180 image rotation;

Flex obedient camera.

Fully adjustable LED light;

The camera head and probe are IP67 water-proof.

Use 9V alkaline battery (not included).

Packing: 4PCS/CTN, CTN SIZE: 54*43*36CM, N.W./G.W:12.00/11.00KGS, VOLUME WEIGHT: 16.7KGS

Video Inspection Borescope  (detachable camera cable/probe)

Model Number:

              SRC360A1 12X1m (w/ tip)
              SRC360A1 9X1m (w/o tip)
              SRC360A1 9X1m (w/ tip)
              SRC360A1 5.5X1m (w/o tip)
              SRC360A1 5.5X1m (w/ tip)
Specification:

Live View;

2.4'' LCD screen;

Image zoom from 1.0 to 2.0;

180image rotation;

Fully adjustable LED light;

The camera head and probe are IP67 water-proof.

Use 9V alkaline battery (not included);

Package: Blow mold case.

Video Inspection Borescope  (detachable camera cable/probe)

Model Number:

              SRC360B1 12X1m (w/ tip)
              SRC360B1 9X1m (w/o tip)
              SRC360B1 9X1m (w/ tip)
              SRC360B1 5.5X1m (w/o tip)
              SRC360B1 5.5X1m (w/ tip)
Specification:

Live View;

3.5'' LCD screen;

Image zoom from 1.0 to 2.0; 180 image rotation;

Fully adjustable LED light;

The camera head and probe are IP67 water-proof.

Use 9V alkaline battery (not included).

Multifuncational Video Inspection Borescope  (detachable camera cable/probe)

Model Number:

              SRC250 12X1m (w/ tip)
              SRC250 9X1m (w/o tip)
              SRC250 9X1m (w/ tip)
              SRC250 5.5X1m (w/o tip)
              SRC250 5.5X1m (w/ tip)
Specification:

2.4'' TFT/LCD screen;

Image zoom from 1.0 to 4.0; 180 image rotation;

Fully adjustable LED light;

Capture still image and video

Audio feature; Build-in microphone

Video and images recording;

Internal memory (64MB) and SD card slot;

SD card not included; Support up to 16G.

TV and USB output.

The camera head and probe are IP67 water-proof.

Use 4 * AA batteries (not included).

Multifuncational Video Inspection Borescope  (detachable camera cable/probe)

Model Number:

              SRC350 12X1m (w/ tip)
              SRC350 9X1m (w/o tip)
              SRC350 9X1m (w/ tip)
              SRC350 5.5X1m (w/o tip)
              SRC350 5.5X1m (w/ tip)

Specification:

3.5'' TFT/LCD screen;

Image zoom from 1.0 to 4.0; 180 image rotation;

Fully adjustable LED light;

Capture still image and video

Audio feature; Build-in microphone

Video and images recording;

Internal memory (64MB) and SD card slot;

SD card not included; Support up to 16G.

TV and USB output.

The camera head and probe are IP67 water-proof.

Use 4 * AA batteries (not included).

USB Wireless Video Inspection Borescope  (detachable camera cable/probe)

Model Number:

              SRC362 12X1m (w/ tip)
              SRC362 9X1m (w/o tip)
              SRC362 9X1m (w/ tip)
              SRC362 5.5X1m (w/o tip)
              SRC362 5.5X1m (w/ tip)

Specification:

No screen; Wireless

Fully adjustable LED light;

Live View from computer; Connect receiver box to computer and software included.

Wireless (Non-obstacles10M);

With CD-ROM and USB cable;

With rechargeable lithium battery and adapter (included).

Wireless Video Inspection Borescope  (detachable camera cable/probe)

Model Number:

              SRC362B 12X1m (w/ tip)
              SRC362B 9X1m (w/o tip)
              SRC362B 9X1m (w/ tip)
              SRC362B 5.5X1m (w/o tip)
              SRC362B 5.5X1m (w/ tip)

Description:

3.5'' wireless LCD screen detachable; Wireless (Non-obstacles10M);

Image zoom from 1.0 to 2.0; 180rotation function for image;

Both screen and grip with rechargeable lithium battery and adapter (included)

Specification:

Recommended use Indoor
Viewable angle: 60
Focal length: 50mm
Diameter of camera head: 12mm(or other size)
Image display: 3.5 TFT/LCD
Resolution: 320240 pixels
Wireless transmission frequency: 2414MHz, 2432MHz, 2450MHz, 2468MHz
Wireless transmission distance: Up to 10M; If no obstacles, will more than 10M
Accessories: Magnet tip, hook tip, mirror tip, one to two cable
Probe length: 100cm or your requirements
Probe and camera head protection: IP67
Light source: High lighting LED
Adapter Input: AC 100~240V (50~60Hz)
            Output: DC 5.5V 1.5A
Inside battery: Polymer Lithium battery
Battery capacity Grip: 1200mAh
                         Screen: 1350mAh
Charging time of inside battery: About 3.5 hours
Battery life: About 2~3 hours
Operating temperature: 0C~45C

Operating humidity: RH 5%~95% non-condensing
Storage temperature: -20C~+60C,=85%(w/o battery)
Dimension Grip: 266mm73mm80mm
                Screen: 100mm82mm26mm
Weight Grip: About 155g (w/o probe)
           Screen: About 165 g

Multifuncational Wireless Video Inspection Borescope  (detachable camera cable/probe)

Model Number:

              SRC368B 12X1m (w/ tip)
              SRC368B 9X1m (w/o tip)
              SRC368B 9X1m (w/ tip)
              SRC368B 5.5X1m (w/o tip)
              SRC368B 5.5X1m (w/ tip)

Description:

3.5'' wireless LCD screen detachable; Wireless (Non-obstacles10M);

Image zoom from 1.0 to 4.0; 180 image rotation;

Photo and video recording;

Micro SD card 2G included and TV cable;

Screen and grip with rechargeable lithium battery and adapter (Included).

Specification:

Model

SRC368B

Recommended usage

Indoor

Viewable angle

60

Focal length

50mm

Outer diameter of camera head

Standard

12mm(attachments: magnet, hook and mirror)

Optional

9mm(attachments: magnet, hook, mirror and screw thread protector)

5.5mm(attachments: mirror, deflective ball and screw thread protector)

Display

3.5" TFT/LCD

Image storage media

2GMicro SD card (Support up to 16G)

LCD Resolution

320240 pixels

Wireless transmission frequency

2414MHz, 2432MHz, 2450MHz, 2468MHz

Wireless transmission distance

Up to 10m; more than 10m if no obstacles

Accessories

Micro SD card, one to two DC charging cable, Micro SD memory card, Micro SD to SD transition pocket, TV cable, USB cable

Probe length

100cmor customized length

Probe and camera head ingress protection standard

IP67

Light source

Ultra high brightness LED

DC adaptor

INPUT

AC 100~240V(50~60Hz)

OUTPUT

DC 5.5V 1.5A

Build in battery

Rechargeable polymer lithium battery

Battery capacity

grip

1200mAh

screen

1350mAh

Charging time of inside battery

About 3.5 hours

Battery life

About 2 hours

Operating temperature

0ºC~45ºC

Operating humidity

5%~95%RH non-condensing

Storage

-20ºC~+60ºC, 85%(w/o battery)

Dimension

Grip

266mm73mm80mm

Screen

100mm82mm26mm

Weight

Grip

About 155 g (w/o probe)

Screen

About 175 g

Video Inspection Borescope  (detachable camera cable/probe)

Model Number:

              SRC150A 12X1m (w/ tip)
              SRC150A 9X1m (w/o tip)
              SRC150A 9X1m (w/ tip)
              SRC150A 5.5X1m (w/o tip)
              SRC150A 5.5X1m (w/ tip)

Specification:

Live View;

2.4'' TFT/LCD screen;

Image zoom from 1.0 to 2.0;

180 image rotation;

Fully adjustable LED light;

The camera head and probe are IP67 water-proof.

Transmit real-time image to TV;

4 AA alkaline batteries;

Package: Blister + Color Card.

Video Inspection Borescope  (detachable camera cable/probe)

Model Number:

              SRC160A 12X1m (w/ tip)
              SRC160A 9X1m (w/o tip)
              SRC160A 9X1m (w/ tip)
              SRC160A 5.5X1m (w/o tip)
              SRC160A 5.5X1m (w/ tip)

Specification:

Live View;

3.5'' TFT/LCD screen;

Image zoom from 1.0 to 2.0;

180 image rotation;

Fully adjustable LED light;

The camera head and probe are IP67 water-proof.

Transmit real-time image to TV;

4 AA alkaline batteries;

Package: Blister + Color Card.



( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@163.com )
