Digital Intraoral Scope

(Digital Intraoral Scope, Intra-Oral Camera)

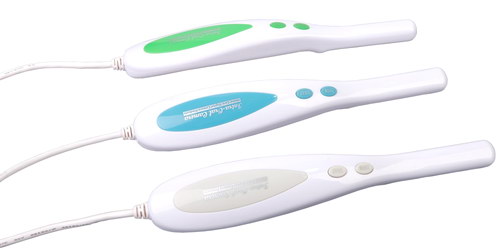

SRM201 Digital Intraoral Scope

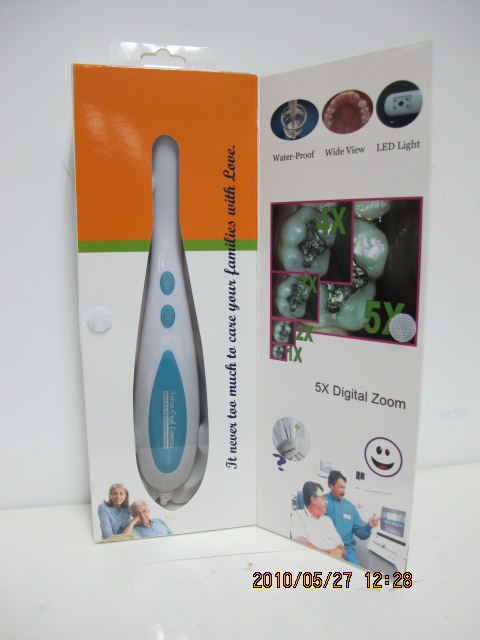

Click for packing picture

Description

Resolution

VGA Color CMOS Sensor up to 20M (Interpolation)

Controller

High Speed DSP

Lens

4P + IR cut

Focus Range

Fixed Focus ( Focus range : 10mm ~ 30mm )

Photo Capture Resolution

1.3M, 2M ,5M, 20M ( interpolated)

Light  Source

3000mL White Light LED X4

Frame Rate

Max : 30 f/s  Under 600 Lux Brightness

Water Proof Function

Available

Snap Function

Available

Digital Zoom

5X

Brightness Control

Auto W/B by software

Magnification  Ratio

2X  ~  6X ( Based on different display size )

Power Supply

5V ( USB Port )

Interface

USB2.0 ( STD ) & USB 1.1 Compatible

Dimension

208 mm ( L ) X  36 mm ( R Max. )
