| MDCE-5C Digital Camera Eyepieces |
|
· |
Adopt high performance USB2.0 chip. |
| · |
With high-resolution 1280X1024 (1.3M Pixel), avoid mosaic phenomenon and make image fluent. Provide auto brightness and white balance control function and some high-level image control function such as color saturation, contrast, fringe swell and gamma numerical value. |
| · |
With 30f/s high image transmission speed, makes image transmission more fluent and realistic. |
| · |
Convenient to use and just insert it into eyepiece tube or top tube of trinocular head. Easy to install and operate and it can be plug and unplug freely. |
| · |
USB2.0, plug-and-play, easy to install and use. |
| · |
With measurement functions, it is an outstanding assistant in medicine, teaching, industrial test field and other sectors. |
|
|
MDCE-5C |
|
Image Sensor |
1/3.2＂CMOS |
|
Image Format |
640×480、800×600、1024×760、1280×1024 |
|
Data Format |
YUY2，1420 |
|
Image Output |
USB2.0, plug-and-play |
|
Connecting Mode |
Insert it into Eyepiece Tube of Microscope Directly (23.2mm or 30mm) |
|
Image Velocity |
30PfS@VGA（I420） 15PfS@VGA(YUY2) |
|
Lowest Illumination |
2.5LUX |
|
SNR |
＞48dB |
|
Camera Image Control |
Saturation, Contrast, Sharpness and so on |
|
White Balance |
Auto, Manual |
|
Exposure |
Auto, Manual |
|
Working Current |
＜200mA |
|
Dormant Current |
＜1mA |
|
Storage Temperature |
-20℃~+60℃ |
|
Working Temperature |
0℃~+40℃ |
|
|

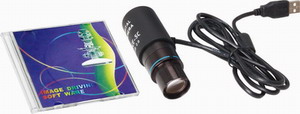

MDCE-5C |
|
Digital Camera Eyepiece |
● |
|
Driver |
● |
|
Eyepiece Tube Adapter |
● |
|
Packing Box |
● |
|
Note：● Standard Outfit，○ Optional |
|
|
