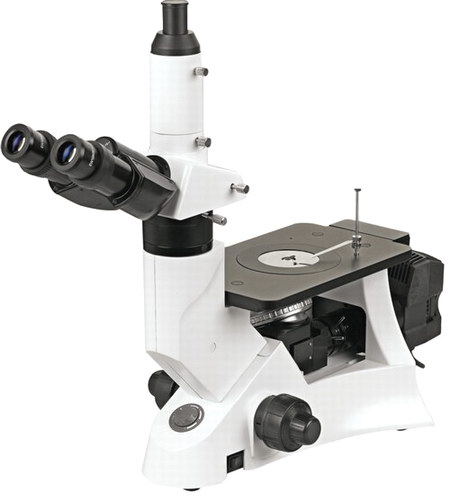

NIM-100 Metallurgical Microscope |
| Infinitive Optical System Providing Excellent Optical Functions.
With the stable stand structure, advanced stage design and comfortable
operation, it is widely used in institute and laboratory to observe and identify
the structure of various metal and alloy. |
| |
|
NIM-100 |
|
Viewing Head |
Trinocular head inclined at 30°,
interpupillary distance 48-75mm |
● |
|
Eyepiece |
High-point , extra wide field
eyepiece EW10×/ 20 |
● |
|
Infinite Plan Achromatic Objective |
4×/ 0.1 |
● |
|
5×/ 0.12 |
○ |
|
10×/ 0.25 |
● |
|
20×/ 0.40 |
● |
|
40×/ 0.60 |
● |
|
50×/ 0.75 |
○ |
| 80×/ 0.90 |
○ |
| 100×/ 0.80 |
○ |
|
Nosepiece |
Quintuple nosepiece |
● |
|
Stage |
Plain stage |
● |
|
Attachable mechanical stage, X-Y
coaxial control, moving range 120×78mm |
○ |
|
Double layer mechanical stage
226×178mm,Moving range 50×50mm |
○ |
|
Auxiliary stage |
○ |
|
Focusing |
Coaxial coarse & fine adjustment,
Vertical objective movement, Coarse stroke 37.7mm
per rotation, Fine stroke 0.2mm per rotation |
● |
|
Kohler
Illumination |
Halogen lamp 6V/ 30W |
● |
|
Filter |
Blue, Yellow, Green and Ground Glass
|
● |
|
Polarization Attachment |
|
● |
|
Photo Attachment |
|
○ |
|
Video Adapter |
Video adapter with C mount |
○ |
| Note: ●Standard Outfit, ○Optional |
|
|
